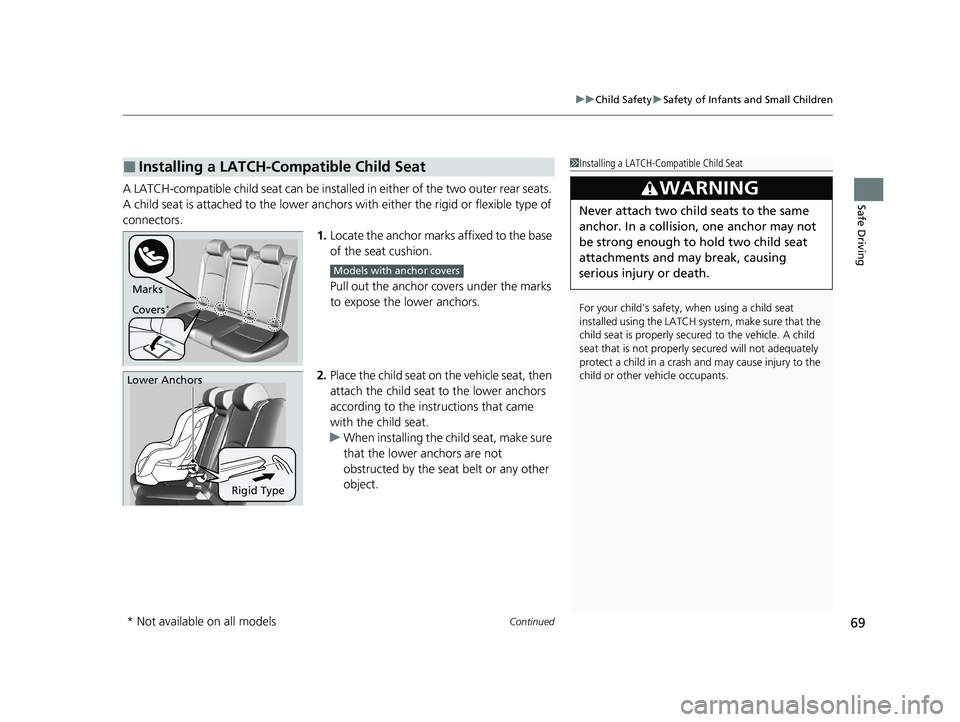

Continued69
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA LATCH-compatible child seat can be installe d in either of the two outer rear seats.
A child seat is attached to th e lower anchors with either th e rigid or flexible type of
connectors. 1.Locate the anchor marks affixed to the base
of the seat cushion.
Pull out the anchor covers under the marks
to expose the lower anchors.
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the ins tructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
■Installing a LATCH-Compatible Child Seat1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Marks
Covers
*
Models with anchor covers
Rigid Type
Lower Anchors
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 69 ページ ２０２０年８月２８日　金曜日　午後１時４
８分

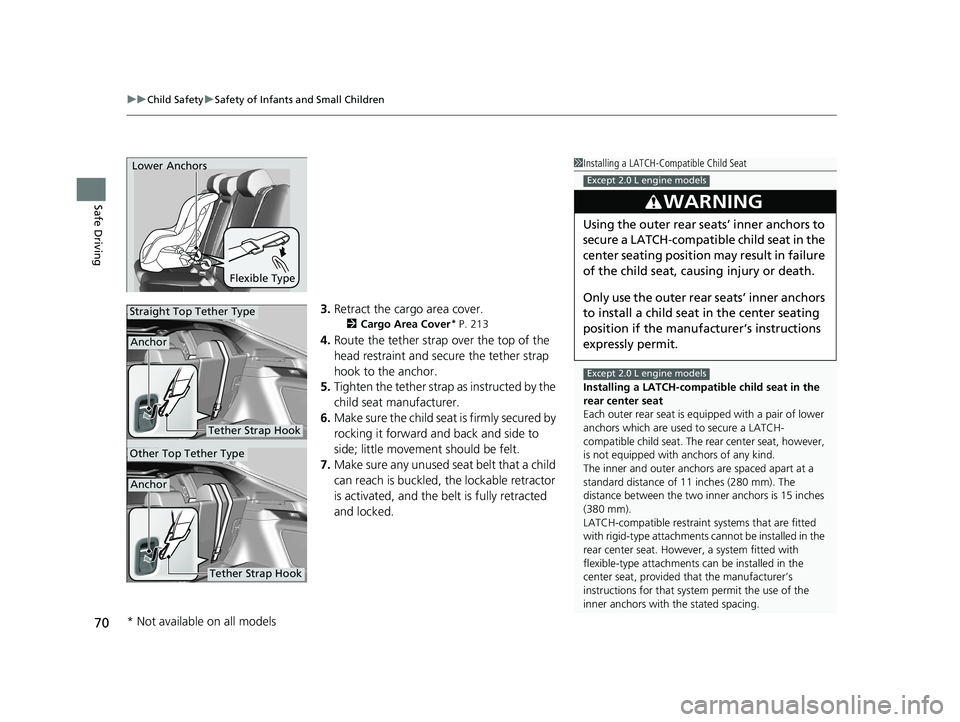

uuChild Safety uSafety of Infants and Small Children
70
Safe Driving
3. Retract the cargo area cover.
2 Cargo Area Cover* P. 213
4.Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
Flexible Type
Lower Anchors
1
Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equi pped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 inches (280 mm). The
distance between the two i nner anchors is 15 inches
(380 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
3WARNING
Using the outer rear seats’ inner anchors to
secure a LATCH-compatible child seat in the
center seating position may result in failure
of the child seat, causing injury or death.
Only use the outer rear seats’ inner anchors
to install a child seat in the center seating
position if the manufa cturer’s instructions
expressly permit.
Except 2.0 L engine models
Except 2.0 L engine models
Anchor
Straight Top Tether Type
Other Top Tether Type
Tether Strap Hook
Tether Strap Hook
Anchor
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 70 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

Continued71
uuChild Safety uSafety of Infants and Small Children
Safe Driving

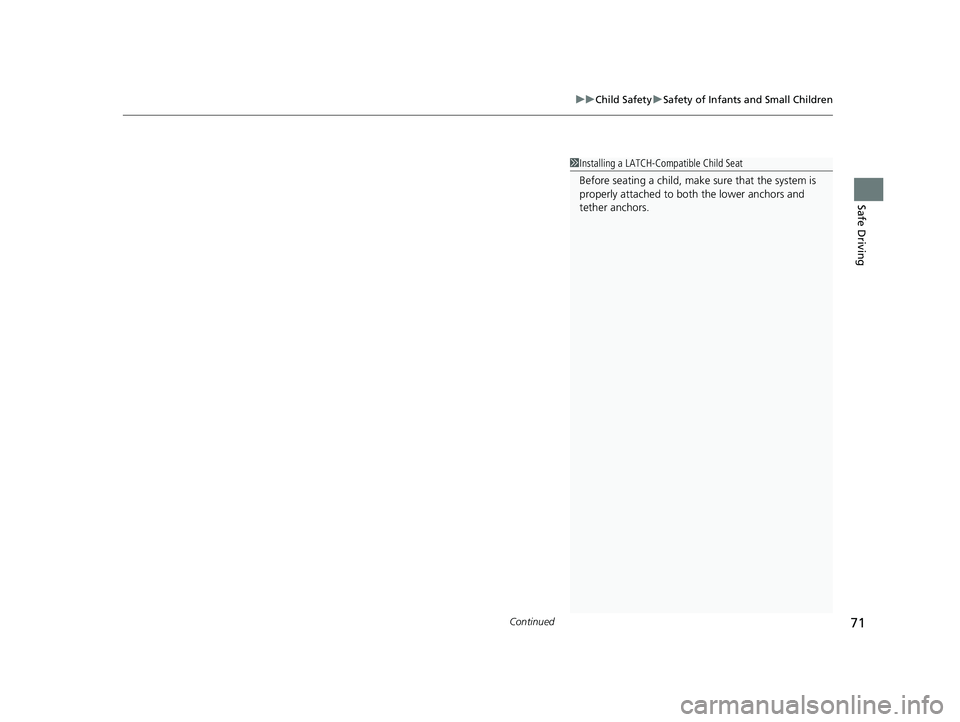

1Installing a LATCH-Compatible Child Seat
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
21 CIVIC 5D HUM-31TGG6400_01.book 71 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

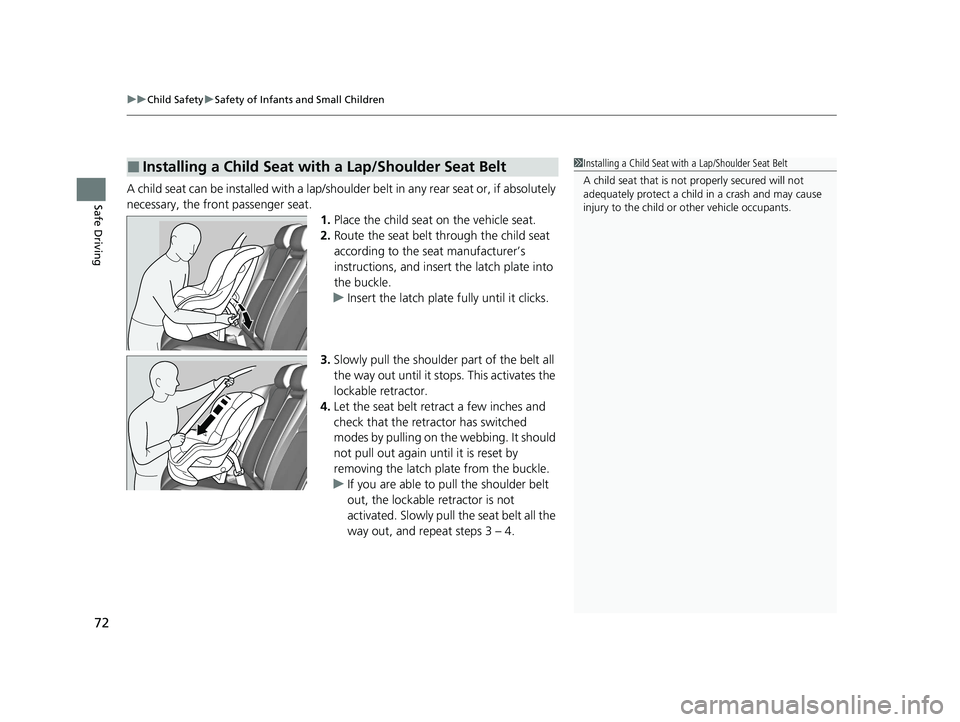

uuChild Safety uSafety of Infants and Small Children
72
Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch plate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
21 CIVIC 5D HUM-31TGG6400_01.book 72 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

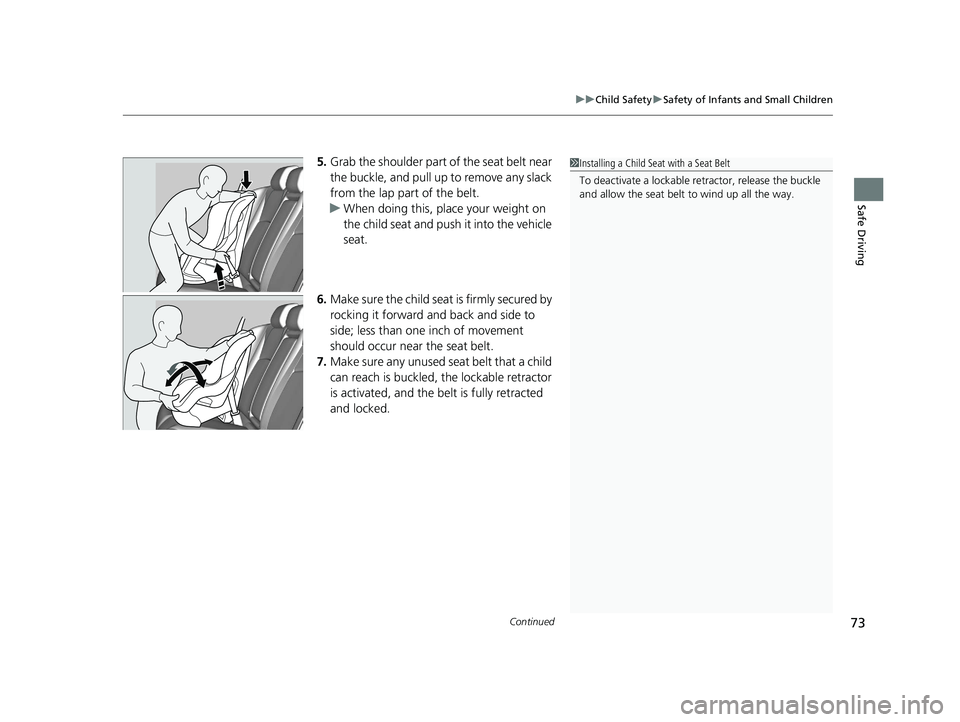

Continued73
uuChild Safety uSafety of Infants and Small Children
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
21 CIVIC 5D HUM-31TGG6400_01.book 73 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

uuChild Safety uSafety of Infants and Small Children
74

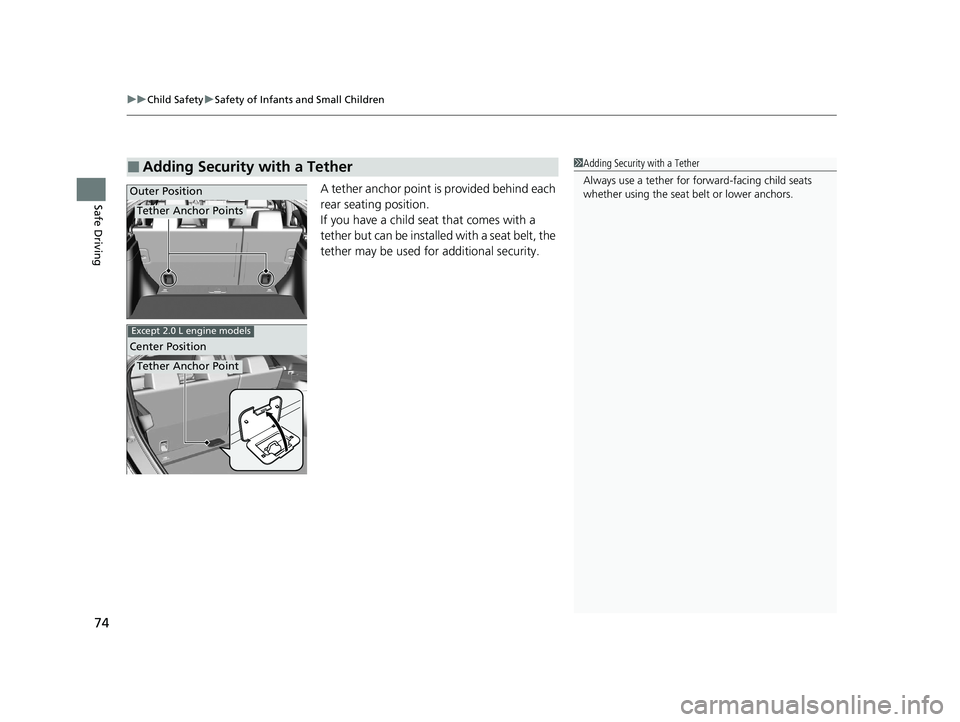

Safe DrivingA tether anchor point is provided behind each
rear seating position.
If you have a child seat that comes with a
tether but can be installe d with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.
Tether Anchor Points
Outer Position
Tether Anchor Point
Center Position
Except 2.0 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 74 ページ ２０２０年８月２８日　金曜日　午後１時４
８分

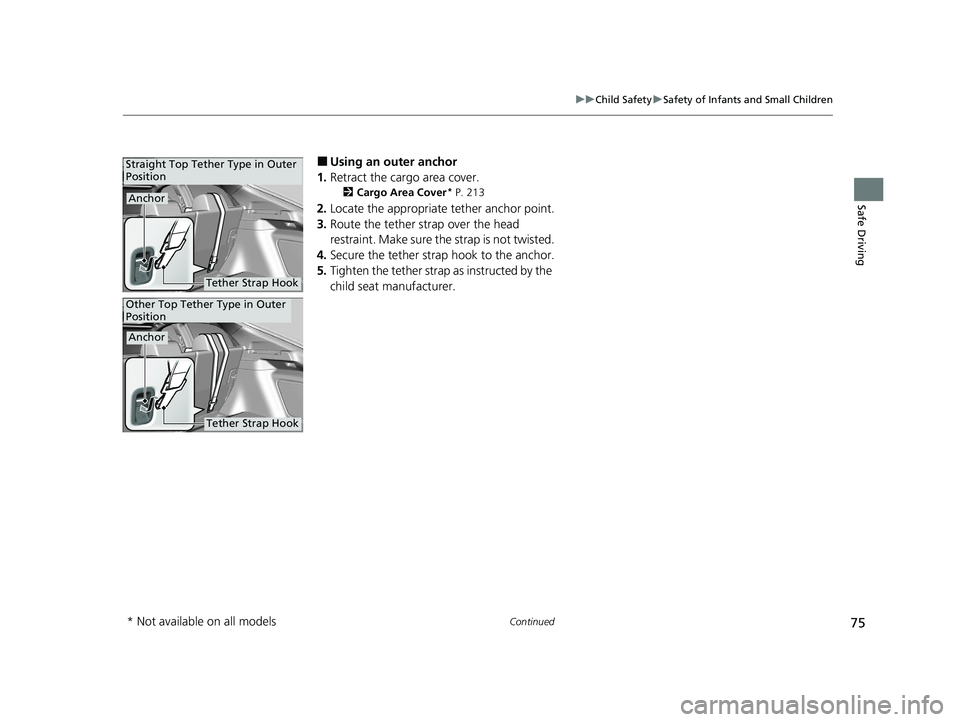

75
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■Using an outer anchor
1. Retract the cargo area cover.
2 Cargo Area Cover* P. 213
2.Locate the appropriate tether anchor point.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Straight Top Tether Type in Outer
Position
Tether Strap Hook
Anchor
Other Top Tether Type in Outer
Position
Anchor
Tether Strap Hook
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 75 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

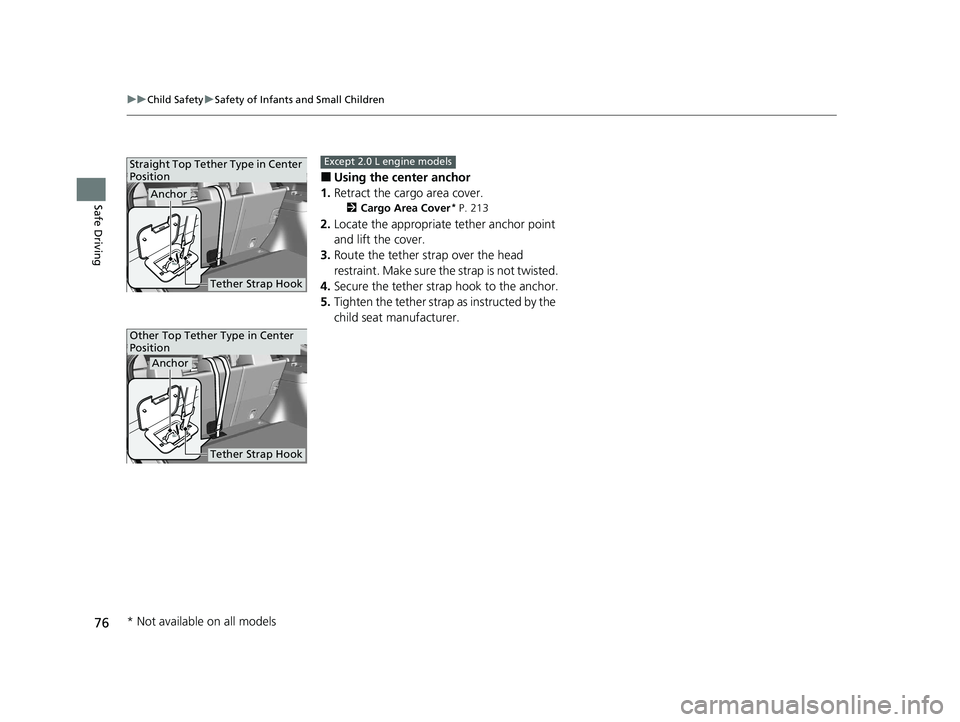

76
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using the center anchor
1. Retract the cargo area cover.
2 Cargo Area Cover* P. 213
2.Locate the appropriate tether anchor point
and lift the cover.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Straight Top Tether Type in Center
Position
Tether Strap Hook
Anchor
Except 2.0 L engine models
Other Top Tether Type in Center
Position
Tether Strap Hook
Anchor
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 76 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

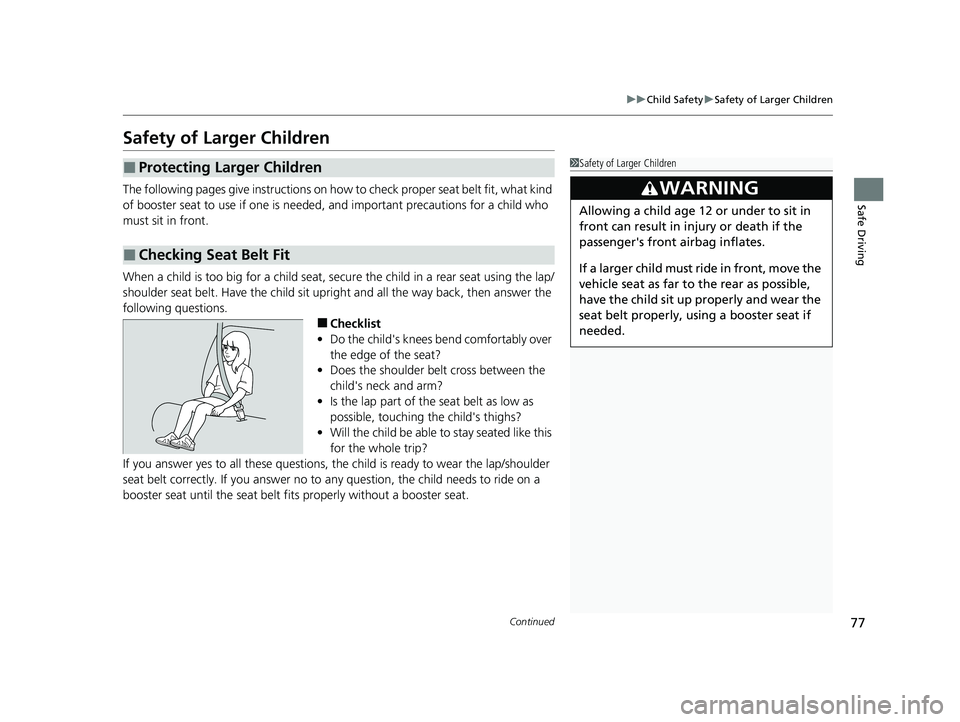

77
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child's knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child's neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child's thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger's front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
21 CIVIC 5D HUM-31TGG6400_01.book 77 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

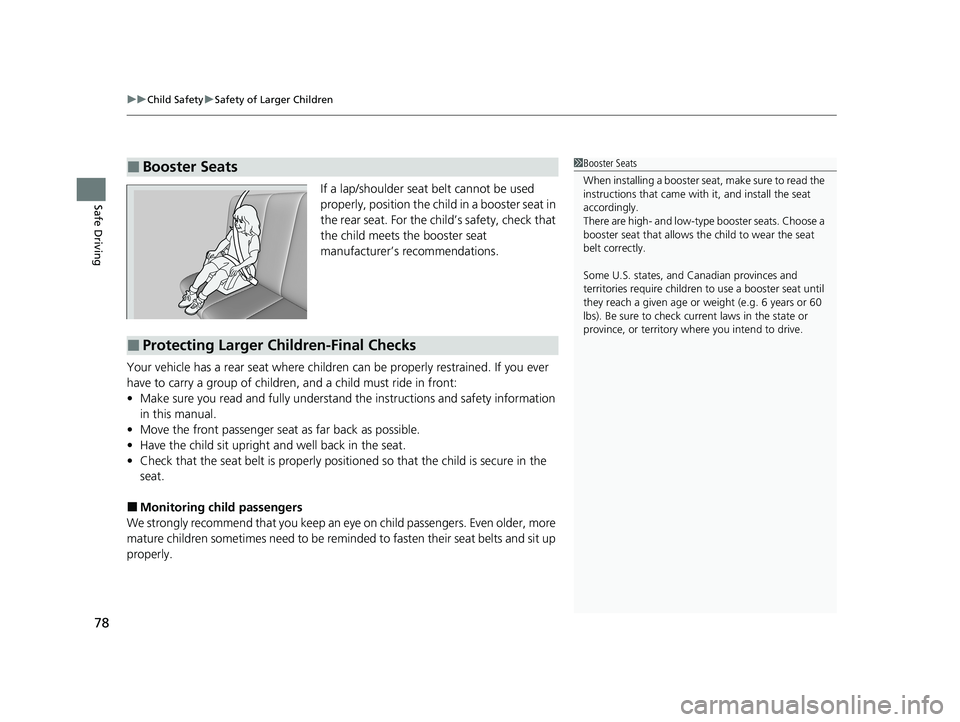

uuChild Safety uSafety of Larger Children
78
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
