Page 121 of 711

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the back of the smart entry remote into contact
with the ENGINE START/STOP button.
2If the Smart Entry Remote Battery is Weak P. 660
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and clutch pedal (manual transmission
only), manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
U.S.
*
Canada
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 119 ページ 2020年8月28日 金曜日 午後1時 48分
Page 122 of 711

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a deal er as soon as possible.
MessageConditionExplanation
●Appears if you press the ENGINE START/STOP
button while the vehicle is moving.
2 Emergency Engine Stop P. 661
MessageConditionExplanation
●Appears if there is a problem with a system related
to Rev Match System while the system is activated by
customization.●Have your vehicle checked by a dealer.
2Rev Match System P. 469
●Appears if there is a problem with the adaptive
damper system.●Have your vehicle checked by a dealer. Your vehicle will
have normal damping ability without the adaptive
damper feature.
●Appears if the drive mode cannot be changed due to
certain situations, such as a system error or adverse
driving conditions.
2 Drive Mode Switch P. 473
Models with LED headlight
1.5 L engine models
2.0 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 120 ページ 2020年8月28日 金曜日 午後1時 48分
Page 123 of 711

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you unlock and open the driver’s
door while the engine is running by one-way smart
entry remote.
2Remote Engine Start* P. 456
Models with remote engine starter
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 121 ページ 2020年8月28日 金曜日 午後1時 48分
Page 124 of 711

122
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Gauges
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 666
21 CIVIC 5D HUM-31TGG6400_01.book 122 ページ 2020年8月28日 金曜日 午後1時 48分
Page 125 of 711

123
uuGauges and Driver Information Interface uGauges
Instrument Panel

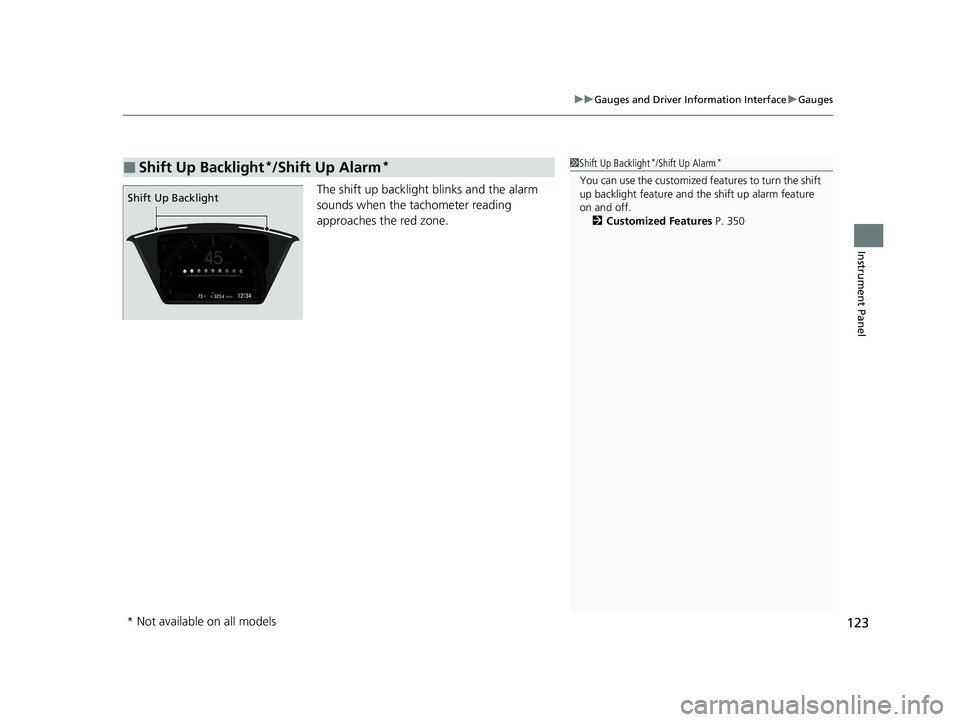

The shift up backlight blinks and the alarm
sounds when the ta chometer reading
approaches the red zone.
■Shift Up Backlight*/Shift Up Alarm*1 Shift Up Backlight*/Shift Up Alarm*
You can use the customized features to turn the shift
up backlight feature and th e shift up alarm feature
on and off. 2 Customized Features P. 350
Shift Up Backlight
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 123 ページ 2020年8月28日 金曜日 午後1時 48分
Page 126 of 711

124
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

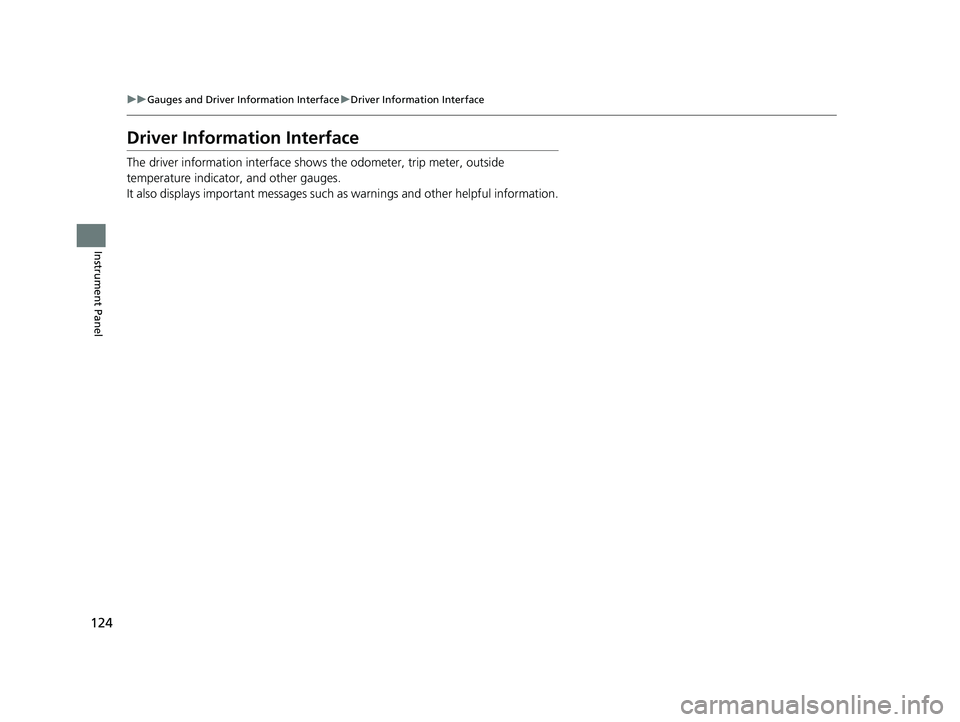

Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
21 CIVIC 5D HUM-31TGG6400_01.book 124 ページ 2020年8月28日 金曜日 午後1時 48分
Page 127 of 711

125
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 256
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range & Fuel Turbo Meter Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed &
Elapsed Time
Mail
*
Optional contents*1:
1.5 L engine models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 125 ページ 2020年8月28日 金曜日 午後1時
48分
Page 128 of 711

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:You can add the contents usin g the audio/information screen.
Accelerator
Position/Braking
Pressure MeterTurbo Meter Rev Indicators G-Meter Stopwatch Range &
Fuel
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed
& Elapsed Time
Mail
Optional contents
*1:
2.0 L engine models
Navigation*
& Compass*
Audio Maintenance MinderTMPress , ,
or .
Press ENTER .
(Display/
Information) Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 126 ページ 2020年8月28日 金曜日 午後1時 48分
Page 129 of 711

Continued127
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

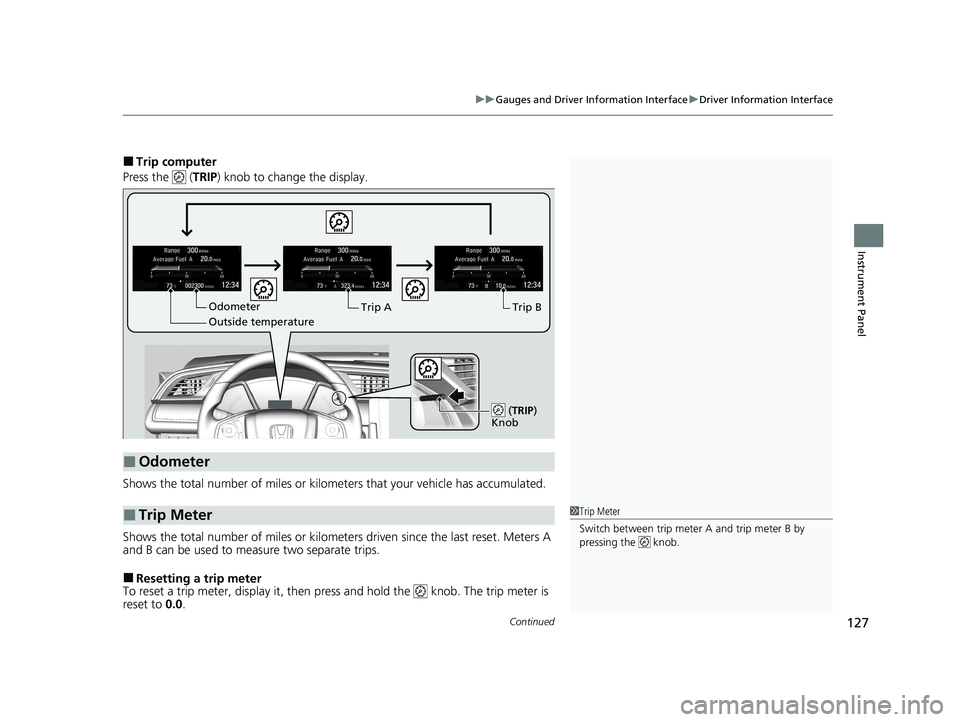

■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
21 CIVIC 5D HUM-31TGG6400_01.book 127 ページ 2020年8月28日 金曜日 午後1時 48分
Page 130 of 711

uuGauges and Driver Information Interface uDriver Information Interface
128
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 573
■Average Fuel Economy
■Range
■Elapsed Time*
■Average Speed*
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 134, 350
1Elapsed Time*
You can change when to reset the elapsed time.
2 Customized Features P. 134, 350
1Average Speed*
You can change when to reset the average speed.
2 Customized Features P. 134, 350
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 128 ページ 2020年8月28日 金曜日 午後1時 48分
