HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)

Continued209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will au tomatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system, and placed with the
chargeable side in the center of the
charging area.
3. When charging is co mpleted, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*
Canadian models
1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.
When using the wireless charger, check the user’s
manual that came with th e compatible device you
want to charge.
3CAUTION
Metal objects between the charge pad and
the device to be charged will get hot and
can burn you.
• Always remove foreign objects from the
charge pad before charging the device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charger and the device.
• Do not use oil, grease, alcohol, benzine
or thinner for cleaning the charge pad.
• Do not cover the system with towels,
clothing, or other objects while charging
etc.
• Avoid spraying aerosols which may come
in contact with the charge pad surface.
Green Indicator
Amber Indicator
Charging Area (Power) Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 209 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
210
Controls

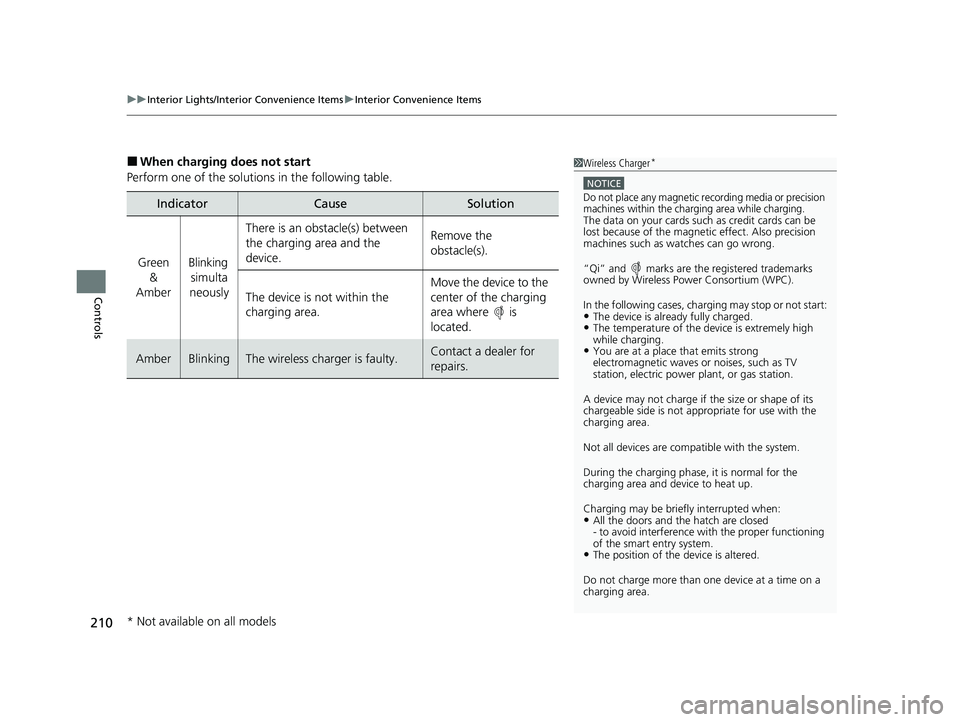

■When charging does not start
Perform one of the solution s in the following table.
IndicatorCauseSolution
Green
&
AmberBlinking simulta
neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Move the device to the
center of the charging
area where is
located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
NOTICE
Do not place any magnetic recording media or precision
machines within the charging area while charging.
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also precision
machines such as watches can go wrong.

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

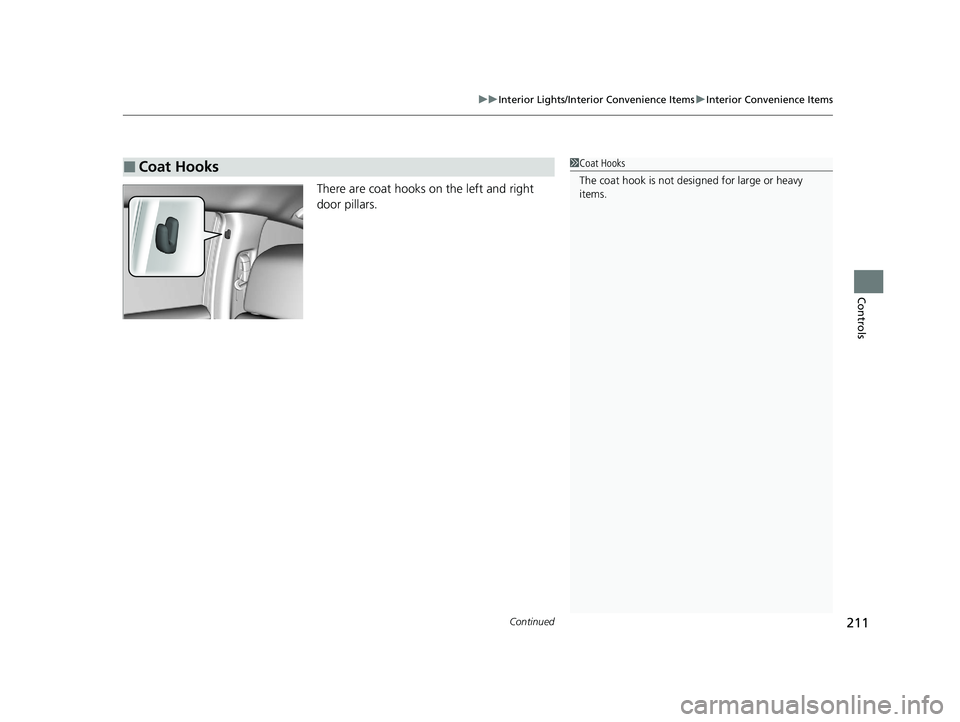

There are coat hooks on the left and right
door pillars.
■Coat Hooks1Coat Hooks
The coat hook is not desi gned for large or heavy
items.
21 CIVIC 5D HUM-31TGG6400_01.book 211 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls

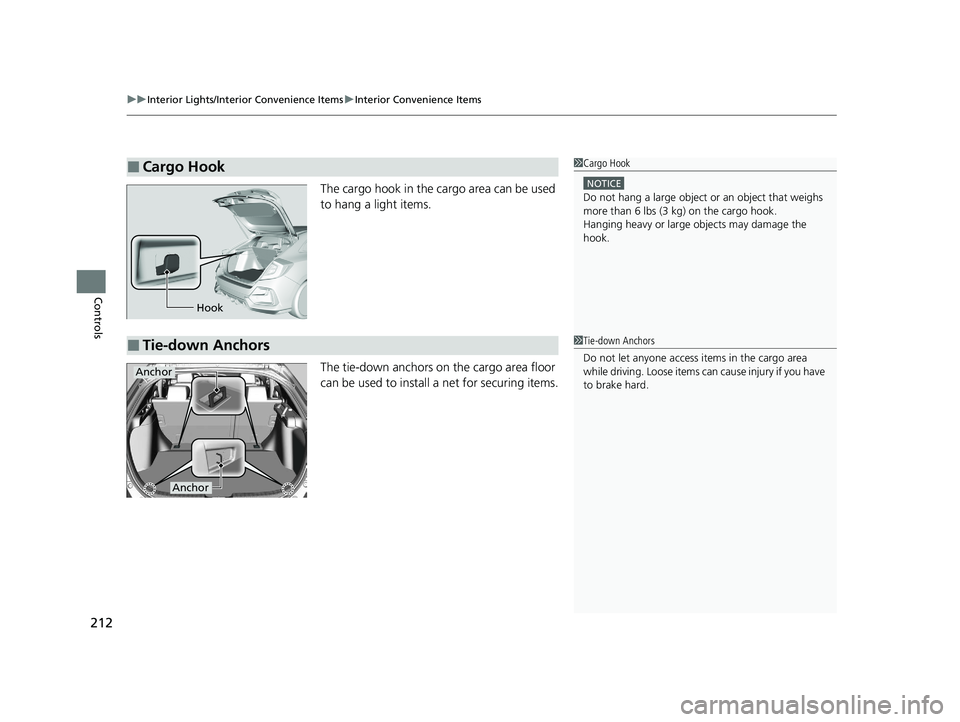

The cargo hook in the cargo area can be used
to hang a light items.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Cargo Hook1Cargo Hook
NOTICE
Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the cargo hook.
Hanging heavy or large objects may damage the
hook.
Hook
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Anchor
Anchor
21 CIVIC 5D HUM-31TGG6400_01.book 212 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

Continued213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

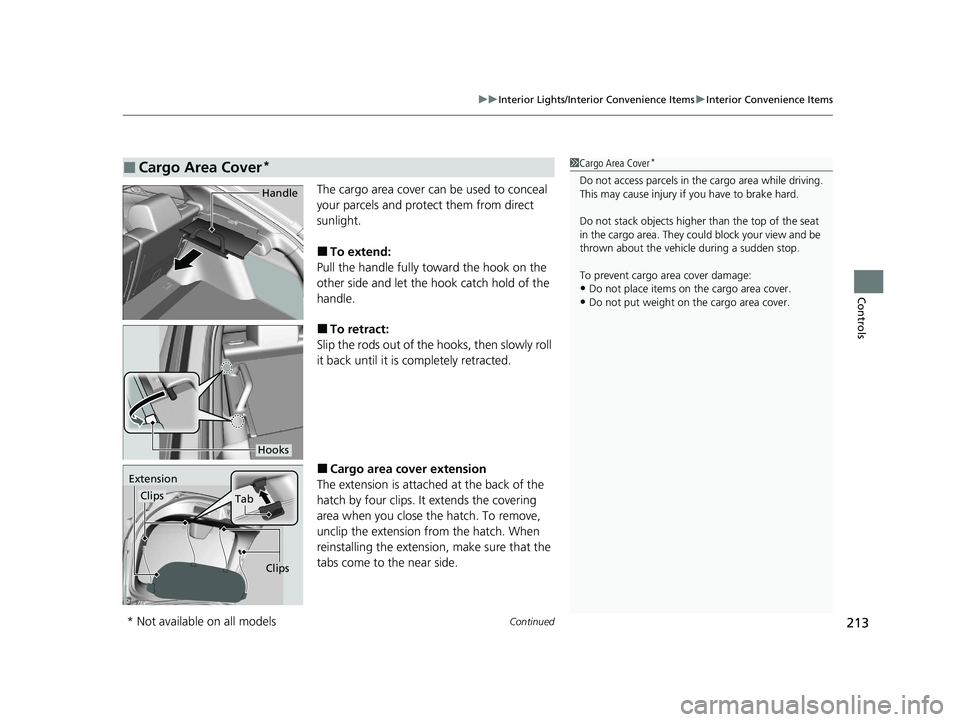

The cargo area cover can be used to conceal
your parcels and protect them from direct
sunlight.
■To extend:
Pull the handle fully toward the hook on the
other side and let the hook catch hold of the
handle.
■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■Cargo area cover extension
The extension is attached at the back of the
hatch by four clips. It extends the covering
area when you close th e hatch. To remove,
unclip the extension from the hatch. When
reinstalling the extension, make sure that the
tabs come to the near side.
■Cargo Area Cover*1 Cargo Area Cover*
Do not access parcels in the cargo area while driving.
This may cause injury if you have to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo area cover damage:
•Do not place items on the cargo area cover.
•Do not put weight on the cargo area cover.
Handle
Hooks
Extension
Clips
Tab
Clips
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 213 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

214
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

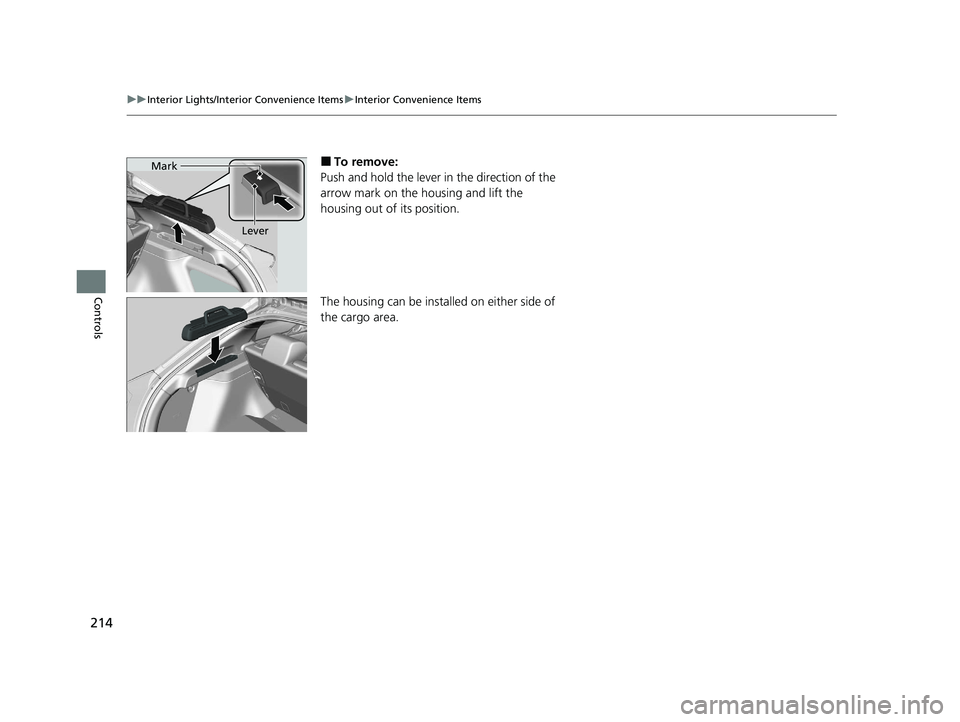

■To remove:
Push and hold the lever in the direction of the
arrow mark on the housing and lift the
housing out of its position.
The housing can be installed on either side of
the cargo area.Mark
Lever
21 CIVIC 5D HUM-31TGG6400_01.book 214 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

Continued215
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The ignition switch must be in ON (w*1 to use
the seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Front Seat Heaters*1 Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 215 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
216
Controls

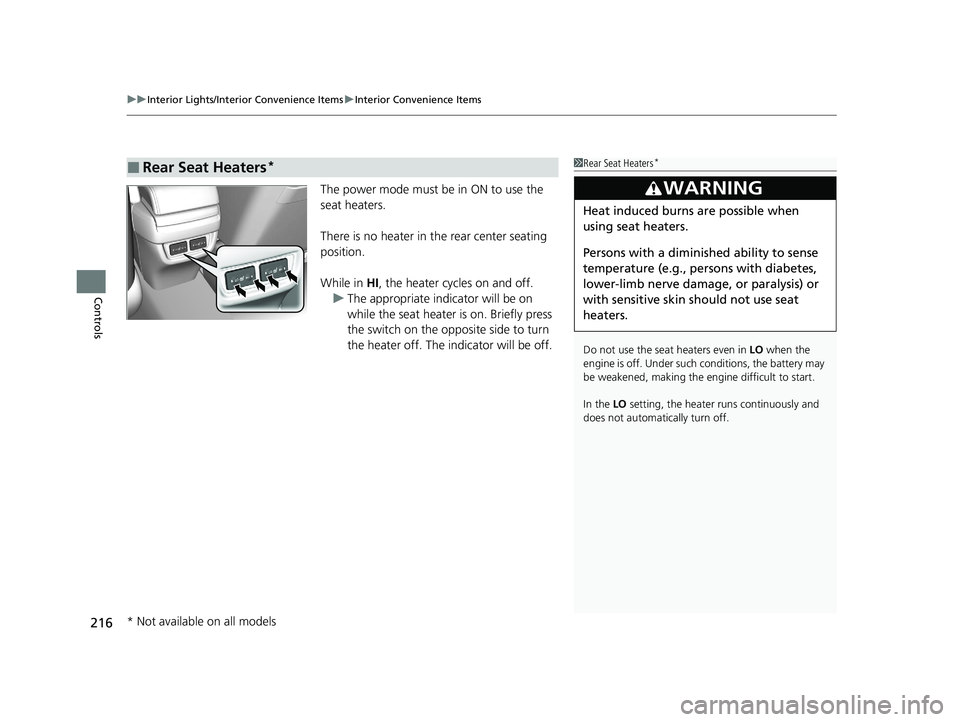

The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
While in HI, the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
■Rear Seat Heaters*1Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 216 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

217Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
If any buttons/icons
* are pressed while using the
climate control system in auto, the function of the
button/icon
* that was pressed wi ll take priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon
* that was pressed will
be controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Models with color audio system
AUTO Button
Temperature
Control Dial
(Recirculation) Button (ON/OFF) Button
Fan Control
Dial
A/C (Air
Conditioning)
Button
Dashboard
vents Dashboard
and floor
vents Floor vents Floor and
defroster
vents
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 217 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

uuClimate Control System uUsing Automatic Climate Control
218
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (ON/OFF) button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Press the CLIMATE button to display A/C, MODE,
fan control information on the audio/information
screen to operate manually. Select ic on to turn on or
off A/C , change the vent mode , or change the fan
speed.
Models with ECON button
Models with Display Audio
Models with Display Audio
Models without SYNC button
A/C (Air Conditioning) Icon
Fan Control Icon
Temperature
Control Dial
AUTO Button
(Recirculation) Button
(CLIMATE)
Button
Fan Control
Dial
(ON/OFF) Button
(Fresh Air) Button
MODE Control
Icon
(Floor vents)
MODE Control
Icon
(Dashboard vents) MODE Control Icon
(Floor and
defroster vents)
MODE Control Icon
(Dashboard and
floor vents)
21 CIVIC 5D HUM-31TGG6400_01.book 218 ページ ２０２０年８月２８日　金曜日　午後１時
４８分
