HONDA CIVIC HATCHBACK 2021 Owner's Manual (in English)
Manufacturer: HONDA, Model Year: 2021, Model line: CIVIC HATCHBACK, Model: HONDA CIVIC HATCHBACK 2021Pages: 711, PDF Size: 37.1 MB
Page 221 of 711

219
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
Models with Display Audio
Models with SYNC button
A/C (Air Conditioning) Icon
MODE Control
Icon
(Floor vents)
Fan Control Icon
Driver’s Side
Temperature
Control Dial
AUTO Button
(Recirculation) Button
CLIMATE
Button
Passenger’s
Side
Temperature
Control Dial
(ON/OFF) Button
SYNC (Synchronization) Button
MODE Control
Icon
(Dashboard vents) MODE
Control Icon
(Floor and
defroster vents)
MODE Control Icon
(Dashboard and
floor vents)
/ (Fan Control)
Buttons
21 CIVIC 5D HUM-31TGG6400_01.book 219 ページ 2020年8月28日 金曜日 午後1時 48分
Page 222 of 711

220
uuClimate Control System uUsing Automatic Climate Control
Controls

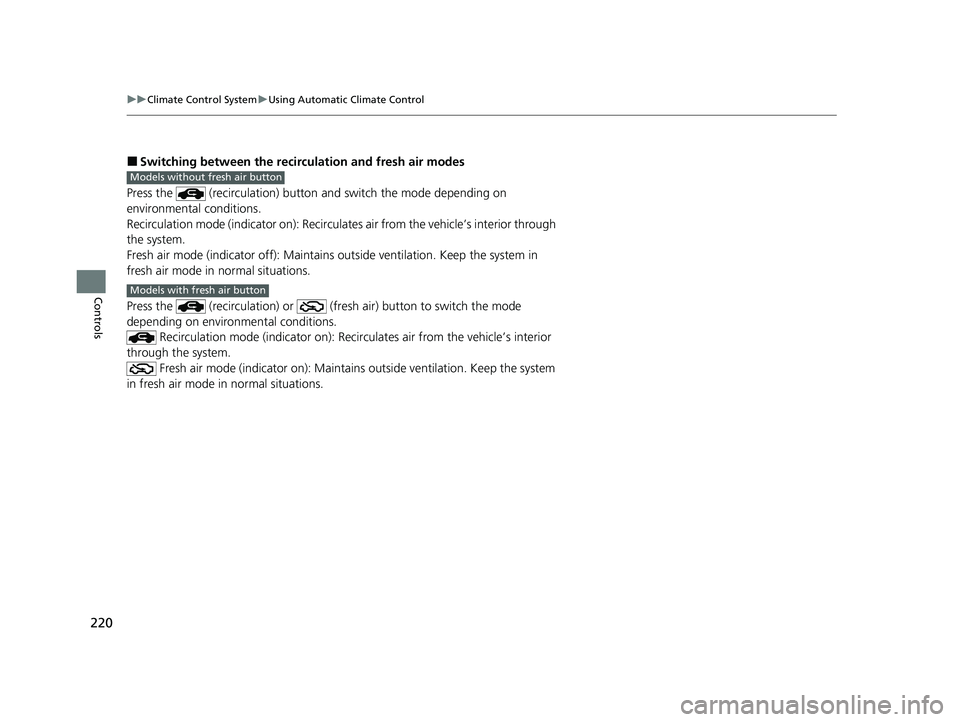

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button an d switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fresh air) button to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Models without fresh air button
Models with fresh air button
21 CIVIC 5D HUM-31TGG6400_01.book 220 ページ 2020年8月28日 金曜日 午後1時 48分
Page 223 of 711

Continued221
uuClimate Control System uUsing Automatic Climate Control
Controls

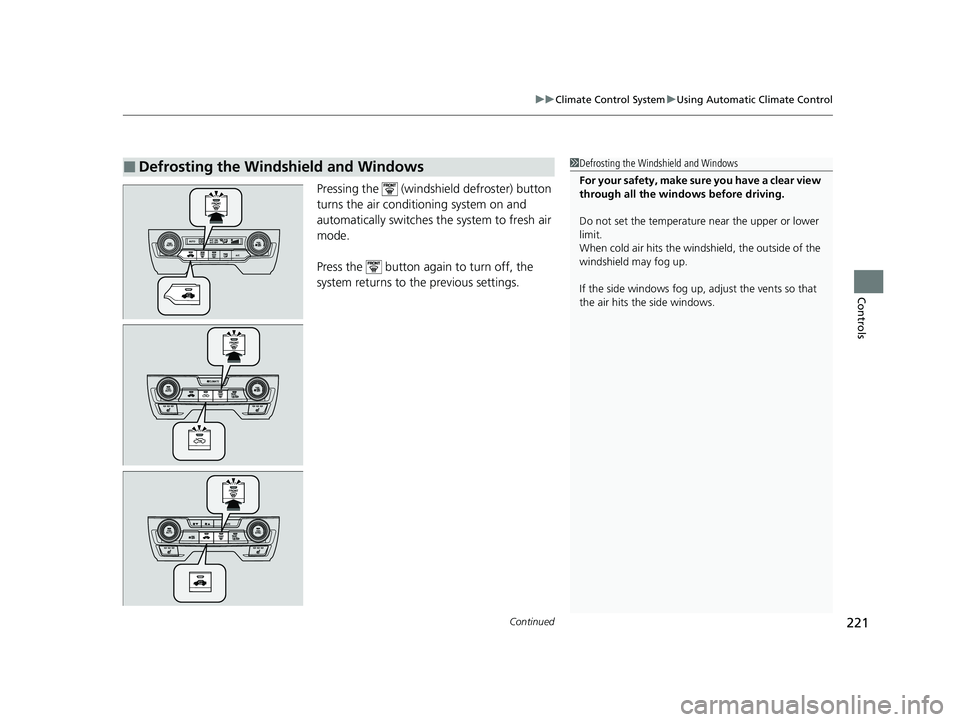

Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
21 CIVIC 5D HUM-31TGG6400_01.book 221 ページ 2020年8月28日 金曜日 午後1時 48分
Page 224 of 711

uuClimate Control System uUsing Automatic Climate Control
222
Controls

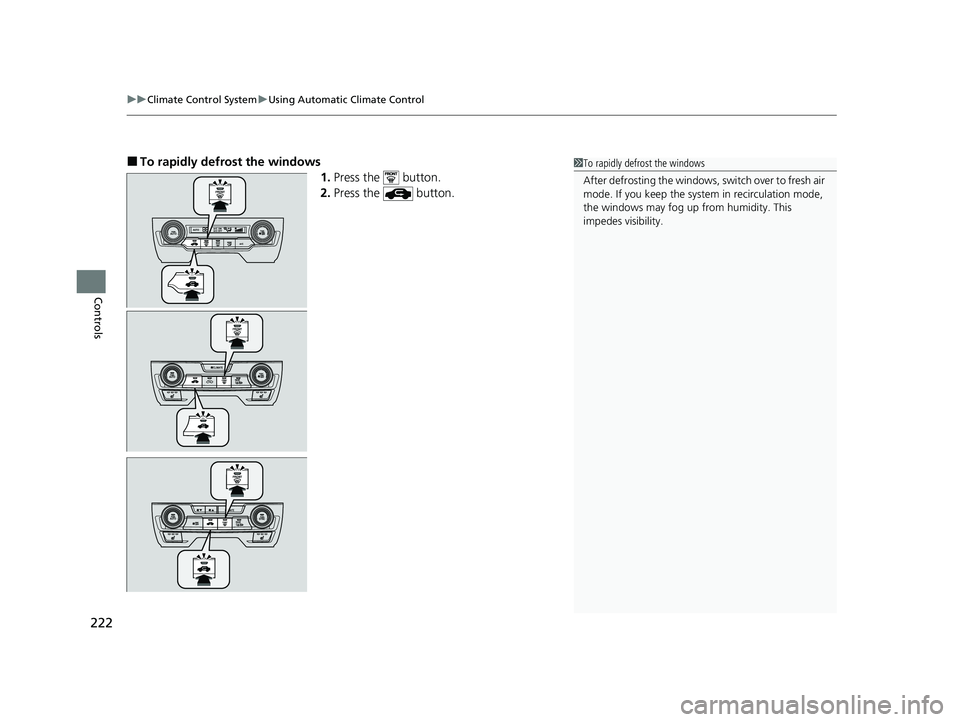

■To rapidly defro st the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
21 CIVIC 5D HUM-31TGG6400_01.book 222 ページ 2020年8月28日 金曜日 午後1時 48分
Page 225 of 711

223
uuClimate Control System uUsing Automatic Climate Control
Controls
You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button or change the passenger’s side temperature setting to return
to dual mode.
■Synchronization Mode*1 Synchronization Mode*
When you press the button, the system changes
to synchronization mode.
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver’s Side
Temperature
Co
ntrol Dial Passenger’s
Side
Temperature
Control Dial
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 223 ページ 2020年8月28日 金曜日 午後1時
48分
Page 226 of 711

224
uuClimate Control System uAutomatic Climate Control Sensors
Controls

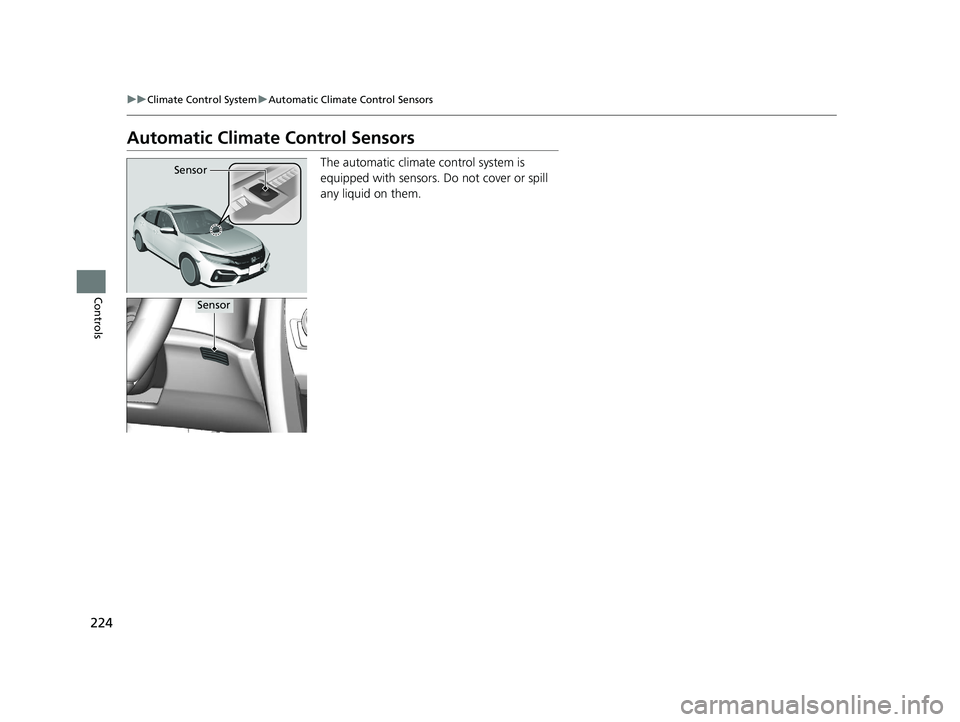

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
21 CIVIC 5D HUM-31TGG6400_01.book 224 ページ 2020年8月28日 金曜日 午後1時 48分
Page 227 of 711

225
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 226
USB Port(s) ....................................... 227
Audio System Theft Protection ......... 229
Audio Remote Controls .................... 230
Audio System Basic Operation ........ 233
Audio/Information Screen ................ 234
Adjusting the Sound ........................ 238
Display Setup ................................... 239
Playing the AM/FM Radio ................. 240
Playing an iPod ................................ 242
Playing a USB Flash Drive ................. 245
Models with color audio system
Playing Bluetooth ® Audio................. 248
Audio System Basic Operation ........ 251
Audio/Information Screen ................ 252
Adjusting the Sound ........................ 273
Display Setup ................................... 274
Voice Control Operation .................. 276
Playing AM/FM Radio ....................... 280
Playing SiriusXM ® Radio
*................. 283
Playing an iPod ................................ 291
Song By Voice
TM (SBV) ...................... 294
Playing Pandora ®*1........................... 298
Playing a USB Flash Drive ................. 300
Models with Display AudioPlaying Bluetooth ® Audio ................ 303
HondaLink ®..................................... 305
Wi-Fi Connection ............................. 310
Siri Eyes Free .................................... 312
Apple CarPlay .................................. 313
Android Auto .................................. 316
Audio Error Messages ...................... 320
General Information on the Audio System..324
Customized Features................ 343, 350
HomeLink ® Universal Transceiver*.. 380
Bluetooth ® HandsFreeLink® ..... 383, 410
*1: Available only on U.S. models.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 225 ページ 2020年8月28日 金曜日 午後1時 48分
Page 228 of 711

226
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service*. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1About Your Audio System
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer.
2 General Information on the Audio System
P. 324
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered tra demark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 226 ページ 2020年8月28日 金曜日 午後1時 48分
Page 229 of 711

227
uuAudio System uUSB Port(s)
Continued
Features
USB Port(s)
u The USB port (1.0A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
u The USB port (1.5A) is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay or Android Auto.
u To prevent any potenti al issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
Your vehicle comes supplied with a USB
extension cable that runs from the USB port
up through to the front console.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
*2: Pre-installed on U.S. models only.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend that you us e a USB cable if you are
attaching a USB flash drive to the USB port.
•You may also use your own USB cable.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The USB port can supply up to 1.5A of power. It does
not output 1.5A unless requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
Models with
color audio
systemModels with
Display
Audio
USB Extension Cable*2Models with color audio system
Models with Display Audio
U.S. models
21 CIVIC 5D HUM-31TGG6400_01.book 227 ページ 2020年8月28日 金曜日 午後1時 48分
Page 230 of 711

228
uuAudio System uUSB Port(s)
Features
■In the console compartment*
The USB port (1.0A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
u Move the removable beverage holder
tray rearward.
In the console compartment
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 228 ページ 2020年8月28日 金曜日 午後1時 48分
