HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

90
uu Entering a Destination u Place Phone Number
Navigation

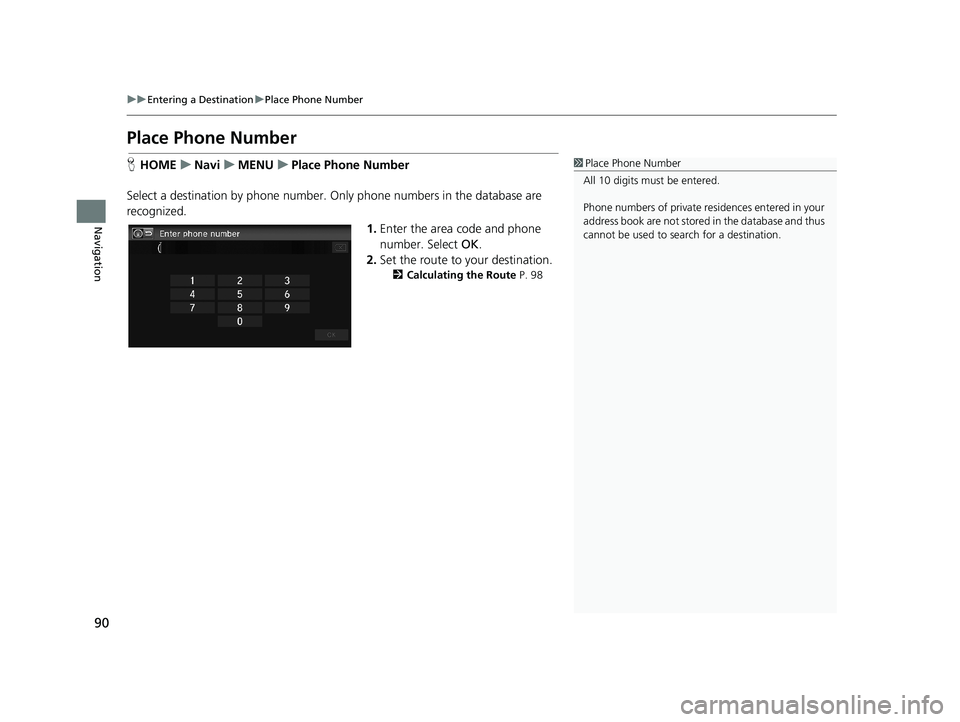

Place Phone Number
1 Place Phone Number
All 10 digits must be entered.
Phone numbers of private re sidences entered in your
address book are not stored in the database and thus
cannot be used to sear ch for a destination.HHOME u Navi u MENU u Place Phone Number
Select a destination by phone number. On ly phone
numbers in the database are
recognized.
1. Enter the area code and phone
number. Select OK.
2. Set t
he route to your destination.
2 Calculating the Route P. 98
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 90 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

91
uu Entering a Destination u Place Category
Continued
Navigation
Place Category
1 Place Category
This option is convenient if you do not know the
exact name of a place or if you want to narrow down
the number of matches returned for places with a
common name.
Select Category History to access your recently used
place categories. Up to 50 categories can be stored.
You can also delete your recently used place
categories. 2 Category History P. 37
Search POI Categories helps you to search the
subcategory. When you enter a keyword and select
OK , the list of appropriate subcategories is displayed.
CNG Station is displayed only on Compressed
Natural Gas (CNG) models.
U.S. models
H HOME u Navi u MENU u Place Category
Select the category of a place (e.g., Bankin g
, Lodging, Restaurant) stored in the map
database to search for the destination.
1. Select a category.
2.Select a subcategory.
2 List of Categories P. 244
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 91 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

92
uu Entering a Destination u Place Category
Navigation

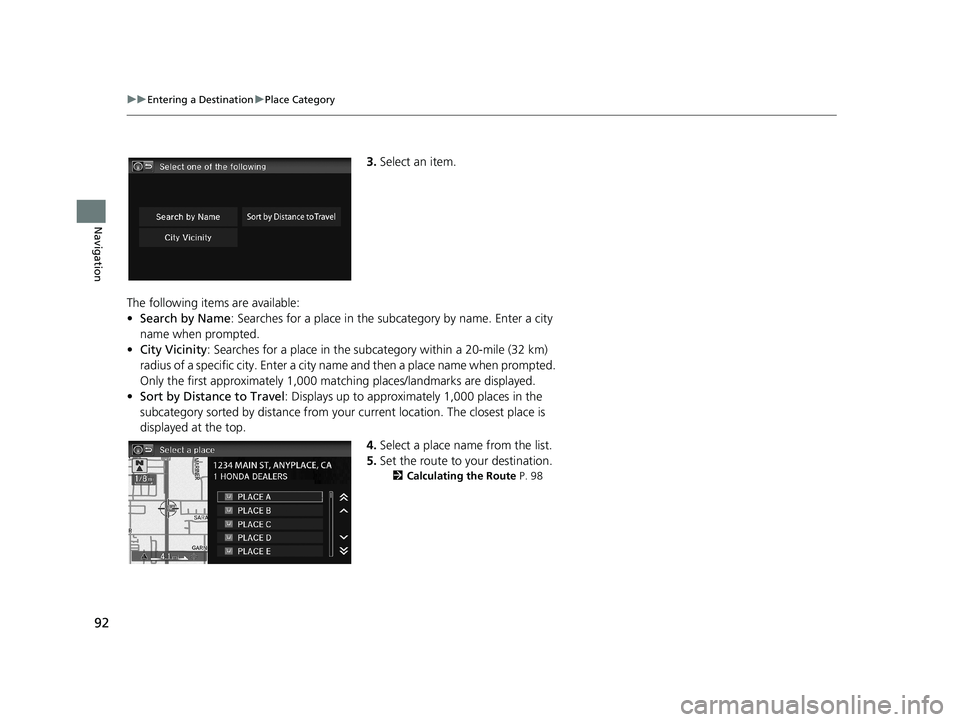

3. Select an item.
The following items are available:
•Search by Name : Searches
for a place in the subcategory by name. Enter a city
name when prompted.
• Ci
ty Vicinity: Searches for a place in the subcategory within a 20-mile (32 km)
radius of a specific city. Enter a city name and then a place name when prompted.
Only the first approximately 1,000 matc hing places/landmarks are displayed.
• Sort by Dista
nce to Travel: Displays up to approximately 1,000 places in the
subcategory sorted by distance from your current location. The closest place is
displayed at the top.
4. Select a place name from the list.
5. Set t
he route to your destination.
2 Calculating the Route P. 98
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 92 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

93
uu Entering a Destination u Previous Destination
Navigation

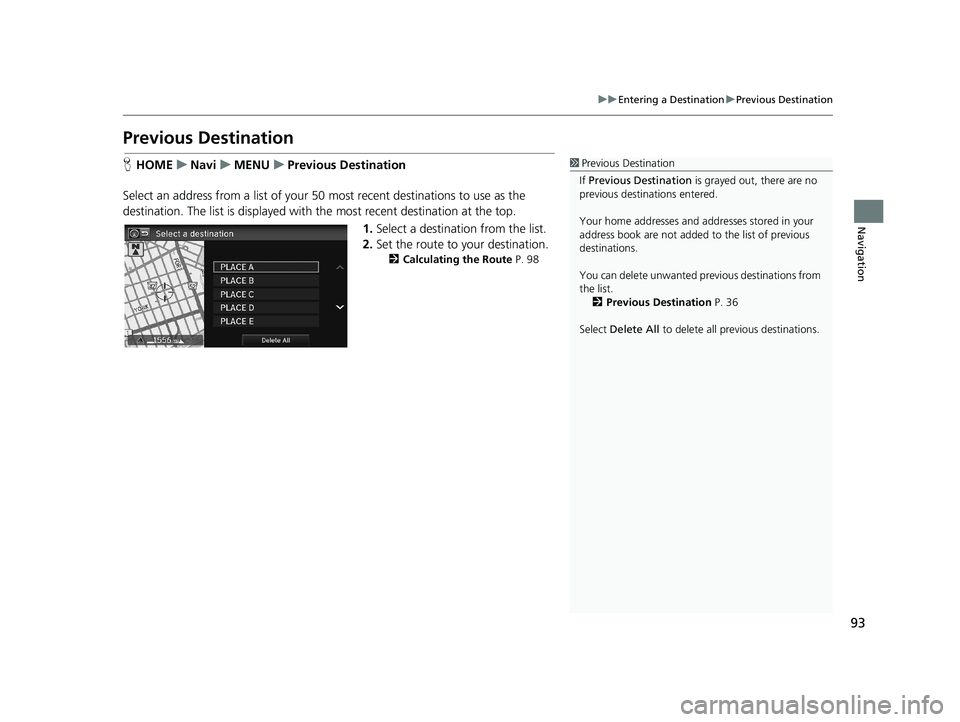

Previous Destination
1 Previous Destination
If Previous Destination is grayed out, there are no
previous destinations entered.
Your home addresses and addresses stored in your
address book are not added to the list of previous
destinations.
You can delete unwanted prev ious destinations from
the list. 2 Previous Destination P. 36
Select Delete All to delete all previous destinations.HHOME u Navi u MENU u Previous Destination
Select an address from a list of your 50 most recent destinations to use as the
destin
ation. The list is displayed with the most recent destination at the top.
1.Select a destination from the list.
2. Set
the route to your destination.
2 Calculating the Route P. 98
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 93 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

94
uu Entering a Destination u Intersection
Navigation

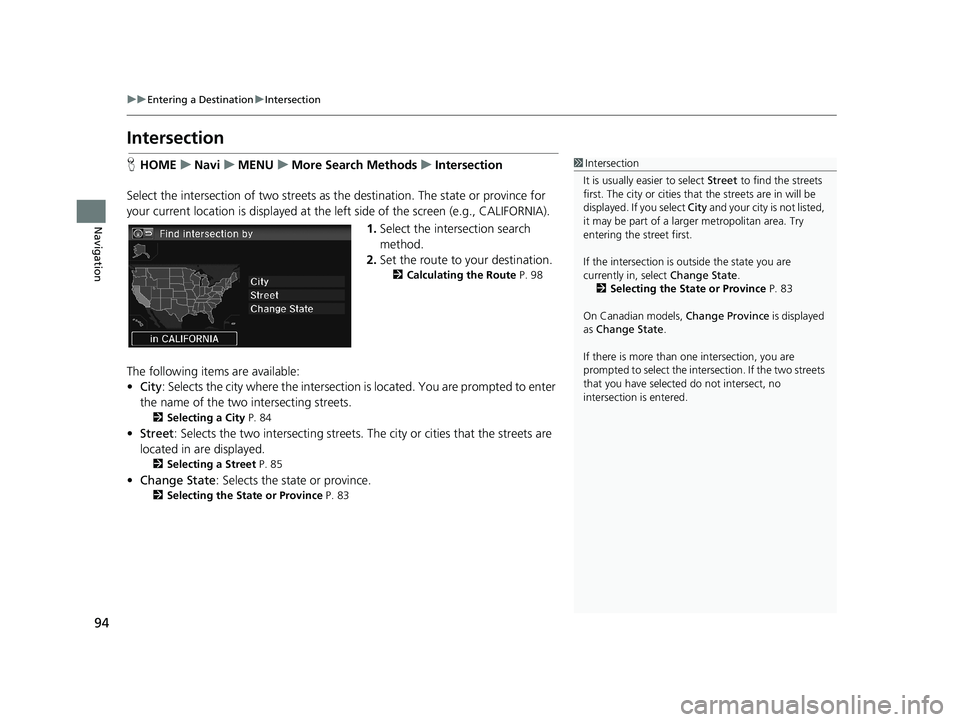

Intersection
1 Intersection
It is usually easier to select Street to find the streets
first. The city or cities that the streets are in will be
displayed. If you select City and your city is not listed,
it may be part of a larg er metropolitan area. Try
entering the street first.
If the intersection is outside the state you are
currently in, select Change State.
2 Selecting the State or Province P. 83
On Canadian models, Change Province is displayed
as Change State .
If there is more than one intersection, you are
prompted to select the intersection. If the two streets
that you have selected do not intersect, no
intersection is entered.H HOME u Navi u MENU u More Search Methods u Intersection
Select the intersection of two streets as th e
destination. The state or province for
your current location is displayed at the left side of the screen (e.g., CALIFORNIA).
1. Select the intersection search
method.
2. Set t
he route to your destination.
2 Calculating the Route P. 98
The following items are available:
• Ci
ty : Selects the city where the intersection is located. You are prompted to enter
the name of the two in tersecting streets.
2Selecting a City P. 84
• Street : Selects the two intersecting streets. The city or cities that the streets are
located in are displayed.
2 Selecting a Street P. 85
• Change State : Selects the state or province.
2Selecting the State or Province P. 83
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 94 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

95
uu Entering a Destination u Coordinate
Navigation

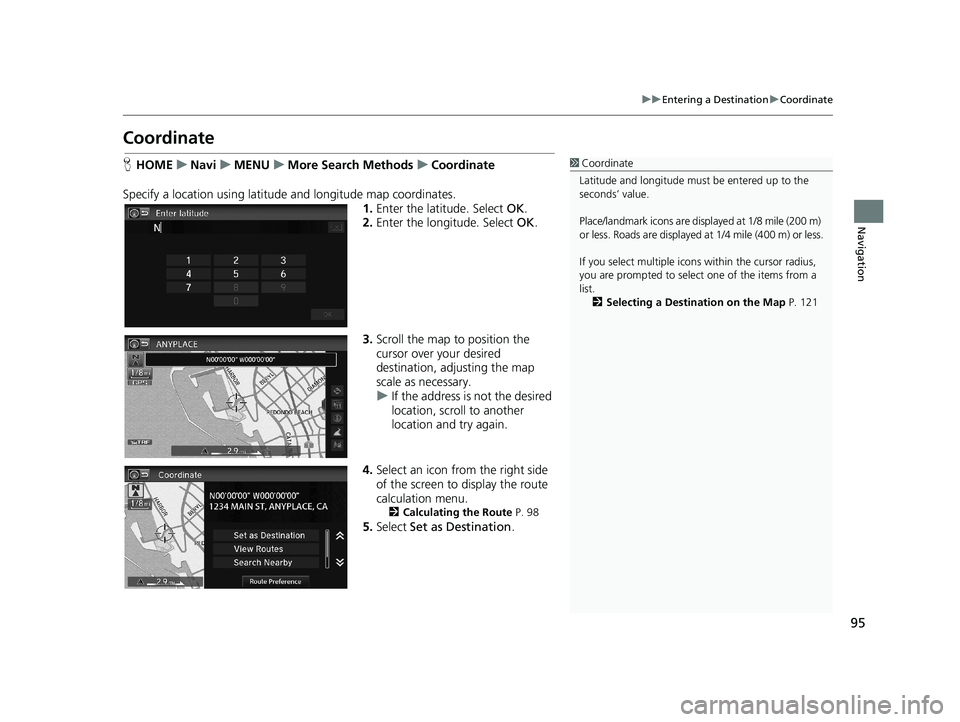

Coordinate
1 Coordinate
Latitude and longitude must be entered up to the
seconds’ value.
Place/landmark icons are displayed at 1/8 mile (200 m)
or less. Roads are displayed at 1/4 mile (400 m) or less.
If you select multiple icon s within the cursor radius,
you are prompted to select one of the items from a
list.
2 Selecting a Destination on the Map P. 121HHOME u Navi u MENU u More Search Methods u Coordinate
Specify a location using latitude and longitude map coordinates.
1. Enter the latitude. Select OK.
2. Enter the
longitude. Select OK.
3.Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the address is not the desire
d
location, scroll to another
location and try again.
4. Select an icon from the right side
of the screen to display the route
calculation menu.
2 Calculating the Route P. 98
5. Select Set as Destination .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 95 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

96
uu Entering a Destination u Map Input
Navigation

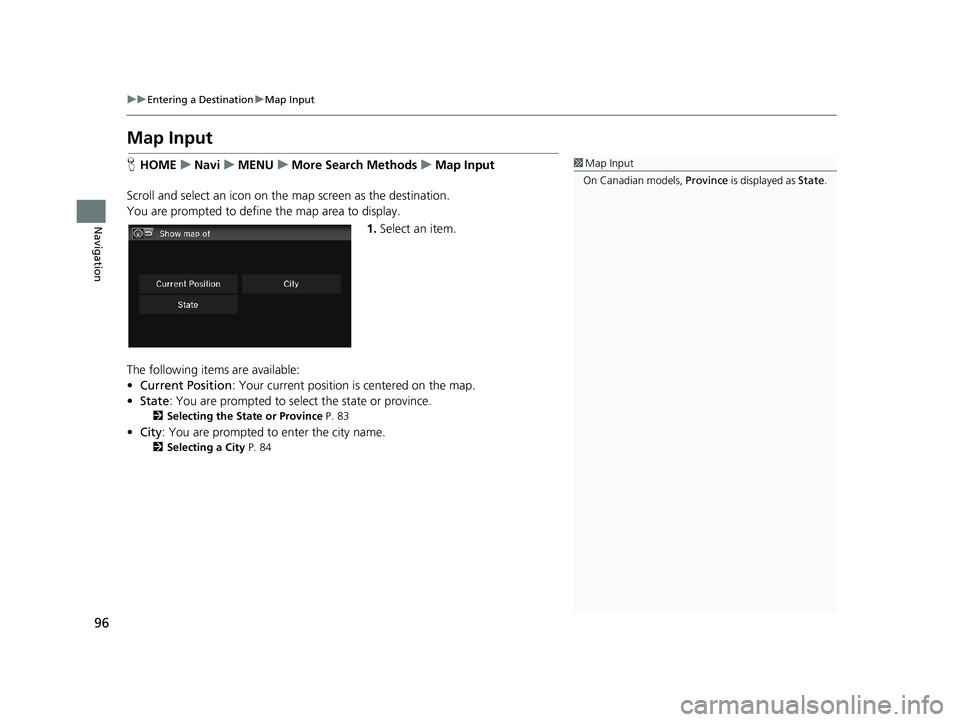

Map Input
1 Map Input
On Canadian models, Province is displayed as State.HHOME u Navi u MENU u More Search Methods u Map Input
Scroll and select an icon on the map
screen as the destination.
You are prompted to define the map area to display.
1. Select an item.
The following items are available:
• Cu
rrent Position : Your current position is centered on the map.
• State : You
are prompted to select the state or province.
2Selecting the State or Province P. 83
• City : You are prompted to enter the city name.
2Selecting a City P. 84
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 96 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

1Map Input
Place/landmark icons are displayed at 1/8 mile (200 m)
or less. Roads are displayed at 1/4 mile (400 m) or less.
If you select multiple icon s within the cursor radius,
you are prompted to select one of the items from a
list.
2 Selecting a Destination on the Map P. 121
97
uu Entering a Destination u Map Input
Navigation
2. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the address is not the desired
location, scroll the map to
another location and try again.
3.Select an icon from the right side
of the screen to display the route
calculation menu.
2 Calculating the Route P. 98
4. Select Set as Destination .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 97 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

98
Navigation
Calculating the Route
1Calculating the Route
You cannot use voice commands while the system is
calculating the route.
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category. 2 Find Nearest Place P. 120
Call
You can place a telephone call to the destination
phone number.
2 Bluetooth ® HandsFreeLink ® P. 168
Address Book
You can add the destinati on address to the address
book. 2 Adding an Address Book Entry P. 29
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 31
Edit Home Entry
You can edit your home address entry. 2 Storing Your Home Address P. 12This section describes how to calculate your route.
1.Select Set as Destination .
u The
system calculates and
displays the route line on the
map screen.
2 Route Line P. 102
The following items are available:
• Vi
ew Routes: Displays three different routes.
2 Viewing the Routes P. 99
• Route Preference : Changes the route preferen ces (calculating method).
2Route Preference P. 39
2. Follow the route guidance to your
destination.
2 Driving to Your Destination
P. 100
u The system provides you with
pop-up messages if your route
passes through unverified
areas, avoid areas, or areas with
traffic restrictions.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 98 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

99
uu Calculating the Route u Viewing the Routes
Navigation

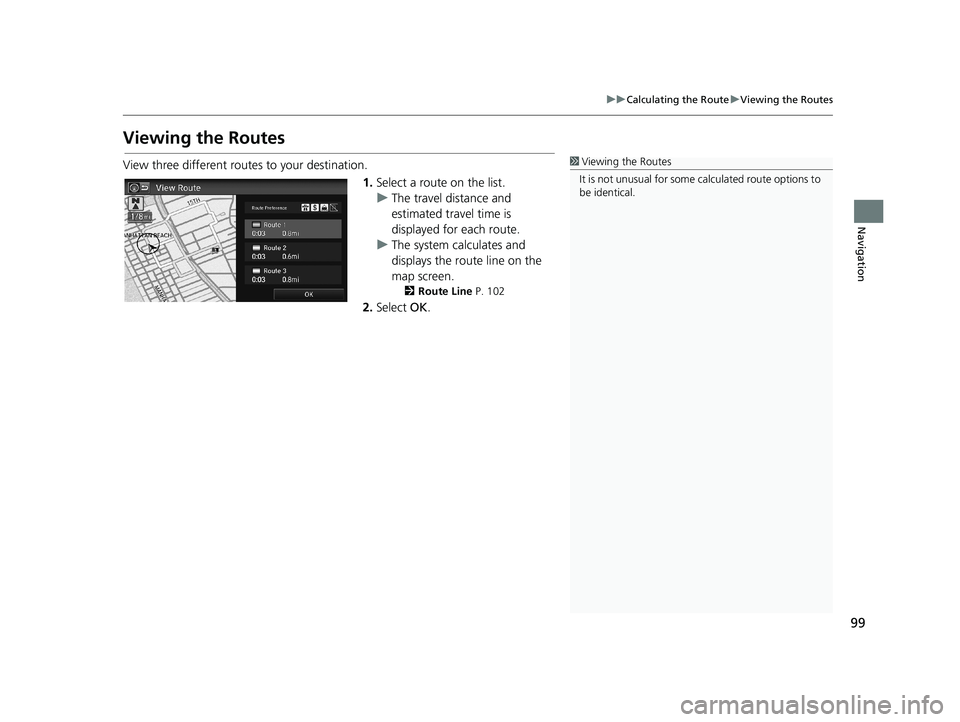

Viewing the Routes
1 Viewing the Routes
It is not unusual for some ca lculated route options to
be identical.View three different routes to your destination.
1. Select a route on the list.
u The tr
avel distance and
estimated travel time is
displayed for each route.
u The syste
m calculates and
displays the route line on the
map screen.
2 Route Line P. 102
2. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 99 ページ ２０１４年３月２１日　金曜日　 午後３時２０分
