HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

120
Navigation

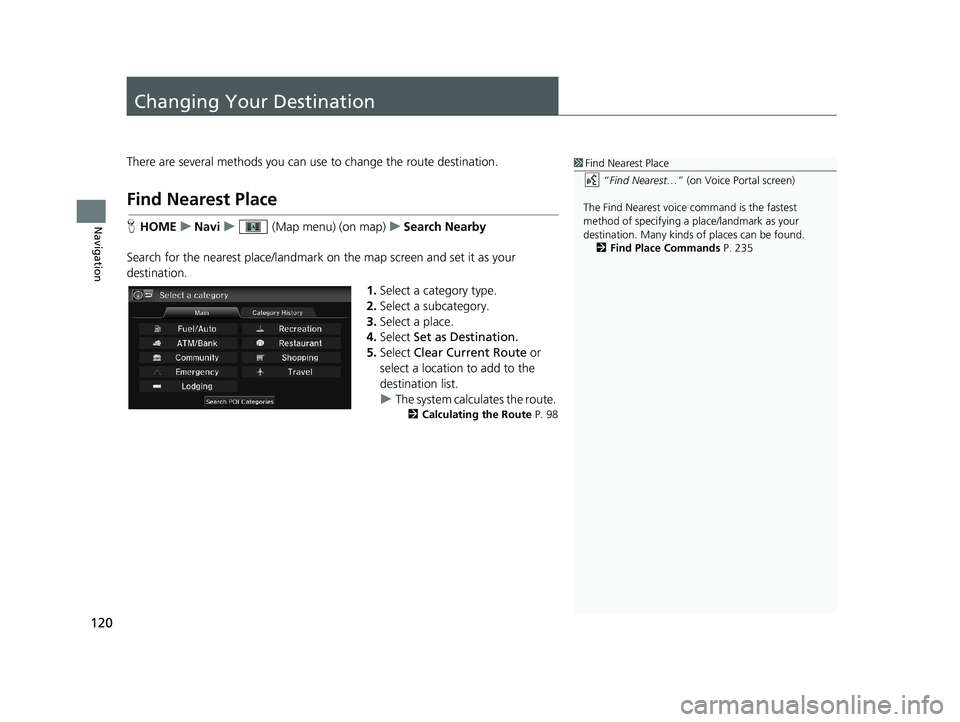

Changing Your Destination
There are several methods you can use to change the route destination.
Find Nearest Place
1Find Nearest Place
“Find Nearest… ” (on Voice Portal screen)
The Find Nearest voice command is the fastest
method of specifying a pl ace/landmark as your
destination. Many kinds of places can be found. 2 Find Place Commands P. 235
HHOME u Navi u (Map menu) (on map) u Search Nearby
Search for the nearest place/landmark on the map screen and set it as your
desti
nation.
1.Select a category type.
2. Select a
subcategory.
3.Select a
place.
4.Select Set
as Destination.
5. Select Cle
ar Current Route or
select a location to add to the
destination list.
u The system calculates the rout
e.
2Calculating the Route P. 98
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 120 ページ ２０１４年３月２１日　金曜日　午後３時２０分

121
uu Changing Your Destination u Selecting a Destination on the Map
Navigation

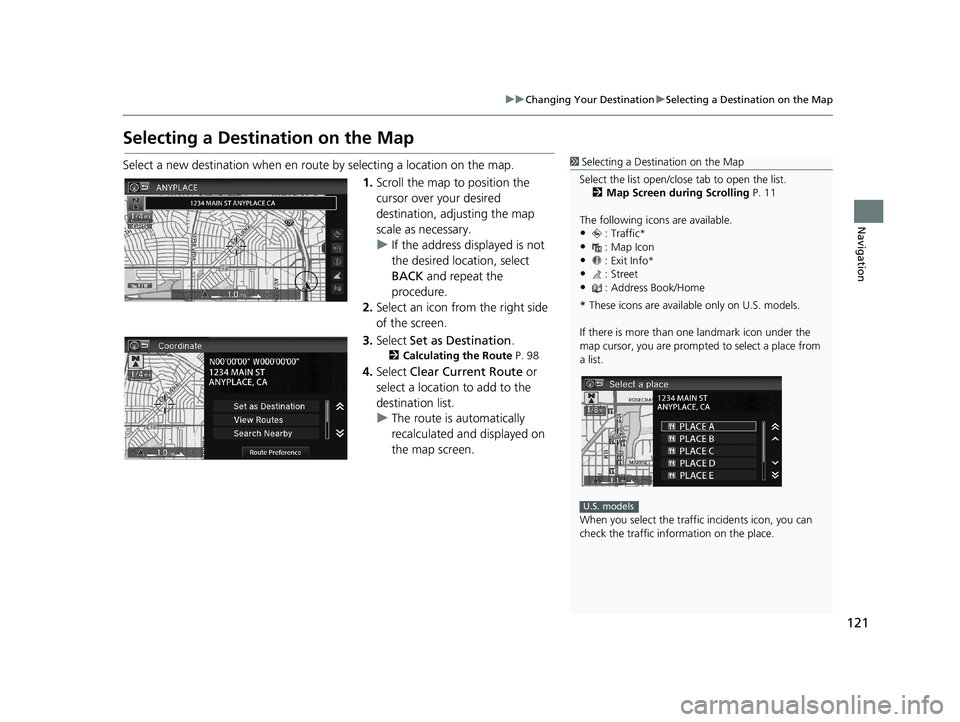

Selecting a Destination on the Map
1 Selecting a Destination on the Map
Select the list open/clos e tab to open the list.
2 Map Screen during Scrolling P. 11
The following icons are available.
•: Traffic*•: Map Icon
•: Exit Info*
•: Street•: Address Book/Home
* These icons are available only on U.S. models.
If there is more than one landmark icon under the
map cursor, you are prompted to select a place from
a list.
When you select the traffi c incidents icon, you can
check the traffic information on the place.
U.S. models
Select a new destination when en route by selecting a location on the map.
1. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the
address displayed is not
the desired location, select
BACK and repeat the
procedure.
2. Select an icon fr
om the right side
of the screen.
3. Select Set as Destination .
2Calculating the Route P. 98
4. Select Clear Current Route or
select a location to add to the
destination list.
u The route is automatically
recalc

ulated and displayed on
the map screen.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 121 ページ ２０１４年３月２１日　金曜日　午後３時２０分

122
uu Changing Your Destination u Entering a New Destination
Navigation

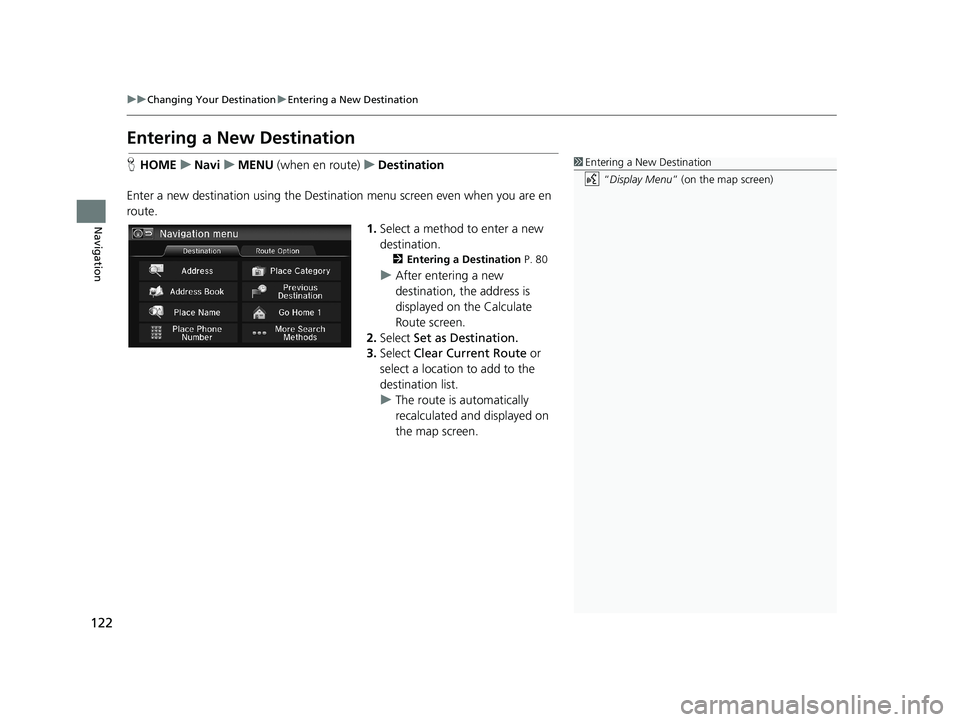

Entering a New Destination
1 Entering a New Destination
“Display Menu” (on the map screen)H HOME u Navi u MENU (when en route) u Destination
Enter a new destination using the Destinat ion menu scre
en even when you are en
route.
1. Select a method to enter a new
destination.
2 Entering a Destination P. 80
u After entering a new
destination, the address is
displayed on the Calculate
Route screen.
2. Select Set
as Destination.
3. Select Cle
ar Current Route or
select a location to add to the
destination list.
u The route is automatically
recalculat

ed and displayed on
the map screen.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 122 ページ ２０１４年３月２１日　金曜日　午後３時２０分

123
Navigation
Resuming Your Trip
1Resuming Your Trip
The Continue Trip To screen has the same options as
when you calculate a route. 2 Calculating the Route P. 98
To cancel your de stination, select BACK.
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category. 2 Find Nearest Place P. 120
Call
You can place a phone call to the destination phone
number.
2 Bluetooth ® HandsFreeLink ® P. 168
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 31
When you restart the vehicle, the route is
recalculated without the sele cted traffic incidents to
avoid. 2 Traffic Rerouting
TM Manually P. 110
Stop your vehicle en route (e.g., to rest , stop for gas, etc.), and then continue on
your route.
If you did not complete your route, the Co nt
inue Trip To screen is displayed when
you restart your vehicle.
Select Set as Destination.
u You
can continue on the same
route.
• View Rou
tes: Displays three different routes.
2Viewing the Routes P. 99
• Route Preference : Changes the route preferen ces (calculating method).
2Route Preference P. 39
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 123 ページ ２０１４年３月２１日　金曜日　午後３時２０分

124
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 124 ページ ２０１４年３月２１日　金曜日　午後３時２０分

125

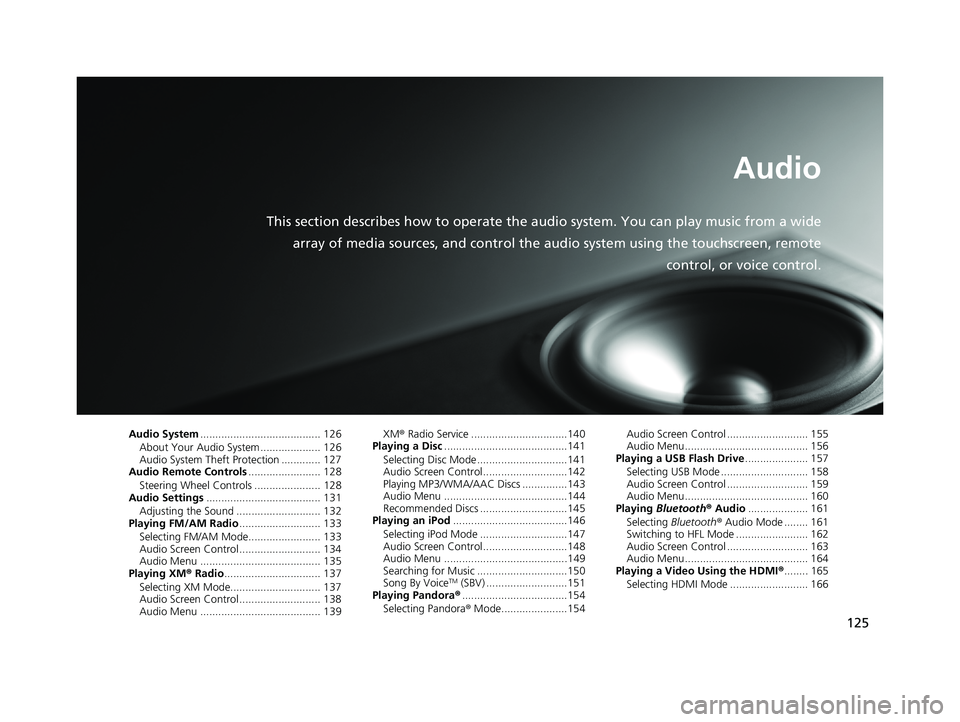

Audio
This section describes how to operate the audio system. You can play music from a wide
array of media sources, and control the audio system using the touchscreen, remote
control, or voice control.
Audio System........................................ 126
About Your Audio System .................... 126Audio System Theft Protection ............. 127Audio Remote Controls........................ 128
Steering Wheel Controls ...................... 128Audio Settings...................................... 131Adjusting the Sound ............................ 132Playing FM/AM Radio........................... 133
Selecting FM/AM Mode........................ 133Audio Screen Control ........................... 134Audio Menu ........................................ 135Playing XM® Radio................................ 137
Selecting XM Mode.............................. 137Audio Screen Control ........................... 138Audio Menu ........................................ 139
XM® Radio Service ................................140Playing a Disc.........................................141
Selecting Disc Mode ..............................141Audio Screen Control............................142Playing MP3/WMA/AAC Discs ...............143Audio Menu .........................................144Recommended Discs .............................145Playing an iPod......................................146
Selecting iPod Mode .............................147Audio Screen Control............................148Audio Menu .........................................149Searching for Music ..............................150Song By VoiceTM (SBV) ...........................151Playing Pandora®...................................154Selecting Pandora® Mode......................154
Audio Screen Control ........................... 155Audio Menu......................................... 156Playing a USB Flash Drive..................... 157
Selecting USB Mode ............................. 158Audio Screen Control ........................... 159Audio Menu......................................... 160Playing Bluetooth® Audio.................... 161
Selecting Bluetooth® Audio Mode ........ 161Switching to HFL Mode ........................ 162Audio Screen Control ........................... 163Audio Menu......................................... 164Playing a Video Using the HDMI®........ 165Selecting HDMI Mode .......................... 166
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 125 ページ ２０１４年３月２１日　金曜日　午後３時２０分

126
Audio

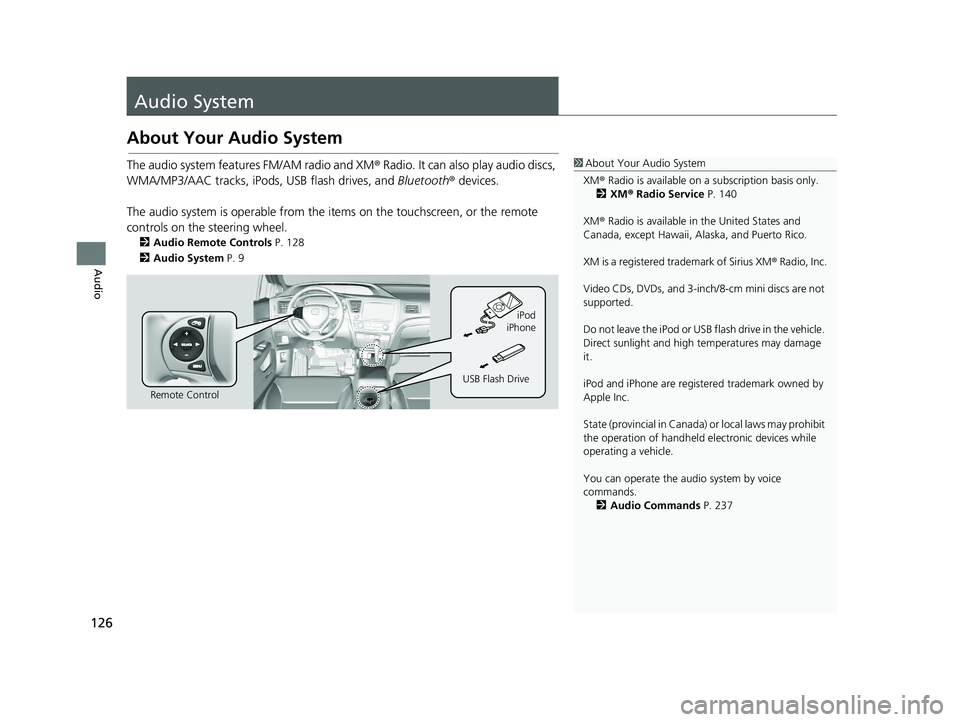

Audio System
About Your Audio System
1About Your Audio System
XM ® Radio is available on a subscription basis only.
2 XM ® Radio Service P. 140
XM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
XM is a registered trademark of Sirius XM ® Radio, Inc.
Video CDs, DVDs, and 3-inch /8-cm mini discs are not
supported.
Do not leave the iPod or USB flash drive in the vehicle.
Direct sunlight and high temperatures may damage
it.
iPod and iPhone are regist ered trademark owned by
Apple Inc.
State (provincial in Canada) or local laws may prohibit
the operation of handheld electronic devices while
operating a vehicle.
You can operate the audio system by voice
commands. 2 Audio Commands P. 237The audio system features FM/AM radio and XM ® Radio. It can also play audio discs,
WMA/MP3/AAC tracks, iPods, USB flash drives, and Bluetooth® devices.
The audio system is operable from the it ems on
the touchscreen, or the remote
controls on the steering wheel.
2 Audio Remote Controls P. 128
2 Audio System P. 9
Remote Control iPod
USB Flash Drive iPhone
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 126 ページ ２０１４年３月２１日　金曜日　午後３時２０分

127
uu Audio System u Audio System Theft Protection
Audio

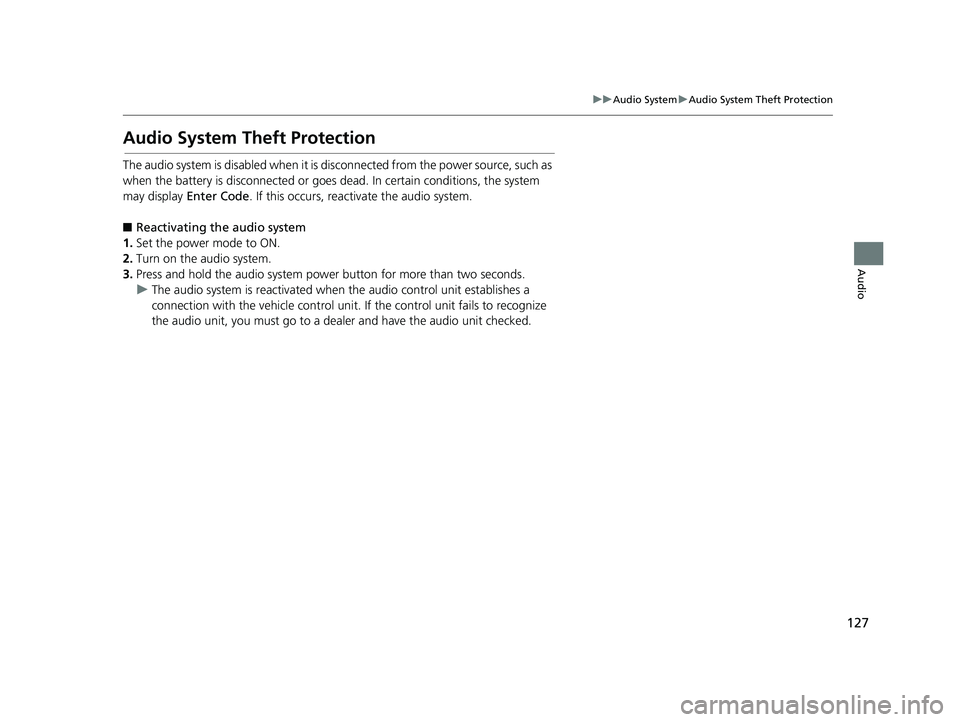

Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display Enter Code. If this occurs, reactivate the audio system.
■Reactivating the audio system
1.Set the power mode to ON.
2.Turn on the audio system.
3.Press and hold the audio system power button for more than two seconds.
uThe audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 127 ページ ２０１４年３月２１日　金曜日　午後３時２０分

128
Audio

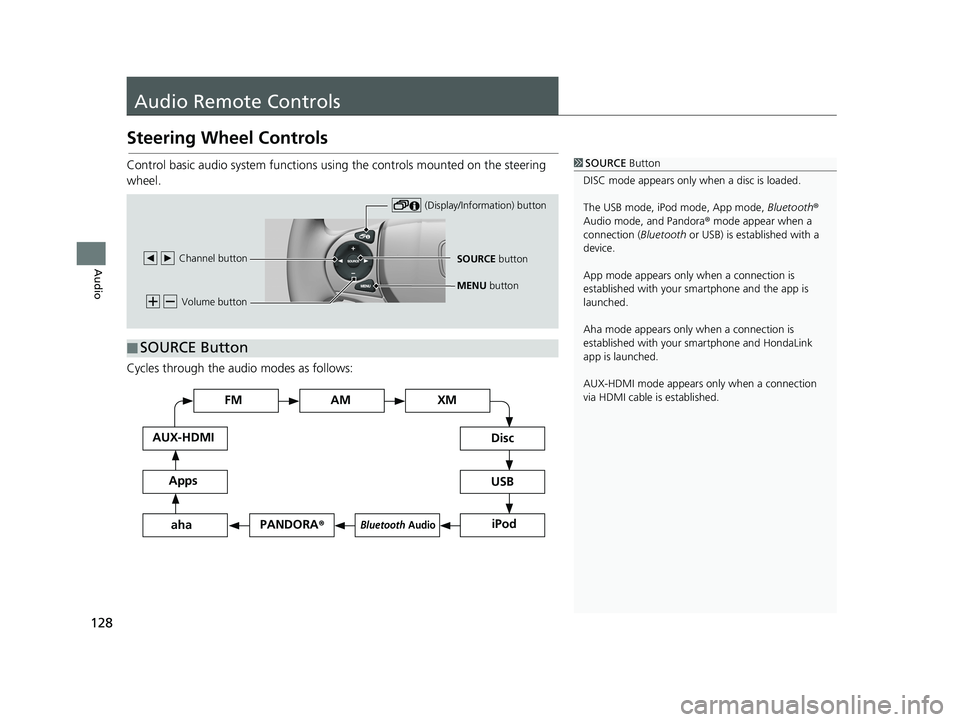

Audio Remote Controls
Steering Wheel Controls
1SOURCE Button
DISC mode appears only when a disc is loaded.
The USB mode, iPod mode, App mode, Bluetooth®
Audio mode, and Pandora ® mode appear when a
connection ( Bluetooth or USB) is established with a
device.
App mode appears only when a connection is
established with your smartphone and the app is
launched.
Aha mode appears only when a connection is
established with your smartphone and HondaLink
app is launched.
AUX-HDMI mode appears only when a connection
via HDMI cable is established.Control basic audio system functions using the controls mounted on the steering
wheel.
Volume button
SOURCE button
Channel button
(Display/Information) button
MENU
button
■SOURCE Button
Cycles through the au
dio modes as follows:
FM
PANDORA
®
AM XM
iPod
Disc
USB
Bluetooth Audio
Apps
AUX-HDMI
aha
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 128 ページ ２０１４年３月２１日　金曜日　午後３時２０分

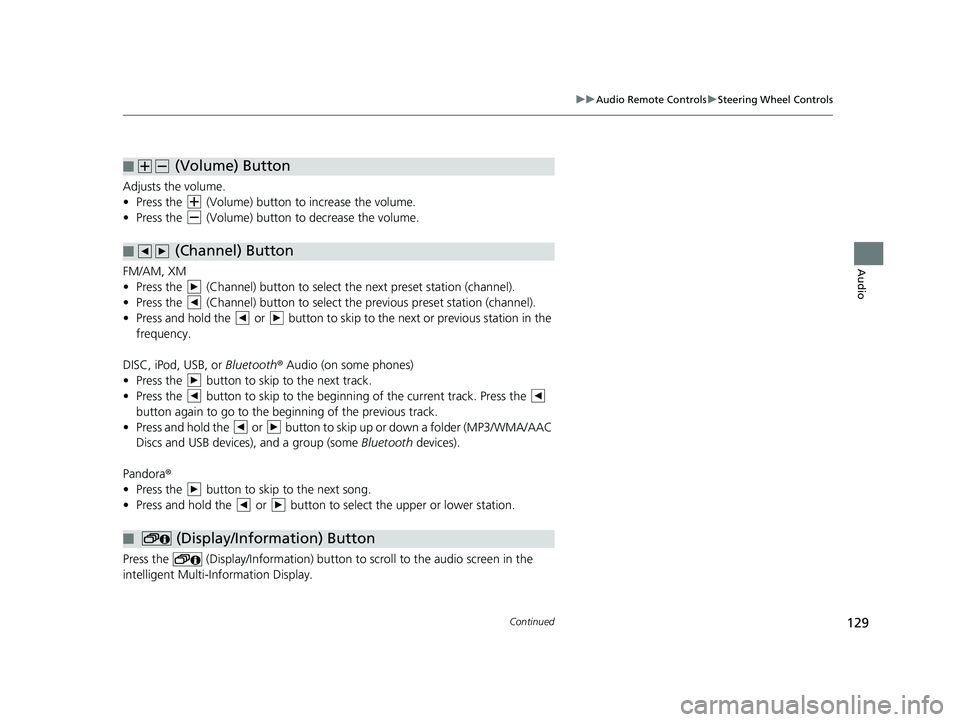

(Volume) Button
■
129
uu Audio Remote Controls u Steering Wheel Controls
Continued
Audio
Adjusts the volume.
• Press the (Volume) button to increase the volume.
• Press the (Volume) button to de crease the volume.
(Channel) Button
■
FM/AM, XM
• Press the (Channel) button to select the next preset station (channel).
• Press the (Channel) button to select the pr ev ious preset station (channel).
• Press and hold the or button to skip to the next or previous station in the
frequency.
DISC, iPod, USB, or Bl
uetooth® Audio (on some phones)
• Press the button to skip to the next track.
• Press the button to skip to the beginning of the current track. Press the
button again to go to the beginning of the previous track.
• Press and hold the or
button to skip up or down a folder (MP3/WMA/AAC
Discs and USB devices), and a group (some Bluetooth devices).
Pandora ®
• Press the button to skip to the next song.
• Press and hold the or button to select the upper or lower station.
(Display/Information) Button
■
Press the (Display/Information) button to sc roll to the audio screen in the
intelligent Multi-Information Display.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 129 ページ ２０１４年３月２１日　金曜日　午後３時２０分
