HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

10

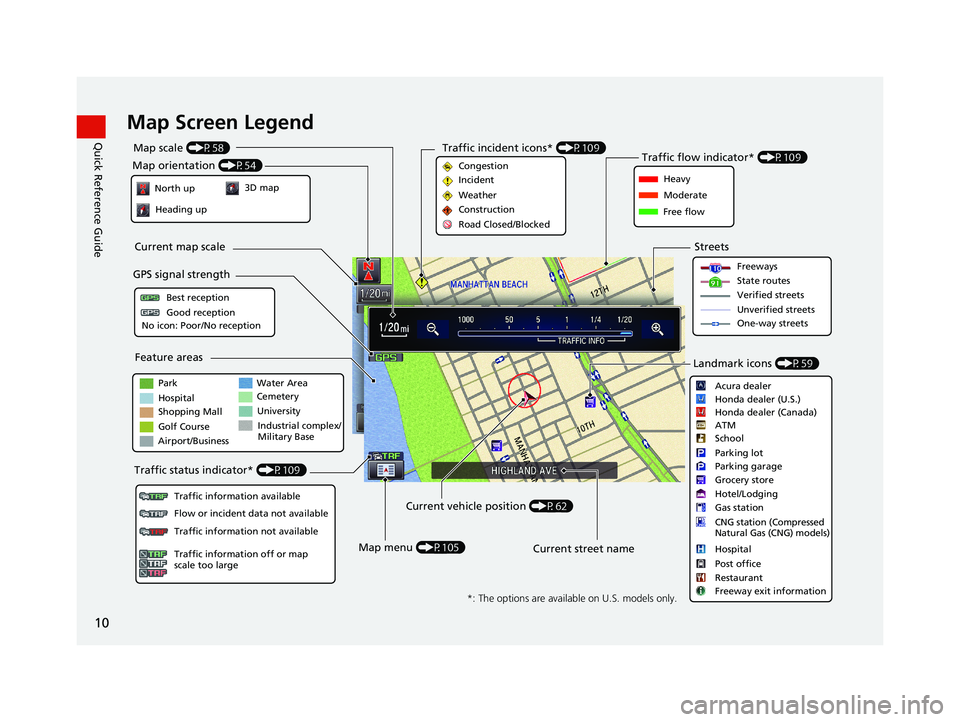

Quick Reference GuideMap Screen Legend
Park
Hospital
Golf CourseWater Area
Cemetery
University
Airport/Business
Industrial complex/
Military Base
Feature areas
Traffic status indicator* (P109)
Map orientation (P54)
GPS signal strength
North up Heading up
Best receptionGood reception
No icon: Poor/No reception
Traffic information availableFlow or incident data not available
Traffic information not available
Traffic information off or map
scale too large
Current map scale
Current street name
Map menu
(P105)
Map scale
(P58)
Current vehicle position (P62) Streets
Landmark icons (P59)
Shopping Mall Freeways
State routes
Verified streets
Unverified streets
One-way streets
Acura dealer
Honda dealer (U.S.)
ATM
School
Parking lot
Parking garage
Grocery store
Hotel/Lodging
Gas station
Hospital
Post office
Restaurant
Freeway exit information
CNG station (Compressed
Natural Gas (CNG) models)
Congestion
Incident
Weather
Construction
Road Closed/Blocked
Traffic incident icons*
(P109)
Traffic flow indicator* (P109)
Heavy
Moderate
Free flow
3D map
Honda dealer (Canada)
*: The options are available on U.S. models only.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 10 ページ ２０１４年３月２１日　金曜日　午後３時２０分

11
Quick Reference GuideDuring Route Guidance
During route guidance, route information is displayed on the map/guidance screen and intelligent Multi-Information Display (i-MID).
Select the map orientation icon to change the guidance mode.
Map Screen
Distance to destination
Distance of the actual
route.
Straight line guide (P55)
Calculated route
(P98)
Guidance indicator
Distance to the next
guidance point.
Estimated time to
destination
Destination/Waypoint icon (P112)Calculated route
(unverified roads)
(P102)
Guidance Screen
Street name of
guidance point
Distance to
guidance point
No entry icon
Map Screen during Scrolling
Select the open/close tab to view and
select map icon and street or traffic
information. Select the
(Navi/Back)
icon to go back to the map screen.
(P 121)
List open/
close tab Selectable icons on
the cursor location
intelligent Multi-Information Display (i-MID)
Turn-by-Turn Directions
The next guidance point appears on
the intelligent Multi-Information
Display (i-MID).
Street name of next
guidance point
Remaining
distance
Next driving maneuver is approaching.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 11 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

12

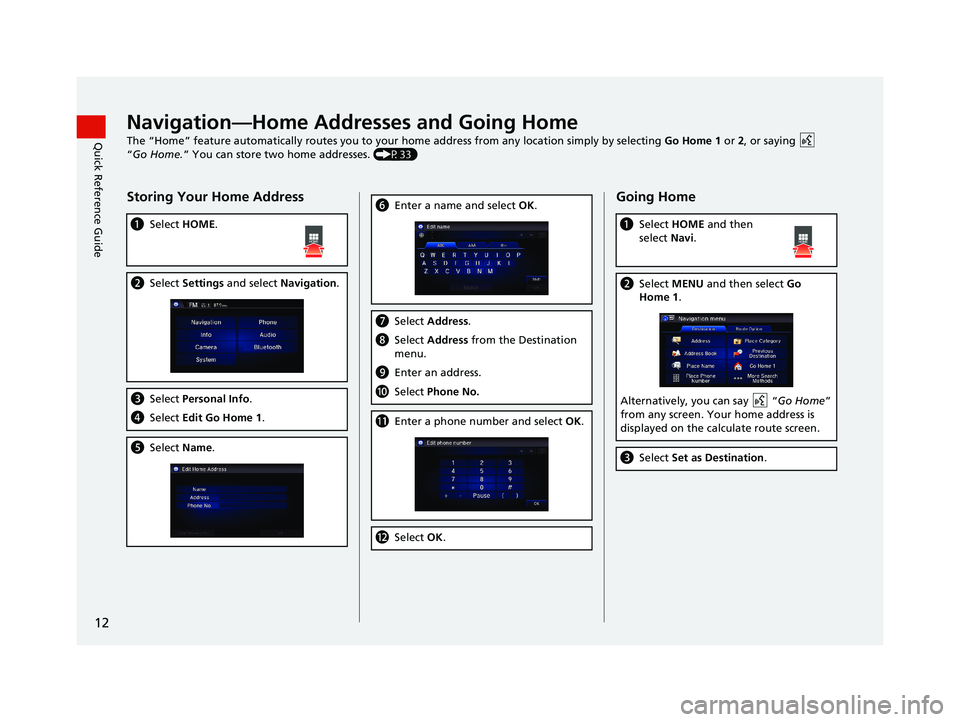

Quick Reference GuideNavigation—Home Addresses and Going Home
The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying
“Go
Home.” You can store two home addresses. (P33)
Storing Your Home Address
aSelect HOME.
bSelect Settings and select Navigation.
cSelect Personal Info .
dSelect Edit Go Home 1 .
eSelect Name.
fEnter a name and select OK .
gSelect Address.
hSelect Address from the Destination
menu.
i Enter an address.
jSelect Phone No.
kEnter a phone number and select OK.
l Select OK.
Going Home
a Select HOME and then
select Navi.
bSelect MENU and then select Go
Home 1.
Alternatively, you can say “ Go Home ”
from any screen. Your home address is
disp
layed on the calculate route screen.
cSelect Set as Destination .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 12 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

13
Quick Reference GuideNavigation—Entering a Destination
Enter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You
can also perform these steps using
voice control.
a Select HOME and then
select Navi.
bSelect MENU and then select Address .
cSelect Street.
dEnter the name of your destination
street and select OK if necessary.
e Select your destination street from
the list.
fEnter the street number. Select OK
when finished.
g If there is more than one city with the
specified street, a list of cities is
displayed. Select the desired city from
the list.
hSelect Set as Destination .
Route guidance to the destination
beg
ins.
View Routes : Ch oose one of three
routes.
 Route Preference : Ch oose MAX or MIN
for the four settings.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 13 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

14
Quick Reference GuideNavigation—Changing Route or Destination
You can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guida nce.
Adding a Waypoint (“Pit Stop”)
You can add up to four waypoints along
your route. (P112)
aSelect HOME and then select Navi.
bSelect MENU and then select
Destination List on the Route Option
tab.
c Select Add New Destination .
dSelect search method.
eSelect the location to add to the
Destination List.
fIf necessary, edit the order of the
destinations.
Changing Your Destination
There are four methods you can use to
specify a new destina tion during route
guidance.
 Say “Fin
d Nearest… ” (P120)
Searches for the nearest place/landmark
on the map screen (e.g.,
“Find
nearest gas station ”)
.
 Say “Go
Home ” (P12)
Routes to your home address.
 Selecting an icon on the map (P121)
Scroll the map to position the cursor
o
ver a place/landmark icon or a new
area on the map. Select the highlighted
icon on the right side of the screen, and
then select Set as Destination .
 Entering a new destination (P122)
Select MENU
on the map screen. Select
Destination and enter a new
destination.
Canceling Your Route
a Select HOME and then select Navi.
bSelect MENU and then select Cancel
Route .
From the map screen:
aSelect HOME and then select Navi.
bSelect (map menu) icon.
cSelect Cancel Route .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 14 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

15
Quick Reference GuideVoice Help
This navigation system comes with voice help, which shows you what command to say when using the voice command functions.
Command Help
(Talk)
a Press and release the
button.
“Voice Help.”
b Say
The voice help screen is displayed.
 The “V
oice Help ” command is available on most screens.
(Talk)
c Press and release the
button.
dSay one of the options for a list of
available commands by category (e.g.,
“Navi commands ”).
(Talk)
e Press and release the button.
fSay one of the options for a list of
available commands by category (e.g.,
“Find place commands ”).
gThe system displays a list of all
available commands for the category.
Select Read to h
ear the list read
aloud.
Voice Commands (P 233)
You can also display the All commands
screen from the I
nfo Menu. Select
Voice Info on the Info Menu screen.
Getting Started Tutorial
“Getting Started ” on the
a Say
voice help screen.
The system starts to read the tutorial
automatically.
 Select Stop or select BA
CK to stop
reading.
 Say “Previou
s ” or “Next” to
display the previous/next page.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 15 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

16
Quick Reference GuideTroubleshootingFor more Information (P205)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large di fferences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in
with a major metro area. In rural “unverified” areas or
new subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1.Select HOME and then select Settings. Select System ,
and then select Sound/Beep. Check that Volume is
not set to 00.
2.Select Voice Recog on the System se ttings screen, and
set Voice Prompt to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navi
gation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press an
d hold the
(Audio Power) button for two
seconds; the system should reactivate.
2 System Initialization P. 222
How can I check if my smartphone is compatible with the
system?
Visit the following website:●U.S.: handsfreelink.honda.com .●Canada: www.handsfreelink.ca .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 16 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

17

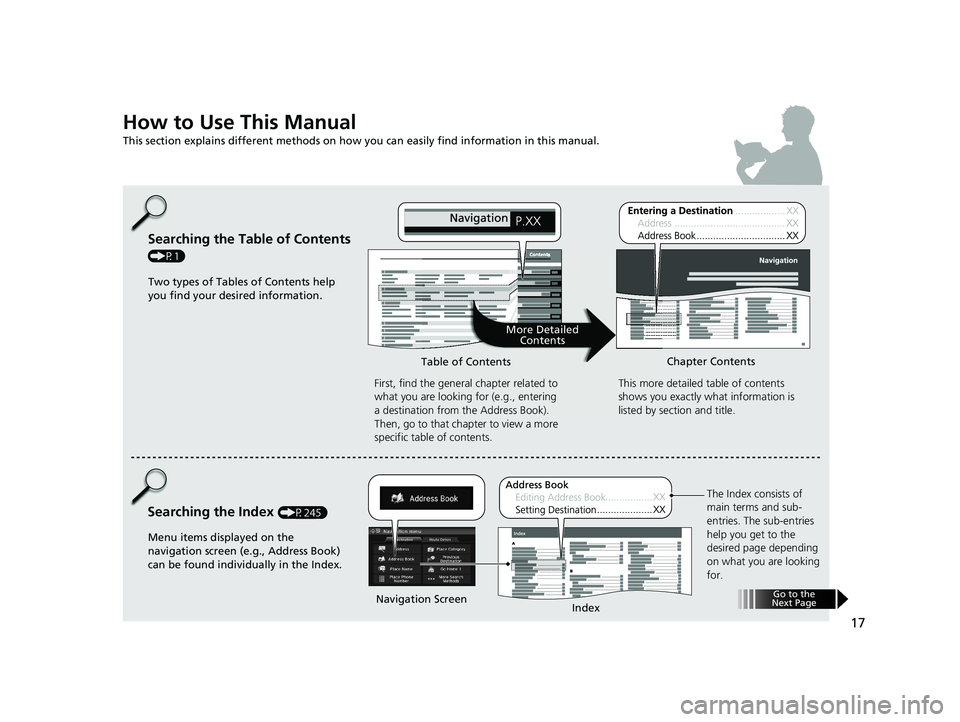

How to Use This Manual
This section explains different methods on how you can easily find information in this manual.
ContentsContentsSearching the Table of Contents
(P1)First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Address Book).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index (P245) This more detailed
table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and sub-
entries. The sub-entries
help you get to the
desired page depending
on what you are looking
for.
Table of Contents
Chapter Contents
Navigation Screen Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Address Book)
can be found individually in the Index.
More Detailed Contents
Go to the
Next Page
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 17 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

Entering a DestinationAddress Book
Navigation
Address Book
H Address Book
Select an address stored in your address book to use as the destination.\
1.Select the driver.
2. Select your destination from the
list.1Address Book
If you have PIN-protected your address book,
enter your PIN number when prompted. Select
OK . PINs are optional.
2 PIN Numbers P. 36
You can select
Address book screen to add an entry to the
address book.
2 Adding an Address Book Entry P. 31
Add New Address
on the HOMENaviMENU
3.Set the route to your destination.
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
All menu options can also be
activated with voice commands. Select HOME . Select the menu option.After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
* Sample pages and images in this se ction may differ from the actual ones. Select
Address Book .
HOME Address Book
MENU
Navi
18
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 18 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

19
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up................................................... 20Voice Control System............................. 22Command Input .................................... 22Voice Recognition .................................. 23Siri Eyes Free .......................................... 24Display Mode Settings........................... 25Turning Off the Display .......................... 25Switching Display Mode Manually .......... 25Personal Information.............................. 27Address Book ......................................... 28Home Addresses .................................... 33PIN Numbers .......................................... 34User Name ............................................. 35Previous Destination ............................... 36Category History .................................... 37
Routing.....................................................38Route Preference ....................................39Unverified Routing ..................................40Traffic Rerouting .....................................42Edit POI Search Radius Along Route ........43Avoided Area ..........................................44Guidance..................................................46Map...........................................................49Showing Icons on the Map .....................51Color ......................................................53View (Map Orientation) ...........................543D Angle Adjustment .............................55Straight Line Guide .................................55Current Location .....................................56Map Legend ...........................................57
Off-road Tracking ................................... 61Correct Vehicle Position ......................... 62System Settings...................................... 63Display Settings...................................... 65Display ................................................... 65Background Color .................................. 66Sound and Beep Settings....................... 67Voice Recognition Settings.................... 69Clock Adjustment.................................... 70Clock Type ............................................. 71Wallpaper Settings ................................. 72Adjust Time............................................ 75Resetting the Clock Settings ................... 75Other Settings......................................... 76Data Reset............................................... 78
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 19 ページ ２０１４年３月２１日　金曜日　午後３時２０分
