HONDA CIVIC SEDAN 2014 Navigation Manual (in English)

uu Personal Information u Address Book
30
System Setup
4. Select Name.
5.Enter a name or title. Select OK.
6. Select Addr
ess.
7. Select an
item for specifying the
address.
8. Select OK
when you are done
creating the entry.
1 Adding an Address Book Entry
When you use Place Name, Place Phone Number
or Place Category , the phone number is
automatically entered.
The following items are available:
• Address : Enter
an address on the characte r input screen when prompted.
2Address P. 82
•Place Name : Enter the name of a place/landmark.
2Place Name P. 88
• Place Phone Number : Enter the phone number of a place/landmark.
2Place Phone Number P. 90
• Place Category : Select a category to search for a place/landmark (e.g., Banking,
Lodging).
2 Place Category P. 91
• Previous Destination : Select a previous destination.
2Previous Destination P. 93
• Current Position : Select your current location.
• Mo
re Search Methods : Displays additional search method entries.
2Entering a Destination P. 80
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 30 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■Editing an Address Book Entry1
Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
Continued31
uu Personal Information u Address Book
System SetupH HOME u Settings u Navigation u Personal Info u Address Book
1. Select the driver and then select
the address to edit.
2. Enter the
name, address, phone
number, and category fields.
2 Adding an Address Book
Entry P. 29
3. Select OK.
■Selecting an Address Book Category
1
Selecting an Addr ess Book Category
You can have a total of 100 categories (including
“Unfiled”). But these cate gories cannot be shared
with two address books.
If you delete a category that is used by other
addresses, the category type for those addresses
changes to “Unfiled.”
Category Icons
The following icons can be selected for a category:
HHOME u Settings u Navigation u Personal Info u Address Book
1. Select the driver and then select an
address.
2. Select Ca
tegory.
3. Select BU
SINESS, PERSONAL , or
a category you created.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 31 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

uu Personal Information u Address Book
32
System Setup

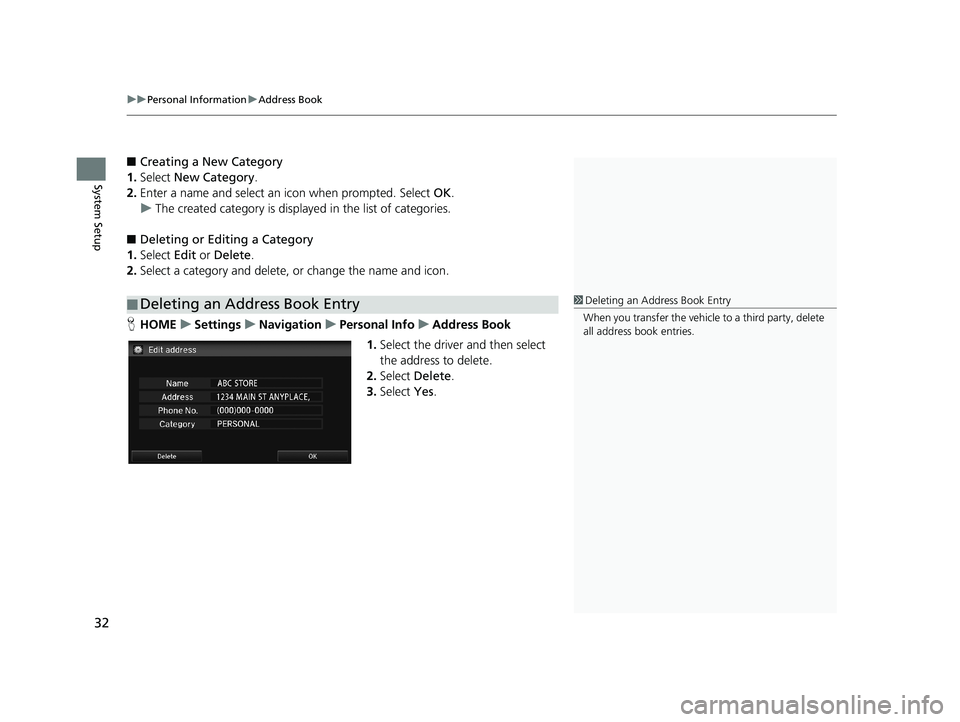

■ Creating a New Category
1.Select New Category .
2. Enter a
name and select an icon when prompted. Select OK.
u The cr
eated category is displa yed in the list of categories.
■ De
leting or Editing a Category
1.Select Ed
it or Delete .
2. Selec
t a category and delete, or change the name and icon.
■Deleting an Address Book Entry1
Deleting an Address Book Entry
When you transfer the vehicle to a third party, delete
all address book entries.
H HOME u Settings u Navigation u Personal Info u Address Book
1. Select the driver and then select
the address to delete.
2. Select De
lete.
3. Select Yes.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 32 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

33
uu Personal Information u Home Addresses
System Setup
Home Addresses
1 Home Addresses
If you have PIN-pr otected your home addresses, enter
your PIN when prompted. Select OK. PINs are
optional.
2 PIN Numbers P. 34
If your home street is not in the system database,
park on the nearest verified street to your home.
When entering the “ Address” field, select Current
Position to use your current location as the home
address.
You can delete a home addr ess if necessary. Select
Clear Home Entry . Select Yes.
When you transfer the vehicle to a third party, delete
all home addresses.
The home icon is shown on the map screen in the 5
mile (8 km) or less scales.H HOME u Settings u Navigation u Personal Info u Edit Go Home 1 or
Edit
Go Home 2
Set two home addresses that you frequently use.
1. Edit the name, address, and phone
number the same way as an
address in the address book.
2 Adding an Address Book
Entry P. 29
2. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 33 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

34
uu Personal Information u PIN Numbers
System Setup
PIN Numbers
1 PIN Numbers
PIN
Personal Identification Nu mber (PIN) is a password
used to access some personal data.
PINs are optional. If you choose to use a PIN, keep a
note of the number in a secure location. If you forget
your PIN, contact your deal er. The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with Driver 1 and Driver
2. If either Driver 1 or Driver 2 sets a Go Home PIN,
both of them need to enter the PIN when:
•selecting Go Home for a destination
•selecting Home Address for editing
If you want to stop using a PIN, select Turn off PIN
entry .
HHOME u Settings u Navigation u Personal Info u PIN Number
Set a 4-digit PIN for protecting personal ad dresses and your home addresses. Once
you set a
PIN, you are prompted to enter it whenever you access a personal address
or a home address for the first time after setting the power mode to ACCESSORY or
ON.
1. Select the PIN to create.
2. Select the
driver (when selecting
Address Book PIN ).
3.Enter a 4-digit PIN.
4. Re-enter the
new PIN when
prompted to confirm the number
you just enter.
u If you
do not entered the same
number both times, an
Incorrect PIN message is
displayed. Enter your PIN again.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 34 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

35
uu Personal Information u User Name
System Setup

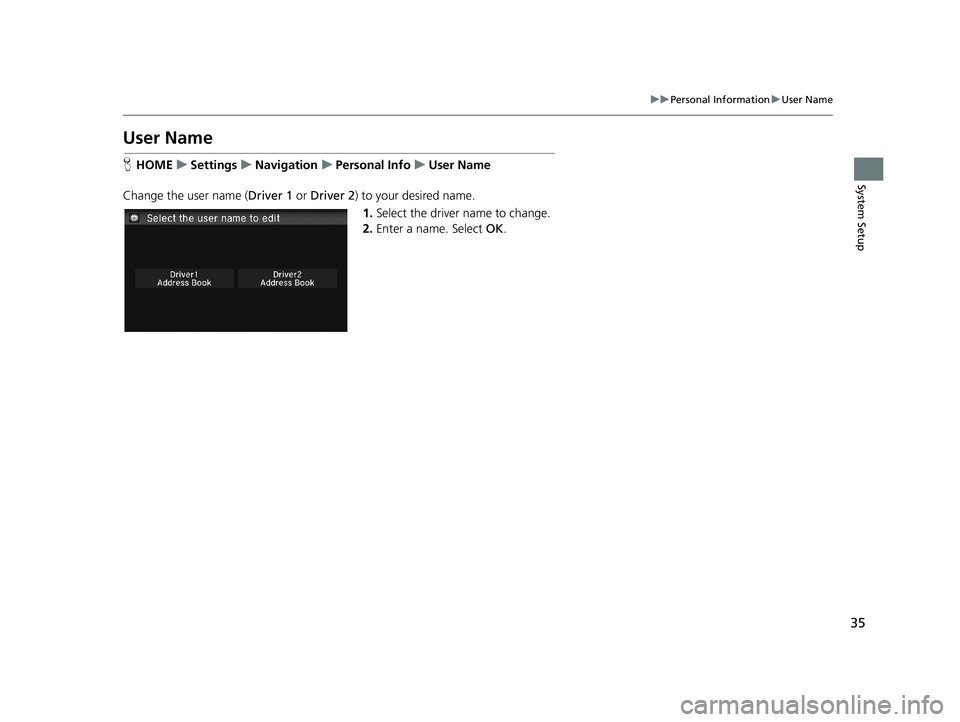

User Name
H HOME u Settings u Navigation u Personal Info u User Name
Change the user name ( Driver 1 or Driver 2 ) to
your desired name.
1.Select the driver name to change.
2. Enter
a name. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 35 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

36
uu Personal Information u Previous Destination
System Setup

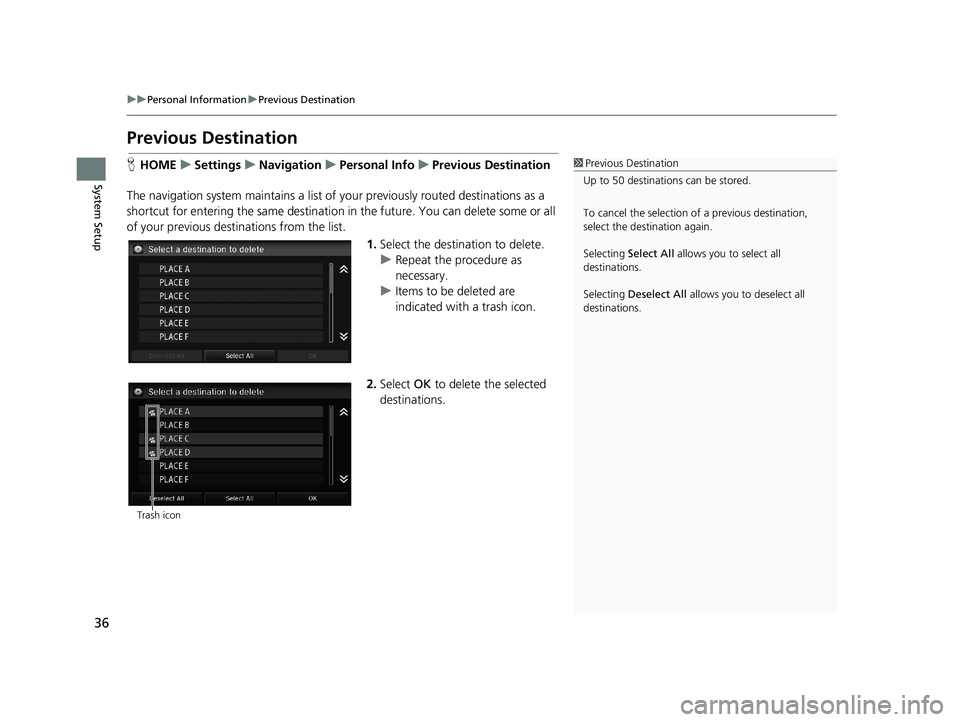

Previous Destination
1 Previous Destination
Up to 50 destinations can be stored.
To cancel the selection of a previous destination,
select the destination again.
Selecting Select All allows you to select all
destinations.
Selecting Deselect All allows you to deselect all
destinations.H HOME u Settings u Navigation u Personal Info u Previous Destination
The navigation system maintain s a
list of your previously routed destinations as a
shortcut for entering the same destination in the future. You can delete some or all
of your previous destinations from the list.
1. Select the destination to delete.
u Rep
eat the procedure as
necessary.
u Items to be deleted are
indicate

d with a trash icon.
Trash icon
2.Select OK to delete the selected
destinations.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 36 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

37
uu Personal Information u Category History
System Setup
Category History
1 Category History
Up to 50 destinations can be stored.
To cancel the selection of a category, select the
category again.
Selecting Select All allows you to select all
categories.H HOME u Settings u Navigation u Personal Info u Category History
The navigation system maintains a list of y
our recently used place categories as a
shortcut for selecting the same categories in the future. You can delete some or all
of your recently used categories from the list.
1.Select the category to delete.
u Repeat
the procedure as
necessary.
u I
tems to be deleted are
indicated with a trash icon.
Trash icon
2.Select OK to delete the selected
categories.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 37 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

38
System Setup

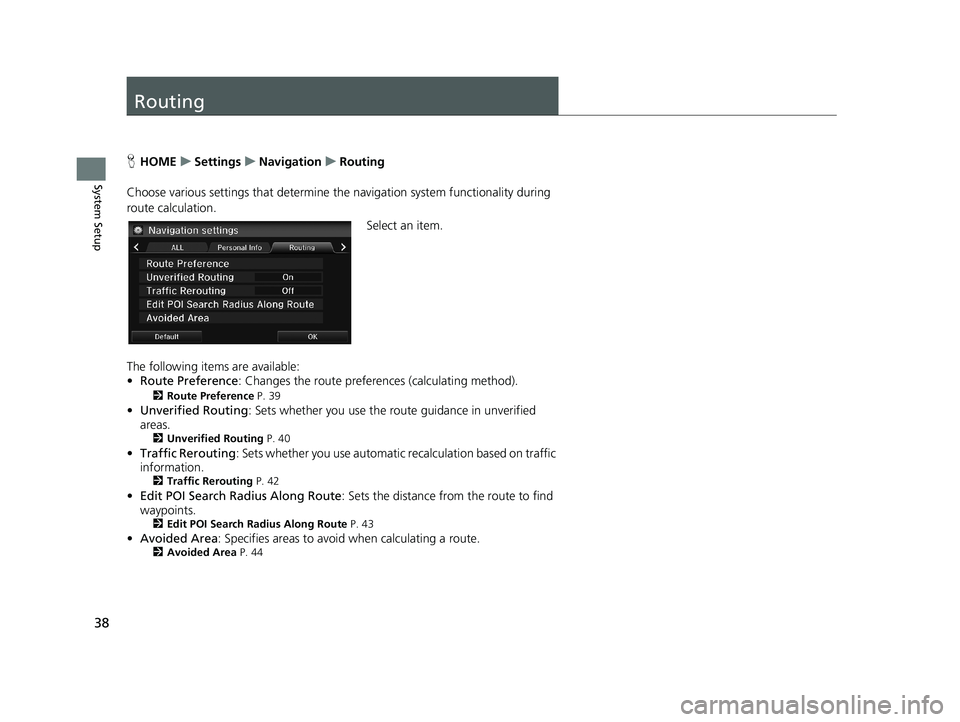

Routing
HHOME u Settings u Navigation u Routing
Choose various settings that determine th e
navigation system functionality during
route calculation.
Select an item.
The following items are available:
• R
oute Preference : Changes the route preferen ces (calculating method).
2Route Preference P. 39
• Unverified Routing : Sets whether you use the route guidance in unverified
areas.
2 Unverified Routing P. 40
•Traffic Rerouting : Sets whether you use automatic recalculation based on traffic
information.
2 Traffic Rerouting P. 42
• Edit POI Search Radius Along Route : Sets the distance from the route to find
waypoints.
2 Edit POI Search Radius Along Route P. 43
• Avoided Area : Specifies areas to avoid when calculating a route.2Avoided Area P. 44
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 38 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

39
uu Routing u Route Preference
System Setup
Route Preference
H HOME u Settings u Navigation u Routing u Route Preference1 Route Preference
The calculated route may not be the shortest route or
the route you would choose. For safety reasons, the
system generally a pplies the following rules to your
route:
•Shortcuts through residential areas are avoided.
•Right turns are favored over left turns or U-turns.•Time-restricted turns (tur ns prohibited at certain
times of the day) are not used.
Check the ferry schedule when the calculated route
includes ferry route.
On Canadian models, Highways is displayed as
Freeways .
Change the route preference by selecting minimum or maximum driving methods.
1.Select an item.
2. Select MI
N or MAX .
3. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 39 ページ ２０１４年３月２１日　金曜日　 午後３時２０分
