119
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

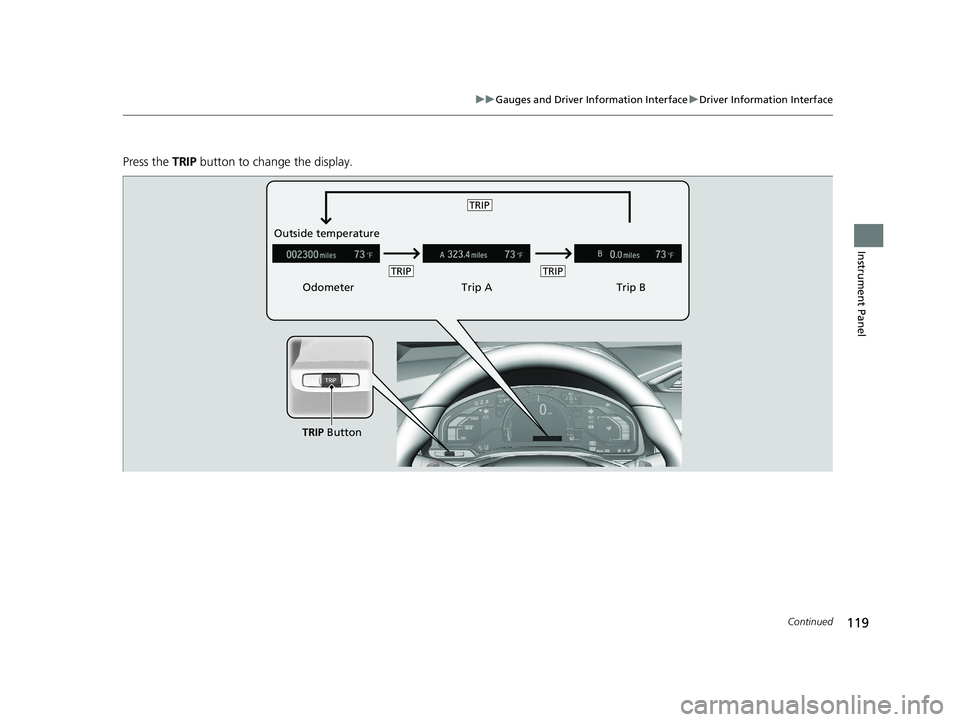

Press the TRIP button to change the display.
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIPTRIP
TRIP
17 CLARITY BEV CSS-31TRV6000.book 119 ページ ２０１７年４月１４日　金曜日　午前１１
時８分

uuGauges and Driver Information Interface uDriver Information Interface
120
Instrument Panel

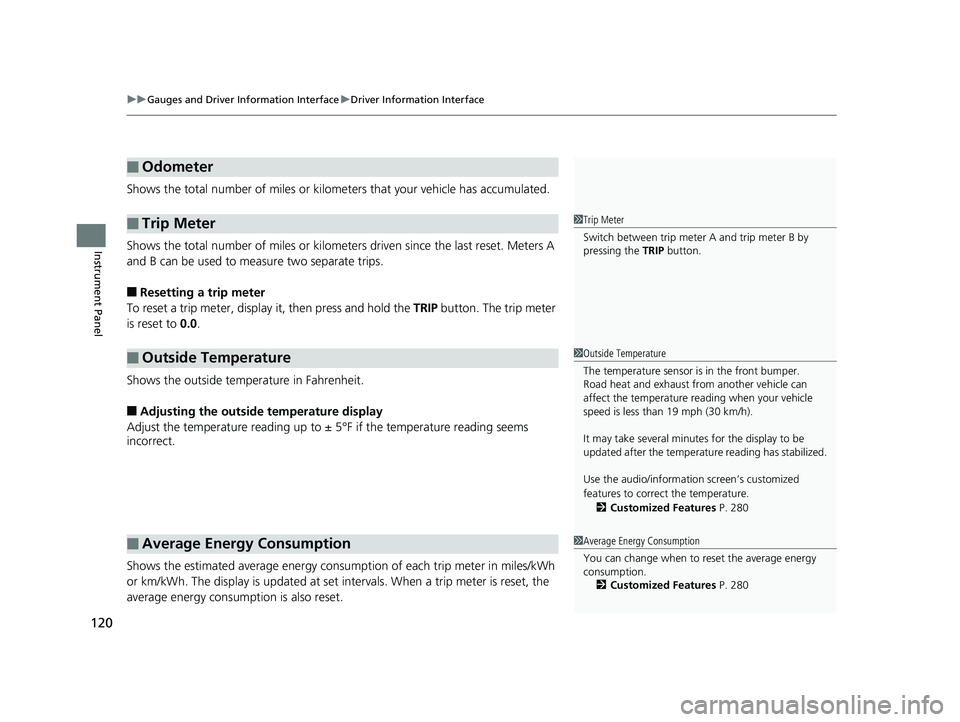

Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
Shows the estimated average energy consum ption of each trip meter in miles/kWh
or km/kWh. The display is u pdated at set intervals. When a trip meter is reset, the
average energy consumption is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Energy Consumption
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 280
1Average Energy Consumption
You can change when to reset the average energy
consumption.
2 Customized Features P. 280
17 CLARITY BEV CSS-31TRV6000.book 120 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

Continued121
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

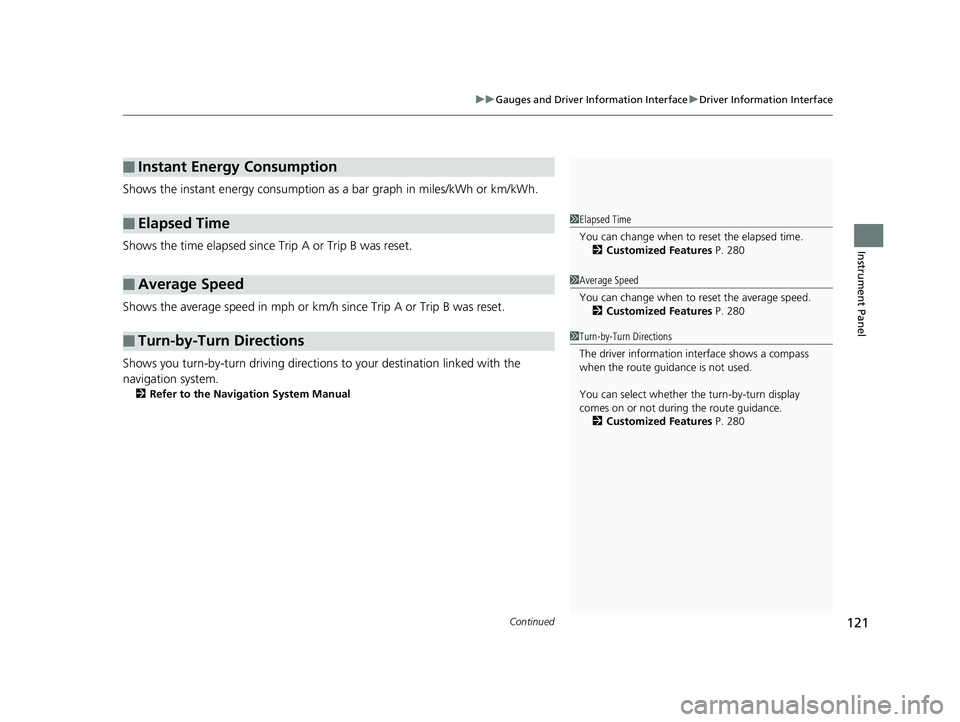

Shows the instant energy consumption as a bar graph in miles/kWh or km/kWh.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Energy Consumption
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 280
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 280
1Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 280
17 CLARITY BEV CSS-31TRV6000.book 121 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

122
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

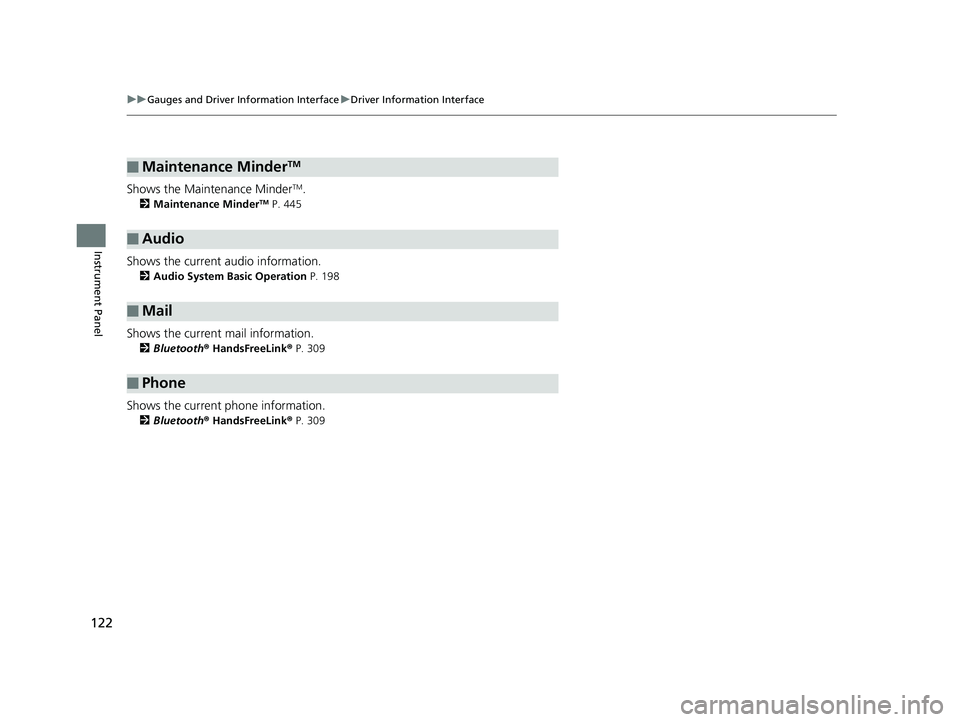

Shows the Maintenance MinderTM.
2 Maintenance MinderTM P. 445
Shows the current audio information.
2Audio System Basic Operation P. 198
Shows the current mail information.
2Bluetooth® HandsFreeLink ® P. 309
Shows the current phone information.
2 Bluetooth® HandsFreeLink ® P. 309
■Maintenance MinderTM
■Audio
■Mail
■Phone
17 CLARITY BEV CSS-31TRV6000.book 122 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

Continued123
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

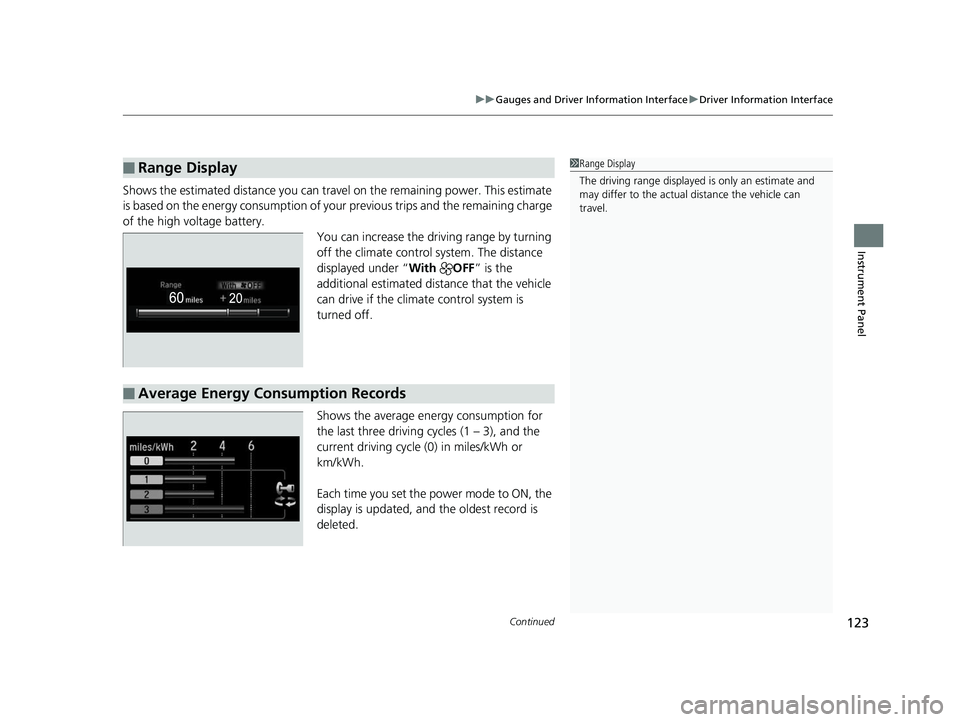

Shows the estimated distance you can travel on the remaining power. This estimate
is based on the energy consumption of your previous trips and the remaining charge
of the high voltage battery. You can increase the driving range by turning
off the climate control system. The distance
displayed under “With OFF” is the
additional estimated distance that the vehicle
can drive if the climat e control system is
turned off.
Shows the average energy consumption for
the last three driving cy cles (1 – 3), and the
current driving cycle (0) in miles/kWh or
km/kWh.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Range Display1 Range Display
The driving range displayed is only an estimate and
may differ to the actual distance the vehicle can
travel.
■Average Energy Consumption Records
17 CLARITY BEV CSS-31TRV6000.book 123 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

uuGauges and Driver Information Interface uDriver Information Interface
124
Instrument Panel

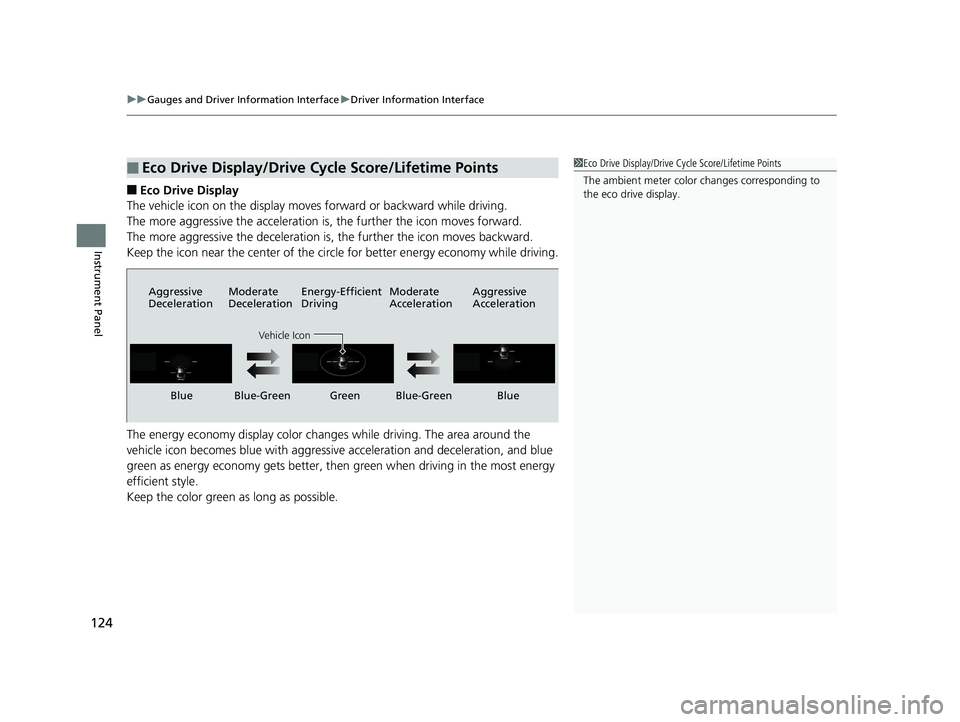

■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circle for better energy economy while driving.
The energy economy displa y color changes while driving. The area around the
vehicle icon becomes blue with aggressive acceleration and deceleration, and blue
green as energy economy gets better, then green when driving in the most energy
efficient style.
Keep the color green as long as possible.
■Eco Drive Display/Drive Cycle Score/Lifetime Points1 Eco Drive Display/Drive Cycle Score/Lifetime Points
The ambient meter color changes corresponding to
the eco drive display.
Aggressive
Deceleration Moderate
DecelerationEnergy-Efficient
Driving Moderate
AccelerationAggressive
Acceleration
Vehicle Icon
Blue Blue-Green Green Blue-Green Blue
17 CLARITY BEV CSS-31TRV6000.book 124 ページ ２０１７年４月１４日　金曜日　午前１１
時８分

125
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

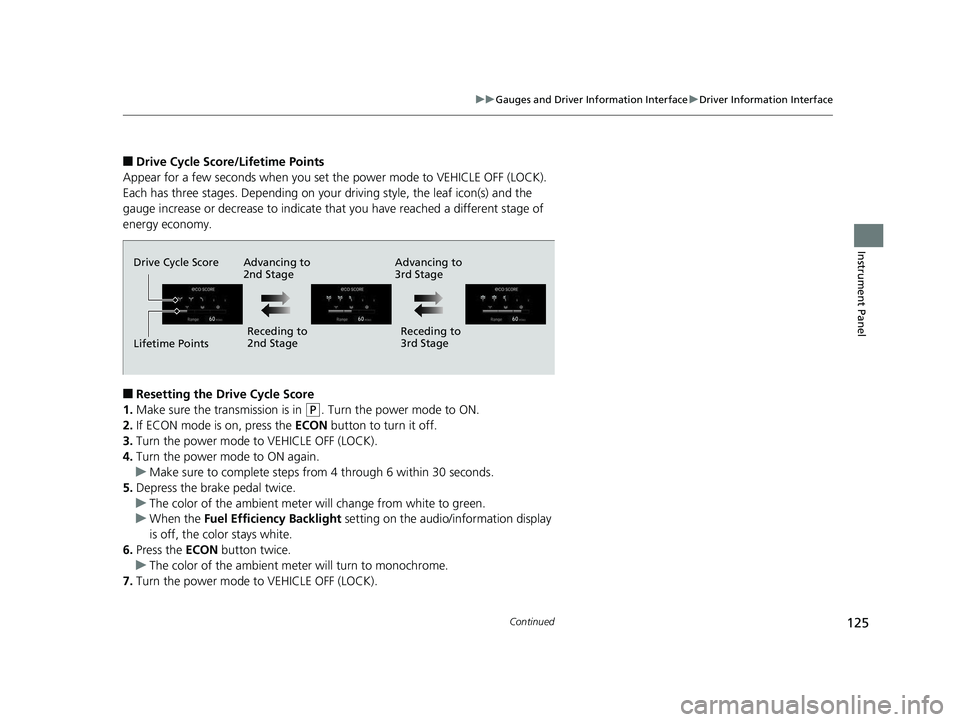

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set the power mode to VEHICLE OFF (LOCK).
Each has three stages. Depending on your driving style, the leaf icon(s) and the
gauge increase or decrease to indicate that you have reached a different stage of
energy economy.
■Resetting the Drive Cycle Score
1. Make sure the transmission is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF (LOCK).
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from white to green.
u When the Fuel Efficiency Backlight setting on the audio/information display
is off, the color stays white.
6. Press the ECON button twice.
u The color of the ambient meter will turn to monochrome.
7. Turn the power mode to VEHICLE OFF (LOCK).
Drive Cycle Score
Lifetime Points Advancing to
2nd Stage
Receding to
2nd Stage Receding to
3rd Stage
Advancing to
3rd Stage
17 CLARITY BEV CSS-31TRV6000.book 125 ページ ２０１７年４月１４日　金曜日　午前１１
時８分

uuGauges and Driver Information Interface uDriver Information Interface
126
Instrument Panel

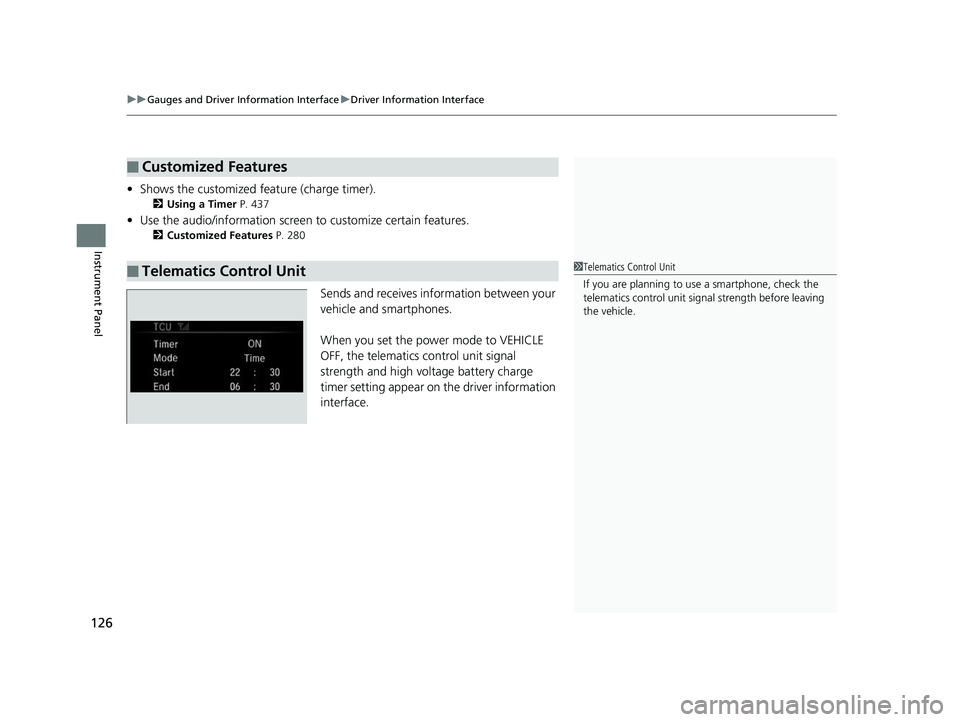

• Shows the customized feature (charge timer).
2 Using a Timer P. 437
•Use the audio/information screen to customize certain features.
2Customized Features P. 280
Sends and receives information between your
vehicle and smartphones.
When you set the power mode to VEHICLE
OFF, the telematics control unit signal
strength and high voltage battery charge
timer setting appear on the driver information
interface.
■Customized Features
■Telematics Control Unit1 Telematics Control Unit
If you are planning to use a smartphone, check the
telematics control unit sign al strength before leaving
the vehicle.
17 CLARITY BEV CSS-31TRV6000.book 126 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

127

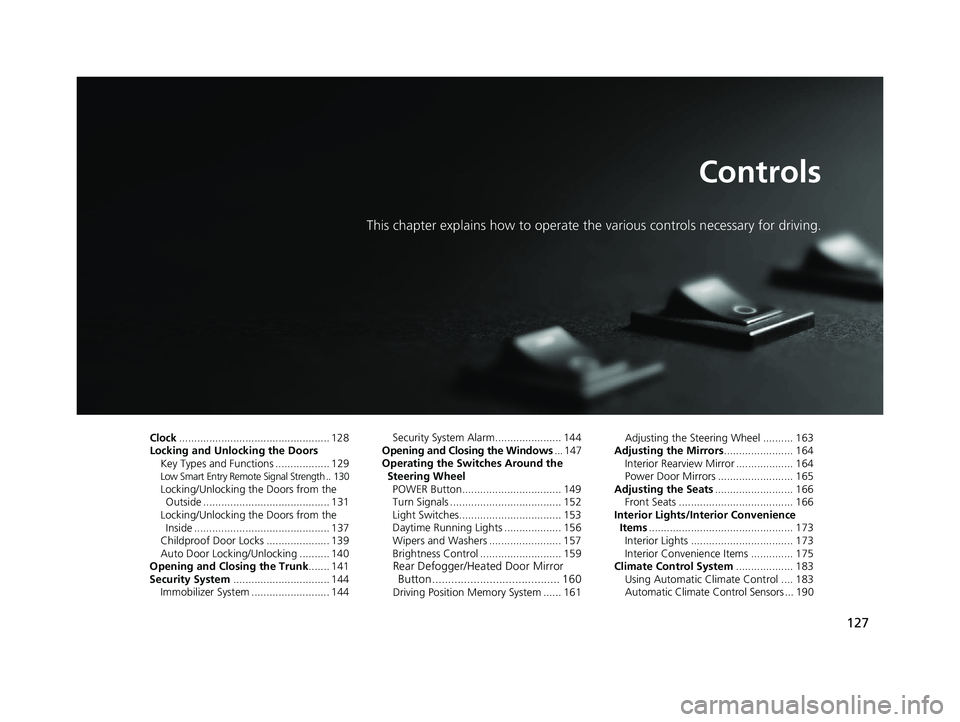

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors Key Types and Functions .................. 129
Low Smart Entry Remote Signal Strength .. 130Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Trunk ....... 141
Security System ................................ 144
Immobilizer System .......................... 144 Security System Alarm...................... 144
Opening and Closing the Windows ... 147
Operating the Switches Around the
Steering Wheel POWER Button................................. 149
Turn Signals ..................................... 152
Light Switches.................................. 153
Daytime Running Lights ................... 156
Wipers and Washers ........................ 157
Brightness Control ........................... 159
Rear Defogger/Heated Door Mirror Button........................................ 160
Driving Position Memory System ...... 161 Adjusting the Steering Wheel .......... 163
Adjusting the Mirrors ....................... 164
Interior Rearview Mirror ................... 164
Power Door Mirrors ......................... 165
Adjusting the Seats .......................... 166
Front Seats ...................................... 166
Interior Lights/Interior Convenience Items ................................................ 173
Interior Lights .................................. 173
Interior Convenience Items .............. 175
Climate Control System ................... 183
Using Automatic Climate Control .... 183
Automatic Climate Control Sensors ... 190
17 CLARITY BEV CSS-31TRV6000.book 127 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

128
Controls

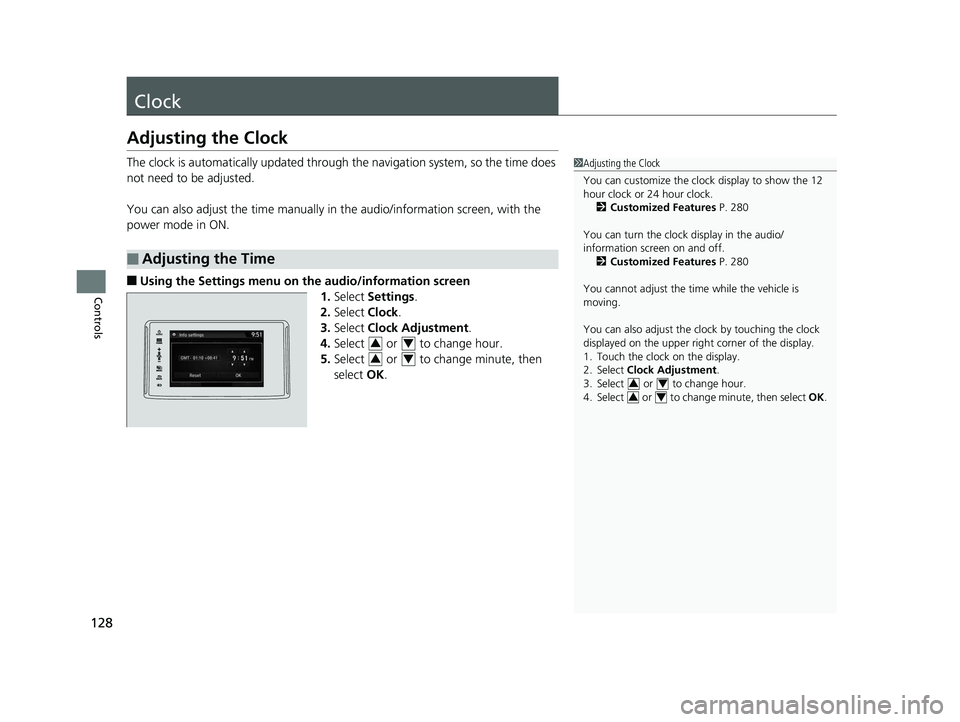

Clock
Adjusting the Clock
The clock is automatically updated through the navigation system, so the time does
not need to be adjusted.
You can also adjust the time manually in the audio/information screen, with the
power mode in ON.
■Using the Settings menu on th e audio/information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
■Adjusting the Time
1Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 280
You can turn the clock display in the audio/
information screen on and off. 2 Customized Features P. 280
You cannot adjust the time while the vehicle is
moving.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
34
34
34
34
