Page 81 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 79
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 80
Driver Information Interface Warni

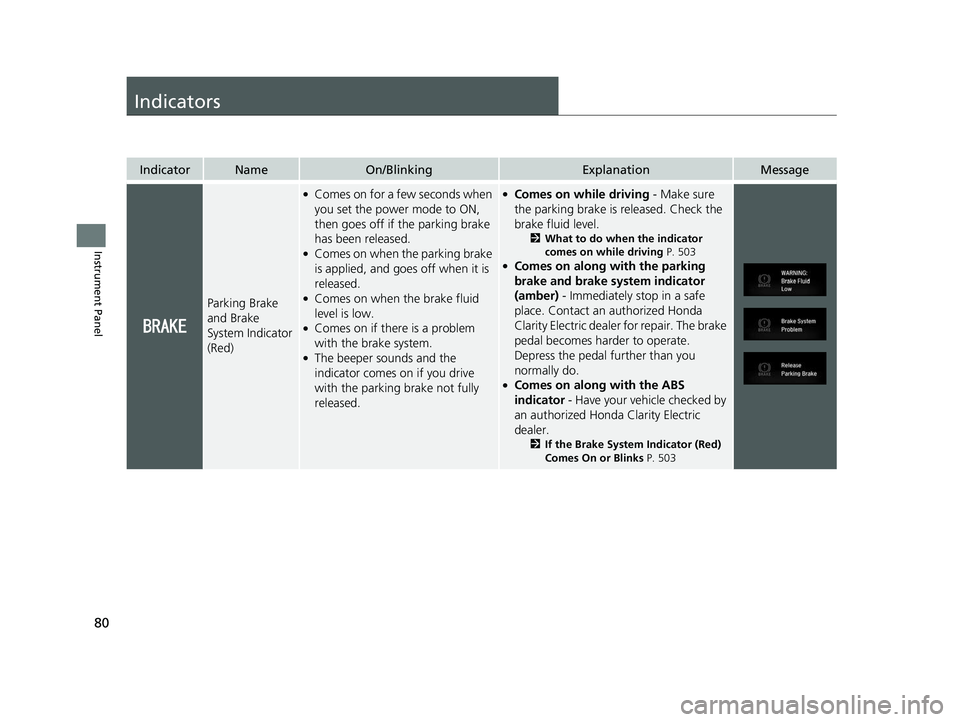

Page 82 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 80
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes

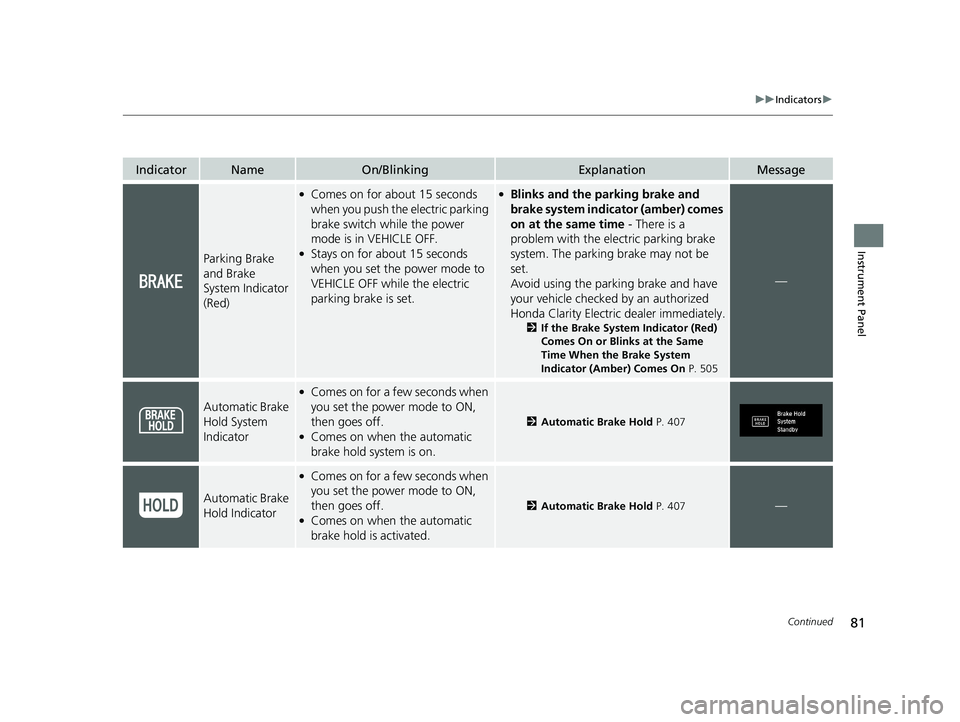

Page 83 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for about 15 seconds
when you push the electric p

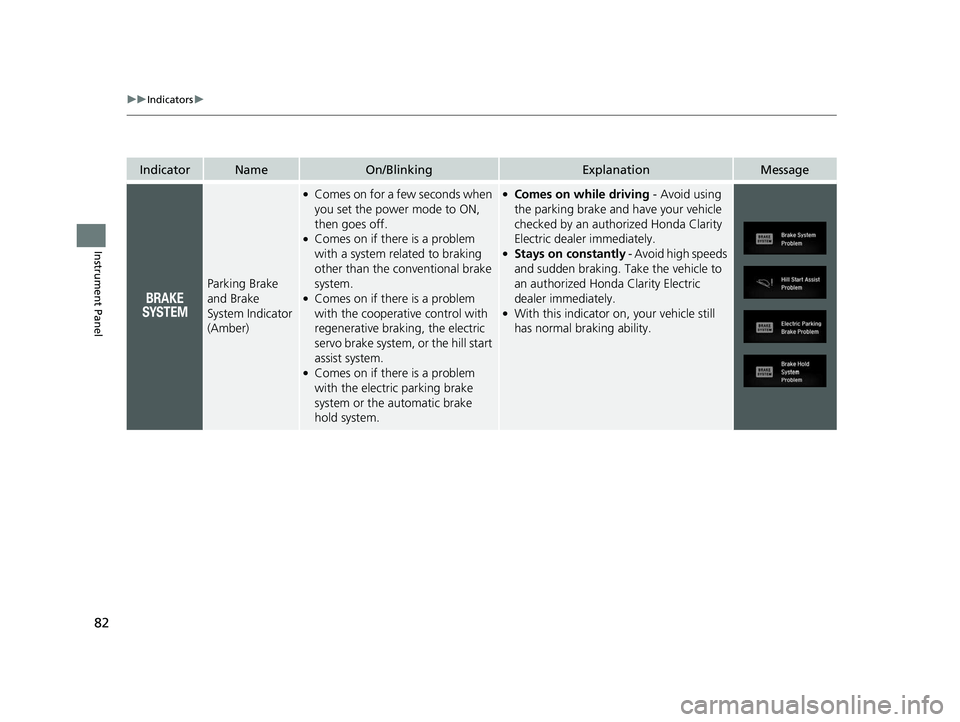

Page 84 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
the

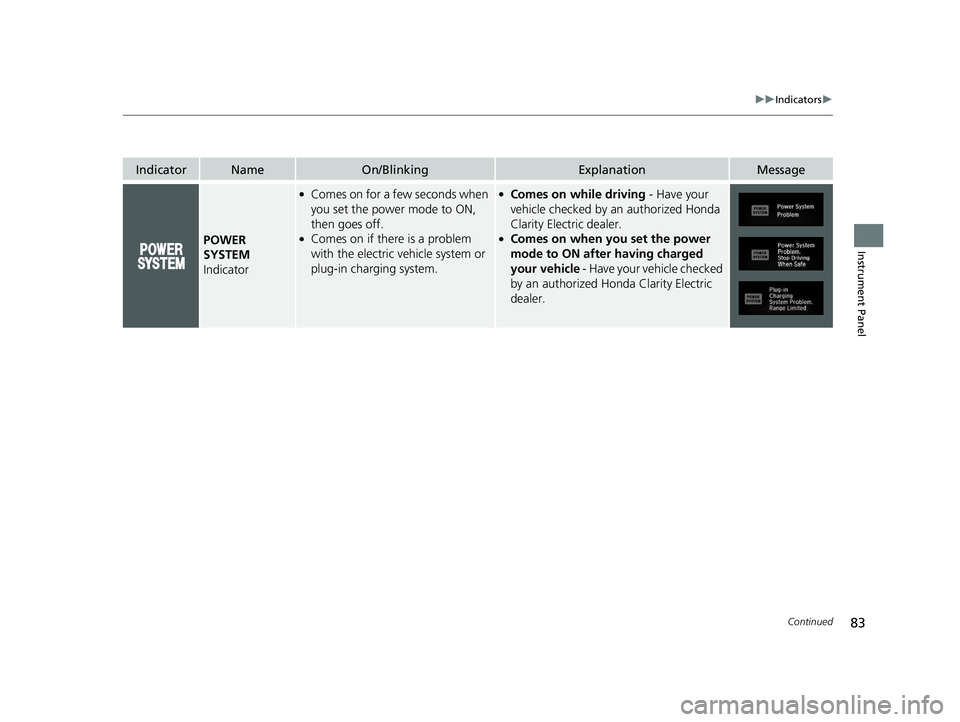

Page 85 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Co

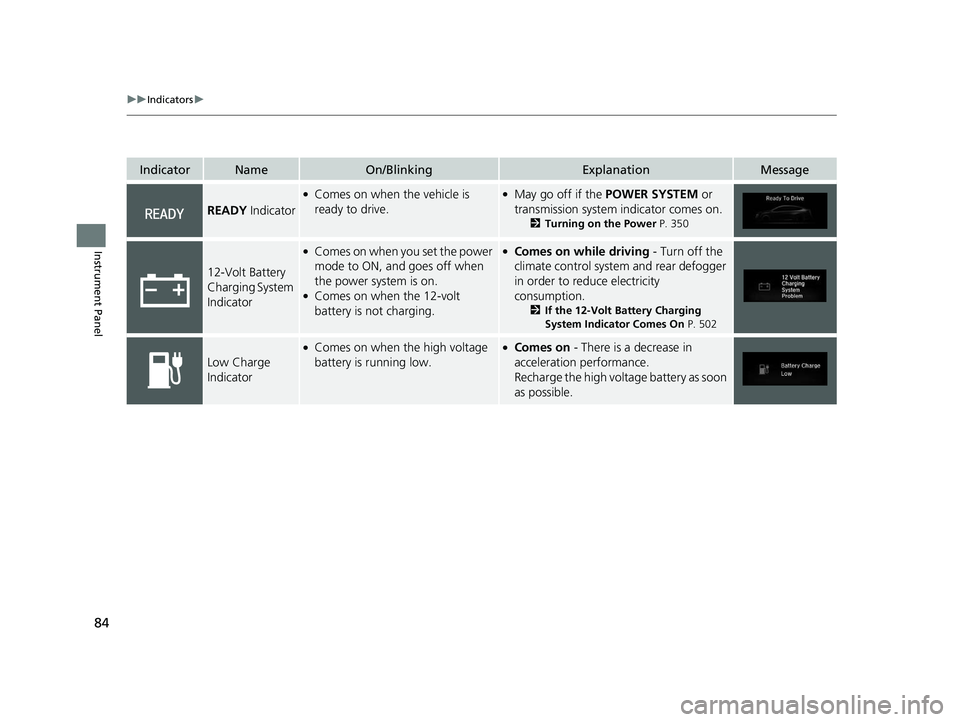

Page 86 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY Indicator
●Comes on when the vehicle is
ready to drive.●May go off if the  POWER SYSTEM  or
transmission syste

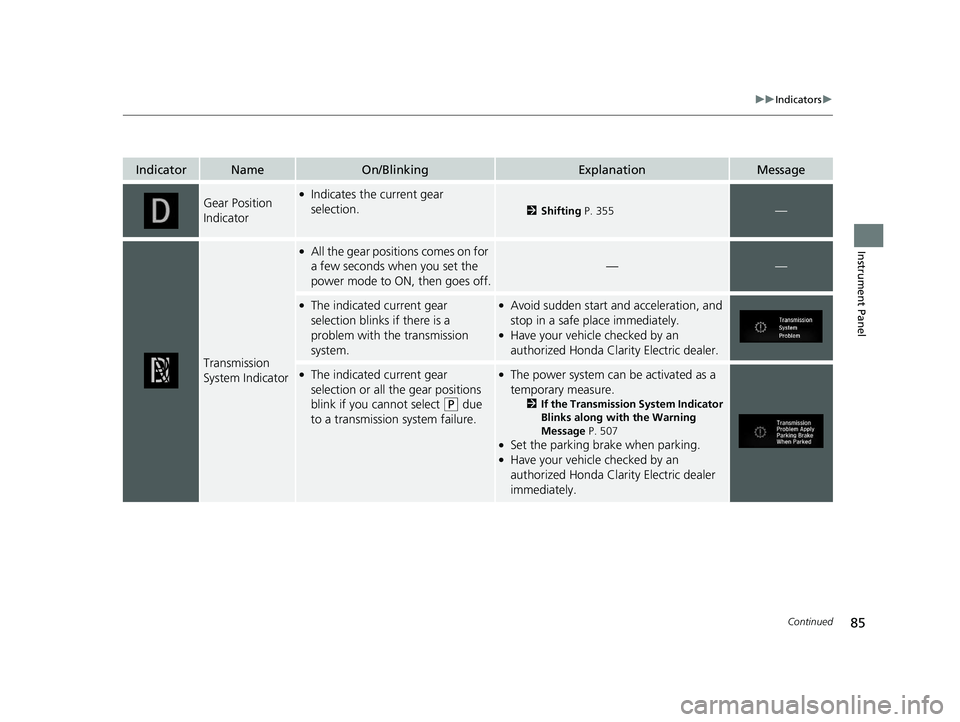

Page 87 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear
selection.
2Shifting P. 355—
Transmission
System Indic

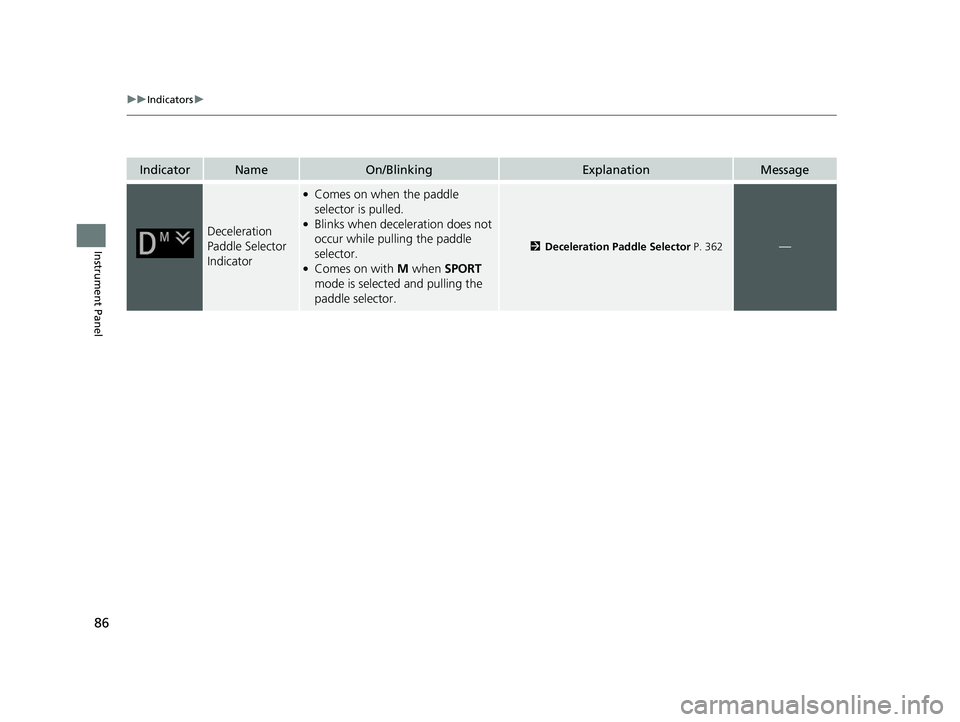

Page 88 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle
selector is pulled.
●Blinks when deceleration does

Page 89 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you s

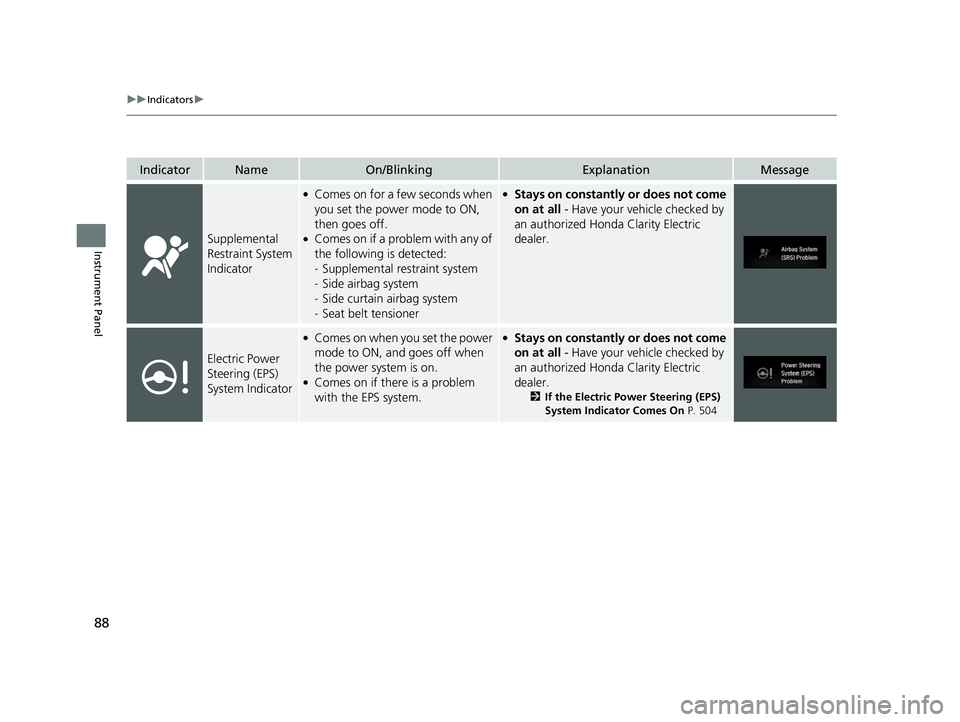

Page 90 of 543

HONDA CLARITY ELECTRIC 2017   (in English) Manual Online 88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off
