109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

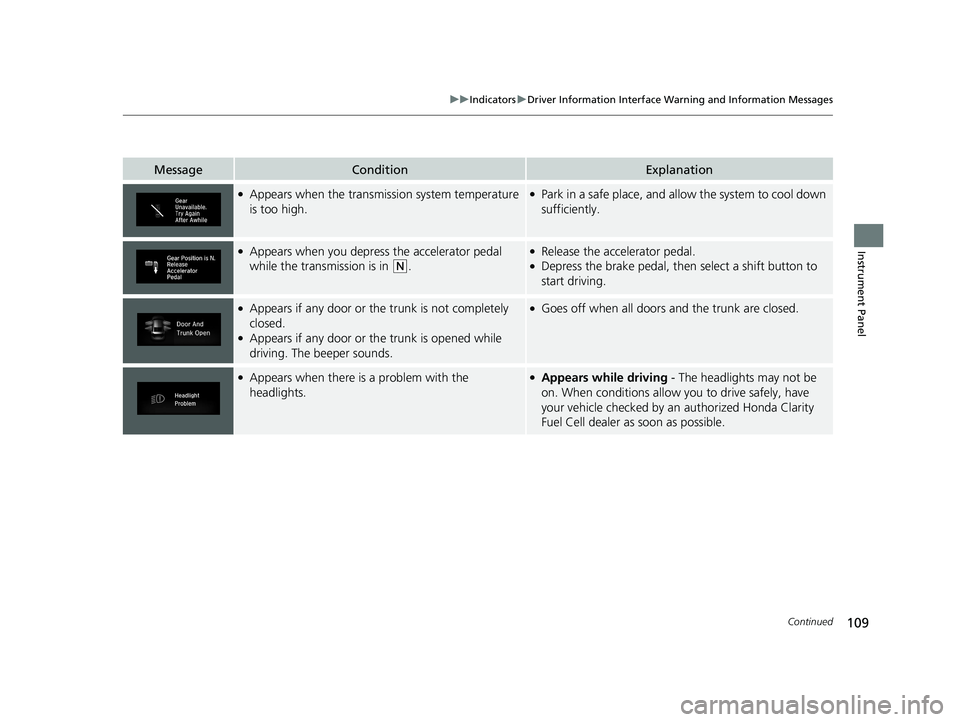

MessageConditionExplanation
●Appears when the transmission system temperature
is too high.●Park in a safe place, and allow the system to cool down
sufficiently.
●Appears when you depress the accelerator pedal
while the transmission is in
(N.
●Release the accelerator pedal.●Depress the brake pedal, then select a shift button to
start driving.
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or th e trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by an authorized Honda Clarity
Fuel Cell dealer as soon as possible.
20 CLARITY FCV CSS-31TRT6300.book 109 ページ 2019年9月10日 火曜日 午前11 時3分
Page 112 of 551
110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel

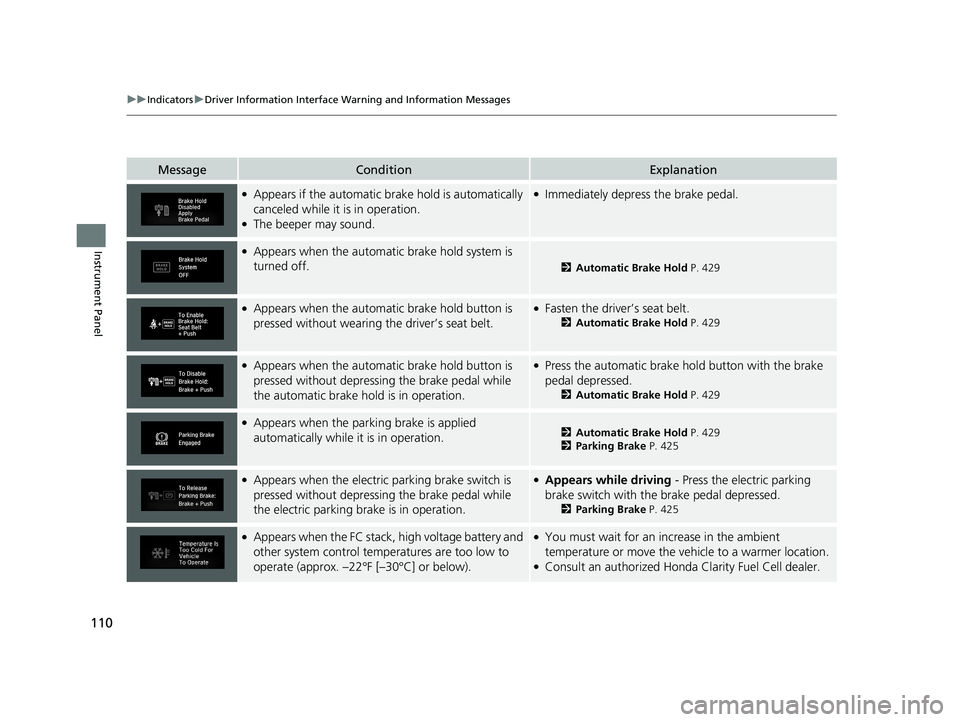

MessageConditionExplanation
●Appears if the automatic brake hold is automatically
canceled while it is in operation.
●The beeper may sound.
●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 429
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 429
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 429
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 429
2 Parking Brake P. 425
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Appears while driving - Press the electric parking
brake switch with the brake pedal depressed.
2 Parking Brake P. 425
●Appears when the FC stack, high voltage battery and
other system control temperatures are too low to
operate (approx. –22°F [–30°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
●Consult an authorized Honda Clarity Fuel Cell dealer.
20 CLARITY FCV CSS-31TRT6300.book 110 ページ 2019年9月10日 火曜日 午前11 時3分
Page 113 of 551
111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

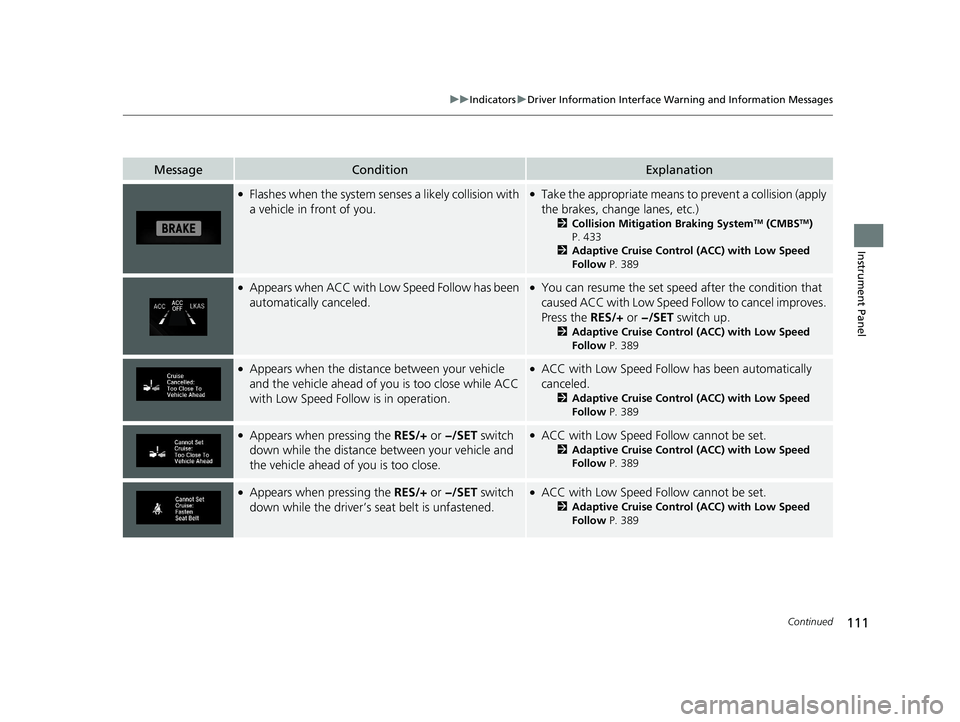

●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 433
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ or −/SET switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when pressing the RES/+ or −/SET switch
down while the distance between your vehicle and
the vehicle ahead of you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when pressing the RES/+ or −/SET switch
down while the driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
20 CLARITY FCV CSS-31TRT6300.book 111 ページ 2019年9月10日 火曜日 午前11 時3分
Page 114 of 551
112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel

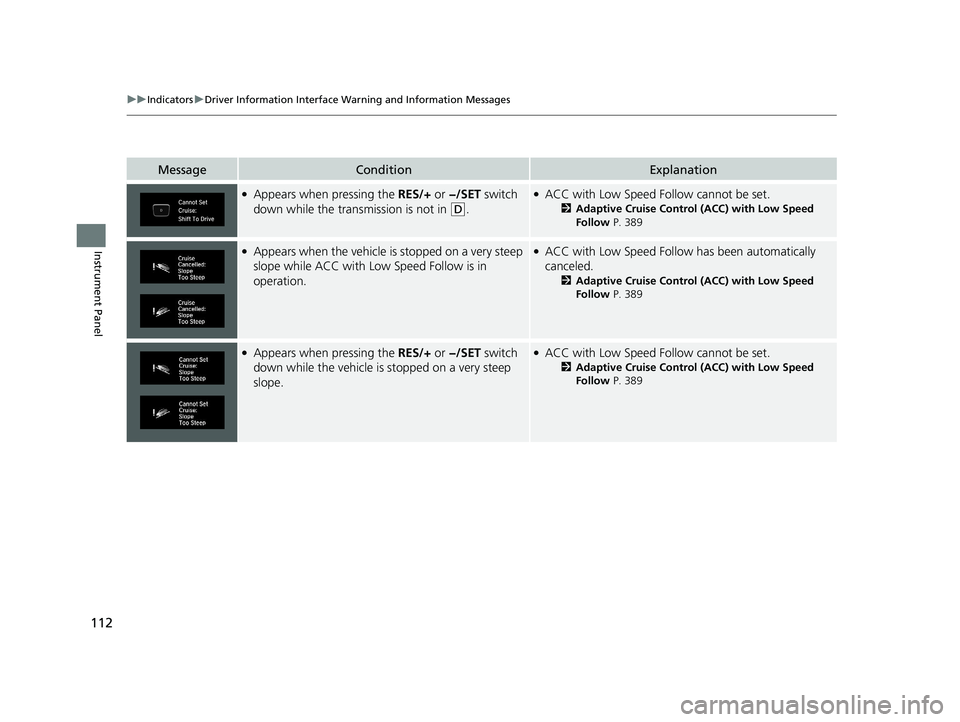

MessageConditionExplanation
●Appears when pressing the RES/+ or −/SET switch
down while the trans mission is not in
(D.
●ACC with Low Speed Follow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when pressing the RES/+ or −/SET switch
down while the vehicle is stopped on a very steep
slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
20 CLARITY FCV CSS-31TRT6300.book 112 ページ 2019年9月10日 火曜日 午前11 時3分
Page 115 of 551
113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

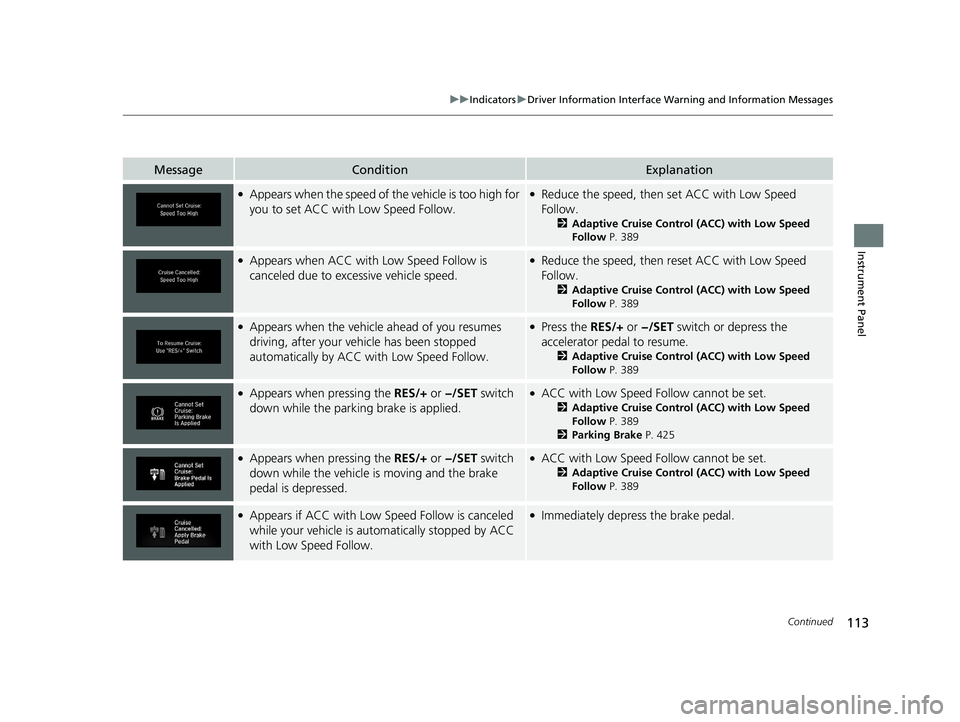

MessageConditionExplanation
●Appears when the speed of the vehicle is too high for
you to set ACC with Low Speed Follow.●Reduce the speed, then set ACC with Low Speed
Follow.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when ACC with Low Speed Follow is
canceled due to exce ssive vehicle speed.●Reduce the speed, then reset ACC with Low Speed
Follow.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when the vehicl e ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC with Low Speed Follow.●Press the RES/+ or −/SET switch or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears when pressing the RES/+ or −/SET switch
down while the park ing brake is applied.●ACC with Low Speed Follow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
2 Parking Brake P. 425
●Appears when pressing the RES/+ or −/SET switch
down while the vehicle is moving and the brake
pedal is depressed.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
20 CLARITY FCV CSS-31TRT6300.book 113 ページ 2019年9月10日 火曜日 午前11 時3分
Page 116 of 551
114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel

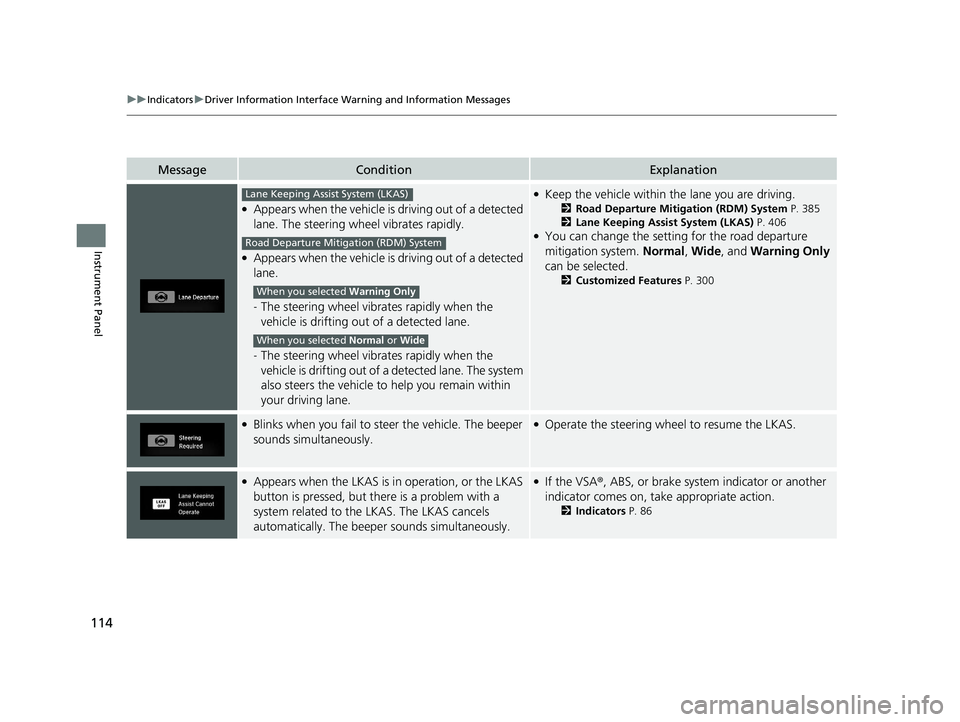

MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 385
2 Lane Keeping Assist System (LKAS) P. 406
●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 300
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If the VSA®, ABS, or brake system indicator or another
indicator comes on, take appropriate action.
2 Indicators P. 86
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
20 CLARITY FCV CSS-31TRT6300.book 114 ページ 2019年9月10日 火曜日 午前11 時3分
Page 117 of 551
115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel

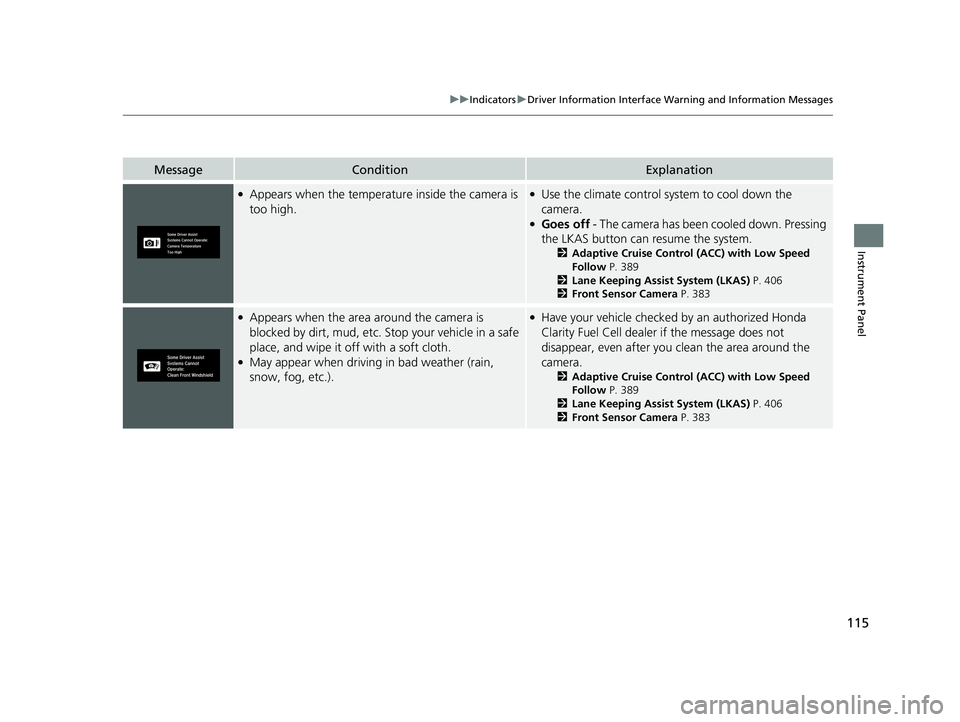

MessageConditionExplanation
●Appears when the temperature inside the camera is
too high.●Use the climate control system to cool down the
camera.
●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
2 Lane Keeping Assist System (LKAS) P. 406
2 Front Sensor Camera P. 383
●Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●Have your vehicle checked by an authorized Honda
Clarity Fuel Cell dealer if the message does not
disappear, even after you clean the area around the
camera.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 389
2 Lane Keeping Assist System (LKAS) P. 406
2 Front Sensor Camera P. 383
20 CLARITY FCV CSS-31TRT6300.book 115 ページ 2019年9月10日 火曜日 午前11 時3分
Page 118 of 551
116
Instrument Panel

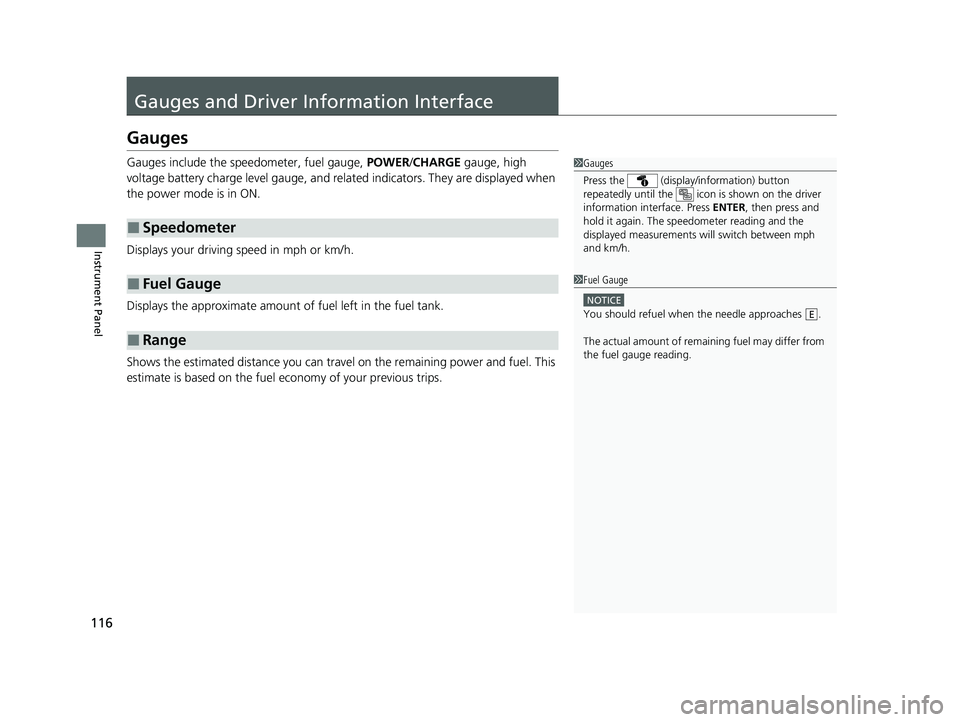

Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, high
voltage battery charge level gauge, and rela ted indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the approximate amount of fuel left in the fuel tank.
Shows the estimated distance you can travel on the remaining power and fuel. This
estimate is based on the fuel economy of your previous trips.
■Speedometer
■Fuel Gauge
■Range
1 Gauges
Press the (display /information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the needle approaches .
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
20 CLARITY FCV CSS-31TRT6300.book 116 ページ 2019年9月10日 火曜日 午前11 時3分
Page 119 of 551
Continued117
uuGauges and Driver Information Interface uGauges
Instrument Panel

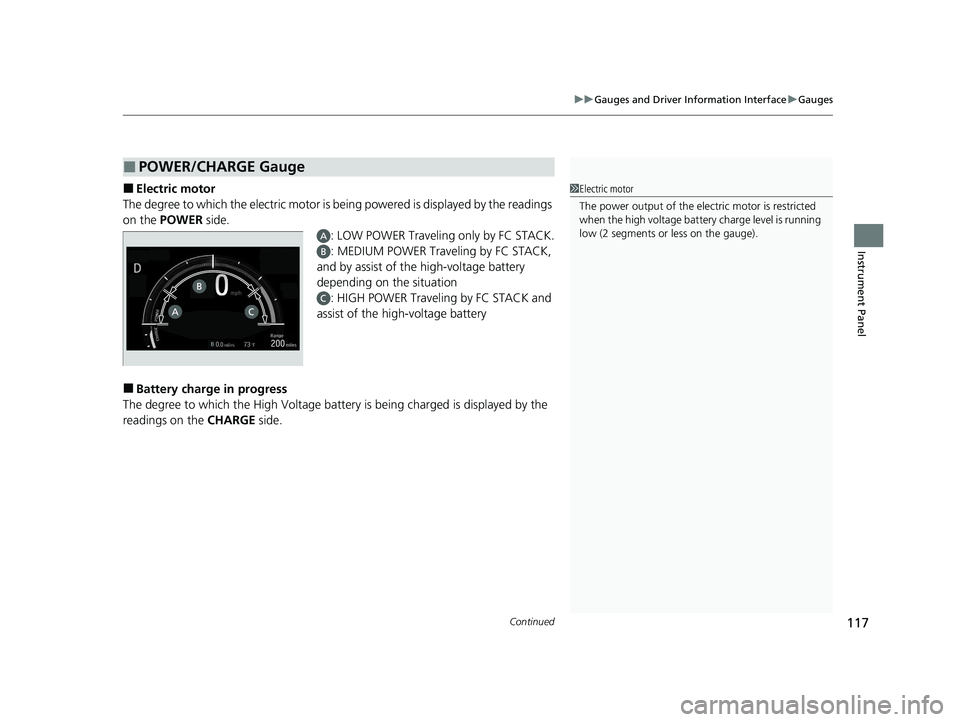

■Electric motor
The degree to which the electric motor is being powered is displayed by the readings
on the POWER side.
: LOW POWER Traveling only by FC STACK.
: MEDIUM POWER Traveling by FC STACK,
and by assist of the high-voltage battery
depending on the situation : HIGH POWER Travelin g by FC STACK and
assist of the high-voltage battery
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.
■POWER/CHARGE Gauge
1Electric motor
The power output of the elec tric motor is restricted
when the high voltage battery charge level is running
low (2 segments or less on the gauge).
20 CLARITY FCV CSS-31TRT6300.book 117 ページ 2019年9月10日 火曜日 午前11 時3分
Page 120 of 551
uuGauges and Driver Information Interface uGauges
118
Instrument Panel

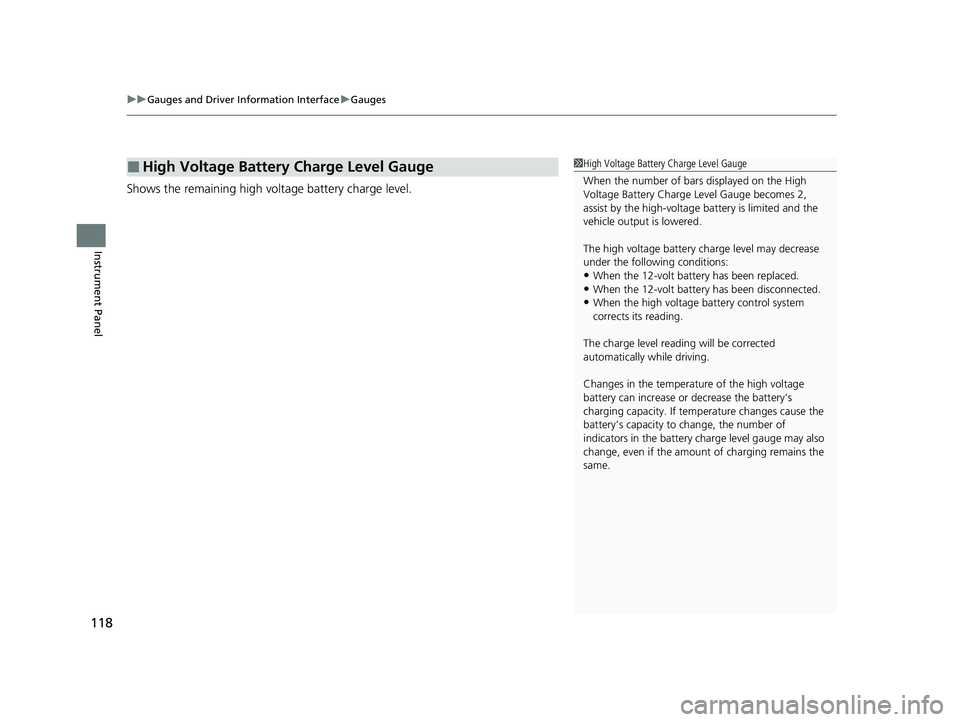

Shows the remaining high voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
When the number of bars displayed on the High
Voltage Battery Charge Level Gauge becomes 2,
assist by the high-voltage battery is limited and the
vehicle output is lowered.
The high voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.
•When the high voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
20 CLARITY FCV CSS-31TRT6300.book 118 ページ 2019年9月10日 火曜日 午前11 時3分
