HONDA CLARITY FUEL CELL 2020 Owner's Manual (in English)

Continued139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice:
u The remaining doors unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 300
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 479
You can customize the door unlock mode setting. 2 Customized Features P. 300
LED
Unlock
Button Lock
Button
20 CLARITY FCV CSS-31TRT6300.book 139 ページ ２０１９年９月１０日　火曜日　午前１１
時３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
140
Controls

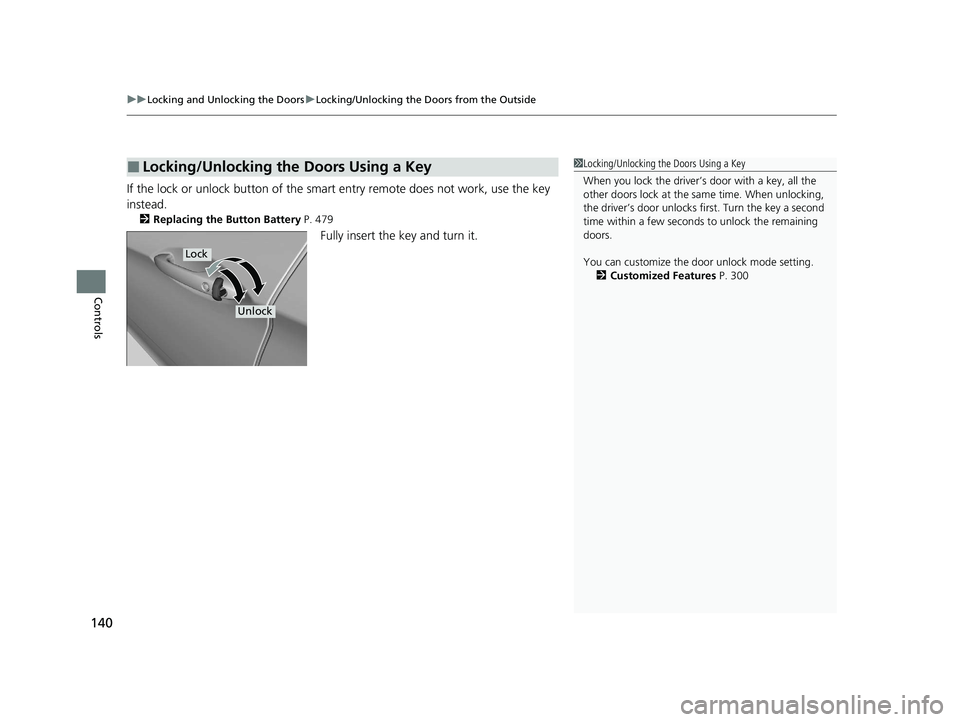

If the lock or unlock button of the sma rt entry remote does not work, use the key
instead.
2 Replacing the Button Battery P. 479
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting. 2 Customized Features P. 300
Lock
Unlock
20 CLARITY FCV CSS-31TRT6300.book 140 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the sm art entry remote is inside the vehicle.
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
20 CLARITY FCV CSS-31TRT6300.book 141 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

142
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

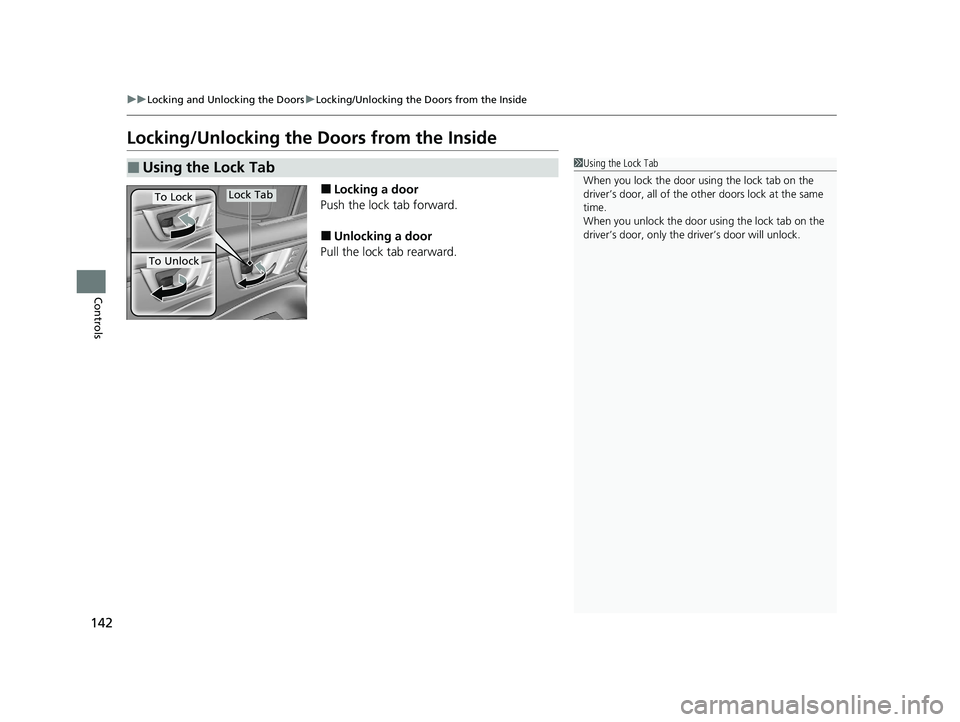

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors lock at the same
time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
To LockLock Tab
20 CLARITY FCV CSS-31TRT6300.book 142 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

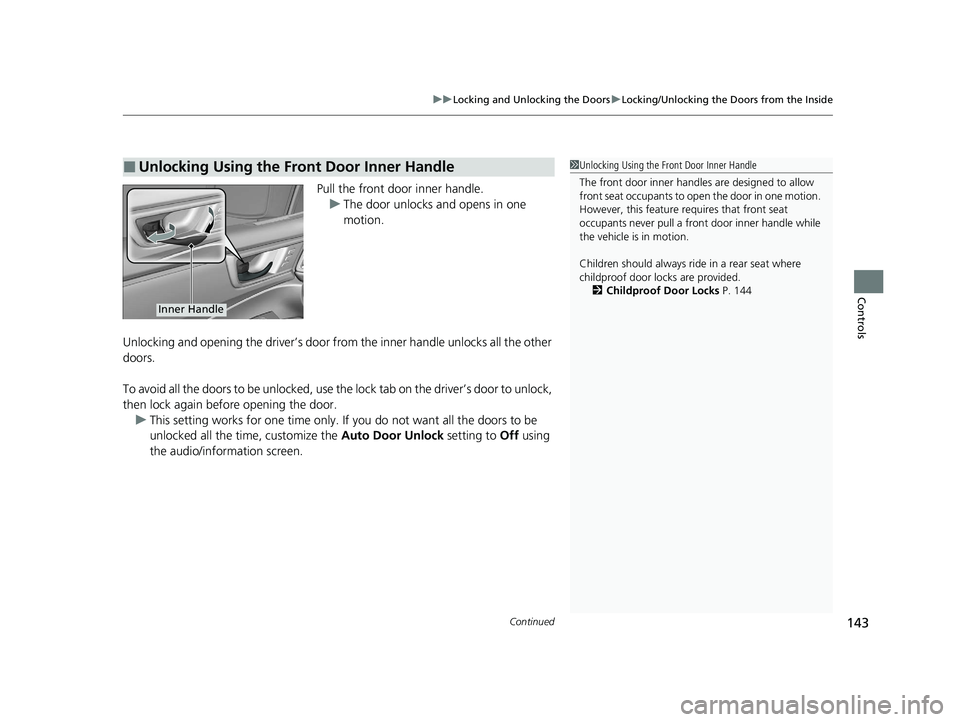

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use th e lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the time, customize the Auto Door Unlock setting to Off using
the audio/information screen.
■Unlocking Using the Front Door Inner Handle1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided. 2 Childproof Door Locks P. 144
Inner Handle
20 CLARITY FCV CSS-31TRT6300.book 143 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

uuLocking and Unlocking the Doors uChildproof Door Locks
144
Controls

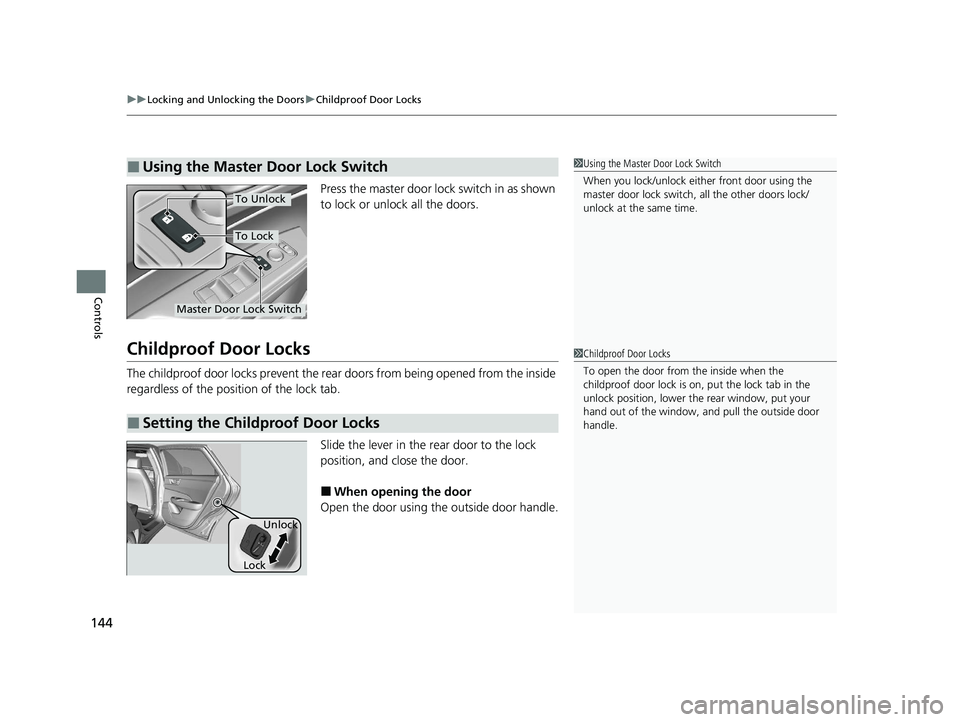

Press the master door lock switch in as shown
to lock or unlock all the doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors lock/
unlock at the same time.
Master Door Lock Switch
To Unlock
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
20 CLARITY FCV CSS-31TRT6300.book 144 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

145
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls

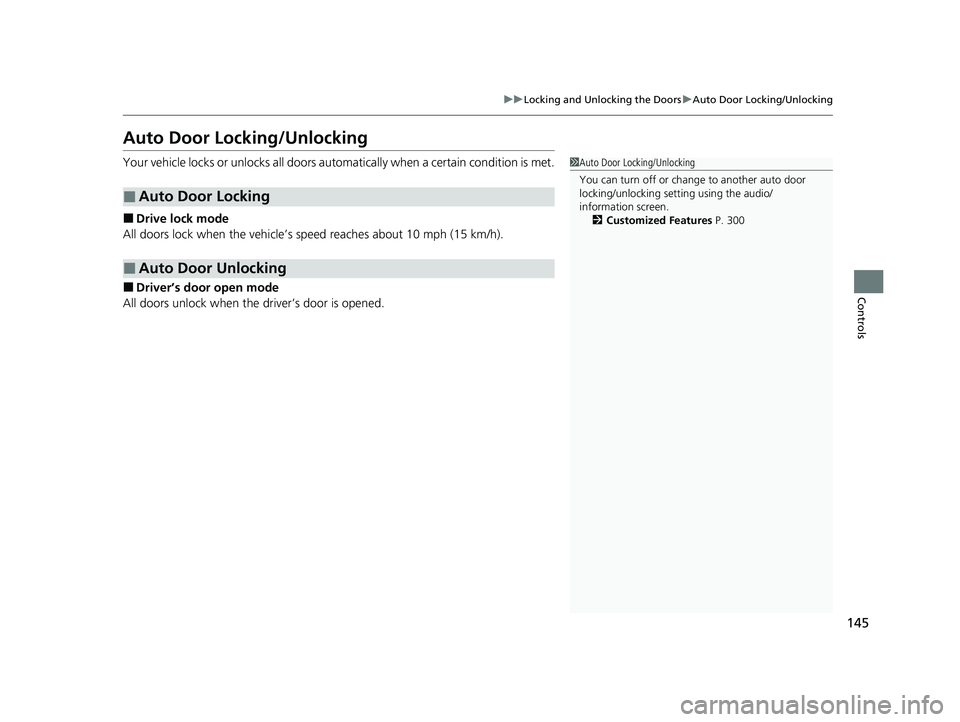

Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen. 2 Customized Features P. 300
20 CLARITY FCV CSS-31TRT6300.book 145 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

146
Controls

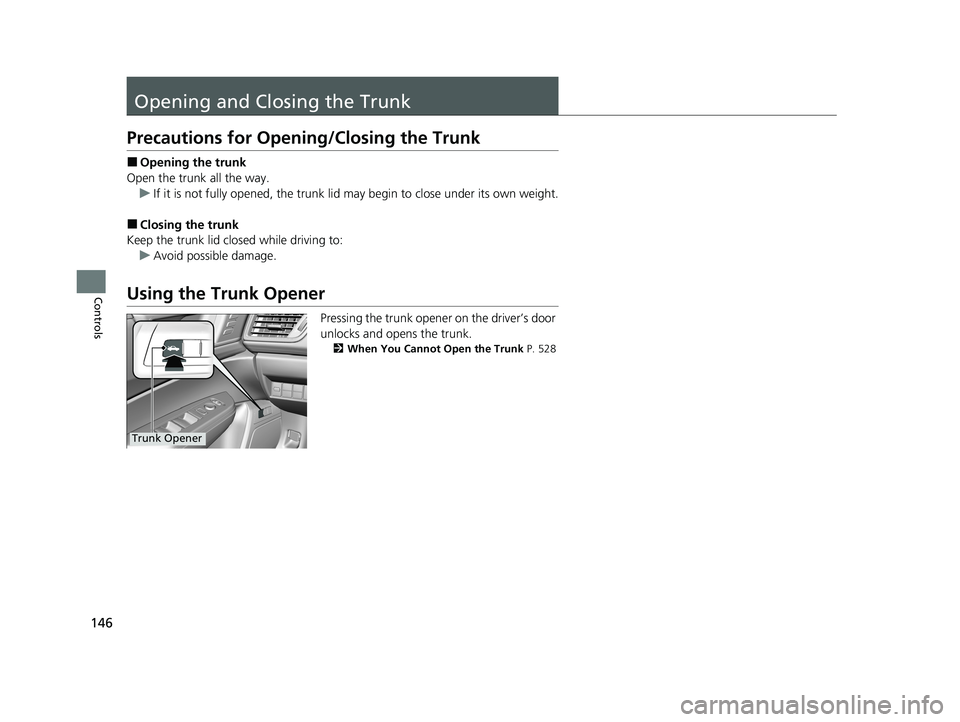

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
Using the Trunk Opener
Pressing the trunk opener on the driver’s door
unlocks and opens the trunk.
2 When You Cannot Open the Trunk P. 528
Trunk Opener
20 CLARITY FCV CSS-31TRT6300.book 146 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

147
uuOpening and Closing the Trunk uUsing the Trunk Release Button
Controls

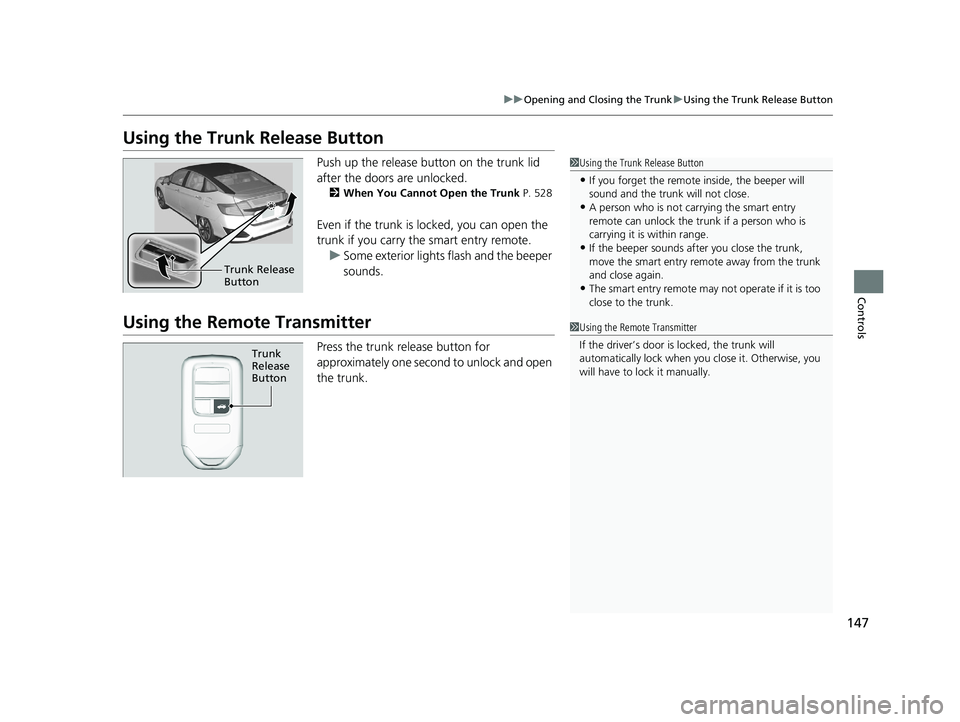

Using the Trunk Release Button
Push up the release bu tton on the trunk lid
after the doors are unlocked.
2 When You Cannot Open the Trunk P. 528
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u Some exterior lights flash and the beeper
sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
•The smart entry remote may not operate if it is too
close to the trunk.
Trunk Release
Button
1 Using the Remote Transmitter
If the driver’s door is locked, the trunk will
automatically lock when yo u close it. Otherwise, you
will have to lock it manually.
Trunk
Release
Button
20 CLARITY FCV CSS-31TRT6300.book 147 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

148
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls

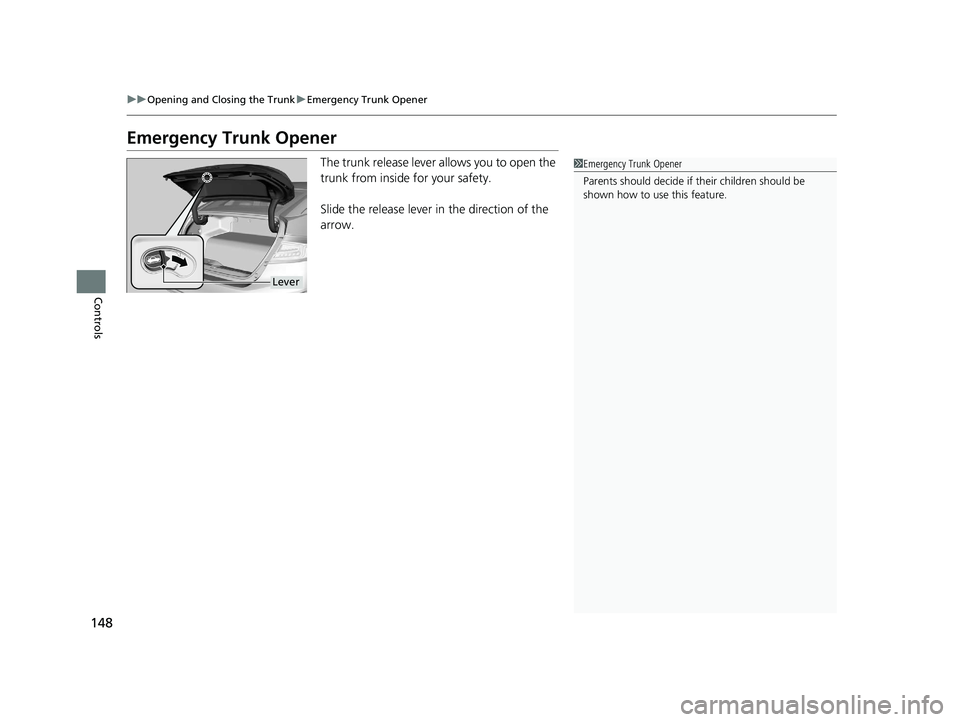

Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
