HONDA CLARITY FUEL CELL 2021 Owner's Manual (in English)

179
uuAdjusting the Seats uArmrest
Controls

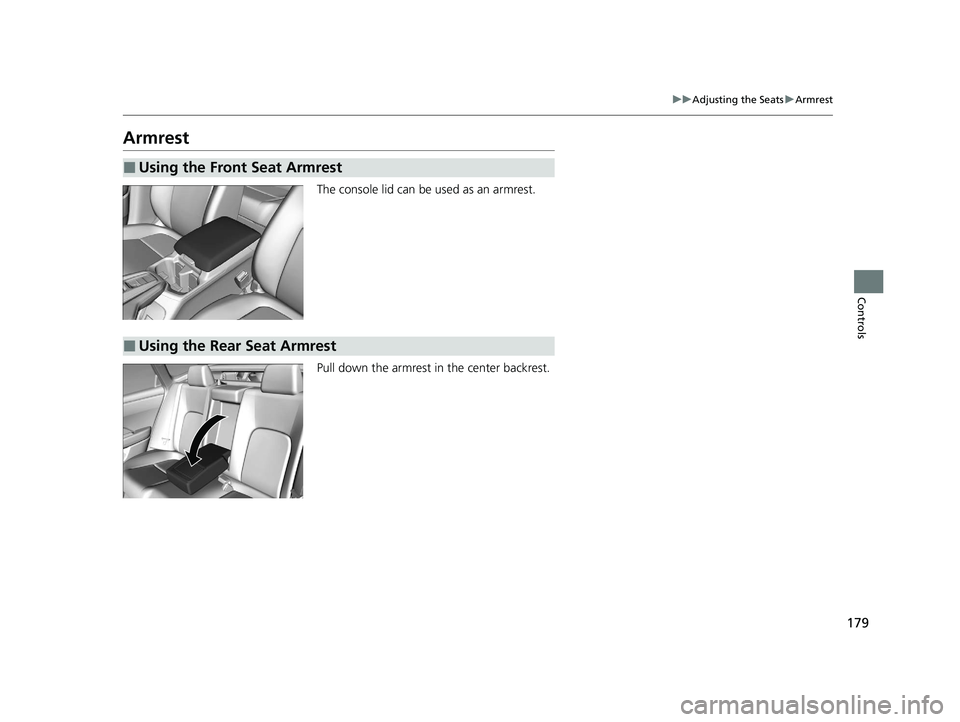

Armrest
The console lid can be used as an armrest.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
21 CLARITY FCV CSS-31TRT6400_02.book 179 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

180
Controls
Interior Lights/Interior Convenience Items

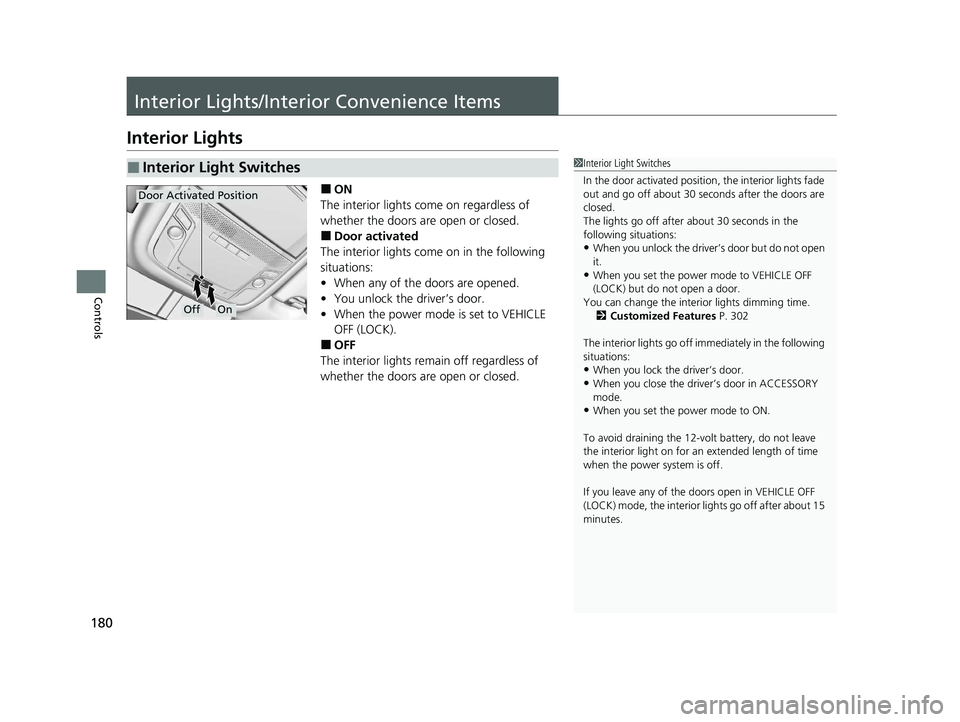

Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any of the doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 302
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
To avoid draining the 12-vo lt battery, do not leave
the interior light on for an extended length of time
when the power system is off.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.
OffOn
Door Activated Position
21 CLARITY FCV CSS-31TRT6400_02.book 180 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

181
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

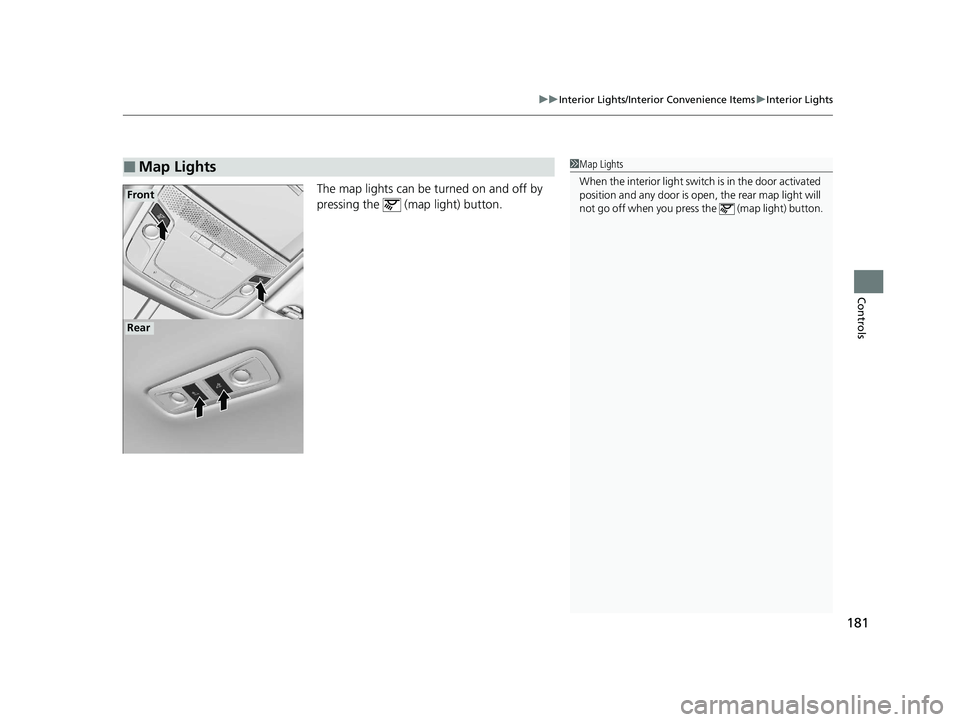

The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the rear map light will
not go off when you press the (map light) button.
Front
Rear
21 CLARITY FCV CSS-31TRT6400_02.book 181 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

182
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

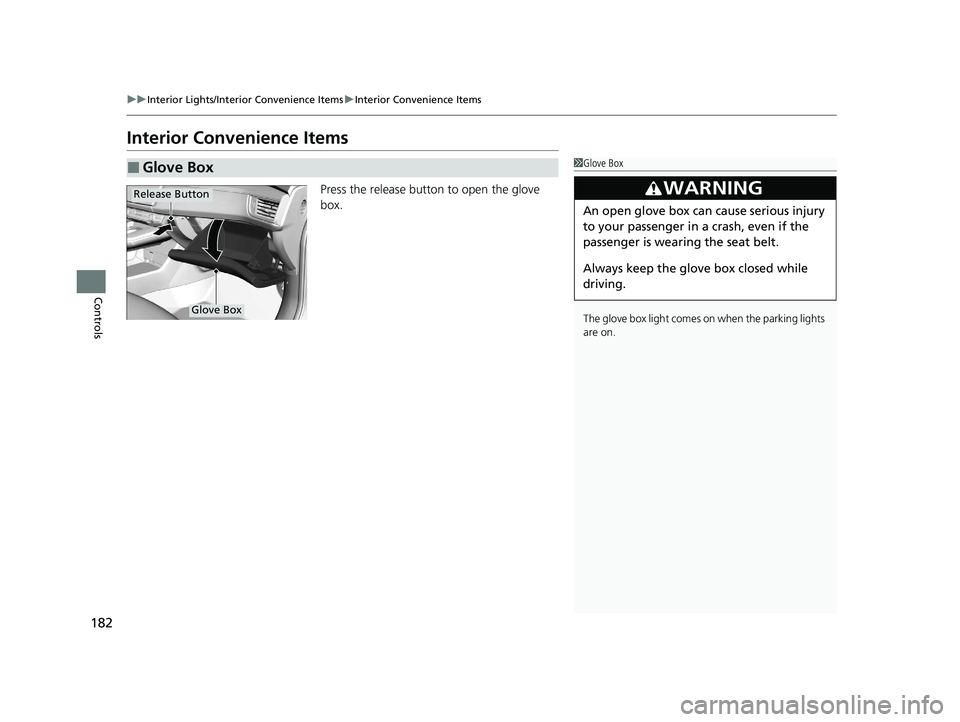

Interior Convenience Items
Press the release button to open the glove
box.
■Glove Box1Glove Box
The glove box light comes on when the parking lights
are on.
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Release Button
21 CLARITY FCV CSS-31TRT6400_02.book 182 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

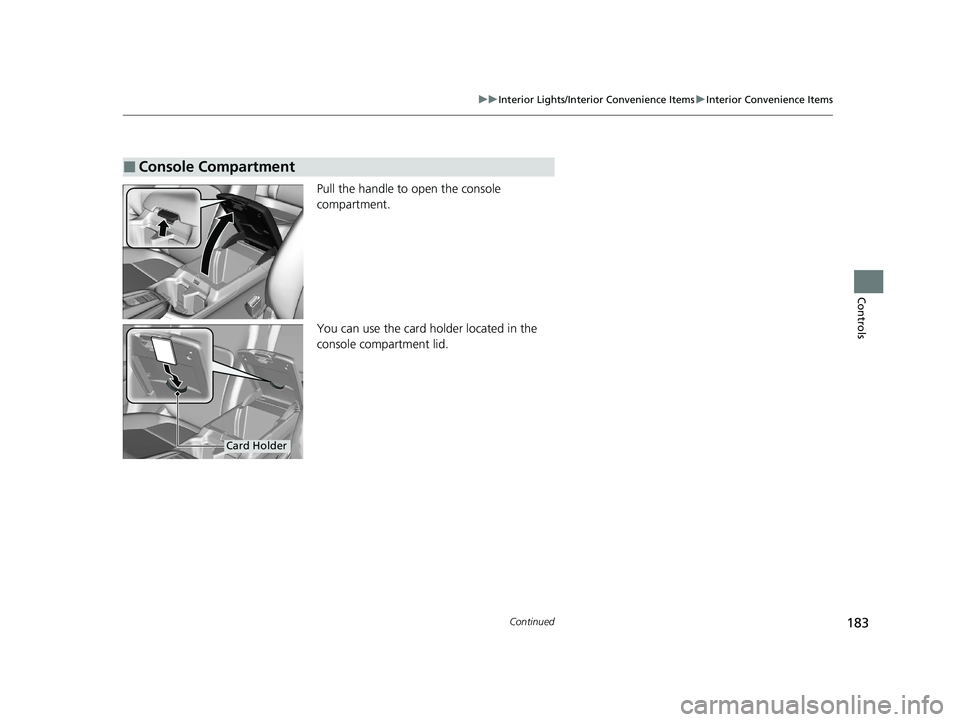

183
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Pull the handle to open the console
compartment.
You can use the card holder located in the
console compartment lid.
■Console Compartment
Card Holder
21 CLARITY FCV CSS-31TRT6400_02.book 183 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
184
Controls

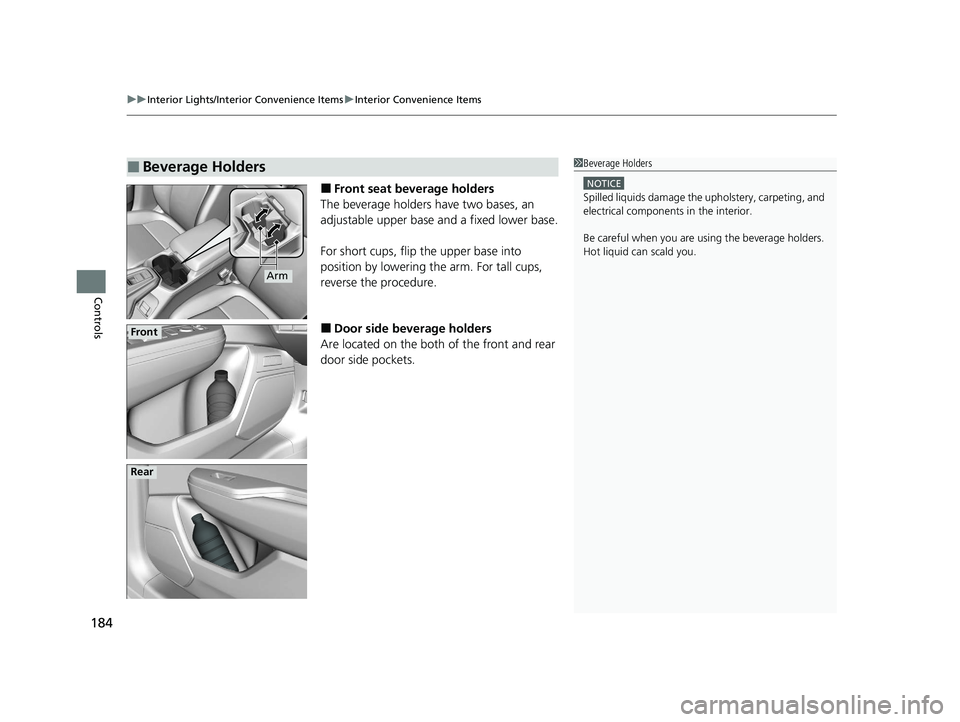

■Front seat beverage holders
The beverage holders have two bases, an
adjustable upper base and a fixed lower base.
For short cups, flip the upper base into
position by lowering the arm. For tall cups,
reverse the procedure.
■Door side beverage holders
Are located on the both of the front and rear
door side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Arm
Front
Rear
21 CLARITY FCV CSS-31TRT6400_02.book 184 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

185
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

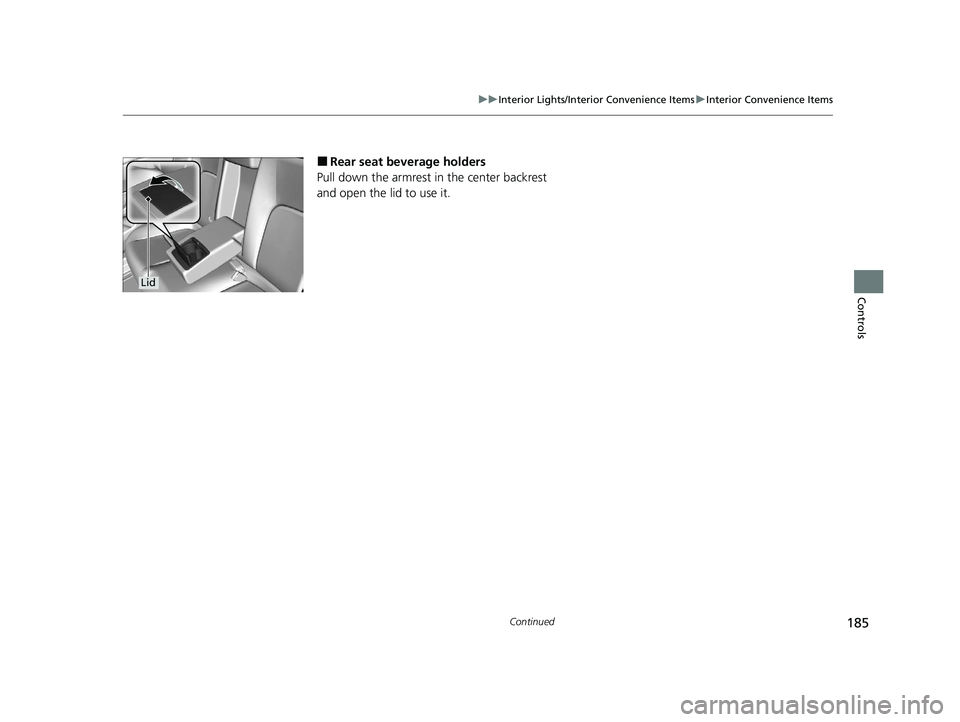

■Rear seat beverage holders
Pull down the armrest in the center backrest
and open the lid to use it.
Lid
21 CLARITY FCV CSS-31TRT6400_02.book 185 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
186
Controls

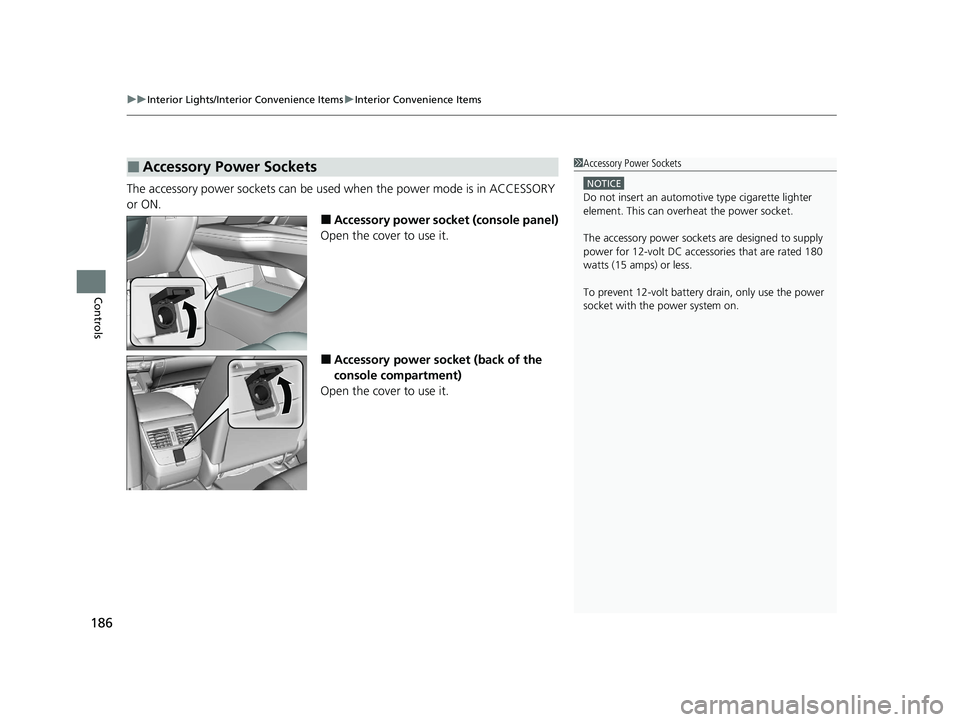

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (back of the
console compartment)
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
21 CLARITY FCV CSS-31TRT6400_02.book 186 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

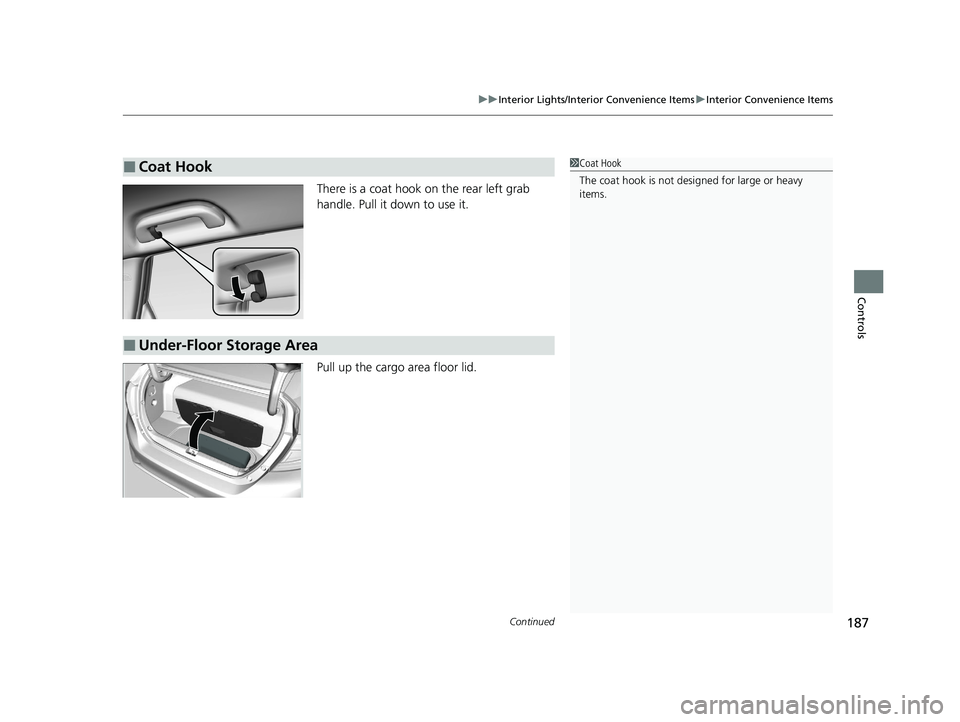

Continued187
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
There is a coat hook on the rear left grab
handle. Pull it down to use it.
Pull up the cargo area floor lid.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Under-Floor Storage Area
21 CLARITY FCV CSS-31TRT6400_02.book 187 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
188
Controls

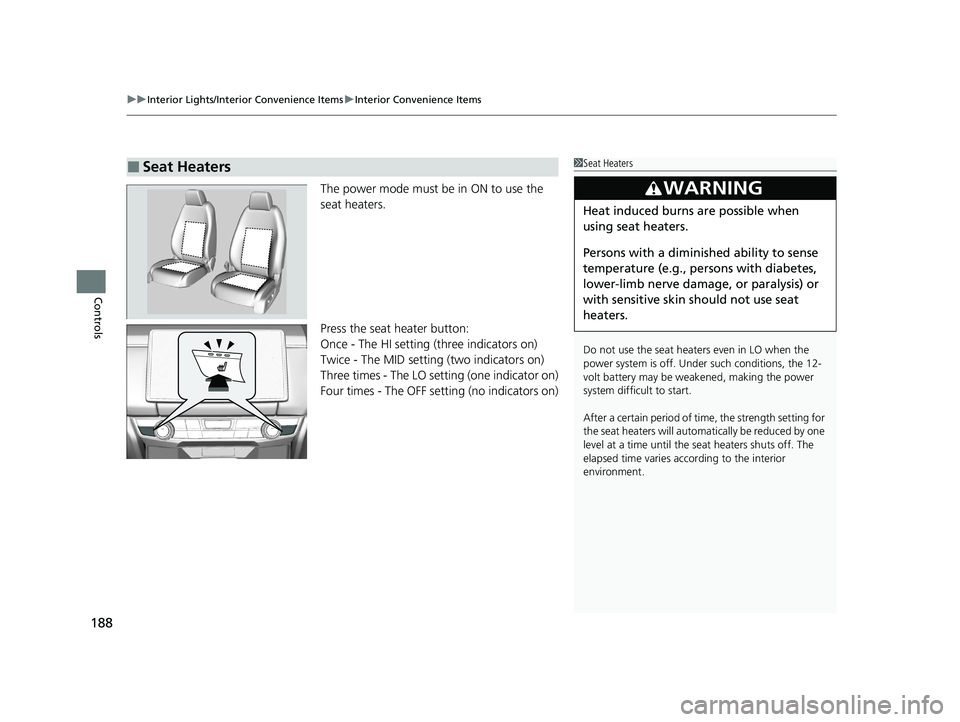

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
■Seat Heaters1Seat Heaters
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heaters shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
