439uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
Continued
Driving
Collision Mitigation Braking System TM
(CMBS TM
)Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBS TM
is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.

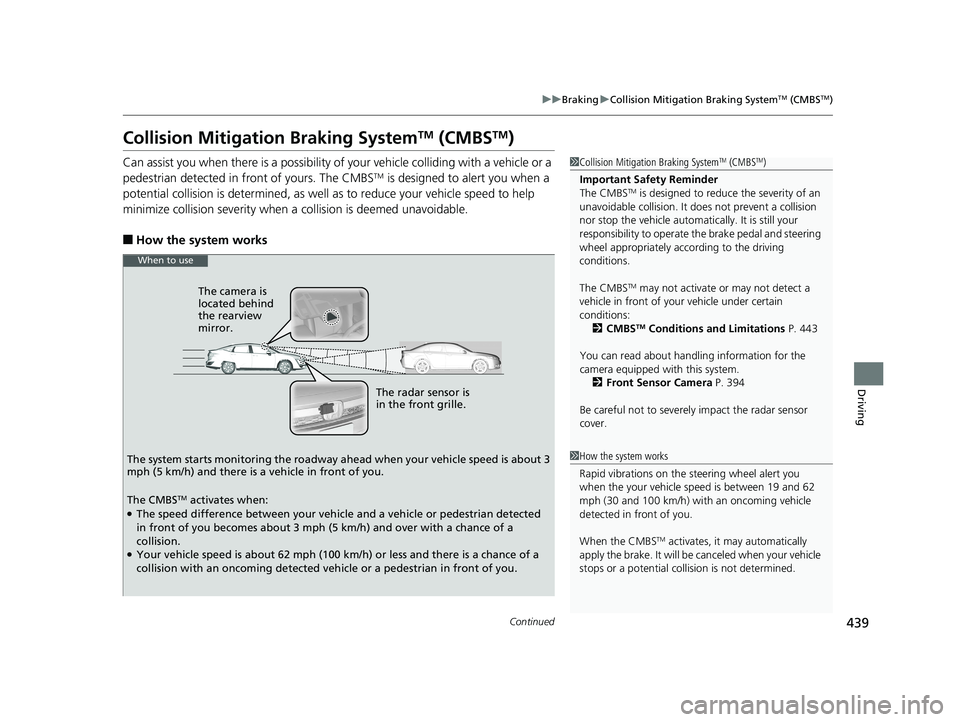

■ How the system works 1 Collision Mitigation Braking System TM
(CMBS TM
)
Important Safety Reminder
The CMBS TM
is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS TM
may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS TM
Conditions and Limitations P. 443
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 394
Be careful not to severely impact the radar sensor
cover.
1 How the system works
Rapid vibrations on the steering wheel alert you
when the your vehicle speed is between 19 and 62
mph (30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS TM
activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.The radar sensor is
in the front grille.The camera is
located behind
the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about 3
mph (5 km/h) and there is a vehicle in front of you. When to use
The CMBS TM
activates when: ●
The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision. ●
Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected ve hicle or a pedestrian in front of you.18 CLARITY PHEV CSS-31TRW6000.book 439 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
440

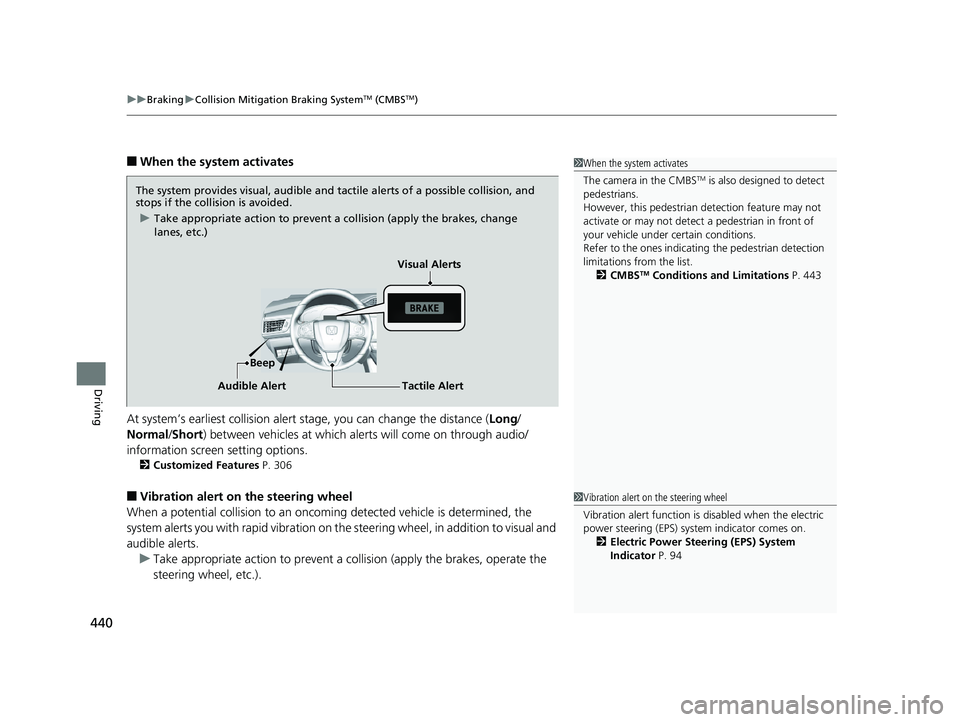

Driving ■ When the system activates
At system’s earliest collision alert stage, you can change the distance ( Long /
Normal / Short ) between vehicles at which aler ts will come on through audio/
information screen setting options. 2 Customized Features P. 306
■ Vibration alert on the steering wheel
When a potential collision to an oncoming detected vehicle is determined, the
system alerts you with rapid vibration on th e steering wheel, in addition to visual and
audible alerts.
u Take appropriate action to prevent a co llision (apply the brakes, operate the
steering wheel, etc.). 1 When the system activates
The camera in the CMBS TM
is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.
2 CMBS TM
Conditions and Limitations P. 443The system provides visual, audible and tactile alerts of a possible collision, and
stops if the collision is avoided.
u Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)
Beep Visual Alerts
Audible Alert Tactile Alert
1 Vibration alert on the steering wheel
Vibration alert function is disabled when the electric
power steering (EPS) system indicator comes on.
2 Electric Power Steering (EPS) System
Indicator P. 9418 CLARITY PHEV CSS-31TRW6000.book 440 ページ ２０１７年８月３１日　木曜日　午後２時４９分

441uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
Continued
Driving

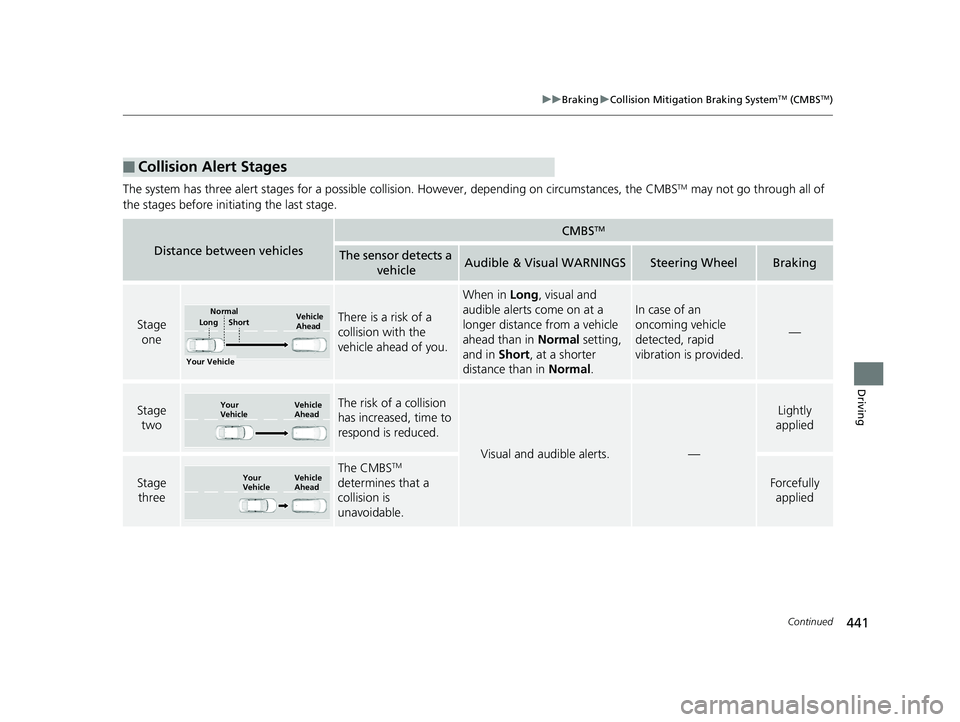

The system has three alert stages for a possible collis ion. However, depending on circumstances, the CMBS TM
may not go through all of
the stages before initiating the last stage.
■ Collision Alert Stages Distance between vehicles CMBS TM
The sensor detects a
vehicle Audible & Visual WARNINGS Steering Wheel Braking
Stage
one There is a risk of a
collision with the
vehicle ahead of you. When in Long , visual and
audible alerts come on at a
longer distance from a vehicle
ahead than in Normal setting,
and in Short , at a shorter
distance than in Normal . In case of an
oncoming vehicle
detected, rapid
vibration is provided. —
Stage
two The risk of a collision
has increased, time to
respond is reduced.
Visual and audible alerts. — Lightly
applied
Stage
three The CMBS TM

determines that a
collision is
unavoidable. Forcefully
appliedYour Vehicle Vehicle
AheadShortLong Normal
Your
Vehicle Vehicle
Ahead
Your
Vehicle Vehicle
Ahead18 CLARITY PHEV CSS-31TRW6000.book 441 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
442

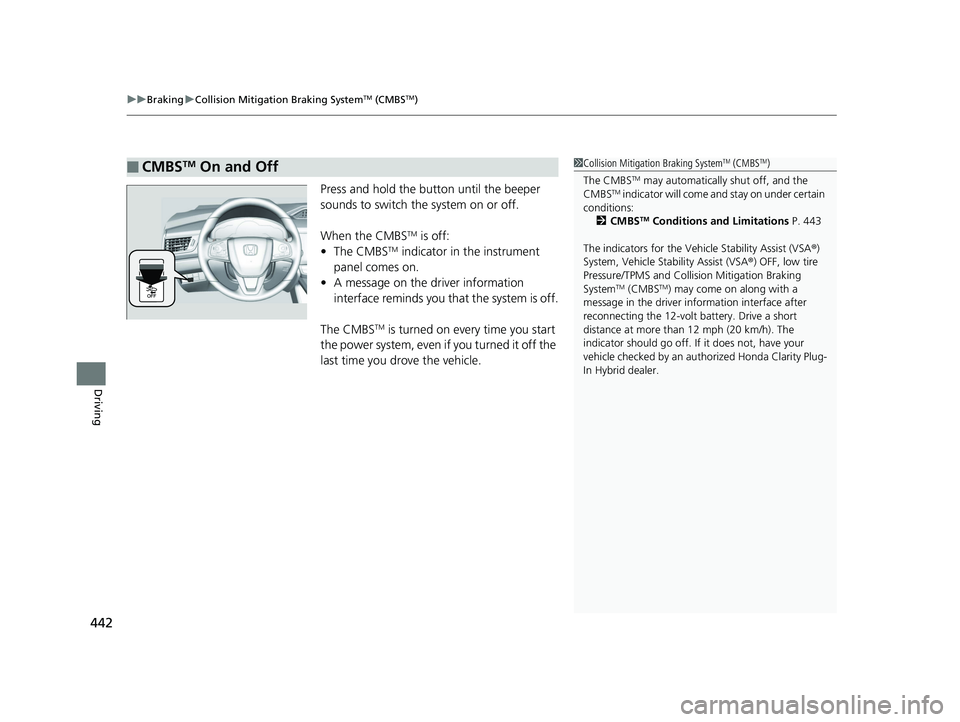

Driving Press and hold the button until the beeper
sounds to switch the system on or off.
When the CMBS TM
is off:
• The CMBS TM
indicator in the instrument
panel comes on.
• A message on the driver information
interface reminds you that the system is off.
The CMBS TM
is turned on every time you start
the power system, even if you turned it off the
last time you drove the vehicle.■ CMBS TM
On and Off 1 Collision Mitigation Braking System TM
(CMBS TM
)
The CMBS TM
may automatically shut off, and the
CMBS TM
indicator will come and stay on under certain
conditions:
2 CMBS TM
Conditions and Limitations P. 443
The indicators for the Vehicle Stability Assist (VSA ® )
System, Vehicle Stability Assist (VSA ® ) OFF, low tire
Pressure/TPMS and Collision Mitigation Braking
System TM
(CMBS TM
) may come on along with a
message in the driver information interface after
reconnecting the 12-volt battery. Drive a short
distance at more than 12 mph (20 km/h). The
indicator should go off. If it does not, have your
vehicle checked by an aut horized Honda Clarity Plug-
In Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 442 ページ ２０１７年８月３１日　木曜日　午後２時４９分

443uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
Continued
Driving
The system may automatically shut off and the CMBS TM
indicator will come on under
certain conditions. Some examples of thes e conditions are listed below. Other
conditions may reduce some of the CMBS TM
functions.2 Front Sensor Camera P. 394
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between objects and the background.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflec ted onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Roadway objects or structures are misint erpreted as vehicles and pedestrians.
• Reflections on the interi or of the windshield.
• Driving at night or in a dark condition such as a tunnel.
■ Roadway conditions
• Driving on a snowy or wet roadway (obs cured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on curvy, winding, or undulating roads.
• The road is hilly or the vehicle is approaching the crest of a hill.■ CMBS TM

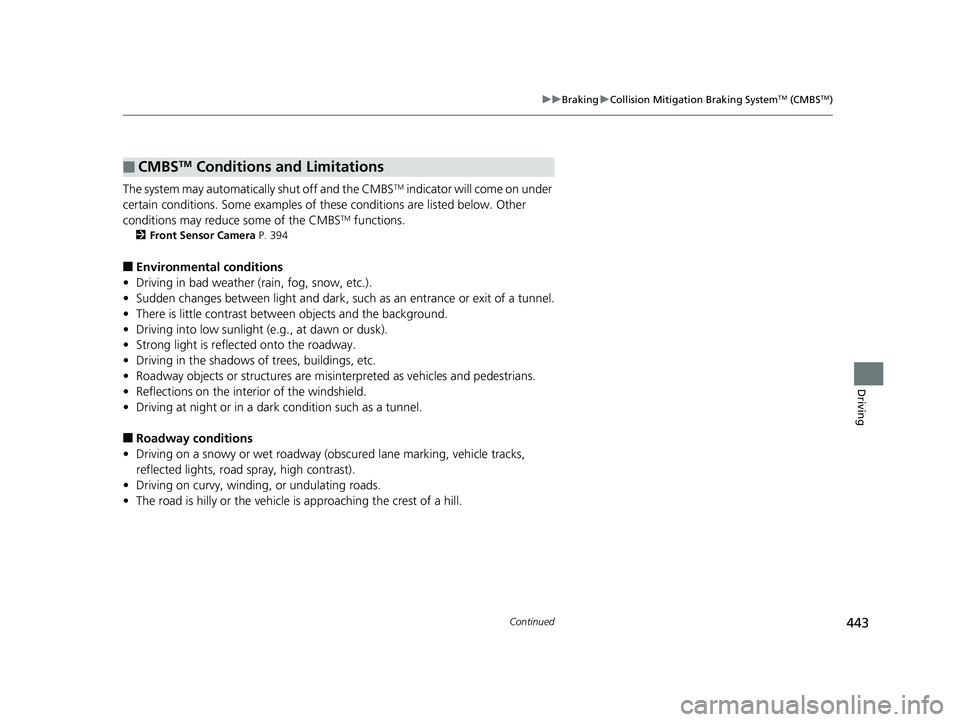

Conditions and Limitations18 CLARITY PHEV CSS-31TRW6000.book 443 ページ ２０１７年８月３１日　木曜日　午後２時４９分

444 uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)

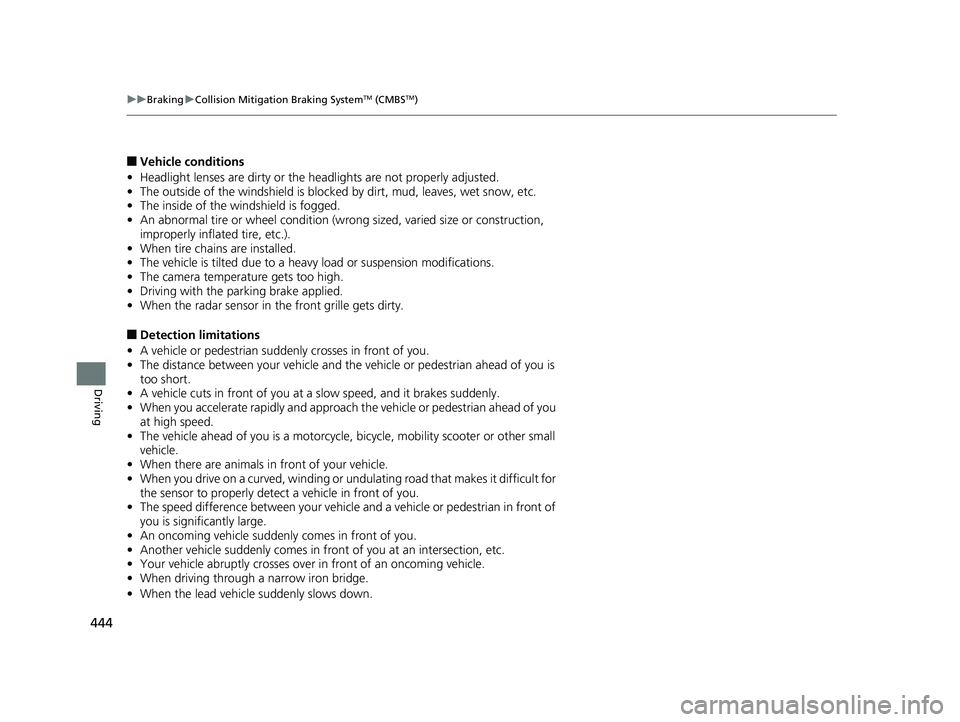

Driving ■ Vehicle conditions
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshie ld is blocked by dirt, m ud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heav y load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
■ Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a cu rved, winding or undu lating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down. 18 CLARITY PHEV CSS-31TRW6000.book 444 ページ ２０１７年８月３１日　木曜日　午後２時４９分

445uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
Continued
Driving

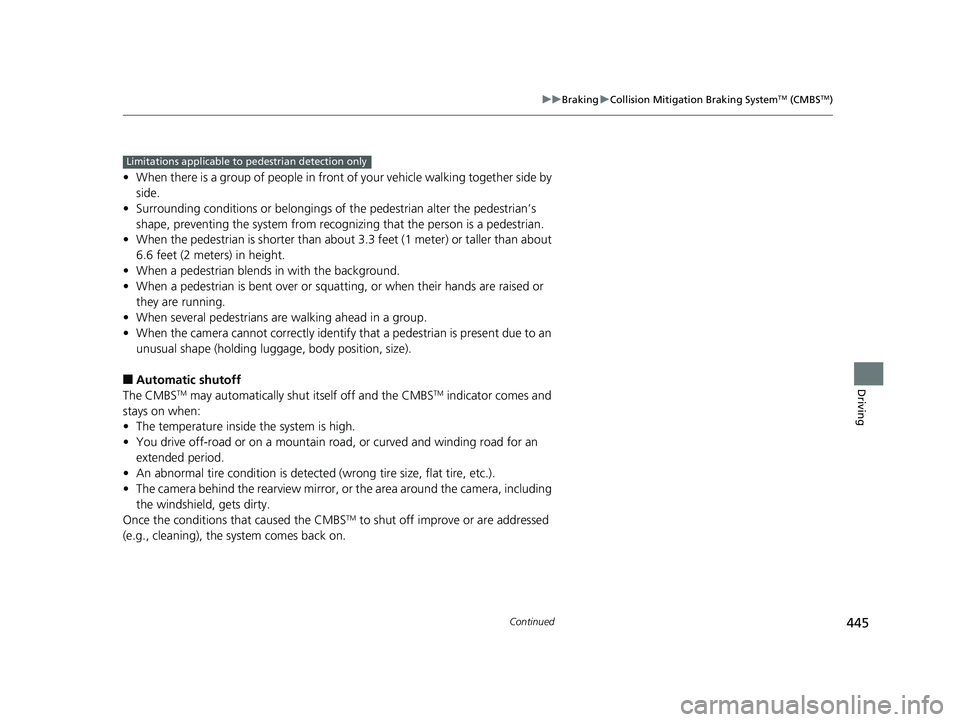

• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorte r than about 3.3 feet (1 me ter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■ Automatic shutoff
The CMBS TM
may automatically shut itself off and the CMBS TM
indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions th at caused the CMBS TM
to shut off improve or are addressed
(e.g., cleaning), the system comes back on. Limitations applicable to pedestrian detection only18 CLARITY PHEV CSS-31TRW6000.book 445 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Braking u Collision Mitigation Braking System TM
(CMBS TM
)
446

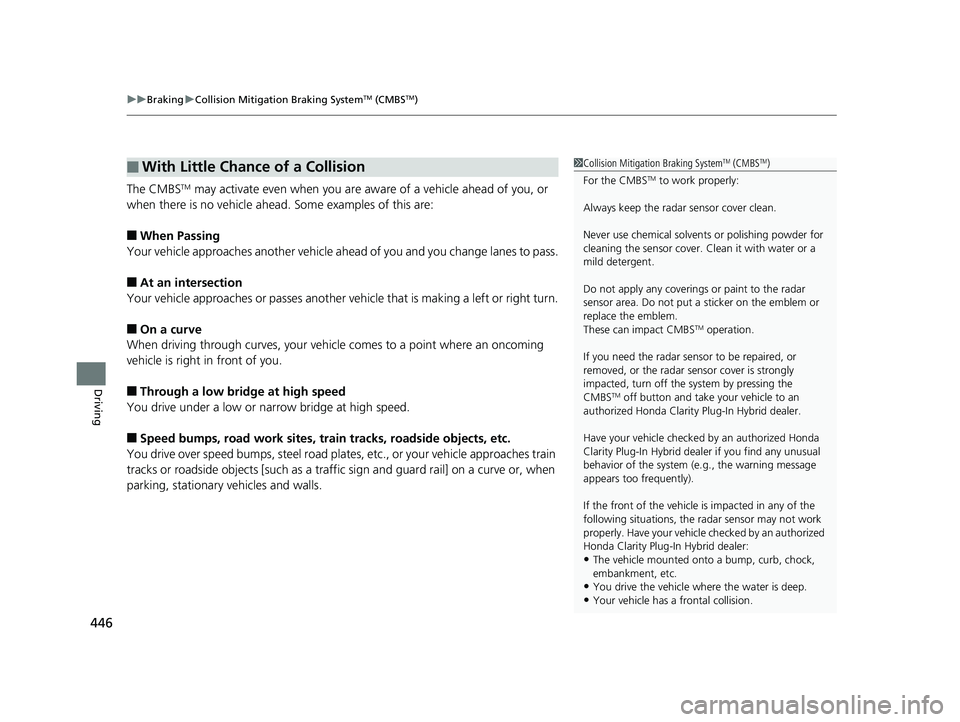

Driving The CMBS TM
may activate even when you are aw are of a vehicle ahead of you, or
when there is no vehicle ahead . Some examples of this are:
■ When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
■ At an intersection
Your vehicle approaches or passes another vehicle that is making a left or right turn.
■ On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■ Through a low bridge at high speed
You drive under a low or narrow bridge at high speed.
■ Speed bumps, road work sites, tr ain tracks, roadside objects, etc.
You drive over speed bumps, st eel road plates, etc., or yo ur vehicle approaches train
tracks or roadside objects [such as a traffi c sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.■ With Little Chance of a Collision 1 Collision Mitigation Braking System TM
(CMBS TM
)
For the CMBS TM
to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not apply any coverings or paint to the radar
sensor area. Do not put a sticker on the emblem or
replace the emblem.
These can impact CMBS TM
operation.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
CMBS TM
off button and take your vehicle to an
authorized Honda Clarity Plug-In Hybrid dealer.
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid deal er if you find any unusual
behavior of the system (e.g., the warning message
appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer:
• The vehicle mounted onto a bump, curb, chock,
embankment, etc.
• You drive the vehicle where the water is deep.
• Your vehicle has a frontal collision.18 CLARITY PHEV CSS-31TRW6000.book 446 ページ ２０１７年８月３１日　木曜日　午後２時４９分

447Continued
Driving

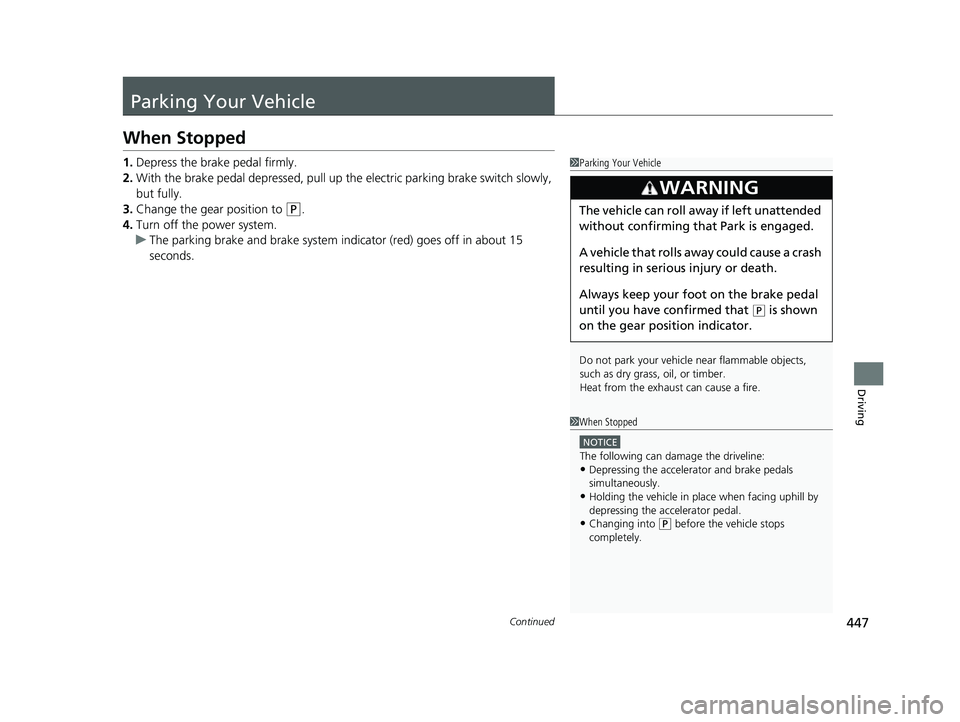

Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly.
2. With the brake pedal depresse d, pull up the electric pa rking brake switch slowly,
but fully.
3. Change the gear position to ( P
.
4. Turn off the power system.
u The parking brake and brake system indi cator (red) goes off in about 15
seconds. 1 Parking Your Vehicle
Do not park your vehicle near flammabl e objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
3
WARNING The vehicle can roll aw ay if left unattended
without confirming th at Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that ( P
is shown
on the gear position indicator.
1 When Stopped NOTICE
The following can damage the driveline:
• Depressing the accelera tor and brake pedals
simultaneously.
• Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
• Changing into ( P
before the vehicle stops
completely.18 CLARITY PHEV CSS-31TRW6000.book 447 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Parking Your Vehicle u When Stopped
448

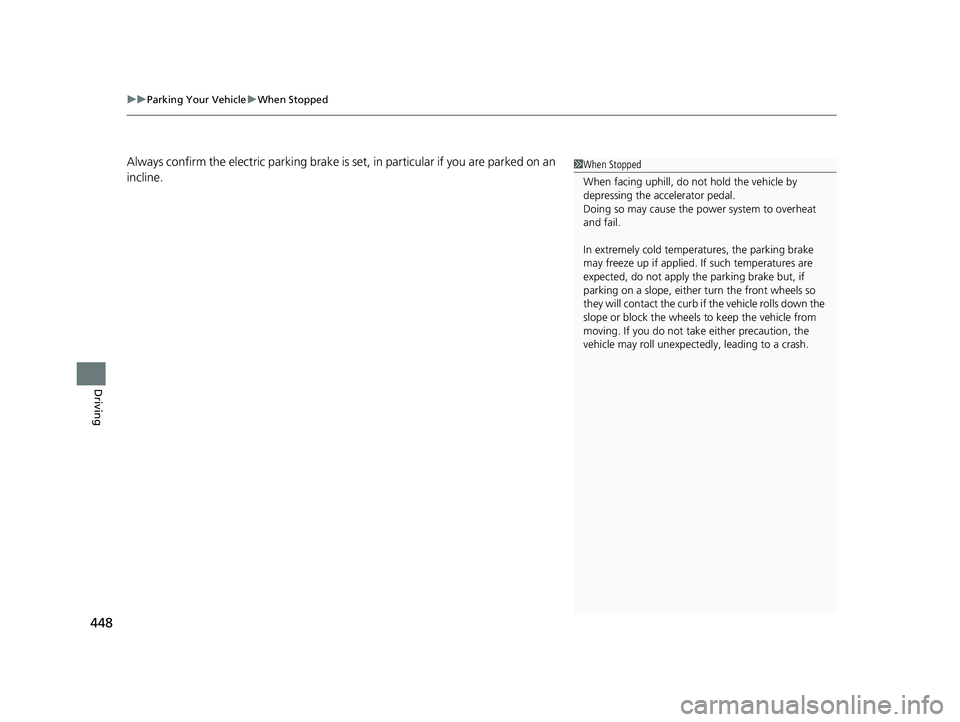

Driving Always confirm the electric parking brake is se t, in particular if you are parked on an
incline. 1 When Stopped
When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.
In extremely cold temper atures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.18 CLARITY PHEV CSS-31TRW6000.book 448 ページ ２０１７年８月３１日　木曜日　午後２時４９分
