HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

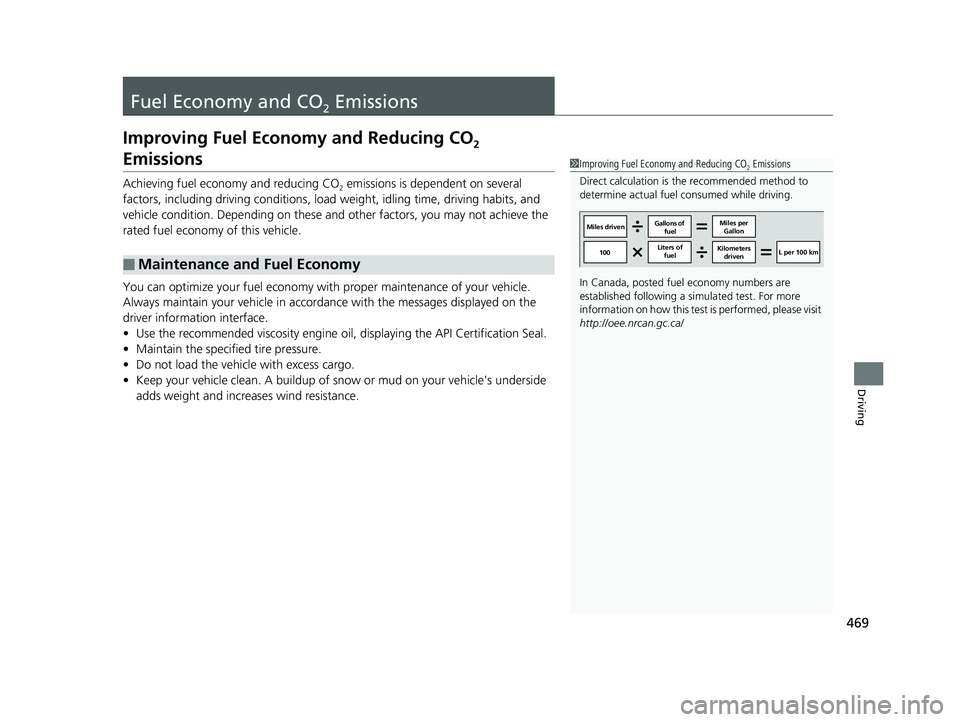

469
Driving
Fuel Economy and CO 2
EmissionsImproving Fuel Ec onomy and Reducing CO 2

Emissions Achieving fuel economy and reducing CO 2
emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Use the recommended viscosit y engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.■ Maintenance and Fuel Economy 1 Improving Fuel Economy and Reducing CO 2
Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/ Miles driven Gallons of
fuel Miles per
Gallon
100 Liters of
fuel Kilometers
driven L per 100 km18 CLARITY PHEV CSS-31TRW6000.book 469 ページ ２０１７年８月３１日　木曜日　午後２時４９分

470 18 CLARITY PHEV CSS-31TRW6000.book 470 ページ ２０１７年８月３１日　木曜日　午後２時４９分

471Maintenance This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 472
Safety When Performing Maintenance...473
Parts and Fluids Used in Maintenance
Service ........................................... 474
Maintenance Minder TM
..................... 475
Maintenance Under the Hood
Maintenance Items Under the Hood .. 480
Opening the Hood ........................... 481
Recommended Engine Oil ................ 482
Oil Check ......................................... 483
Adding Engine Oil ............................ 484
Changing the Engine Oil and Oil Filter ...485 Engine Coolant ................................ 488
Cooling System ................................ 490
Transmission Fluid ............................ 492
Brake Fluid ....................................... 492
Refilling Window Washer Fluid......... 493
Replacing Light Bulbs ....................... 494
Checking and Maintaining Wiper
Blades .......................................... 496
Checking and Maintaining Tires
Checking Tires ................................. 499
Tire and Loading Information Label .. 500
Tire Labeling .................................... 500
DOT Tire Quality Grading (U.S. Vehicles).. 502 Wear Indicators ............................... 504
Tire Service Life ................................ 504
Tire and Wheel Replacement ........... 505
Tire Rotation .................................... 506
Winter Tires ..................................... 507
12-Volt Battery ................................. 508
Remote Transmitter Care
Replacing the Button Battery ........... 510
Climate Control System Maintenance .. 511
Cleaning
Interior Care .................................... 513
Exterior Care.................................... 515
Accessories and Modifications ........ 51918 CLARITY PHEV CSS-31TRW6000.book 471 ページ ２０１７年８月３１日　木曜日　午後２時４９分

472
Maintenance Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspecti ons and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Honda Clar ity Plug-In Hybrid dealer. (Note, however, that service at an
authorized Honda Clar ity Plug-In Hybrid dealer is not mandatory to keep your
warranties in effect.)
■ Daily inspections
Perform inspections before long distance trips, when washing th e vehicle, or when
refueling.
■ Periodic inspections
• Check the brake fluid level monthly. 2 Brake Fluid P. 492
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.2 Checking and Maintaining Tires P. 499
• Check the operation of the exterior lights monthly. 2 Replacing Light Bulbs P. 494
• Check the condition of the wiper bl ades at least every six months.2 Checking and Maintaining Wiper Blades P. 496■ Types of Inspection and Maintenance 1 Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 477
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 576
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet. U.S. models18 CLARITY PHEV CSS-31TRW6000.book 472 ページ ２０１７年８月３１日　木曜日　午後２時４９分

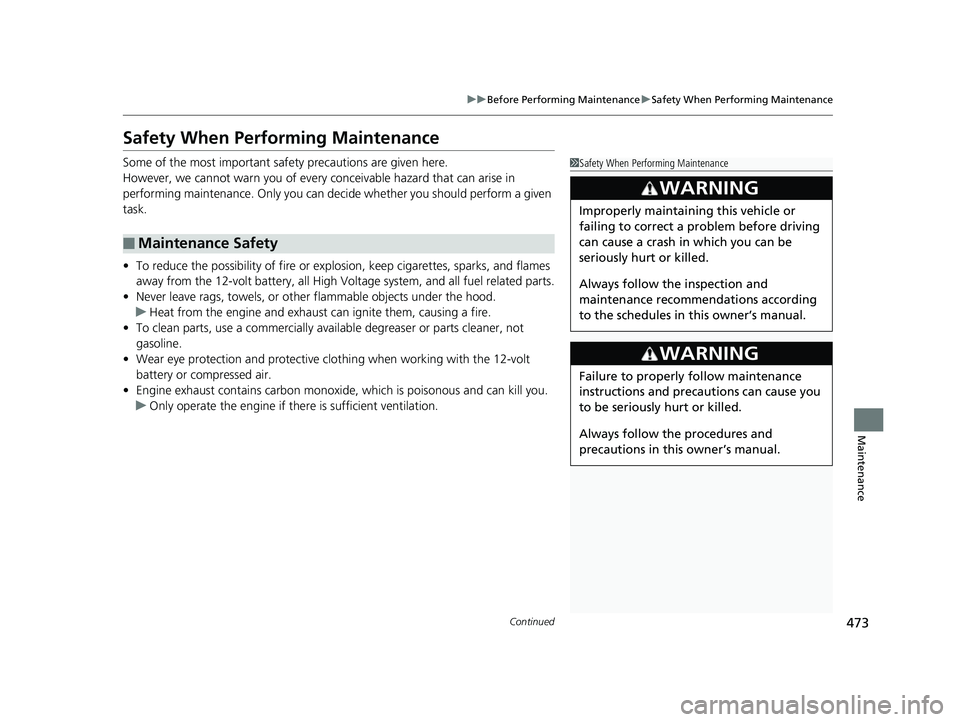

473uu Before Performing Maintenance u Safety When Performing Maintenance
Continued
Maintenance
Safety When Performing Maintenance Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Volt age system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and pr otective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.■ Maintenance Safety 1 Safety When Performing Maintenance
3
WARNING Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3
WARNING Failure to properly follow maintenance
instructions and prec autions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.18 CLARITY PHEV CSS-31TRW6000.book 473 ページ ２０１７年８月３１日　木曜日　午後２時４９分

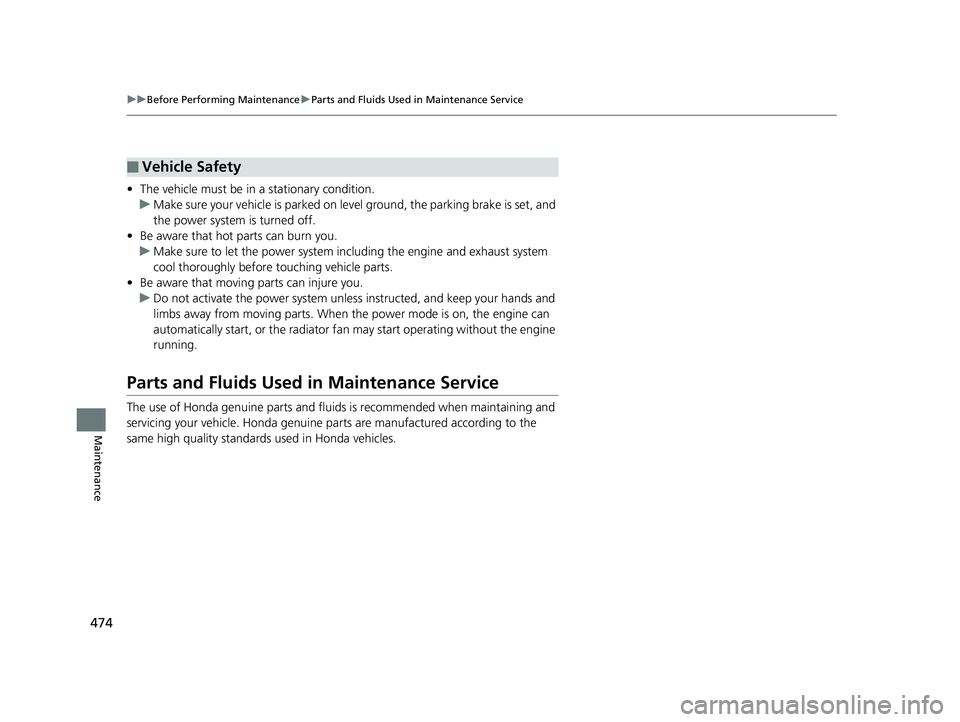

474 uu Before Performing Maintenance u Parts and Fluids Used in Maintenance Service
Maintenance • The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on leve l ground, the parking brake is set, and
the power system is turned off.
• Be aware that hot parts can burn you.
u Make sure to let the power system incl uding the engine and exhaust system
cool thoroughly before touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not activate the power system unle ss instructed, and keep your hands and
limbs away from moving parts. When th e power mode is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.
Parts and Fluids Used in Maintenance Service The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.■ Vehicle Safety 18 CLARITY PHEV CSS-31TRW6000.book 474 ページ ２０１７年８月３１日　木曜日　午後２時４９分

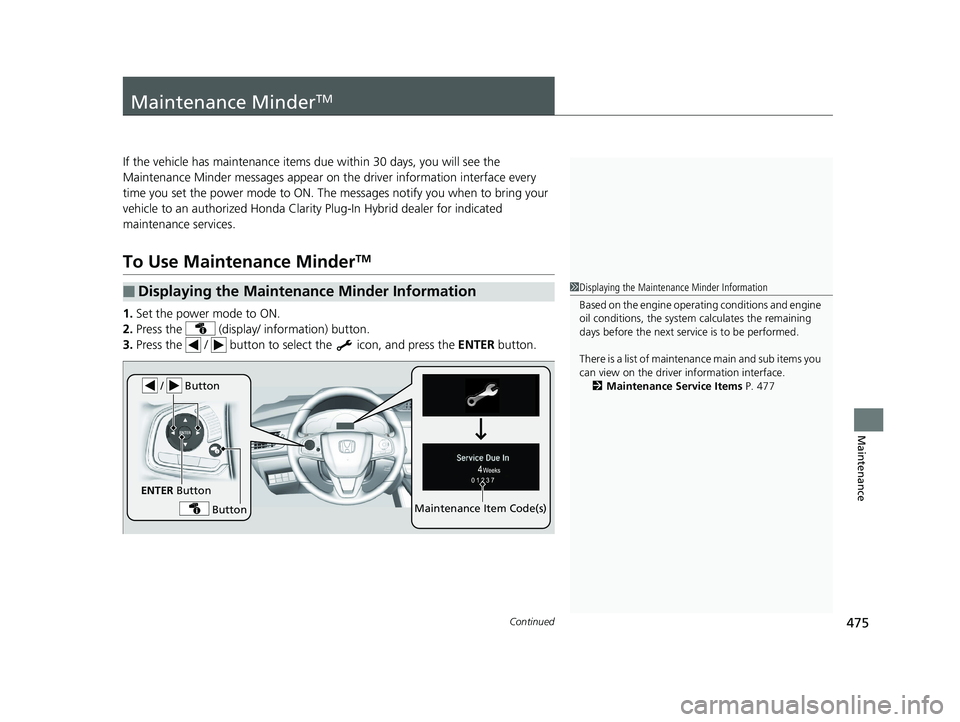

475Continued
Maintenance
Maintenance Minder TM
If the vehicle has maintenance items du e within 30 days, you will see the
Maintenance Minder messages appear on the driver information interface every
time you set the power mode to ON. The messages notify you wh en to bring your
vehicle to an authorized Honda Clarit y Plug-In Hybrid dealer for indicated
maintenance services.
To Use Maintenance Minder TM
1. Set the power mode to ON.
2. Press the (display/ information) button.
3. Press the / button to select the icon, and press the ENTER button.
■ Displaying the Maintenance Minder Information 1 Displaying the Maintena nce Minder Information
Based on the engine operati ng conditions and engine
oil conditions, the system calculates the remaining
days before the next serv ice is to be performed.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 477 / Button
Maintenance Item Code(s)
ButtonENTER Button18 CLARITY PHEV CSS-31TRW6000.book 475 ページ ２０１７年８月３１日　木曜日　午後２時４９分

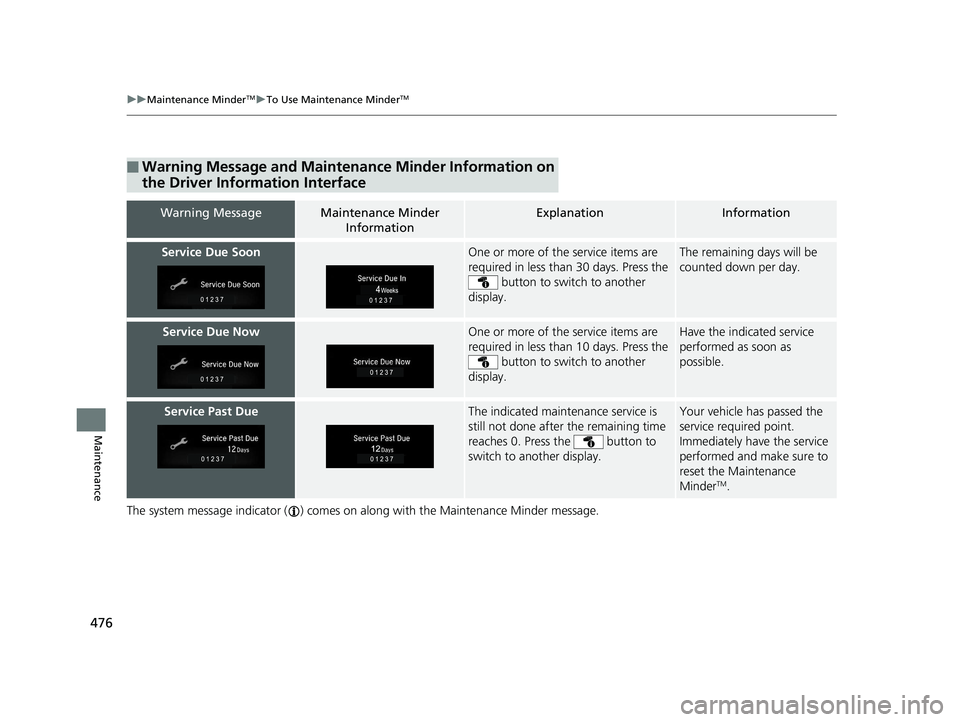

476 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance The system message indicator ( ) comes on al ong with the Maintenance Minder message.■ Warning Message and Maintenance Minder Information on
the Driver Information Interface Warning Message Maintenance Minder
Information Explanation Information
Service Due Soon One or more of the service items are
required in less than 30 days. Press the
button to switch to another
display. The remaining days will be
counted down per day.
Service Due Now One or more of the service items are
required in less than 10 days. Press the
button to switch to another
display. Have the indicated service
performed as soon as
possible.
Service Past Due The indicated maintenance service is
still not done after the remaining time
reaches 0. Press the button to
switch to another display. Your vehicle has passed the
service required point.
Immediately have the service
performed and make sure to
reset the Maintenance
Minder TM
.18 CLARITY PHEV CSS-31TRW6000.book 476 ページ ２０１７年８月３１日　木曜日　午後２時４９分

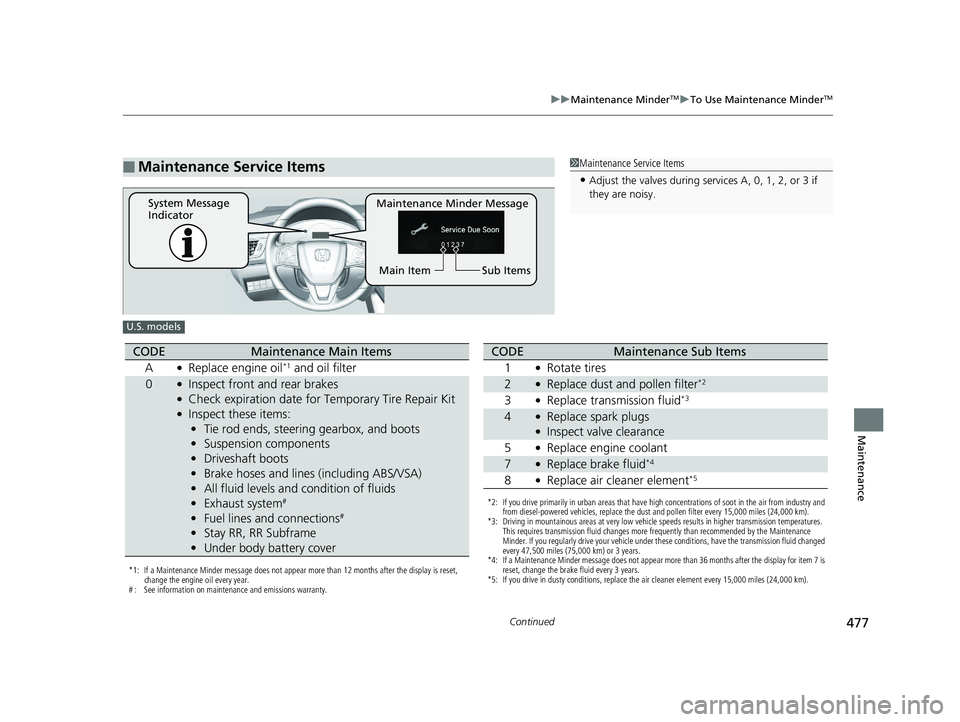

477uu Maintenance Minder TM
u To Use Maintenance Minder TM
Continued
Maintenance
■ Maintenance Service Items 1 Maintenance Service Items
• Adjust the valves during services A, 0, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub ItemsMain Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter
0 ●
Inspect front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover *2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *518 CLARITY PHEV CSS-31TRW6000.book 477 ページ ２０１７年８月３１日　木曜日　午後２時４９分

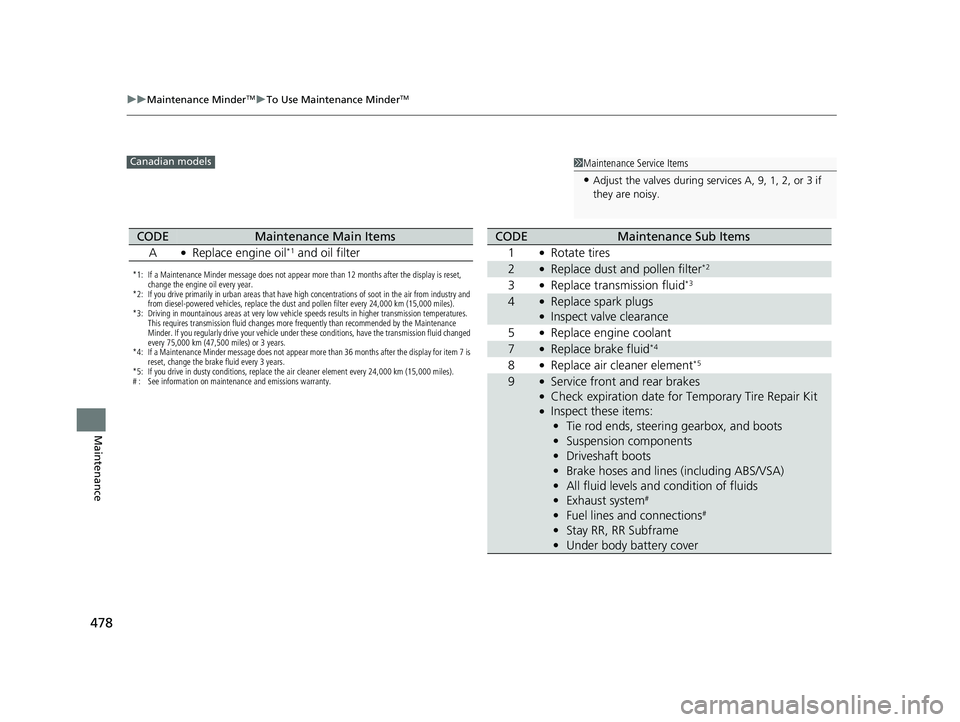

478 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance 1 Maintenance Service Items
• Adjust the valves during services A, 9, 1, 2, or 3 if
they are noisy.Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 75,000 km (47,500 miles) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *5
9 ●
Service front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover18 CLARITY PHEV CSS-31TRW6000.book 478 ページ ２０１７年８月３１日　木曜日　午後２時４９分
