HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

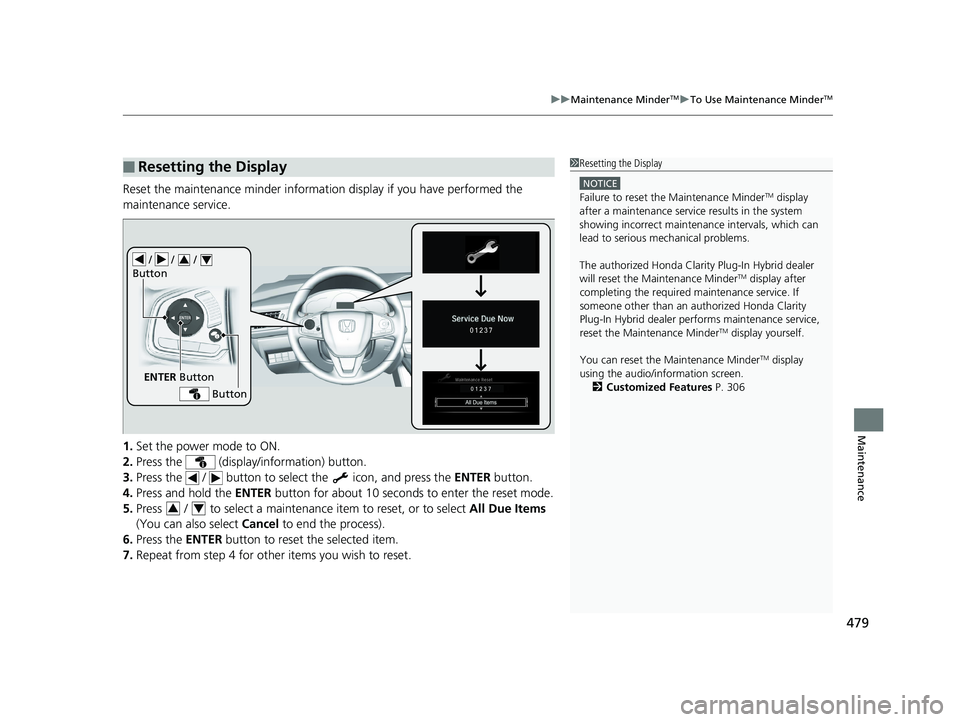

479uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance
Reset the maintenance minder informatio n display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (display/information) button.
3. Press the / button to select the icon, and press the ENTER button.
4. Press and hold the ENTER button for about 10 second s to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.■ Resetting the Display 1 Resetting the Display NOTICE
Failure to reset the Maintenance Minder TM
display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The authorized Honda Clarity Plug-In Hybrid dealer
will reset the Maintenance Minder TM
display after
completing the required ma intenance service. If
someone other than an authorized Honda Clarity
Plug-In Hybrid dealer perf orms maintenance service,
reset the Maintenance Minder TM
display yourself.
You can reset the Maintenance Minder TM
display
using the audio/information screen.
2 Customized Features P. 306 / / /
Button 3 4
ENTER Button
Button
3 418 CLARITY PHEV CSS-31TRW6000.book 479 ページ ２０１７年８月３１日　木曜日　午後２時４９分

480

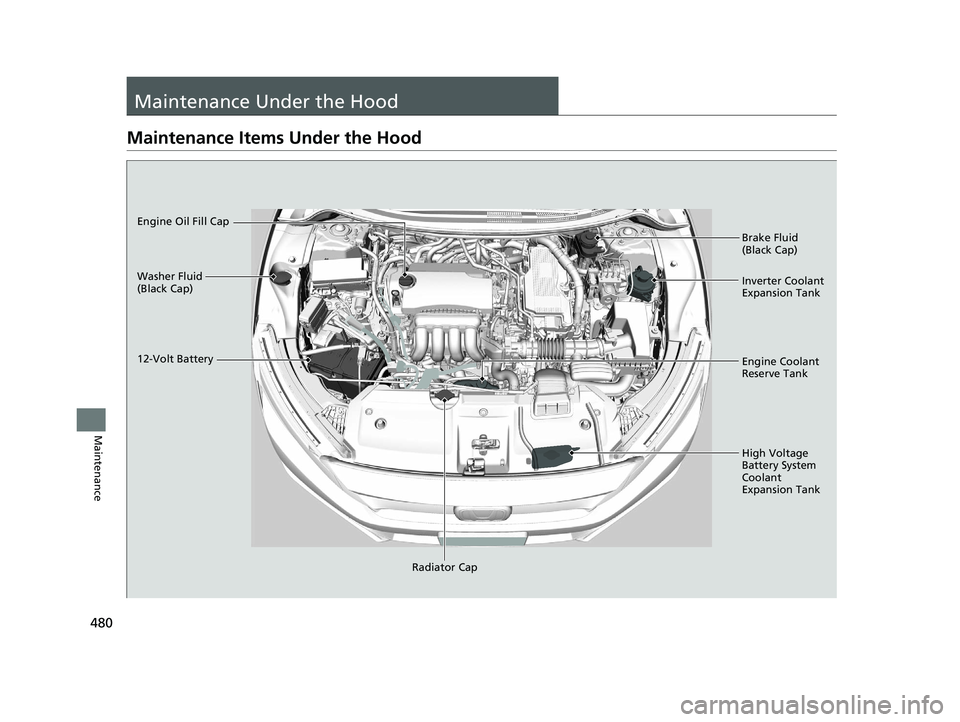

Maintenance Maintenance Under the Hood Maintenance Items Under the Hood Washer Fluid
(Black Cap)
12-Volt Battery Brake Fluid
(Black Cap)
Inverter Coolant
Expansion Tank
Engine Coolant
Reserve TankEngine Oil Fill Cap
Radiator Cap High Voltage
Battery System
Coolant
Expansion Tank18 CLARITY PHEV CSS-31TRW6000.book 480 ページ ２０１７年８月３１日　木曜日　午後２時４９分

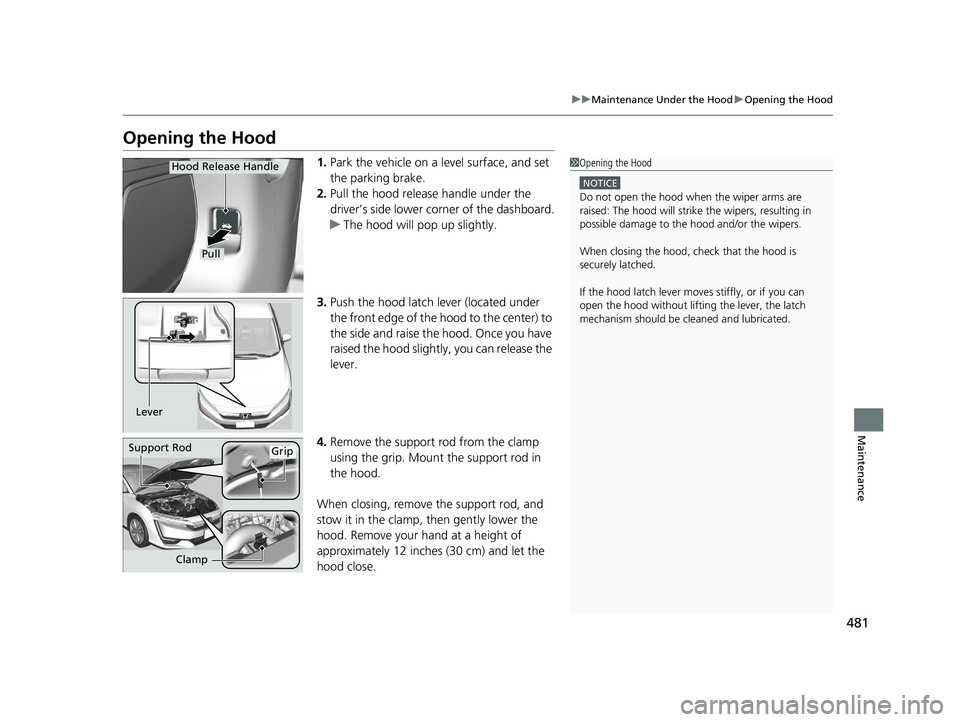

481uu Maintenance Under the Hood u Opening the Hood
Maintenance
Opening the Hood 1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower corner of the dashboard.
u The hood will pop up slightly.
3. Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly , you can release the
lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close. 1 Opening the Hood NOTICE
Do not open the hood when the wiper arms are
raised: The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.PullHood Release Handle
Lever
Support Rod
Grip
Clamp18 CLARITY PHEV CSS-31TRW6000.book 481 ページ ２０１７年８月３１日　木曜日　午後２時４９分

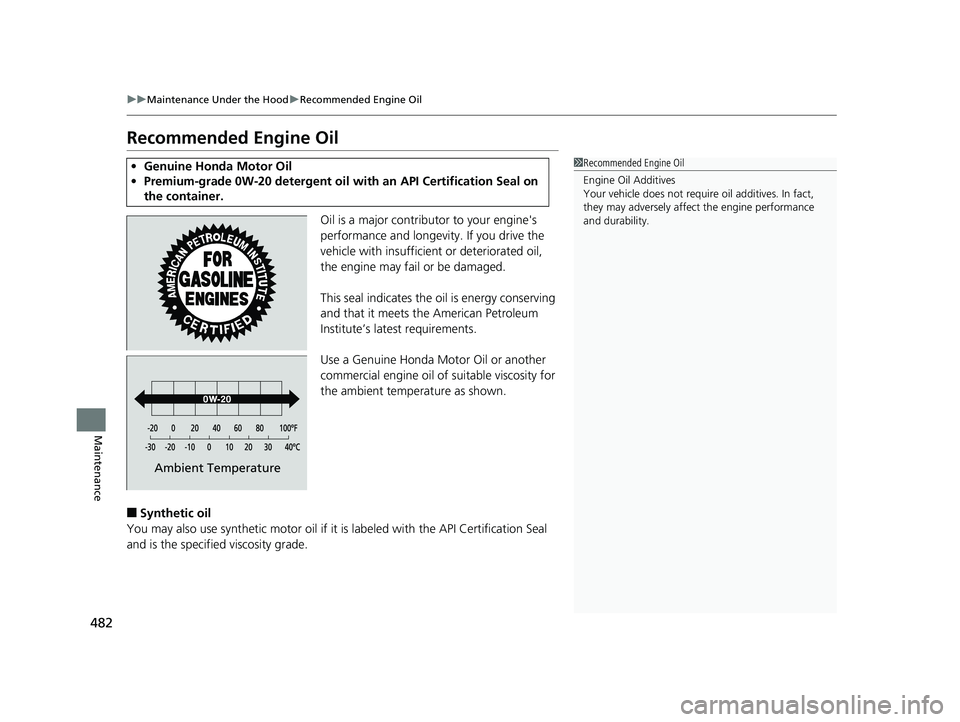

482 uu Maintenance Under the Hood u Recommended Engine Oil
Maintenance Recommended Engine Oil Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■ Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade. • Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil wi th an API Certification Seal on
the container. 1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature18 CLARITY PHEV CSS-31TRW6000.book 482 ページ ２０１７年８月３１日　木曜日　午後２時４９分

483uu Maintenance Under the Hood u Oil Check
Maintenance
Oil Check We recommend that you check the engine oil level every time you refuel or you
charge the High Voltage battery.
Park the vehicle on level ground.
Turn off the power system. You can check the oil level without the engine having
run beforehand. If the engine has been ru nning, wait approxim ately three minutes
before you check the oil.
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary. 1 Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being carefu l not to overfill.
Upper Mark
Lower Mark18 CLARITY PHEV CSS-31TRW6000.book 483 ページ ２０１７年８月３１日　木曜日　午後２時４９分

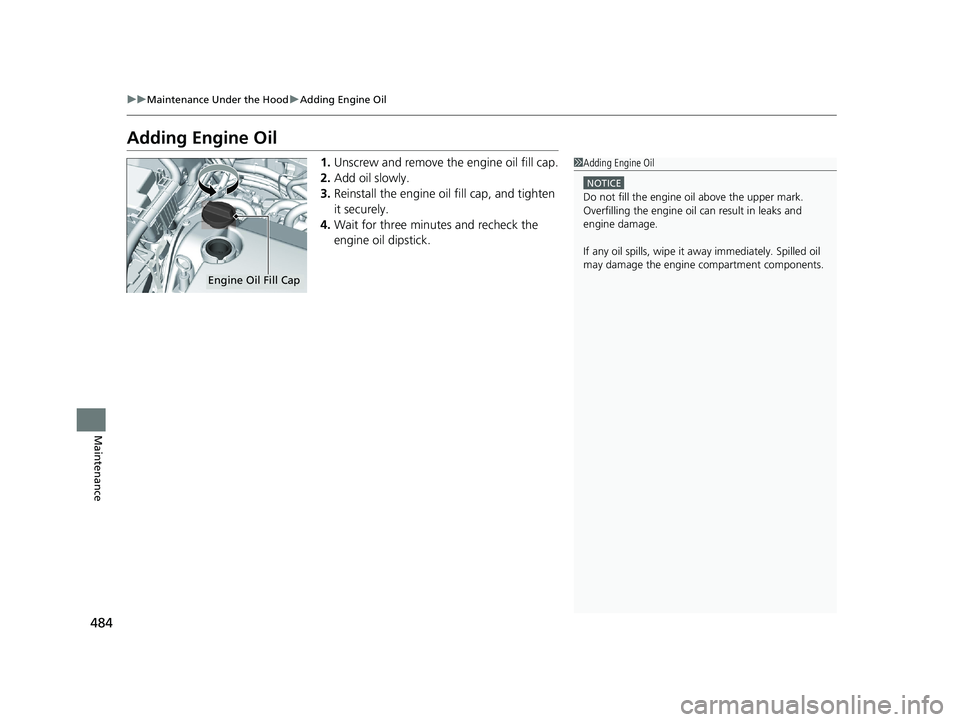

484 uu Maintenance Under the Hood u Adding Engine Oil
Maintenance Adding Engine Oil 1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick. 1 Adding Engine Oil NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil Fill Cap18 CLARITY PHEV CSS-31TRW6000.book 484 ページ ２０１７年８月３１日　木曜日　午後２時４９分

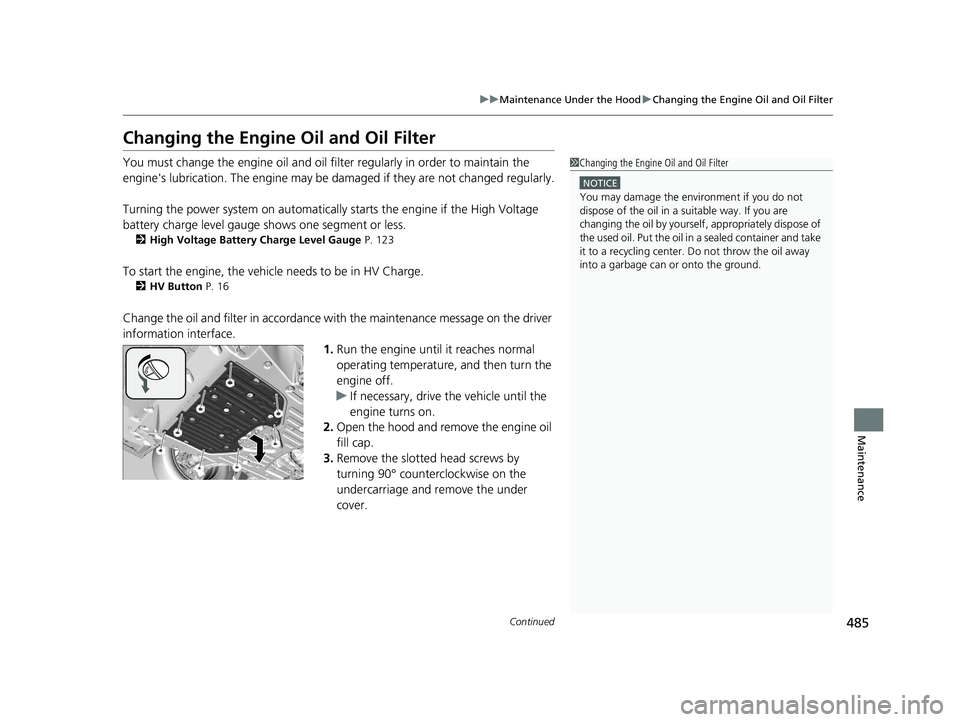

485uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Continued
Maintenance
Changing the Engine Oil and Oil FilterYou must change the engine oil and oil fi lter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.
Turning the power system on automatically starts the en gine if the High Voltage
battery charge level gauge shows one segment or less. 2 High Voltage Battery Charge Level Gauge P. 123
To start the engine, the vehicl e needs to be in HV Charge.2 HV Button P. 16
Change the oil and filter in accordance with the mainte nance message on the driver
information interface.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
u If necessary, drive the vehicle until the
engine turns on.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the slotted head screws by
turning 90° counterclockwise on the
undercarriage and remove the under
cover. 1 Changing the Engine Oil and Oil Filter NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.18 CLARITY PHEV CSS-31TRW6000.book 485 ページ ２０１７年８月３１日　木曜日　午後２時４９分

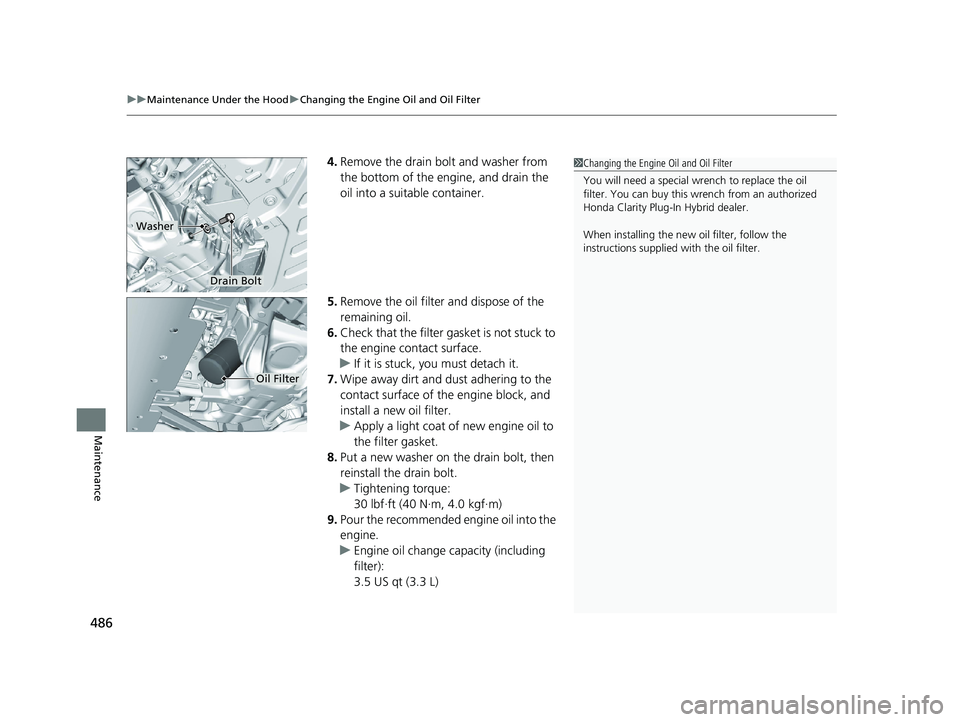

uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
486
Maintenance 4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.5 US qt (3.3 L) 1 Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wr ench from an authorized
Honda Clarity Plug-In Hybrid dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Drain BoltWasher
Oil Filter18 CLARITY PHEV CSS-31TRW6000.book 486 ページ ２０１７年８月３１日　木曜日　午後２時４９分

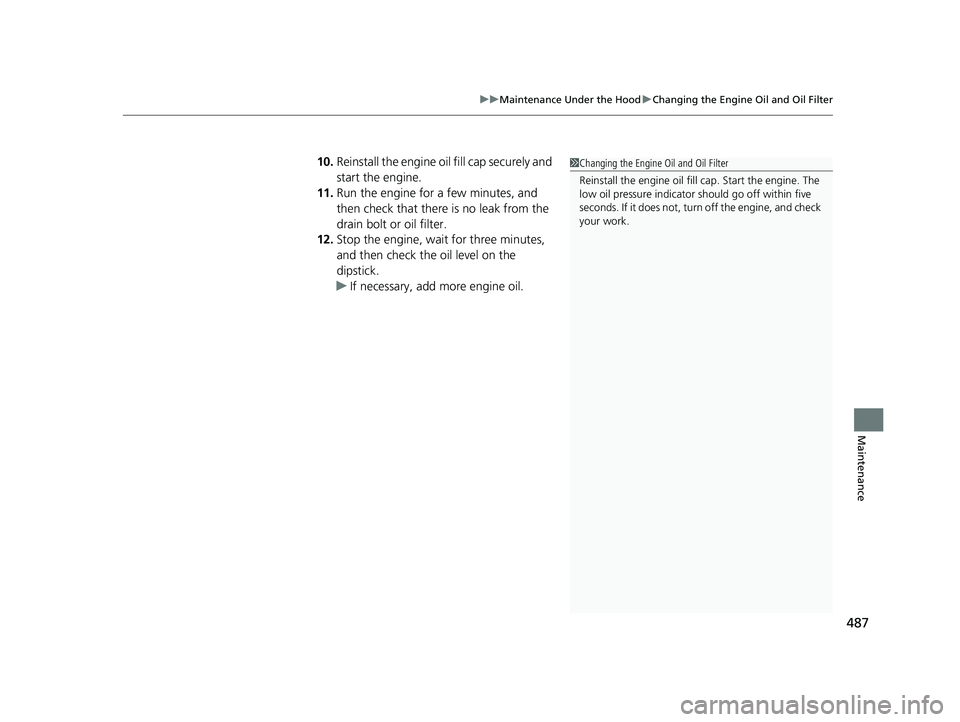

487uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Maintenance
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil. 1 Changing the Engine Oil and Oil Filter
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.18 CLARITY PHEV CSS-31TRW6000.book 487 ページ ２０１７年８月３１日　木曜日　午後２時４９分

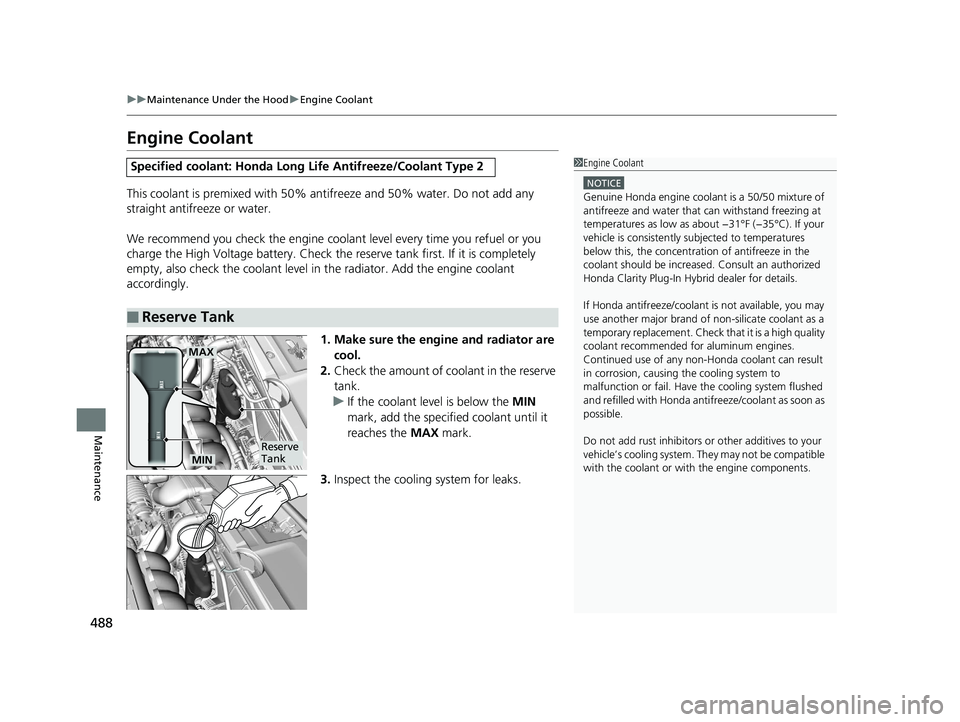

488 uu Maintenance Under the Hood u Engine Coolant
Maintenance Engine Coolant This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolan t level every time you refuel or you
charge the High Voltage battery. Check the re serve tank first. If it is completely
empty, also check the coolant level in the radiator. Add the engine coolant
accordingly.
1. Make sure the engine and radiator are
cool.
2. Check the amount of c oolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■ Reserve Tank 1 Engine Coolant NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Honda Clarity Plug-In Hybr id dealer for details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.Reserve
TankMAX
MIN18 CLARITY PHEV CSS-31TRW6000.book 488 ページ ２０１７年８月３１日　木曜日　午後２時４９分
