save HONDA CR-V 2021 Navigation Manual (in English)

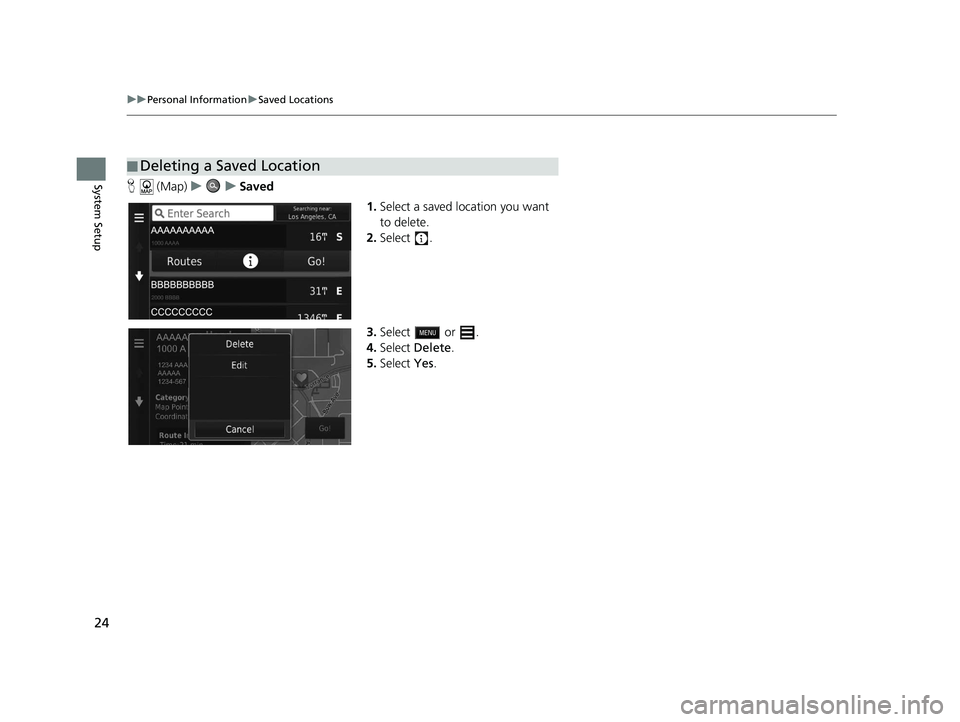

24
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select a saved location you want
to delete.
2. Select .
3. Select or .
4. Select Delete.
5. Select Yes.
■Deleting a Saved Location
19 CR-V NAVI-31TLA8200.book 24 ページ ２０１８年８月２８日　火曜日　午後２時１７分

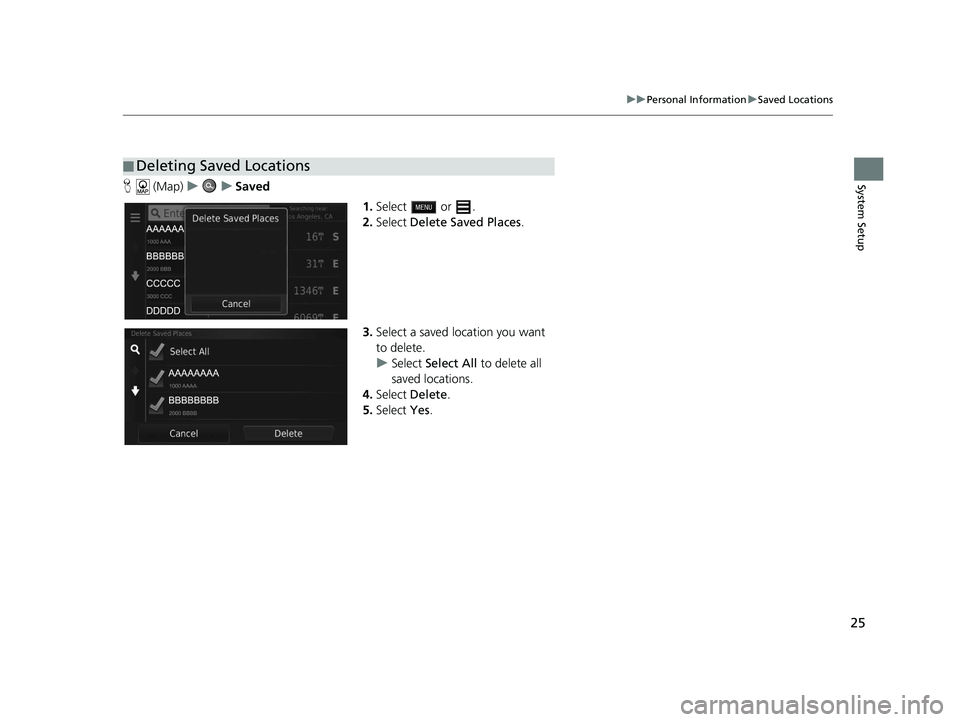

25
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select or .
2. Select Delete Saved Places .
3. Select a saved location you want
to delete.
u Select Select All to delete all
saved locations.
4. Select Delete .
5. Select Yes.
■Deleting Saved Locations
19 CR-V NAVI-31TLA8200.book 25 ページ ２０１８年８月２８日　火曜日　午後２時１７分

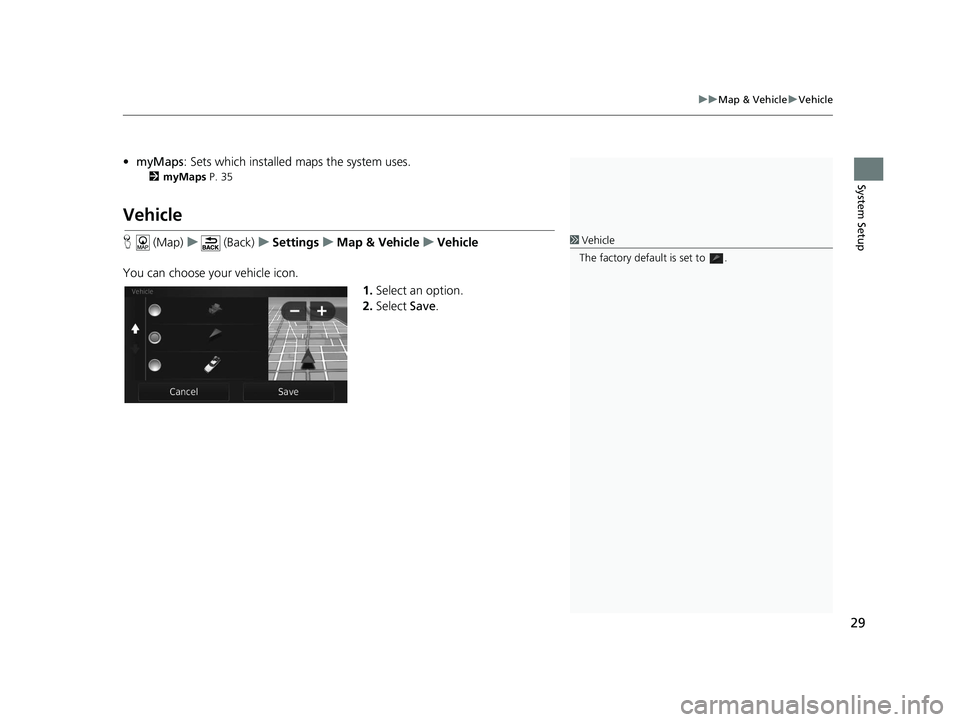

29
uuMap & Vehicle uVehicle
System Setup
• myMaps : Sets which installed maps the system uses.
2myMaps P. 35
Vehicle
H (Map) u (Back) uSettings uMap & Vehicle uVehicle
You can choose your vehicle icon. 1.Select an option.
2. Select Save.1Vehicle
The factory default is set to .
19 CR-V NAVI-31TLA8200.book 29 ページ ２０１８年８月２８日　火曜日　午後２時１７分

30
uuMap & Vehicle uDriving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H (Map) u (Back) uSettings uMap & Vehicle uDriving Map View
Select the map orientation. 1.Select an option.
2. Select Save.
The following options are available:
• Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
19 CR-V NAVI-31TLA8200.book 30 ページ ２０１８年８月２８日　火曜日　午後２時１７分

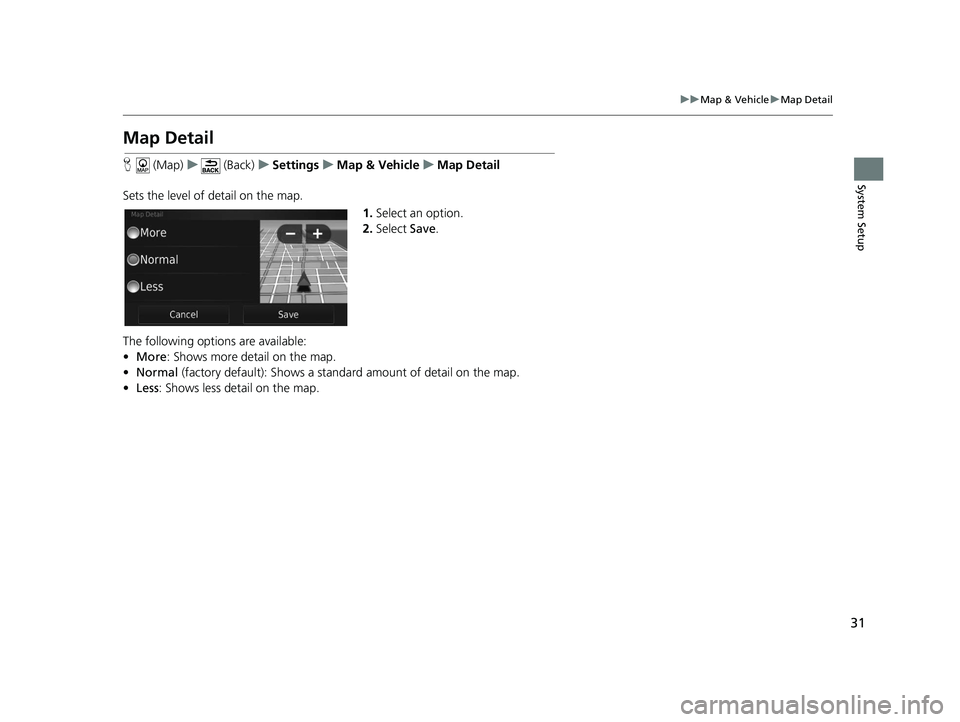

31
uuMap & Vehicle uMap Detail
System Setup
Map Detail
H (Map) u (Back) uSettings uMap & Vehicle uMap Detail
Sets the level of detail on the map. 1.Select an option.
2. Select Save.
The following options are available:
• More : Shows more detail on the map.
• Normal (factory default): Shows a standard amount of detail on the map.
• Less : Shows less detail on the map.
19 CR-V NAVI-31TLA8200.book 31 ページ ２０１８年８月２８日　火曜日　午後２時１７分

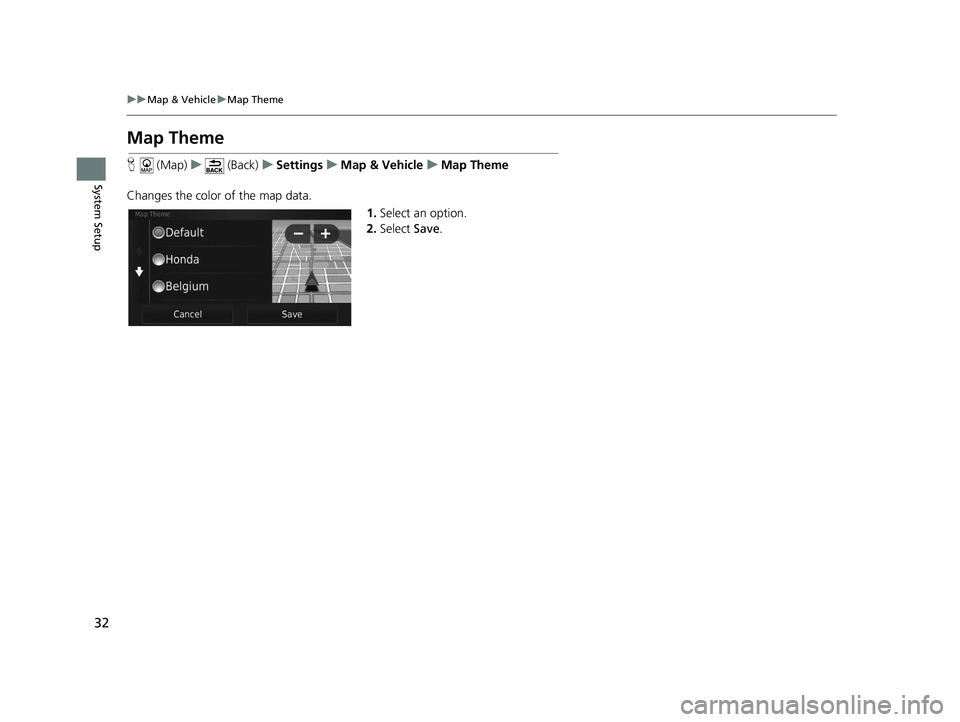

32
uuMap & Vehicle uMap Theme
System Setup
Map Theme
H (Map) u (Back) uSettings uMap & Vehicle uMap Theme
Changes the color of the map data. 1.Select an option.
2. Select Save.
19 CR-V NAVI-31TLA8200.book 32 ページ ２０１８年８月２８日　火曜日　午後２時１７分

33
uuMap & Vehicle uMap Buttons
System Setup
Map Buttons
H (Map) u (Back) uSettings uMap & Vehicle uMap Buttons
Sets up to three shortcuts that appear in the map tools menu. 1.Select if you want to delete a
shortcut and then select OK.
2. Select to add a new shortcut.
3. Select an option.
4. Select Save.1Map Buttons
Reset to Defaults
Resets the settings to the factory defaults.
19 CR-V NAVI-31TLA8200.book 33 ページ ２０１８年８月２８日　火曜日　午後２時１７分

34
uuMap & Vehicle uMap Layers
System Setup
Map Layers
H (Map) u (Back) uSettings u Map & Vehicle uMap Layers
Sets the data that appears on the map screen. 1.Select an option(s).
2. Select Save.
Dashboards
H (Map) u (Back) uSettings u Map & Vehicle uDashboards
Switches the dashboard layout at the bottom of the map. 1.Select or .
2. Select Save.
1Map Layers
Trip Log is set to off as factory default.
19 CR-V NAVI-31TLA8200.book 34 ページ ２０１８年８月２８日　火曜日　午後２時１７分

37
uuNavigation uCalculation Mode
System Setup
Calculation Mode
H (Map) u (Back) uSettings uNavigation uCalculation Mode
Sets the route preference. 1.Select an option.
2. Select Save.
The following options are available:
• Faster Time (factory default): Calculates routes that are faster to drive but can be
longer in distance.
• Shorter Distance : Calculates routes that are shorter in distance but can take
more time to drive.
• Less Fuel : Calculates routes that could us e less fuel than other routes.
19 CR-V NAVI-31TLA8200.book 37 ページ ２０１８年８月２８日　火曜日　午後２時１７分

38
uuNavigation uAvoidances
System Setup
Avoidances
H (Map) u (Back) uSettings uNavigation uAvoidances
Set preferences for route options to avoid. 1.Select an option(s).
2. Select Save.
The following options are available:
• U-Turns : Avoids u-turns.
• Highways : Avoids highways.
• Tolls and Fees : Avoids toll roads.
• Ferries : Avoids ferries.
• Carpool Lanes: Avoids car share lanes.
• Unpaved Roads : Avoids unpaved roads.1Avoidances
Highways , Tolls and Fees , and Ferries are set to off
as factory default.
19 CR-V NAVI-31TLA8200.book 38 ページ ２０１８年８月２８日　火曜日　午後２時１７分
