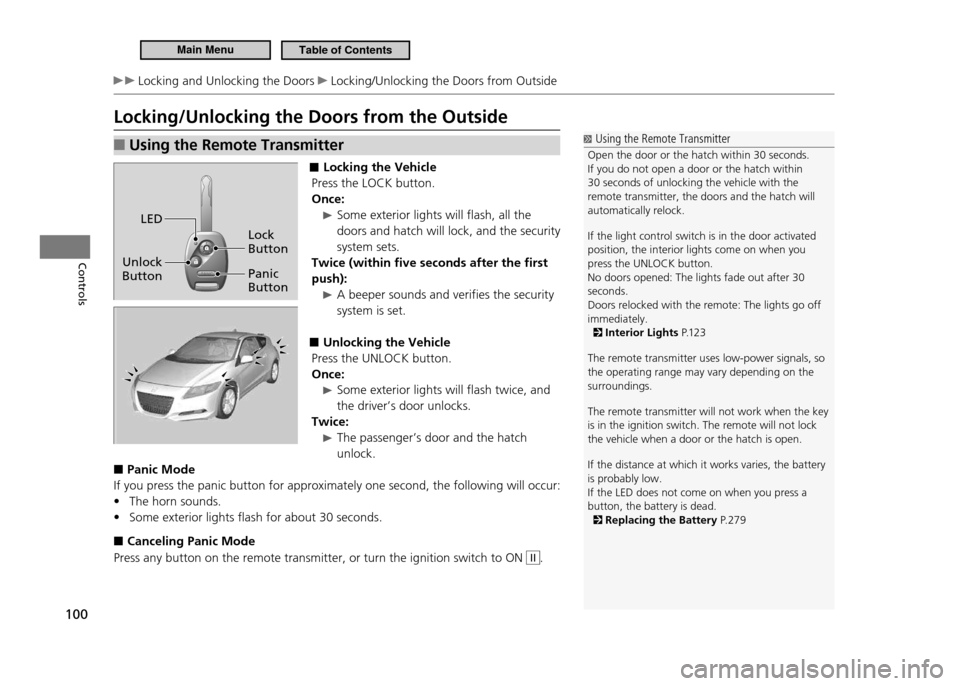

100
Controls
Locking and Unlocking the Doors Locking/Unlocking the Doors from Outside
Locking/Unlocking the Doors from the Outside
Using the Remote Transmitter
■
■ Locking the Vehicle
Press the LOCK button. Once:
Some exterior lights will flash, all the
doors and hatch will lock, and the security system sets.
Twice (within five seconds after the first push):
A beeper sounds and verifies the security system is set.
Unlocking the Vehicle
■
Press the UNLOCK button. Once:
Some exterior lights will flash twice, and
the driver’s door unlocks.
Twice:
The passenger’s door and the hatch unlock.
Panic Mode
■
If you press the panic button for approximately one second, the following will occur:
The horn sounds.
•
Some exterior lights flash for about 30 seconds.
•
Canceling Panic Mode
■
Press any button on the remote transmitter, or turn the ignition switch to ON
II.
Using the Remote Transmitter
Open the door or the hatch within 30 seconds. If you do not open a door or the hatch within 30 seconds of unlocking the vehicle with the remote transmitter, the doors and the hatch will automatically relock. If the light control switch is in the door activated position, the interior lights come on when you press the UNLOCK button.No doors opened: The lights fade out after 30 seconds.Doors relocked with the remote: The lights go off immediately.
Interior Lights P.12 3
The remote transmitter uses low-power signals, so the operating range may vary depending on the surroundings. The remote transmitter will not work when the key is in the ignition switch. The remote will not lock the vehicle when a door or the hatch is open. If the distance at which it works varies, the battery is probably low.If the LED does not come on when you press a button, the battery is dead.
Replacing the Battery P. 2 7 9
Lock Button
Panic Button
Unlock Button LED
Main MenuTable of Contents

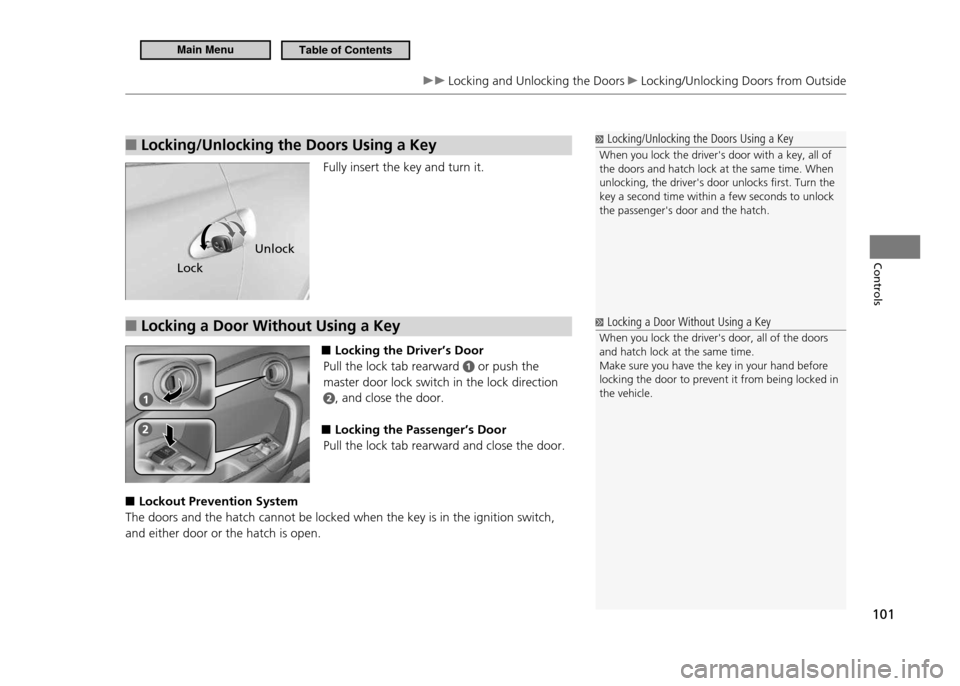

101
Controls
Locking and Unlocking the Doors Locking/Unlocking Doors from Outside
Locking/Unlocking the Doors Using a Key
■
Fully insert the key and turn it.
Locking a Door Without Using a Key

■
■ Locking the Driver’s Door
Pull the lock tab rearward
or push the
master door lock switch in the lock direction
, and close the door. Locking the Passenger’s Door
■
Pull the lock tab rearward and close the door.
Lockout Prevention System
■
The doors and the hatch cannot be locked when the key is in the ignition switch, and either door or the hatch is open.
Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all of the doors and hatch lock at the same time. When unlocking, the driver's door unlocks irst. Turn the key a second time within a few seconds to unlock the passenger's door and the hatch.
Locking a Door Without Using a Key
When you lock the driver's door, all of the doors and hatch lock at the same time. Make sure you have the key in your hand before locking the door to prevent it from being locked in the vehicle.
Lock Unlock
Main MenuTable of Contents

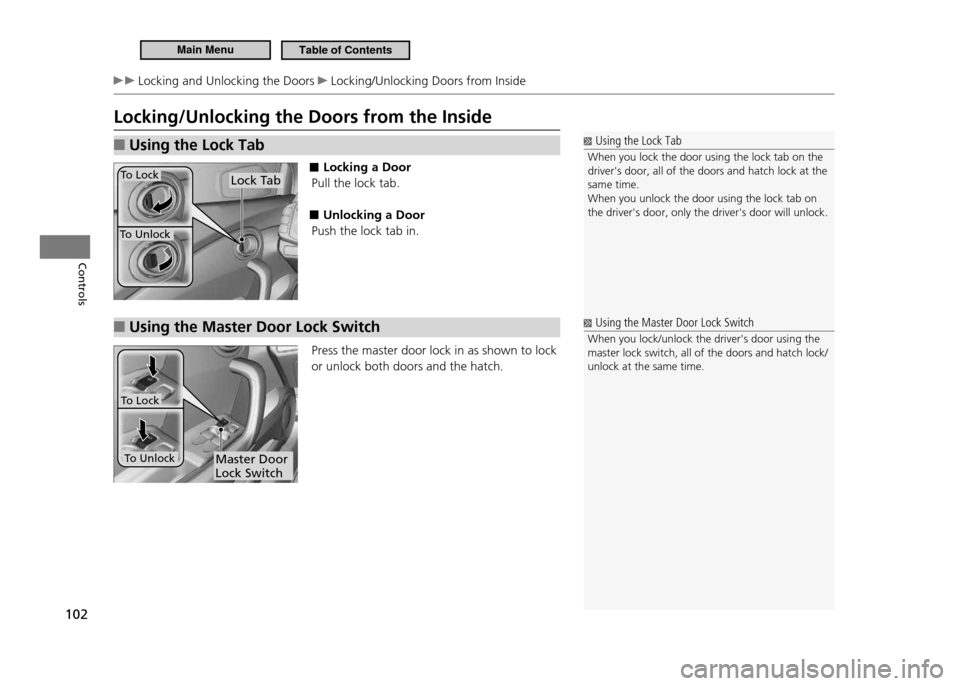

102
Controls
Locking and Unlocking the Doors Locking/Unlocking Doors from Inside
Locking/Unlocking the Doors from the Inside
Using the Lock Tab
■
■ Locking a Door
Pull the lock tab.
Unlocking a Door
■
Push the lock tab in.
Using the Master Door Lock Switch

■
Press the master door lock in as shown to lock or unlock both doors and the hatch.
Using the Lock Tab
When you lock the door using the lock tab on the driver's door, all of the doors and hatch lock at the same time.When you unlock the door using the lock tab on the driver's door, only the driver's door will unlock.
Lock TabTo Lock
To Unlock
Using the Master Door Lock Switch
When you lock/unlock the driver's door using the master lock switch, all of the doors and hatch lock/unlock at the same time.
Master Door Lock Switch
To Lock
To Unlock
Main MenuTable of Contents

103
Controls
Locking and Unlocking the Doors Auto Door Lock/Unlock
Auto Door Lock/Unlock
Auto Door Lock/Unlock
The auto door lock/unlock settings can be customized using the multi-information display.
Customization Procedure P. 9 0
Auto Door Lock
■
The auto door lock function automatically locks all the doors and hatch when the vehicle reaches about 9 mph (15 km/h).
Auto Door Unlock
■
Automatic transmission (CVT)
When you depress the brake pedal and move the shift lever in P, the driver’s door
automatically unlocks.
Manual transmission
When you depress the brake pedal and turn the ignition switch to LOCK 0, the
driver’s door automatically unlocks.
Main MenuTable of Contents

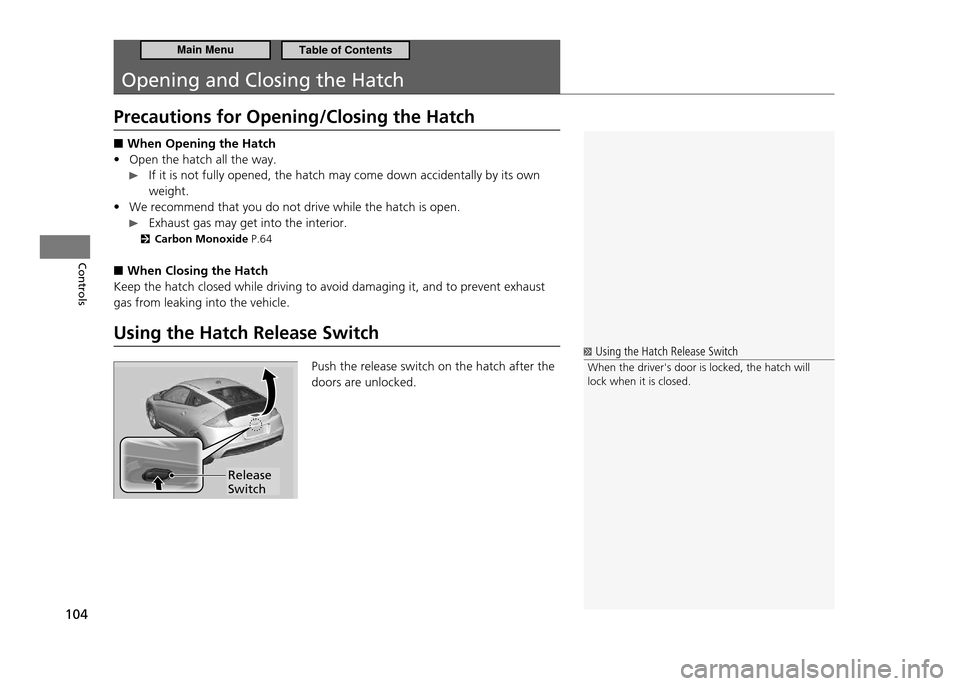

104
Controls
Opening and Closing the Hatch
Precautions for Opening/Closing the Hatch
When Opening the Hatch
■
Open the hatch all the way.
•
If it is not fully opened, the hatch may come down accidentally by its own
weight.
We recommend that you do not drive while the hatch is open.
•
Exhaust gas may get into the interior.
Carbon Monoxide P.64
When Closing the Hatch
■
Keep the hatch closed while driving to avoid damaging it, and to prevent exhaust gas from leaking into the vehicle.
Using the Hatch Release Switch Push the release switch on the hatch after the doors are unlocked.
Using the Hatch Release Switch
When the driver's door is locked, the hatch will lock when it is closed.
Release Switch
Main MenuTable of Contents

105
Controls
Security System
Immobilizer System
Immobilizer System
NOTICE Leaving the ignition key in the vehicle can result in theft or accidental movement of the vehicle.Always take the ignition key with you whenever you leave the vehicle unattended. Do not alter the system or add other devices to it. Doing so may damage the system and make your vehicle inoperable.
The immobilizer system prevents a key that has not been pre-registered from starting the engine. Each key contains electronic transmitters that use electronic signals to verify the key. Pay attention to the following when inserting the key to the ignition switch.Do not allow objects that emit strong radio waves near the ignition switch.
•
Make sure the key is not covered by or touching a metal object.
•
Do not bring a key from another vehicle’s immobilizer system near the ignition
•
switch.
Security Alarm System The security alarm system activates when the doors, hatch, or hood are opened without the key, or remote transmitter. It also activates if you turn the ignition switch to ON
II after locking the doors and the hatch with the remote transmitter.
When the Security Alarm System Activates
■
The horn beeps intermittently, and all of the exterior lights flash.
To Deactivate the Security Alarm System
■
Unlock the vehicle using the key, or remote transmitter. The system, along with the horn and flashing lights, are deactivated.
Security Alarm System
The security alarm continues for a maximum of two minutes until the security alarm system deactivates.
continued
Main MenuTable of Contents

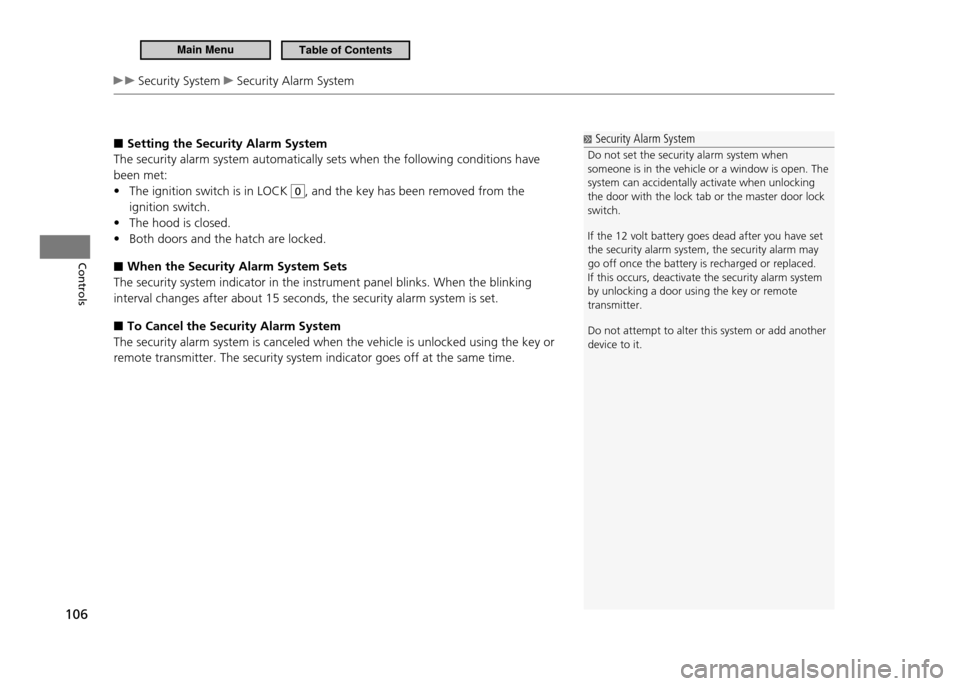

106
Controls
Security System Security Alarm System
Setting the Security Alarm System
■
The security alarm system automatically sets when the following conditions have been met:
The ignition switch is in LOCK
•
0, and the key has been removed from the
ignition switch. The hood is closed.
•
Both doors and the hatch are locked.
•
When the Security Alarm System Sets
■
The security system indicator in the instrument panel blinks. When the blinking interval changes after about 15 seconds, the security alarm system is set.
To Cancel the Security Alarm System
■
The security alarm system is canceled when the vehicle is unlocked using the key or remote transmitter. The security system indicator goes off at the same time.
Security Alarm System
Do not set the security alarm system when someone is in the vehicle or a window is open. The system can accidentally activate when unlocking the door with the lock tab or the master door lock switch. If the 12 volt battery goes dead after you have set the security alarm system, the security alarm may go off once the battery is recharged or replaced.If this occurs, deactivate the security alarm system by unlocking a door using the key or remote transmitter. Do not attempt to alter this system or add another device to it.
Main MenuTable of Contents

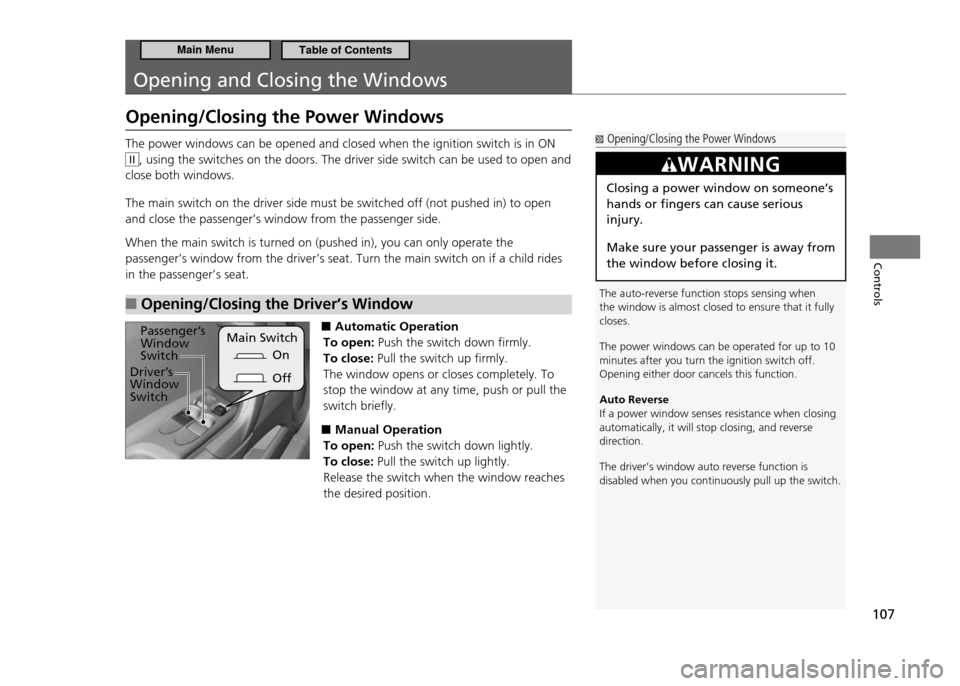

107
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
Opening/Closing the Power Windows
The auto-reverse function stops sensing when the window is almost closed to ensure that it fully closes. The power windows can be operated for up to 10 minutes after you turn the ignition switch off.Opening either door cancels this function. Auto Reverse If a power window senses resistance when closing automatically, it will stop closing, and reverse direction. The driver’s window auto reverse function is disabled when you continuously pull up the switch.
WARNING
Closing a power window on someone’s hands or fingers can cause serious injury. Make sure your passenger is away from the window before closing it.
The power windows can be opened and closed when the ignition switch is in ON
II, using the switches on the doors. The driver side switch can be used to open and
close both windows. The main switch on the driver side must be switched off (not pushed in) to open and close the passenger’s window from the passenger side. When the main switch is turned on (pushed in), you can only operate the passenger’s window from the driver’s seat. Turn the main switch on if a child rides in the passenger’s seat.
Opening/Closing the Driver’s Window

■
■ Automatic Operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To stop the window at any time, push or pull the switch briefly.
Manual Operation
■
To open: Push the switch down lightly.
To close: Pull the switch up lightly.
Release the switch when the window reaches the desired position.
On
Main Switch
Passenger’s Window Switch
Driver’s Window Switch Off
Main MenuTable of Contents

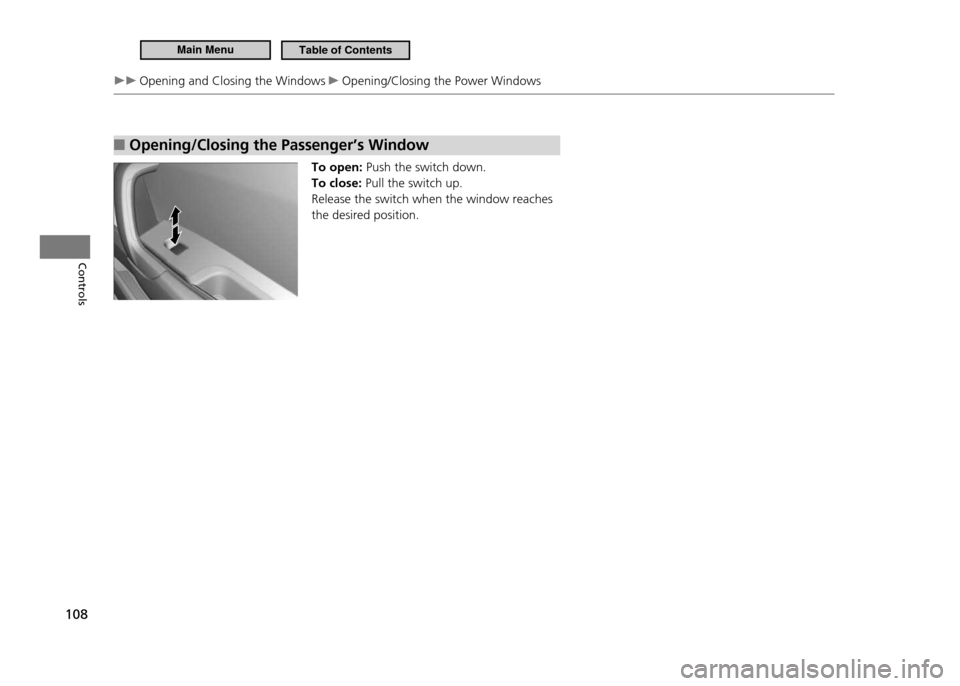

108
Controls
Opening and Closing the Windows Opening/Closing the Power Windows
Opening/Closing the Passenger’s Window
■
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches the desired position.
Main MenuTable of Contents

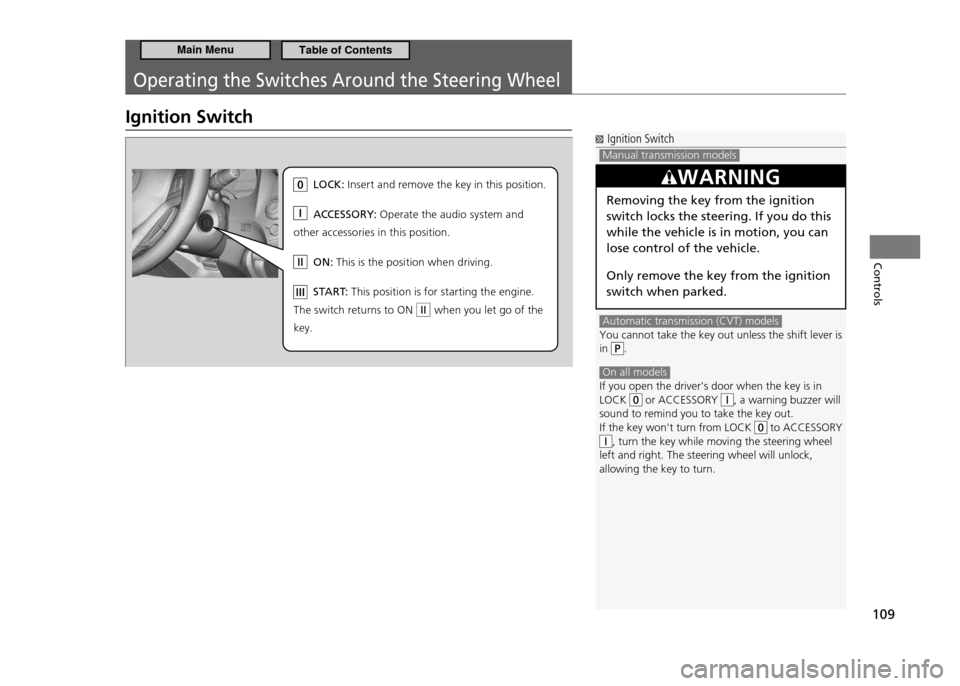

109
Controls
Operating the Switches Around the Steering Wheel
Ignition Switch
Ignition Switch
Manual transmission models Automatic transmission (CVT) models
You cannot take the key out unless the shift lever is
in .
On all models If you open the driver's door when the key is in LOCK or ACCESSORY , a warning buzzer will
sound to remind you to take the key out. If the key won't turn from LOCK
to ACCESSORY , turn the key while moving the steering wheel
left and right. The steering wheel will unlock, allowing the key to turn.
WARNING
Removing the key from the ignition switch locks the steering. If you do this while the vehicle is in motion, you can lose control of the vehicle. Only remove the key from the ignition switch when parked.
LO CK: In se rt and re move the key in this position.
AC CESSOR Y: Op erate the audio system and
other acce ssories in this position.
ON : Th is is the position when driving.
ST AR T: Th is position is for starting the engine .
Th e sw itch returns to ON when you let go of the
key.
