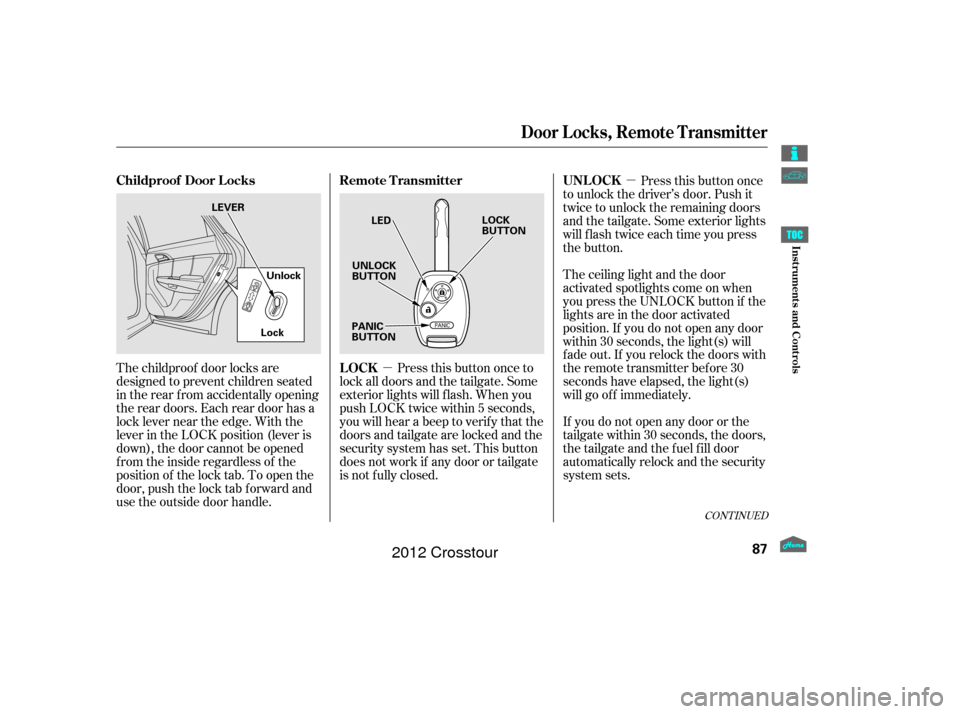

The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
fromtheinsideregardlessof the
position of the lock tab. To open the
door, push the lock tab f orward and
use the outside door handle. Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors and tailgate are locked and the
security system has set. This button
does not work if any door or tailgate
is not f ully closed. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the remaining doors
and the tailgate. Some exterior lights
will f lash twice each time you press
the button.
The ceiling light and the door
activated spotlights come on when
you press the UNLOCK button if the
lights are in the door activated
position. If you do not open any door
within 30 seconds, the light(s) will
f ade out. If you relock the doors with
theremotetransmitterbefore30
seconds have elapsed, the light(s)
will go of f immediately.
If you do not open any door or the
tailgate within 30 seconds, the doors,
thetailgateandthefuelfilldoor
automatically relock and the security
system sets.
CONT INUED
Childproof Door L ocks Remote T ransmitter
LOCK UNL OCK
Door Locks, Remote Transmitter
87
Lock
LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON LED
Unlock
LEVER

Inst rument s and Cont rols

2012 Crosstour

µAvoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616
Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. You can also open all power windows
and the moonroof f rom outside the
vehicle with the remote transmitter
(see page ). Locking and unlocking the driver’s
door will also lock and unlock the
f uel f ill door (see page ). 283
108
Remote Transmitter Care Replacing the Transmitter Battery
Remote Transmitter
PA NIC
88

Inst rument s and Cont rols

2012 Crosstour

´

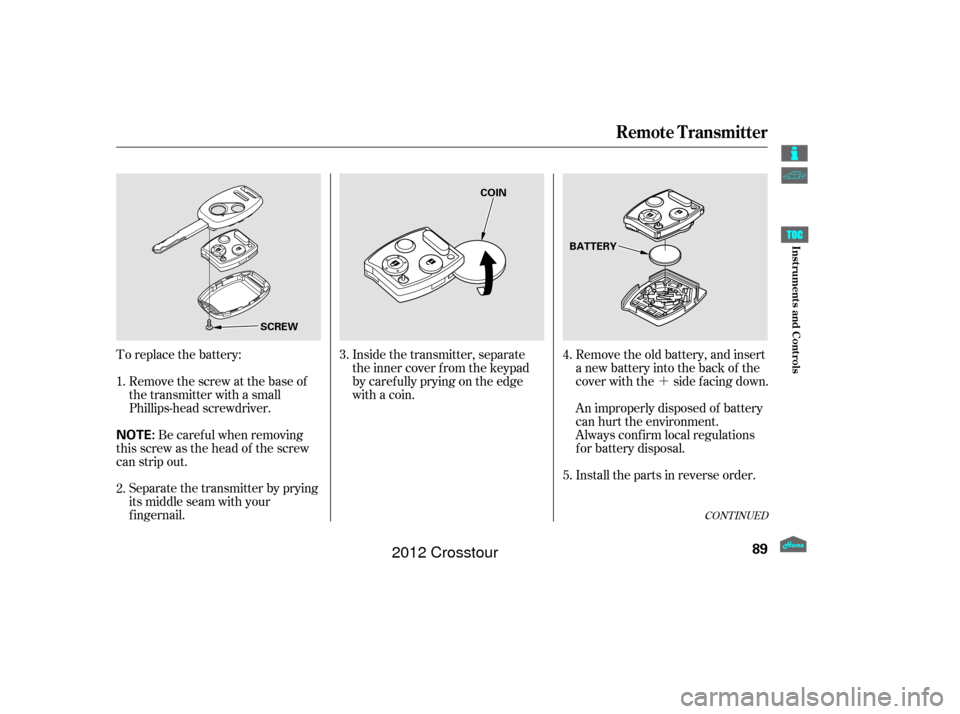

To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail. Be caref ul when removing
this screw as the head of the screw
can strip out. Inside the transmitter, separate
the inner cover f rom the keypad
by caref ully prying on the edge
with a coin.
Remove the old battery, and insert
a new battery into the back of the
cover with the side f acing down.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
Install the parts in reverse order.
1.
2. 3.
4.
5.
CONT INUED
Remote Transmitter
89
NOTE:
SCREW COIN
BATTERY

Inst rument s and Cont rols

2012 Crosstour

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device. EX-L modelsHere are the settings activated with
the remote:
Driving position memory
(see page ).

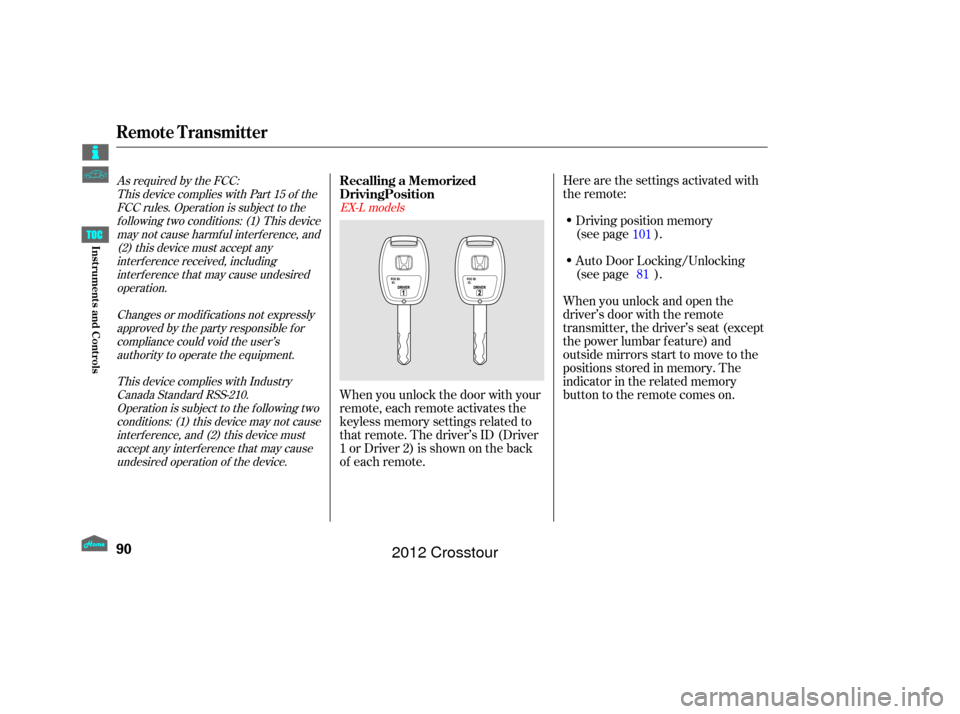

When you unlock the door with your
remote, each remote activates the
keyless memory settings related to
that remote. The driver’s ID (Driver
1orDriver2)isshownontheback
of each remote. Auto Door Locking/Unlocking
(see page ).
When you unlock and open the
driver’s door with the remote
transmitter, the driver’s seat (except
the power lumbar feature) and
outside mirrors start to move to the
positions stored in memory. The
indicator in the related memory
button to the remote comes on. 81
101
Recalling a Memorized
Remote Transmitter
90

Inst rument s and Cont rols
Driving Position

2012 Crosstour

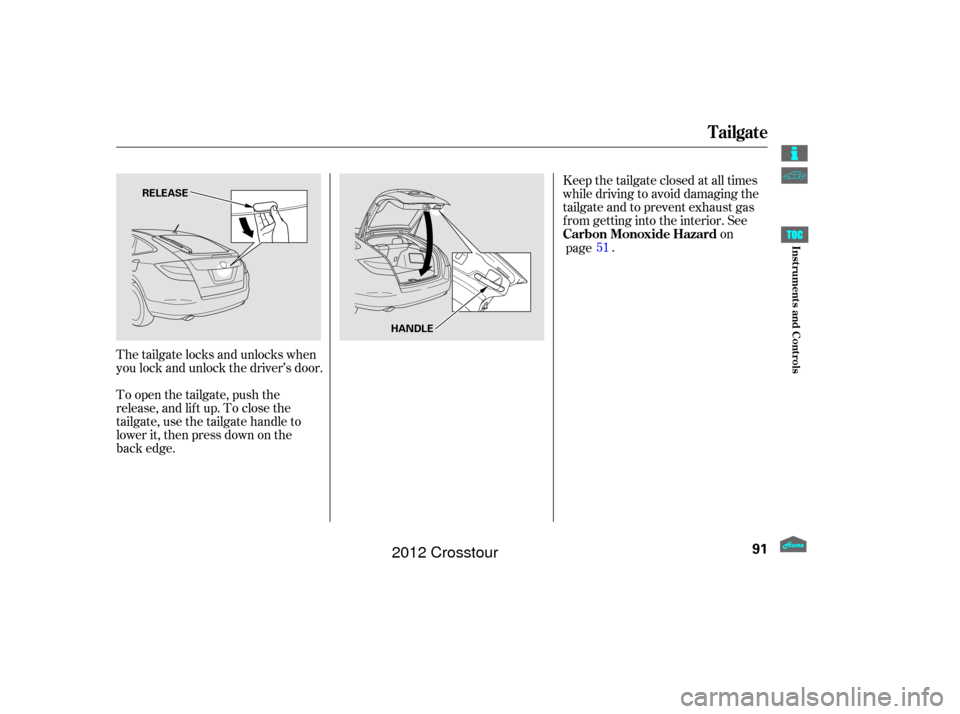

The tailgate locks and unlocks when
you lock and unlock the driver’s door.
To open the tailgate, push the
release, and lif t up. To close the
tailgate, use the tailgate handle to
lower it, then press down on the
back edge.Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
f rom getting into the interior. See
on
.
51
Tailgate
Carbon Monoxide Hazard
91
RELEASE
HANDLE

Inst rument s and Cont rolspage

2012 Crosstour

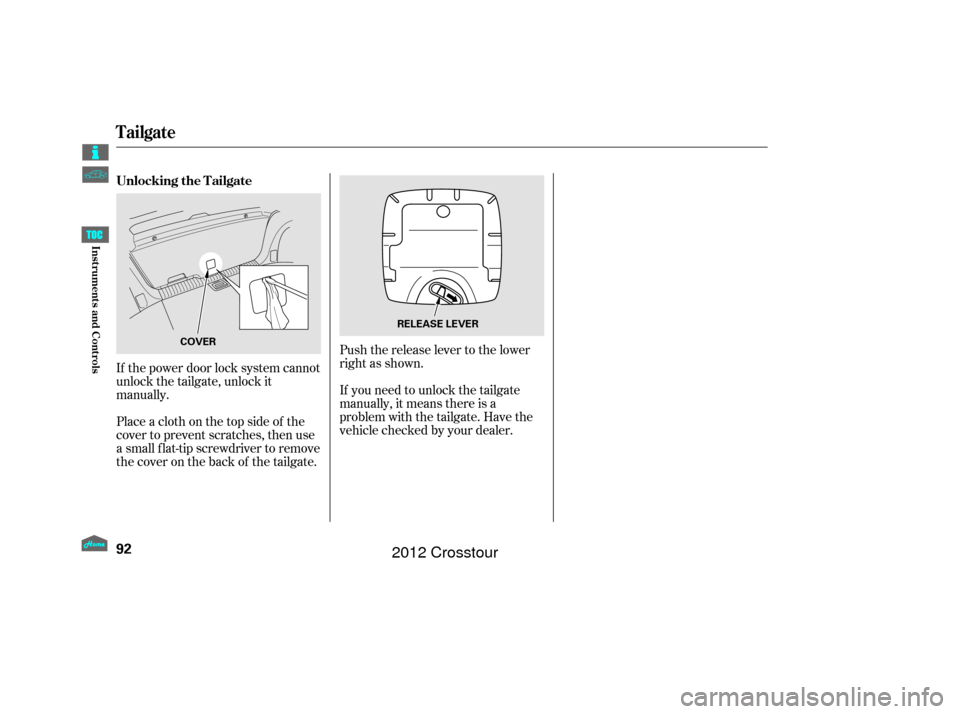

If the power door lock system cannot
unlock the tailgate, unlock it
manually.Push the release lever to the lower
right as shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
Placeaclothonthetopsideof the
cover to prevent scratches, then use
a small f lat-tip screwdriver to remove
the cover on the back of the tailgate. Unlocking the T ailgate
Tailgate
92
RELEASE LEVER
COVER

Inst rument s and Cont rols

2012 Crosstour

µ
Moves the seat forward
and backward.
Raises or lowers the seat.
(Driver’s seat only) Moves the f ront of the
seat up or down.
(Driver’s seat only)Moves the whole seat up
and f orward, or down
and backward. The front
of the seat also tilts up or
down at the same time.
(Driver’s seat only)
Adjusts the seat-back
angle f orward or
backward.
The controls f or the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position. Make
all seat adjustments bef ore you start
driving.
Increases or decreases
the lumbar support.
The passenger seat has the same
adjustments as the driver’s seat but
without any height and lumbar
adjustments.
See pages f or important saf ety
inf ormation and warnings about how toproperly position the seats and seat-backs.
Driver’s seat only:
11 13
Front Seat Power A djustments
Seats
93

Inst rument s and Cont rols

2012 Crosstour

See page f or important saf etyinf ormation and a warning aboutimproperly positioning head restraints. 13

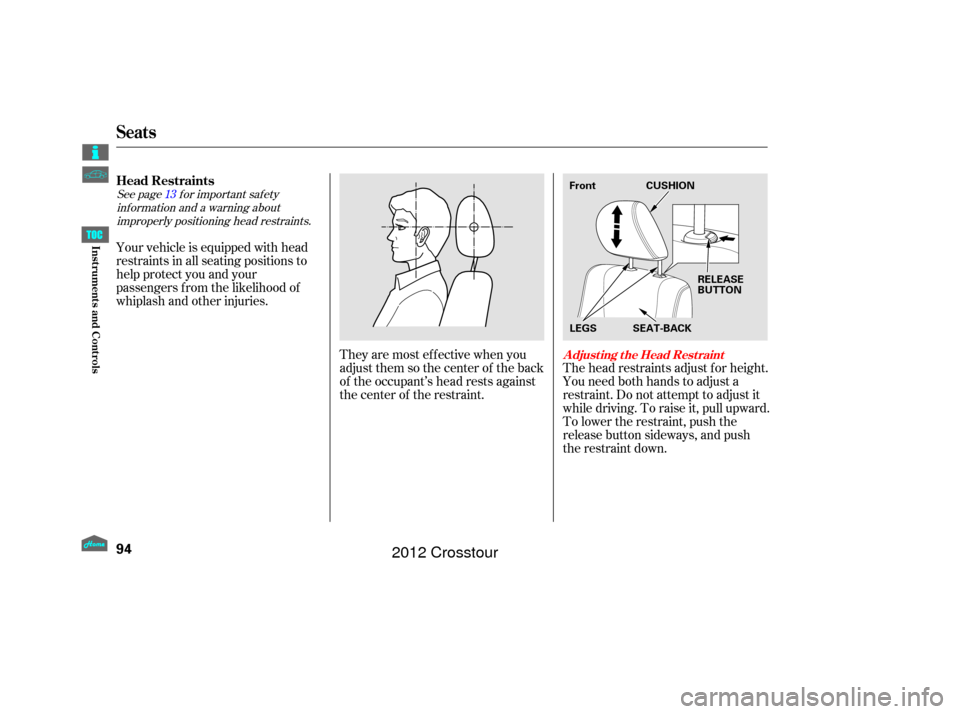

Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom the likelihood of
whiplash and other injuries.
They are most ef f ective when you
adjust them so the center of the back
of the occupant’s head rests against
the center of the restraint.The head restraints adjust f or height.
You need both hands to adjust a
restraint.Donotattempttoadjustit
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
Head Restraints
A djust ing t he Head Rest raint
Seats
94
Front CUSHION
LEGS SEAT-BACK RELEASE
BUTTON

Inst rument s and Cont rols

2012 Crosstour

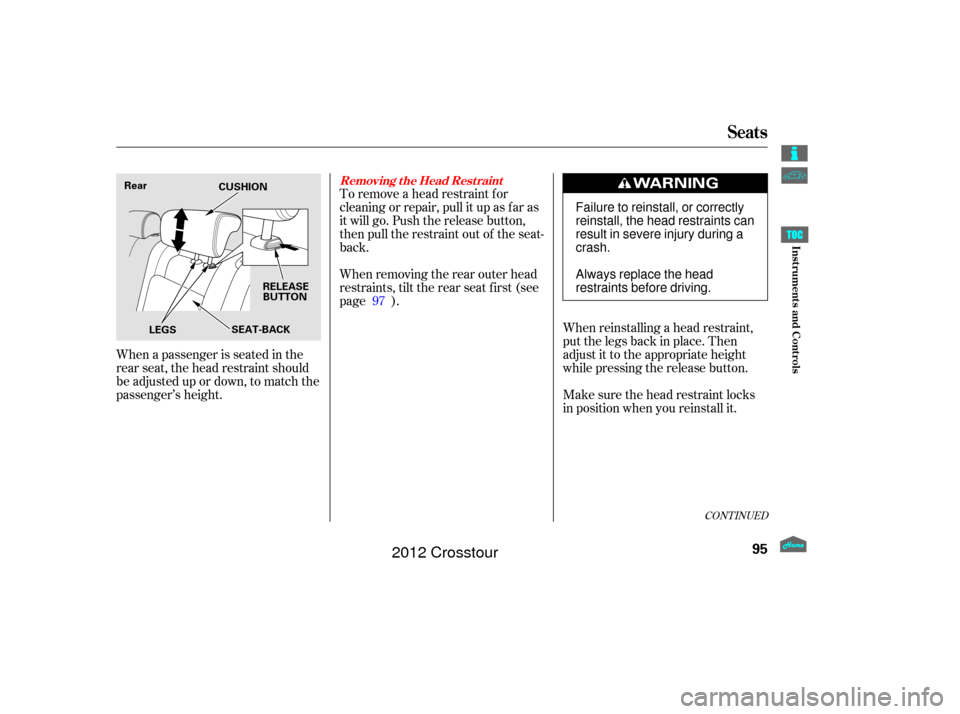

To remove a head restraint f or
cleaning or repair, pull it up as f ar as
it will go. Push the release button,
then pull the restraint out of the seat-
back.
When a passenger is seated in the
rear seat, the head restraint should
be adjusted up or down, to match the
passenger’s height. When removing the rear outer head
restraints, tilt the rear seat f irst (see
page ).
Make sure the head restraint locks
in position when you reinstall it. When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
97
CONT INUED
Removing t he Head Rest raint
Seats
95
CUSHION
LEGS RELEASE
BUTTON
SEAT-BACK
Rear
Failure to reinstall, or correctly
reinstall, the head restraints can
result in severe injury during a
crash.
Always replace the head
restraints before driving.

Inst rument s and Cont rols

2012 Crosstour

For a head restraint system to work
properly:Do not hang any items on the head
restraints, or f rom the restraint
legs.
Do not place any object between
an occupant and the seat-back.
Install each restraint in its proper
location.
Only use genuine Honda
replacement head restraints.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer. Af ter a collision, the activated
restraint should return to its normal
position. This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupants
against the likelihood of whiplash
and injuries to the neck and upper
spine.

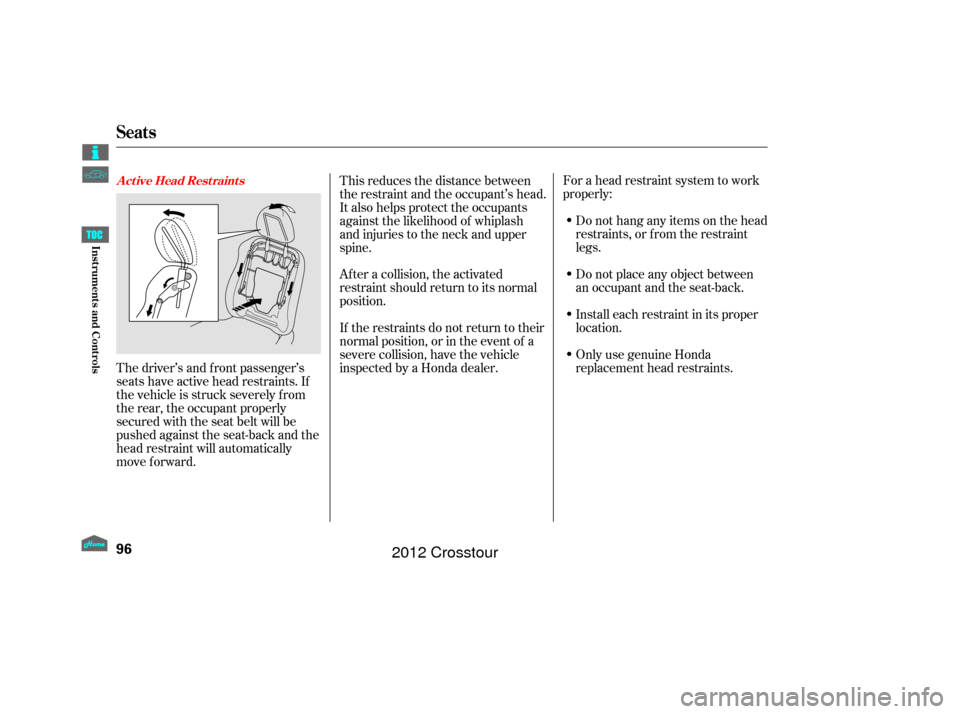

The driver’s and f ront passenger’s
seats have active head restraints. If
the vehicle is struck severely f rom
the rear, the occupant properly
secured with the seat belt will be
pushed against the seat-back and the
head restraint will automatically
move forward.A ct ive Head Rest raint s
Seats
96

Inst rument s and Cont rols
