HONDA CROSSTOUR 2012 1.G Owners Manual

Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle. In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror. To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
Some larger styles of sunglasses
may not f it in the holder.
You may also store small items in
this holder. Make sure they are
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving.
To open the sunglasses holder, push
then release the indent. It will
unlatch and swing down. To close it,
push it until it latches. Make sure the
holder is closed while you are driving. Sun Visors
Sunglasses Holder
Interior Convenience Items
117
SUN VISOR
Slide
Push

Inst rument s and Cont rols

2012 Crosstour

Then remove the hook, and hook it
totheholeonthecargosidepanel.
The reverse side of the removable
tray is water-proof ed. You can f lip
the removable tray to use the water-
proof ed side.The utility box under the removable
tray can be partitioned by the pass
partition.
To open the removable tray, raise it
by lif ting it up with the handle. Hidden Removable Utility Box
Interior Convenience Items
118
HANDLE
PASS PARTITIONS
HANDLE
HOOK HOLE
REMOVABLE TRAY
The maximum load in the utility box is
22.1 lbs on U.S. models, and 10 kg on
Canadian models.
To prevent damage to the utility box, do
not exceed the maximum load.

Inst rument s and Cont rols

2012 Crosstour

Do not leave water, soil, sand, or
perishable f oods in the utility box.
Rotting f ood and dirt on the f loor
maycausethebreakdownof
electrical equipment.To use the storage compartment
locatedoneachsideof thecargo
area f loor, hold the strap and raise
the lid.
The reverse side of the lids are
water-proof ed. To use the water-
proof ed side, replace the right lid
and lef t lid.
In addition, the utility box can be
removed to be washed. To remove
the utility box, lif t it up with the
handle.
Do not set the removable tray with
the handle raised. The handle might
be damaged. Floor Storage Compartments
Interior Convenience Items
119
HANDLE
LID
UTILITY BOX

Inst rument s and Cont rols

2012 Crosstour

Tousethevanitymirrorontheback
of the sun visor, pull up the cover.
The vanity mirror lights come on
when you pull up the cover.Touseacoathook,slideitout
slightly, then pull it down.
Make sure the coat hook is f olded up
when you are not using it. This hook
is not designed f or large or heavy
items.Pull up the lid to open each pocket.
Vanity Mirror
Coat HookCenter Pockets
Interior Convenience Items
120
Without navigation system is shown.

Inst rument s and Cont rols

2012 Crosstour

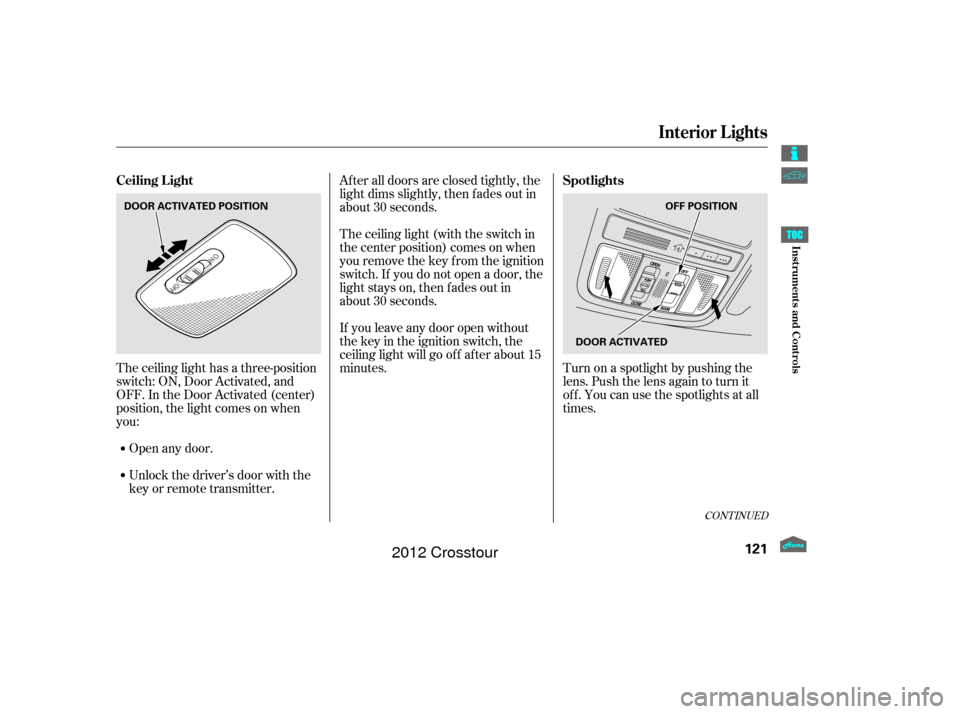

The ceiling light has a three-position
switch: ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:After all doors are closed tightly, the
light dims slightly, then f ades out in
about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
Turn on a spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
If you leave any door open without
the key in the ignition switch, the
ceiling light will go of f af ter about 15
minutes.
Unlock the driver’s door with the
keyorremotetransmitter. Open any door.
CONT INUED
Ceiling L ight Spotlights
Interior Lights
121
DOOR ACTIVATED POSITION
DOOR ACTIVATEDOFF POSITION

Inst rument s and Cont rols

2012 Crosstour

The courtesy light in each f ront door
comes on when the door is opened,
and goes out when the door is closed.
Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyouopenthedriver’s
door. It f ades out in about 30
seconds af ter the door is closed.
The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open any
door. The lights f ade out about 30
seconds af ter the doors are closed
tightly. In the OFF position, the
lights do not come on.
The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.
Your vehicle has a cargo area light
on each side panel in the cargo area.
Each cargo area light has a two
position switch. In the OFF position,
the light does not come on. In the
ON position, the light comes on
when you open the tailgate.Courtesy Lights
Cargo Area Light
Interior Lights
122
ON OFF
Driver’s side is shown.

Inst rument s and Cont rols

2012 Crosstour

The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the select/reset
knob on the instrument panel, with
the ignition switch in the ON (II)
position.
Interior Lights
123
COURTESY LIGHT

Inst rument s and Cont rols

2012 Crosstour

124


2012 Crosstour

The security system helps to dis-
courage vandalism and thef t of your
vehicle. Your vehicle has an anti-theft audio
system that requires a code number
to enable it. The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. The climate control system in your
vehicle provides a comfortable
driving environment in all weather
conditions................
Climate Control System . 126
................................
Audio System .134
................................
Audio System .135
..........
Playing the FM/AM Radio . 136
................
Playing the XM
Radio . 143
.................................
Playing Discs .149
...
Disc Changer Error Messages . 158
............................
PlayinganiPod
. 159
.................
iPod
Error Messages . 167
Playing a USB Flash Memory ........................................
Device .168
USB Flash Memory Device ........................
Error Messages .176
................................
Audio System .177
..........
Playing the FM/AM Radio . 178
................
Playing the XM
Radio . 190
.................................
Playing Discs .197
...
Disc Changer Error Messages . 208
............................
PlayinganiPod
. 209
.................
i
Pod
Error Messages . 218
Playing a USB Flash Memory ........................................
Device .219 USB Flash Memory Device
........................
Error Messages .228
............
FM/AM Radio Reception . 229
..................
Protecting Your Discs . 231
................
Remote Audio Controls . 234
......................
Auxiliary Input Jack .236
.................
Radio Thef t Protection . 237
..........................
Setting the Clock .238
............................
Security System .241
.........................................
Compass .242
...............................
Cruise Control .246
HomeLink
Universal ................................
Transceiver .249
........
HandsFreeLink. 253
...
Rearview Camera and Monitor . 277
Rearview Mirror with Rearview .........................
Camera Display .278
Models without navigation system
Models with navigation system Bluetooth
Features
Features
125


2012 Crosstour

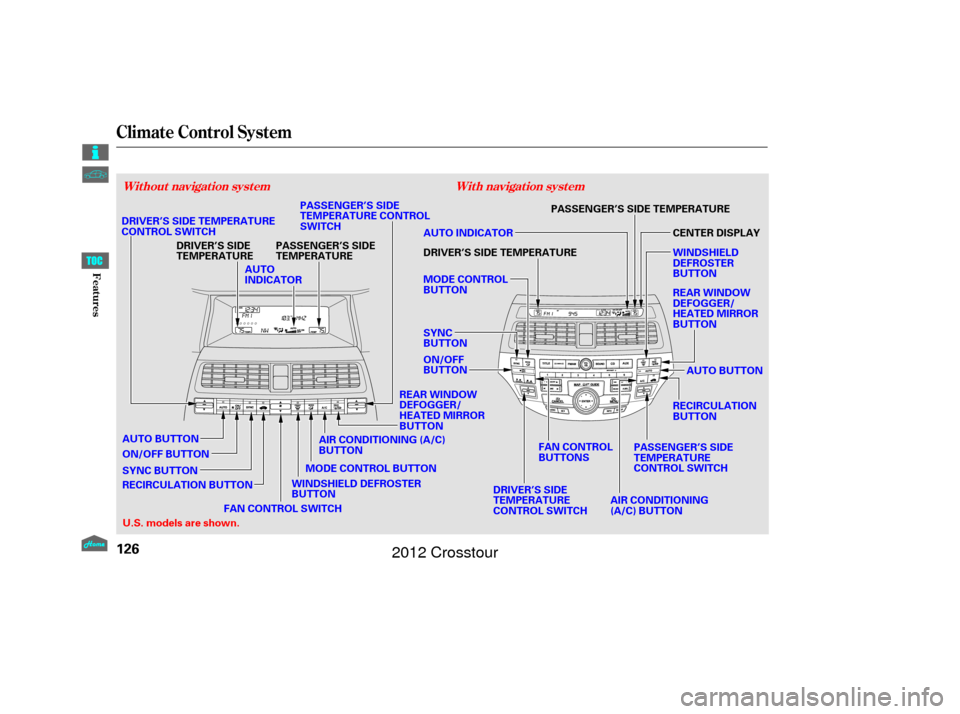

Climate Control System
With navigation system
Without navigation system
126
AUTO
INDICATOR
DRIVER’S SIDE
TEMPERATURE
WINDSHIELD DEFROSTER
BUTTON
DRIVER’S SIDE TEMPERATURE
CONTROL SWITCH
MODE CONTROL BUTTON
PASSENGER’S SIDE
TEMPERATURE
ON/OFF BUTTON
SYNC BUTTON PASSENGER’S SIDE
TEMPERATURE CONTROL
SWITCH
MODE CONTROL
BUTTON
SYNC
BUTTON
U.S. models are shown. PASSENGER’S SIDE TEMPERATURE
AUTO BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH AIR CONDITIONING
(A/C) BUTTON
ON/OFF
BUTTON DRIVER’S SIDE TEMPERATURE AUTO INDICATOR
REAR WINDOW
DEFOGGER/
HEATED MIRROR
BUTTON RECIRCULATION
BUTTON REAR WINDOW
DEFOGGER/
HEATED MIRROR
BUTTON CENTER DISPLAY
WINDSHIELD
DEFROSTER
BUTTON
FAN CONTROL
BUTTONS
AIR CONDITIONING (A/C)
BUTTON
RECIRCULATION BUTTON FAN CONTROL SWITCH
AUTO BUTTON

Features

2012 Crosstour
