The U.S. Sport instrument panel is shown. Differences for other models are noted in the text.
Instrument Panel
Instru me ntsand Cont ro ls
59
IMMOBILIZER
SYSTEM
INDICATOR SEAT
BELT
REMINDER
INDICATOR
ANTI-LOCK BRAKE
SYSTEM INDICATOR
HIGH
BEAM INDICATOR
MALFUNCTION INDICATOR LAMP
SECURITY
SYSTEM INDICATOR PARKING
BRAKE AND BRAKE
SYSTEM INDICATOR
LOW FUEL
INDICATOR
LOW OIL PRESSURE
INDICATOR
FOG LIGHT
INDICATOR MAINTENANCE
MINDER
INDICATOR
ELECTRIC POWER
STEERING
INDICATOR
LOW TEMPERATURE
INDICATOR
HIGH
TEMPERATURE
INDICATOR
CRUISE CONTROL
INDICATOR
CRUISE MAIN
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
SIDE AIRBAG OFF
INDICATOR
CHARGING
SYSTEM
INDICATOR
LIGHTS ON
INDICATOR
(P.65)
(P.64)
(P.219)
(P.60, 218)
(P.60, 218)
(P.65)(P.64)
(P.62) (P.64)
(P.18,
60)
(P.31, 61)
(P.62) (P.64)
(P.30, 61)(P.64)
(P.63)
(P.62) (P.63)
(P.65)
(P.60,
220)
(P.62)
DOOR AND TAILGATE
OPEN INDICATOR

The instrument panel has many
indicato rs that give you important
info rmation about your vehicl e.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
The
engine can be severely damaged
if this indicator flashes or stays on
wh en the engine is running. For
more information, see page .This
indicator has two functions:
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page . Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires. This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on.
2. 1.
219
218
218 220
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator
Instrument Panel Indicators
60
U.S. Canada

This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
poten tial problem with your front
airbags. This indica tor will also alert
you to a poten tial problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
info rmation, see page .
If
your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either of you do not fasten your
seat belt while driving, the beep er
will sound and the indicator will flash
again at regular intervals. For more
info rmation, see page . This
indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
info rmation, see page .
30
18
31
Instrument Panel Indicators
Supplemental Restraint
System Indicator Side A irbag Of f
Indicator
Inst rument s and Cont rols
61
Canada
U.S.

This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page . This indicator normally comes on
when you turn the ignition to the ON
(II) position and goes of f af ter the
engine starts. If it comes on at any
other time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
saf e place and turn of f the engine.
Reset the system by restarting the
engine. The indicator will not turn
of f immediately. If it does not go of f
after driving a short distance, or
comes on again while driving, take
the vehicle to your dealer to have it
checked. With the indicator on, the
EPS may be turned of f , making the
vehicle harder to steer.
If the power steering system
overheats while driving, the assist is
reduced and steering may f eel
slightly harder.Driving with the power steering
system continuously overheating can
cause system damage.
This indicator comes on as a
reminder that you must ref uel soon.
When the indicator comes on, there
is about 1.7 US gal (6.3
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
This indicator comes on if any door
or the tailgate is not closed tightly.
162
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
Electric Power Steering
(EPS) Indicator
Low Fuel Indicator
Door and Tailgate Open
Indicator
62

This indicator monitors the
temperature of the engine coolant. It
normallycomesonwhenyouturn
the ignition switch to the ON (II)
position and goes off after a few
seconds. In normal driving
conditions, this indicator should not
blink or stay on. In severe driving
conditions, such as very hot weather
or a long period of uphill driving, this
indicator may blink. This means the
engine coolant temperature is high.
If the indicator begins to blink while
you are driving, be sure to slow down
to prevent overheating. If the
indicator stays on, pull safely to the
side of the road and turn off the
engine. See page for instructions
and precautions on checking the
engine’s cooling system. This
indicator monitors the
temperature of the engine coolant. If
th ere is no problem, this indicator
comes on when the engine is cold. If
it comes on when the engine is warm
(normal operating temperature),
have the vehicle inspected by your
dealer as soon as possible.
Do not drive the vehicle while the
indicator is on or the engine may be
damaged. The
left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. 188
216
Instrument Panel Indicators
High T emperature
Indicator Low Temperature
Indicator Turn Signal and
Hazard Warning
Indicators
Inst rument s and Cont rols
63

This indicator comes on with the
high beam headlights. For more
info rmation, see page .
On Canadian models, this indicator
comes on with reduced brightness
wh en the daytime running lights
(DRL) are on (see page ).
This
indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
rele ased, it means there is a problem
in a circuit. Have your vehicle
checked by your dealer. This
indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This
indicator comes on when you
tu rn on the fog lights. For more
info rmation, see page . 72
72
72 182
127
127
Canadian models only
Canadian models only
On Sport model
On Sport model
On Sport model
High Beam Indicator
Daytime Running L ights
Indicator
Lights On Indicator
Fog L ight Indicator Cruise Main Indicator
Cruise Control Indicator
Washer Level Indicator
Instrument Panel Indicators
64

This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. This
indicator reminds you that it is time
to take your vehicle in for scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
for more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service. This
indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch from the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. This indicator comes on when the
security system is set. See page f or more inf ormation on the
security system.
167
76
126
On Sport model
Instrument Panel Indicators
Maintenance Minder
Indicator Immobilizer System
IndicatorSecurity System Indicator
Inst rument s and Cont rols
65
SECURITY SYSTEM INDICATOR

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, the meter you
last selected is displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’. Trip Meter
Gauges
66

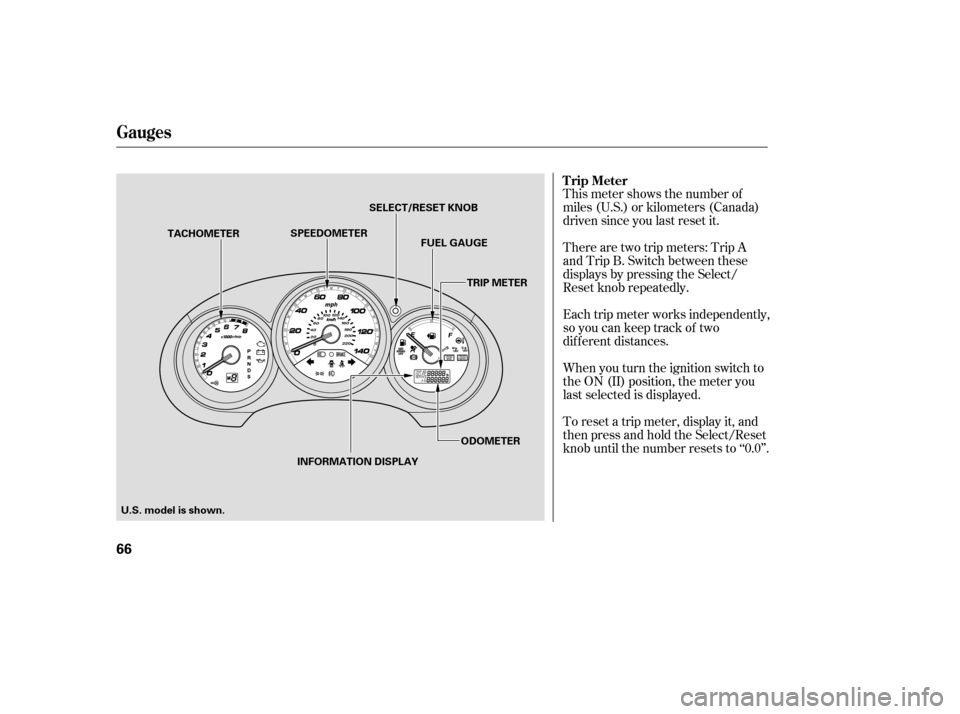

FUEL GAUGE
U.S. model is shown. TACHOMETER
SPEEDOMETER
ODOMETERTRIP METER
INFORMATION DISPLAY SELECT/RESET KNOB

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
ch ange the number of miles or
kilometers indicated.
This shows how much fuel you have.
It may show slightly more or less
th an the actual amount. The needle
returns to the bottom after you turn
off the ignition. If
your fuel fill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
messageappearsastextinthe
information display after you start
the engine. The message appears
from CHECK to FUEL, then to CAP
repe atedly. If
the system still detects a loose or
missing fuel fill cap, the malfunction
indicator lamp (MIL) comes on.
Turn the engine off, and check or
retighten the fuel fill cap until it
clicks at least once. The MIL goes
out after several days of normal
driving once the cap is tightened or
replaced. If it does not go out, have
your dealer inspect the vehicle. For
more information, see page .
Turn the engine of f and conf irm the
f uel f ill cap is installed. If it is, loosen
the cap, then retighten it until it
clicks at least once. You can cycle
the message of f of the display by
pressing the Select/Reset knob
repeatedly, but this message will be
displayed each time the engine is
started. It will take several days of
normal driving f or the vehicle to turn
the warning of f . 219
Odometer
Fuel Gauge Check Fuel Cap Indicator
Gauges
Inst rument s and Cont rols
67
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
f ree driving. Ref er to page f or
more inf ormation. 167
Maintenance Minder
Gauges
68
