HONDA FIT 2009 2.G Owners Manual

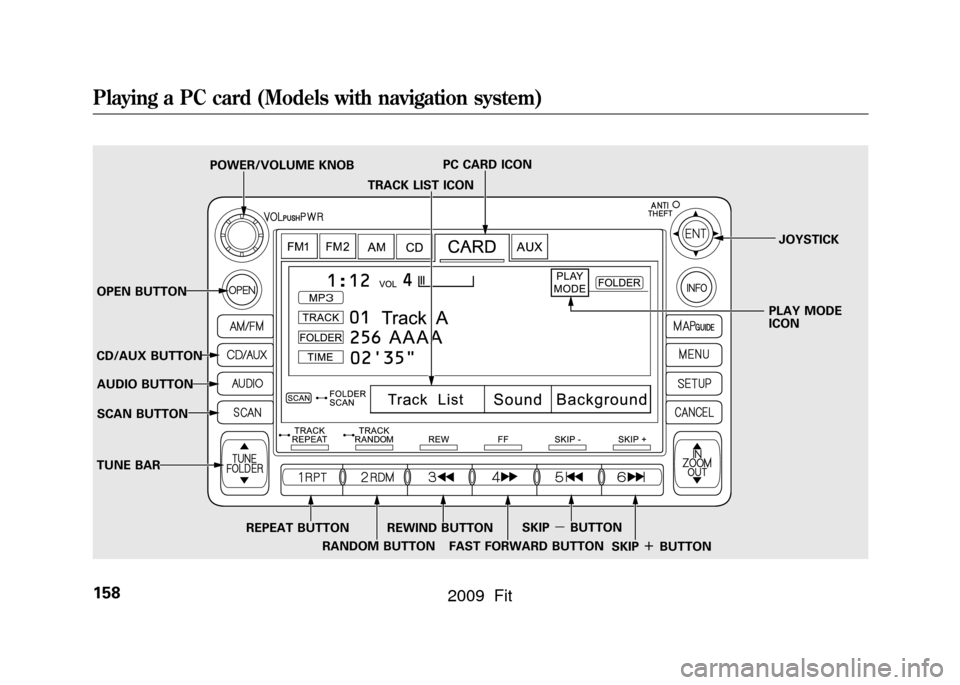

TRACK LIST ICON
POWER/VOLUME KNOB
PC CARD ICON
JOYSTICK
OPEN BUTTON PLAY MODE
ICON
CD/AUX BUTTON AUDIO BUTTON
SCAN BUTTON
TUNE BAR
REPEAT BUTTONRANDOM BUTTONREWIND BUTTON
FAST FORWARD BUTTON SKIP
ꭚBUTTON
SKIPꬽBUTTON
Playing a PC card (Models with navigation system)158
2009 Fit

To Play a PC card
You operate the PC card player with
the same controls used for the radio
and the in-dash disc player. To load
or play a card, the ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
The PC card player reads and plays
cards in MP3 or WMA formats.
Depending on the format, the screen
will indicate‘‘MP3 ’’or ‘‘WMA ’’
when a card is playing. The card limit
of the player is 255 folders and 999
tracks. If the card has a complex
structure, it takes some time for the
system to begin playing it.
Based on PCMCIA 2.1/JEIDA 4.2,
the recommended PC cards for the
PC card reader are:
CompactFlash
Flash ATA
SD memory card Always use the recommended
memory card with the appropriate
adapter (if an adapter is needed).
Some memory cards will not work in
this unit.
NOTE:
●When you insert a PC card into the
slot, make sure you put it in
straight. If you cannot insert it,
remove it, and insert again.●Do not keep PC cards in the
vehicle. Direct sunlight and high
heat will damage them.●To avoid damaging the card
reader, do not insert hard disc
drive cards into the PC card slot.●You cannot close the screen (move
it to the upright position) until the
PC card is inserted all the way into
its slot or removed.
●Never insert foreign objects into
the PC card slot.
The specifications for compatible
MP3 files are: – Sampling frequency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
– Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
– Compatible with variable bit rate
and multi-session
– Maximum layers
(including ROOT): 8 layers
CONTINUED
Playing a PC card (Models with navigation system)
159
Features
2009 Fit

The specifications for compatible
WMA files are:– Sampling frequency:
32/44.1/48 kHz
– Bit rate:
48/64/80/96/128/160/192 kbps
– Compatible with variable bit rate
and multi-session
– Maximum layers
(including ROOT): 8 layers
In WMA format, DRM (digital rights
management) files cannot be played.
If the system finds a DRM file, it
skips that file and plays the next
available folder or file.

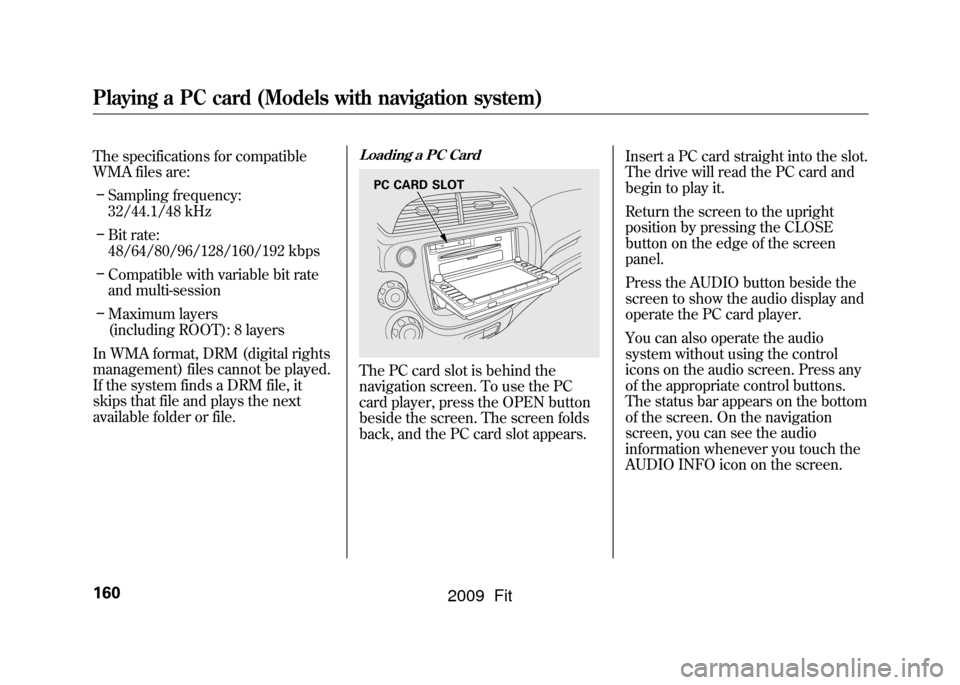

Loading a PC CardThe PC card slot is behind the
navigation screen. To use the PC
card player, press the OPEN button
beside the screen. The screen folds
back, and the PC card slot appears. Insert a PC card straight into the slot.
The drive will read the PC card and
begin to play it.
Return the screen to the upright
position by pressing the CLOSE
button on the edge of the screen
panel.
Press the AUDIO button beside the
screen to show the audio display and
operate the PC card player.
You can also operate the audio
system without using the control
icons on the audio screen. Press any
of the appropriate control buttons.
The status bar appears on the bottom
of the screen. On the navigation
screen, you can see the audio
information whenever you touch the
AUDIO INFO icon on the screen.
PC CARD SLOT
Playing a PC card (Models with navigation system)160
2009 Fit

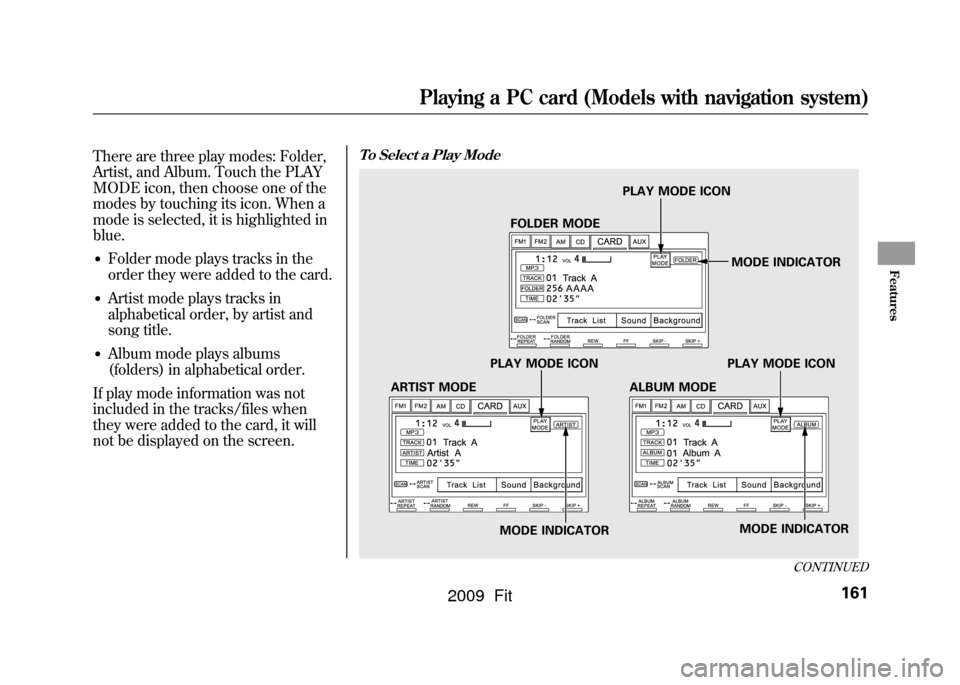

There are three play modes: Folder,
Artist, and Album. Touch the PLAY
MODE icon, then choose one of the
modes by touching its icon. When a
mode is selected, it is highlighted in
blue.●Folder mode plays tracks in the
order they were added to the card.●Artist mode plays tracks in
alphabetical order, by artist and
song title.●Album mode plays albums
(folders) in alphabetical order.
If play mode information was not
included in the tracks/files when
they were added to the card, it will
not be displayed on the screen.
To Select a Play Mode
PLAY MODE ICON
FOLDER MODE
MODE INDICATOR
PLAY MODE ICON
ALBUM MODE
PLAY MODE ICON
ARTIST MODE
MODE INDICATOR MODE INDICATOR
CONTINUED
Playing a PC card (Models with navigation system)
161
Features
2009 Fit

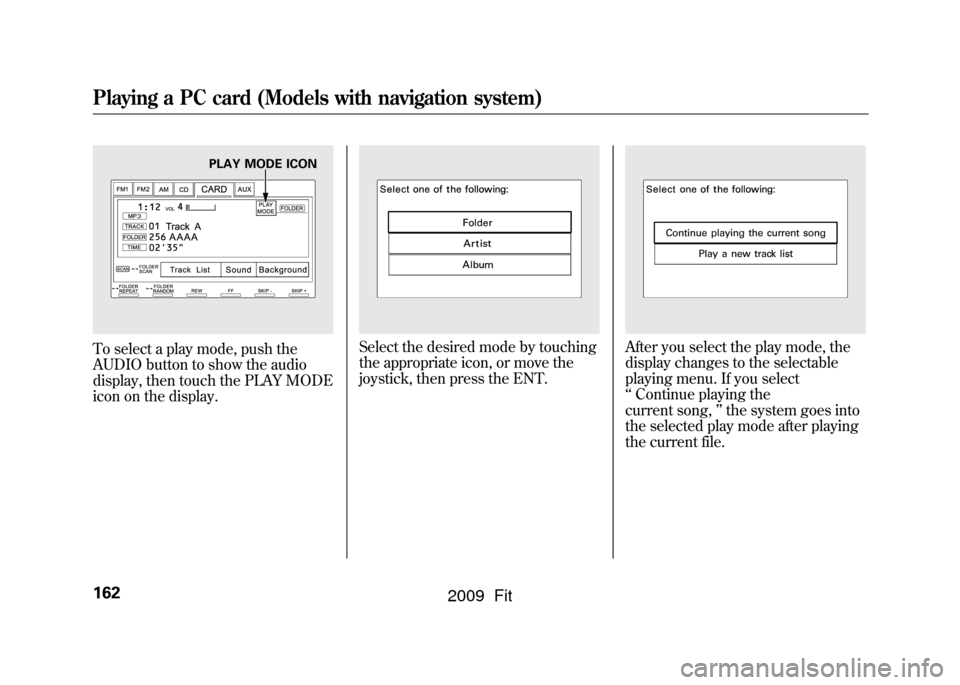

To select a play mode, push the
AUDIO button to show the audio
display, then touch the PLAY MODE
icon on the display.
Select the desired mode by touching
the appropriate icon, or move the
joystick, then press the ENT.
After you select the play mode, the
display changes to the selectable
playing menu. If you select
‘‘Continue playing the
current song, ’’the system goes into
the selected play mode after playing
the current file.
PLAY MODE ICON
Playing a PC card (Models with navigation system)162
2009 Fit

If you select‘‘Play a new track list, ’’
the system goes into the selected
play mode immediately and begins to
play the new track list.
To go back to the previous screen,
press the CANCEL button on the
right side of the screen. To exit the
play mode screens, press the AUDIO
button.

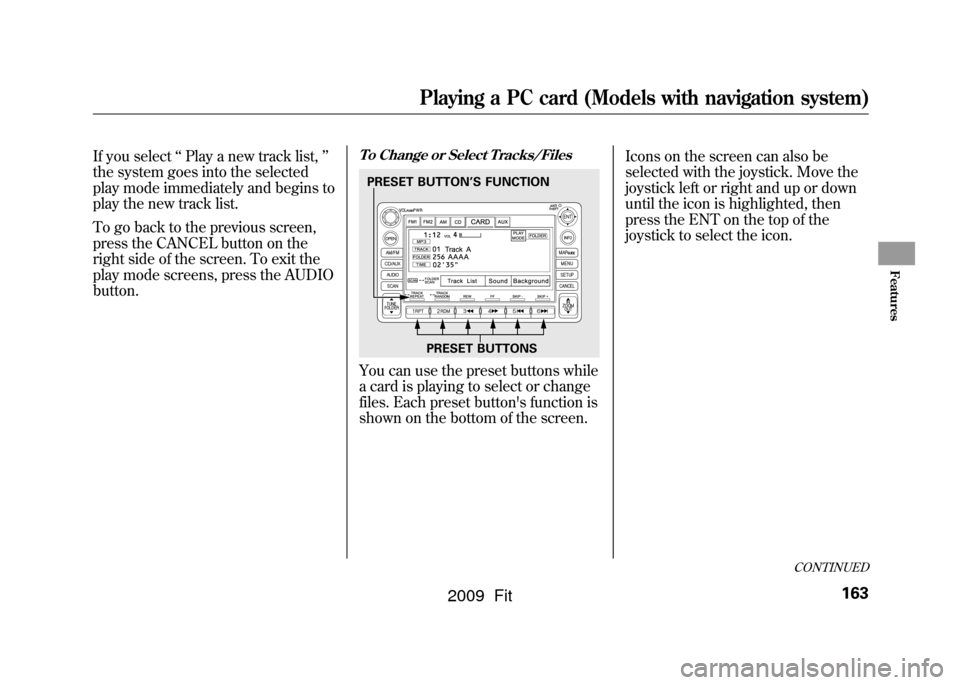

To Change or Select Tracks/FilesYou can use the preset buttons while
a card is playing to select or change
files. Each preset button's function is
shown on the bottom of the screen. Icons on the screen can also be
selected with the joystick. Move the
joystick left or right and up or down
until the icon is highlighted, then
press the ENT on the top of the
joystick to select the icon.
PRESET BUTTONS
PRESET BUTTON
’S FUNCTION
CONTINUED
Playing a PC card (Models with navigation system)
163
Features
2009 Fit

SKIP－Each time you press(preset 6), the player skips forward
to the beginning of the next file.
Press
(preset 5), to skip
backward to the beginning of the
current file. Press it again to skip to
the beginning of the previous file.
FF/REW －To move rapidly within
a file, press and hold
(preset 4)
or
(preset 3).
FOLDER SELECTION －To select
a different folder, press either side of
the TUNE bar to move the beginning
of the next folder. Press the
side
of the TUNE bar to skip the next
folder, and to the
side to move the
beginning of the current folder.
Press it again to skip to the
beginning of the previous folder. TRACK REPEAT (FILE REPEAT)
－
To continuously replay a file,
press the RPT button (preset 1). You
will see ‘‘TRACK REPEAT ’’in the
display. Press the RPT button again
to turn it off.
FOLDER/ARTIST/ALBUM
REPEAT －This feature, when
activated, replays all the files on the
selected folder/artist/album in the
order they are recorded or listed. To
activate each repeat mode, press and
hold the RPT button (preset 1) for 2
seconds. You will see ‘‘FOLDER
REPEAT, ARTIST REPEAT or
ALBUM REPEAT ’’in the display.
The system continuously replays the
current folder/artist/album. Press
and hold the RPT button again to
turn it off. Pressing the RDM button,
or selecting a different folder/artist/
album with the TUNE bar also turns
off the repeat feature. TRACK RANDOM (Random
within a folder)
－This feature
plays the files within a folder in
random order. To activate random
play, press the RDM button (preset
2). You will see ‘‘TRACK
RANDOM ’’in the display. Press the
RDM button again to return to
normal play.
FOLDER/ARTIST/ALBUM
RANDOM －This feature, when
activated, plays all files in each
folder/artist/album in random order,
rather than in the order they are
recorded or listed. To activate each
random play, push and hold the
RDM button (preset 2) for 2 seconds.
You will see ‘‘FOLDER RANDOM,
ARTIST RANDOM or ALBUM
RANDOM ’’in the display.
Playing a PC card (Models with navigation system)164
2009 Fit

The system then selects and plays
files randomly. This continues until
you deactivate each random play by
pressing the RDM button again.
SCAN－The SCAN function
samples all the files on the PC card in
the order they are recorded. To
activate the scan feature, press the
SCAN button. You will see ‘‘TRACK
SCAN ’’in the display. You will get a
10 second sampling of each file on
the PC card. Press the SCAN button
again to get out of scan mode and
play the last file sampled.
Pressing either of the SKIP buttons
(preset 5 or 6) also turns off the scan
feature. FOLDER/ARTIST/ALBUM SCAN
－
This feature, when activated,
samples the first file in each folder/
artist/album on the PC card in order.
To activate each scan feature, press
and hold the SCAN button. You will
see ‘‘FOLDER SCAN, ARTIST
SCAN or ALBUM SCAN ’’in the
display.
The system plays the first file in the
folder for about 10 seconds. If you do
nothing, the system plays the first
file in each folder, in order, for 10
seconds each. After playing the first
file of the last folder/artist/album,
the system returns to normal play. Pressing either of the SKIP buttons
(preset 5 or 6), selecting a different
folder/artist/album with the TUNE
bar, or pressing the SCAN button,
also turns off the scan feature.
CONTINUED
Playing a PC card (Models with navigation system)
165
Features
2009 Fit

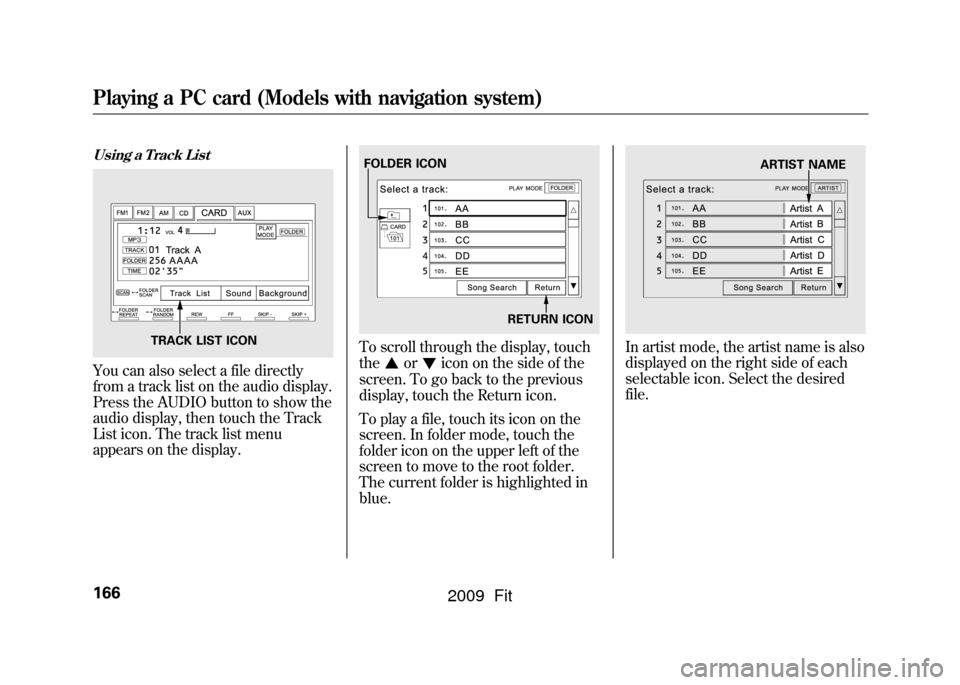

Using a Track ListYou can also select a file directly
from a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
To scroll through the display, touch
the
or
icon on the side of the
screen. To go back to the previous
display, touch the Return icon.
To play a file, touch its icon on the
screen. In folder mode, touch the
folder icon on the upper left of the
screen to move to the root folder.
The current folder is highlighted in
blue.
In artist mode, the artist name is also
displayed on the right side of each
selectable icon. Select the desired
file.
TRACK LIST ICON
FOLDER ICON
RETURN ICON
ARTIST NAME
Playing a PC card (Models with navigation system)166
2009 Fit

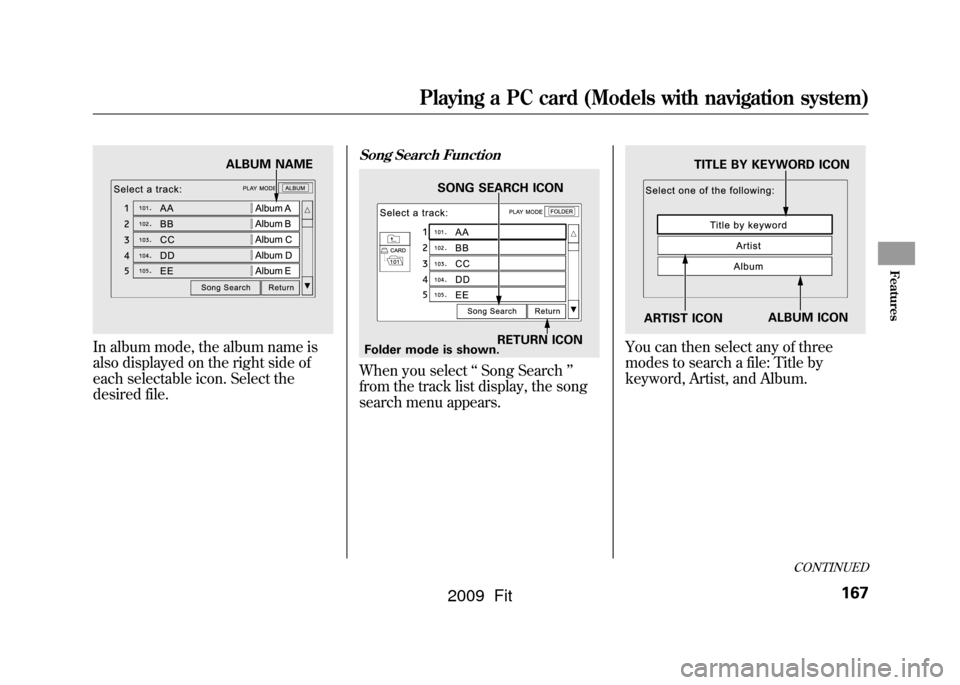

In album mode, the album name is
also displayed on the right side of
each selectable icon. Select the
desired file.
Song Search FunctionWhen you select‘‘Song Search ’’
from the track list display, the song
search menu appears.
You can then select any of three
modes to search a file: Title by
keyword, Artist, and Album.
ALBUM NAME
RETURN ICON
SONG SEARCH ICON
Folder mode is shown.
TITLE BY KEYWORD ICON
ARTIST ICON ALBUM ICON
CONTINUED
Playing a PC card (Models with navigation system)
167
Features
2009 Fit
