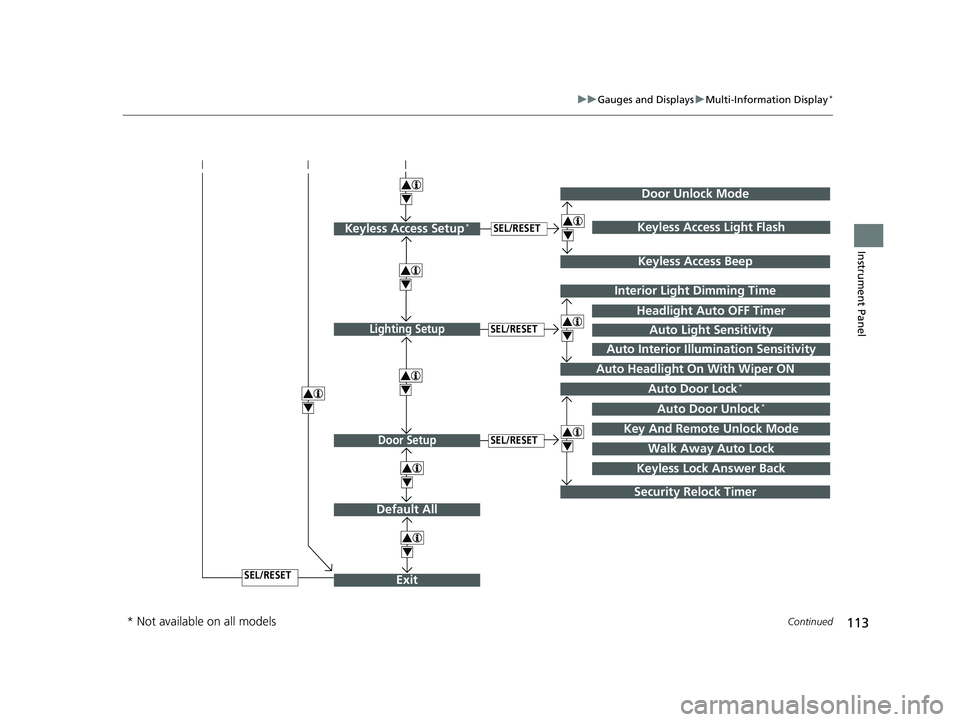

uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
Exit
4
4
Door Setup
Default All
SEL/RESET
4
SEL/RESET
Lighting SetupSEL/RESET
4Auto Door Lock*
Auto Door Unlock*
Key And Remote Unlock Mode
Walk Away Auto Lock
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Headlight On With Wiper ON
4
4
Security Relock Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Keyless Lock Answer Back
Door Unlock Mode
Keyless Access Setup*SEL/RESET
Keyless Access Beep
4Keyless Access Light Flash
4
4
* Not available on all models
20 FIT-31T5A6500.book 113 ページ ２０１９年９月２６日　木曜日　午後４時４１分

114
uuGauges and Displays uMulti-Information Display*
Instrument Panel

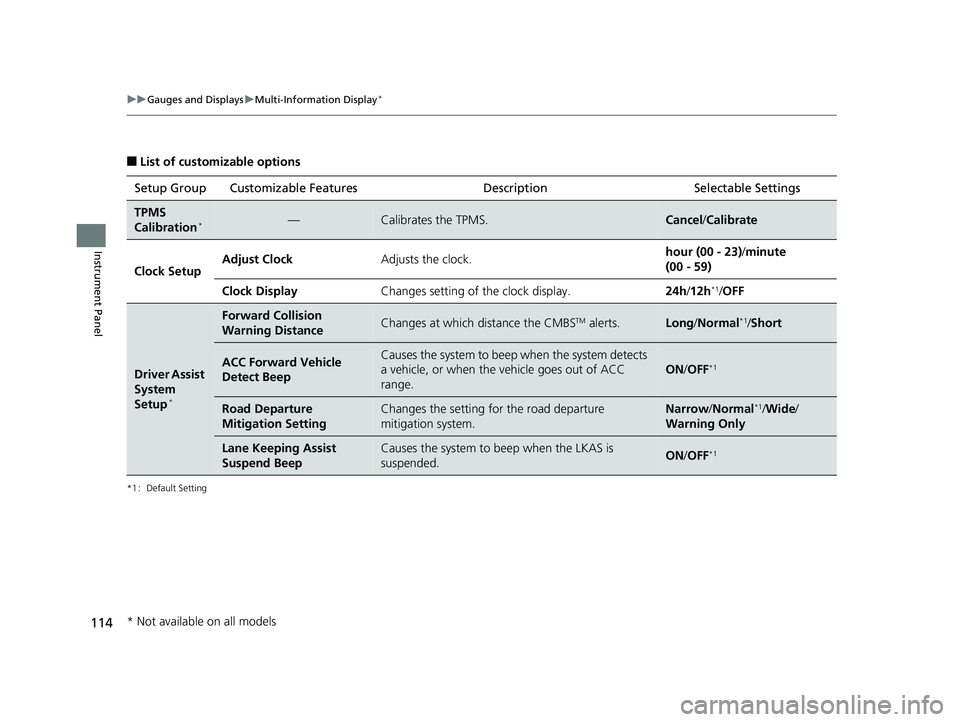

■List of customizable options
*1 : Default Setting
Setup Group Customizable Features DescriptionSelectable Settings
TPMS
Calibration*—Calibrates the TPMS.Cancel/Calibrate
Clock SetupAdjust ClockAdjusts the clock.hour (00 - 23) /minute
(00 - 59)
Clock DisplayChanges setting of the clock display.24h /12h*1/ OFF
Driver Assist
System
Setup
*
Forward Collision
Warning DistanceChanges at which distance the CMBSTM alerts.Long /Normal*1/Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Narrow /Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to beep when the LKAS is
suspended.ON /OFF*1
* Not available on all models
20 FIT-31T5A6500.book 114 ページ ２０１９年９月２６日　木曜日　午後４時４１分

115
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN OFF /
Manually Reset*1
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/ OFF
Turn By Turn Auto
Display*Selects whether the turn-b y-turn display comes on
during the route guidance.ON*1/ OFF
Speed/Distance UnitsSelects the trip computer units.
mph∙miles*1/ km/ h∙km (U.S.)
mph∙miles /km/ h∙km*1
(Canada)
Keyless
Access
Setup
*
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only /All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepCauses the beeper to sound when you unlock/lock
the doors.ON*1/OFF
* Not available on all models
20 FIT-31T5A6500.book 115 ページ ２０１９年９月２６日　木曜日　午後４時４１分

116
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features DescriptionSelectable Settings

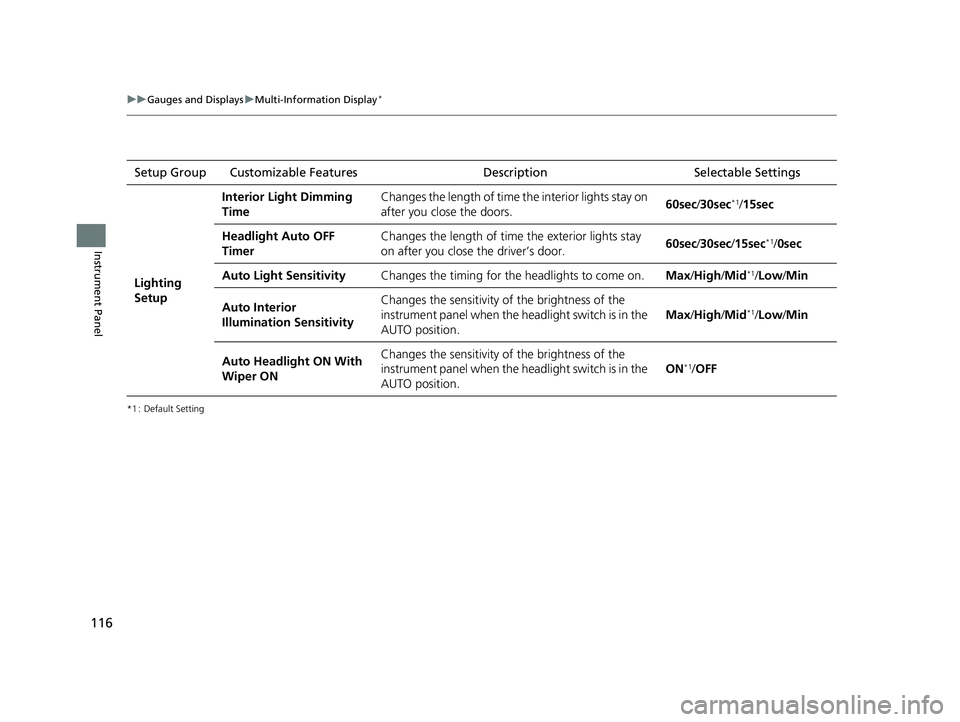

Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec/30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low/ Min
Auto Headlight ON With
Wiper ONChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
ON*1/OFF
20 FIT-31T5A6500.book 116 ページ ２０１９年９月２６日　木曜日　午後４時４１分

117
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features Description Selectable Settings

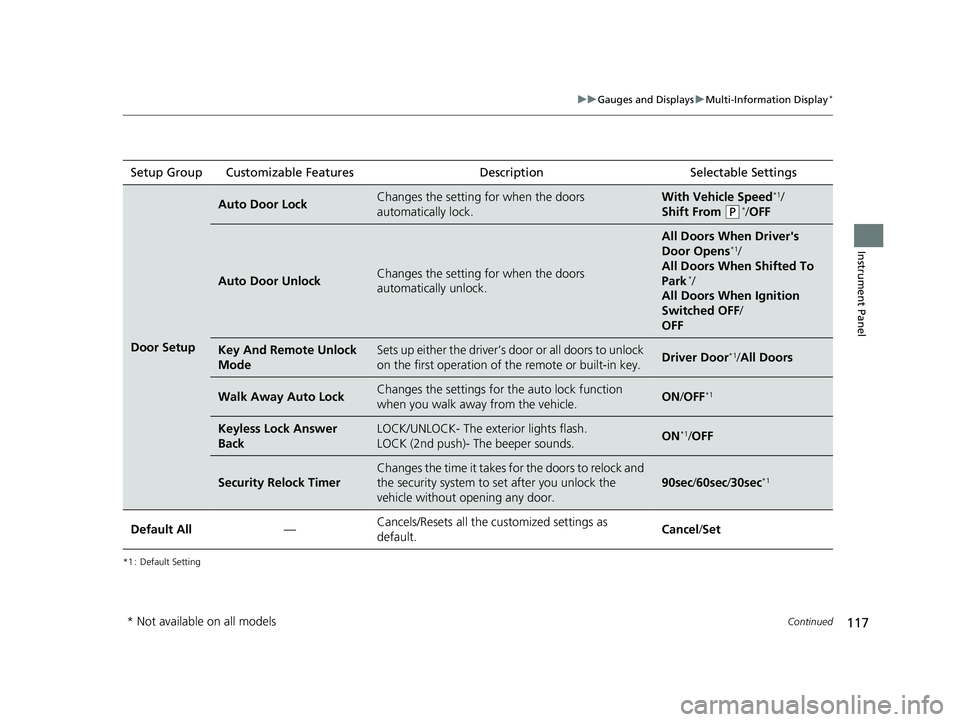

Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift From
(P*/ OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver's
Door Opens*1/
All Doors When Shifted To
Park
*/
All Doors When Ignition
Switched OFF /
OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
* Not available on all models
20 FIT-31T5A6500.book 117 ページ ２０１９年９月２６日　木曜日　午後４時４１分

118
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■Example of customization settings

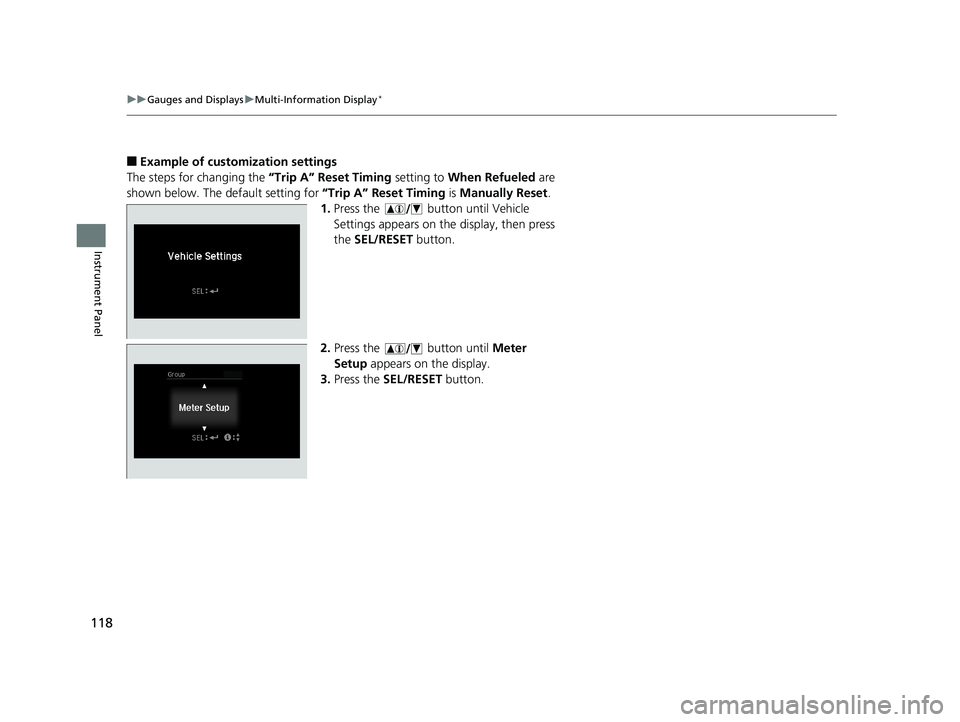

The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button until Vehicle
Settings appears on the display, then press
the SEL/RESET button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
20 FIT-31T5A6500.book 118 ページ ２０１９年９月２６日　木曜日　午後４時４１分

119
uuGauges and Displays uMulti-Information Display*
Instrument Panel

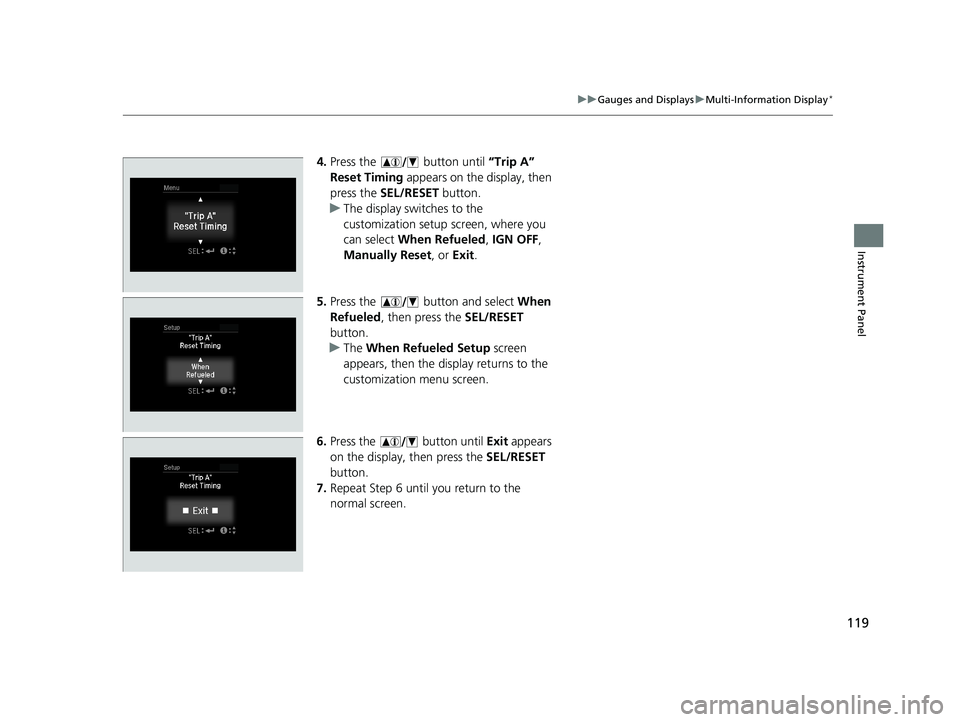

4. Press the button until “Trip A”
Reset Timing appears on the display, then
press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN OFF ,
Manually Reset , or Exit .
5. Press the button and select When
Refueled , then press the SEL/RESET
button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the button until Exit appears
on the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
20 FIT-31T5A6500.book 119 ページ ２０１９年９月２６日　木曜日　午後４時４１分

122
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w*1.
■Display audio system*
1.Select the ( HOME) icon, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Adjusting the Time
1Adjusting the Time
The clock in the information display is automatically
adjusted along with the audio system’s clock display.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 321, 328
You can turn the clock display on and off. 2 Customized Features P. 328
Models with navigation system
Models without navigation system
Models without navigation system
34
* Not available on all models
20 FIT-31T5A6500.book 122 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
128
Controls
■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate release button: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Tailgate Outer Handle/
Release Button P. 146
1Using the Smart Entry with Push Button Start System*
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and the
tailgate with the smart entry remote if it is above or
below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the multi-information
display. 2 Customized Features P. 111
Tailgate Release
Button
* Not available on all models
20 FIT-31T5A6500.book 128 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Continued129
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the vehicle (Walk away auto
lock)
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the smart
entry remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carry ing smart entry remote
and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.1Locking the vehicle (Walk away auto lock)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/inform ation screen or multi-
information display.
If you set the auto lock function to ON using the
audio/information screen or the multi-information
display, only the smart entry remote that was used to
unlock the driver’s door prio r to the setting change
can activate auto lock. 2 Customization flow P. 112
After the auto lock function has been activated, when
you stay within the lockin g/unlocking operation range,
the indicator on the smart en try remote will continue
to flash until the doors are locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until all doors and tailgate are closed.
Under the following circumstances, the auto-lock
function will not activate:
•The remote is inside the vehicle.
•The remote is taken out of its operational range
before all the doors are closed. u The beeper will not sound.
u The beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
20 FIT-31T5A6500.book 129 ページ ２０１９年９月２６日　木曜日　午後４時４１分
