93
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the ignition key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
●Appears when you open th e driver’s door while the
ignition key is in ACCESSORY
(q.
●Turn the ignition switch to LOCK (0, then remove the
key.
●Appears when you open th e driver’s door while the
ignition key is in LOCK
(0.
●Remove the key from the ignition switch.
MessageConditionExplanation
●Appears after you unlock and open the driver’s door.
2 Starting the Engine P. 411
Models without smart entry system
Models with smart entry system
20 FIT-31T5A6500.book 93 ページ ２０１９年９月２６日　木曜日　午後４時４１分

94
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Appears when the power mode is in ACCESSORY.
—
●Appears when you set the power mode to ON while
driving.
2Emergency Engine Stop P. 556
Models with smart entry system
U.S. manual
transmission models
Canadian models
20 FIT-31T5A6500.book 94 ページ ２０１９年９月２６日　木曜日　午後４時４１分

95
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal and clutch pedal (manual
transmission only), to change the power mode to
VEHICLE OFF (LOCK).
●Appears when you close th e door with the power
mode in ON without the smart entry remote inside
the vehicle.●Goes off when you bring th e smart entry remote back
inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 157
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 536
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine. A beeper
sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2 If the Smart Entry Remote Battery is Weak P. 555
Models with smart entry system
20 FIT-31T5A6500.book 95 ページ ２０１９年９月２６日　木曜日　午後４時４１分

96
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2Checking the Battery P. 534
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and clutch pedal (manual
transmission only), and manually start the engine.
Have your vehicle ch ecked by a dealer.
●Appears for about three seconds when ACC has
been automatically canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC)* P. 433
●Flashes when the system sens es a likely collision with
a vehicle in front of you.●Take appropriate action to prev ent a collision (apply the
brakes, change lanes, etc.).
2 Adaptive Cruise Control (ACC)* P. 433
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 473
U.S. models
Canadian models
* Not available on all models
20 FIT-31T5A6500.book 96 ページ ２０１９年９月２６日　木曜日　午後４時４１分

97
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you clean the sensor
cover.
2 Adaptive Cruise Control (ACC)* P. 433
●Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●Have your vehicle checked by a dealer if the message
appears again after you cleaned the area around the
camera.
●Appears if the temperature inside the camera is too
high.
●ACC/LKAS has been automatically canceled.
●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the MAIN/LKAS button can resume the system.
2Front Sensor Camera* P. 431
2 Adaptive Cruise Control (ACC)* P. 433
2 Lane Keeping Assist System (LKAS)* P. 452
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2 Indicators P. 76
●Appears when the camera has been cooled down
and LKAS is available.●Pressing the MAIN/LKAS button can resume the
system.
2 Front Sensor Camera* P. 431
* Not available on all models
20 FIT-31T5A6500.book 97 ページ ２０１９年９月２６日　木曜日　午後４時４１分

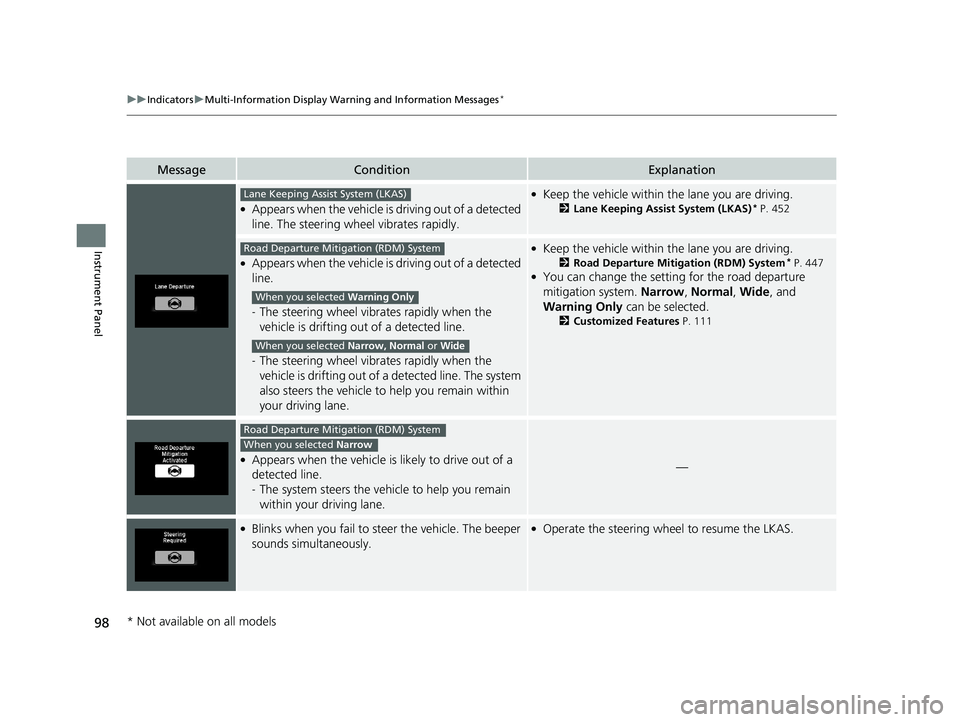

98
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS)* P. 452
●Appears when the vehicle is driving out of a detected
line.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System* P. 447●You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide , and
Warning Only can be selected.
2Customized Features P. 111
●Appears when the vehicle is likely to drive out of a
detected line.
-The system steers the vehicle to help you remain
within your driving lane.—
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
* Not available on all models
20 FIT-31T5A6500.book 98 ページ ２０１９年９月２６日　木曜日　午後４時４１分

99
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears if the temperature inside the camera is too
high.
●The LKAS has been automatically canceled.
●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2Front Sensor Camera* P. 431
2 Lane Keeping Assist System (LKAS)* P. 452
●Appears once if the outside temperature is below
3°C while the ignition switch is in ON
(w*1.—
●Appears if not wearing a seat belt when you turn the
ignition switch to ON
(w*1.
●Goes off after you or the front passenger or both of you
have fastened your seat belts.
* Not available on all models
20 FIT-31T5A6500.book 99 ページ ２０１９年９月２６日　木曜日　午後４時４１分

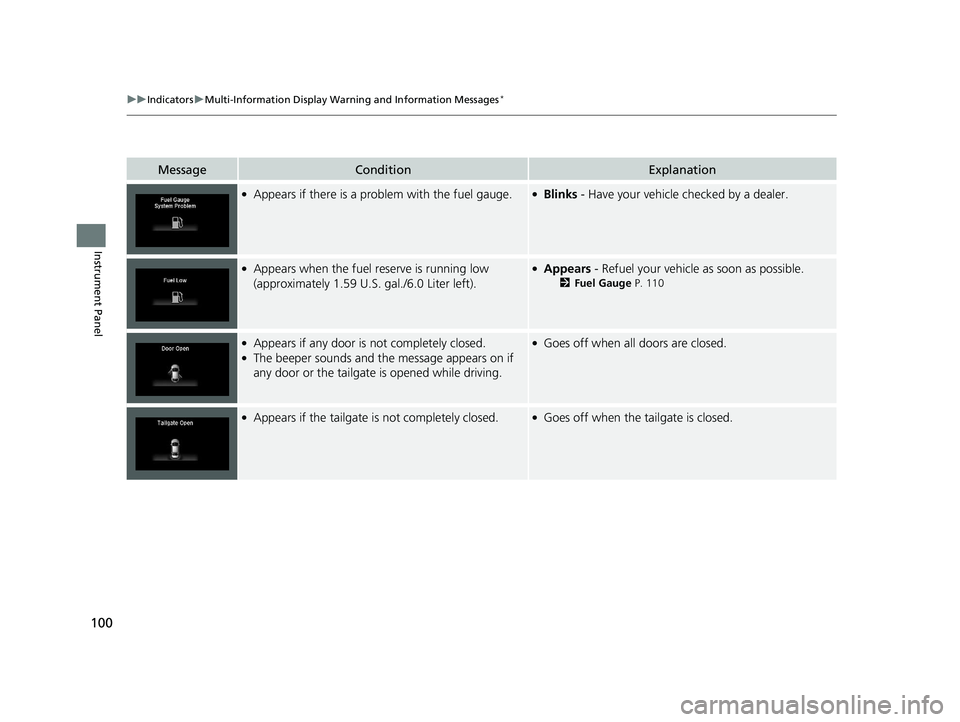

100
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the fuel gauge.●Blinks - Have your vehicle checked by a dealer.
●Appears when the fuel reserve is running low
(approximately 1.59 U.S. gal./6.0 Liter left).●Appears - Refuel your vehicle as soon as possible.
2Fuel Gauge P. 110
●Appears if any door is not completely closed.●The beeper sounds and th e message appears on if
any door or the tailgate is opened while driving.
●Goes off when all doors are closed.
●Appears if the tailgate is not completely closed.●Goes off when the tailgate is closed.
20 FIT-31T5A6500.book 100 ページ ２０１９年９月２６日　木曜日　午後４時４１分

101
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.●Goes off when all doors and the tailgate are closed.
●Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button* P. 427
●Appears when approaching a intersection during
route guidance.
2Refer to the Navigation System Manual
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 512Canadian models
* Not available on all models
20 FIT-31T5A6500.book 101 ページ ２０１９年９月２６日　木曜日　午後４時４１分

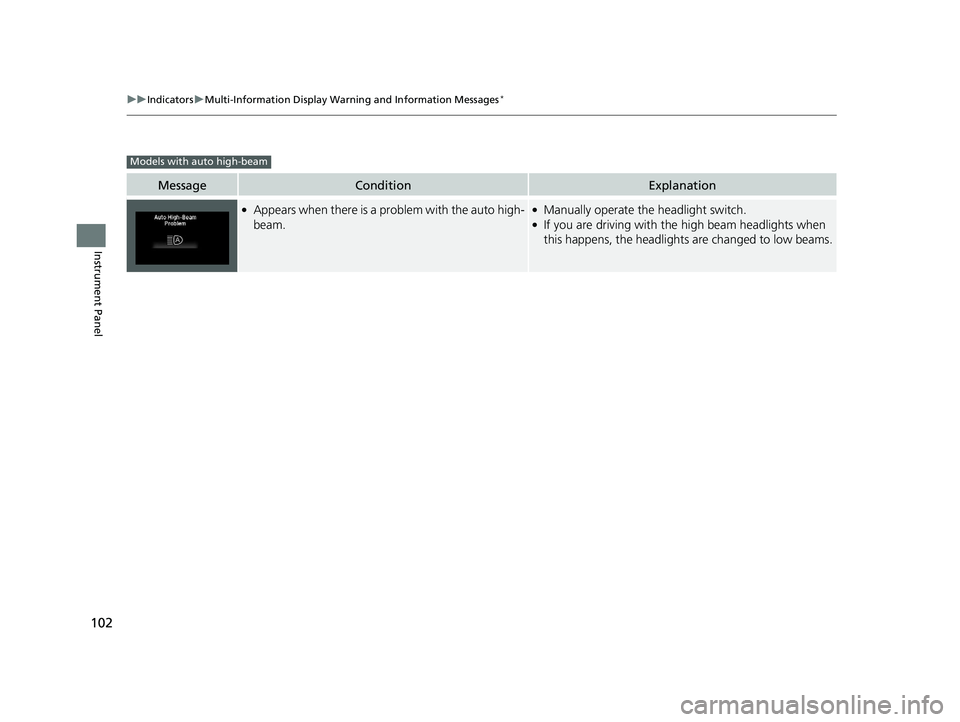

102
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with the high beam headlights when
this happens, the headlights are changed to low beams.
Models with auto high-beam
