uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside

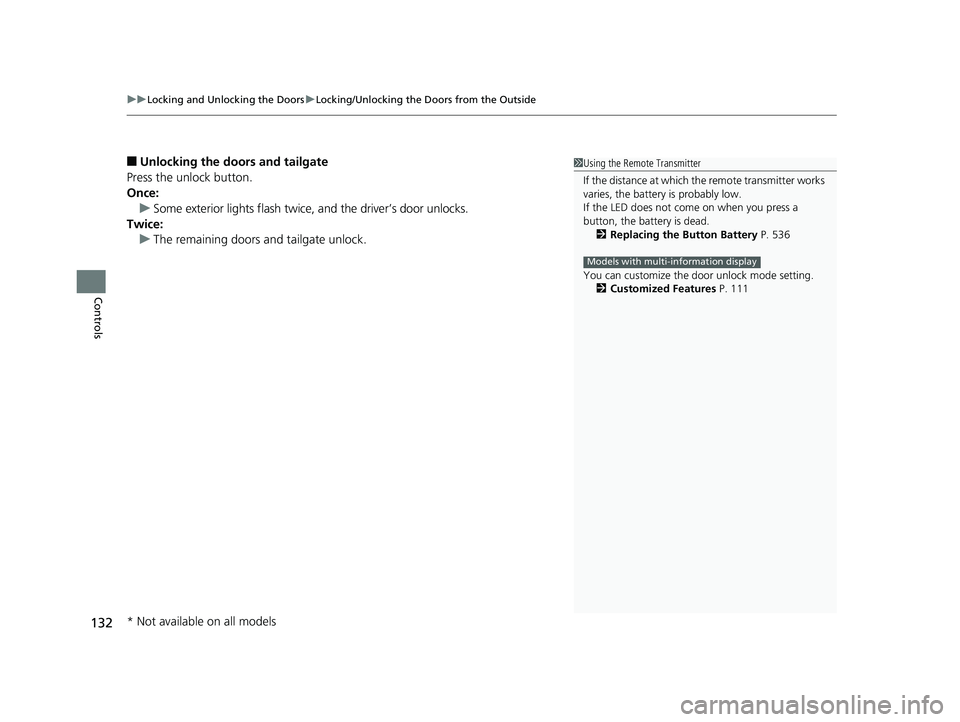

132
Controls
■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 536
You can customize the door unlock mode setting. 2 Customized Features P. 111
Models with multi-information display
* Not available on all models
20 FIT-31T5A6500.book 132 ページ ２０１９年９月２６日　木曜日　午後４時４１分

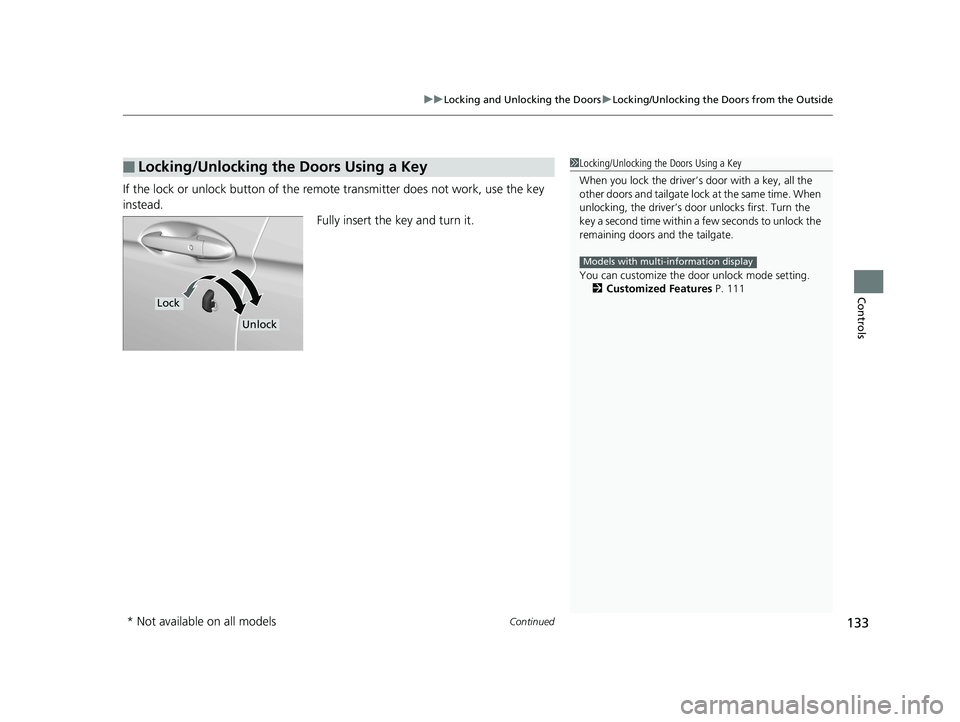

Continued133
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the lock or unlock button of the remo te transmitter does not work, use the key
instead. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 111
Models with multi-information display
Lock
Unlock
* Not available on all models
20 FIT-31T5A6500.book 133 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside

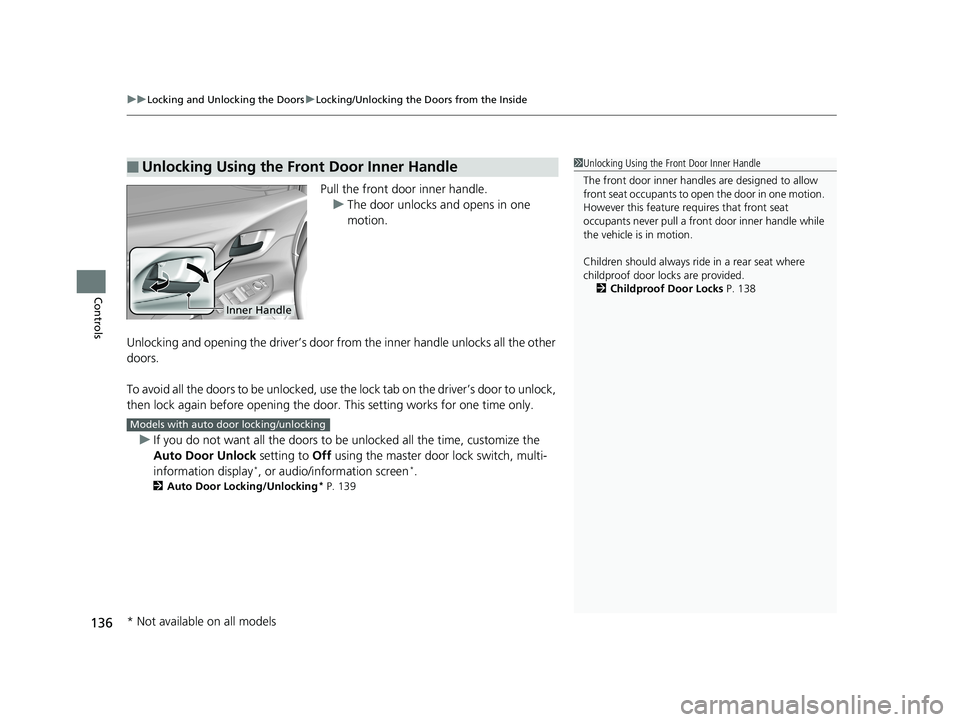

136
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. This setting works for one time only. u If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to Off using the master door lock switch, multi-
information display
*, or audio/information screen*.
2 Auto Door Locking/Unlocking* P. 139
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 138
Inner Handle
Models with auto door locking/unlocking
* Not available on all models
20 FIT-31T5A6500.book 136 ページ ２０１９年９月２６日　木曜日　午後４時４１分

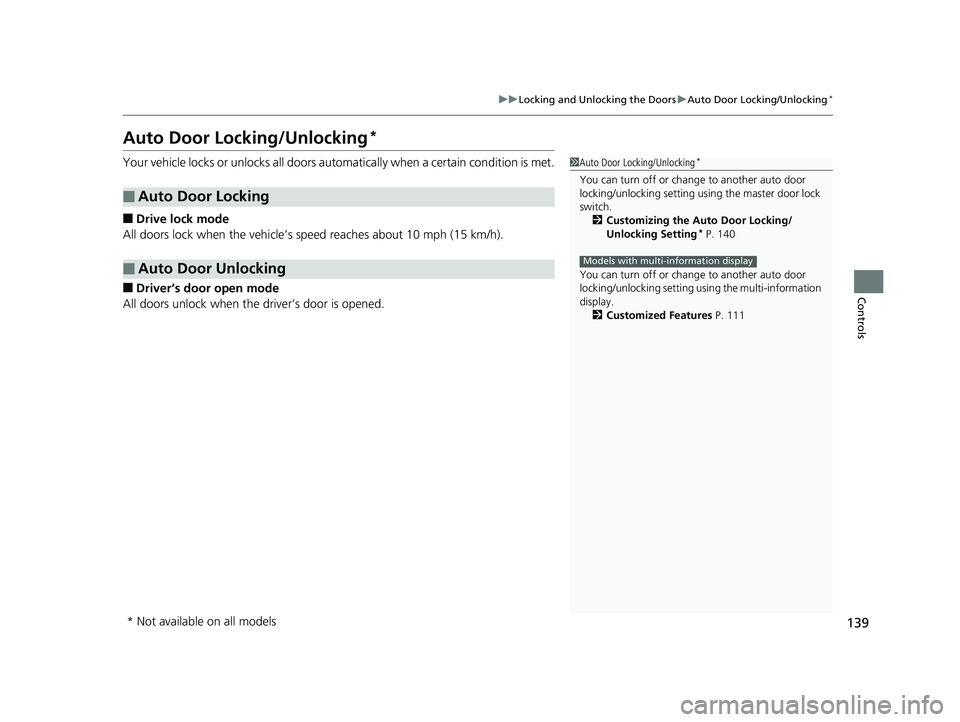

139
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking*
Controls
Auto Door Locking/Unlocking*
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors lock when the vehicle’s sp eed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking*
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting
* P. 140
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display. 2 Customized Features P. 111
Models with multi-information display
* Not available on all models
20 FIT-31T5A6500.book 139 ページ ２０１９年９月２６日　木曜日　午後４時４１分

157
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
beep sounds.
Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. A warning message on the
information display notifies the driver inside that
the remote is outside of the vehicle.
■When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1 Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
20 FIT-31T5A6500.book 157 ページ ２０１９年９月２６日　木曜日　午後４時４１分

170
uuOperating the Switches Around the Steering Wheel uBrightness Control
Controls
Brightness Control
When the parking lights are turned on and the
ignition switch is in ON
(w*1, you can use the
(select/reset) knob to adjust instrument
panel brightness.
Brighten: Turn the knob to the right.
Dim: Turn the knob to the left.
You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after you have adjusted the
brightness, you will be returned to the
previous screen.
■Brightness level indicator
The brightness level is shown on the display
while you are adjusting it.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Brightness Control
Instrument panel brightne ss varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.
To cancel the reduced in strument panel brightness
when the exterior lights are on, turn the knob to
the right until the brightness display is up to max, the
beeper sounds.
The brightness can be set differently for when the
exterior lights are on, and when they are off.
(Select/Reset) Knob
Models without multi-information
display
Models with multi-information display
20 FIT-31T5A6500.book 170 ページ ２０１９年９月２６日　木曜日　午後４時４１分

199Continued
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Dashboard
vents Floor and
dashboard
ventsFloor vents Floor and
windshield
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
* Not available on all models
20 FIT-31T5A6500.book 199 ページ ２０１９年９月２６日　木曜日　午後４時４１分

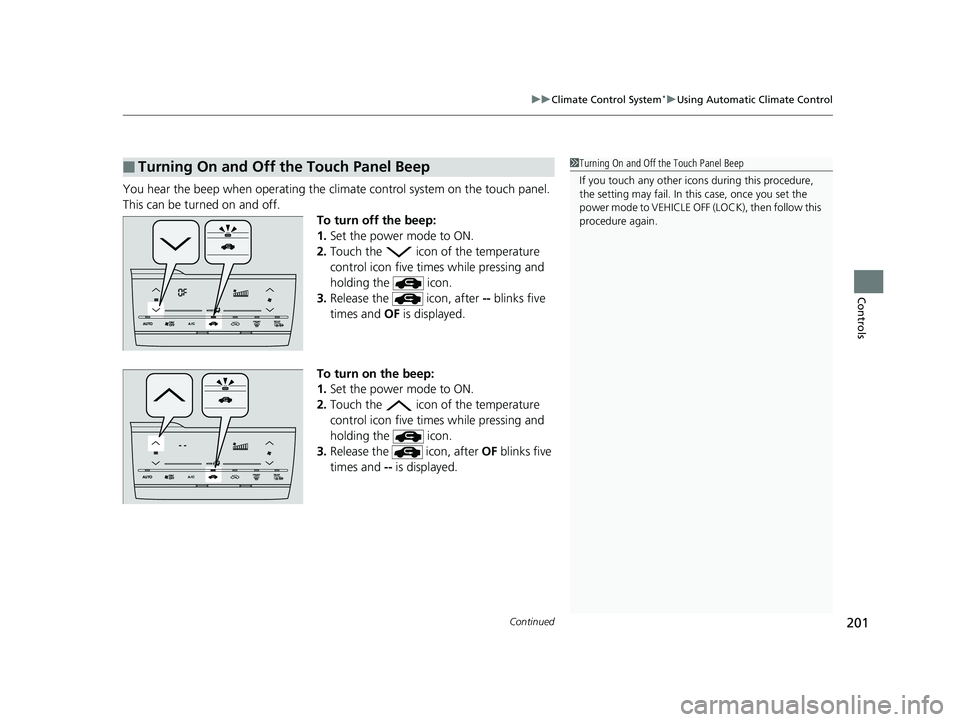

Continued201
uuClimate Control System*uUsing Automatic Climate Control
Controls
You hear the beep when oper ating the climate control system on the touch panel.
This can be turned on and off. To turn off the beep:
1.Set the power mode to ON.
2. Touch the icon of the temperature
control icon five times while pressing and
holding the icon.
3. Release the icon, after -- blinks five
times and OF is displayed.
To turn on the beep:
1. Set the power mode to ON.
2. Touch the icon of the temperature
control icon five times while pressing and
holding the icon.
3. Release the icon, after OF blinks five
times and -- is displayed.
■Turning On and Off the Touch Panel Beep1Turning On and Off the Touch Panel Beep
If you touch any other icon s during this procedure,
the setting may fail. In th is case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.
20 FIT-31T5A6500.book 201 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuClimate Control System*uUsing Automatic Climate Control

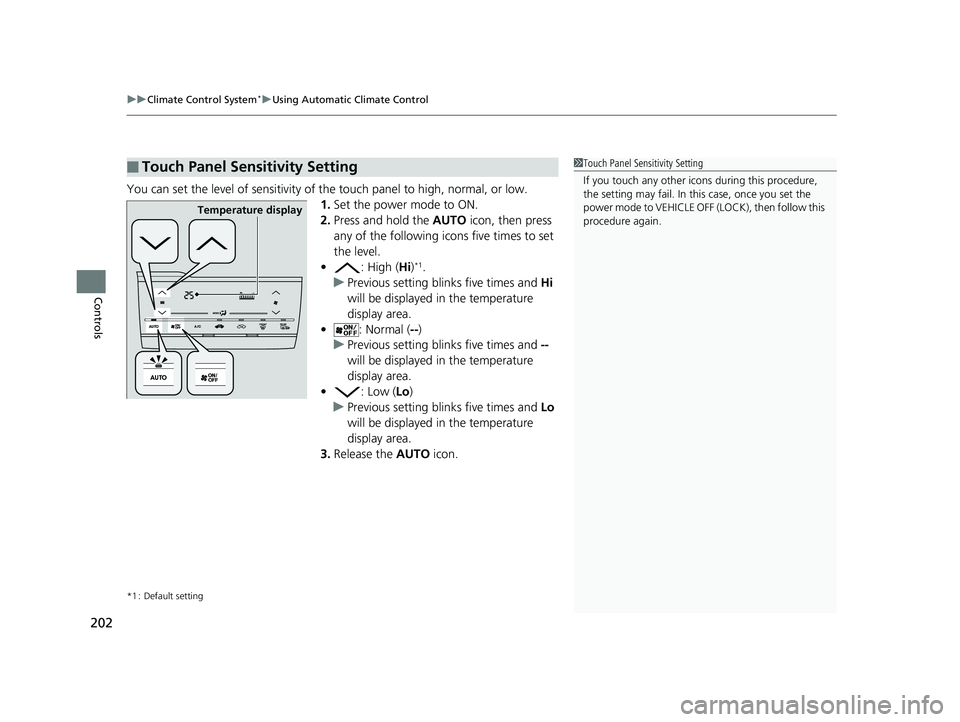

202
Controls
You can set the level of sensitivity of the touch panel to high, normal, or low.
1. Set the power mode to ON.
2. Press and hold the AUTO icon, then press
any of the following icons five times to set
the level.
• : High (Hi)
*1.
u Previous setting blinks five times and Hi
will be displayed in the temperature
display area.
• : Normal ( --)
u Previous setting blinks five times and --
will be displayed in the temperature
display area.
• : Low (Lo )
u Previous setting blinks five times and Lo
will be displayed in the temperature
display area.
3. Release the AUTO icon.
*1 : Default setting
■Touch Panel Sensitivity Setting1Touch Panel Sensitivity Setting
If you touch any other icon s during this procedure,
the setting may fail. In th is case, once you set the
power mode to VEHICLE OFF (LOCK), then follow this
procedure again.
Temperature display
20 FIT-31T5A6500.book 202 ページ ２０１９年９月２６日　木曜日　午後４時４１分

205
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 206
USB Port(s) ........................................... 207
Audio System Theft Protection ............. 208
Audio Antenna .................................... 209
Audio Remote Controls
*...................... 210
Audio System Basic Operation ............. 212
Audio/Information Screen .................... 213
Adjusting the Sound ............................ 217
Display Setup ....................................... 218
Playing AM/FM Radio ........................... 219
Playing a CD ........................................ 221
Playing an iPod..................................... 224
Playing a USB Flash Drive...................... 227
Models with color audio system
Playing Bluetooth ® Audio..................... 230
Audio System Basic Operation ............ 233
Audio/Information Screen .................... 234
Adjusting the Sound ............................ 249
Display Setup ....................................... 250
Playing AM/FM Radio........................... 255
Playing an iPod .................................... 267
Playing Pandora® ................................. 274
Playing a USB Flash Drive ..................... 276
Playing Bluetooth ® Audio..................... 279
HondaLink® ......................................... 281
Siri ® Eyes Free ...................................... 288
Audio Error Messages .......................... 312
Models with display audio system
General Information on the Audio
System ............................................. 317
Customized Features ............................. 321
Customized Features ........................ 328
Bluetooth® HandsFreeLink ®
Using HFL ............................................. 343
Using HFL ............................................. 368
Models with color audio system
Models with display audio system
Models with color audio system
Models with display audio system
* Not available on all models
20 FIT-31T5A6500.book 205 ページ ２０１９年９月２６日　木曜日　午後４時４１分
