Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 46
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 103
2Controls P. 121
Clock P. 122 Locking and Unlocking the Doors P. 124
Opening and Closing the Windows P. 151
Operating the Switches Around the Steering Wheel P. 154
Interior Lights/Interior Convenience Items P. 186
2 Features P. 205
Audio System P. 206 Audio System Basic Operation P. 212, 233
Customized Features P. 321, 328 Bluetooth® HandsFreeLink ® P. 343, 368
2 Driving P. 399
Before Driving P. 400 Towing a Trailer P. 405
Multi-View Rear Camera P. 482
2Maintenance P. 489
Before Performing Maintenance P. 490 Maintenance MinderTM P. 493
Checking and Maintaining Wiper Blades P. 520
Heating and Cooling System
*/Climate Control System* Maintenance P. 538
2 Handling the Unexpected P. 545
Tools P. 546 If a Tire Goes Flat P. 547
Overheating P. 560 Indicator, Coming On/Blinking P. 562 Fuses P. 566
2 Information P. 575
Specifications P. 576 Identification Numbers P. 578
Emissions Testing P. 581 Warranty Coverages P. 583
20 FIT-31T5A6500.book 2 ページ 2019年9月26日 木曜日 午後4時41分
Page 6 of 599
4
Quick Reference Guide
Quick Reference Guide
Visual Index
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙Tire Pressure Monitoring System (TPMS) Button* (P465)
❙ENGINE START/STOP Button*1 (P155)
❙Steering Wheel Adjustments (P172)
❙Heating and Cooling System*
(P196)
❙Climate Control System* (P199)
❙Rear Defogger (P171)
❙Heated Mirror Button* (P171)
❙Audio System (P206)
❙Navigation System*
() See the Navigation System Manual
❙ECON Button* (P427)
❙Ignition Switch* (P154)
❙Hazard Warning Button
❙ (Vehicle Stability AssistTM (VSA ®) System OFF) Button (P460)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P473)
❙Road Departure Mitigation (RDM) Button* (P447)
❙System Indicators (P76)
❙Gauges (P103)
❙Information Display* (P104)
❙Multi-Information Display* (P107)
20 FIT-31T5A6500.book 4 ページ 2019年9月26日 木曜日 午後4時41分
Page 7 of 599
5
Quick Reference Guide
❙Paddle Shifter (Shift Up)* (P422)
❙ (Select/Reset) Knob (P104)
❙Brightness Control (P170)
❙ (Display) Button* (P234)
❙Paddle Shifter (Shift Down)* (P 422)
❙Headlights/Turn Signals (P159, 160)
❙Fog Lights* (P163)
❙LaneWatchTM * (P461)
❙Audio Remote Control Buttons* (P210)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P343, 368)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Wipers/Washers (P168)
❙MAIN Button* (P434)
❙CRUISE Button* (P428)
❙Interval Button* (P441)
❙Lane Keeping Assist System (LKAS) Button*
(P452)
* Not available on all models
20 FIT-31T5A6500.book 5 ページ 2019年9月26日 木曜日 午後4時41分
Page 11 of 599
9
Quick Reference Guide
Eco Assist® System
Ambient Meter
●The color of the ambient meter changes to green
to indicate that the vehicle is being driven in a fuel
efficient manner.
ECON Mode Indicator*
(P85)
Comes on when the ECON button is
pressed.
ECON Button* (P427)
Helps maximize fuel economy.
Models with multi-information display
The message is displayed for
a few seconds when the
ECON button is pressed.
* Not available on all models
20 FIT-31T5A6500.book 9 ページ 2019年9月26日 木曜日 午後4時41分
Page 13 of 599
11
Quick Reference Guide
Instrument Panel (P75)
Lights Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
IndicatorAnti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist
TM (VSA ®)
System Indicator
VSA ® OFF Indicator
Electric Power
Steering (EPS) System
Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator*
Supplemental
Restraint System
Indicator
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P103)/Information Display* (P104) Multi-Information Display* (P107)/System Indicators (P76)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
System Indicators
System Indicators
Low Tire Pressure/
TPMS Indicator
U.S. models only
Parking Brake
and Brake System
Indicator (Red)
CRUISE CONTROL
Indicator*
System Indicators
Charging System
Indicator
U.S.
Washer Level
Indicator*
ECON Mode
Indicator*
Maintenance
Minder Indicator
Fog Light Indicator
*
Canada
Brake System
Indicator (Amber)
Canada
U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
Models with information display
Low Temperature
Indicator (Blue)
* Not available on all models
20 FIT-31T5A6500.book 11 ページ 2019年9月26日 木曜日 午後4時41分
Page 14 of 599
12
Quick Reference Guide
Lights On Indicator
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
U.S. models only
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator
*
Immobilizer System
Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Models with multi-information display
Brake System
Indicator (Amber)
System Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
Lights Indicators
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC)
Indicator (Amber/
Green)
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
Smart Entry System
Indicator
*
U.S.
Canada
Canada U.S.
Shift Up / Down
Indicator*
Multi-information Display
Auto High-Beam
Indicator
M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
20 FIT-31T5A6500.book 12 ページ 2019年9月26日 木曜日 午後4時41分
Page 15 of 599
13
Quick Reference Guide
Controls (P121)
Clock (P122)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the information display is
automatically updated along with the audio
system’s clock display.
Models with navigation system
Models without navigation system
Clock
aSelect the (HOME) icon, then select
Settings .
bSelect System , Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
20 FIT-31T5A6500.book 13 ページ 2019年9月26日 木曜日 午後4時41分
Page 21 of 599
19
Quick Reference Guide
Features (P205)
Audio Remote Controls*
(P210)
● / Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
CD/USB/iPod/ Bluetooth® Audio.
Press to change the audio mode: FM/AM/
SiriusXM
®/USB/iPod/Bluetooth® Audio/Pandora®*/
Apps/Apple CarPlayTM/Android AutoTM.● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD
*/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
/ / / Buttons
SOURCE Button
Models with color audio system
Models with display audio system
Audio System (P206)
For navigation system operation () See the Navigation System Manual
Models with color audio system
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/
(Volume/Power)
Knob
CD Slot
(CD Eject) Button
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA
Button Audio/Information Screen
*
Not available on all models
20 FIT-31T5A6500.book 19 ページ 2019年9月26日 木曜日 午後4時41分
Page 22 of 599
20

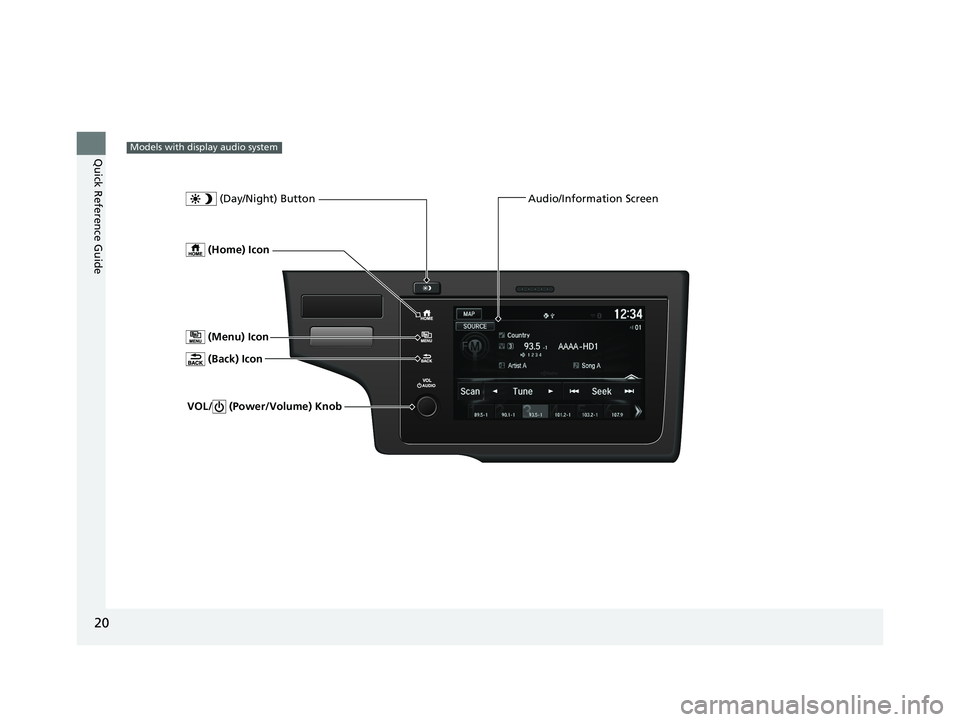

Quick Reference GuideModels with display audio system
(Day/Night) ButtonAudio/Information Screen
(Back) Icon
VOL/ (Power/Volume) Knob
(Menu) Icon
(Home) Icon
20 FIT-31T5A6500.book 20 ページ 2019年9月26日 木曜日 午後4時41分
Page 23 of 599
21
Quick Reference Guide
Driving (P399)
Depress the brake pedal and press
the release button to move out of (P.
Manual Transmission* (P423)
Continuously Variable Transmission*
(P417, 419)
● Shift to
(P and depress the brake pedal when starting the engine.
Shifting
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
Drive (S)
7-speed manual shift mode can
be used. Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P421)
● Allows you to manually shift the transmission up or
down without removing yo ur hands from the steering
wheel.
When the shift lever is in (S● Pulling a paddle shifter changes the mode from
continuously variable transmission to 7-speed manual
shift mode.
● The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
Paddle Shifter
Shift Up
Paddle Shifter M Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
Park
Turn off or start the engine.
Transmission is locked.
Models with paddle shifters
Models without paddle shifters
* Not available on all models
20 FIT-31T5A6500.book 21 ページ 2019年9月26日 木曜日 午後4時41分
