Navigation System
Driving to Your Destination
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information

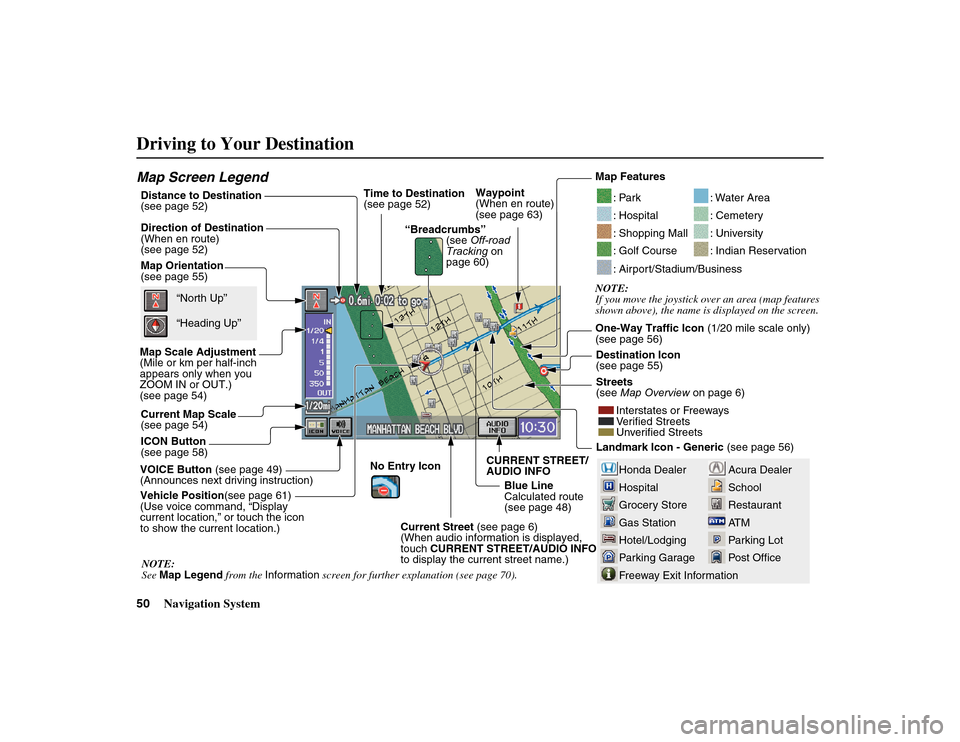

Map Screen LegendMap Orientation
(see page 55)
Map Scale Adjustment
(Mile or km per half-inch
appears only when you
ZOOM IN or OUT.)
(see page 54) Current Map Scale
(see page 54)
ICON Button
(see page 58) “Breadcrumbs”
(see Off-road
Tracking on
page 60)
Direction of Destination
(When en route)
(see page 52)
VOICE Button (see page 49)
(Announces next driving instruction) Distance to Destination
(see page 52)
Time to Destination
(see page 52)
Vehicle Position (see page 61)
(Use voice command, “Display
current location,” or touch the icon
to show the current location.) Blue Line
Calculated route
(see page 48)Map Features
NOTE:
If you move the joystick ov
er an area (map features
shown above), the name is displayed on the screen.
: Par k: Hospital: Shopping Mall: Golf Course
: Water Area: Cemetery: University: Indian Reservation
: Airport/Stadium/Business
One-Way Traffic Icon (1/20 mile scale only)
(see page 56)
Streets
(see Map Overview on page 6)
Interstates or Freeways
Verified Streets
Unverified Streets
Landmark Icon - Generic (see page 56)
“North Up”
“Heading Up”
NOTE:
See Map Legend from the
Information screen for further explanation (see page 70). Destination Icon
(see page 55)
Waypoint
(When en route)
(see page 63)
CURRENT STREET/
AUDIO INFO
Current Street (see page 6)
(When audio information is displayed,
touch CURRENT STREET/AUDIO INFO
to display the current street name.)
No Entry Icon

Navigation System51
Guidance ScreenThe
guidance
screen offers an alternative
way to view your route information.
Many of the icons and screen features are
similar to those on the
map
screen. While
driving to your destination, press the
MAP/GUIDE
button to switch between
the
map
and
guidance
screens. The
guidance
screen shows you:
Milestone to Destination – The
position of the small circular icon shows
your trip progress. As you get closer to
your destination, the indicator will
approach “DEST.”
Vehicle Heading – The white portion of
the compass symbol indicates north.
NOTE: The map and voice guidance in
unverified areas differ from those in
verified areas. Current maneuvers and those within 1000 feet will show on the
Countdown bar, indicating the
distance until the next maneuver.

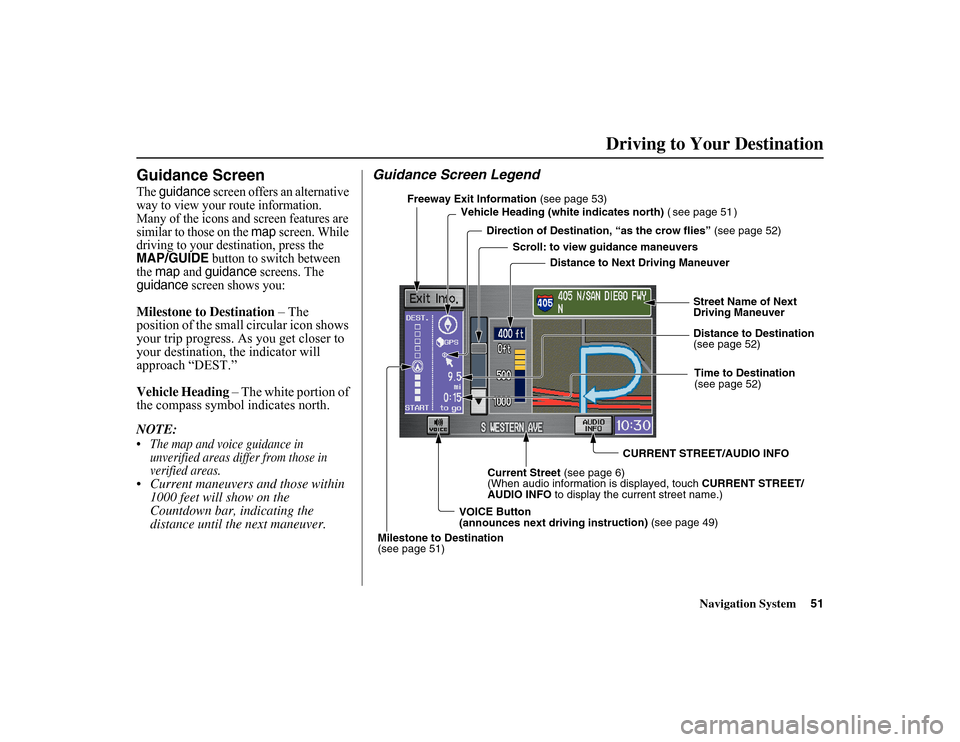

Guidance Screen Legend
Vehicle Heading (whi te indicates north) ( see page 51 )
Distance to Next Driving Maneuver Street Name of Next
Driving Maneuver
Distance to Destination
(see page 52)
CURRENT STREET/AUDIO INFO
Current Street (see page 6)
(When audio information is displayed, touch CURRENT STREET/
AUDIO INFO to display the current street name.)
VO ICE Button
(ann ounces next driving instr uction) (see page 49)
Milestone to Destination
(see page 51) Scroll: to view guidance maneuvers
Freeway Exit Information
(see page 53)
Direction of Destination, “as the crow flies” (see page 52)
Time to Destination
(see page 52)
Driving to Your Destination

52
Navigation System
Driving to Your DestinationDistance and Time to
DestinationWhen you select a destination, the
distance to the destination is the actual
road distance of the calculated route,
and not “as the crow flies.” When
viewing a list of destinations (points of
interest), such as restaurants, the
distance is “as the crow flies” (see Sort
by Distance to Travel on page 35).
The displayed time to the destination
may differ from the actual travel time
because the time is calculated based on
the posted road speed data and your
current speed. If part of your route
includes unverified roads, the “distance”
and “time to go” for that portion is
estimated using 25 mph as an average
speed.

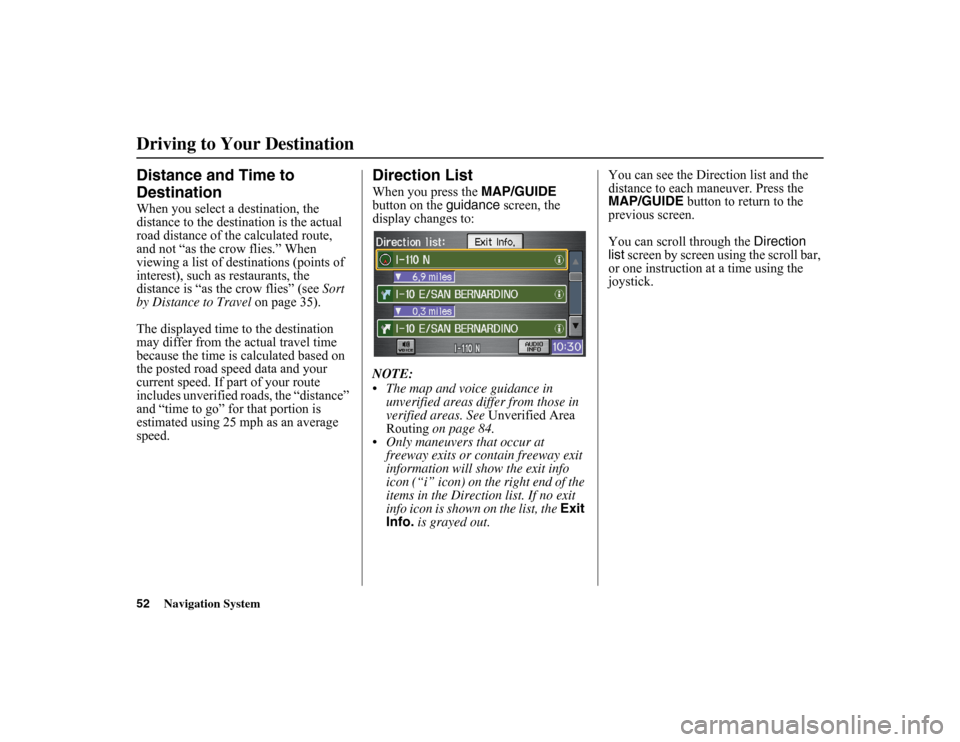

Direction ListWhen you press the MAP/GUIDE
button on the guidance
screen, the
display changes to:
NOTE:
The map and voice guidance in unverified areas differ from those in
verified areas. See Unverified Area
Routing on page 84.
Only maneuvers that occur at freeway exits or contain freeway exit
information will show the exit info
icon (“i” icon) on the right end of the
items in the Direction list. If no exit
info icon is shown on the list, the Exit
Info. is grayed out. You can see the Direction list and the
distance to each maneuver. Press the
MAP/GUIDE
button to return to the
previous screen.
You can scroll through the Direction
list screen by screen using the scroll bar,
or one instruction at a time using the
joystick.

Navigation System53
Exit Info. (Freeway Exit
Information)You can search freeway exit
information and add new destinations or
waypoints to the calculated route as a
new destination or waypoint. The exit
info icon ( ) on the right end of the
items in the direction list indicates that
there is freeway exit information
available. Say or select Exit Info., and
choose the exit and place to set as a new
destination or waypoint.
On the map screen, you can display
freeway exit information using the
joystick. The exit info icon will only be
displayed on the map screen if there is
any freeway exit info rmation available.
Choose the 1/4, 1/2, or 1 mile scale, then
move the crosshairs to the desired exit
info icon and click on it. Choose a place
from the list and set it as a new
destination or waypoint.
NOTE:
To turn on “Freeway exit information”
on the map screen, display the icon bar
and select the icon (see page 58).

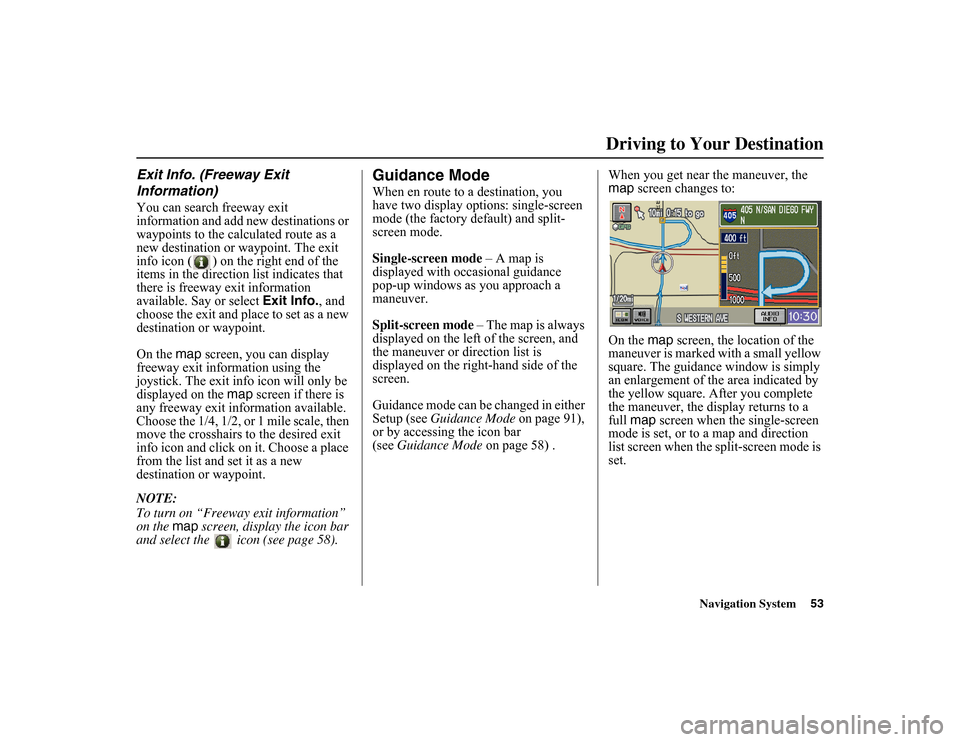

Guidance ModeWhen en route to a destination, you
have two display options: single-screen
mode (the factory default) and split-
screen mode.
Single-screen mode – A map is
displayed with occasional guidance
pop-up windows as you approach a
maneuver.
Split-screen mode – The map is always
displayed on the left of the screen, and
the maneuver or direction list is
displayed on the right-hand side of the
screen.
Guidance mode can be changed in either
Setup (see Guidance Mode on page 91),
or by accessing the icon bar
(see Guidance Mode on page 58) . When you get near the maneuver, the
map
screen changes to:
On the map screen, the location of the
maneuver is marked with a small yellow
square. The guidance window is simply
an enlargement of th e area indicated by
the yellow square. Af ter you complete
the maneuver, the display returns to a
full map screen when the single-screen
mode is set, or to a map and direction
list screen when the split-screen mode is
set.
Driving to Your Destination

54
Navigation System

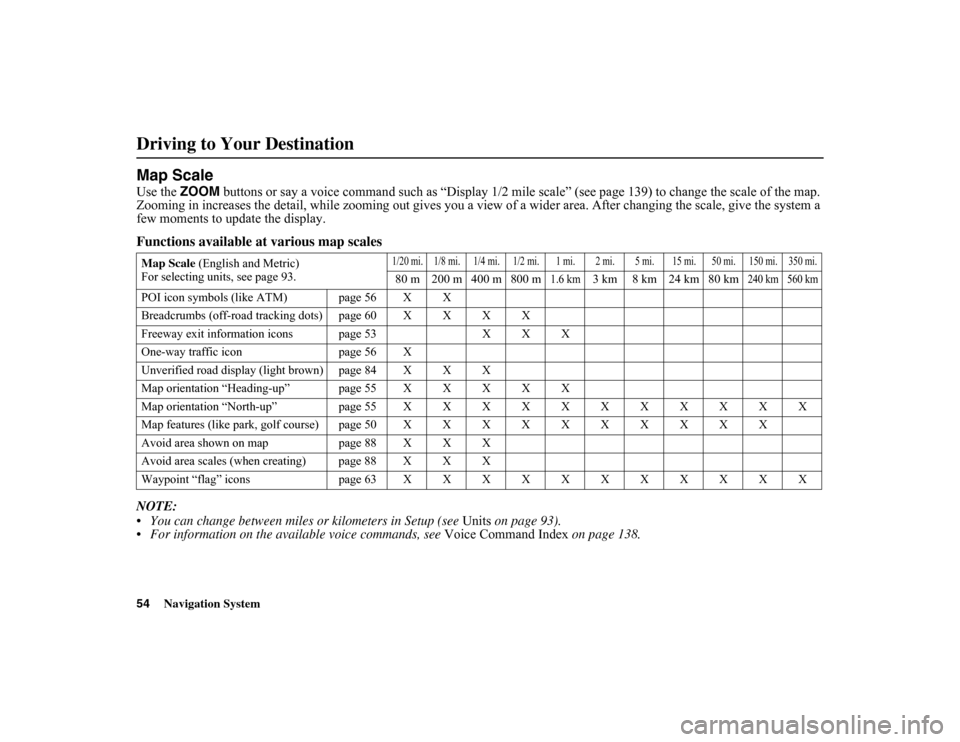

Driving to Your DestinationMap ScaleUse the ZOOM buttons or say a voice command such as “Display 1/2 mile scale” (see pa ge 139) to change the scale of the map.
Zooming in increases the de tail, while zooming out gives you a view of a wide r area. After changing the scale, give the system a
few moments to update the display.Functions available at various map scalesNOTE:
You can change between miles or kilometers in Setup (see Units
on page 93).
For information on the available voice commands, see Voice Command Index
on page 138.Map Scale (English and Metric)
For selecting units, see page 93.
1/20 mi. 1/8 mi. 1/4 mi. 1/2 mi. 1 mi. 2 mi. 5 mi. 15 mi. 50 mi. 150 mi. 350 mi.80 m 200 m 400 m 800 m
1.6 km
3 km 8 km 24 km 80 km
240 km 560 km
POI icon symbols (like ATM) page 56 X X
Breadcrumbs (off-road
tracking dots) page 60 X X X X
Freeway exit information icons page 53 X X X
One-way traffic icon page 56 X
Unverified road display (light brown) page 84 X X X
Map orientation “Heading-up” page 55 X X X X X
Map orientation “North-up” page 55 X X X X X X X X X X X
Map features (like park, golf course)page50XXXX XXXXXX
Avoid area shown on map page 88 X X X
Avoid area scales (when creating) page 88 X X X
Waypoint “flag” icons page63XXXX XXXXXXX

Navigation System55

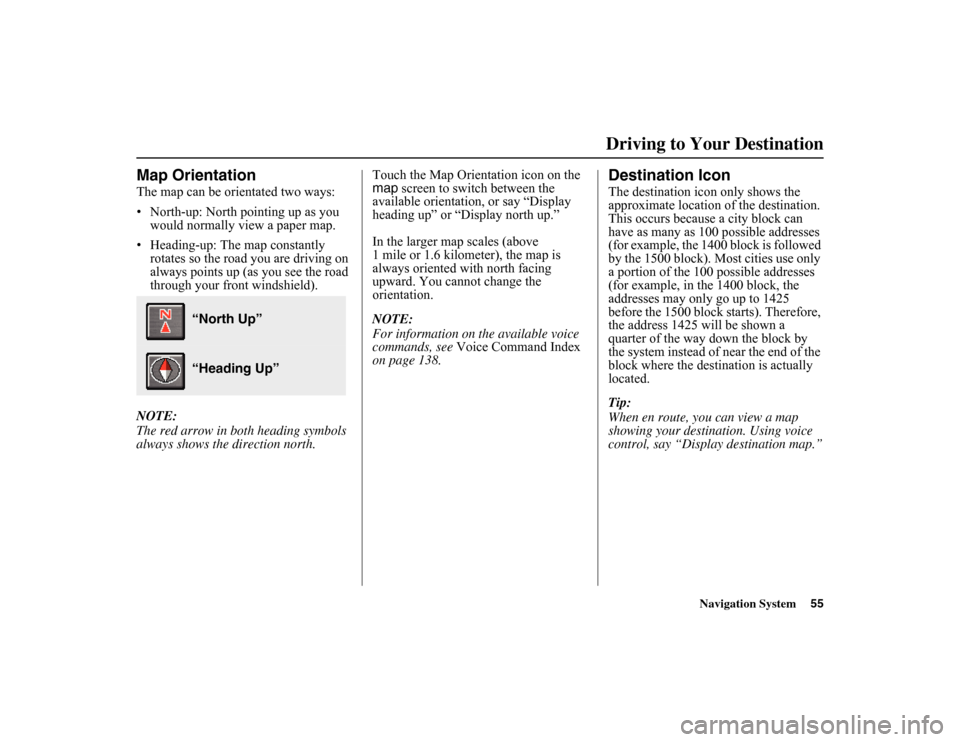

Map OrientationThe map can be orientated two ways:
• North-up: North pointing up as you
would normally view a paper map.
• Heading-up: The map constantly rotates so the road you are driving on
always points up (as you see the road
through your front windshield).
NOTE:
The red arrow in both heading symbols
always shows the direction north. Touch the Map Orientation icon on the
map
screen to switch between the
available orientation, or say “Display
heading up” or “Display north up.”
In the larger map scales (above
1 mile or 1.6 kilometer), the map is
always oriented with north facing
upward. You cannot change the
orientation.
NOTE:
For information on the available voice
commands, see Voice Command Index
on page 138.
Destination IconThe destination icon only shows the
approximate location of the destination.
This occurs because a city block can
have as many as 100 possible addresses
(for example, the 1400 block is followed
by the 1500 block). Most cities use only
a portion of the 100 possible addresses
(for example, in the 1400 block, the
addresses may only go up to 1425
before the 1500 block starts). Therefore,
the address 1425 will be shown a
quarter of the way down the block by
the system instead of near the end of the
block where the destin ation is actually
located.
Tip:
When en route, you can view a map
showing your destin ation. Using voice
control, say “Display destination map.”
“North Up” “Heading Up”
Driving to Your Destination

56
Navigation System
Driving to Your DestinationThe display automatically changes to
the map screen when you reach your
destination. Press the MENU button to
return to the Enter destination by
screen.
NOTE:
For information on the available voice commands, see Voice
Command Index on page 138.
If you are en route and the joystick is moved, the “Time to Destination”
and “Distance to Destination”
indicators are replaced with an
indicator showing distance from the
current vehicle location.

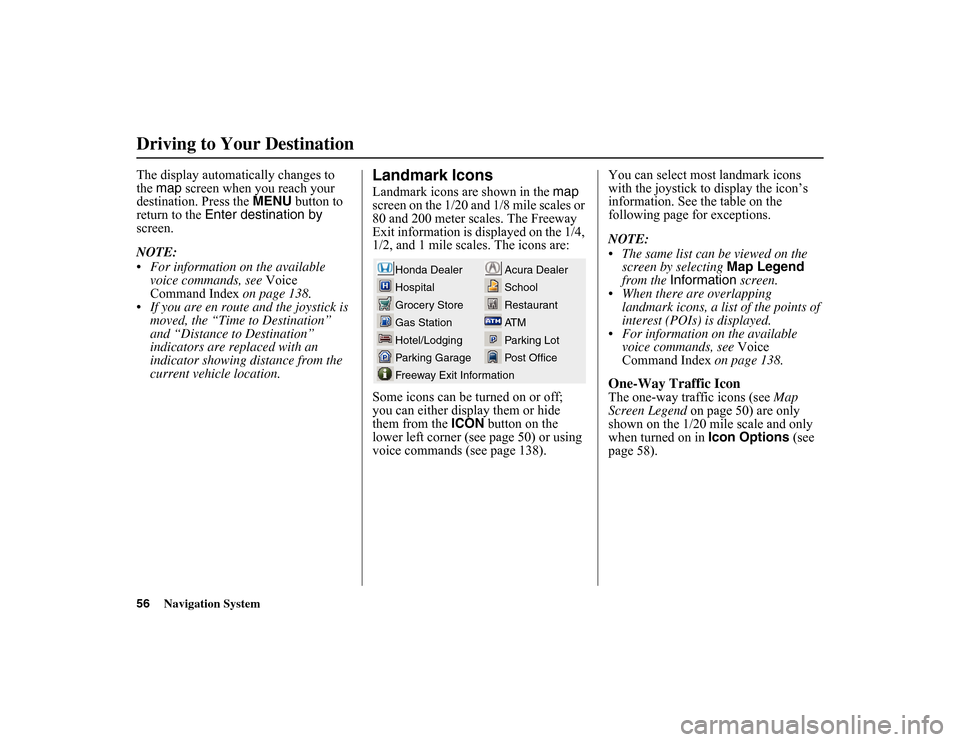

Landmark IconsLandmark icons are shown in the map

screen on the 1/20 and 1/8 mile scales or
80 and 200 meter scales. The Freeway
Exit information is displayed on the 1/4,
1/2, and 1 mile scales. The icons are:
Some icons can be turned on or off;
you can either display them or hide
them from the ICON
button on the
lower left corner (see page 50) or using
voice commands (see page 138). You can select most landmark icons
with the joystick to display the icon’s
information. See the table on the
following page for exceptions.
NOTE:
The same list can be viewed on the
screen by selecting Map Legend

from the Information screen.
When there are overlapping landmark icons, a list of the points of
interest (POIs) is displayed.
For information on the available voice commands, see Voice
Command Index on page 138.
One-Way Traffic IconThe one-way traffic icons (see Map
Screen Legend on page 50) are only
shown on the 1/20 mile scale and only
when turned on in Icon Options (see
page 58).
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information

Navigation System57

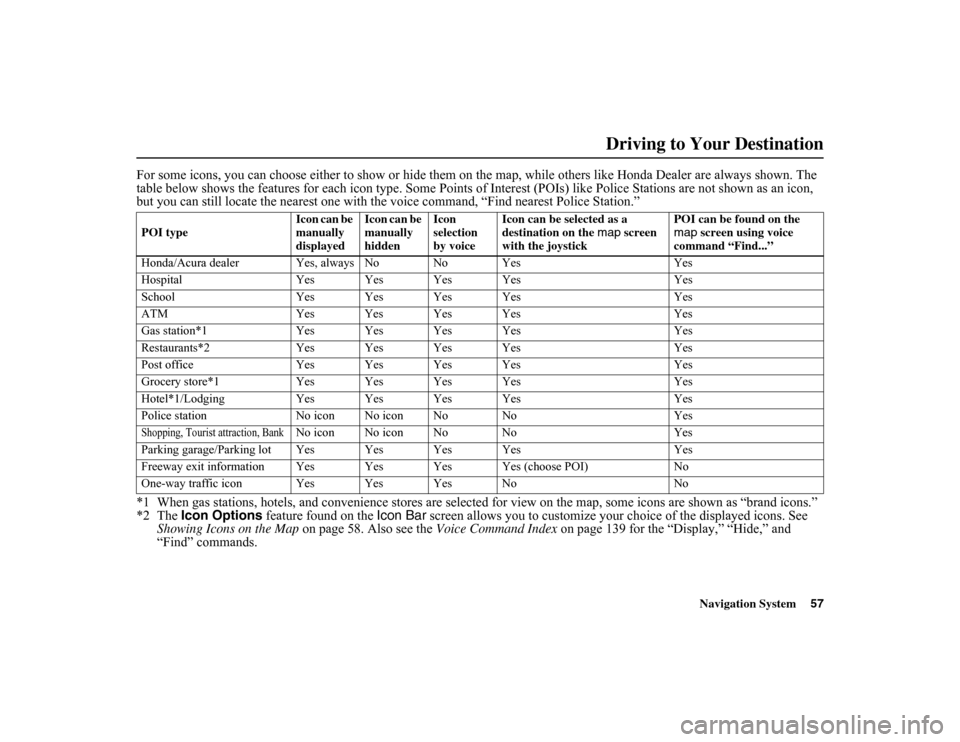

For some icons, you can choose either to show or hide them on the map, while others like Honda Dealer are always shown. The
table below shows the features for each icon type. Some Points of Interest (POIs) like Police Stations are not shown as an icon ,
but you can still locate the near est one with the voice command, “Find nearest Police Station.”
*1 When gas stations, hotels, and convenien ce stores are selected for view on the map,
some icons are shown as “brand icons.”
*2 The Icon Options feature found on the Icon Bar
screen allows you to customize your choice of the displayed icons. See
Showing Icons on the Map on page 58. Also see the Voice Command Index on page 139 for the “Display,” “Hide,” and
“Find” commands.POI type Icon can be
manually
displayedIcon can be
manually
hiddenIcon
selection
by voiceIcon can be selected as a
destination on the
map
screen
with the joystick POI can be found on the
map screen using voice
command “Find...”
Honda/Acura dealer Yes, always No No Yes Yes
Hospital Yes Yes Yes Yes Yes
School Yes Yes Yes Yes Yes
ATM Yes Yes Yes Yes Yes
Gas station*1 Yes Yes Yes Yes Yes
Restaurants*2 Yes Yes Yes Yes Yes
Post office Yes Yes Yes Yes Yes
Grocery store*1 Yes Yes Yes Yes Yes
Hotel*1/Lodging Yes Yes Yes Yes Yes
Police station No icon No icon No No YesShopping, Tourist attraction, Bank
No icon No icon No NoYes
Parking garage/Parking lot Yes Yes Yes Yes
Yes
Freeway exit information Yes Yes Yes Yes (choose POI)
No
One-way traffic icon Yes Yes Yes No
No
Driving to Your Destination

58
Navigation System

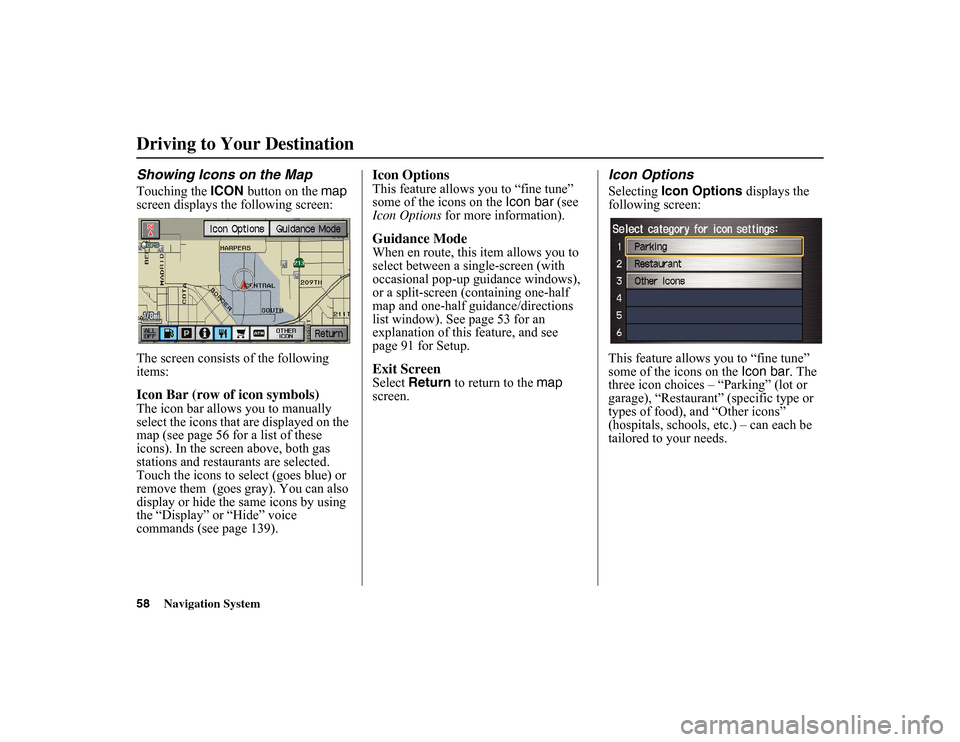

Driving to Your DestinationShowing Icons on the MapTouching the ICON
button on the map

screen displays the following screen:
The screen consists of the following
items:Icon Bar (row of icon symbols)The icon bar allows you to manually
select the icons that are displayed on the
map (see page 56 for a list of these
icons). In the screen above, both gas
stations and restaurants are selected.
Touch the icons to select (goes blue) or
remove them (goes gray). You can also
display or hide the same icons by using
the “Display” or “Hide” voice
commands (see page 139).
Icon OptionsThis feature allows you to “fine tune”
some of the icons on the Icon bar (see
Icon Options for more information).Guidance ModeWhen en route, this item allows you to
select between a single-screen (with
occasional pop-up guidance windows),
or a split-screen (containing one-half
map and one-half gu idance/directions
list window). See page 53 for an
explanation of this feature, and see
page 91 for Setup.Exit ScreenSelect Return to return to the map

screen.
Icon OptionsSelecting Icon Options
displays the
following screen:
This feature allows you to “fine tune”
some of the icons on the Icon bar
. The
three icon choices – “Parking” (lot or
garage), “Restaurant” (specific type or
types of food), and “Other icons”
(hospitals, schools, etc.) – can each be
tailored to your needs.

Navigation System59

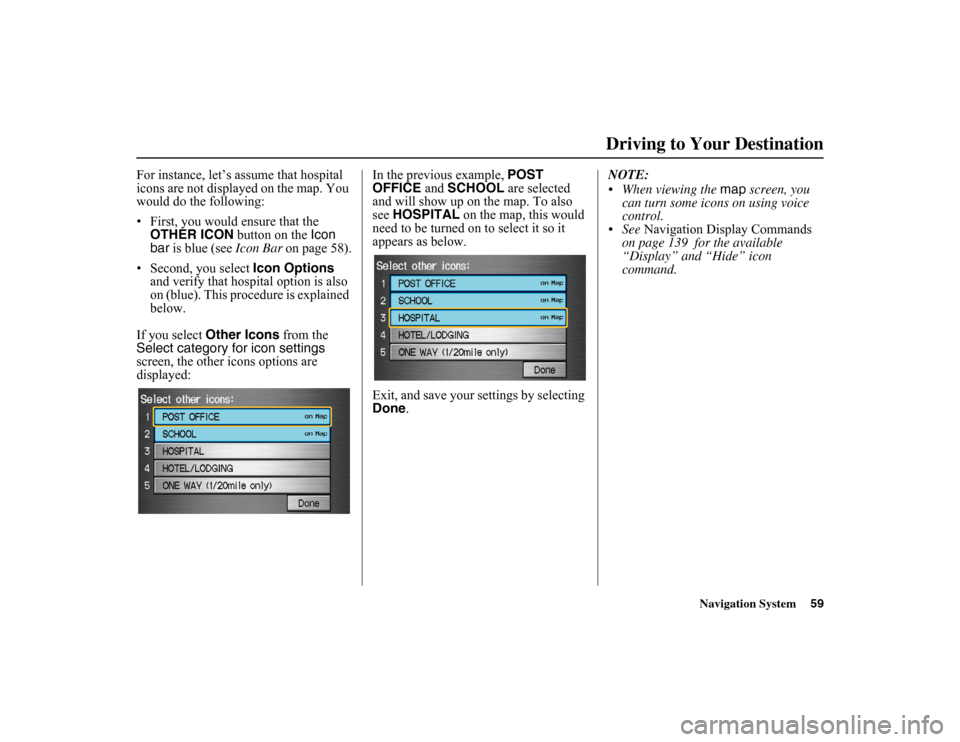

For instance, let’s assume that hospital
icons are not displayed on the map. You
would do the following:
• First, you would ensure that the
OTHER ICON button on the Icon
bar is blue (see
Icon Bar on page 58).
• Second, you select Icon Options
and verify that hospital option is also
on (blue). This procedure is explained
below.
If you select Other Icons
from the
Select category for icon settings
screen, the other icons options are
displayed: In the previous example,
POST
OFFICE and
SCHOOL are selected
and will show up on the map. To also
see HOSPITAL
on the map, this would
need to be turned on to select it so it
appears as below.
Exit, and save your settings by selecting
Done . NOTE:
When viewing the
map
screen, you
can turn some icons on using voice
control.
Navigation Display Commands
on page 139 for the available
“Display” and “Hide” icon
command.
Driving to Your Destination
