572
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the transmission fluid yourself.
■Transmission Fluid
Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
1Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle limited warranty.
19 INSIGHT HMIN-31TXM6000.book 572 ページ ２０１８年４月２０日　金曜日　午後４時２２分

653
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.3 US qt (2.2 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.22 US gal (4.61 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Vehicles with optional spare tire
Regular
Size215/55R16 93V*1
215/50R17 91H*2
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare*3
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
17 x 7J*2
Compact Spare*316 x 4T
19 INSIGHT HMIN-31TXM6000.book 653 ページ ２０１８年４月２０日　金曜日　午後４時２２分

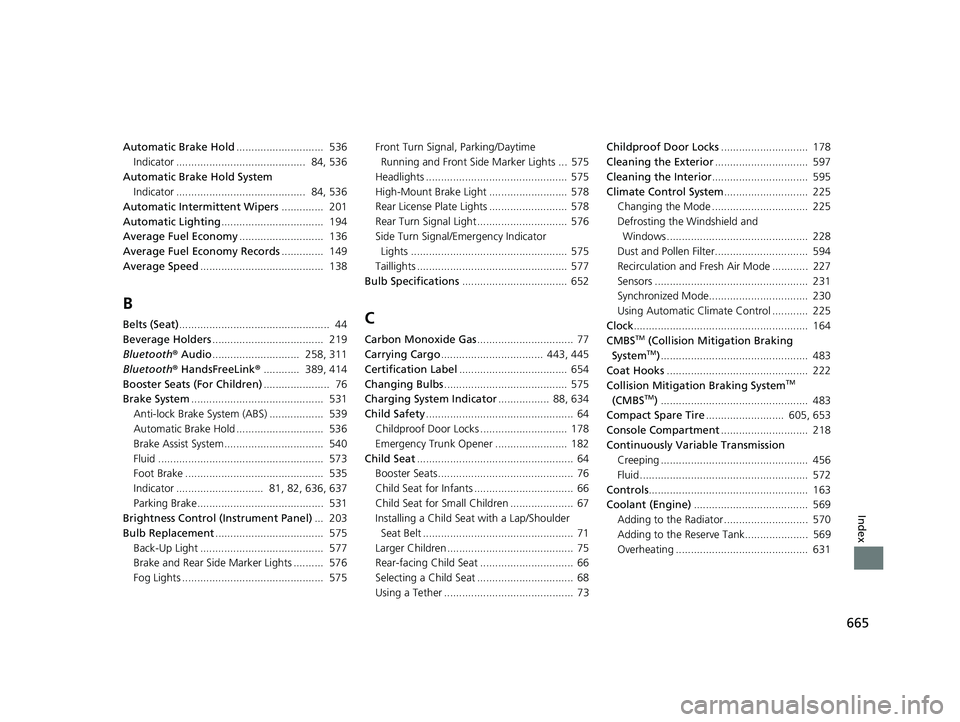

665
Index
Automatic Brake Hold............................. 536
Indicator ........................................... 84, 536
Automatic Brake Hold System Indicator ........................................... 84, 536
Automatic Intermittent Wipers .............. 201
Automatic Lighting .................................. 194
Average Fuel Economy ............................ 136
Average Fuel Economy Records .............. 149
Average Speed ......................................... 138
B
Belts (Seat).................................................. 44
Beverage Holders ..................................... 219
Bluetooth ® Audio ............................. 258, 311
Bluetooth ® HandsFreeLink ®............ 389, 414
Booster Seats (For Children) ...................... 76
Brake System ............................................ 531
Anti-lock Brake System (ABS) .................. 539
Automatic Brake Hold ............................. 536
Brake Assist System................................. 540
Fluid ....................................................... 573
Foot Brake .............................................. 535
Indicator ............................. 81, 82, 636, 637
Parking Brake.......................................... 531
Brightness Control (Instrument Panel) ... 203
Bulb Replacement .................................... 575
Back-Up Light ......................................... 577
Brake and Rear Side Marker Lights .......... 576
Fog Lights ............................................... 575 Front Turn Signal,
Parking/Daytime
Running and Front Side Marker Lights ... 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 578
Rear License Plate Lights .......................... 578
Rear Turn Signal Light .............................. 576
Side Turn Signal/Em ergency Indicator
Lights .................................................... 575
Taillights .................................................. 577
Bulb Specifications ................................... 652C
Carbon Monoxide Gas ................................ 77
Carrying Cargo .................................. 443, 445
Certification Label .................................... 654
Changing Bulbs ......................................... 575
Charging System Indicator ................. 88, 634
Child Safety ................................................. 64
Childproof Door Locks ............................. 178
Emergency Trunk Opener ........................ 182
Child Seat .................................................... 64
Booster Seats ............................................. 76
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Larger Children .......................................... 75
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 73 Childproof Door Locks
............................. 178
Cleaning the Exterior ............................... 597
Cleaning the Interior ................................ 595
Climate Control System ............................ 225
Changing the Mode ................................ 225
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter............................... 594
Recirculation and Fresh Air Mode ............ 227
Sensors ................................................... 231
Synchronized Mode................................. 230
Using Automatic Climate Control ............ 225
Clock .......................................................... 164
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 483
Coat Hooks ............................................... 222
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .......................... 605, 653
Console Compartment ............................. 218
Continuously Variable Transmission Creeping ................................................. 456
Fluid ........................................................ 572
Controls ..................................................... 163
Coolant (Engine) ...................................... 569
Adding to the Radiator ............................ 570
Adding to the Reserve Tank..................... 569
Overheating ............................................ 631
19 INSIGHT HMIN-31TXM6000.book 665 ページ ２０１８年４月２０日　金曜日　午後４時２２分

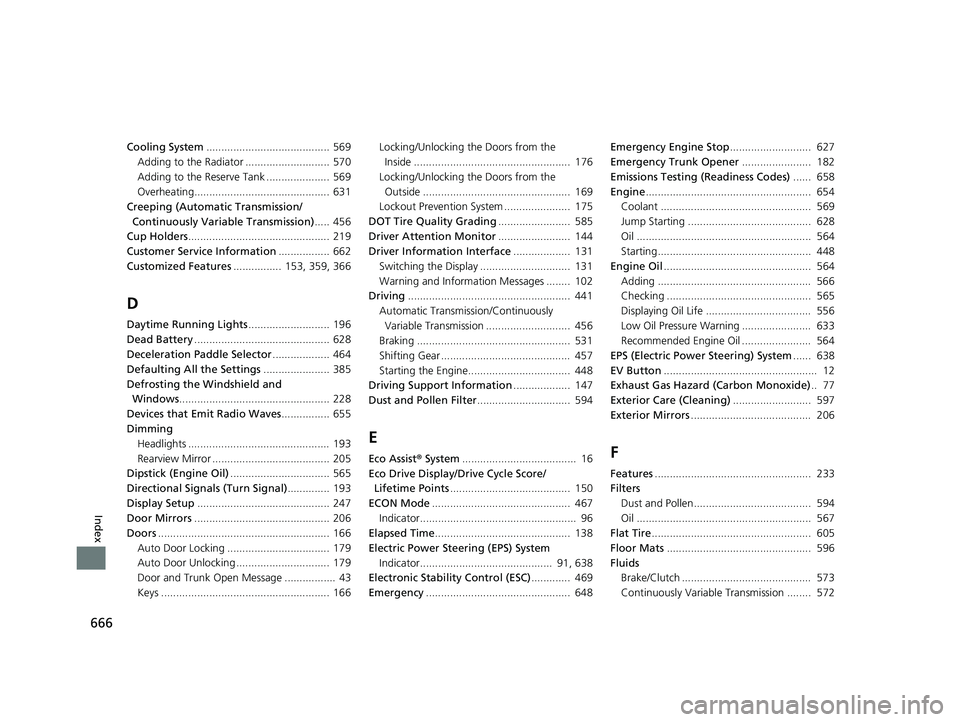

666
Index
Cooling System......................................... 569
Adding to the Radiator ............................ 570
Adding to the Reserve Tank ..................... 569
Overheating............................................. 631
Creeping (Automatic Transmission/
Continuously Variable Transmission) ..... 456
Cup Holders ............................................... 219
Customer Service Information ................. 662
Customized Features ................ 153, 359, 366
D
Daytime Running Lights ........................... 196
Dead Battery ............................................. 628
Deceleration Paddle Selector ................... 464
Defaulting All the Settings ...................... 385
Defrosting the Windshield and Windows .................................................. 228
Devices that Emit Radio Waves ................ 655
Dimming Headlights ............................................... 193
Rearview Mirror ....................................... 205
Dipstick (Engine Oil) ................................. 565
Directional Signals (Turn Signal) .............. 193
Display Setup ............................................ 247
Door Mirrors ............................................. 206
Doors ......................................................... 166
Auto Door Locking .................................. 179
Auto Door Unlocking ............................... 179
Door and Trunk Open Message ................. 43
Keys ........................................................ 166 Locking/Unlocking the Doors from the
Inside .................................................... 176
Locking/Unlocking the Doors from the Outside ................................................. 169
Lockout Prevention System ...................... 175
DOT Tire Quality Grading ........................ 585
Driver Attention Monitor ........................ 144
Driver Information Interface ................... 131
Switching the Display .............................. 131
Warning and Information Messages ........ 102
Driving ...................................................... 441
Automatic Transmission/Continuously Variable Transmission ............................ 456
Braking ................................................... 531
Shifting Gear ........................................... 457
Starting the Engine.................................. 448
Driving Support Information ................... 147
Dust and Pollen Filter ............................... 594
E
Eco Assist® System ...................................... 16
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 150
ECON Mode .............................................. 467
Indicator.................................................... 96
Elapsed Time ............................................. 138
Electric Power Steering (EPS) System Indicator............................................ 91, 638
Electronic Stability Control (ESC) ............. 469
Emergency ................................................ 648 Emergency Engine Stop
........................... 627
Emergency Trunk Opener ....................... 182
Emissions Testing (Readiness Codes) ...... 658
Engine ....................................................... 654
Coolant .................................................. 569
Jump Starting ......................................... 628
Oil .......................................................... 564
Starting................................................... 448
Engine Oil ................................................. 564
Adding ................................................... 566
Checking ................................................ 565
Displaying Oil Life ................................... 556
Low Oil Pressure Warning ....................... 633
Recommended Engine Oil ....................... 564
EPS (Electric Power Steering) System ...... 638
EV Button ................................................... 12
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) .......................... 597
Exterior Mirrors ........................................ 206F
Features.................................................... 233
Filters
Dust and Pollen....................................... 594
Oil .......................................................... 567
Flat Tire ..................................................... 605
Floor Mats ................................................ 596
Fluids Brake/Clutch ........................................... 573
Continuously Variable Transmission ........ 572
19 INSIGHT HMIN-31TXM6000.book 666 ページ ２０１８年４月２０日　金曜日　午後４時２２分

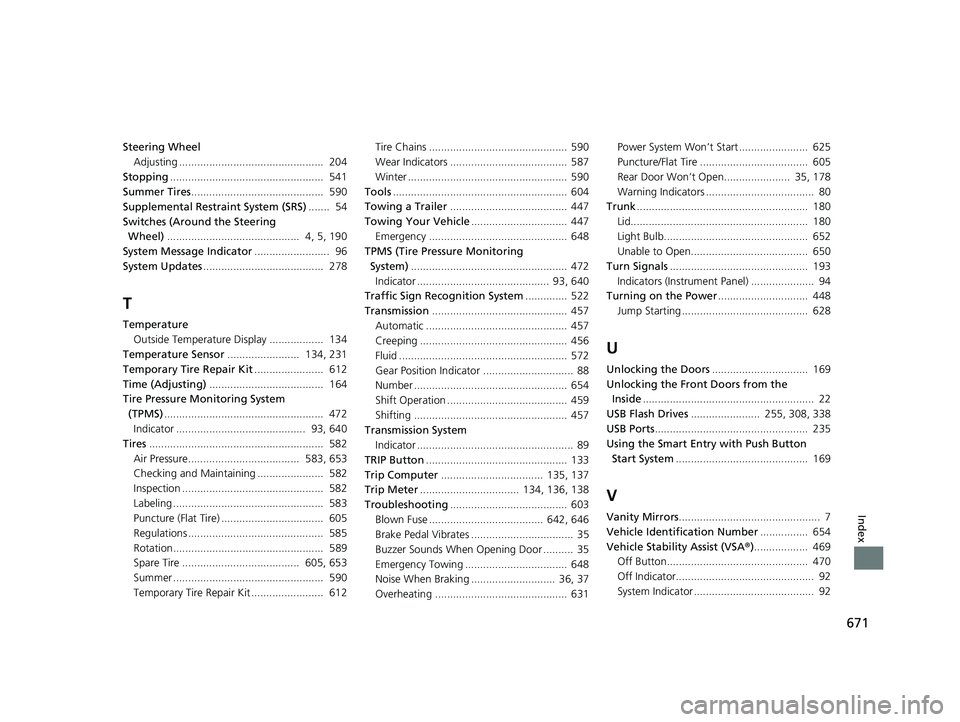

671
Index
Steering WheelAdjusting ................................................ 204
Stopping ................................................... 541
Summer Tires ............................................ 590
Supplemental Restraint System (SRS) ....... 54
Switches (Around the Steering Wheel) ............................................ 4, 5, 190
System Message Indicator ......................... 96
System Updates ........................................ 278
T
Temperature
Outside Temperature Display .................. 134
Temperature Sensor ........................ 134, 231
Temporary Tire Repair Kit ....................... 612
Time (Adjusting) ...................................... 164
Tire Pressure Monitoring System
(TPMS) ..................................................... 472
Indicator ........................................... 93, 640
Tires .......................................................... 582
Air Pressure..................................... 583, 653
Checking and Maintaining ...................... 582
Inspection ............................................... 582
Labeling .................................................. 583
Puncture (Flat Tire) .................................. 605
Regulations ............................................. 585
Rotation.................................................. 589
Spare Tire ....................................... 605, 653
Summer .................................................. 590
Temporary Tire Repair Kit ........................ 612 Tire Chains .............................................. 590
Wear Indicators ....................................... 587
Winter ..................................................... 590
Tools .......................................................... 604
Towing a Trailer ....................................... 447
Towing Your Vehicle ................................ 447
Emergency .............................................. 648
TPMS (Tire Pressure Monitoring
System) .................................................... 472
Indicator ............................................ 93, 640
Traffic Sign Recognition System .............. 522
Transmission ............................................. 457
Automatic ............................................... 457
Creeping ................................................. 456
Fluid ........................................................ 572
Gear Position Indicator .............................. 88
Number ................................................... 654
Shift Operation ........................................ 459
Shifting ................................................... 457
Transmission System Indicator .................................................... 89
TRIP Button ............................................... 133
Trip Computer .................................. 135, 137
Trip Meter ................................. 134, 136, 138
Troubleshooting ....................................... 603
Blown Fuse ...................................... 642, 646
Brake Pedal Vibrates .................................. 35
Buzzer Sounds When Opening Door .......... 35
Emergency Towing .................................. 648
Noise When Braking ............................ 36, 37
Overheating ............................................ 631 Power System Won’t Start ....................... 625
Puncture/Flat Tire .................................... 605
Rear Door Won’t Open...................... 35, 178
Warning Indicators .................................... 80
Trunk ......................................................... 180
Lid........................................................... 180
Light Bulb................................................ 652
Unable to Open....................................... 650
Turn Signals .............................................. 193
Indicators (Instrument Panel) ..................... 94
Turning on the Power .............................. 448
Jump Starting .......................................... 628
U
Unlocking the Doors ................................ 169
Unlocking the Fron t Doors from the
Inside ......................................................... 22
USB Flash Drives ....................... 255, 308, 338
USB Ports ................................................... 235
Using the Smart Entr y with Push Button
Start System ............................................ 169
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 654
Vehicle Stability Assist (VSA ®).................. 469
Off Button............................................... 470
Off Indicator.............................................. 92
System Indicator ........................................ 92
19 INSIGHT HMIN-31TXM6000.book 671 ページ ２０１８年４月２０日　金曜日　午後４時２２分
