HONDA INSIGHT 2021 Owner's Manual (in English)

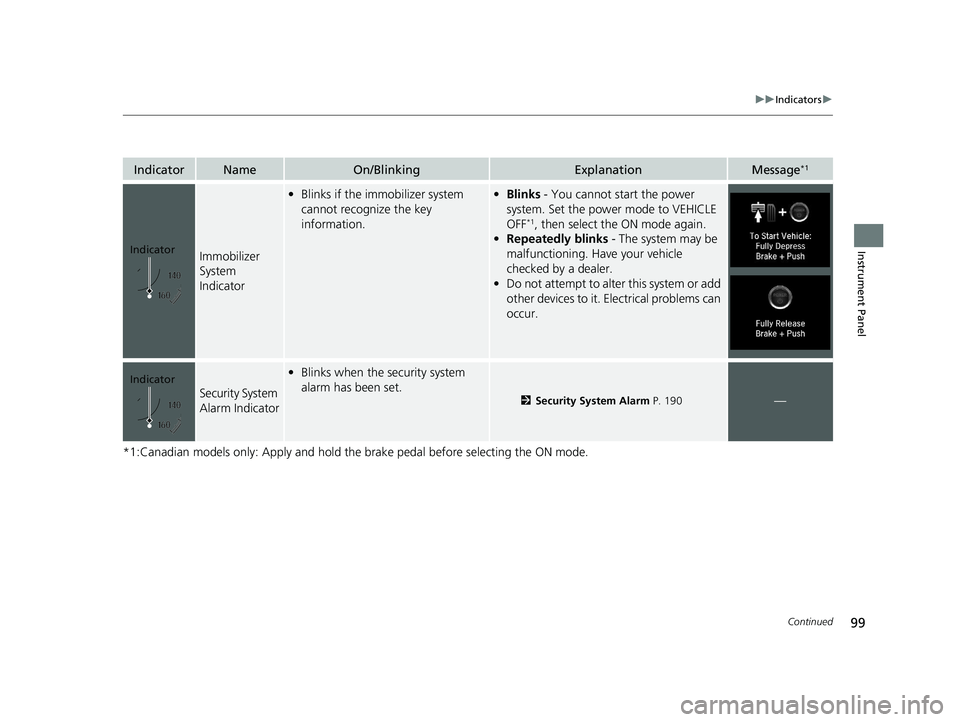

99
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage*1
Immobilizer
System
Indicator
•Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF
*1, then select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
Security System
Alarm Indicator
•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 190—
Indicator
Indicator
21 INSIGHT-31TXM6200.book 99 ページ ２０２０年２月５日　水曜日　午前１０時０分

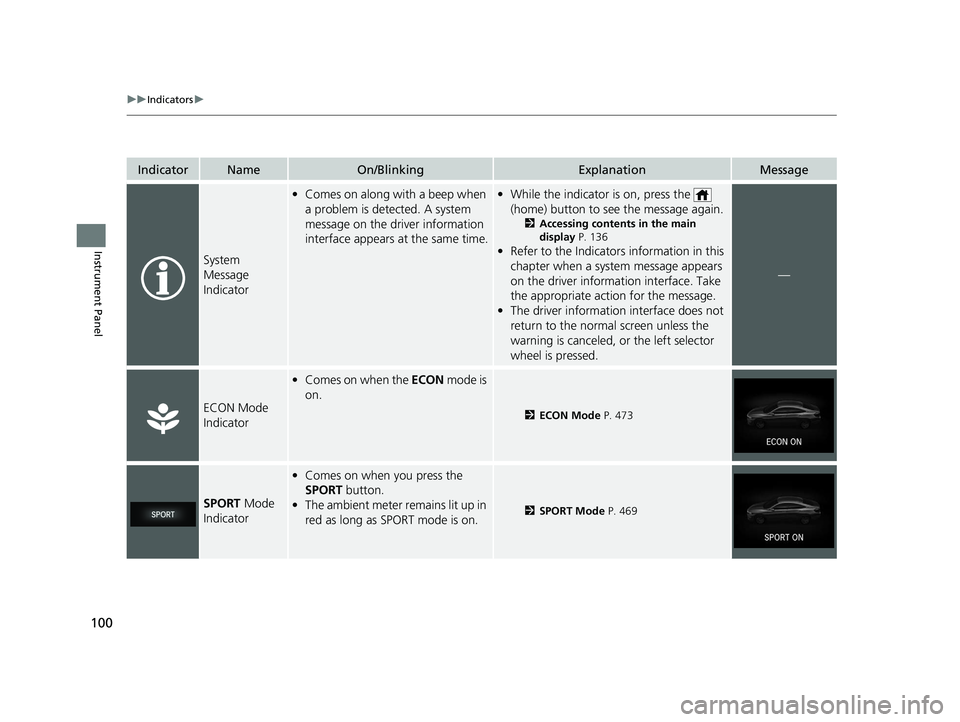

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
•Comes on along with a beep when
a problem is detected. A system
message on the dr iver information
interface appears at the same time.• While the indicator is on, press the
(home) button to see the message again.
2 Accessing contents in the main
display P. 136
•Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
• The driver informatio n interface does not
return to the normal screen unless the
warning is canceled, or the left selector
wheel is pressed.
—
ECON Mode
Indicator
• Comes on when the ECON mode is
on.
2 ECON Mode P. 473
SPORT Mode
Indicator
• Comes on when you press the
SPORT button.
• The ambient meter remains lit up in
red as long as SPORT mode is on.
2 SPORT Mode P. 469
21 INSIGHT-31TXM6200.book 100 ページ ２０２０年２月５日　水曜日　午前１０時０分

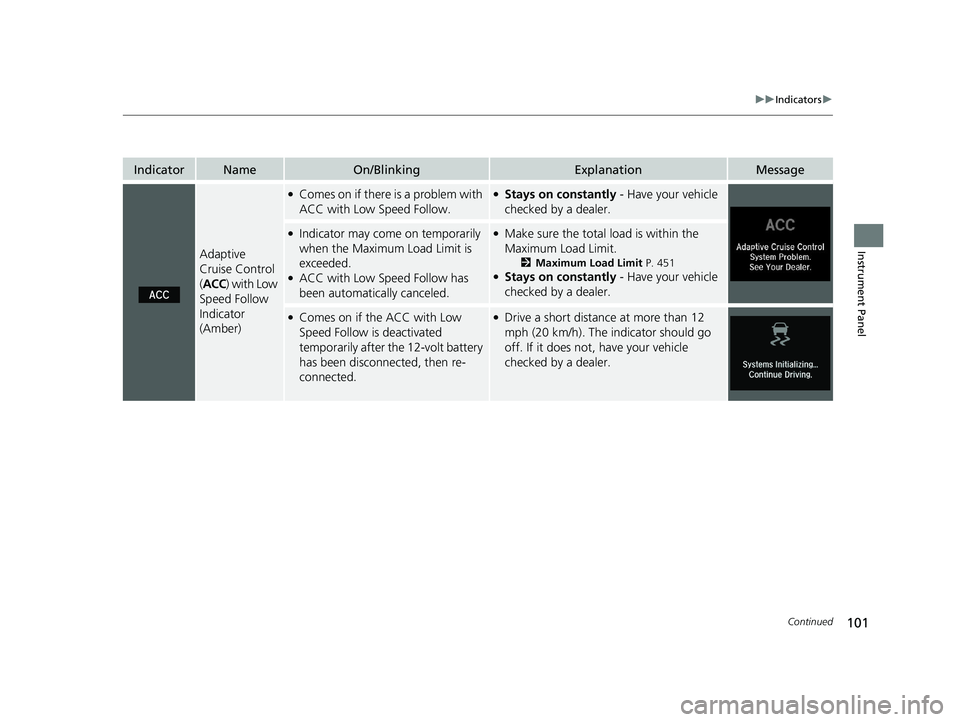

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise Control
(ACC ) with Low
Speed Follow
Indicator
(Amber)
●Comes on if there is a problem with
ACC with Low Speed Follow.●Stays on constantly - Have your vehicle
checked by a dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●ACC with Low Speed Follow has
been automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 451●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after th e 12-volt battery
has been disconnected, then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
21 INSIGHT-31TXM6200.book 101 ページ ２０２０年２月５日　水曜日　午前１０時０分

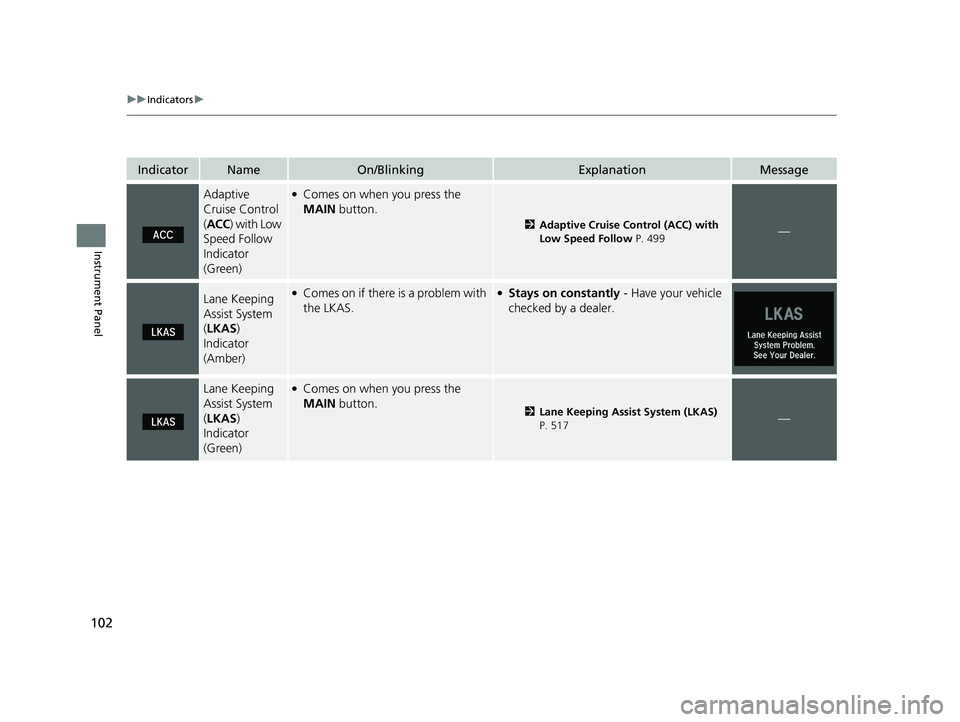

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise Control
(ACC ) with Low
Speed Follow
Indicator
(Green)●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 499—
Lane Keeping
Assist System
(LKAS )
Indicator
(Amber)●Comes on if there is a problem with
the LKAS.●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 517—
21 INSIGHT-31TXM6200.book 102 ページ ２０２０年２月５日　水曜日　午前１０時０分

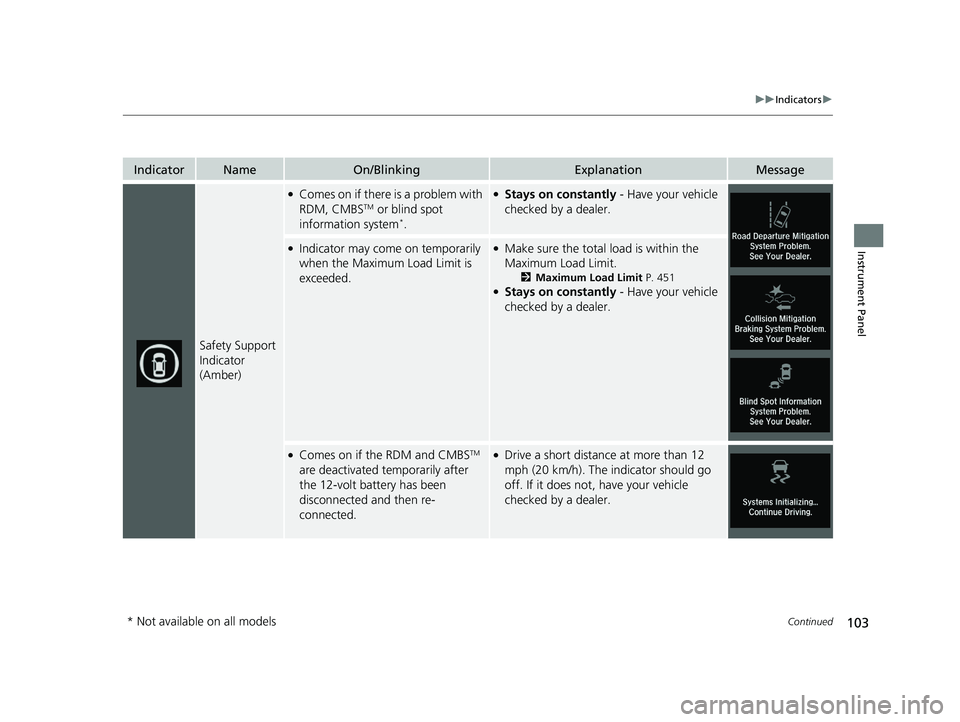

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on if there is a problem with
RDM, CMBSTM or blind spot
information system*.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 451●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM and CMBSTM
are deactivated temporarily after
the 12-volt battery has been
disconnected and then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
21 INSIGHT-31TXM6200.book 103 ページ ２０２０年２月５日　水曜日　午前１０時０分

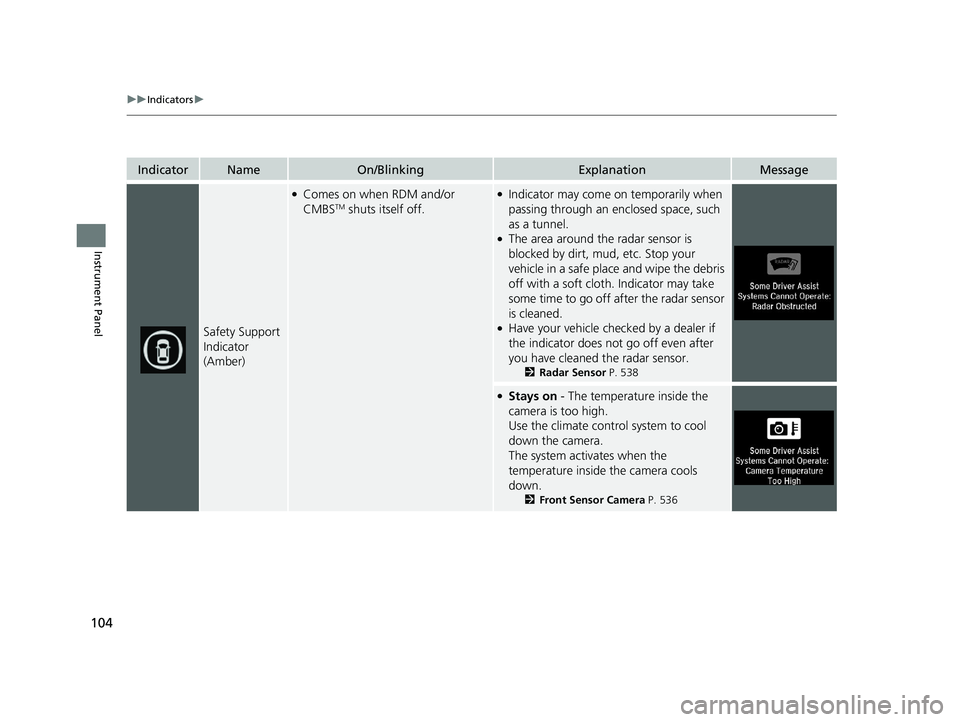

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on when RDM and/or
CMBSTM shuts itself off.
●Indicator may come on temporarily when
passing through an enclosed space, such
as a tunnel.
●The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth. Indicator may take
some time to go off after the radar sensor
is cleaned.
●Have your vehicle checked by a dealer if
the indicator does not go off even after
you have cleaned the radar sensor.
2Radar Sensor P. 538
●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 536
21 INSIGHT-31TXM6200.book 104 ページ ２０２０年２月５日　水曜日　午前１０時０分

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
●Comes on when RDM and/or
CMBSTM shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned the
area around the camera.
2 Front Sensor Camera P. 536
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.
●Comes on while driving - Something
may be interfering wi th the Blind spot
information System sensor. Check the
vicinity of the Blind spot information
System sensor and re move any obstacles.
2Blind spot information System*
P. 483
Models with blind spot information
system
* Not available on all models
21 INSIGHT-31TXM6200.book 105 ページ ２０２０年２月５日　水曜日　午前１０時０分

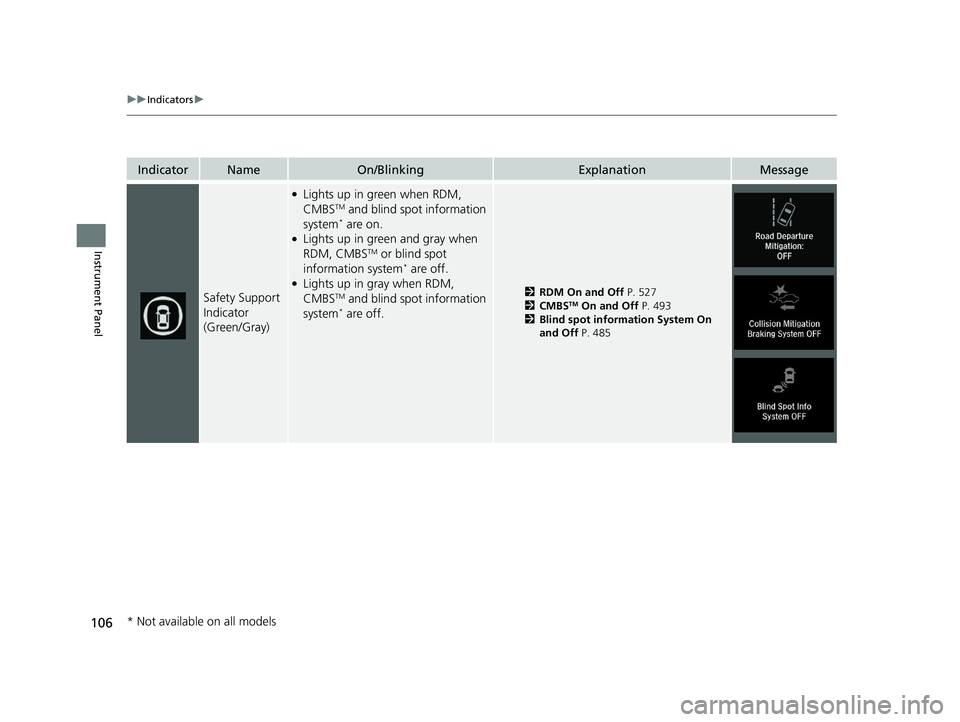

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Green/Gray)
●Lights up in green when RDM,
CMBSTM and blind spot information
system* are on.●Lights up in green and gray when
RDM, CMBSTM or blind spot
information system* are off.●Lights up in gray when RDM,
CMBSTM and blind spot information
system* are off.
2 RDM On and Off P. 527
2 CMBSTM On and Off P. 493
2 Blind spot information System On
and Off P. 485
* Not available on all models
21 INSIGHT-31TXM6200.book 106 ページ ２０２０年２月５日　水曜日　午前１０時０分

107

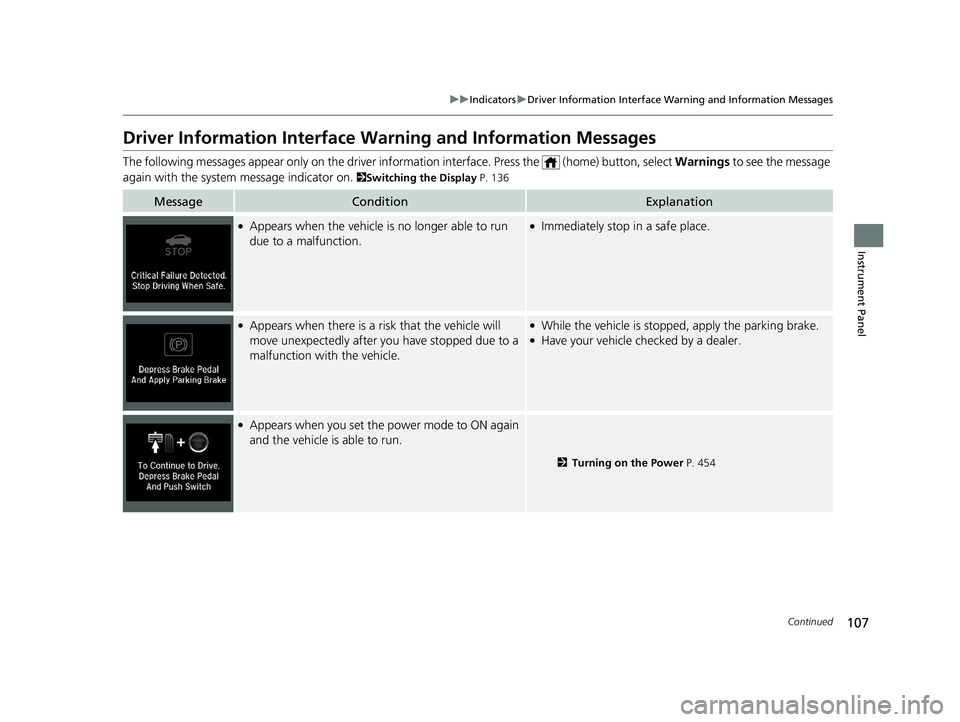

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings to see the message
again with the system message indicator on.
2 Switching the Display P. 136
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a ri sk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stoppe d, apply the parking brake.●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2Turning on the Power P. 454
21 INSIGHT-31TXM6200.book 107 ページ ２０２０年２月５日　水曜日　午前１０時０分

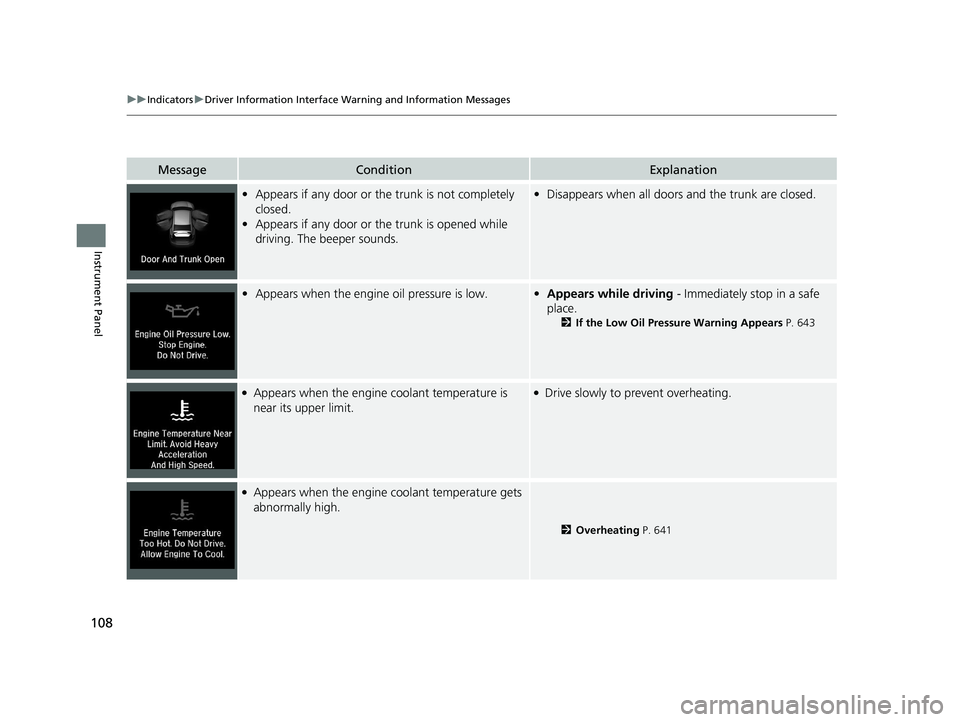

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or th e trunk is not completely
closed.
• Appears if any door or th e trunk is opened while
driving. The beeper sounds.• Disappears when all doors and the trunk are closed.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 643
●Appears when the engine coolant temperature is
near its upper limit.●Drive slowly to prevent overheating.
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 641
21 INSIGHT-31TXM6200.book 108 ページ ２０２０年２月５日　水曜日　午前１０時０分
