HONDA INSIGHT 2021 Owner's Manual (in English)

129
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.
●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 538
●Appears if the temperature inside the front sensor
camera is too high and the ACC with Low Speed
Follow, LKAS, traffic sign recognition system and
auto high-beam cannot be activated.●Use the climate control sy stem to cool down the
camera.
●Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 536
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera.
2 Front Sensor Camera P. 536
21 INSIGHT-31TXM6200.book 129 ページ ２０２０年２月５日　水曜日　午前１０時０分

130
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

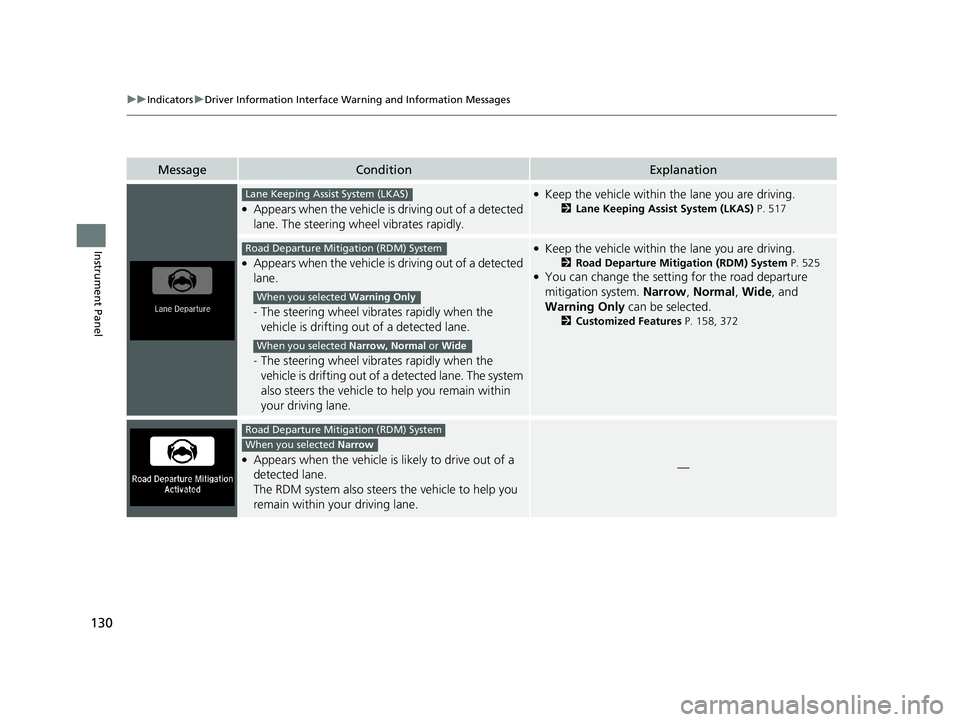

●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 517
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 525●You can change the setting for the road departure
mitigation system. Narrow, Normal , Wide , and
Warning Only can be selected.
2Customized Features P. 158, 372
●Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
21 INSIGHT-31TXM6200.book 130 ページ ２０２０年２月５日　水曜日　午前１０時０分

131
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

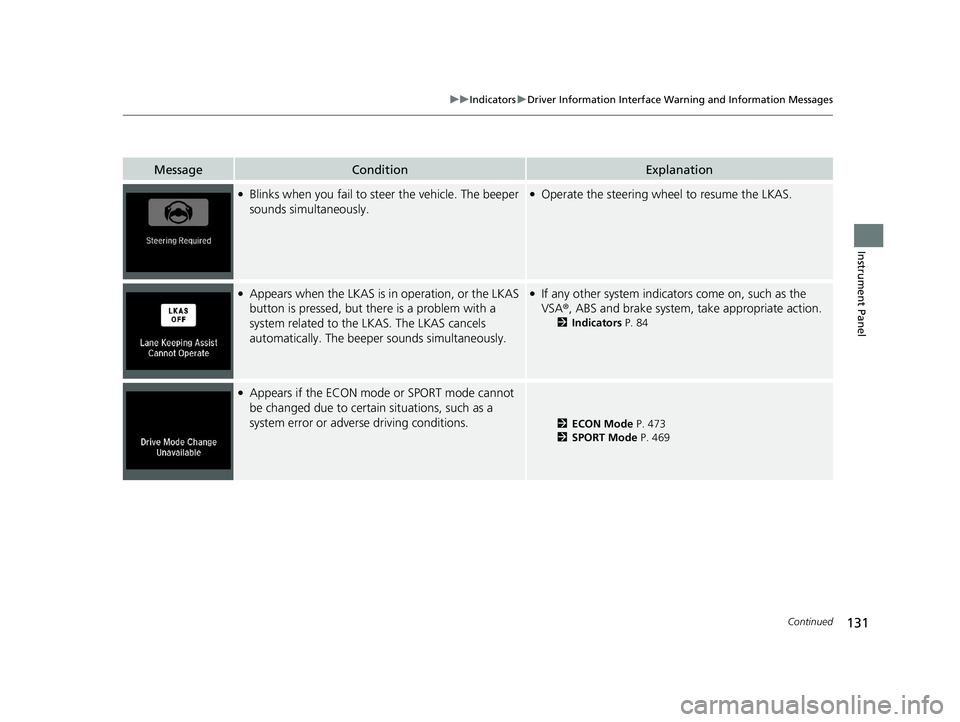

●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.
2Indicators P. 84
●Appears if the ECON mode or SPORT mode cannot
be changed due to certain situations, such as a
system error or adverse driving conditions.
2ECON Mode P. 473
2 SPORT Mode P. 469
21 INSIGHT-31TXM6200.book 131 ページ ２０２０年２月５日　水曜日　午前１０時０分

132
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

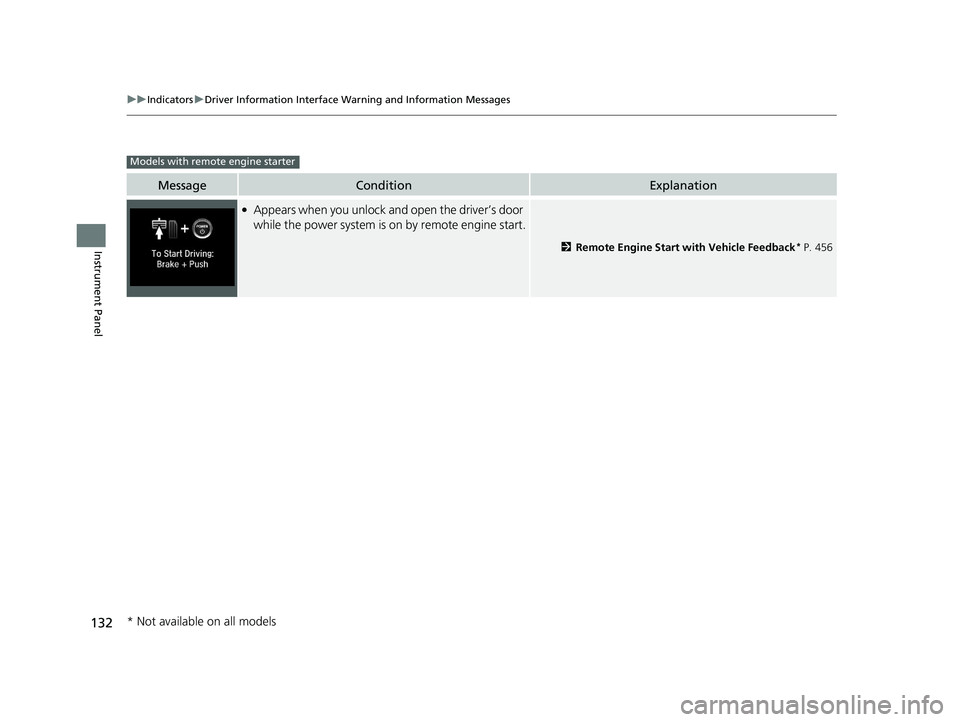

●Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.
2Remote Engine Start with Vehicle Feedback* P. 456
Models with remote engine starter
* Not available on all models
21 INSIGHT-31TXM6200.book 132 ページ ２０２０年２月５日　水曜日　午前１０時０分

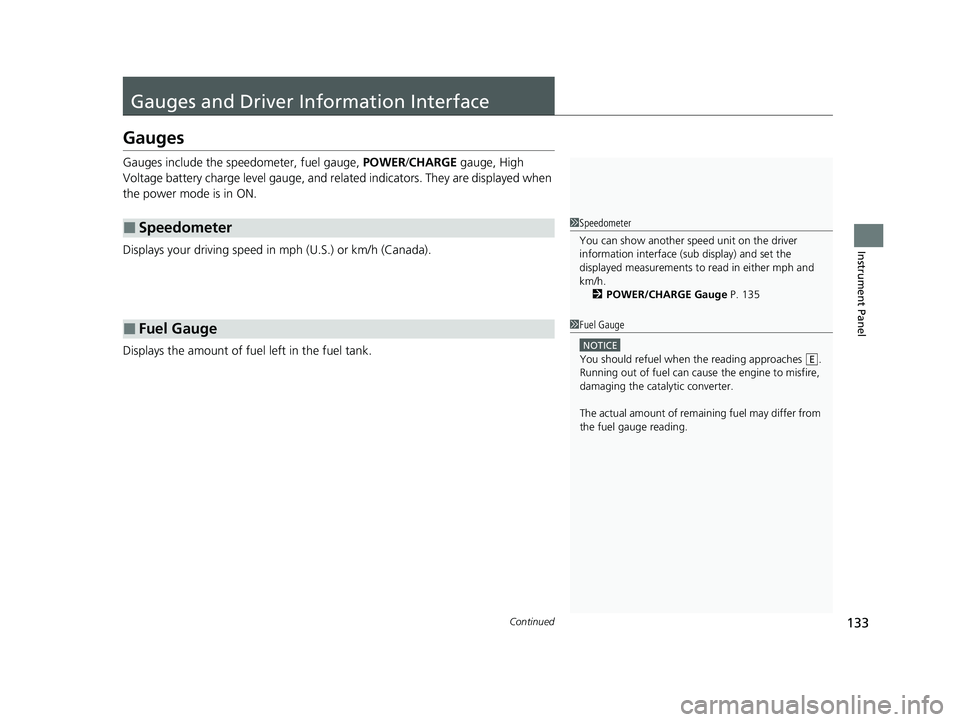

133Continued
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, High
Voltage battery charge level gauge, and re lated indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Fuel Gauge
1 Speedometer
You can show another speed unit on the driver
information interface (s ub display) and set the
displayed measurements to read in either mph and
km/h. 2 POWER/CHARGE Gauge P. 135
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
21 INSIGHT-31TXM6200.book 133 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuGauges and Driver Information Interface uGauges
134
Instrument Panel

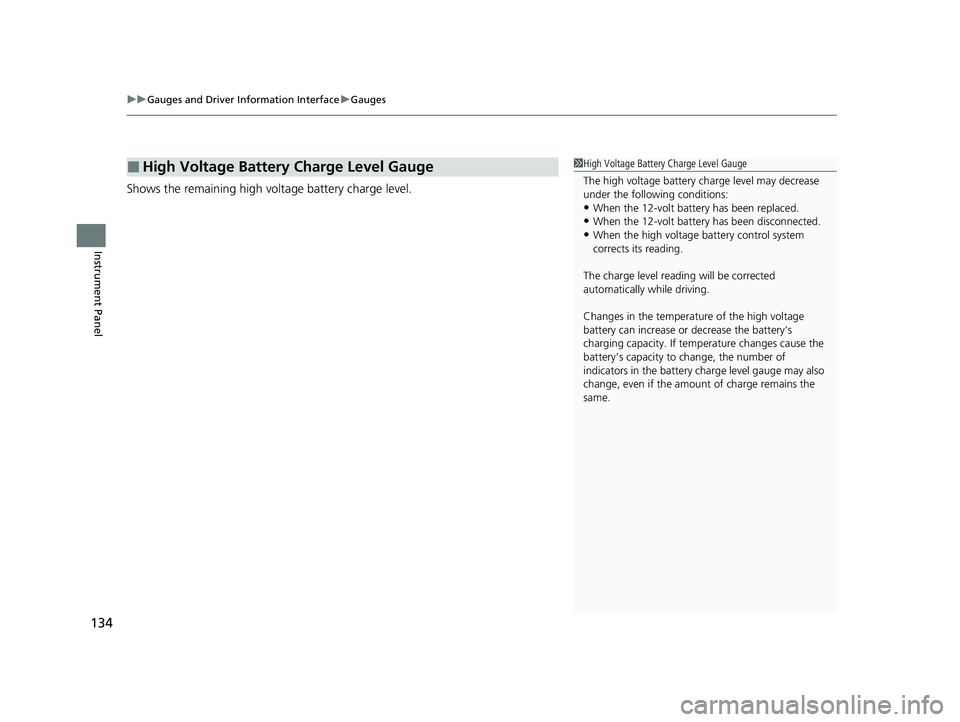

Shows the remaining high voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The high voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the high voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the high voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.
21 INSIGHT-31TXM6200.book 134 ページ ２０２０年２月５日　水曜日　午前１０時０分

135
uuGauges and Driver Information Interface uGauges
Instrument Panel
■Electric motor
The power level supplied to the electric motor
is displayed by th e readings on the POWER
side.
■Battery charge in progress
The power level supplied to the high voltage
battery is displayed by readings on the
CHARGE side.
■Speed Unit
Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.
Select the Gauge Only screen.
2Accessing contents in the main display
P. 136
Press and hold the left selector wheel when
you select the Gauge Only on the driver
information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.
■POWER/CHARGE Gauge
21 INSIGHT-31TXM6200.book 135 ページ ２０２０年２月５日　水曜日　午前１０時０分

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

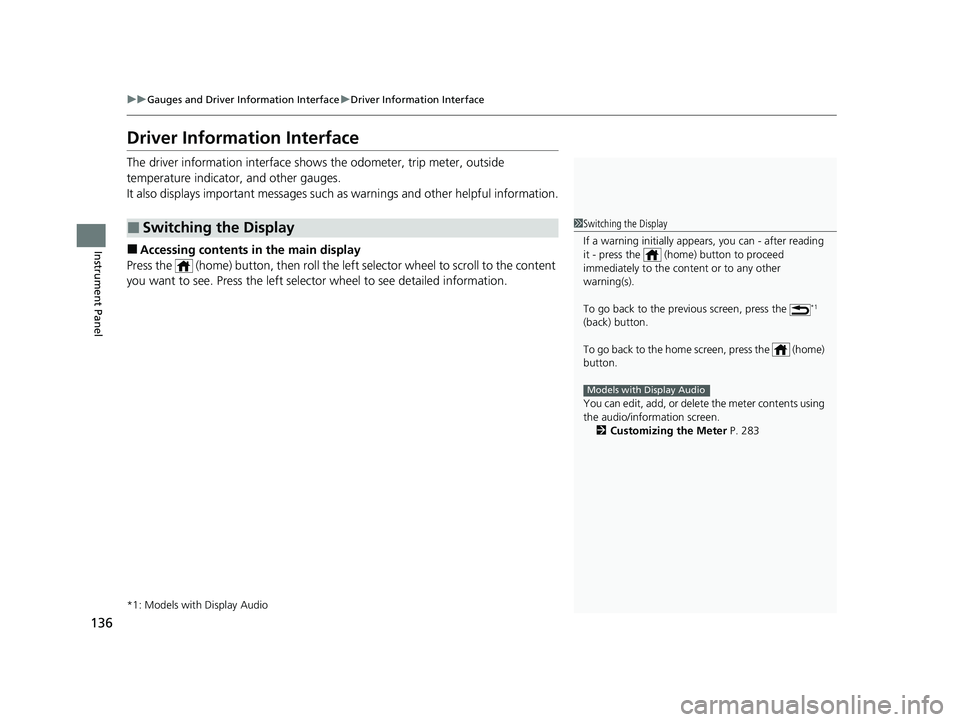

Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Accessing contents in the main display
Press the (home) button, then roll the le ft selector wheel to scroll to the content
you want to see. Press the left select or wheel to see detailed information.
*1: Models with Display Audio
■Switching the Display1Switching the Display
If a warning initially appear s, you can - after reading
it - press the (hom e) button to proceed
immediately to the cont ent or to any other
warning(s).
To go back to the previous screen, press the
*1
(back) button.
To go back to the home screen, press the (home)
button.
You can edit, add, or delete the meter contents using
the audio/information screen. 2 Customizing the Meter P. 283
Models with Display Audio
21 INSIGHT-31TXM6200.book 136 ページ ２０２０年２月５日　水曜日　午前１０時０分

137
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

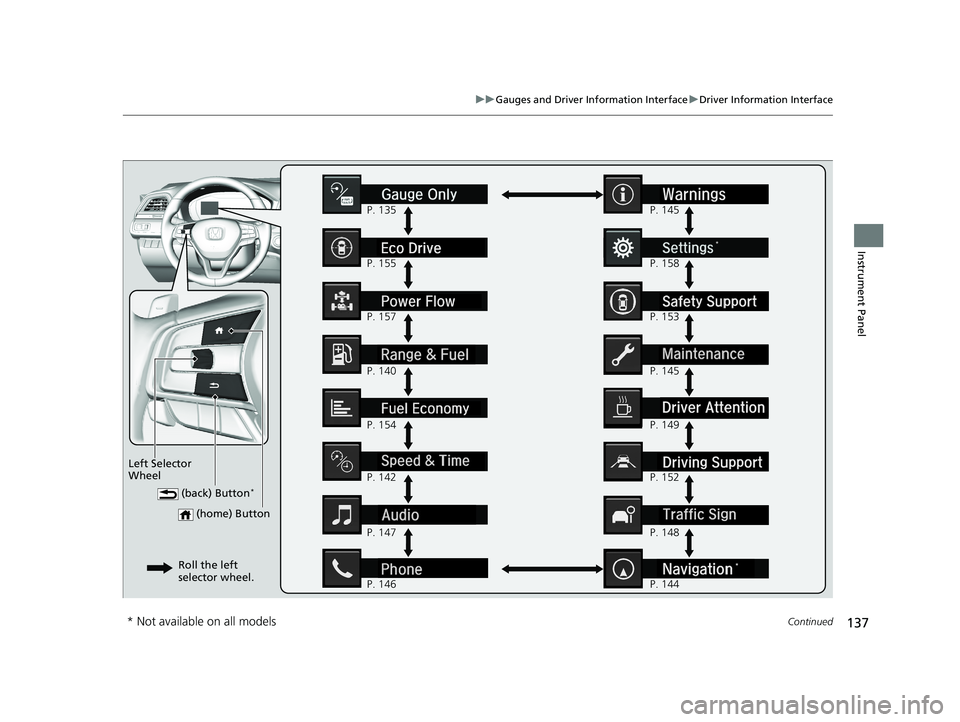

(home) Button
P. 135
P. 140
P. 142
P. 144 P. 148
P. 146
P. 147 P. 153
P. 145 P. 145
Left Selector
Wheel Roll the left
selector wheel.
P. 152 P. 149
*
*
P. 155
P. 157
P. 154
P. 158
(back) Button
*
* Not available on all models
21 INSIGHT-31TXM6200.book 137 ページ ２０２０年２月５日　水曜日　午前１０時０分

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

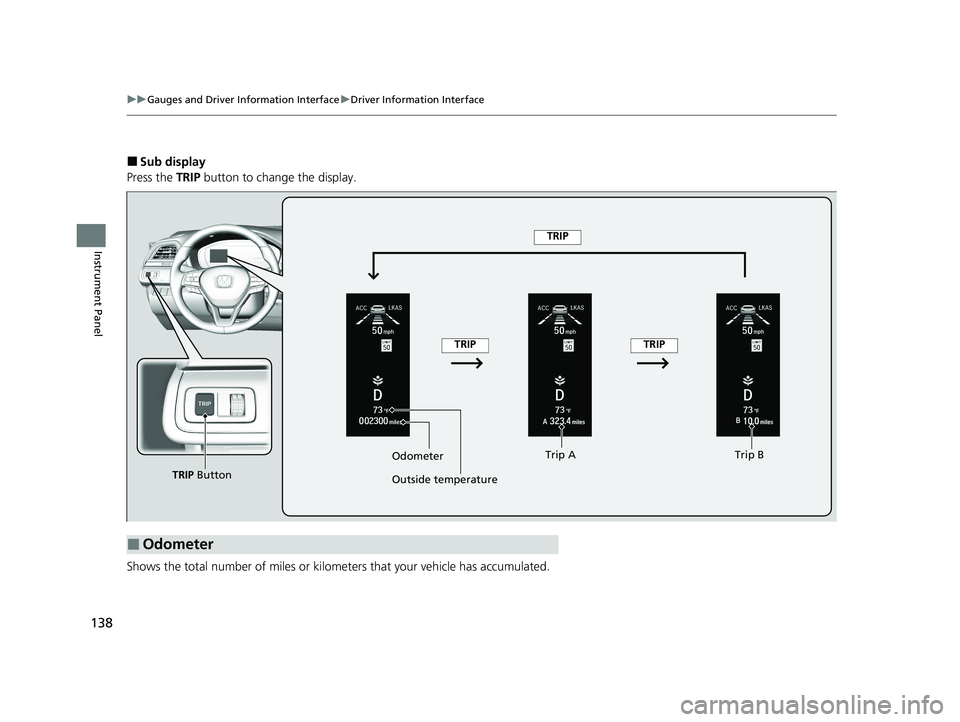

■Sub display
Press the TRIP button to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Odometer
Odometer
Outside temperatureTrip A Trip B
TRIP Button
TRIP
TRIPTRIP
