HONDA INSIGHT 2021 Owner's Manual (in English)

Continued139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP Button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.
2 Customized Features* P. 158, 372
■Trip Meter
■Outside Temperature
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP Button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
* Not available on all models
21 INSIGHT-31TXM6200.book 139 ページ ２０２０年２月５日　水曜日　午前１０時０分

140
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

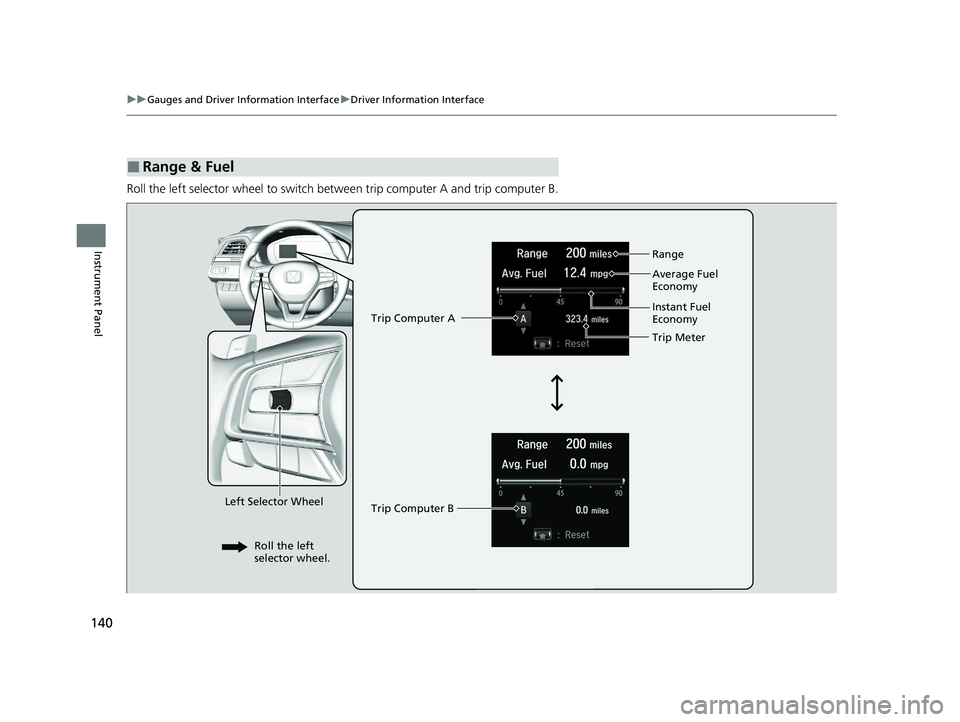

Roll the left selector wheel to switch between trip computer A and trip computer B.
■Range & Fuel
Left Selector Wheel Trip Computer A
Trip Computer B
Trip Meter Range
Average Fuel
Economy
Instant Fuel
Economy
Roll the left
selector wheel.
21 INSIGHT-31TXM6200.book 140 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued141
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
u The trip meter is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
Resetting the trip meter in the Range & Fuel, the trip
meter in the sub display resets at the same time.
1 Average fuel economy (Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Customized Features
* P. 158, 372
* Not available on all models
21 INSIGHT-31TXM6200.book 141 ページ ２０２０年２月５日　水曜日　午前１０時０分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Roll the left selector wheel to switch between trip computer A and trip computer B.
■Speed & Time
Trip Computer A
Trip Computer B Trip Meter Average Speed
Elapsed Time
Left Selector Wheel
Roll the left
selector wheel.
21 INSIGHT-31TXM6200.book 142 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued143
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

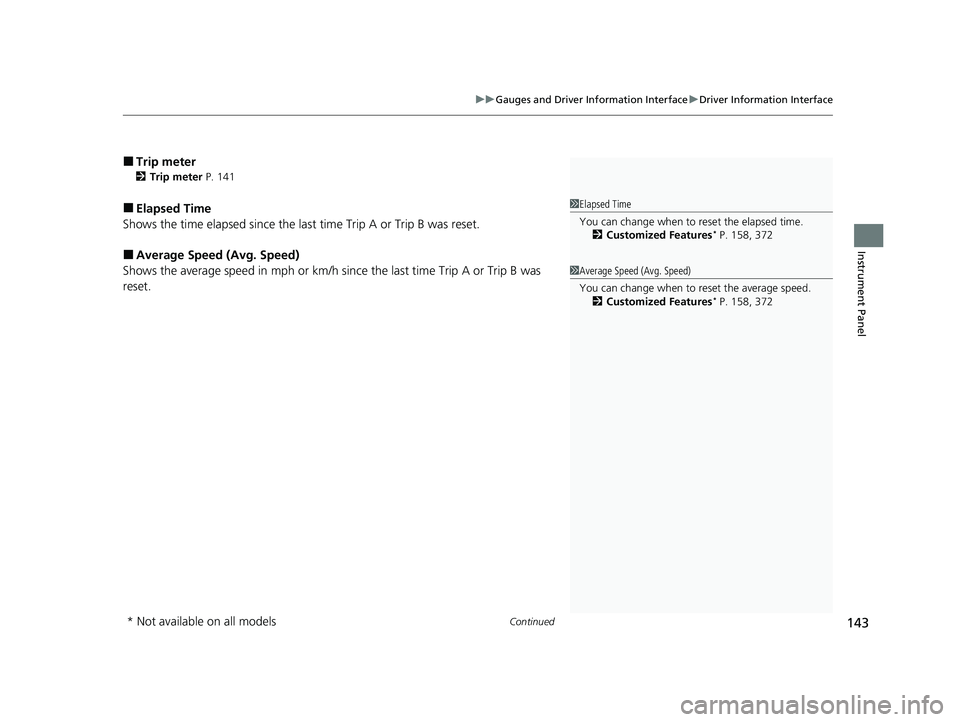

■Trip meter
2 Trip meter P. 141
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed (Avg. Speed)
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset.
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features
* P. 158, 372
1Average Speed (Avg. Speed)
You can change when to reset the average speed.
2 Customized Features
* P. 158, 372
* Not available on all models
21 INSIGHT-31TXM6200.book 143 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuGauges and Driver Information Interface uDriver Information Interface
144
Instrument Panel

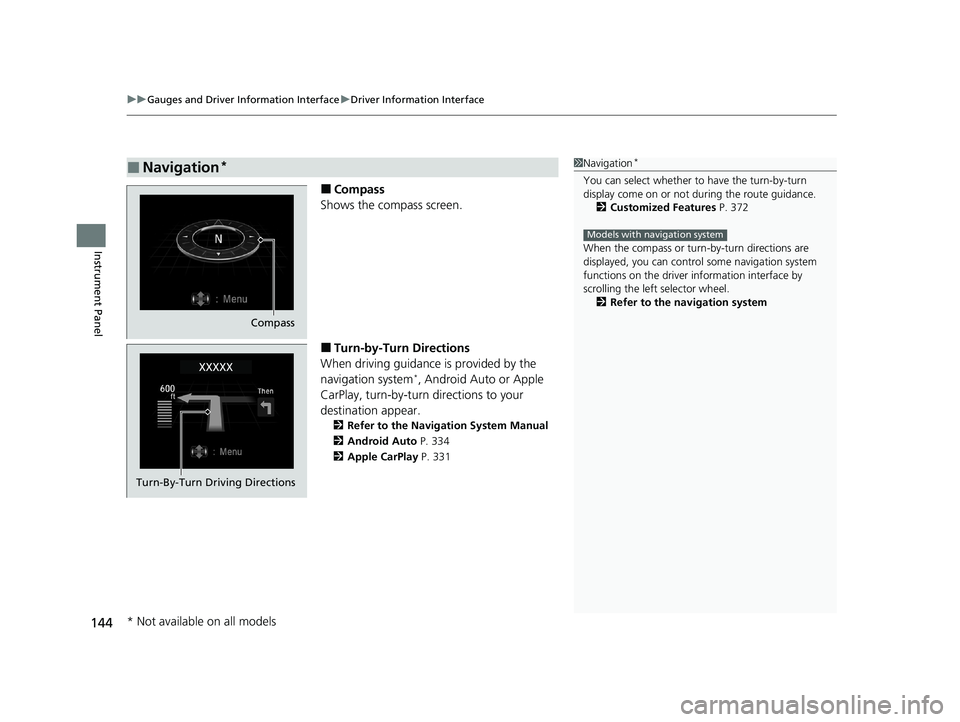

■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the
navigation system
*, Android Auto or Apple
CarPlay, turn-by-turn directions to your
destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 334
2 Apple CarPlay P. 331
■Navigation*1Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 372
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
scrolling the left selector wheel.
2 Refer to the navigation system
Models with navigation system
Compass
Turn-By-Turn Driving Directions
* Not available on all models
21 INSIGHT-31TXM6200.book 144 ページ ２０２０年２月５日　水曜日　午前１０時０分

Continued145
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

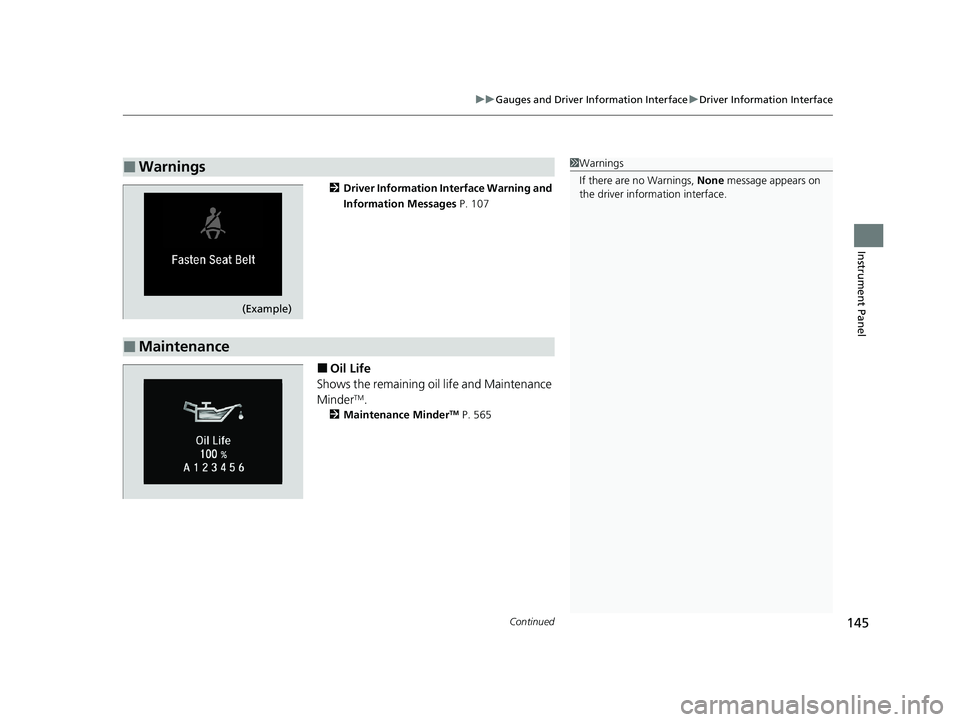

2 Driver Information Interface Warning and
Information Messages P. 107
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 565
■Warnings1Warnings
If there are no Warnings, None message appears on
the driver information interface.
(Example)
■Maintenance
21 INSIGHT-31TXM6200.book 145 ページ ２０２０年２月５日　水曜日　午前１０時０分

146
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

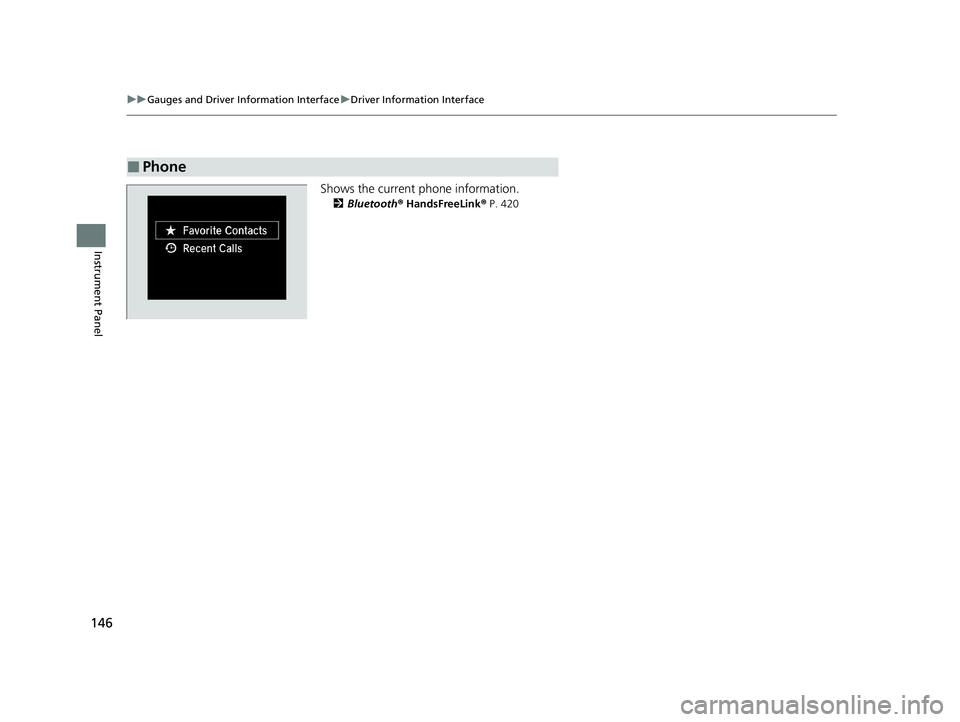

Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 420
■Phone
21 INSIGHT-31TXM6200.book 146 ページ ２０２０年２月５日　水曜日　午前１０時０分

147
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

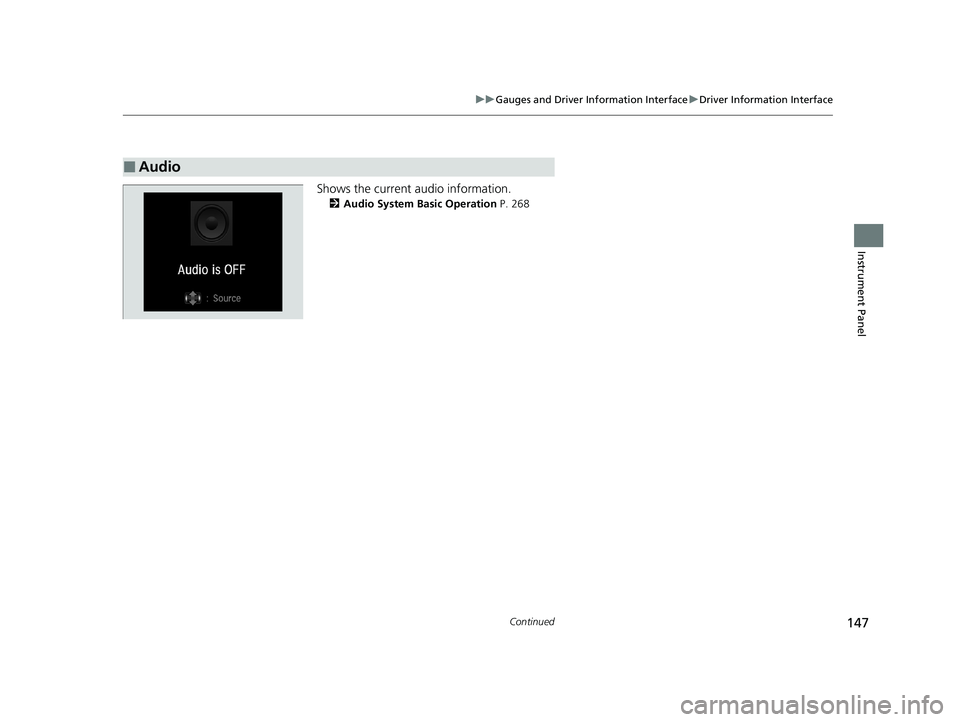

Shows the current audio information.
2 Audio System Basic Operation P. 268
■Audio
21 INSIGHT-31TXM6200.book 147 ページ ２０２０年２月５日　水曜日　午前１０時０分

148
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

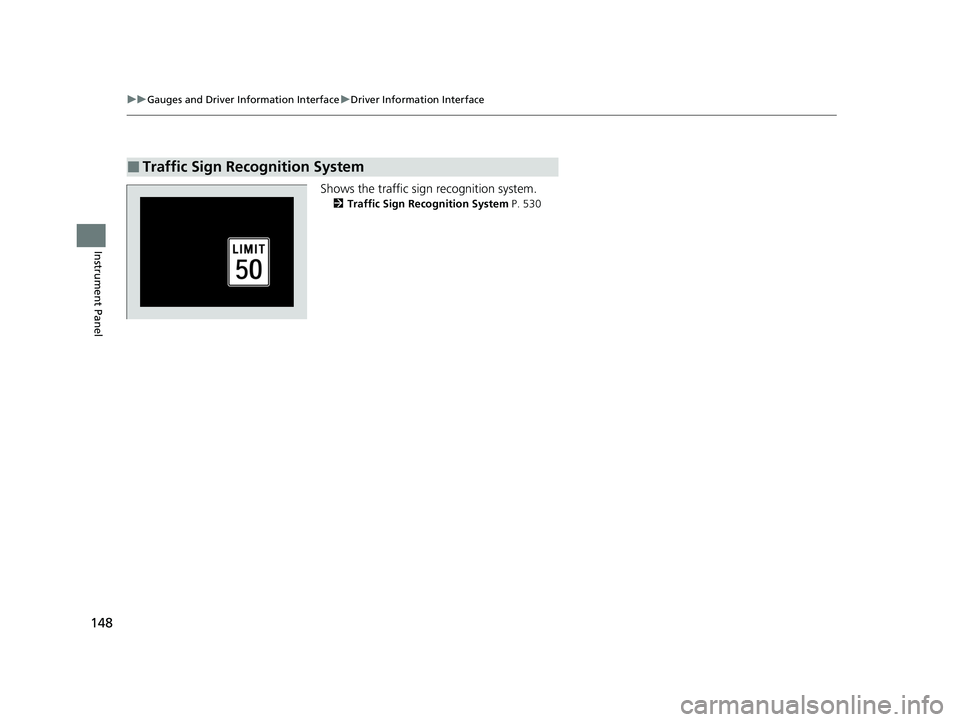

Shows the traffic sign recognition system.
2 Traffic Sign Recognition System P. 530
■Traffic Sign Recognition System
21 INSIGHT-31TXM6200.book 148 ページ ２０２０年２月５日　水曜日　午前１０時０分
