HONDA INSIGHT 2021 Owner's Manual (in English)

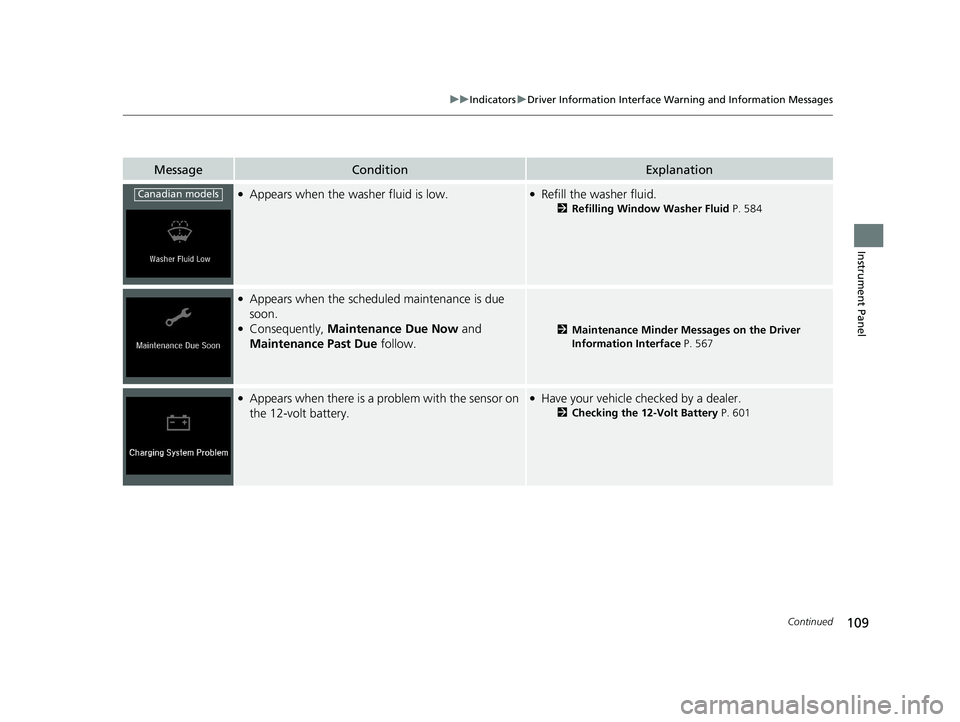

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 584
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 567
●Appears when there is a pr oblem with the sensor on
the 12-volt battery.●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 601
Canadian models
21 INSIGHT-31TXM6200.book 109 ページ ２０２０年２月５日　水曜日　午前１０時０分

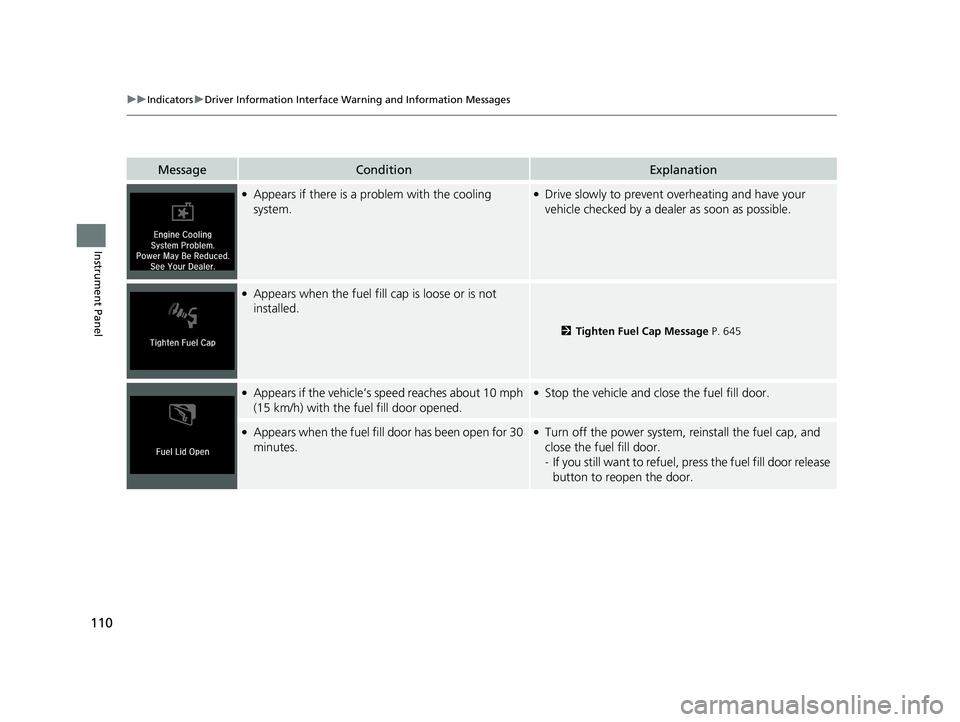

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling
system.●Drive slowly to prevent ov erheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when the fuel fill cap is loose or is not
installed.
2Tighten Fuel Cap Message P. 645
●Appears if the vehicle’s speed reaches about 10 mph
(15 km/h) with the fuel fill door opened.●Stop the vehicle and close the fuel fill door.
●Appears when the fuel fill door has been open for 30
minutes.●Turn off the power system, re install the fuel cap, and
close the fuel fill door.
- If you still want to refuel, press the fuel fill door release
button to reopen the door.
21 INSIGHT-31TXM6200.book 110 ページ ２０２０年２月５日　水曜日　午前１０時０分

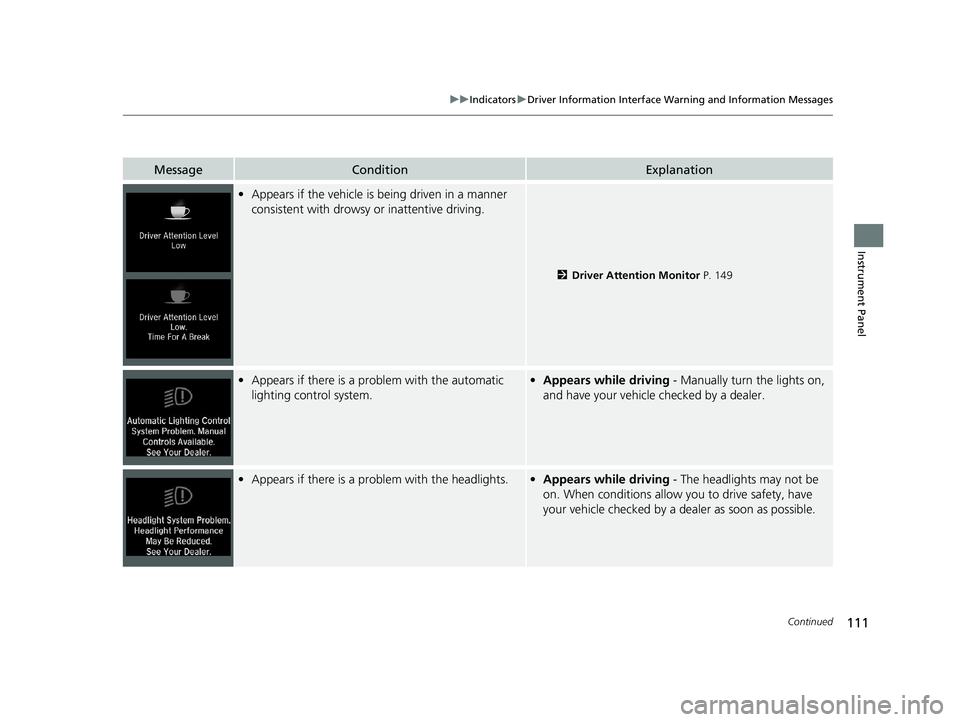

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2 Driver Attention Monitor P. 149
•Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
21 INSIGHT-31TXM6200.book 111 ページ ２０２０年２月５日　水曜日　午前１０時０分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 544
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 544
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 544
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 544
2 Parking Brake P. 539
21 INSIGHT-31TXM6200.book 112 ページ ２０２０年２月５日　水曜日　午前１０時０分

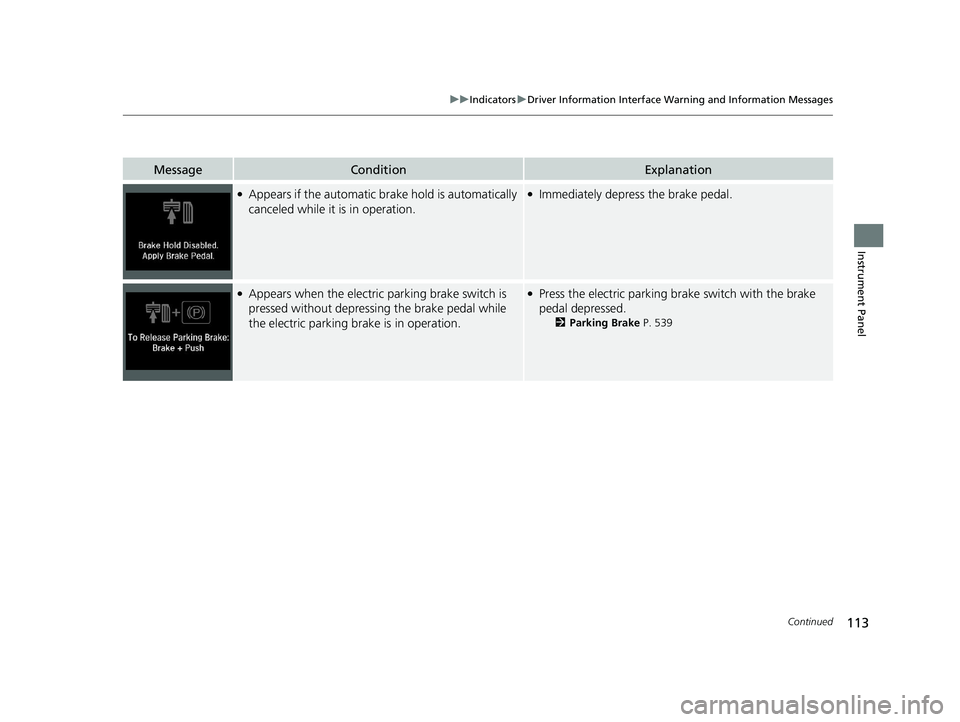

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 539
21 INSIGHT-31TXM6200.book 113 ページ ２０２０年２月５日　水曜日　午前１０時０分

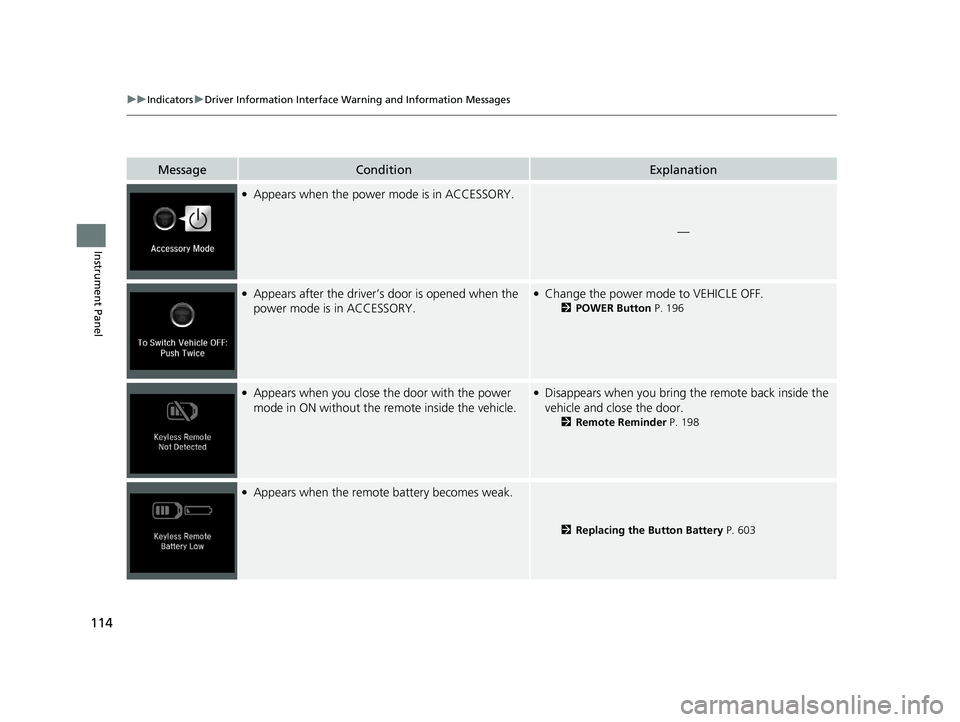

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 196
●Appears when you close th e door with the power
mode in ON without the re mote inside the vehicle.●Disappears when you bring th e remote back inside the
vehicle and close the door.
2 Remote Reminder P. 198
●Appears when the remote battery becomes weak.
2Replacing the Button Battery P. 603
21 INSIGHT-31TXM6200.book 114 ページ ２０２０年２月５日　水曜日　午前１０時０分

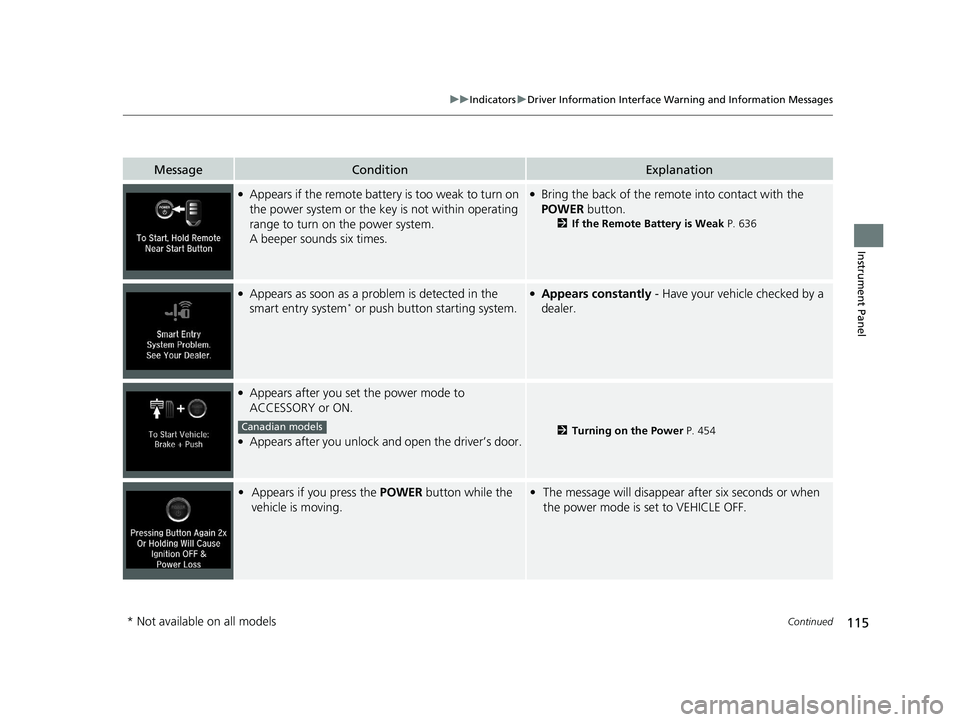

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the remote battery is too weak to turn on
the power system or the key is not within operating
range to turn on the power system.
A beeper sounds six times.●Bring the back of the remote into contact with the
POWER button.
2If the Remote Battery is Weak P. 636
●Appears as soon as a problem is detected in the
smart entry system* or push button starting system.
●Appears constantly - Have your vehicle checked by a
dealer.
●Appears after you set the power mode to
ACCESSORY or ON.
●Appears after you unlock and open the driver’s door.2Turning on the Power P. 454
•Appears if you press the POWER button while the
vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
Canadian models
* Not available on all models
21 INSIGHT-31TXM6200.book 115 ページ ２０２０年２月５日　水曜日　午前１０時０分

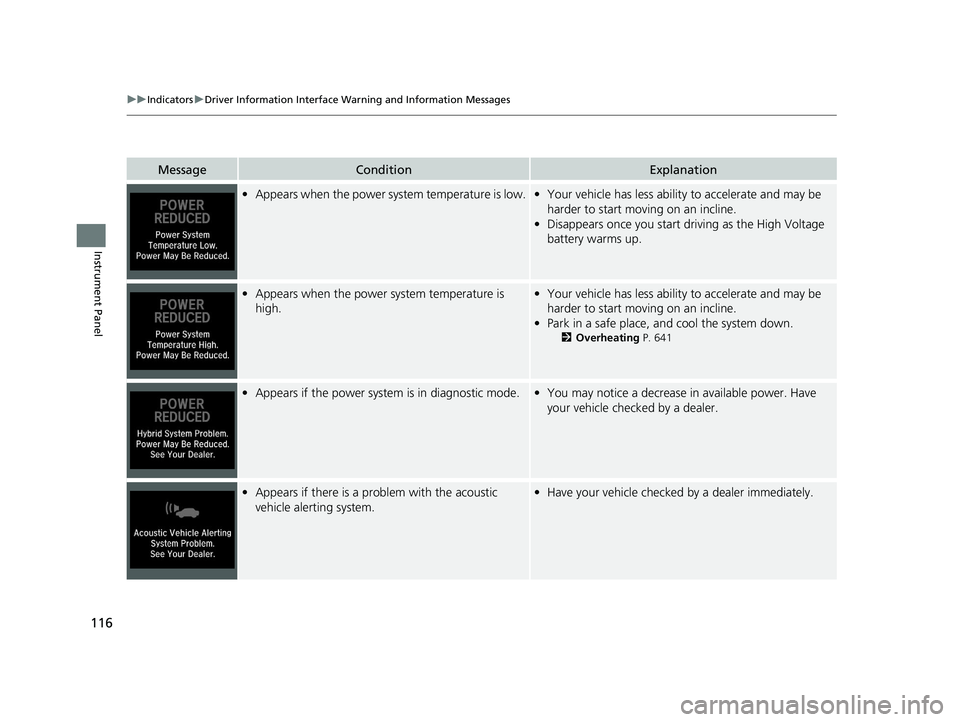

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the power system temperature is low.•Your vehicle has less abilit y to accelerate and may be
harder to start moving on an incline.
• Disappears once you start dr iving as the High Voltage
battery warms up.
• Appears when the power system temperature is
high.•Your vehicle has less abilit y to accelerate and may be
harder to start moving on an incline.
• Park in a safe place, and cool the system down.
2 Overheating P. 641
•Appears if the power system is in diagnostic mode.•You may notice a decrease in available power. Have
your vehicle checked by a dealer.
• Appears if there is a problem with the acoustic
vehicle alerting system.•Have your vehicle checked by a dealer immediately.
21 INSIGHT-31TXM6200.book 116 ページ ２０２０年２月５日　水曜日　午前１０時０分

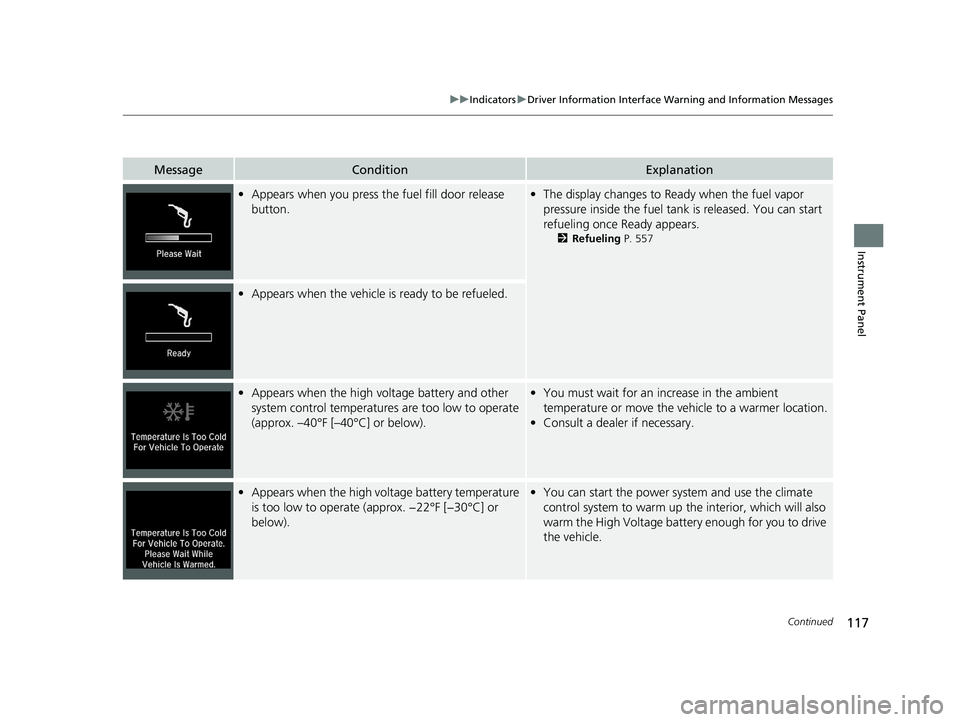

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you press the fuel fill door release
button.• The display changes to Ready when the fuel vapor
pressure inside the fuel tank is released. You can start
refueling once Ready appears.
2 Refueling P. 557
•Appears when the vehicle is ready to be refueled.
•Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –40°F [–40°C] or below).• You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Consult a dealer if necessary.
•Appears when the high voltage battery temperature
is too low to operate (a pprox. −22°F [−30°C] or
below).• You can start the power system and use the climate
control system to warm up the interior, which will also
warm the High Voltage battery enough for you to drive
the vehicle.
21 INSIGHT-31TXM6200.book 117 ページ ２０２０年２月５日　水曜日　午前１０時０分

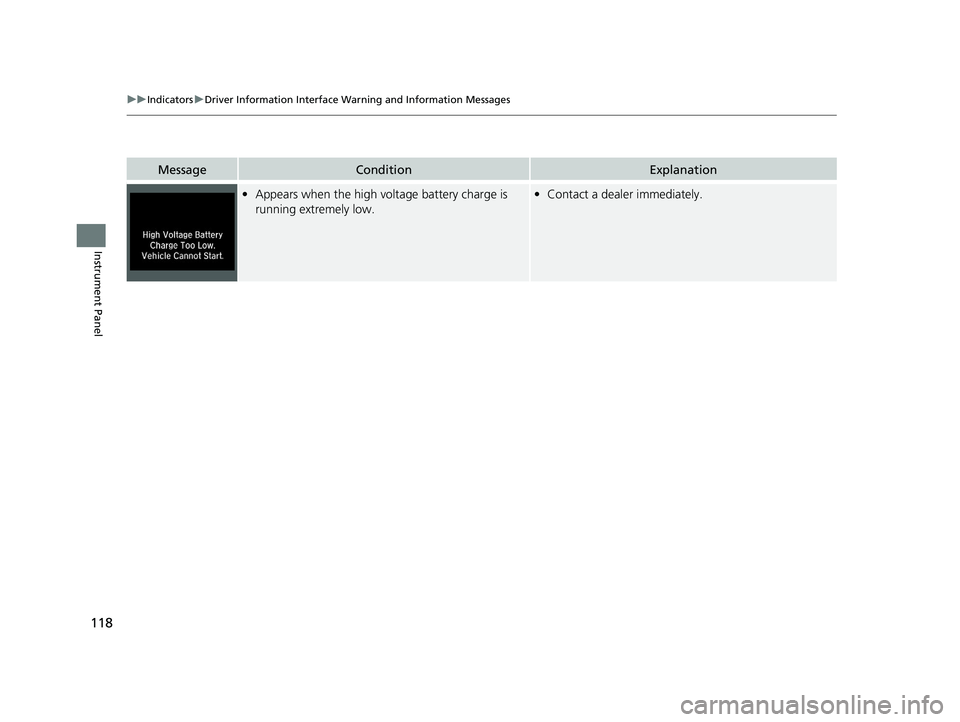

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the high vo ltage battery charge is
running extremely low.• Contact a dealer immediately.
21 INSIGHT-31TXM6200.book 118 ページ ２０２０年２月５日　水曜日　午前１０時０分
