HONDA INTEGRA 1994 4.G Workshop Manual

Headliner
Replacement {cont'd)
5. Remove the .ool trim (moonroof modell.
6. Detach the clips by sliding the headliner forward.
A : Clip locations, 3
HEADLINER
Remove the headliner through the passenger's door
opening.
lnstallation is the reverse ot the removal procedure
NOTE:
a When inserting the headliner through the door
opening. be careful not to fold or bend it. Also,
be careful not to scratch the body
a Check that both sides ot the headliner are secure-
ly attached to the trim and Panels.
a When installing the roof trim, install the joint
toward the rear.
)
HEADLINER
20-102

Seats
Front Seat Removal
NOTE: Take care not to scratch the seat covers andbodY.
1 . Slide the lront seat backward, then remove th6 bohs,
Slide the front seat forward, then romove the seattrack end covers.
CAUTlOltl: When prying wlth E flat tip scr.wddvor,w.ap lt whh protactive tapo to prevont damago,
> i Eolt locltlon.. 2
3. Remove the bolts.
V:Boh locatlong
A V : Bolt, 1
I'
> : 8olt,
@8 x '1.25 mm Iii i.:iiil..i'xst.^. I16:t'ftt
- /)
4.
NOTE: When insralling, use--iliquid thread lock.
Lift the front seat, then disconnect the connector(driver's).
Carefully remove the front seat through the dooropening.
Installation is the reverse of the removal procedure.
CONNECTOR
20-103

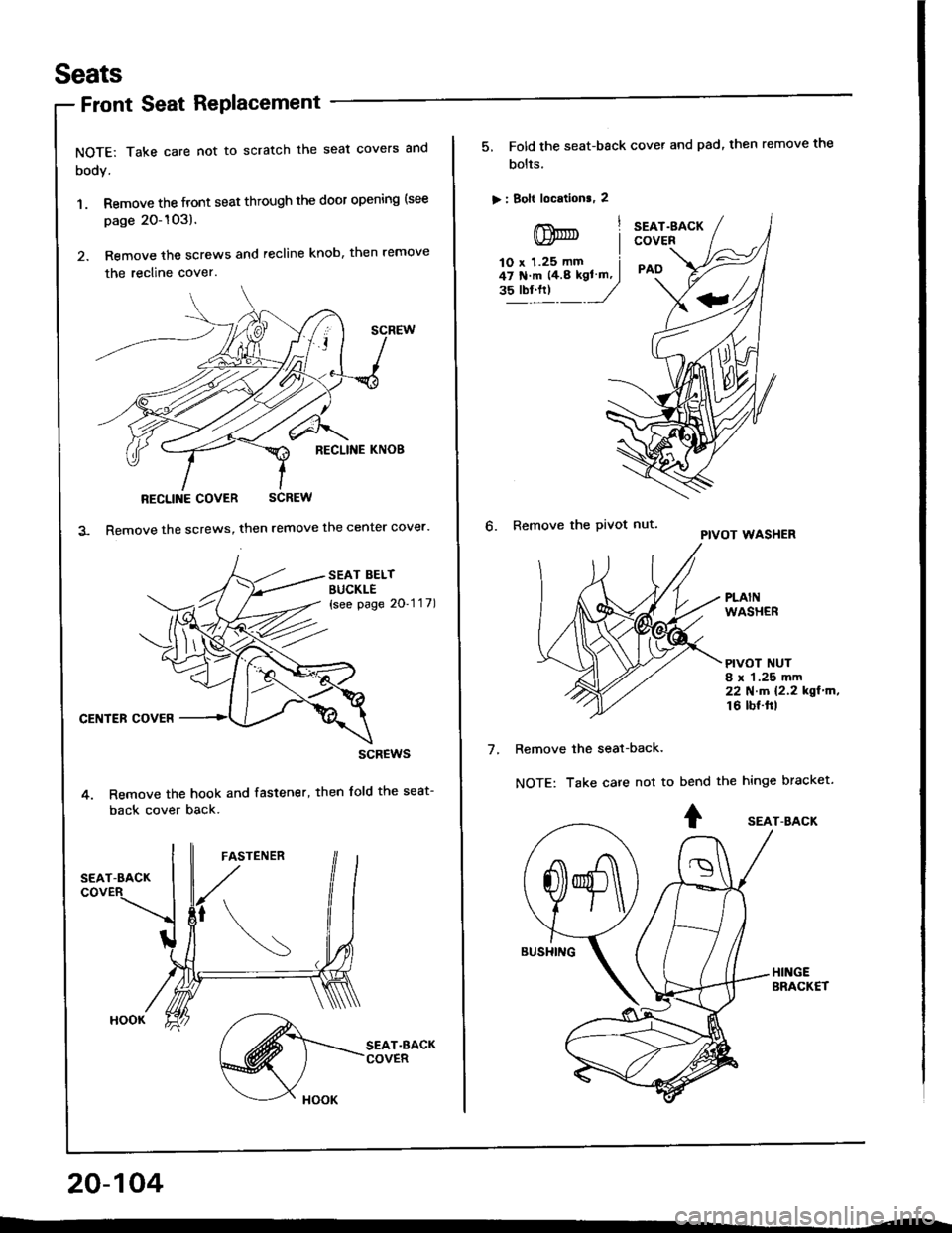

Seats
NOTE: Take care not to scratch the seat covers and
body.
1. Remove the front seat through the door opening (see
page 20-1O3).
2. Remove the screws and recline knob, then remove
the recline cover.
RECLINE COVER SCREW
Remove the screws, then remove the center cover.
SEAT BELTBUCKLE{see page 2O'1 '1 7)
CENTER COVER
scREws
Remove the hook and fastener, then lold the seat-
back cover back.
20-104
Front Seat RePlacement
5, Fold the seat-back cover and pad, then remove the
bolts.
> : Bolt location., 2
lnnrnt Iv)* |lO x 1.25 mm i47 N'm 14.8 kgl ln, I"?"!."t _J
SEAT.gACKCOVER
PAO
6. Remove the Pivot nut.PIVOT WASHER
PLAINWASHER
PIVOT NUT8 r 1.25 mm22Nm12.2kgl'm,16 lbf.ftl
7.Remove the seat-back.
NOTE: Take care not tobend the hinge bracket.
+ sEAr-BAcK

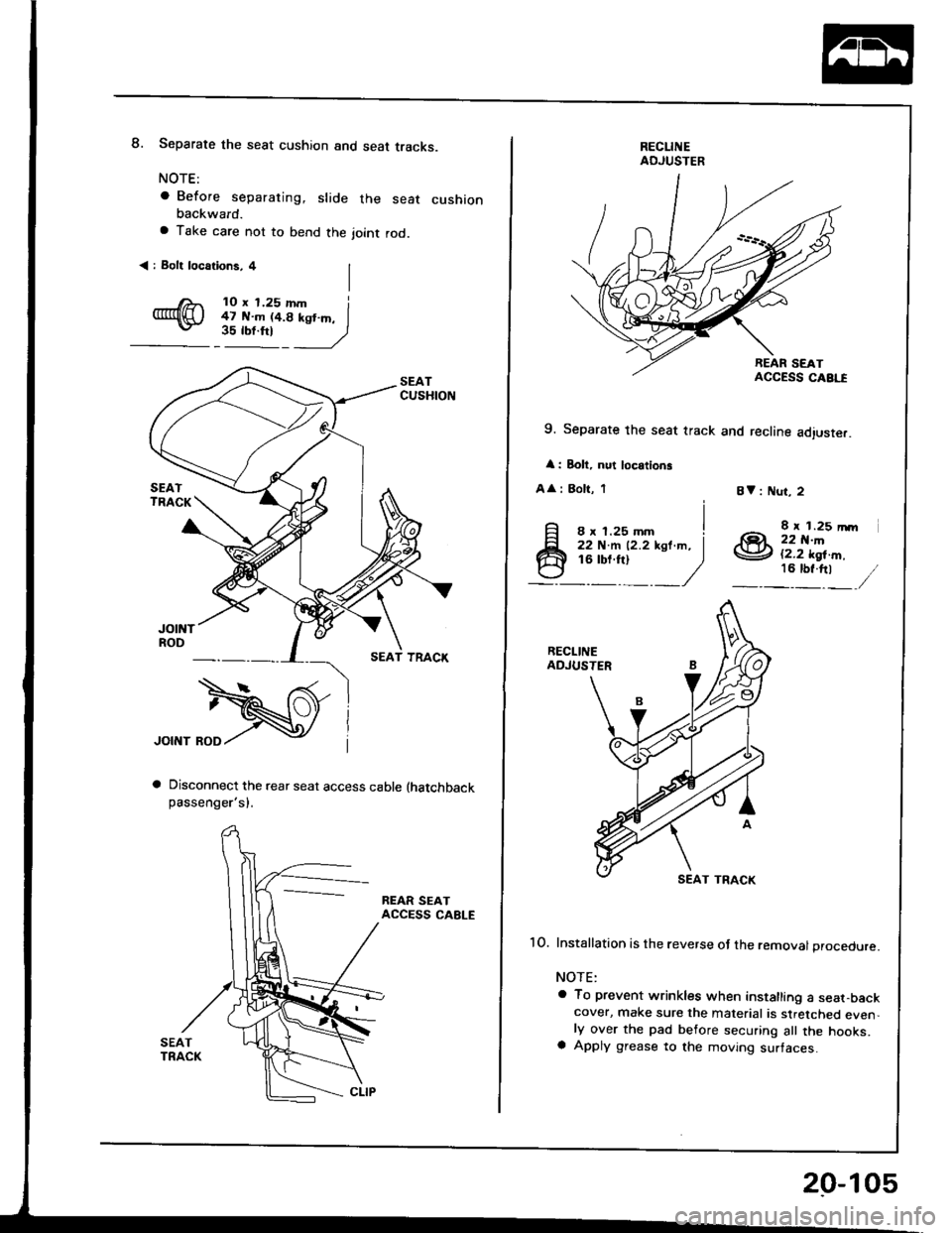

8. Separate the seat cushion and seat tracks.
NOTE:
a Before separating, slide the seat cushionbackward.
a Take care not to bend the joint rod.
< : Bolt locations, 4
JOINT BOD
Disconnect the rear seat access cable (hatchback
passenger'sl.
REAR SEATACCESS CABLE
RECLINEAOJUSTER
9. Separate the seat track and recline adiuste..


: Bolt, nut locations
A

: Bolt, IBY : Nut, 2
j
A;iil;iiry-,'- j @i+ilJ
_o()_ _/ _ _].'*",
RECLINEADJUSTER
Installation is the reverse of the removal procedure.
NOTE:
a To prevent wrinkles when installing a seat-backcover, make sure the material is stretched even,ly over the pad before securing all the hooks.a Apply grease to the moving surtaces.
10.
20-105

Seats
Front Seat Cover RePlacement
CAUTION: Wear gloves to removo and install the 36at
cov€rs.
NOTE: Take care not to tear the seams or damage the
seat covers.
Soat-back covor lomoval:
1. Slide the Jront seat forwa.d and told the seat-back
forward.
2. Remove the hooks and fasteners. then fold the seat-
back cover back.
FASTE]IIER
FASTENER
Remove the headrest and headrest guide.
HEAOREST
SEAT.BACK
Scr€w location,
,e, I
Yi
cJ/
4. Remove the lumbar support knob.
ilff-]s)
\
fH".,
5. Remove the seat-back cover by releasing the inside
chps.
Cllp removrl:
6. Pull back the edge of the seat-back cover all the way
around, then release the clips.
20-106
-

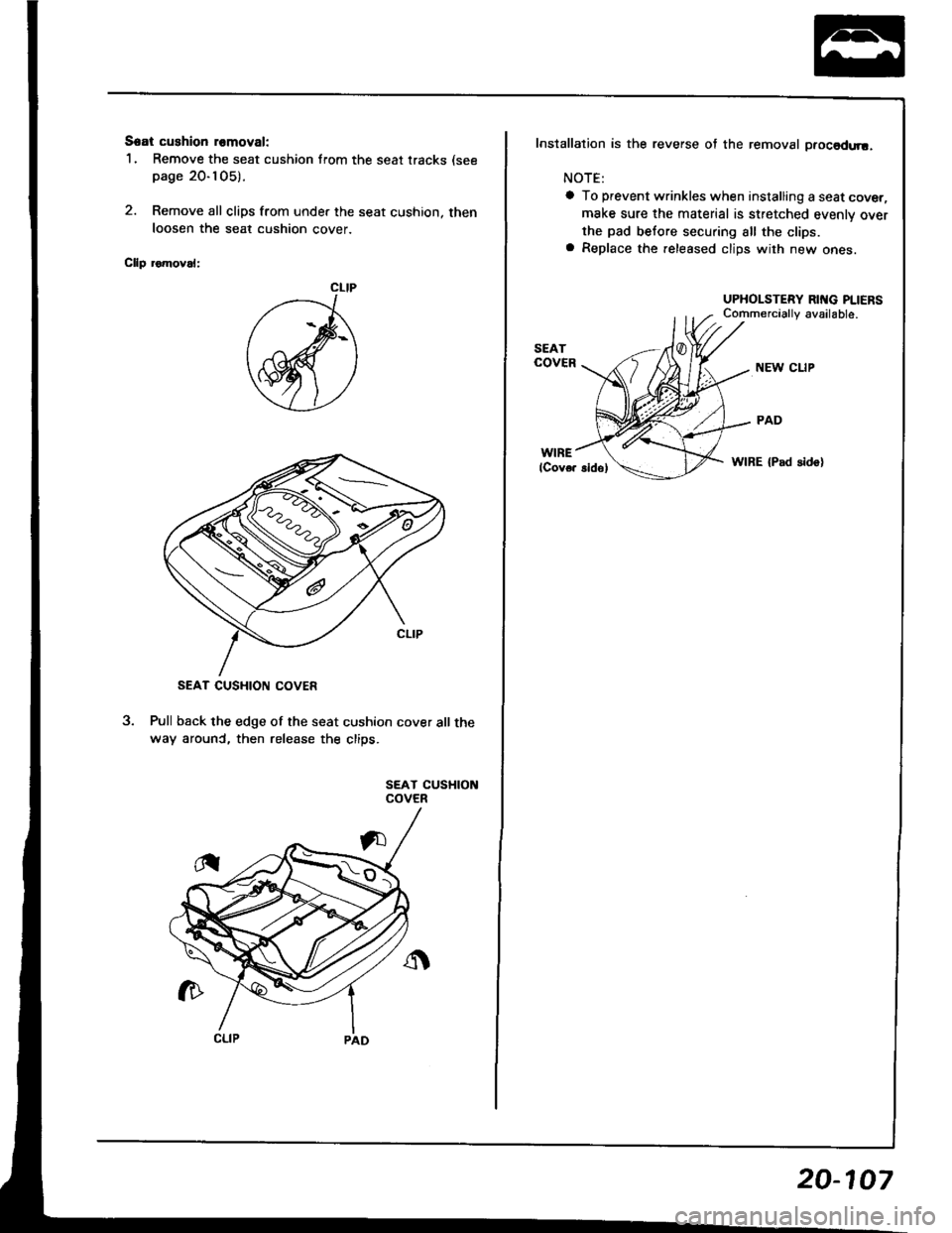

Seat cushion romoval:
1. Remove the seat cushion from the seat tracks (see
page 20-105).
2. Remove all clips from under the seat cushion, then
loosen the seat cushion cover
Cllp romoval:
Pull back the edge of the seat cushion cover all the
way arounC, then release the clips.
SEAT CUSHIONCOVER
2
CLIP
SEAT CUSHION COVER
Installation is the reverse of the removal ptocadtr!.
NOTE:
a To prevent wrinkles when installing a seat cover,
make sure the material is stretched evenly over
the pad before securing all the clips.a Replace the.eleased clips with new ones.
UPHOLSTERY RING PLIERS
NEW CLIP
PAD
WIRE {Pad sido}
20-107

Seats
Rear Seat Replacement
Hatchback
NOTE: Take care not to scratch the seat covers and
body.
1. Fold the seat-backs {orward.
2. Remove the clips, then fold the trunk mat.
V: Clip locations, 14
I
+ |
v/J
20-108
(see page 20-1Og)
SEAT.BACKS
TRUNK MAT
3. Remove the cliD pin on each side.
Slide the seat-backs outward, then remove the seat-
backs from the pivot bracket.
SEAT.BACK
SEAT-BACK PIVOTBRACKET
CLIP PIN

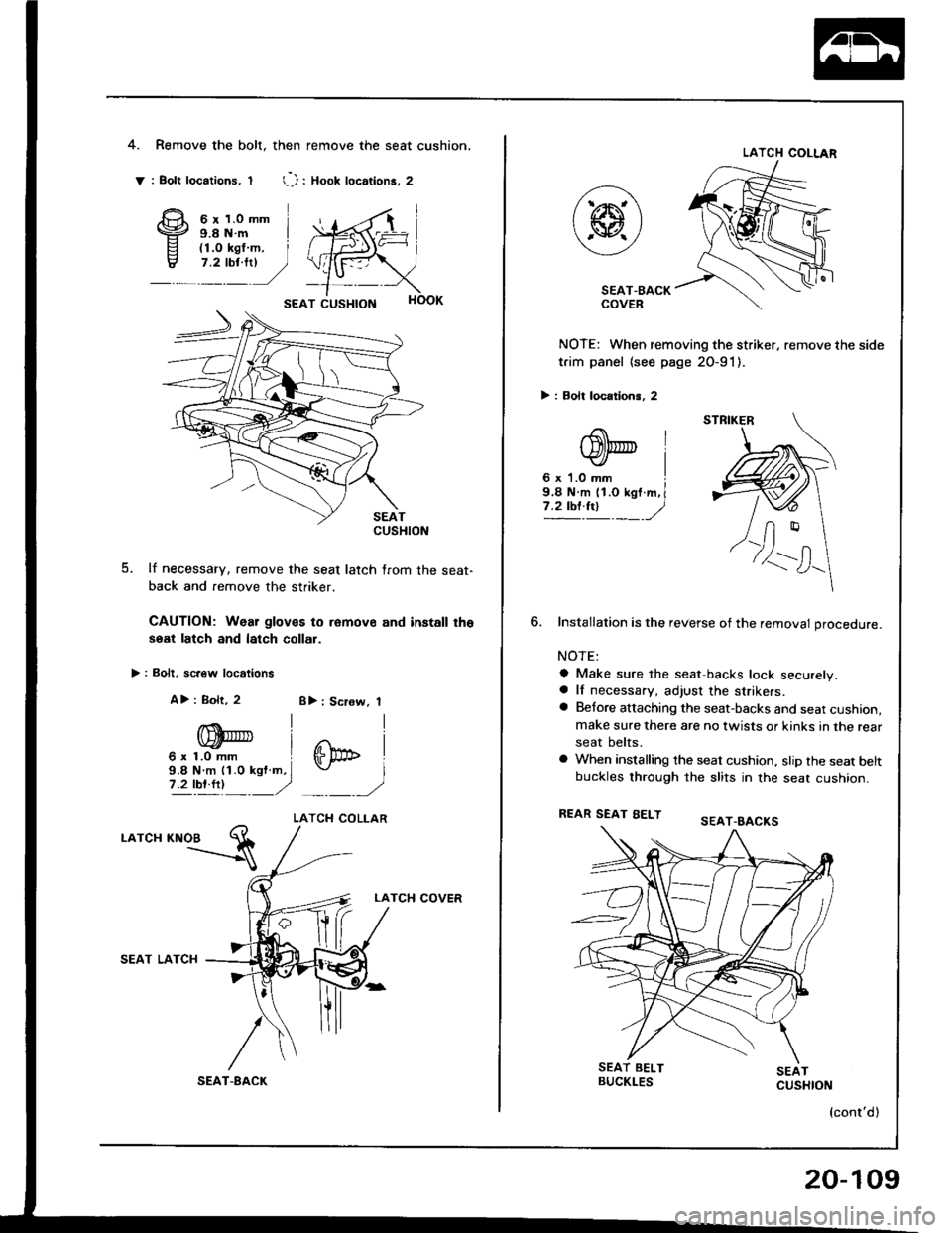

4.Remove the bolt, then remove the seat cushion.
: Bolt locations, t l--): Xoot locations, 2
6 r 1.0 mm9.8Nm I
SEAT CUSHION
5. lf necessary, remove the seat latch lrom the seat-
back and remove the striker.
CAUTION: Wear gloves to remov€ and install the
soat latch and latch collar.
> : Bolt, sc.€w locrtions
A>: Bolt, 2 8): Screw, 1
^{ll
.,,W '
Gp" I9.8 N.m 11.0 ksf m.I I7 2 tP!ft!---/' ./
LATCH COLLAR
.otc" rtroa El
LATCH COVER
SEAT LATCH
t'
T-8ACK
CUSHION
LATCH COLIAR
SEAT-BACKCOVER
NOTE: When removing the striker, remove
t.im panel (see page 20-91).
> : Bolt locations, 2
the side
.a |tDt@ l 6. Installation is the revelse of the removal procedure.
NOTE:
a Make sure the seat,backs lock securely.a lf necessary, adjust the strikers.a Betore attaching the seat-backs and seat cushion,make sure there are no twists or kinks in the rear
seat belts.
a When installing the seat cushion, stip the seat beltbuckles through the slits in the seat cushion.
REAR SEAT EELT
(cont'd )
STRIKER
20-109

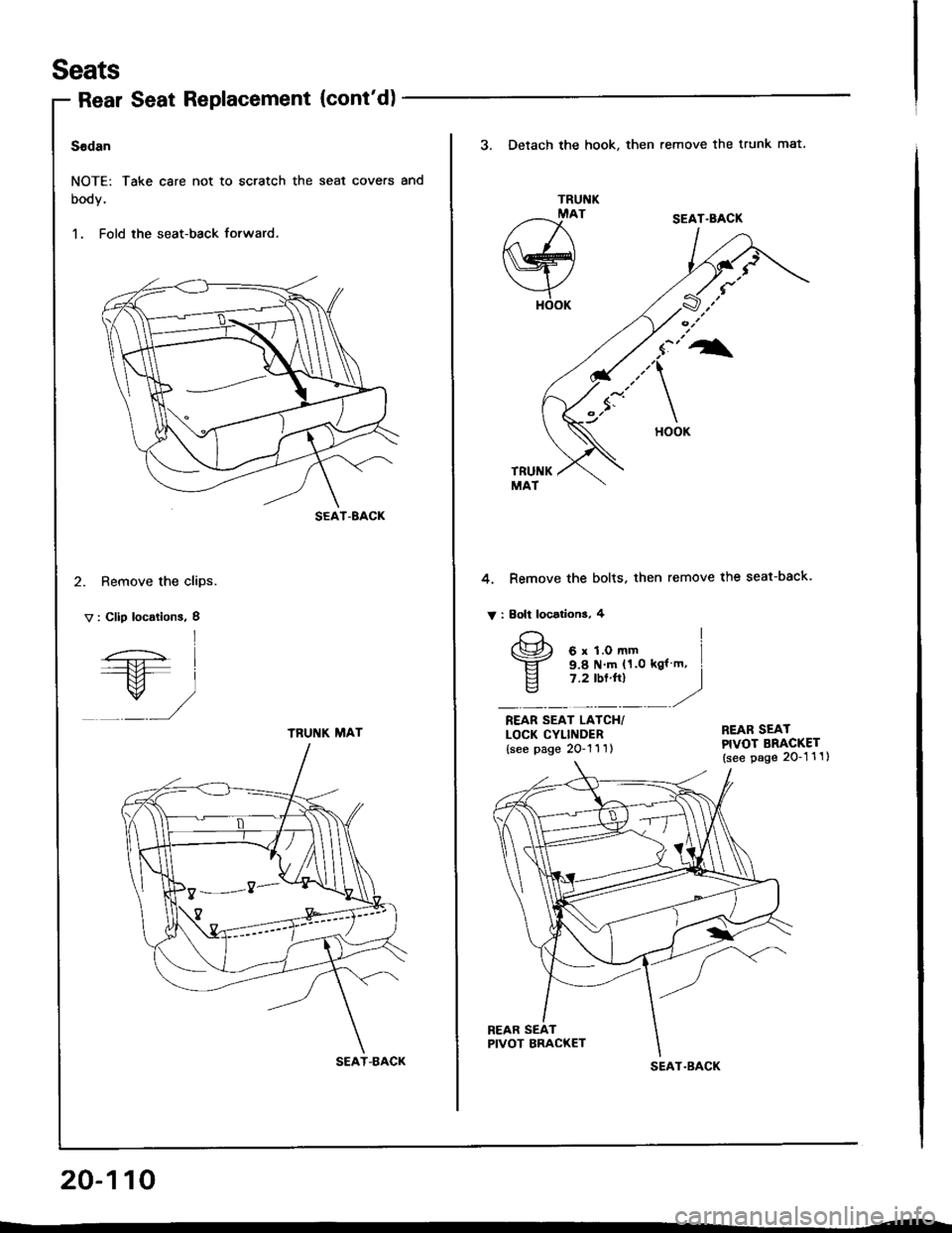

Seats
Rear Seat Replacement (cont'd)
Sedan
NOTE: Take care not to scratch the seal covers and
booy.
1. Fold the seat-back forward.
2. Remove the clips.
V : Clip locations, I
SEAT-8ACK
l
/-.;- I----+tl l---M- I
/ /,/
TRUNK MAT
SEAT-BACK
20-110
3. Detach the hook, then remove the trunk mat.
TRUNKMAT
a-^I{ \
Nry
YHOOK
SEAT.BACK
TRUNKMAT
4. Remove the bolts. then remove the seat-back.
V : Eolt locations, 4
REAR SEAT LAICH/LOCK CYLINDER{see page 2O-'l 1 1l
REAR SEATPIVOT BRACKET(see page 2O-1 1 1)
REAR SEATPIVOT BRACKET
I
I gel?"Til.*,,", i
E 7.2 tbt'trl I" -----r"
SEAT.BACK

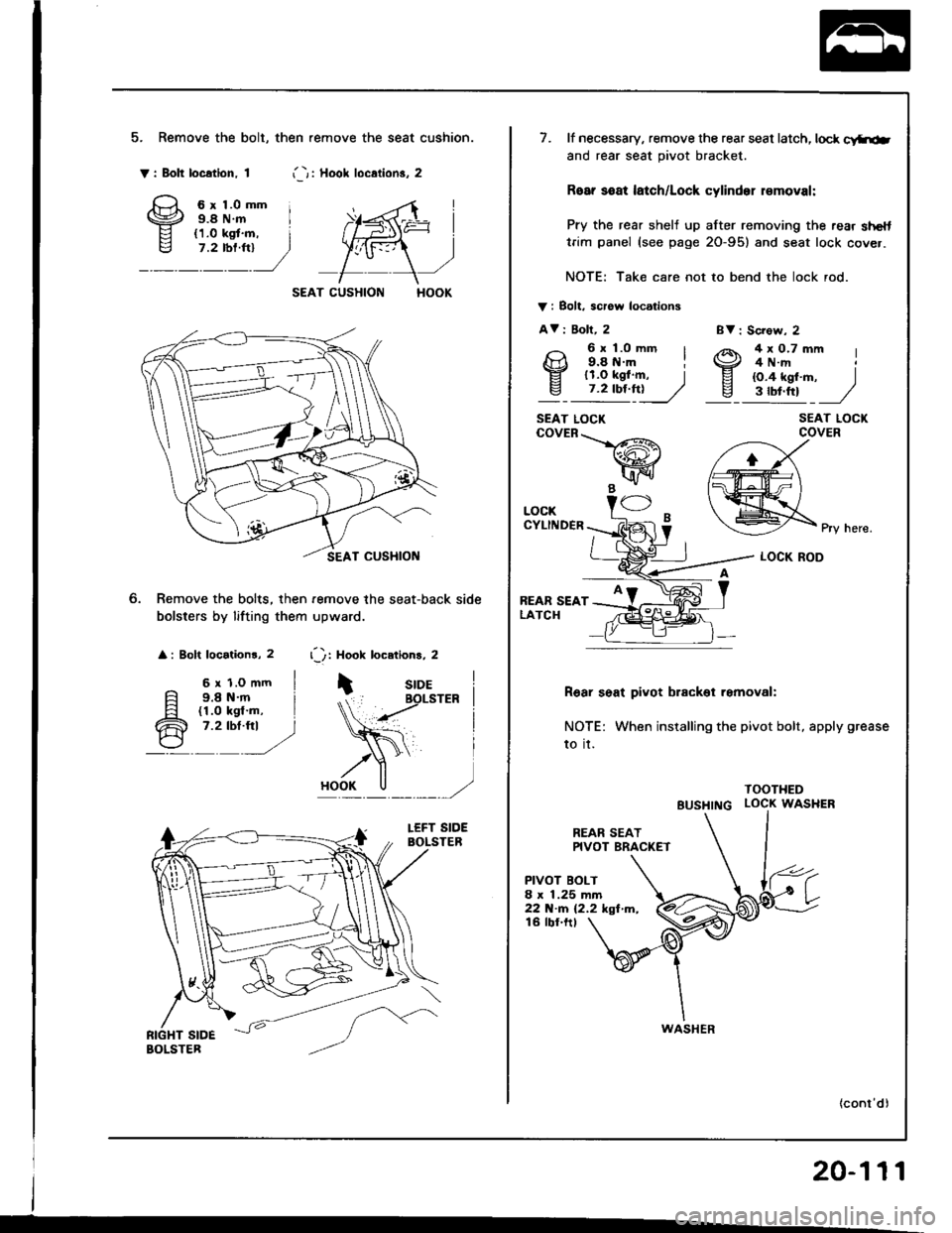

5. Remove the bolt, then .emove the seat cushion.
Y: Bolt location. 1i -r i Hool loc.lion3. 2
6r1.0mm i9.8 N.m I
SEAT CUSHION
Remove the bolts, then remove the seat-back side
bolsters by lifting them upward.
: Bolt locationr, 2 r'): Hook locetions, 2
6 r 1.o mm I9.8 N.m i(1.0 kgl'm, I7.2 tbt.fti )
BV : Sc?ow, 2
SEAT LOCKCOVER
Pry here.
LOCK ROD
R6ar seat pivot brackol removal:
NOTE: When installing the pivot bolt, apply grease
to it.
TOOTHED
BUSHTNG LOCK WASHER
REAR SEATPIVOT BRAC(ET
PIVOT BOLT8 x 1.25 mm22 N.m (2.2 kgf m,16 tbf.ftt
20-111
7. lf necessary, remove the rear seat latch, lock c!ftiab
and rear seat pivot bracket.
Roar soat latch/Lock cylinder r€moval:
Pry the rear shelj up after removing the rear shelttrim panel (see page 2O-95) and seat lock cover.
NOTE: Take care not to bend the lock rod.
V i Bolt. scrow locations
AV i Boll, 2
9: l;o--' I4x0.7mm I4 N.rrt
EI lr.o tgf .m, Iv_ 7.2 tbf.ft!____//
9.8 tt.m il1.O kgf.m, I{O.4 kgf'm, )3tbt.ttt J
SEAT LOCKcovER\-_L/-R\
wB -"1/ -
LOCKCYLINDER
REAR SEATLATCH
WASHER
