HONDA ODYSSEY 1995 Owners Manual

Tire Information

Traction
The traction grades, from highest to lowest, are A, B, and C, and they
represent the tire's ability to stop on
wet pavement as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade as- signed to this tire is based on brak-
ing (straight ahead) traction tests
and does not include cornering (turning) traction. Temperature
The temperature grades are A (the highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the materialof the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No.109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for

this tire is established for a tire that
is properly inflated and not over-

loaded. Excessive speed, underinfla-

tion, or excessive loading either
separately or in combination, can

cause heat build-up and possible tire

failure.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Emission Controls

The burning of gasoline in your car's engine produces several byproducts.
Some of these are carbon monoxide (CO), oxides of nitrogen (NOx) and
hydrocarbons (HC). Gasoline
evaporating from the tank also
produces hydrocarbons. Controlling
the production of NOx, CO, and HC is important to the environment.
Under certain conditions of sunlight
and climate, NOx and HC react to
form photochemical "smog." Carbon
monoxide does not contribute to smog creation, but it is a poisonous

gas.
The Clean Air Act

The United States Clean Air Act* sets standards for automobile
emissions. It also requires that automobile manufacturers explain to
owners how their emission controls
work and what to do to maintain them. This section summarizes how
the emission controls work.
Scheduled maintenance is on page
140.

* In Canada, Honda vehicles comply
with the Canadian Motor Vehicle Safety Standards (CMVSS) for
Emissions valid at the time they are
manufactured. Crankcase Emission Control
System
Your car has a Positive Crankcase Ventilation System. This keepsgasses that build up in the engine'scrankcase from going into the
atmosphere. The Positive Crankcase
Ventilation valve routes them from the crankcase back to the intakemanifold. They are then drawn into
the engine and burned.
Evaporative Emission Control
System
As gasoline evaporates in the fuel tank, an evaporative emission control
canister filled with charcoal adsorbs
the vapor. It is stored in this canister
while the engine is off. After the engine is started and warmed up, the
vapor is drawn into the engine and burned during driving.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Emission Controls

Exhaust Emission Controls
The exhaust emission controls include four systems: PGM-FI,
Ignition Timing Control, ExhaustGas Recirculation and Three Way
Catalytic Converter. These four
systems work together to control the
engine's combustion and minimize
the amount of HC, CO, and NOx that comes out the tailpipe. The exhaust
emission control systems are
separate from the crankcase and
evaporative emission control
systems.

PGM-FI System
The PGM-FI System uses sequential multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM) uses various sensors to determine
how much air is going into theengine. It then controls how much
fuel to inject under all operating conditions. Ignition Timing Control System
This system constantly adjusts the ignition timing, reducing the amountof HC, CO and NOx produced.
Exhaust Gas Recirculation (EGR)
System

The Exhaust Gas Recirculation (EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding exhaust
gas to the air/fuel mixture reduces
the amount of NOx produced when
the fuel is burned.
Three Way Catalytic Converter
The three way catalytic converter is in the exhaust system. Through
chemical reactions, it converts HC,CO, and NOx in the engine's exhaust
to carbon dioxide (CO 2), dinitrogen
(N 2), and water vapor. Replacement Parts
The emission control systems are designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions remain low, you should use only new
genuine Honda replacement parts or
their equivalent for repairs. Using
lower quality parts may increase theemissions from your car.
The emissions control systems are covered by warranties separate from
the rest of your car. Read your warranty manual for more informa-
tion.

Technical InformationProCarManuals.comMain Menu Table of Contents s t

Three Way Catalytic Converter

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust gasses without affecting the metals.
The catalytic converter is referred to as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it. Park your car away from high grass,
dry leaves, or other flammables. A defective three way catalytic
converter contributes to air pollution,
and can impair your engine's per-
formance. Follow these guidelines to
protect your car's three way catalytic converter.
Always use unleaded gasoline.Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.

Have your car diagnosed and

repaired if it is misfiring, back- firing, stalling, or otherwise not

running properly.

Technical Information
THREE WAY CATALYTIC CONVERTERProCarManuals.comMain Menu Table of Contents s t

Warranty and Customer Relations

Warranty Coverages..................... 228Customer Relations Information................................. 229
U.S. Zone Office Map.................... 230 Canada Zone Office Map.............. 231
Authorized Manuals...................... 233

Warranty and Customer RelationsProCarManuals.comMain Menu s t

Warranty Coverages

U.S. Cars
Your new Honda is covered by these

warranties:

New Car Limited Warranty — covers

your new car, except for the battery, emissions control systems and
accessories, against defects in
materials and workmanship.

Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty — these two

warranties cover your car's emis- sions control systems. Time, mileage,and coverage are conditional. Please
read the warranty manual for exact
information.

Original Equipment Battery Limited
Warranty — this warranty gives up
to 100% credit toward a replacement
battery.
Seat Belt Limited Warranty — a seat

belt that fails to function properly is
covered for the useful life of the car.

Rust Perforation Limited Warranty
— all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.

Accessory Limited Warranty —
Genuine Honda Accessories are
covered under this warranty. Time
and mileage limits depend on the
type of accessory and other factors. Please read your warranty manual
for details.

Replacement Parts Limited
Warranty — covers all Genuine
Honda replacement parts against defects in materials and workman-

ship.
Replacement Battery Limited

Warranty — provides prorated
coverage for a replacement battery
purchased from a Honda dealer.
Replacement Muffler LifetimeLimited Warranty
— provides
coverage for as long as the pur- chaser of the muffler owns the car.
Restrictions and exclusions apply to
all these warranties. Please read the 1995 Honda Warranties booklet that
came with your car for precise
information on warranty coverages.
Your Honda's original tires are covered by their manufacturer. Tire
warranty information is in a separate
booklet.

Canada Cars

Please refer to the 1995 Warranty
and Maintenance Guide that came
with your car.
Warranty and Customer Relations
ProCarManuals.comMain Menu Table of Contents s t

Customer Relations Information

Honda dealership personnel are trained professionals. They should
be able to answer all your questions. If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership's management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way. If you are dissatisfied with the
decision made by the dealership's
management, contact your HondaCustomer Relations Zone Office.
Refer to the U.S. and Canadian Zone Office maps on the following pages.
When you call or write, please give

us this information:

Vehicle Identification Number
(see page 217)
Name and address of the dealer
who services your car Date of purchaseMileage on your car
Your name, address, and tele- phone number
A detailed description of the problem
Name of the dealer who sold the
car to you

Warranty and Customer RelationsProCarManuals.comMain Menu Table of Contents s t

U.S. Zone Office Map

The addresses and telephone numbers are subject to change. If you cannot reach your Zone office, ask your Honda dealer for the current information.
Customer Relations
Western Zone
P.O. Box 2260
700 Van Ness Avenue

Torrance, California
90509-2260
(310)781-4565
Northwestern Zone

P.O. Box 20186

12439 N.E. Airport Way
Portland, Oregon 97220

(503) 256-0943

(also includes Alaska and
Hawaii)
South Central Zone

4529 Royal Lane

Irving, Texas 75063

(214) 929-5481

Central Zone101 South Stanfield Road
Troy, Ohio 45373 (513)332-6250
Northeastern Zone

P.O. Box 337

Eastgate Industrial Park 115 Gaither Drive
Moorestown, New Jersey 08057

(609) 235-5533

Includes: NYC Metro area and
Fairfield County, CT area
Mid-Atlantic Zone

902 Wind River Ln., Suite 200
Gaithersburg, Maryland 20878 (301)990-2020
Southeastern Zone1500 Morrison Parkway
Alpharetta, Georgia 30201
(404) 442-2045

North Central Zone
601 Campus Drive, Suite A-9
Arlington Heights, Illinois 60004

(708) 870-5600

New England Zone
555 Old County Road
Windsor Locks, Connecticut 06096 (203)623-3310See Zone 5 for:NYC Metro area and
Fairfield County, CT area
West Central Zone1600 South Abilene Street, Suite D
Aurora, Colorado 80012
(303) 696-3935

Puerto Rico and U.S. V.I.Bella International

P.O. Box 190816

San Juan, PR 00919-0816
(809) 250-8070ProCarManuals.comMain Menu Table of Contents s t

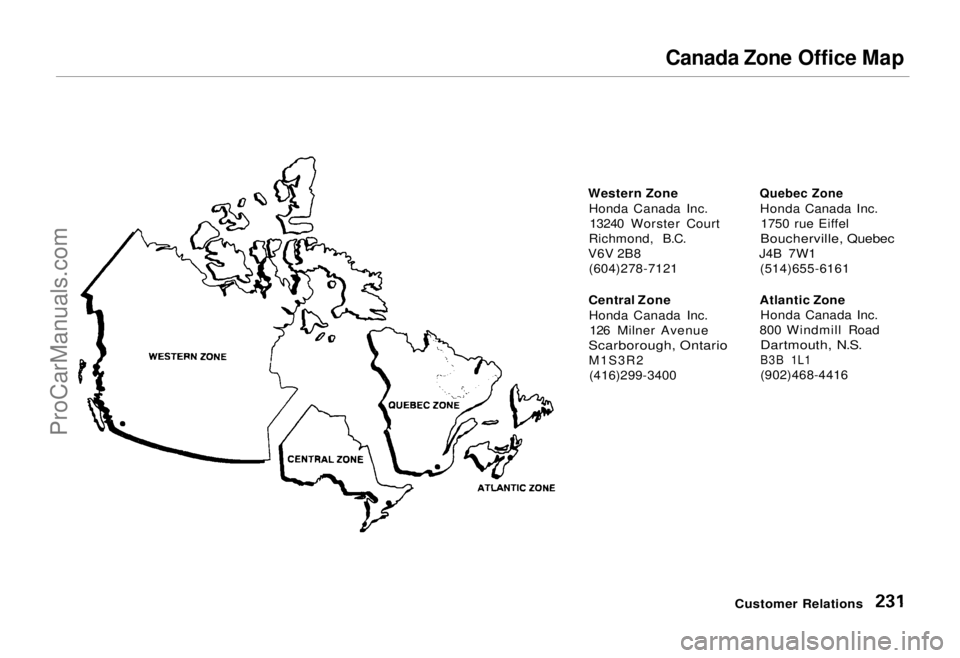

Canada Zone Office Map

Western Zone Honda Canada Inc.13240 Worster Court
Richmond, B.C.
V6V 2B8 (604)278-7121
Central Zone Honda Canada Inc. 126 Milner Avenue

Scarborough, Ontario
M1S3R2
(416)299-3400
Quebec Zone

Honda Canada Inc. 1750 rue Eiffel

Boucherville, Quebec

J4B 7W1 (514)655-6161
Atlantic Zone Honda Canada Inc.
800 Windmill Road
Dartmouth, N.S.

B3B 1L1

(902)468-4416
Customer RelationsProCarManuals.comMain Menu Table of Contents s t

Authorized Manuals

Purchasing Factory Authorized Manuals
(U.S. only)

The following publications covering the operation and servicing of your vehicle can be obtained from Helm
Incorporated, either by filling out the attached form or,
for credit card holders, calling the toll-free phone number on the form. For manuals prior to the year shown below,
contact Helm Incorporated, P.O. Box 07280, Detroit, Michigan 48207, or call 1-800-782-4356.
Valid only for sales within the U.S. Canadian owners should
contact their authorized Honda dealer.

By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail toHelm Incorporated at the address shown on the back of the order form.

61SX000

61SX000EL

61SX030
31SX0600ProCarManuals.comMain Menu Table of Contents s t
