Press the INFO button repeatedly
until the desired condition appears,
then press the SEL/RESET button
to enter your selection.

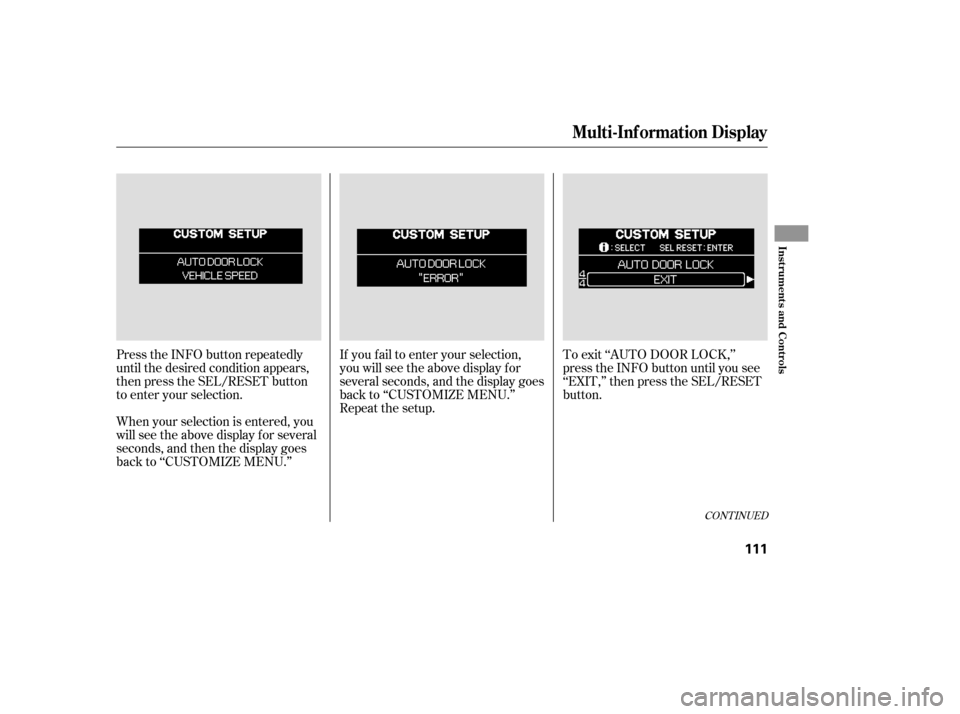

When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
To exit ‘‘AUTO DOOR LOCK,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
111

To customize the auto door
unlocking f eature, do this:
While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button once. The display
changes to ‘‘AUTO DOOR
UNLOCK’’ as shown above.
A ut o Door Unlock
Multi-Inf ormation Display
112

Press the SEL/RESET button again
to enter ‘‘Auto Door Unlock,’’ then
press the INFO button. Each time
you press the INFO button, the
display changes f rom ‘‘OFF,’’ to
‘‘DRIVER DOOR with SHIFT to P,’’
to ‘‘ALL DOORS with SHIFT to P,’’
to ‘‘DRIVER DOOR with IG OFF,’’
andthento‘‘EXIT’’asshownonthe

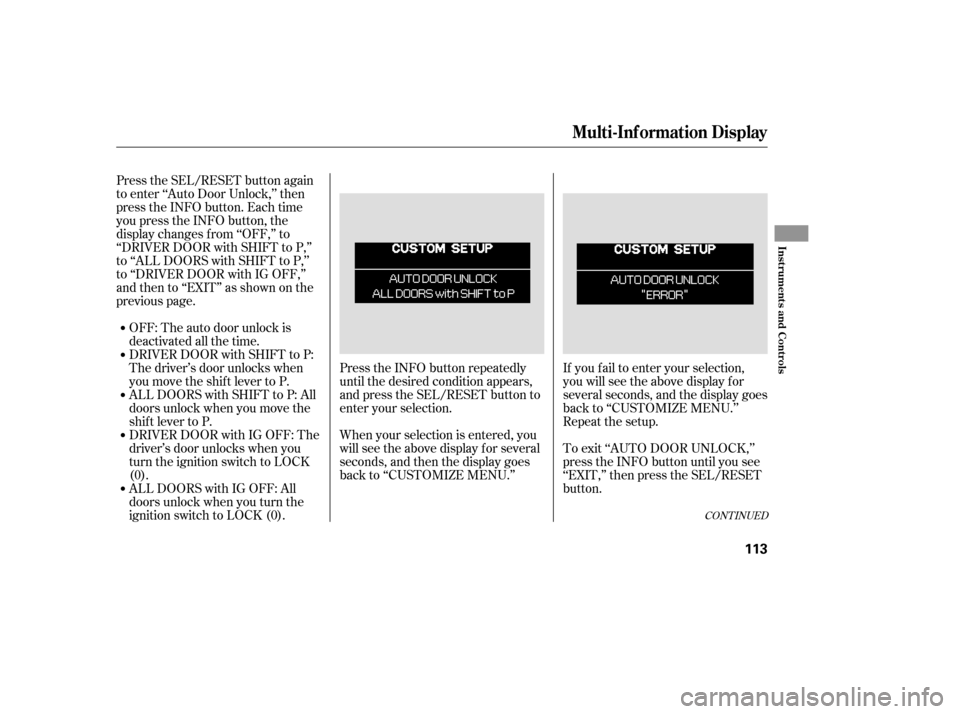

previous page.If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
To exit ‘‘AUTO DOOR UNLOCK,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button.
Press the INFO button repeatedly
until the desired condition appears,
and press the SEL/RESET button to
enter your selection.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
OFF: The auto door unlock is
deactivated all the time.
DRIVER DOOR with SHIFT to P:
The driver’s door unlocks when
you move the shif t lever to P.
ALL DOORS with SHIFT to P: All
doors unlock when you move the
shif t lever to P.
DRIVER DOOR with IG OFF: The
driver’s door unlocks when you
turn the ignition switch to LOCK
(0).
ALL DOORS with IG OFF: All
doors unlock when you turn the
ignition switch to LOCK (0).
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
113

When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the tailgate
arelockedandthesecuritysystem
has set (see page ). You can
customize the exterior lights not to

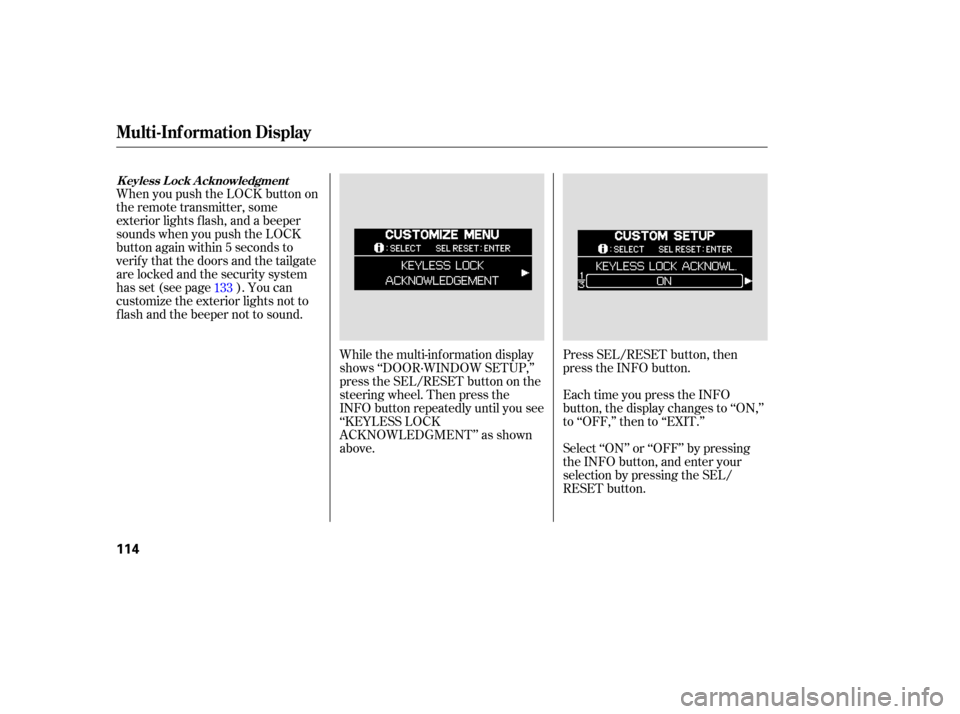

f lash and the beeper not to sound.While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘KEYLESS LOCK
ACKNOWLEDGMENT’’ as shown
above.Press SEL/RESET button, then
press the INFO button.
Each time you press the INFO
button, the display changes to ‘‘ON,’’
to ‘‘OFF,’’ then to ‘‘EXIT.’’
Select ‘‘ON’’ or ‘‘OFF’’ by pressing
the INFO button, and enter your
selection by pressing the SEL/
RESET button.
133
K eyless L ock A cknowledgment
Multi-Inf ormation Display
114

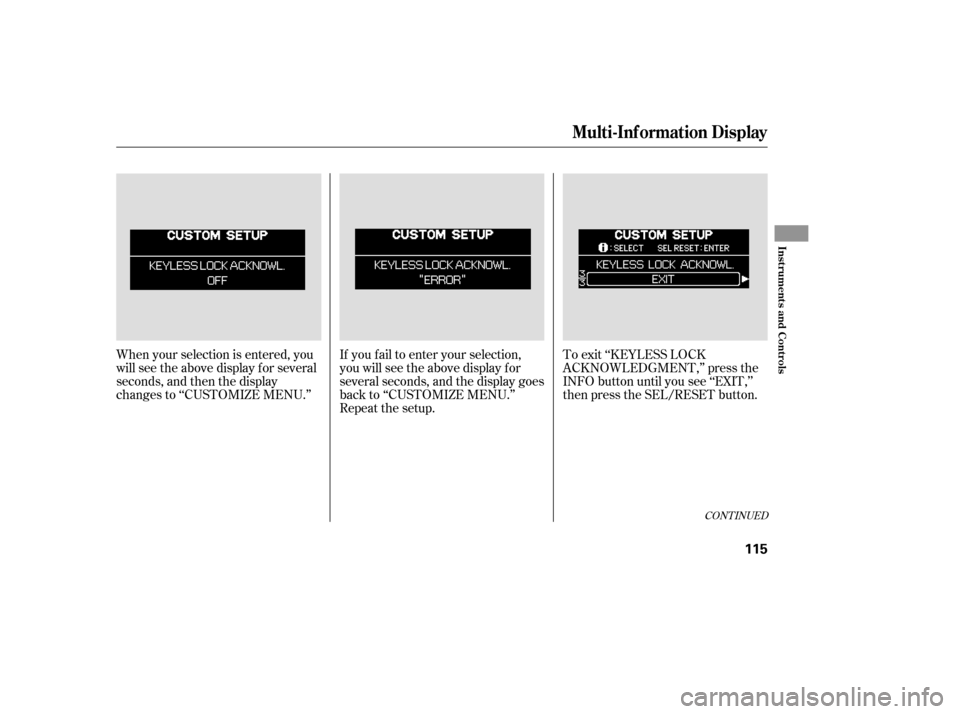

When your selection is entered, you
will see the above display for several
seconds, and then the display
changes to ‘‘CUSTOMIZE MENU.’’To exit ‘‘KEYLESS LOCK
ACKNOWLEDGMENT,’’ press the
INFO button until you see ‘‘EXIT,’’
then press the SEL/RESET button.
If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
115

If you unlock the doors and the
tailgate with the remote transmitter,
but do not open any of the doors or
thetailgatewithin30seconds,the
doors and the tailgate automatically
relock and the security system sets.
You can change this relock time

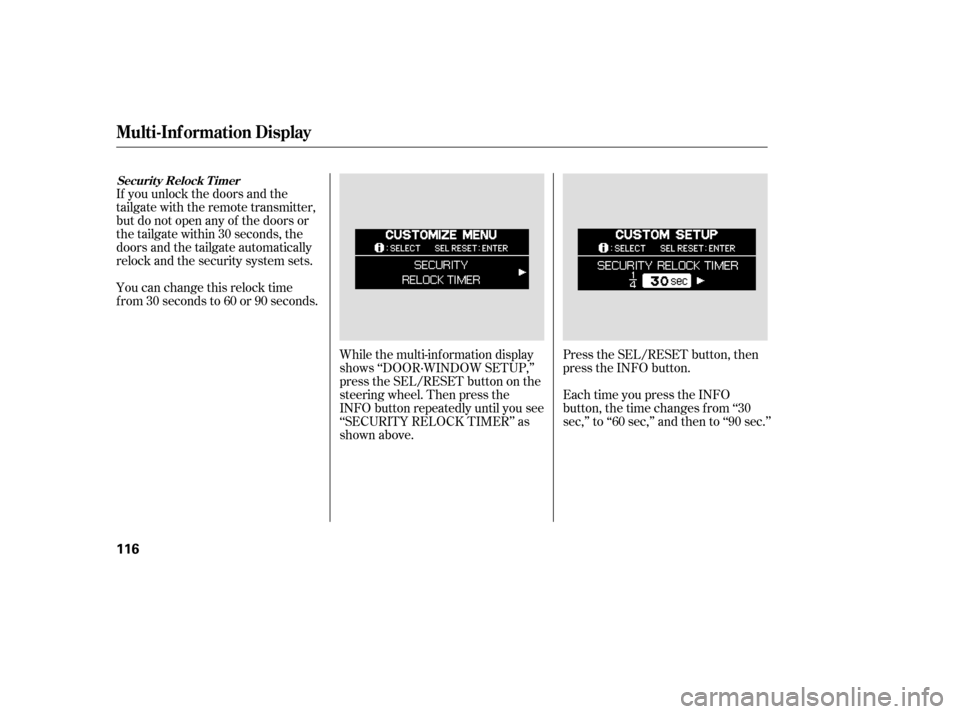

f rom 30 seconds to 60 or 90 seconds.While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘SECURITY RELOCK TIMER’’ as
shown above.Press the SEL/RESET button, then
press the INFO button.
Each time you press the INFO
button, the time changes f rom ‘‘30
sec,’’ to ‘‘60 sec,’’ and then to ‘‘90 sec.’’
Securit y Relock T imer
Multi-Inf ormation Display
116

Select the desired relock time by
pressing the INFO button, and enter
your selection by pressing the SEL/

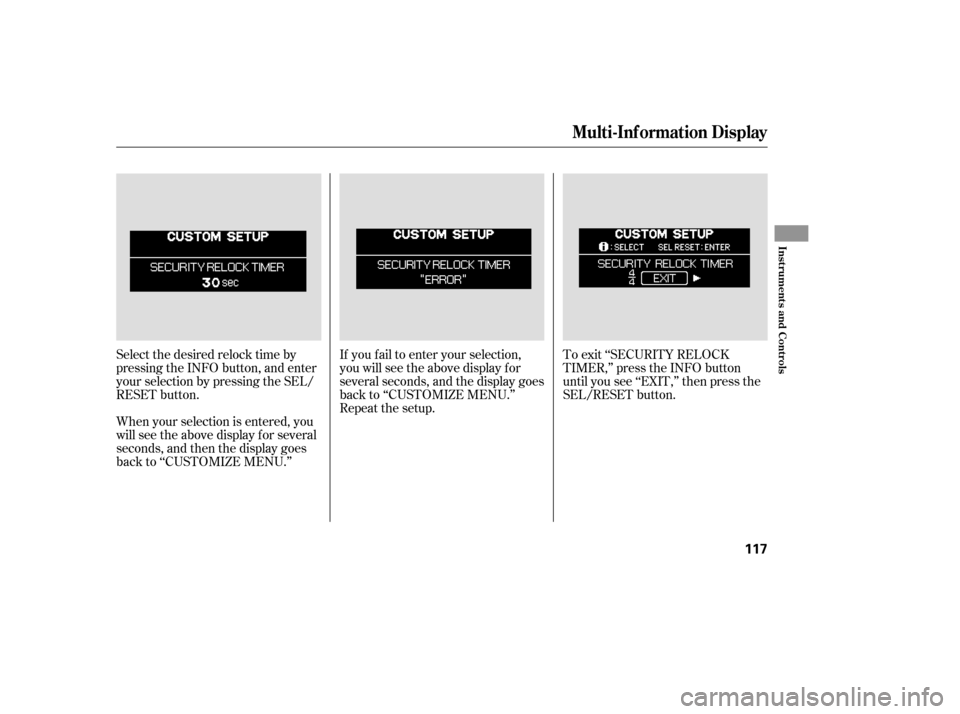

RESET button.If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’ To exit ‘‘SECURITY RELOCK
TIMER,’’ press the INFO button
until you see ‘‘EXIT,’’ then press the
SEL/RESET button.
Multi-Inf ormation Display
Inst rument s and Cont rols
117

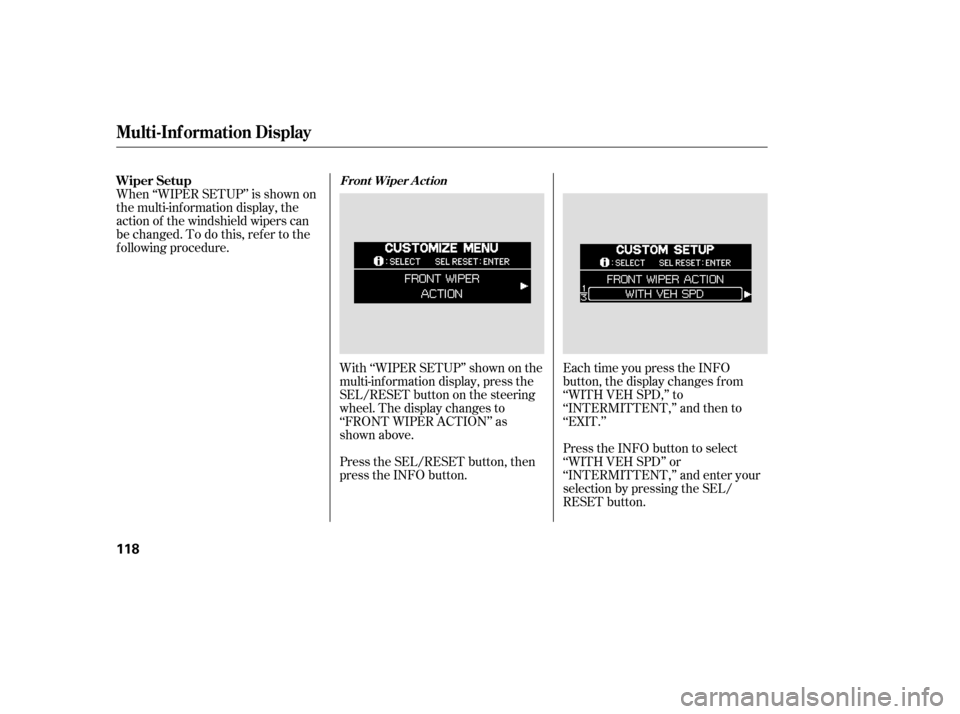

With ‘‘WIPER SETUP’’ shown on the
multi-inf ormation display, press the
SEL/RESET button on the steering
wheel. The display changes to
‘‘FRONT WIPER ACTION’’ as
shown above.
Press the SEL/RESET button, then
press the INFO button.Each time you press the INFO
button, the display changes f rom
‘‘WITH VEH SPD,’’ to
‘‘INTERMITTENT,’’ and then to
‘‘EXIT.’’
Press the INFO button to select
‘‘WITH VEH SPD’’ or
‘‘INTERMITTENT,’’ and enter your
selection by pressing the SEL/
RESET button.
When ‘‘WIPER SETUP’’ is shown on
the multi-information display, the
action of the windshield wipers can
be changed. To do this, ref er to the
f ollowing procedure. Wiper Setup
Front Wiper A ct ion
Multi-Inf ormation Display
118

If you set the f ront wiper action to
‘‘WITH VEH SPD,’’ the f ront wipers
run intermittently and the wiper
interval is varied automatically
according to the vehicle’s speed
when the wiper switch is in the
‘‘INT’’position. If you set it to
‘‘INTERMITTENT,’’ the wipers run
at regular intervals.

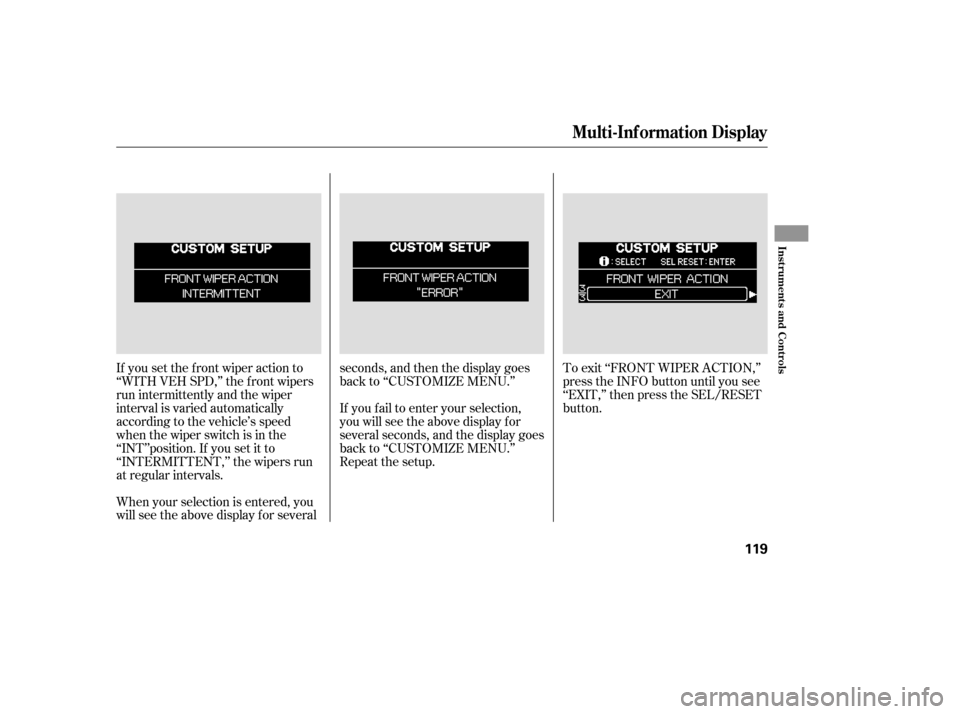

When your selection is entered, you
will see the above display for severalseconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
To exit ‘‘FRONT WIPER ACTION,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button.
If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
Multi-Inf ormation Display
Inst rument s and Cont rols
119

Î
Î
To use the horn, press the pad around the ‘‘H’’ logo.
:

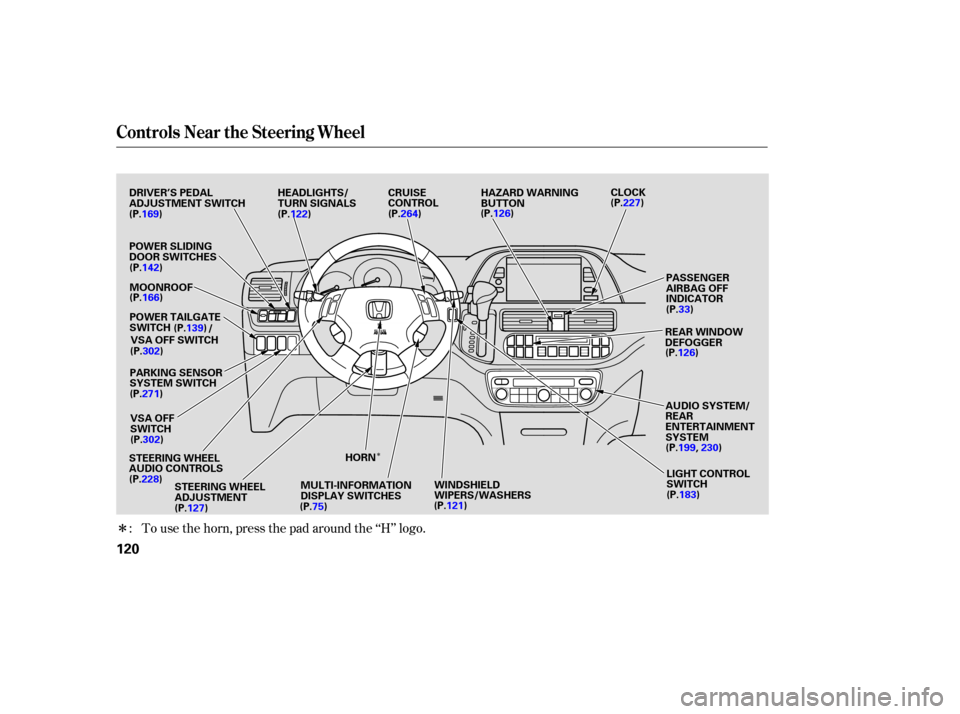

Controls Near the Steering Wheel
120
POWER SLIDING
DOOR SWITCHES
REAR WINDOW
DEFOGGER
STEERING WHEEL
ADJUSTMENT CRUISE
CONTROL
CLOCK
LIGHT CONTROL
SWITCH
AUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
STEERING WHEEL
AUDIO CONTROLS PASSENGER
AIRBAG OFF
INDICATOR
POWER TAILGATE
SWITCH HEADLIGHTS/
TURN SIGNALS
HAZARD WARNING
BUTTON
WINDSHIELD
WIPERS/WASHERS
VSA OFF
SWITCH
HORN
(P.142)
(P.139)
(P.271) (P.302)
(P.228) (P.127) (P.121)
(P.122)
(P.264)
(P.126) (P.227)
(P.33)
(P.126)
(P.199, 230)
(P. 183 )
PARKING SENSOR
SYSTEM SWITCH
DRIVER’S PEDAL
ADJUSTMENT SWITCH
(P.169)
(P.166)
(P.75)MULTI-INFORMATION
DISPLAY SWITCHES
VSA OFF SWITCH
/
(P.302)
MOONROOF
