HONDA ODYSSEY 2022 Owners Manual

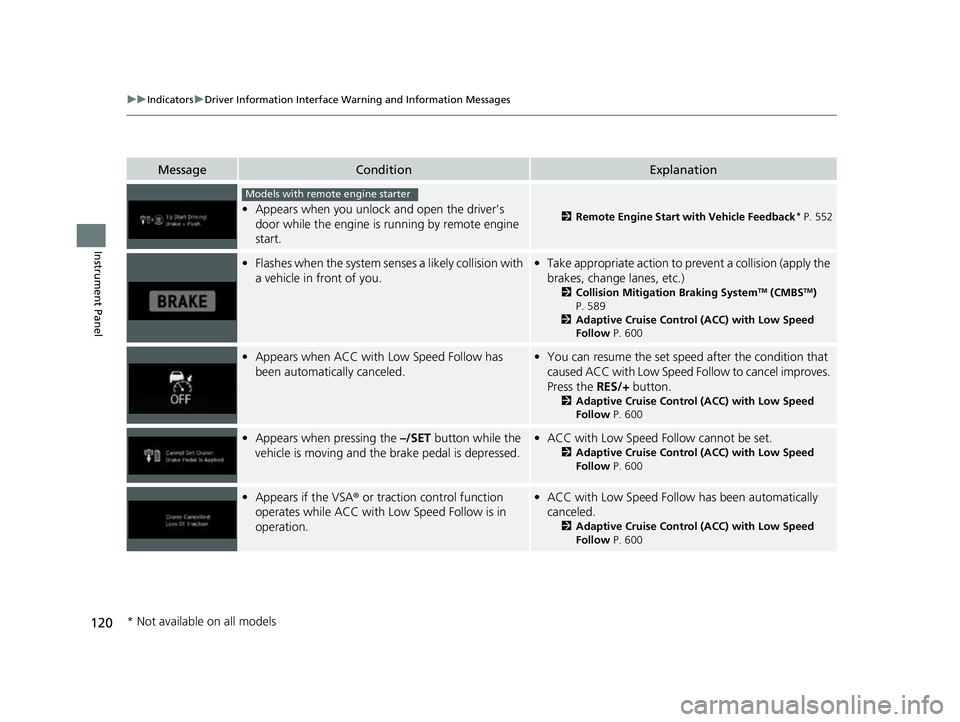

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.2 Remote Engine Start with Vehicle Feedback* P. 552
•Flashes when the system senses a likely collision with
a vehicle in front of you.•Take appropriate action to prevent a collision (apply the
brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 589
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears when ACC with Low Speed Follow has
been automatically canceled.•You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.• ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears if the VSA ® or traction control function
operates while ACC with Low Speed Follow is in
operation.• ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
Models with remote engine starter
* Not available on all models
22 US ODYSSEY-31THR6400.book 120 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

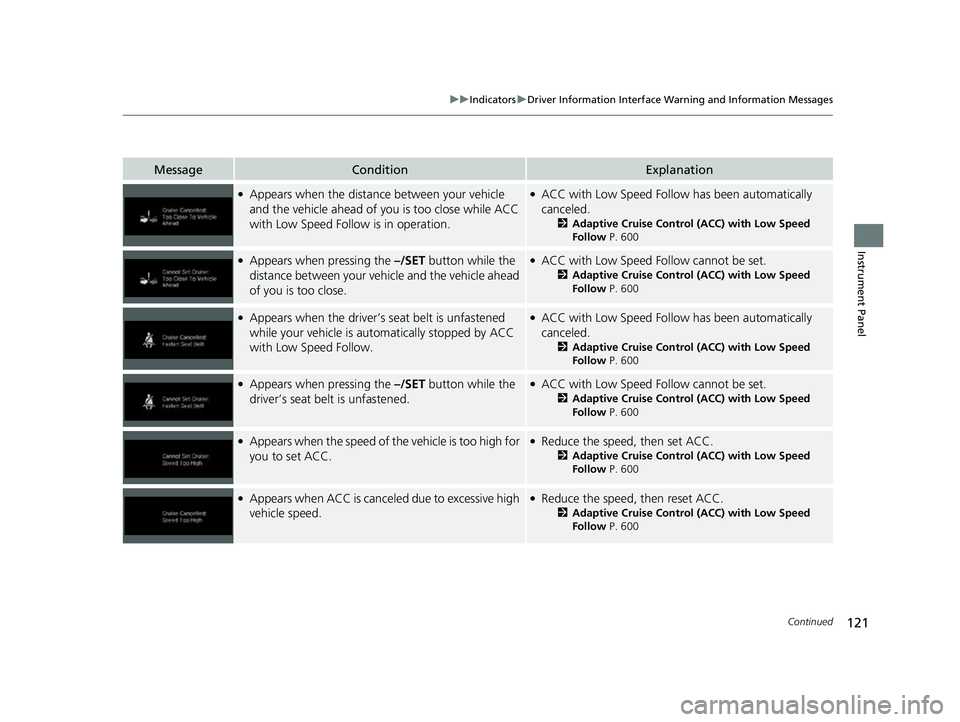

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle ahead
of you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●ACC with Low Speed Follow has been automatically
canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when the speed of the vehicle is too high for
you to set ACC.●Reduce the speed, then set ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when ACC is canceled due to excessive high
vehicle speed.●Reduce the speed, then reset ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
22 US ODYSSEY-31THR6400.book 121 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

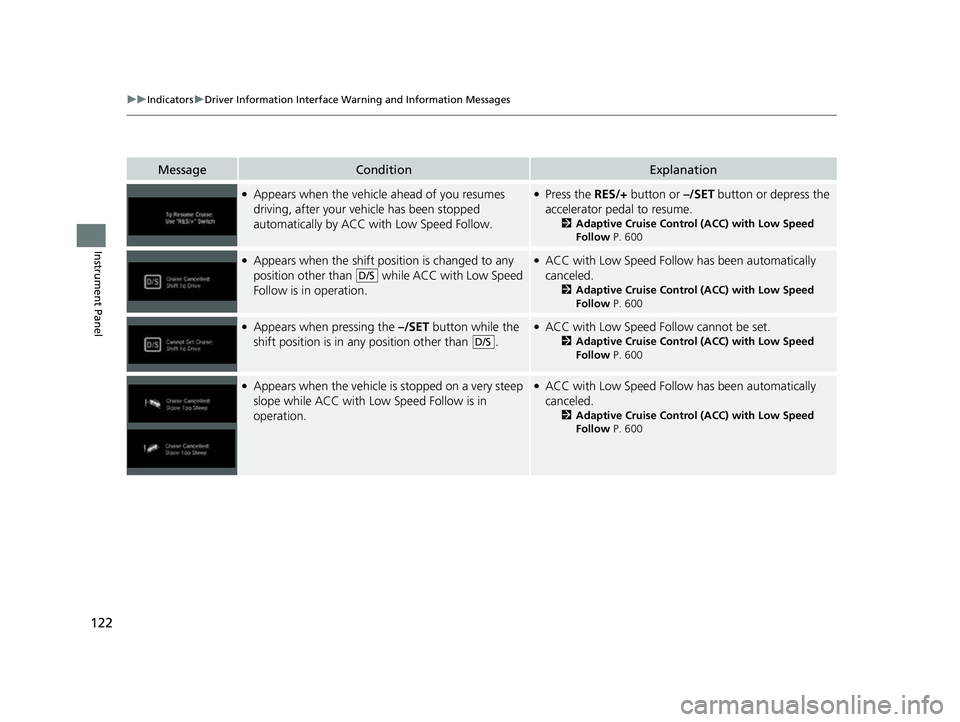

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC with Low Speed Follow.●Press the RES/+ button or –/SET button or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when the shift posi tion is changed to any
position other than wh ile ACC with Low Speed
Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when pressing the –/SET button while the
shift position is in any position other than .●ACC with Low Speed Foll ow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
D/S
D/S
22 US ODYSSEY-31THR6400.book 122 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

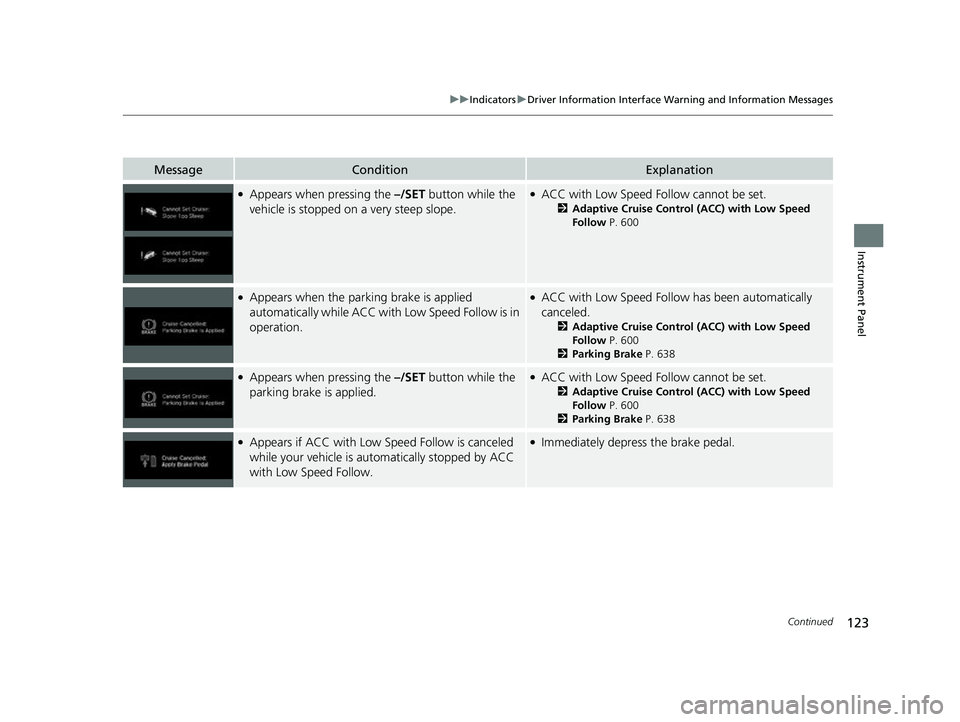

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
●Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
2 Parking Brake P. 638
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
2 Parking Brake P. 638
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
22 US ODYSSEY-31THR6400.book 123 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

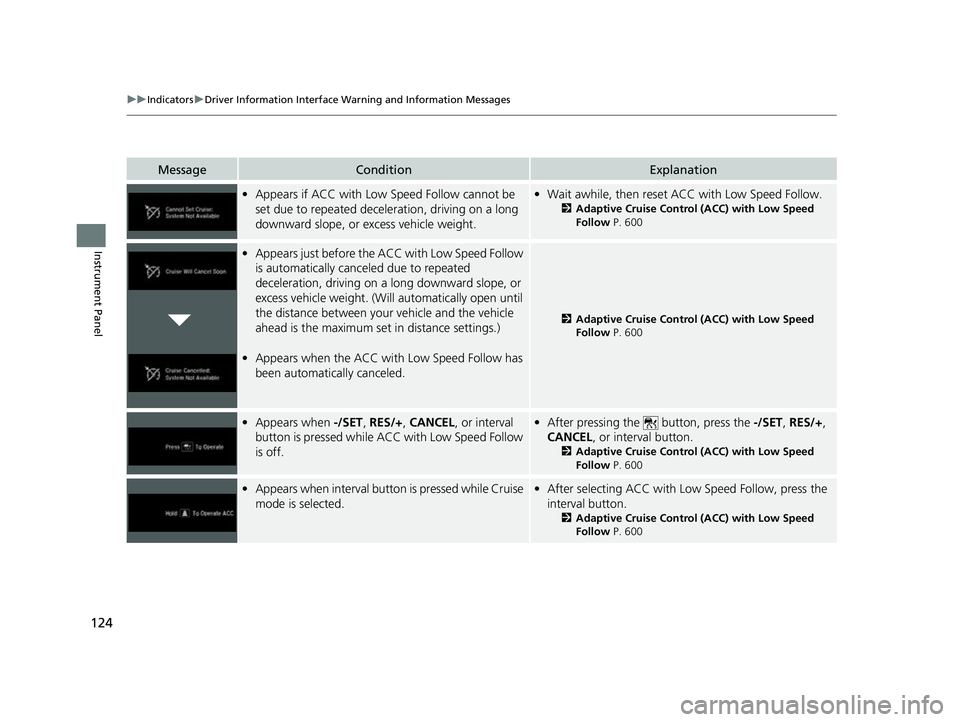

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if ACC with Low Speed Follow cannot be
set due to repeated deceleration, driving on a long
downward slope, or excess vehicle weight.•Wait awhile, then reset ACC with Low Speed Follow.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears just before the ACC with Low Speed Follow
is automatically canceled due to repeated
deceleration, driving on a long downward slope, or
excess vehicle weight. (Will automatically open until
the distance between your vehicle and the vehicle
ahead is the maximum set in distance settings.)
• Appears when the ACC with Low Speed Follow has
been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears when -/SET, RES/+ , CANCEL , or interval
button is pressed while ACC with Low Speed Follow
is off.• After pressing the button, press the -/SET, RES/+ ,
CANCEL , or interval button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
•Appears when interv al button is pressed while Cruise
mode is selected.• After selecting ACC with Low Speed Follow, press the
interval button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 600
22 US ODYSSEY-31THR6400.book 124 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

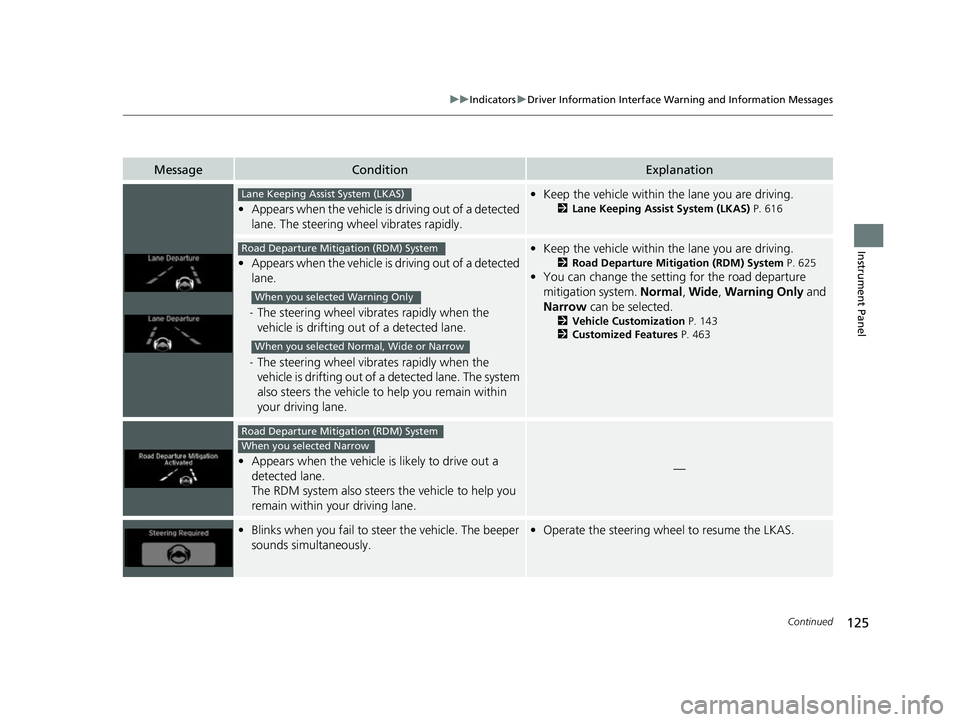

125
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
•Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 616
•Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
• Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System P. 625
•You can change the setting for the road departure
mitigation system. Normal, Wide , Warning Only and
Narrow can be selected.
2Vehicle Customization P. 143
2 Customized Features P. 463
•Appears when the vehicle is likely to drive out a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
•Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.•Operate the steering wheel to resume the LKAS.
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal, Wide or Narrow
Road Departure Mitigation (RDM) System
When you selected Narrow
22 US ODYSSEY-31THR6400.book 125 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

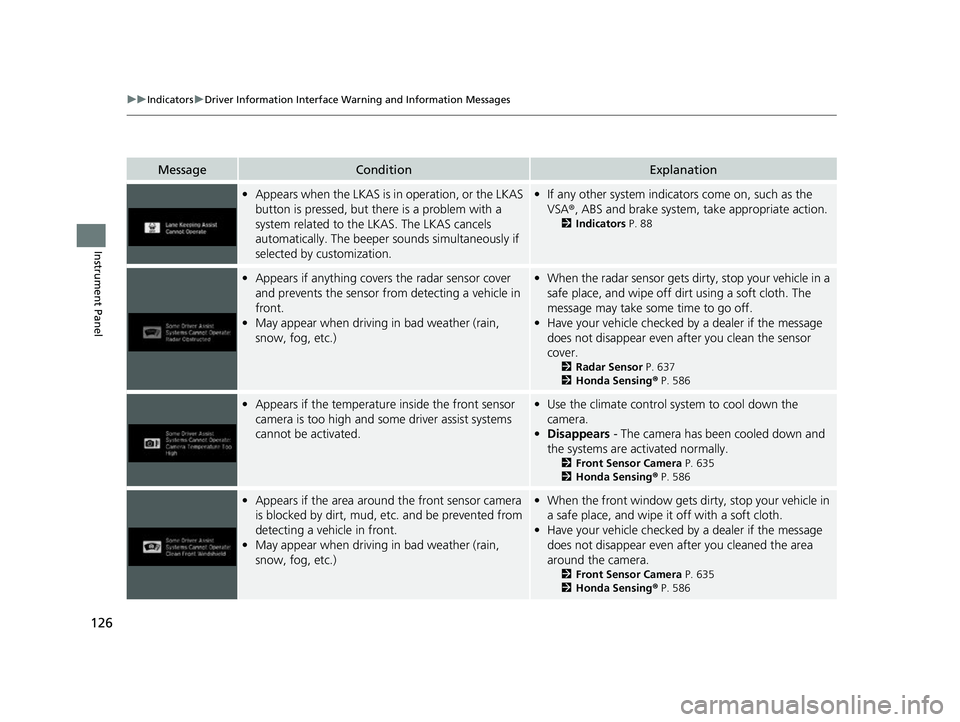

126
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper s ounds simultaneously if
selected by customization.• If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 88
•Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.
• Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 637
2 Honda Sensing ® P. 586
• Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.•Use the climate control sy stem to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 635
2 Honda Sensing ® P. 586
• Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 635
2 Honda Sensing ® P. 586
22 US ODYSSEY-31THR6400.book 126 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

127
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 737
22 US ODYSSEY-31THR6400.book 127 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

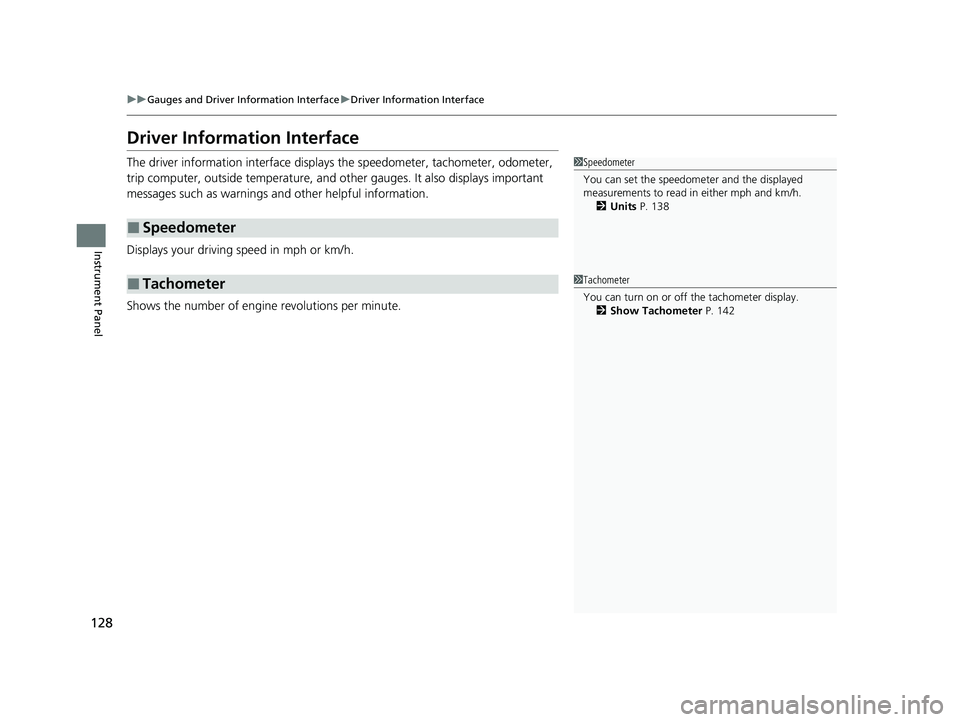

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and ot her gauges. It also displays important
messages such as warnings an d other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph and km/h.
2 Units P. 138
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 142
22 US ODYSSEY-31THR6400.book 128 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Continued129

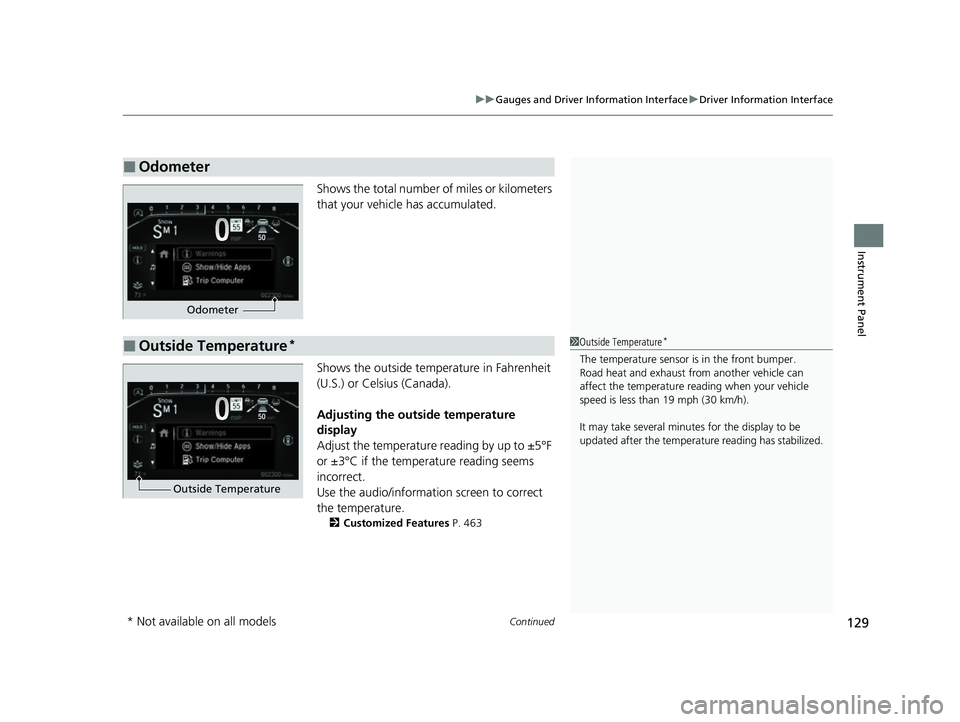

uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the total number of miles or kilometers
that your vehicle has accumulated.
Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).
Adjusting the outside temperature
display
Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the audio/information screen to correct
the temperature.
2 Customized Features P. 463
■Odometer
Odometer
■Outside Temperature*1Outside Temperature*
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Outside Temperature
* Not available on all models
22 US ODYSSEY-31THR6400.book 129 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
