Page 161 of 782

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
160
Controls

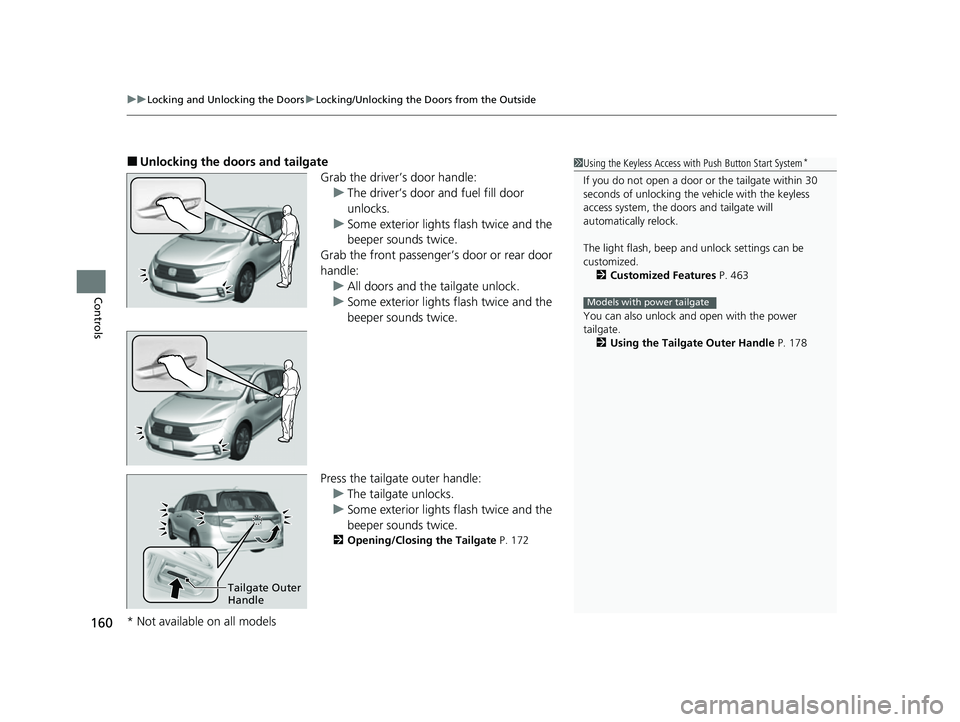

■Unlocking the doors and tailgate
Grab the driver’s door handle:u The driver’s door and fuel fill door
unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door or rear door
handle: u All doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate outer handle: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Opening/Closing the Tailgate P. 172
1Using the Keyless Access with Push Button Start System*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the keyless
access system, the doors and tailgate will
automatically relock.
The light flash, beep a nd unlock settings can be
customized. 2 Customized Features P. 463
You can also unlock and open with the power
tailgate. 2 Using the Tailgate Outer Handle P. 178
Models with power tailgate
Tailgate Outer
Handle
* Not available on all models
22 US ODYSSEY-31THR6400.book 160 ページ 2020年11月16日 月曜日 午後1時41分
Page 162 of 782

Continued161
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

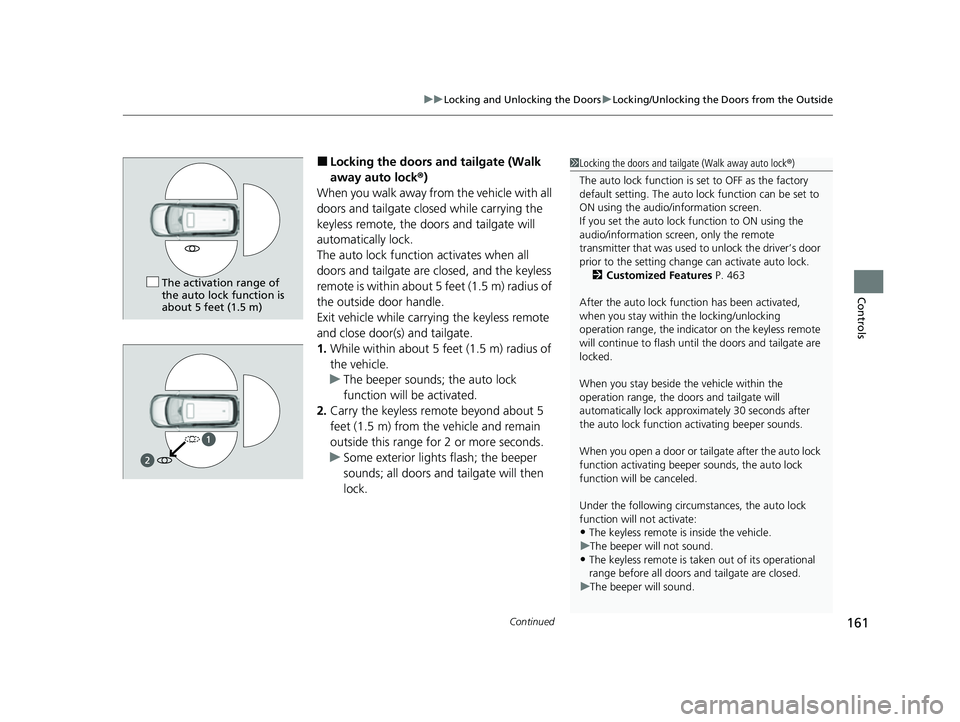

■Locking the doors and tailgate (Walk
away auto lock ®)
When you walk away fro m the vehicle with all
doors and tailgate closed while carrying the
keyless remote, the doors and tailgate will
automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the keyless
remote is within about 5 feet (1.5 m) radius of
the outside door handle.
Exit vehicle while carrying the keyless remote
and close door(s) and tailgate.
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the keyless remote beyond about 5
feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote
transmitter that was used to unlock the driver’s door
prior to the setting change can activate auto lock. 2 Customized Features P. 463
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicato r on the keyless remote
will continue to flash until the doors and tailgate are
locked.
When you stay beside the vehicle within the
operation range, the door s and tailgate will
automatically lock approx imately 30 seconds after
the auto lock function activating beeper sounds.
When you open a door or tailgate after the auto lock
function activating beeper sounds, the auto lock
function will be canceled.
Under the following circumstances, the auto lock
function will not activate:
•The keyless remote is inside the vehicle.
u The beeper will not sound.
•The keyless remote is taken out of its operational
range before all doors a nd tailgate are closed.
u The beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
22 US ODYSSEY-31THR6400.book 161 ページ 2020年11月16日 月曜日 午後1時41分
Page 163 of 782

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
162
Controls

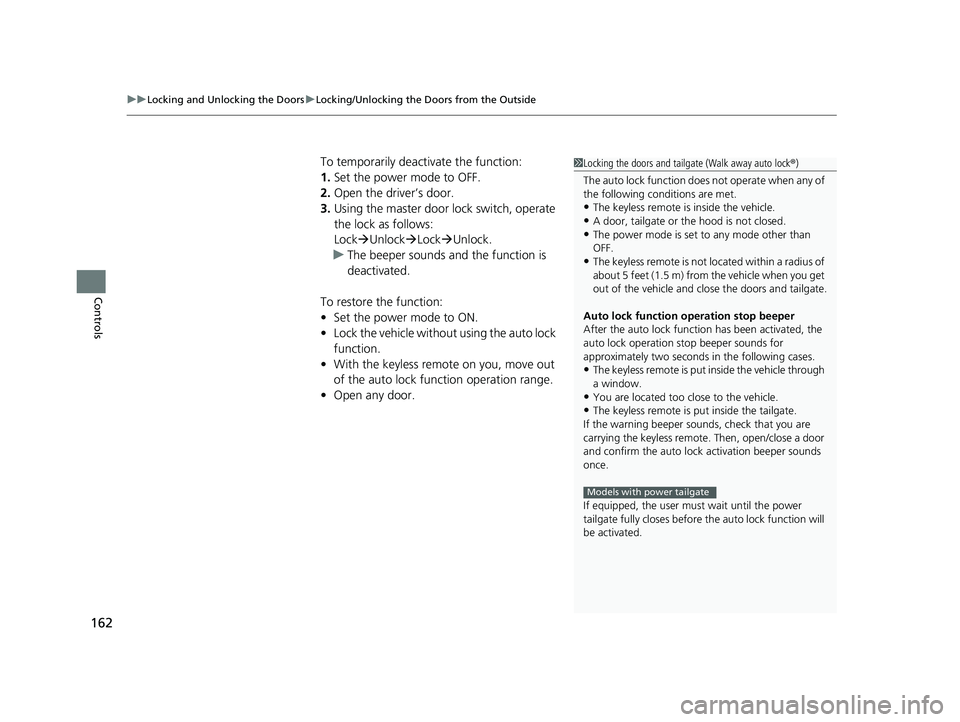

To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• With the keyless remote on you, move out
of the auto lock function operation range.
• Open any door.1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function does not operate when any of
the following conditions are met.
•The keyless remote is inside the vehicle.
•A door, tailgate or th e hood is not closed.•The power mode is set to any mode other than
OFF.
•The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and cl ose the doors and tailgate.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless remote is put inside the vehicle through
a window.
•You are located too close to the vehicle.
•The keyless remote is put inside the tailgate.
If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
If equipped, the user mu st wait until the power
tailgate fully closes before the auto lock function will
be activated.
Models with power tailgate
22 US ODYSSEY-31THR6400.book 162 ページ 2020年11月16日 月曜日 午後1時41分
Page 164 of 782

Continued163
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

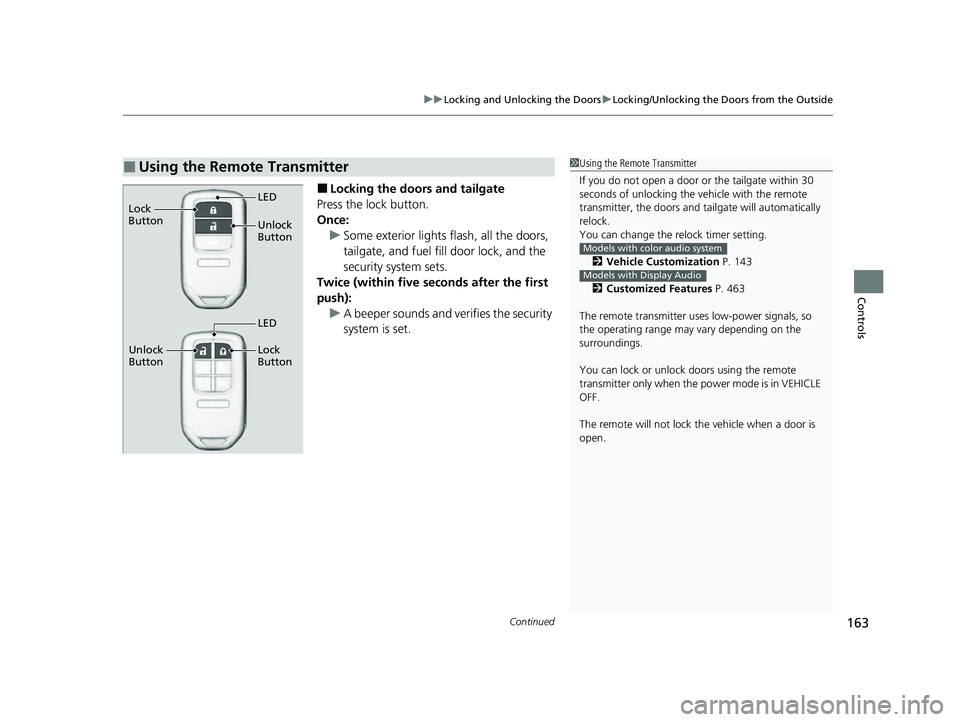

■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors,
tailgate, and fuel fill door lock, and the
security system sets.
Twice (within five se conds after the first
push): u A beeper sounds and verifies the security
system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and ta ilgate will automatically
relock.
You can change the relock timer setting.
2 Vehicle Customization P. 143
2 Customized Features P. 463
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote will not lock th e vehicle when a door is
open.
Models with color audio system
Models with Display Audio
Unlock
Button LED
Lock
Button
Unlock
Button Lock
Button
LED
22 US ODYSSEY-31THR6400.book 163 ページ 2020年11月16日 月曜日 午後1時41分
Page 165 of 782

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
164
Controls

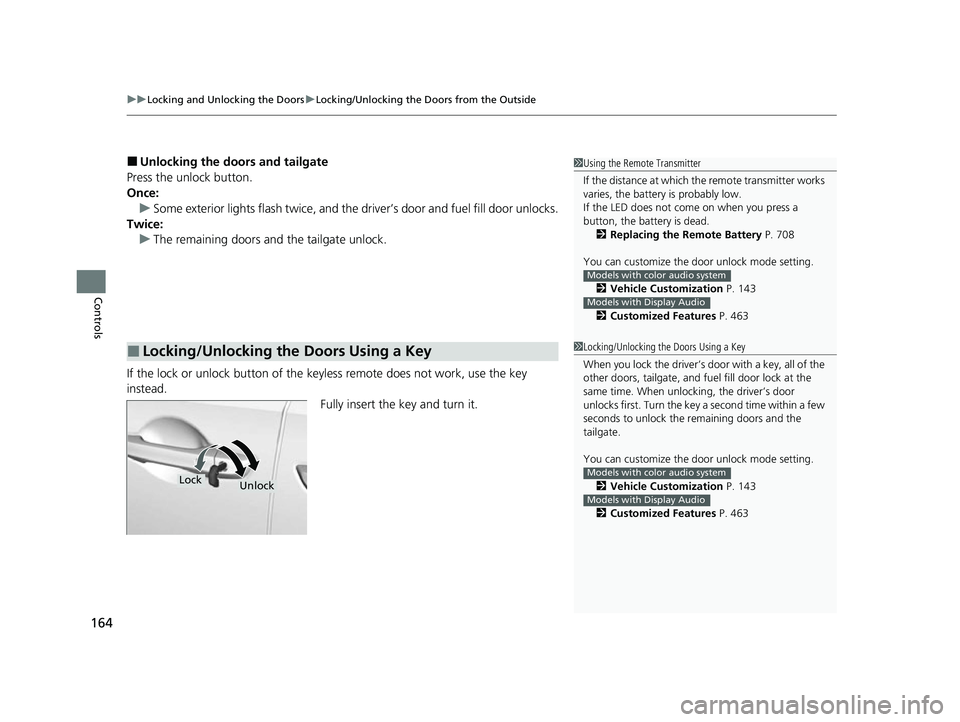

■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door and fuel fill door unlocks.
Twice: u The remaining doors and the tailgate unlock.
If the lock or unlock button of the key less remote does not work, use the key
instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Remote Battery P. 708
You can customize the door unlock mode setting. 2 Vehicle Customization P. 143
2 Customized Features P. 463
Models with color audio system
Models with Display Audio
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors, tailgate, and fu el fill door lock at the
same time. When unlock ing, the driver’s door
unlocks first. Turn the key a second time within a few
seconds to unlock the remaining doors and the
tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 143
2 Customized Features P. 463
Models with color audio system
Models with Display Audio
LockUnlock
22 US ODYSSEY-31THR6400.book 164 ページ 2020年11月16日 月曜日 午後1時41分
Page 166 of 782

165
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

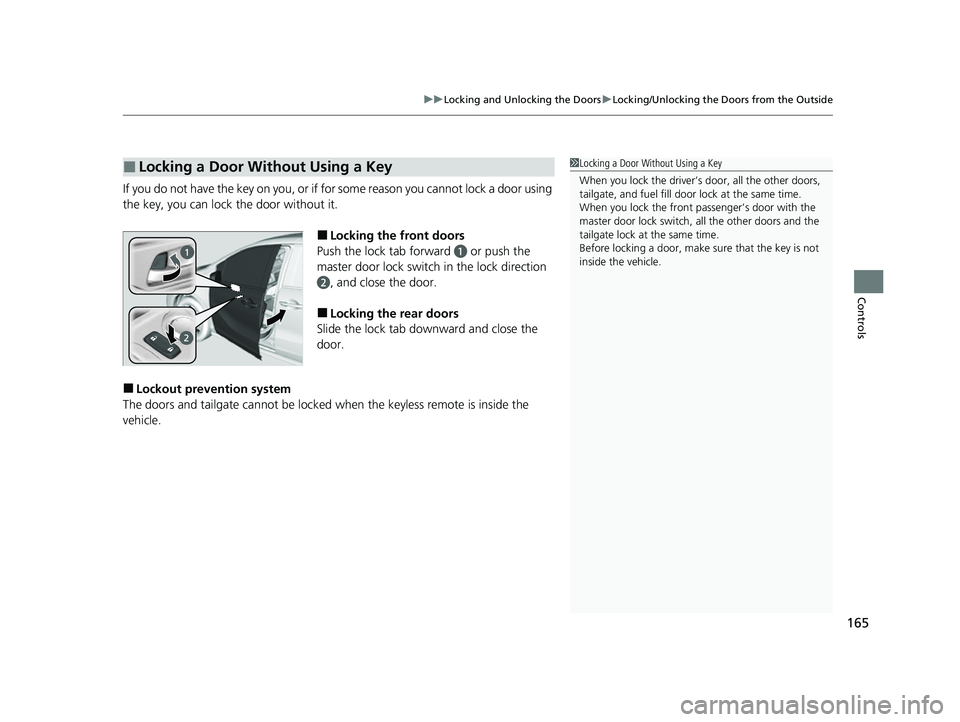

If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Slide the lock tab downward and close the
door.
■Lockout prevention system
The doors and tailgate cannot be locked when the keyless remote is inside the
vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors,
tailgate, and fuel fill door lock at the same time.
When you lock the front passenger’s door with the
master door lock switch, all the other doors and the
tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
22 US ODYSSEY-31THR6400.book 165 ページ 2020年11月16日 月曜日 午後1時41分
Page 167 of 782

166
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

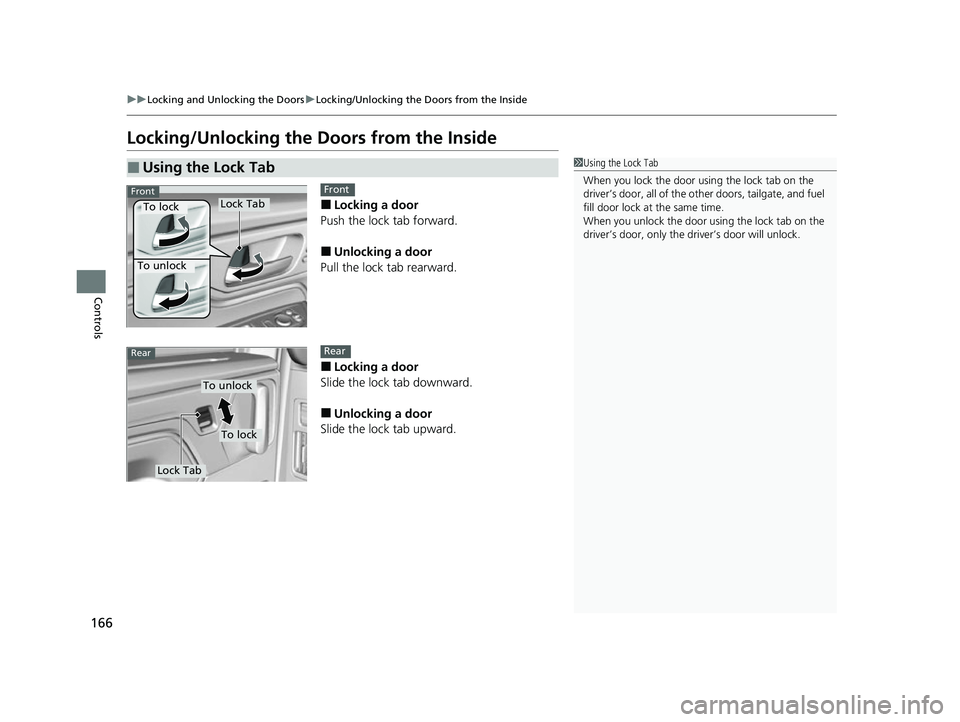

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Locking a door
Slide the lock tab downward.
■Unlocking a door
Slide the lock tab upward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors, tailgate, and fuel
fill door lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To unlock
Lock TabTo lock
FrontFront
To unlock
Lock Tab
To lock
RearRear
22 US ODYSSEY-31THR6400.book 166 ページ 2020年11月16日 月曜日 午後1時41分
Page 168 of 782

Continued167
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

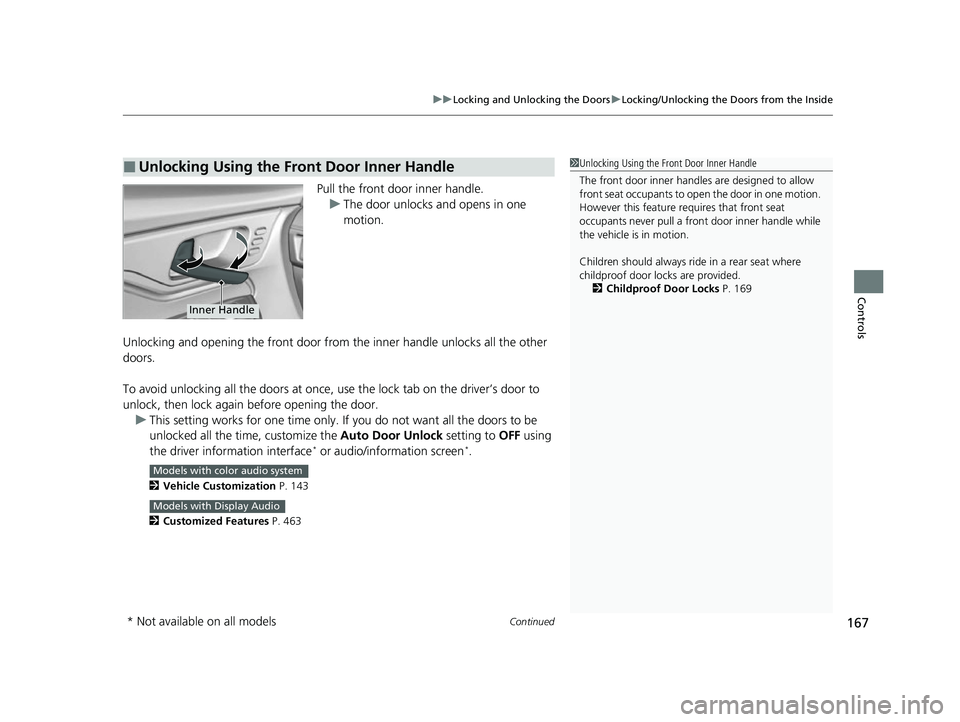

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the front door from the inner handle unlocks all the other
doors.
To avoid unlocking all the doors at once, use the lock tab on the driver’s door to
unlock, then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to be
unlocked all the ti me, customize the Auto Door Unlock setting to OFF using
the driver information interface
* or audio/information screen*.
2 Vehicle Customization P. 143
2 Customized Features P. 463
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 169
Inner Handle
Models with color audio system
Models with Display Audio
* Not available on all models
22 US ODYSSEY-31THR6400.book 167 ページ 2020年11月16日 月曜日 午後1時41分
Page 169 of 782

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
168
Controls

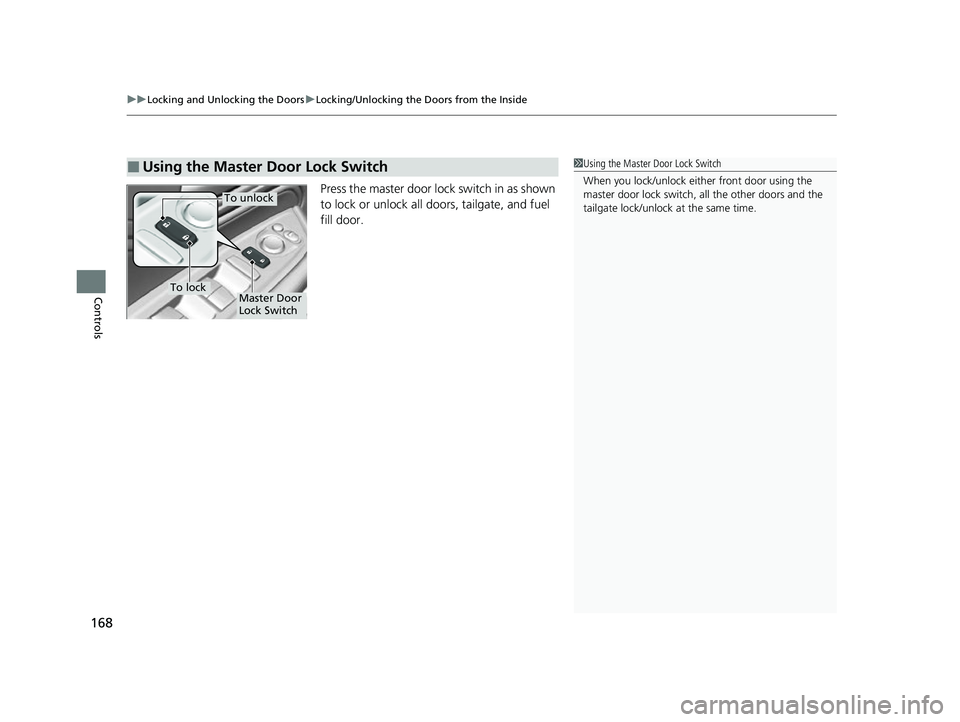

Press the master door lock switch in as shown
to lock or unlock all doors, tailgate, and fuel
fill door.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock eith er front door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
To unlock
Master Door
Lock SwitchTo lock
22 US ODYSSEY-31THR6400.book 168 ページ 2020年11月16日 月曜日 午後1時41分

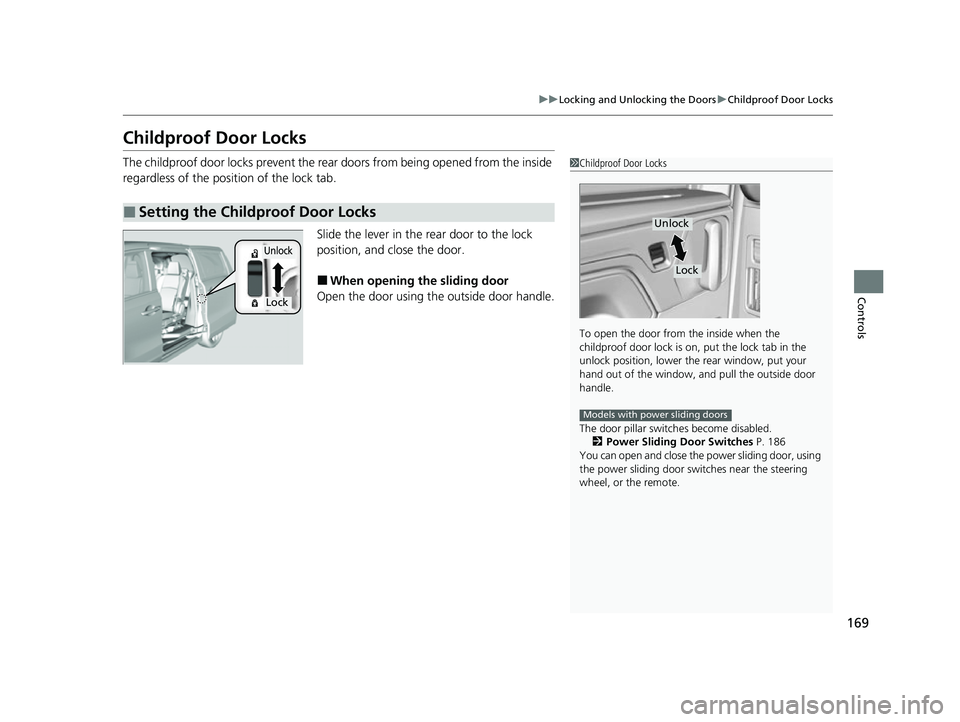

Page 170 of 782

169
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the sliding door
Open the door using the outside door handle.
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
The door pillar switch es become disabled.
2 Power Sliding Door Switches P. 186
You can open and close the power sliding door, using
the power sliding door swit ches near the steering
wheel, or the remote.
Unlock
Lock
Models with power sliding doors
Lock
Unlock
22 US ODYSSEY-31THR6400.book 169 ページ 2020年11月16日 月曜日 午後1時41分
