HONDA ODYSSEY 2022 Owners Manual

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel
Shows the traffic sign recognition system.
2 Traffic Sign Recognition System P. 630
Press the (home) button, then press the / button to scroll to the content
you want to see. Press ENTER to see detailed information.
*1: Models with color audio system
*2: Models with Display Audio
■Traffic Sign Recognition System
■Accessing Content
1Traffic Sign Recognition System
You can turn on or off the traffic sign recognition
system.
2 Vehicle Customization P. 143
2 Customized Features P. 463
Models with color audio system
Models with Display Audio
1Accessing Content
To go back to the previous screen, press the
*1/ *2 (back) button.
You can edit, add, or delete the meter contents using
the driver information interface.
2 Arrange Apps P. 141
2 Show/Hide Apps P. 14034
22 US ODYSSEY-31THR6400.book 130 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

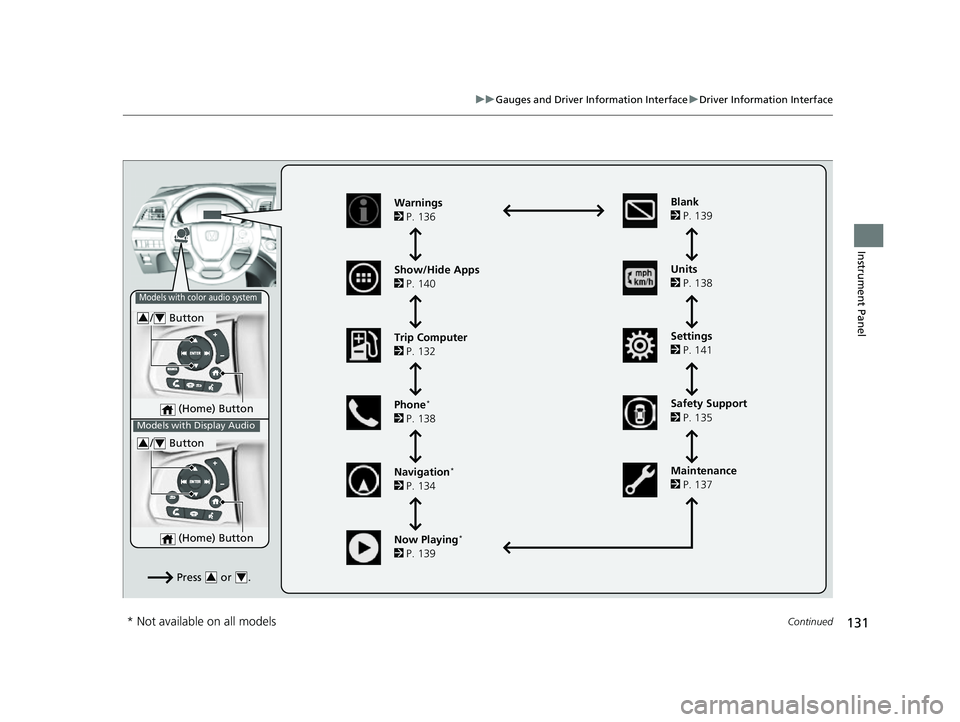

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
(Home) Button
/ Button34
Press or .34
Warnings
2 P. 136
Show/Hide Apps
2 P. 140
Trip Computer
2 P. 132
Phone
*
2 P. 138
Navigation
*
2 P. 134 Units
2
P. 138
Settings
2 P. 141
Maintenance
2 P. 137
Now Playing
*
2 P. 139 Blank
2
P. 139
Models with color audio system
Models with Display Audio
(Home) Button
/ Button34
Safety Support
2 P. 135
* Not available on all models
22 US ODYSSEY-31THR6400.book 131 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

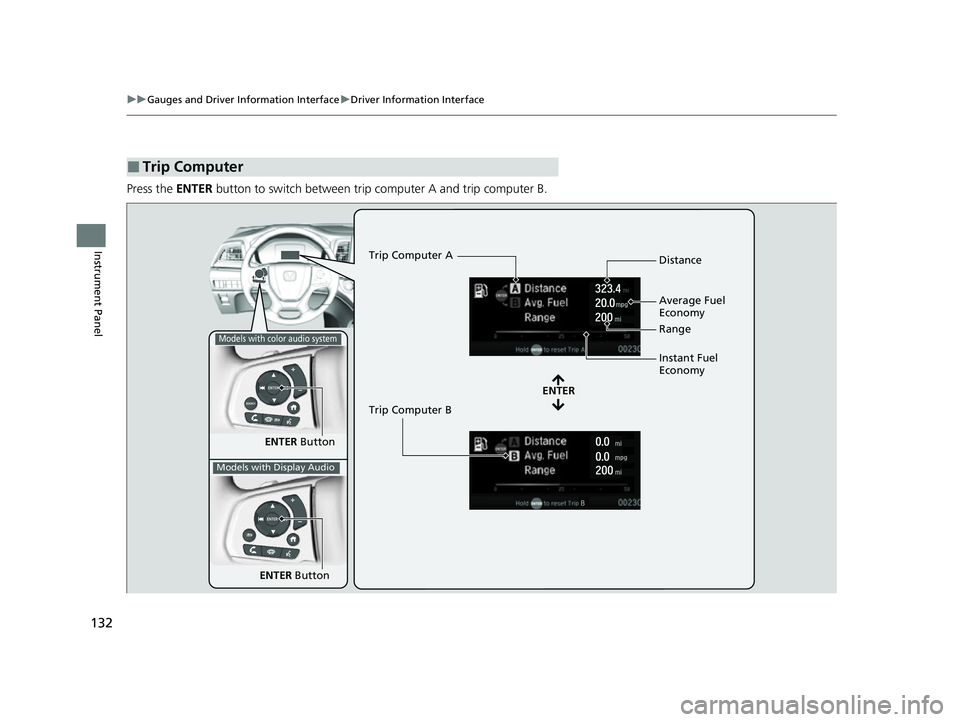

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
Models with color audio system
Models with Display Audio
ENTER
Button
22 US ODYSSEY-31THR6400.book 132 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

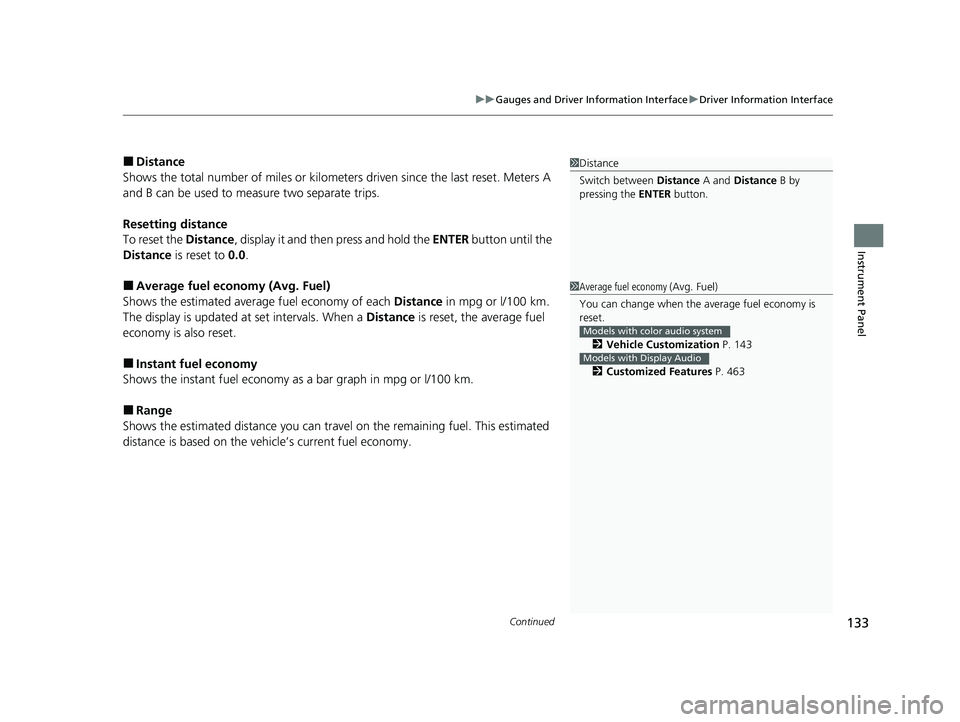

Continued133
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Distance
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting distance
To reset the Distance, display it and then press and hold the ENTER button until the
Distance is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Distance
Switch between Distance A and Distance B by
pressing the ENTER button.
1Average fuel economy (Avg. Fuel )
You can change when the average fuel economy is
reset.
2 Vehicle Customization P. 143
2 Customized Features P. 463
Models with color audio system
Models with Display Audio
22 US ODYSSEY-31THR6400.book 133 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

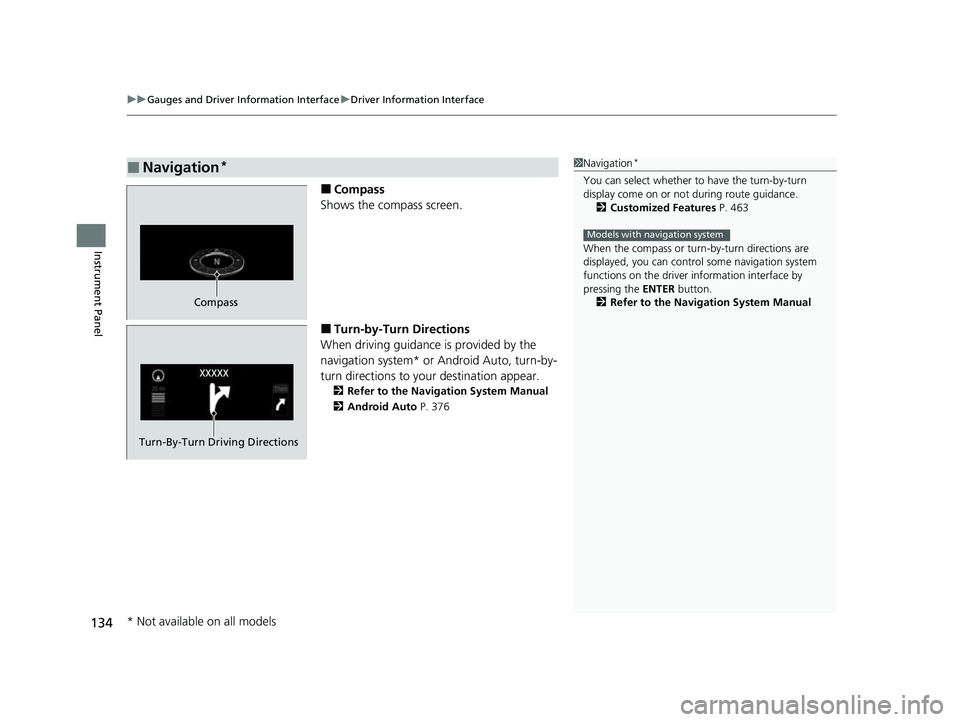

uuGauges and Driver Information Interface uDriver Information Interface
134
Instrument Panel
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the
navigation system* or Android Auto, turn-by-
turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 376
■Navigation*1Navigation*
You can select whether to have the turn-by-turn
display come on or not during route guidance.
2 Customized Features P. 463
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
pressing the ENTER button.
2 Refer to the Navigation System Manual
Models with navigation system
Compass
Turn-By-Turn Driving Directions
* Not available on all models
22 US ODYSSEY-31THR6400.book 134 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

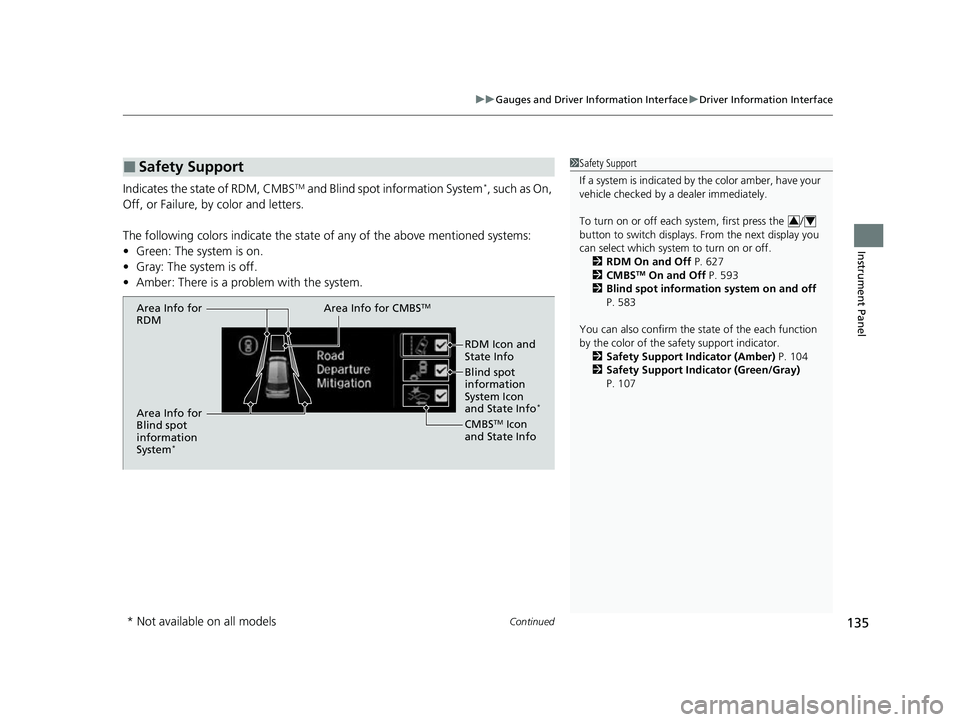

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Indicates the state of RDM, CMBSTM and Blind spot information System*, such as On,
Off, or Failure, by color and letters.
The following colors indica te the state of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a problem with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first press the /
button to switch displays. From the next display you
can select which system to turn on or off.
2 RDM On and Off P. 627
2 CMBS
TM On and Off P. 593
2 Blind spot information system on and off
P. 583
You can also confirm the st ate of the each function
by the color of the sa fety support indicator.
2 Safety Support Indicator (Amber) P. 104
2 Safety Support Indicator (Green/Gray)
P. 107
34
Area Info for CMBSTM
CMBSTM Icon
and State Info
Area Info for
Blind spot
information
System
*
RDM Icon and
State Info
Area Info for
RDM
Blind spot
information
System Icon
and State Info
*
* Not available on all models
22 US ODYSSEY-31THR6400.book 135 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

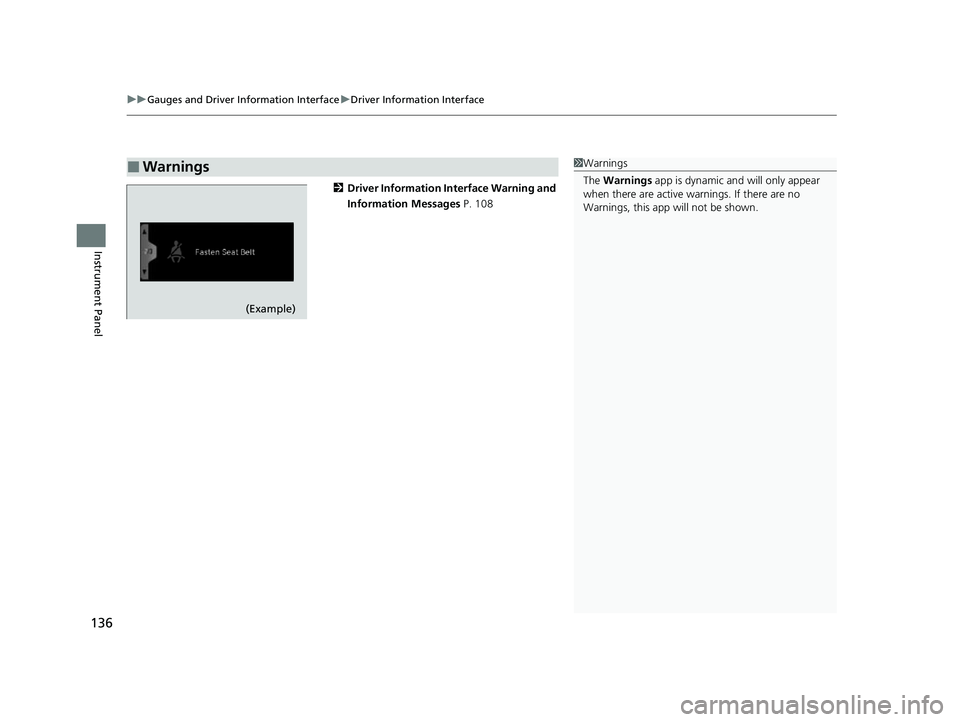

uuGauges and Driver Information Interface uDriver Information Interface
136
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 108
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
22 US ODYSSEY-31THR6400.book 136 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

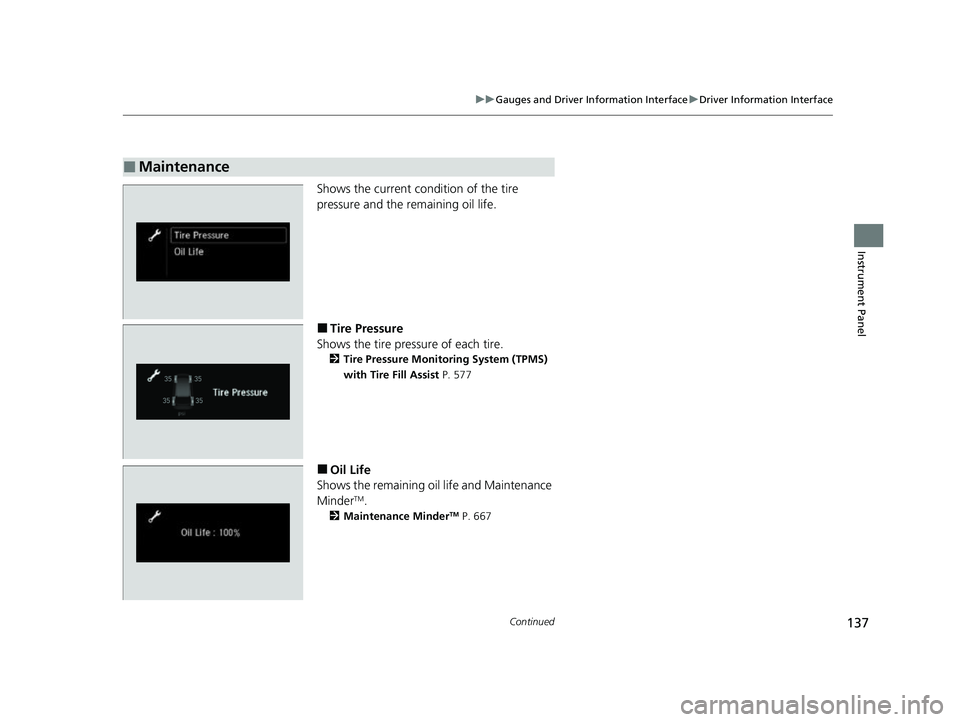

137
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist P. 577
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 667
■Maintenance
22 US ODYSSEY-31THR6400.book 137 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

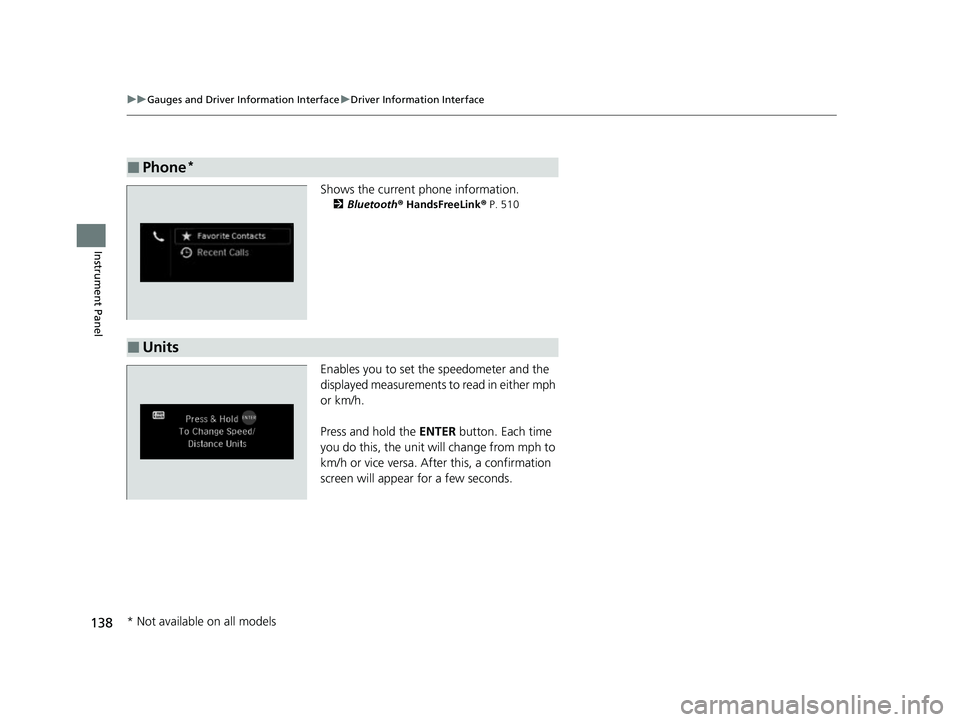

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 510
Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
■Phone*
■Units
* Not available on all models
22 US ODYSSEY-31THR6400.book 138 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

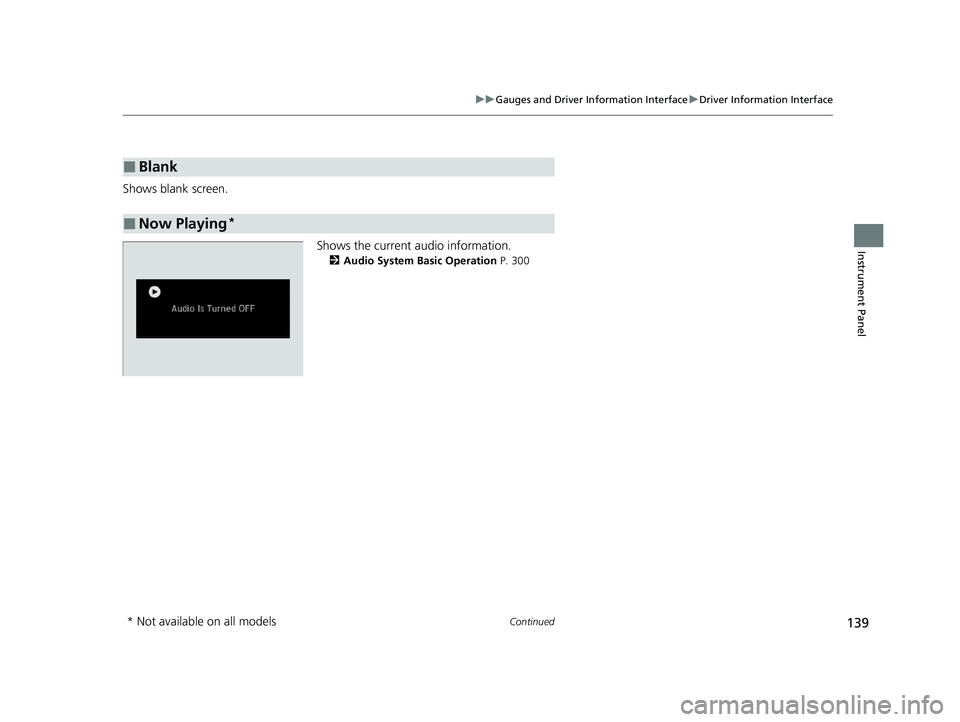

139
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows blank screen.
Shows the current audio information.
2Audio System Basic Operation P. 300
■Blank
■Now Playing*
* Not available on all models
22 US ODYSSEY-31THR6400.book 139 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
