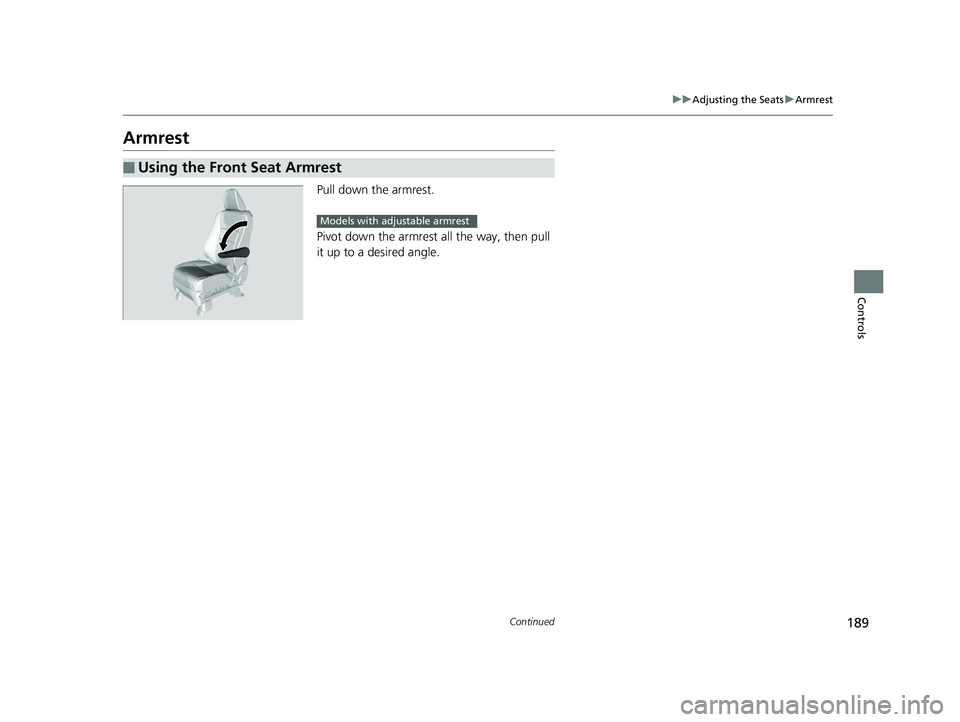

189
uuAdjusting the Seats uArmrest
Continued
Controls
Armrest
Pull down the armrest.
Pivot down the armrest all the way, then pull
it up to a desired angle.
■Using the Front Seat Armrest
Models with adjustable armrest
18 PILOT-31TG76200.book 189 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

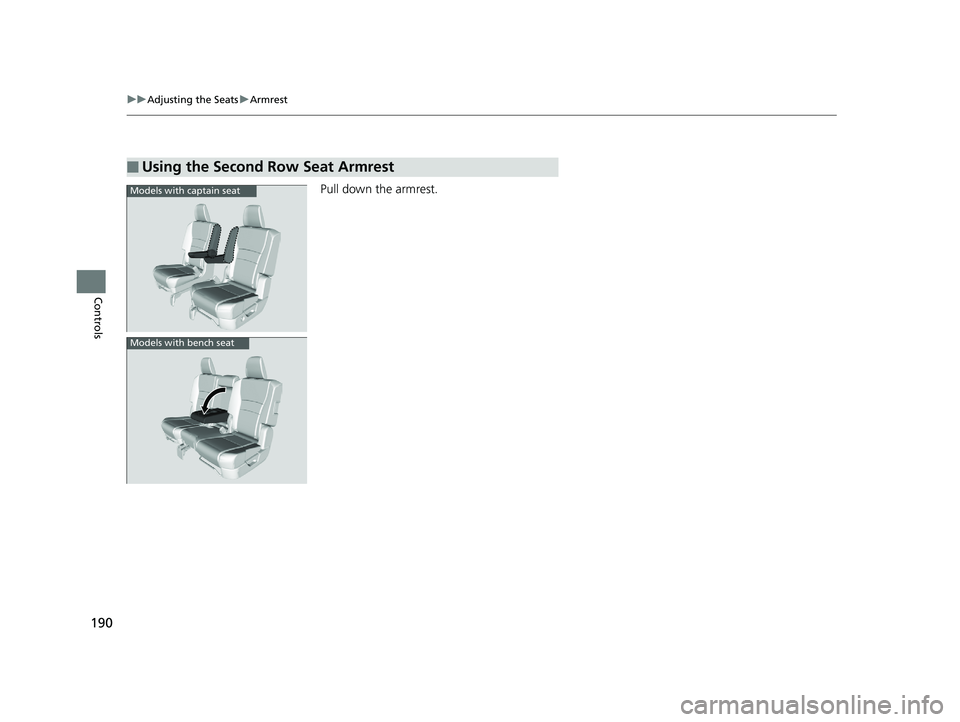

190
uuAdjusting the Seats uArmrest
Controls
Pull down the armrest.
■Using the Second Row Seat Armrest
Models with captain seat
Models with bench seat
18 PILOT-31TG76200.book 190 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

191Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the tailgate or the doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 367
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
If you leave any doors open in VEHICLE OFF (LOCK)
mode, the interior light s go off after about 15
minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine or power system is off.
Models without panoramic roof
Door Activated Position
Off
On
Models with panoramic roof
Door Activated Position
OffOn
18 PILOT-31TG76200.book 191 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

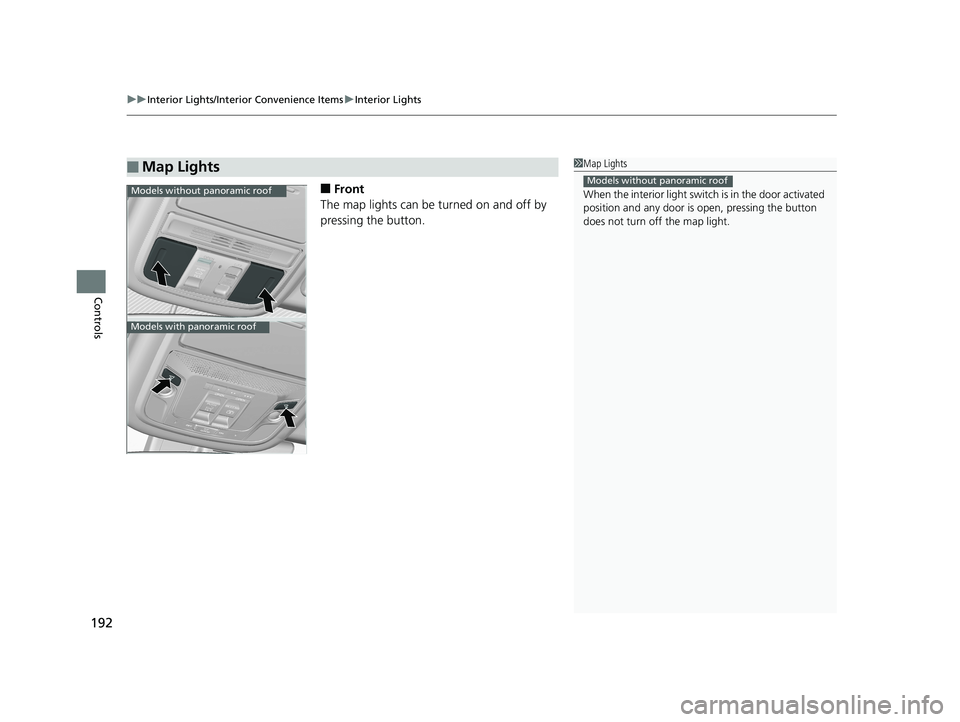

uuInterior Lights/Interior Convenience Items uInterior Lights
192
Controls
■Front
The map lights can be turned on and off by
pressing the button.
■Map Lights1 Map Lights
When the interior light swit ch is in the door activated
position and any door is open, pressing the button
does not turn off the map light.
Models without panoramic roof
Models with panoramic roof
Models without panoramic roof
18 PILOT-31TG76200.book 192 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

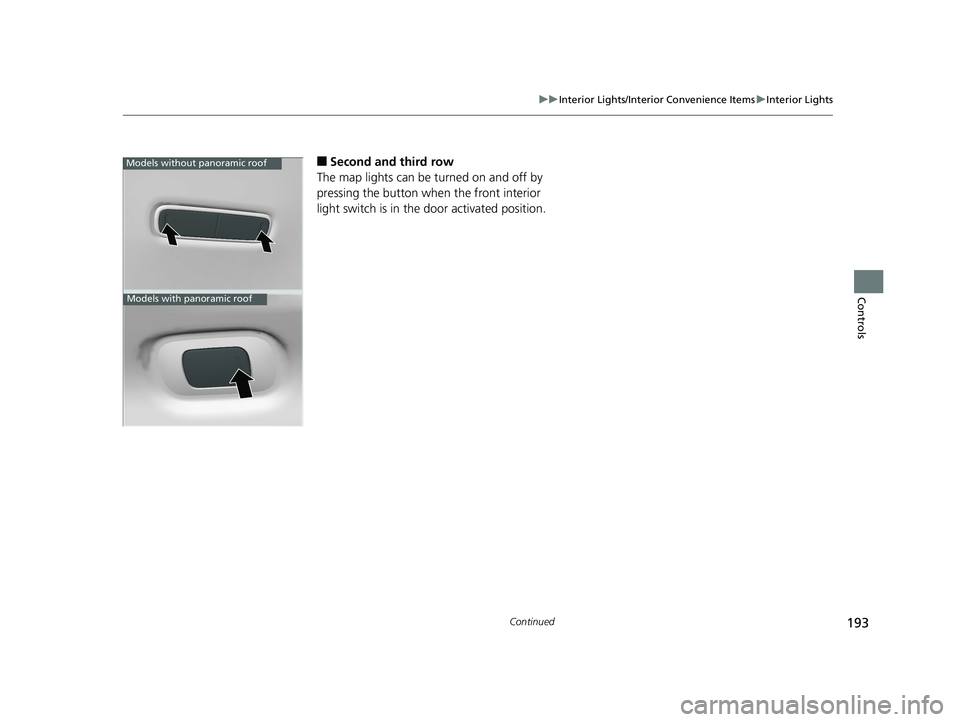

193
uuInterior Lights/Interior Convenience Items uInterior Lights
Continued
Controls
■Second and third row
The map lights can be turned on and off by
pressing the button when the front interior
light switch is in the door activated position.Models without panoramic roof
Models with panoramic roof
18 PILOT-31TG76200.book 193 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

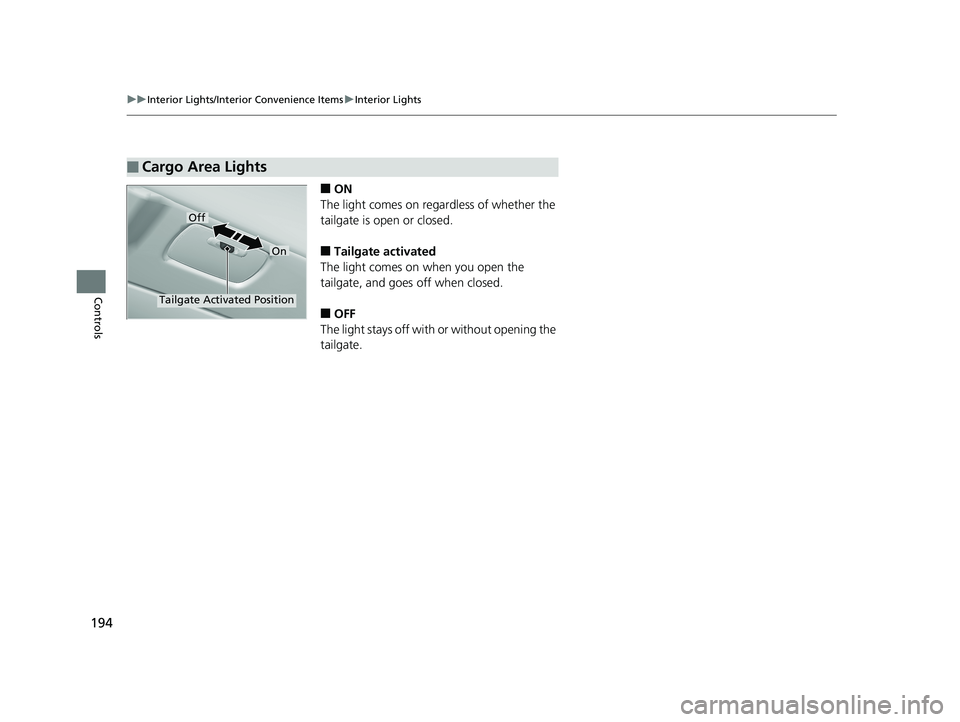

194
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■ON
The light comes on regardless of whether the
tailgate is open or closed.
■Tailgate activated
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Cargo Area Lights
Off
On
Tailgate Activated Position
18 PILOT-31TG76200.book 194 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

195

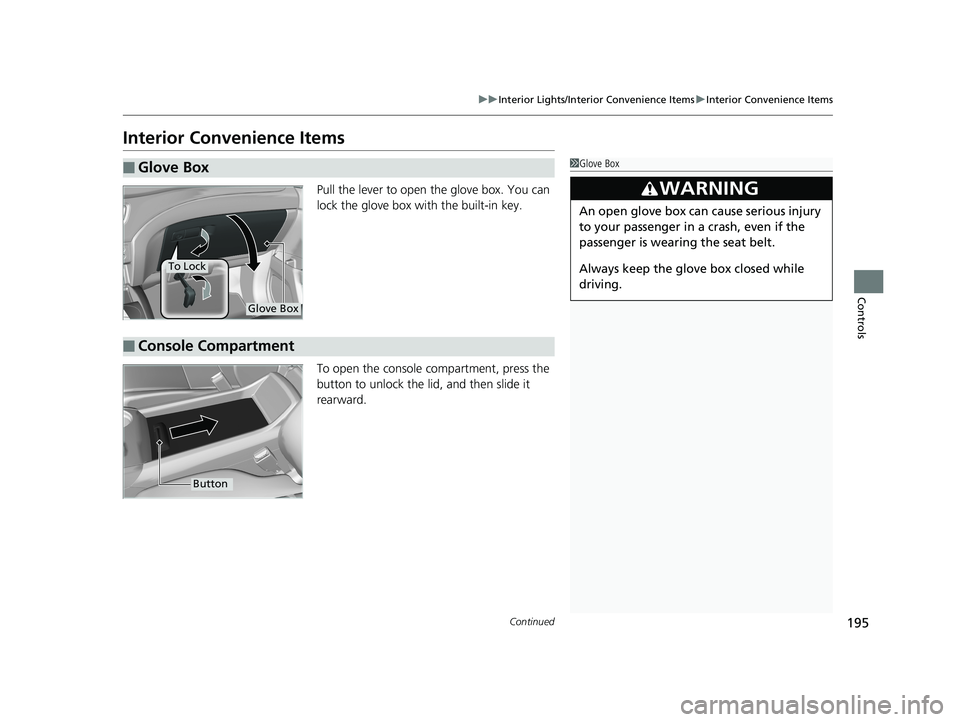

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
To open the console co mpartment, press the
button to unlock the lid, and then slide it
rearward.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
18 PILOT-31TG76200.book 195 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

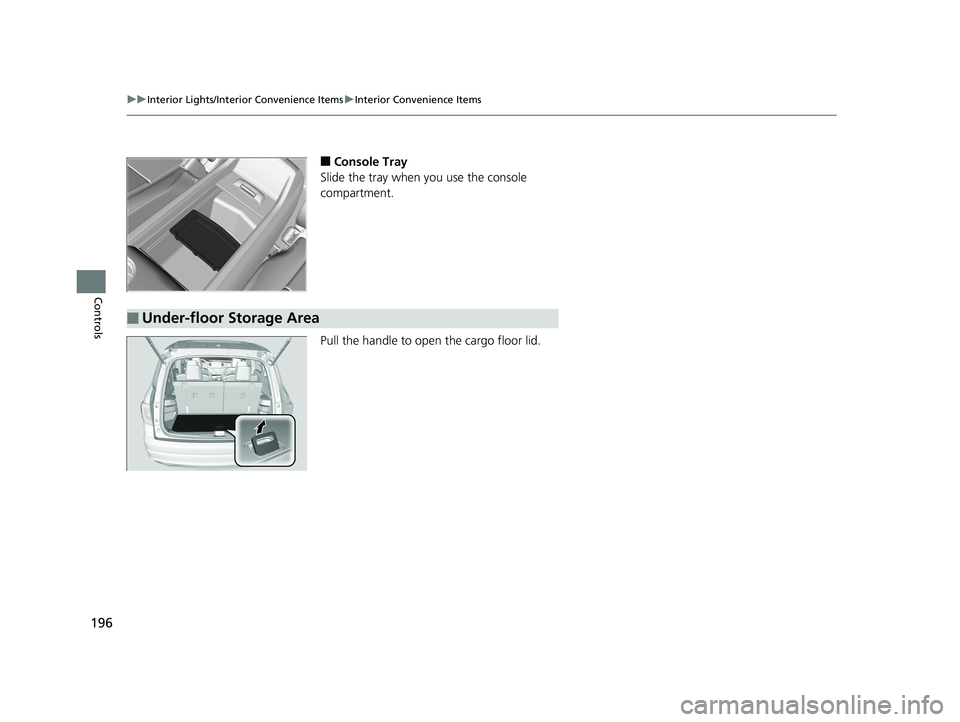

196
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Console Tray
Slide the tray when you use the console
compartment.
Pull the handle to op en the cargo floor lid.
■Under-floor Storage Area
18 PILOT-31TG76200.book 196 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

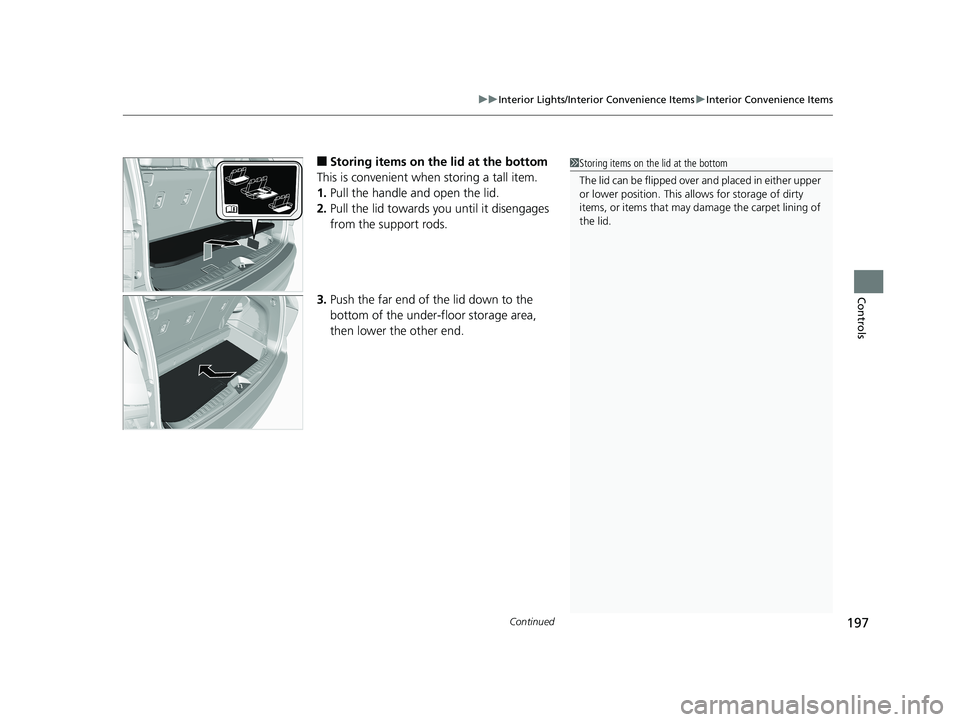

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Storing items on the lid at the bottom
This is convenient when storing a tall item.
1. Pull the handle and open the lid.
2. Pull the lid towards you until it disengages
from the support rods.
3. Push the far end of the lid down to the
bottom of the under-floor storage area,
then lower the other end.1Storing items on the lid at the bottom
The lid can be fli pped over and placed in either upper
or lower position. This allows for storage of dirty
items, or items that may da mage the carpet lining of
the lid.
18 PILOT-31TG76200.book 197 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

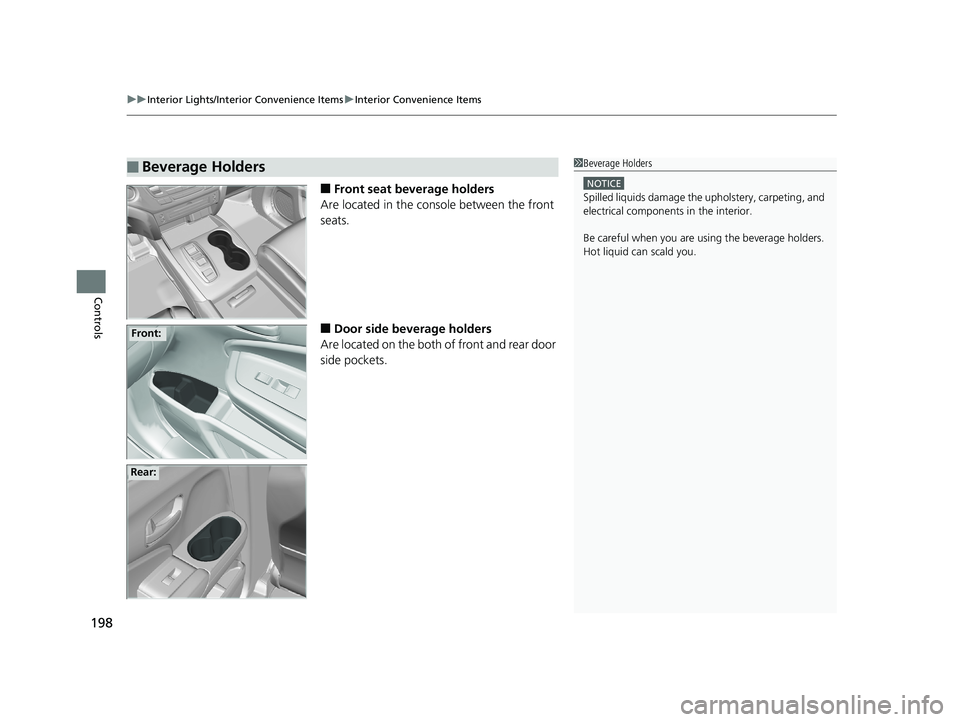

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
198
Controls
■Front seat beverage holders
Are located in the console between the front
seats.
■Door side beverage holders
Are located on the both of front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front:
Rear:
