mirror controls HONDA PRELUDE 1992 Owners Manual

Instruments and Controls

This section gives information
about the controls and displays that
contribute to the daily operation of

your Honda. All the essential

controls are within easy reach.
Control Locations......................... 30

Indicator Lights.............................. 31

Gauges............................................. 37
Speedometer
.............................
37

Tachometer................................. 37
Odometer
.................................... 37

Trip Meter................................... 37

Fuel Gauge..................................
38
Temperature Gauge
..................

38

Controls Near the
Steering

Wheel
....................................... 39

Headlights................................... 40

Daytime Running Lights.......... 40

Instrument Panel Brightness... 41

Turn Signals................................ 41

Windshield Wipers.....................
42

Windshield Washers.................
42

Steering Wheel Adjustment ....
. 43

Steering Wheel Controls............... 44
Cruise Control............................ 44
Horn ............................................ 47
Keys and Locks.............................. 47

Keys.............................................. 47

Ignition Switch........................... 47

Door Locks.................................. 48
Power Door Locks ..................... 48

Trunk.......................................... 50

Seat Adjustments........................... 51

Rear Seat Access........................ 52
Additional Driver' s
Seat

Adjustments...........................
53

Seat Heaters.................................... 54

Folding Rea r
Seat.......................... 55

Hazard Warning............................ 56

Rear Window Defogger ................ 56

Power Windows.............................. 57

Sunroof ...........................................
58

Mirrors ........................................... 59

Parking Brake................................ .

61

Glove Box........................................
.

62

Digital Clock..................................
.
63

Center Console Compartment .... 64
Vanity
Mirror
..............................
64
Cigarette Lighter
..........................
.
65

Ashtray........................................... 65

Interior Lights...............................
.

66
Instruments an
d
ControlsProCarManuals.comMain Menu s t

Control Locations

MIRROR
CONTROLS(P.60)

FUEL FILLER
DOOR RELEASE
(P.100) DOOR LOCK
SWITCH (P.49) POWER WINDOW
SWITCH
(P.57) DIGITAL CLOCK
(P.63)

TRUNK RELEASE HANDLE
(P.50)
HOOD RELEASE

HANDLE

(P.101)
HEATING/
COOLING
CONTROL

(P.68)

AUDIO SYSTEM (P.75, 84)

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Sunroof, Mirrors

The sunroof has a key-off delay.
You can still open and close the sunroof for up to ten minutes after
you turn off the ignition. The key- off delay cancels as soon as you
open either
front door. You must
then turn the ignition ON (II) for
the sunroof to operate.
If you try to open the sunroof in
below-freezing temperatures, or
when it is covered with snow or ice,
you can damage the sunroof panel
or motor.
Mirrors

Keep the inside and outside mirrors
clean and adjusted for best visibili-
ty. Be sure to adjust the mirrors
before you start driving.
The inside mirror has day and
night positions. The night position
reduces glare from headlights
behind you. Flip the tab on the
bottom edge of the mirror to select the day or night position.

Instruments and Controls

Closing the sunroof on some-
one's hands or fingers can
cause serious injury.
Make sure passengers are
clear of the sunroof before
closing it.
NOTICE
TABProCarManuals.comMain Menu Table of Contents s t

Mirrors

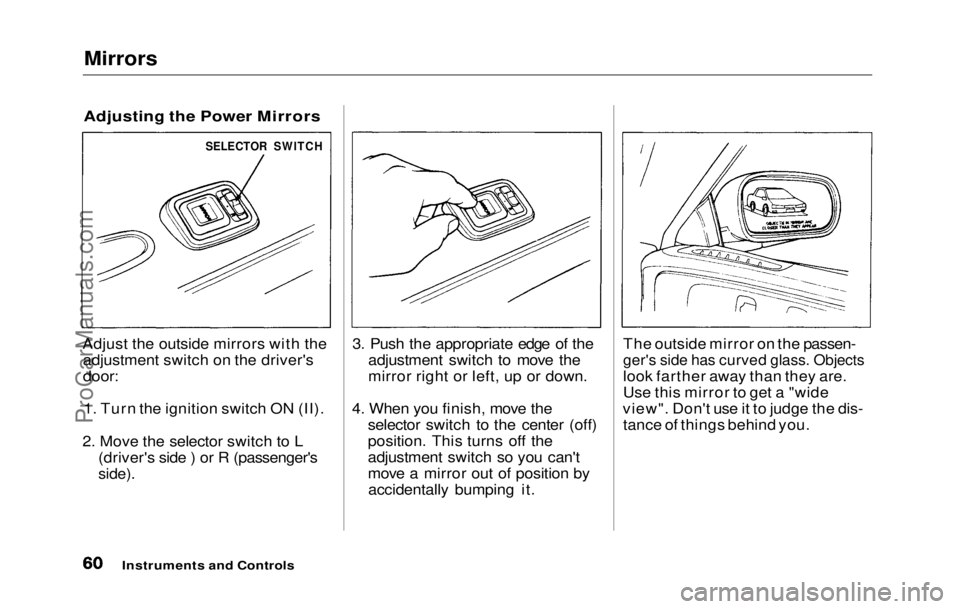

Adjusting the Power Mirrors

Adjust the outside mirrors with the adjustment switch on the driver's

door:

1. Turn the ignition switch ON (II).
2. Move the selector switch to L (driver's side ) or R (passenger's

side).
3. Push the appropriate edge of the
adjustment switch to move the
mirror right or left, up or down.
4. When you finish, move the selector switch to the center (off)
position. This turns off the
adjustment switch so you can't
move a mirror out of position byaccidentally bumping it. The outside mirror on the passen-

ger's side has curved glass. Objects

look farther away than they are.
Use this mirror to get a "wide
view". Don't use it to judge the dis- tance of things behind you.

Instruments and Controls
SELECTOR SWITCHProCarManuals.comMain Menu Table of Contents s t

Mirrors, Parking Brake

Available on all Canadian models

The outside mirrors are heated to
remove fog and frost. Press the
mirror defroster button to turn on
the heaters. The light in the button
comes on as a reminder. Press the
button again to turn the heaters off.
Parking Brake

To apply the parking brake, pull
the lever up fully. To release it, pull
up slightly, push the button, and lower the lever. The parking brake
light on the instrument panel
should go out when the parking
brake is fully released (see page 33).
If you try to drive the car without
releasing the parking brake, the
ABS cannot work properly. Driving the car with the parking
brake applied can damage the rear brakes and axles.

Instruments and Controls

NOTICE

PARKING BRAKE LEVERProCarManuals.comMain Menu Table of Contents s t

Center Console Compartment, Vanity Mirror

Center Console Compartment

To open the console compartment, pull up on the lever on the left front
corner of the lid.
To close, lower the lid and push it
down until it latches. Use the master key to lock the
console compartment. Turn the
key clockwise to lock, and counter-
clockwise to unlock.
Vanity Mirror

To use the vanity mirror, pull down either sunvisor and swing down the
cover.

Instruments and Controls
LEVER
MASTER KEY

CENTER CONSOLE

COMPARTMENTProCarManuals.comMain Menu Table of Contents s t
