Hyundai Accent 2006 Owners Manual

1
FEATURES OF YOUR HYUNDAI
77
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
!
POWER OUTLET
B500D01TG-GAT
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON"or "ACC" position. OMC025106
!
CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap- pliance. Using when the enginestops or leaving the electric appli- ance plugged in for many hours may cause the battery to dis-charge.
o Do not use the power outlet to
connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause electronic interference whenplugged into the power outlet. These devices may cause exces-sive audio noise and malfunctions in other electronic systems or de- vices used in your vehicle.

1FEATURES OF YOUR HYUNDAI
78
OMC025034
!WARNING:
Use caution when using the drink holders. A spilled beverage that is very hot can injure your passengers.Spilled liquids can damage interior trim.
B450B01MC-GAT REAR DRINK HOLDER The rear drink holder is located in the rear seat armrest for holding cups or cans.The rear drink holder can be used by pulling the rear seat armrest.
DRINK HOLDERASHTRAY
To use the ashtray, open the cover. To remove the ashtray to empty or clean it, pull it all the way out.
B430A01MC-GAT
OMC025108
OMC025103
!
B450A02O-AAT FRONT DRINK HOLDER The drink holder is located on the main console for holding cups or cans. WARNING:
o Use caution when using the drink holders. A spilled beverage that isvery hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place objects other than
cups or cans in the drink holder.This objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the pas-sengers in the vehicle.

1
FEATURES OF YOUR HYUNDAI
79
B460B01MC-GAT Opening the Sunroof System If your vehicle is equipped with this feature, you can slide or tilt your sunroof with the sunroof control buttons locatedon the overhead console. The sunroof can only be opened, closed, or tilted when the ignition switch is in the"ON" position.
!
SUNROOF
B460A02Y-AAT (If Installed) Sun Shade
1JBA3110
Your HYUNDAI is equipped with a slid- ing sunshade which you can manually adjust to let in light with the sunroofclosed, or to block sunlight.
WARNING:
Never adjust the sunshade while driv- ing. This could result in loss of con- trol and an accident that may causedeath, serious injury, or property damage.
OMC025021
!
Auto slide open To use the auto slide feature, press the SLIDE OPEN button on the overheadconsole for more than 1 second. The sunroof will slide all the way open. To stop the sunroof sliding at any point,press any sunroof control button. Manual slide open Press the SLIDE OPEN button on the overhead console for less than 0.5 second. Manual slide close To close the sunroof, press the TILT UP button on the overhead console andhold it until the sunroof is closed.
WARNING:
Be careful that someone’s head, hands and body are not trapped by a closing sunroof.

1FEATURES OF YOUR HYUNDAI
80
!
!
WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroofsash, as this could result in injury.
o Do not place your head or arms
out of the sunroof opening at anytime.
o While the vehicle is moving, al-
ways keep the head, hands andother parts of the body of all occu- pants away from the roof opening. Otherwise, you could be seriouslyinjured if the vehicle stops sud- denly or if the vehicle is involved in an accident. CAUTION:
o Do not open the sunroof in se- verely cold temperature or when itis covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails.
o Do not press any sunroof control button longer than necessary.Damage to the motor or systemcomponents could occur.
B460C01TG-GAT Tilting the Sunroof System Auto tilt up To use the auto tilt feature, press the TILT UP button on the overhead con-sole for more than 1 second. The sunroof will tilt all the way open. To stop the sunroof tilting at any point, press anysunroof control button. Manual tilt up Press the TILT UP button on the over- head console for less than 0.5 second.
OMC025021 Manual tilt down To close the sunroof, press the SLIDE OPEN button on the overhead consoleand hold it until the sunroof is closed. NOTE: After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operat- ing it.

1
FEATURES OF YOUR HYUNDAI
81
B460D01NF-GAT Manual Operation of Sunroof If the sunroof does not electrically oper- ate:
1. Open the spectacle case.
2. Remove the two mounting screws of
the front overhead console with a (+)driver. OMC025022
3. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle's trunk or glove box.
4. Turn the wrench clockwise to open or counterclockwise to close thesunroof. OMC025023B460E01TG-GAT Resetting the sunroof Whenever the vehicle battery is discon- nected or discharged, or you use theemergency handle to operate the sunroof, you have to reset your sunroof system as follows:
1. Turn the ignition key to the "ON"
position.
2. Press the TILT UP button for more than 1 second to tilt up the sunroof completely when the sunroof is fullyclosed. Then, release the button.
3. Press and hold the TILT UP button
once again until the sunroof hasreturned to the original position of TILT UP after it is raised a little higher than the maximum TILT UPposition. Then, release the button.
4. Press and hold the TILT UP button
within 5 seconds until the sunroof isoperated as follows; TILT DOWN SLIDE OPEN
SLIDE CLOSEThen, release the button.

1FEATURES OF YOUR HYUNDAI
82
The interior courtesy light switch has three positions. The three positions are: o "DOOR"In the "DOOR" position, the interior courtesy light comes on when anydoor is opened regardless of the ignition key position. The light goes out gradually after 30 seconds if thedoor is closed. However if the igni- tion switch is ON or all doors are locked, interior light will turn off evenwithin 30 seconds.
B490A01MC-AAT Interior Light
B490A03MC
INTERIOR LIGHT
B480A01MC-GAT Map Light (If Installed) The two map light switches are located on both sides of the front overheadconsole. Push in the map light switch to turn the light on or off. This light pro- duces a spot beam for convenient useas a map light at night or as a personal light for the driver and the passenger. o "DOOR" In the "DOOR" position, the map light comes on when any door is opened regardless of the ignition key position. The light goes out graduallyafter 30 seconds if the door is closed. However if the ignition switch is ON or all doors are locked, map light willturn off even within 30 seconds.
OMC025068
! CAUTION:
If the sunroof is not reset, it may not operate properly.

1
FEATURES OF YOUR HYUNDAI
83
o"ON" In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave the switch in this posi- tion for an extended period of time when the vehicle is not running.
!
!
SPECTACLE CASE
B491A03O-GAT (If Installed) The spectacle case is located on the front overhead console. Push the end of the cover to open thespectacle case. WARNING:
o Do not keep objects such as sharp or unsuitable things inside thespectacle case. Such objects canbe thrown out in the event of a sudden stop or an accident, pos- sibly injuring the passengers inthe vehicle.
o Do not open the spectacle case
while the vehicle is moving. Therear view mirror of the vehicle can be blocked by an open spectacle case.
B491A03MC
o "OFF" In the "OFF" position, the light stays off at all times even though a door is open.

1FEATURES OF YOUR HYUNDAI
84
!

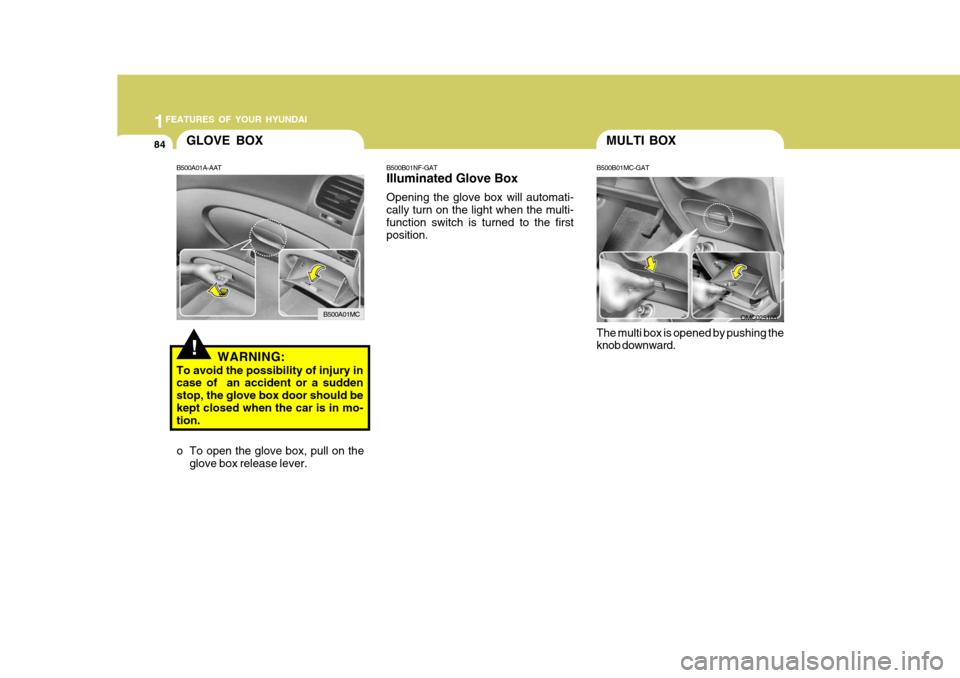

GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should bekept closed when the car is in mo- tion.
B500A01A-AAT
B500A01MC
o To open the glove box, pull on the glove box release lever. B500B01NF-GAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi-function switch is turned to the first position.
MULTI BOX
B500B01MC-GAT The multi box is opened by pushing the knob downward.
OMC025105

1
FEATURES OF YOUR HYUNDAI
85
B510B01FC-AAT Electric Type (If Installed) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors.
OMC025048
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma- nipulating the face of the mirror. Usean approved spray de-icer (not radia- tor antifreeze) to release the frozen mechanism or move the vehicle to awarm place and allow the ice to melt.
!
B510A01A-AAT Manual Type (If Installed) The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the con-trol lever in the bottom front corner of the window. Before driving away, always check thatyour mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behind yourvehicle. When using the mirror, always exercise caution when attempting to judge the distance of vehicles behind oralong side of you.
OUTSIDE REARVIEW MIRROR
OMC025049

1FEATURES OF YOUR HYUNDAI
86
!
CAUTION:
o Do not operate the switch continu- ously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in thepassenger side rear view mirror. It is a convex mirror with a curved sur- face. Any objects seen in this mirrorare closer than they appear.!
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Adjust mirror angle by depressing
the appropriate perimeter switch asillustrated. B510D01HP-GAT OUTSIDE REARVIEW MIRROR HEATER (If Installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outsiderearview mirror glass, push in the switch for the rear window defroster. The rear- view mirror glass will be heated fordefrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switchagain to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes.
OMC025072
!
B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss ofcontrol, and an accident which could cause death, serious injury or prop- erty damage.
OMC025051
