Hyundai Accent 2006 Owner's Manual

5
VEHICLE MAINTENANCE REQUIREMENTS
9
6ZF070D1-A
o Manual transaxle oil
Inspect the manual transaxle oil ac-
cording to the maintenance schedule. NOTE:
If the oil level is low, check for
possible leaks before adding oil. Do not overfill.
F070E03A-AAT
o Automatic transaxle fluid
The fluid level should be in the "HOT"
range of the dipstick, after engine and transaxle are at normal operating tem- perature. Check the AutomaticTransaxle Fluid level with the engine running and the transaxle in neutral, with the parking brake properly ap-plied. Use Hyundai Genuine ATF SP- III, DIAMOND ATF SP-III, SK ATF SP-III or other brands appraoved byHyundai Motor Co., when adding or changing fluid. 6ZF070F1-A
o Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and anyleakage. Replace any deteriorated or damaged parts immediately.
6ZF070G2-A
o Brake fluid
Check brake fluid level in the brake
fluid reservoir. The level should be between "MIN" and "MAX" marks on the side of the reservoir. Use only hydraulic brake fluid conforming to DOT 3 or DOT 4.
6ZF070H1-A
o Rear brake drums and linings/ parking brake
Check the rear brake drums and lin-
ings for scoring, burning, leaking fluid, broken parts, and excessive wear. Inspect the parking brake system in-cluding the parking brake lever and cables. For detailed service proce- dures, refer to the Shop Manual. 6ZF070J1-A
o Brake pads, calipers and
rotors
Check the pads for excessive wear,discs for run out and wear, and cali- pers for fluid leakage. 6ZF070K1-A o Exhaust pipe and muffler Visually inspect the exhaust pipes, muffler and hangers for cracks, dete- rioration, or damage. Start the engine and listen carefully for any exhaustgas leakage. Tighten connections or replace parts as necessary. 6ZF070L1-A
o Suspension mounting bolts
Check the suspension connections for looseness or damage. Retighten to the specified torque.

5VEHICLE MAINTENANCE REQUIREMENTS
10
6ZF070P1-A
o Driveshafts and boots
Check the drive shafts, boots and clamps for cracks, deterioration, or damage. Replace any damaged parts and, if necessary, repack the grease. 6ZF070Q1-A
o Air conditioning refrigerant
Check the air conditioning lines and connections for leakage and damage.Check air conditioning performance according to the relevant shop manual if necessary.
6ZF070M1-A o Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine off, check for excessive freeplay in the steering wheel. Check the linkage for bends or dam- age. Check the dust boots and ball joints for deterioration, cracks, or dam- age. Replace any damaged parts. 6ZF070N1-A
o Power steering pump, belt and hoses
Check the power steering pump and hoses for leakage and damage. Re-place any damaged or leaking parts immediately. Inspect the power steer- ing belt for evidence of cuts, cracks,excessive wear, oiliness and proper tension. Replace or adjust it if neces- sary.

Engine Compartment .................................................... 6-2
Daily Operating Checks ............................................... 6-5
Engine Oil ..................................................................... 6-5
Engine Oil and Filter Replacement ............................... 6-8
Engine Coolant Checking and Replacing ..................... 6-9
Sparking Plug Replacement ........................................6-12
Air Cleaner Element Replacement ............................... 6-13
Manual Transaxle Lubricant .................... ....................6-15
Automatic Transaxle Fl uid........................................... 6-16
Brake System Checking .............................................. 6-18
Checking the Clutch Fluid ............................................ 6-19
Air Conditioning System Maintenance ......................... 6-20
Changing the Pollen Filter
(For Evaporator and Blower U nit) .............................6-21
Drive Belts ................................................................... 6-23
Fusible Links ............................................................... 6-24
Power Steering Fluid Level .......................................... 6-27
Replacing Light Bulbs .................................................. 6-30
Fuse Panel Description ............................................... 6-37
OWNER MAINTENANCE
6
6

6OWNER MAINTENANCE

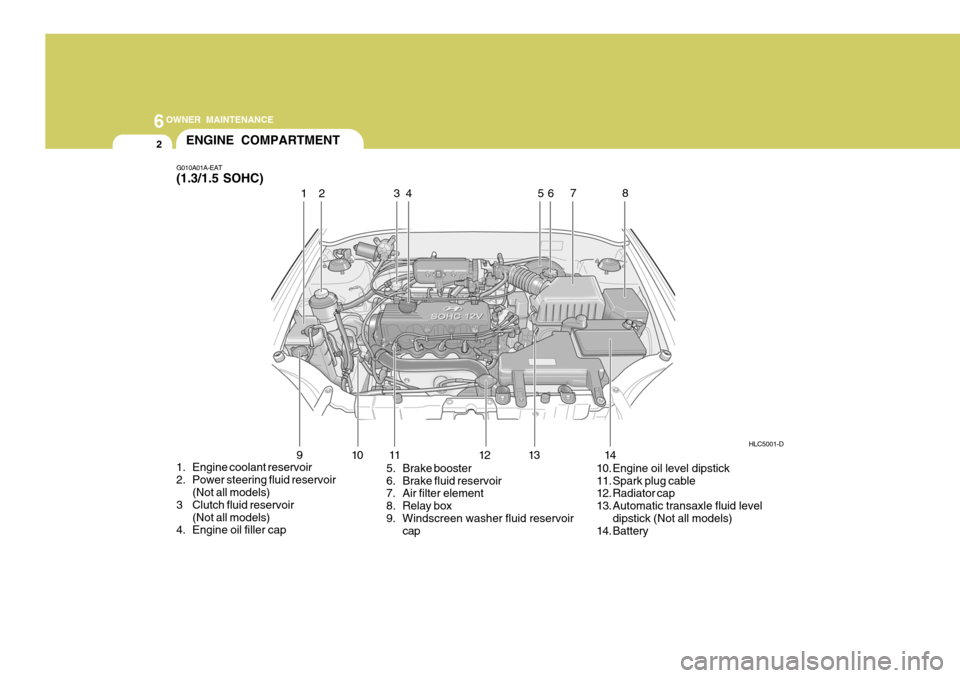

2ENGINE COMPARTMENT
HLC5001-D
G010A01A-EAT (1.3/1.5 SOHC)
1. Engine coolant reservoir
2. Power steering fluid reservoir
(Not all models)
3 Clutch fluid reservoir (Not all models)
4. Engine oil filler cap 5. Brake booster
6. Brake fluid reservoir
7. Air filter element
8. Relay box
9. Windscreen washer fluid reservoir
cap 10. Engine oil level dipstick
11. Spark plug cable
12. Radiator cap
13. Automatic transaxle fluid level
dipstick (Not all models)
14. Battery
12 34 56
78
91 011 1 213 1 4

6
OWNER MAINTENANCE
3

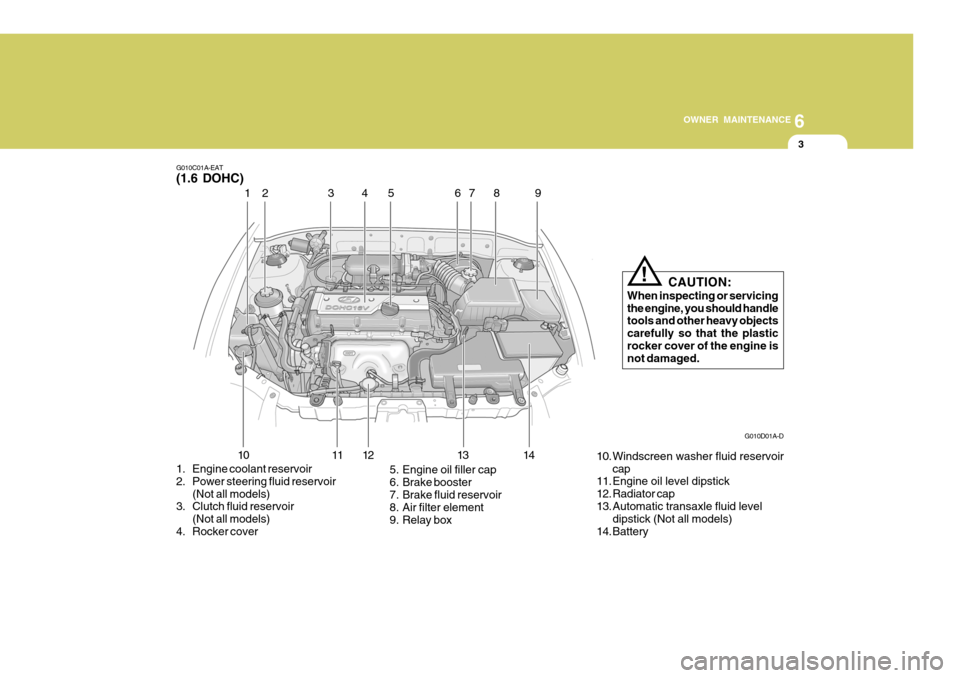

G010C01A-EAT (1.6 DOHC)
G010D01A-D
1. Engine coolant reservoir
2. Power steering fluid reservoir (Not all models)
3. Clutch fluid reservoir
(Not all models)
4. Rocker cover 5. Engine oil filler cap
6. Brake booster
7. Brake fluid reservoir
8. Air filter element
9. Relay box10. Windscreen washer fluid reservoir
cap
11. Engine oil level dipstick
12. Radiator cap
13. Automatic transaxle fluid level dipstick (Not all models)
14. Battery
12 4 5 67 8 9
10 11 12 3
CAUTION:
When inspecting or servicingthe engine, you should handle tools and other heavy objects carefully so that the plasticrocker cover of the engine is not damaged.
!
13 14

6OWNER MAINTENANCE
4

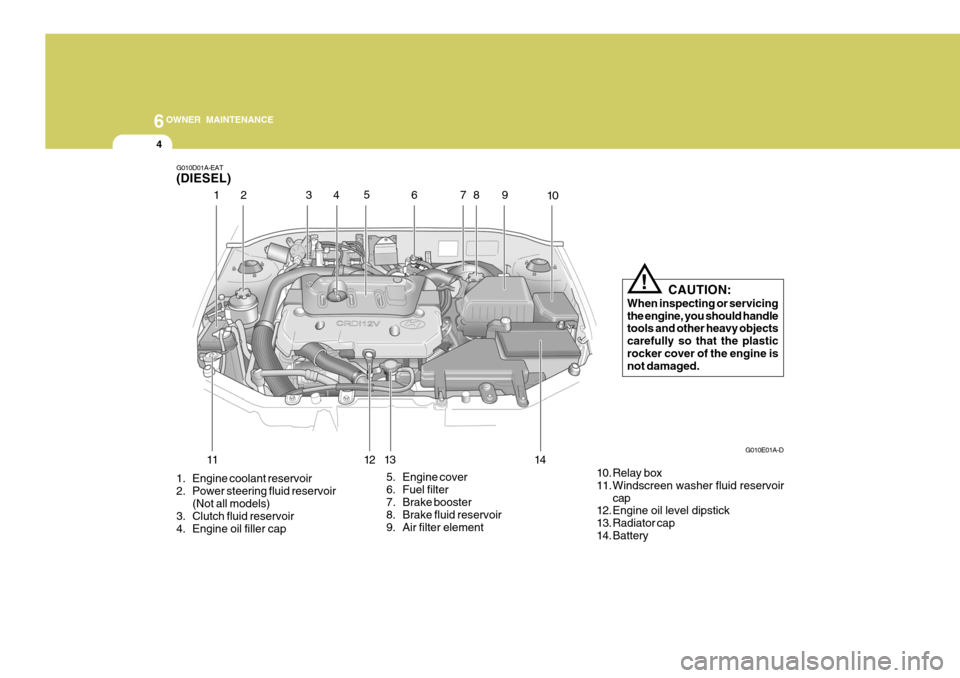

G010D01A-EAT (DIESEL)
1. Engine coolant reservoir
2. Power steering fluid reservoir
(Not all models)
3. Clutch fluid reservoir
4. Engine oil filler cap 5. Engine cover
6. Fuel filter
7. Brake booster
8. Brake fluid reservoir
9. Air filter element 10. Relay box
11. Windscreen washer fluid reservoir
cap
12. Engine oil level dipstick
13. Radiator cap
14. Battery G010E01A-D
12 34
5
67 89
11 12 13 14 10
CAUTION:
When inspecting or servicingthe engine, you should handle tools and other heavy objects carefully so that the plastic rocker cover of the engine is not damaged.
!

6
OWNER MAINTENANCE
5ENGINE OILDAILY OPERATING CHECKS
SG020B1-E The following items should be checked on a daily basis or whenever the vehicle is refuelled, whichever occurs sooner.
o Engine oil level.
o Coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light- ing equipment.
o Windscreen wiper and washer opera- tion.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and operation.
o Fluid leakage. The vehicle must not be driven if the daily operating checks indicate thatany item of equipment related to the safety or roadworthiness of the vehicle is not functioning correctly. G030A01FC-EAT The correct engine oil level is of para- mount importance. An excessively high or low oil level may result in irreparable damage being sustained by the engine.The engine oil level must be checked on a daily basis, whenever the vehicle is refuelled or before starting a long trip,whichever occurs sooner. In addition, it is imperative that only an approved grade and specification of oilis used to avoid the possibility of seri- ous engine damage and premature wear. The use of "budget price" oil is a falseeconomy that must be avoided if the maximum reliability and useful life is to be obtained from the vehicle.

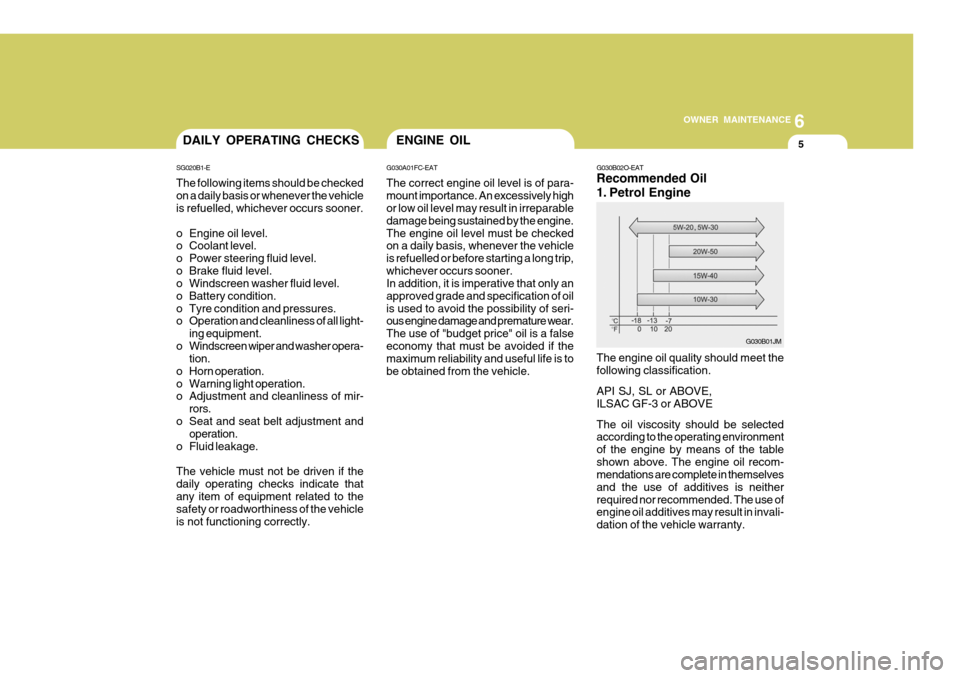

G030B02O-EAT Recommended Oil
1. Petrol Engine The engine oil quality should meet the following classification. API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE The oil viscosity should be selected according to the operating environment of the engine by means of the tableshown above. The engine oil recom- mendations are complete in themselves and the use of additives is neitherrequired nor recommended. The use of engine oil additives may result in invali- dation of the vehicle warranty.
G030B01JM

6OWNER MAINTENANCE
6

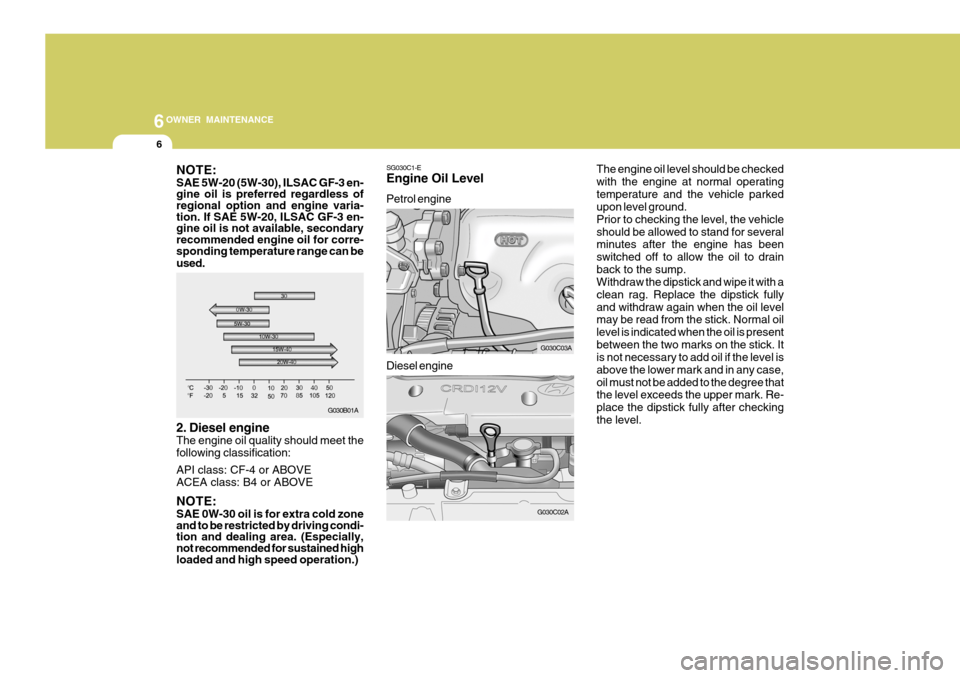

SG030C1-E Engine Oil Level Diesel engine The engine oil level should be checked with the engine at normal operatingtemperature and the vehicle parked upon level ground. Prior to checking the level, the vehicleshould be allowed to stand for several minutes after the engine has been switched off to allow the oil to drainback to the sump. Withdraw the dipstick and wipe it with a clean rag. Replace the dipstick fullyand withdraw again when the oil level may be read from the stick. Normal oil level is indicated when the oil is presentbetween the two marks on the stick. It is not necessary to add oil if the level is above the lower mark and in any case,oil must not be added to the degree that the level exceeds the upper mark. Re- place the dipstick fully after checkingthe level.
Petrol engine
G030B01A
G030C03A
G030C02A
NOTE: SAE 5W-20 (5W-30), ILSAC GF-3 en- gine oil is preferred regardless ofregional option and engine varia- tion. If SAE 5W-20, ILSAC GF-3 en- gine oil is not available, secondaryrecommended engine oil for corre- sponding temperature range can be used.
2. Diesel engine The engine oil quality should meet the following classification: API class: CF-4 or ABOVE ACEA class: B4 or ABOVE NOTE: SAE 0W-30 oil is for extra cold zone and to be restricted by driving condi- tion and dealing area. (Especially,not recommended for sustained high loaded and high speed operation.)

6
OWNER MAINTENANCE
7
Petrol engine
Diesel engine

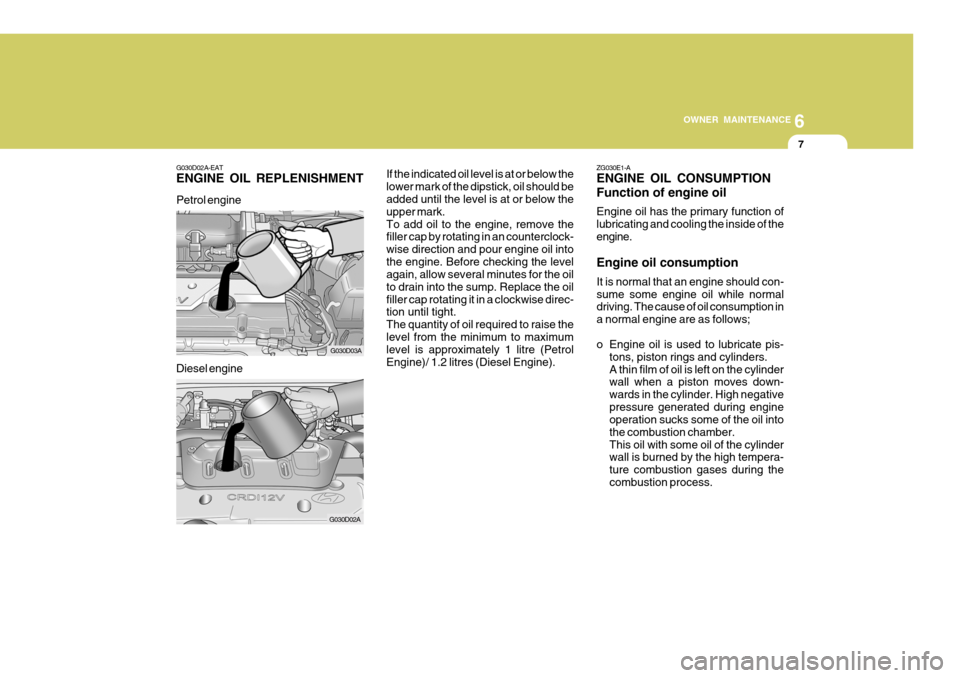

G030D02A-EAT ENGINE OIL REPLENISHMENT
If the indicated oil level is at or below the lower mark of the dipstick, oil should be added until the level is at or below the upper mark.To add oil to the engine, remove the filler cap by rotating in an counterclock- wise direction and pour engine oil intothe engine. Before checking the level again, allow several minutes for the oil to drain into the sump. Replace the oilfiller cap rotating it in a clockwise direc- tion until tight. The quantity of oil required to raise the level from the minimum to maximum level is approximately 1 litre (PetrolEngine)/ 1.2 litres (Diesel Engine).ZG030E1-A ENGINE OIL CONSUMPTION Function of engine oil Engine oil has the primary function of lubricating and cooling the inside of theengine. Engine oil consumption It is normal that an engine should con- sume some engine oil while normal driving. The cause of oil consumption in a normal engine are as follows;
o Engine oil is used to lubricate pis-
tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves down- wards in the cylinder. High negativepressure generated during engine operation sucks some of the oil into the combustion chamber.This oil with some oil of the cylinder wall is burned by the high tempera- ture combustion gases during thecombustion process.
G030D03A
G030D02A

6OWNER MAINTENANCE
8
HTB222
Oil filler cap
Drain plug Oil filter

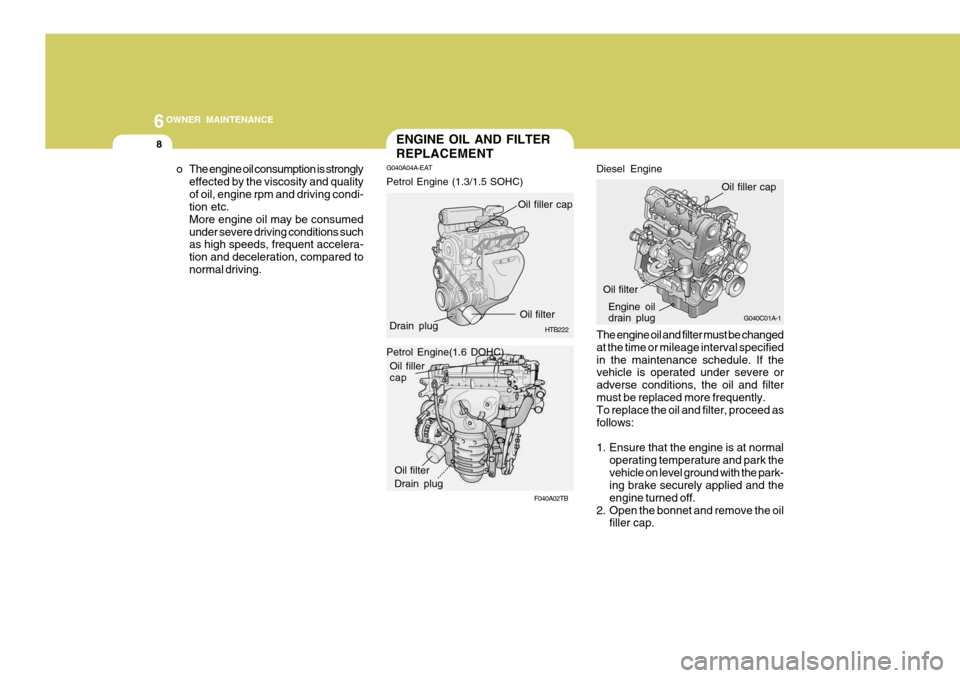

ENGINE OIL AND FILTER REPLACEMENT
o The engine oil consumption is strongly effected by the viscosity and quality of oil, engine rpm and driving condi- tion etc. More engine oil may be consumedunder severe driving conditions such as high speeds, frequent accelera- tion and deceleration, compared tonormal driving. G040A04A-EAT
The engine oil and filter must be changedat the time or mileage interval specifiedin the maintenance schedule. If the vehicle is operated under severe or adverse conditions, the oil and filtermust be replaced more frequently. To replace the oil and filter, proceed as follows:
1. Ensure that the engine is at normaloperating temperature and park the vehicle on level ground with the park- ing brake securely applied and the engine turned off.
2. Open the bonnet and remove the oil filler cap.
Petrol Engine (1.3/1.5 SOHC) Petrol Engine(1.6 DOHC)
Diesel Engine
F040A02TB
Oil filler cap Drain plug
Oil filter
.........
G040C01A-1Engine oil drain plug
Oil filter
Oil filler cap
