Hyundai Accent 2006 Owner's Manual

6
OWNER MAINTENANCE
39
G200E01A-GAT Inner Panel
HLC5031 PROTECTED COMPONENTS
Hazard warning, Back-up lamp switch, Transaxle range switch, A/T shift & key lock control module
ETACM, Pre-Excitation resistor, Instrument cluster, Seat belt timer Instrument cluster Air bag
ECM, A/T shift lever, Transaxle range switch, Mass air flow sensor,
Vehicle speed sensor, Water sensor
Power door lock
Hazard warning, ETACM
Stop lamp, A/T shift lever, A/T key interlock solenoid Rear window defogger
Head lamp, Power window, Head lamp leveling, Head lamp washer,
ETACM, Front fog lamp, Blower control, Rear intermittent washer, Fuel filter relayFront wiper & washer Seat warmer ABS control, ABS bleedingDigital clock, Audio, A/T shift & key lock control module Cigarette lighter
Power outside mirrorRear window & outside mirror defogger Rear wiper
FUSE RATING
10A 10A 10A15A 10A10A 10A 10A20A 10A20A 20A10A 10A 15A10A 10A 20A
FUSE
1 2 34 56 7 89
10 11 1213 14 1516 17 18

Emission Control Systems ........................................... 7-2
Catalytic Converter ...................................................... 7-3
EGR System ................................................................ 7-4
7
EMISSION CONTROL SYSTEMS
7

7EMISSION CONTROL SYSTEMS
2EMISSION CONTROL SYSTEMS
SH010A1-E (Not all models) Depending upon the market for which the vehicle is destined, the emission control system will comprise one or more of the following emission con-trol devices.
1) Crankcase emission control sys-
tem
2) Evaporative emission control sys-
tem
3) Exhaust emission control system In order that the proper functioning of the emission control systems may be ensured, it is recommended that thevehicle is inspected and maintained by an authorized Hyundai dealer in accordance with the maintenanceschedule in this manual. SH010B1-E
1. Crankcase Emission
Control System
The positive crankcase ventilation
system is employed to prevent air pollution caused by blow-by gases being emitted from the crankcase byintroducing fresh air to the crankcase through the air cleaner where this mixes with blow-by gases and thenpasses through the PCV valve into the intake manifold from where it sub- sequently enters the combustionchamber and is burned.
SH010C1-E
2. Evaporative Emission
Control System
The Evaporative Emission Control
System is designed to prevent fuel vapours from escaping into the atmo- sphere through the fuel tank ventila-tion system. Canister
Fuel vapours generated inside the
fuel tank are absorbed and stored ina charcoal canister. When the engineis started, the vapours stored in the canister are drawn into the induction system through the purge control so-lenoid valve and are subsequently burned. Purge Control Solenoid Valve
The purge control solenoid valve is
controlled by the ECU; when the en- gine coolant temperature is low or the engine is idling, the purge control valve is closed and fuel vapours re- main stored in the canister. Undernormal running conditions when the engine is warm, the valve opens and the vapours are drawn into the inlettract and subsequently burned in the combustion chamber.

7
EMISSION CONTROL SYSTEMS
3
HLC5022Catalytic Converter
CATALYTIC CONVERTOR OPERATION PRECAUTIONS
SH010D1-E
3. Exhaust Emission Conrtrol
System
The exhaust emission control system
is a highly effective system which controls exhaust emission while main- taining good vehicle performance. SH020A1-E
; For a petrol engine
Hyundai Accent models are fitted with
catalytic convertors which requirespecial operating considerations. Thecatalytic convertor serves to oxidize certain noxious elements of the ex- haust gases leaving the engine toreduce the level of pollutants emitted from the vehicle and, provided that care is exercised to prevent damage,the catalyst will operate efficiently for the life of the vehicle.
It is of the utmost importance that the
following information is read and un- derstood by the vehicle operator inorder to prevent operational problems arising from damage to the catalyst. Damage to the catalyst will result if
contamination occurs through the use of leaded fuel. Whilst the vehicle is fitted with a reduced diameter filler neck to prevent charging of the fueltank with a leaded fuel pump nozzle, it is possible that the use of funnels or jerry cans will permit leaded fuel to beintroduced into the fuel tank. The catalyst is intolerant of unburnt
fuel and therefore if an engine misfirecondition exists, damage to the cata- lyst will occur. It is imperative that if a misfire condition develops, the ve-hicle is immediately presented to a Hyundai dealer for rectification. Simi- larly, the practice of certain ignitionsystem diagnosis procedures which involve inducing a misfire (cylinder power balance tests for example) mayresult in catalyst damage. For these reasons, it is advisable that
the exhaust gas emission be tested at each routine service with a gas analyzer having a Hydrocarbon mea-suring facility to ensure continued reliability of the catalyst.

7EMISSION CONTROL SYSTEMS
4EGR SYSTEM
H020D01S-GAT
; For a diesel engine
All Hyundai vehicles are equipped with oxidation type catalytic converter to reduce the carbon monoxide, hy- drocarbons and particulate containedin the exhaust gas.
H020C01S-GAT
; For a diesel engine
This system helps control oxides ofnitrogen by recirculating a part of theexhaust gas into the engine.
Care must also be exercised to avoiddriving over road hazards or debriswhich may cause damage to the cata- lyst element.
Push or tow starting of the vehicle is to be avoided since unburnt fuel maybe enter the catalyst and result in damage. (Note, it is impossible to push or tow start a Hyundai modelequipped with fuel injection since the fuel pump safety interlock will prevent the pump from operating under theseconditions).Operation of the catalyst involvesextremely high temperatures beingattained within the catalytic conver- tor, and although the convertor is fitted with heat shields, it is importantthat the vehicle is not parked over combustible or volatile material which may result in fire.If the above precautions are not ad-hered to and the catalyst becomesinoperative, the resultant increase in core temperature will result in a "melt down" where the catalyst core willmelt and subsequently may block the exhaust system. Due to the fragile nature of the cata- lyst element, it is important that dam- age does not occur when the vehicle is raised by means of a garage jack.

Vehicle Identification Number (VIN) .............................. 8-2
Engine Number ............................................................. 8-2
Tyre Information ............................................................ 8-3
Tyre Pressures ............................................................. 8-3
Snow Tyres .................................................................. 8-3
Tyre Chains .................................................................. 8-4
Tyre Rotation ................................................................ 8-4
Tyre Balancing .............................................................. 8-4
Tyre Replacement ........................................................ 8-5
Wheel Replacement ..................................................... 8-5
Spare Tyre and Tools ................................................... 8-5
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2ENGINE NUMBERVEHICLE IDENTIFICATION NUMBER (VIN)
I010A01A-EAT The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining toits ownership, etc. It can be found on the identification plate attached to the engine side of thefirewall between the engine and pas- senger compartment. I010B01A-EAT
The engine number is stamped on the engine block as shown in the drawing.
Petrol Engine (1.3/1.5 SOHC) Petrol Engine (1.6 DOHC) Diesel Engine
I010A01A I010B01A
F040A02TB-1 I010B03A

8
CONSUMER INFORMATION
3TYRE INFORMATION
ZI010C1-E The tyres supplied on your new Hyundai are chosen to provide the best perfor- mance for normal driving. I030A03A-EAT TYRE PRESSURES In modern high-speed motoring, correct tyre pressures are vitally important. Incorrect tyre pressures can affect ve-hicle safety by causing reduced adhe- sion, steering response and tyre failure through overheating. The tyre pressuremust only be checked when the tyres are cold. The correct tyre pressures are indicated on the label affixed in theglove box and below.I030A01A-D
5Jx13 5Jx14
5.5Jx15 5Jx135Jx14
5.5Jx15 TYRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
175/70R13185/60R14185/55R15175/70R13185/60R14 185/55R15 REAR
207(30) 207(30) FRONT
230(33) 230(33)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
230(33)230(33)
FRONT 207(30) 220(32)
EN-
GINE
Die- sel
Petrol
SI030A2-E SNOW TYRES If it is desired to fit snow tyres to the vehicle, it must be ascertained that theoriginal size and load carrying capacity are met by the replacement tyres. When using snow tyres, the vehicle shouldnot be driven at speeds in excess of 60 MPH.

8CONSUMER INFORMATION
4
I060A02A-EAT TYRE ROTATION Tyre wear will vary for each wheel. In order to increase the life of each tyre and keep wear uniform, tyre rotationshould be performed every 10,000 miles as shown in figure. NOTE:
o Do not include a steel wheel sparetyre when rotating aluminum al- loy wheel tyres.
o Do not mix bias-ply and radial-ply under any circumstances. Thismay cause dangerous handling characteristics. SI060A1-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. Thevehicle tyres are balanced during pro- duction but may need further balancing throughout the life of the tyres.It is recommended that the tyres be balanced on the car for best results and that the tyres are balanced wheneverthey have been removed from the wheel for repair.
!
I050A01TB-EAT TYRE CHAINS Tyre chains, if necessary, should be installed on the front wheels. Be surethat the chains are installed in accor- dance with the manufacturer's instruc- tions.To minimize tyre and chain wear, do not continue to use tyre chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 20 mph (30 km/h).
o Use the SAE "S" class or wire &
plastic chains.
o Don't use the tyre chains in 185/ 55R 15 tyre to prevent body dam-age.
o If you have noise caused by chains contacting the body, retighten thechain to avoid contact with thevehicle body.
o To prevent body damage, retighten
the chains after driving 0.3~0.6miles (0.5~1 km).
HA1409Spare tyre

8
CONSUMER INFORMATION
5

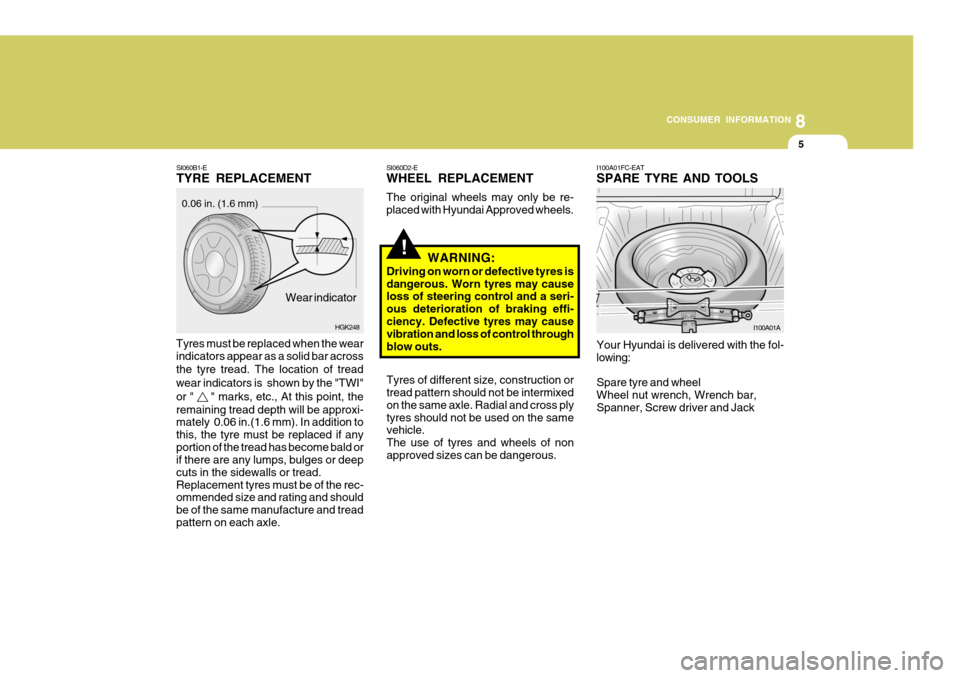

Wear indicator
HGK248
SI060B1-E TYRE REPLACEMENT
0.06 in. (1.6 mm)
Tyres must be replaced when the wear indicators appear as a solid bar across the tyre tread. The location of tread wear indicators is shown by the "TWI"or " " marks, etc., At this point, the remaining tread depth will be approxi- mately 0.06 in.(1.6 mm). In addition to this, the tyre must be replaced if anyportion of the tread has become bald or if there are any lumps, bulges or deep cuts in the sidewalls or tread.Replacement tyres must be of the rec- ommended size and rating and should be of the same manufacture and treadpattern on each axle.
!
SI060D2-E WHEEL REPLACEMENT The original wheels may only be re- placed with Hyundai Approved wheels. WARNING:
Driving on worn or defective tyres isdangerous. Worn tyres may cause loss of steering control and a seri- ous deterioration of braking effi-ciency. Defective tyres may cause vibration and loss of control through blow outs. Tyres of different size, construction or tread pattern should not be intermixed on the same axle. Radial and cross plytyres should not be used on the same vehicle. The use of tyres and wheels of nonapproved sizes can be dangerous. I100A01FC-EAT SPARE TYRE AND TOOLS Your Hyundai is delivered with the fol- lowing: Spare tyre and wheel Wheel nut wrench, Wrench bar,
Spanner, Screw driver and Jack
I100A01A
