1FEATURES OF YOUR HYUNDAI
14
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!
! CAUTION:
Avoid trying to start the engine while the system is armed. B070D01TG-GAT Disarmed Stage The system will be disarmed when the driver's or passeng er's door is un-
locked by depressing the "UNLOCK
( )" button on the transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE: Although the system is disarmed, the security LED lamp will blink con- tinuously. Insert the key in the igni-tion key cylinder to turn off the lamp. If any door, trunk lid or engine hood is not opened or the ignition key is not inserted in the ignition switch within 30 seconds, the system will be rearmed.
B070C01TG-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us- ing the transmitter.

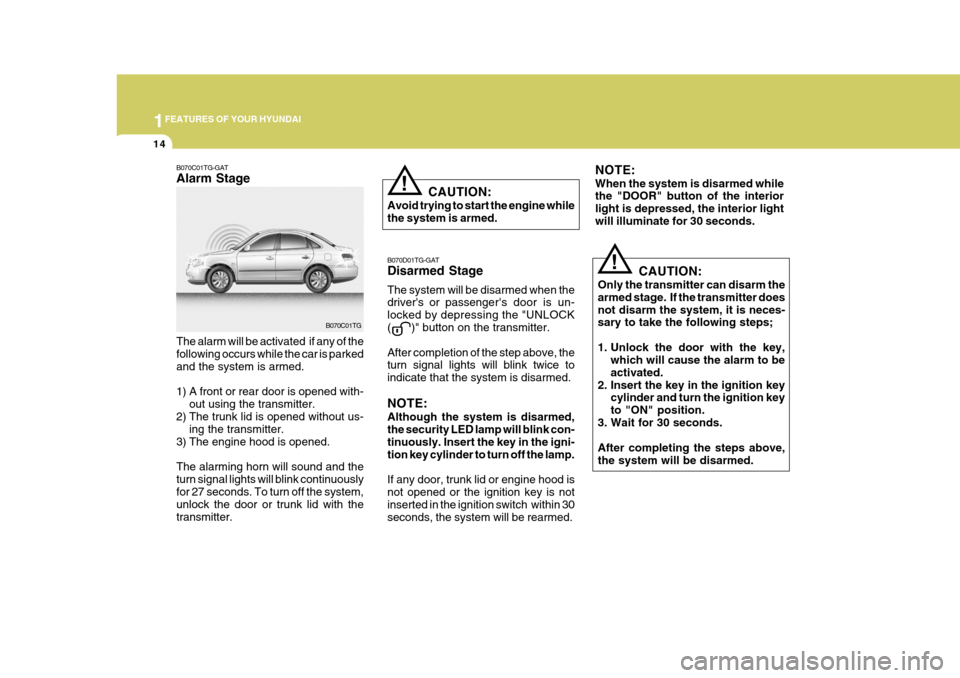

3) The engine hood is opened.The alarming horn will sound and the turn signal lights will blink continuouslyfor 27 seconds. To turn off the system, unlock the door or trunk lid with the transmitter. B070C01TG
NOTE: When the system is disarmed while the "DOOR" button of the interior light is depressed, the interior lightwill illuminate for 30 seconds.
Page 32 of 297
1
FEATURES OF YOUR HYUNDAI
15
B070F01NF-GAT Keyless Entry System (If Installed)Locking doors
1. Close all doors.
2. Push the " " button on the transmitter.
3. At the same time, all doors lock and the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. At the same time, all doors unlock
and the turn signal lights will blink twice to indicate that the system is disarmed.
Releasing the trunk lid Push the trunk lid release button ( ) on the transmitter for longer than 1 second.
B070E01NF-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:

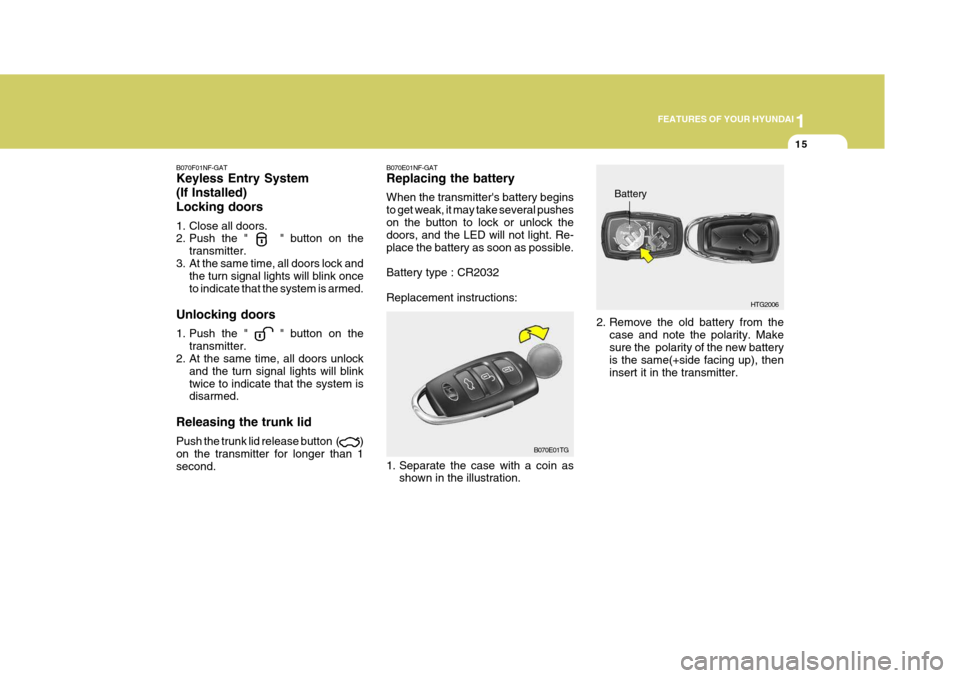

1. Separate the case with a coin as shown in the illustration. B070E01TG HTG2006
Battery
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing up), theninsert it in the transmitter.
Page 33 of 297
1FEATURES OF YOUR HYUNDAI
16WINDOWS

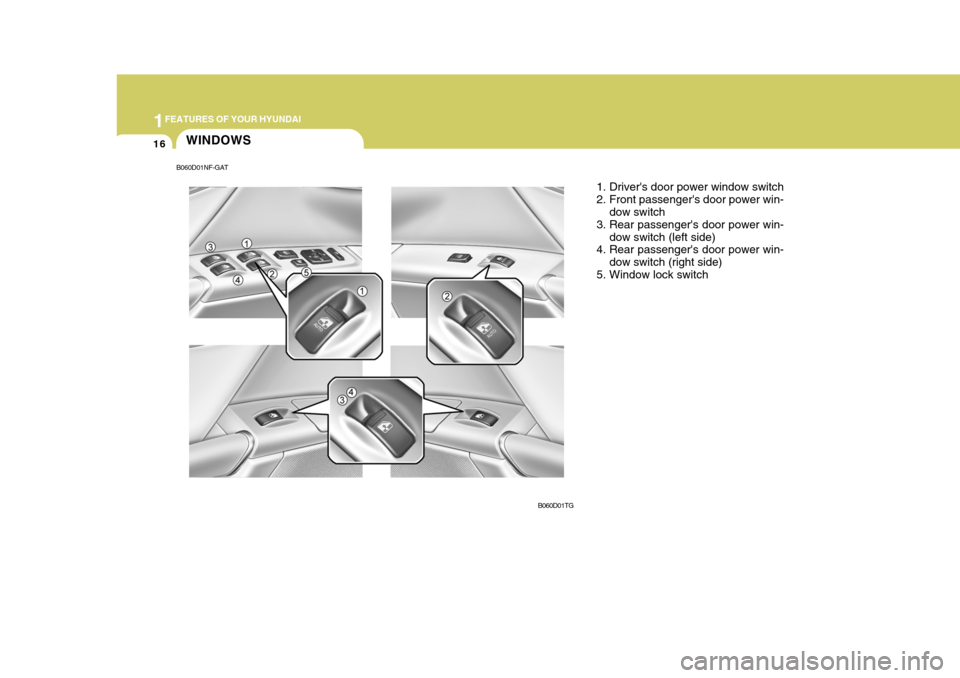

B060D01TG1. Driver's door power window switch
2. Front passenger's door power win-
dow switch
3. Rear passenger's door power win- dow switch (left side)
4. Rear passenger's door power win-
dow switch (right side)
5. Window lock switch
B060D01NF-GAT
Page 34 of 297
1
FEATURES OF YOUR HYUNDAI
17
B060A01TG-GAT POWER WINDOWS
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the frontand rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate windowswitch and closed by pulling up the switch. To open the window on the driver's side, press the switch halfwaydown. The window moves as long as the switch is operated. B060A01TG NOTE: If the battery has been recharged or disconnected, the auto up/down win- dow system must be reset as fol-lows;
1. Turn the ignition key to "ON"
position.
2. Close each window and continue
pulling up on each power window switch for at least 0.5 second after the window is completely closed.
If the auto up/down window is notreset, it may not be operated prop- erly.
Front Auto Up/Down Windows
Open Close
B060A02TG
Driver's side
Front passenger's side

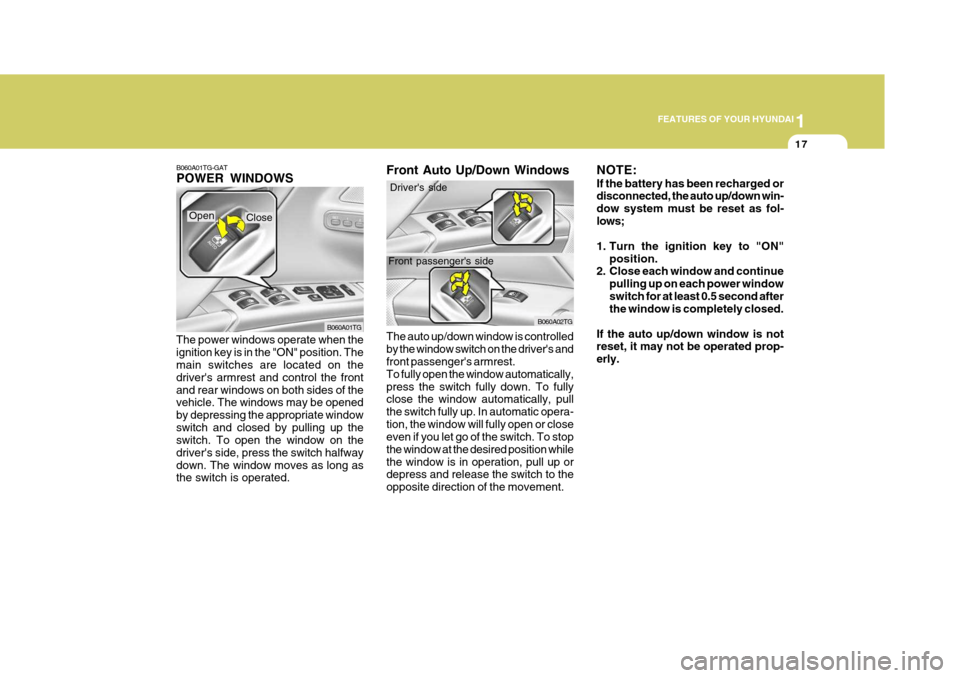

The auto up/down window is controlled by the window switch on the driver's and front passenger's armrest. To fully open the window automatically,press the switch fully down. To fully close the window automatically, pull the switch fully up. In automatic opera-tion, the window will fully open or close even if you let go of the switch. To stop the window at the desired position whilethe window is in operation, pull up or depress and release the switch to the opposite direction of the movement.
Page 35 of 297
1FEATURES OF YOUR HYUNDAI
18
B060A03TG
Close
Open
Window lock
!
CAUTION:
o The safety window will only oper- ate when the automatic up win- dow operation feature is used. Safety window will not operate ifthe window is raised using the halfway down position on the power window switch.
o If an object less than 4 mm in diameter is caught between thewindow glass and the upper win-dow channel, the safety window may not detect the resistance and will not operate. Therefore, al-ways check for any obstructions before raising any window.

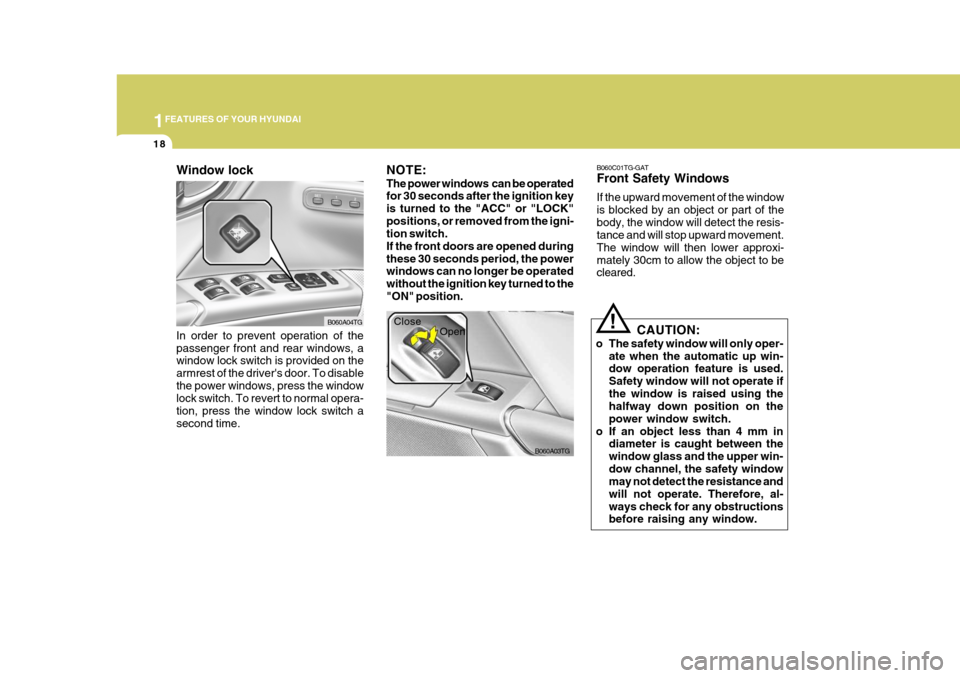

B060C01TG-GAT Front Safety Windows If the upward movement of the window is blocked by an object or part of thebody, the window will detect the resis- tance and will stop upward movement. The window will then lower approxi-mately 30cm to allow the object to be cleared.B060A04TG
NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK"positions, or removed from the igni- tion switch. If the front doors are opened duringthese 30 seconds period, the power windows can no longer be operated without the ignition key turned to the"ON" position.
In order to prevent operation of thepassenger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disablethe power windows, press the window lock switch. To revert to normal opera- tion, press the window lock switch asecond time.
Page 36 of 297
1
FEATURES OF YOUR HYUNDAI
19
!WARNING:
o Be careful that someone's head, hands and body are not trapped by a closing window.
o Never try to operate the main switch on the driver's door andthe individual door windowswitch in opposing directions at the same time. If this is done, the window will stop and cannot beopened or closed.
o Do not leave children alone in the

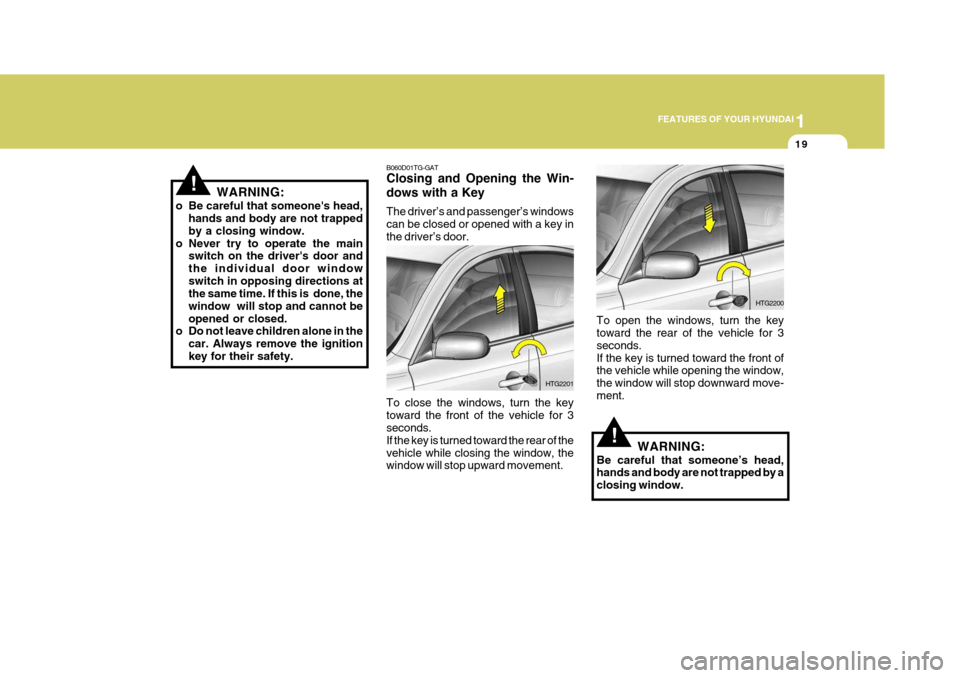

car. Always remove the ignition key for their safety. B060D01TG-GAT Closing and Opening the Win- dows with a Key The driver’s and passenger’s windows can be closed or opened with a key inthe driver’s door.
To close the windows, turn the key toward the front of the vehicle for 3 seconds. If the key is turned toward the rear of thevehicle while closing the window, the window will stop upward movement.
HTG2201
To open the windows, turn the key toward the rear of the vehicle for 3 seconds. If the key is turned toward the front of the vehicle while opening the window, the window will stop downward move-ment.
HTG2200
!WARNING:
Be careful that someone’s head, hands and body are not trapped by a closing window.
Page 37 of 297
1FEATURES OF YOUR HYUNDAI
20SEATS

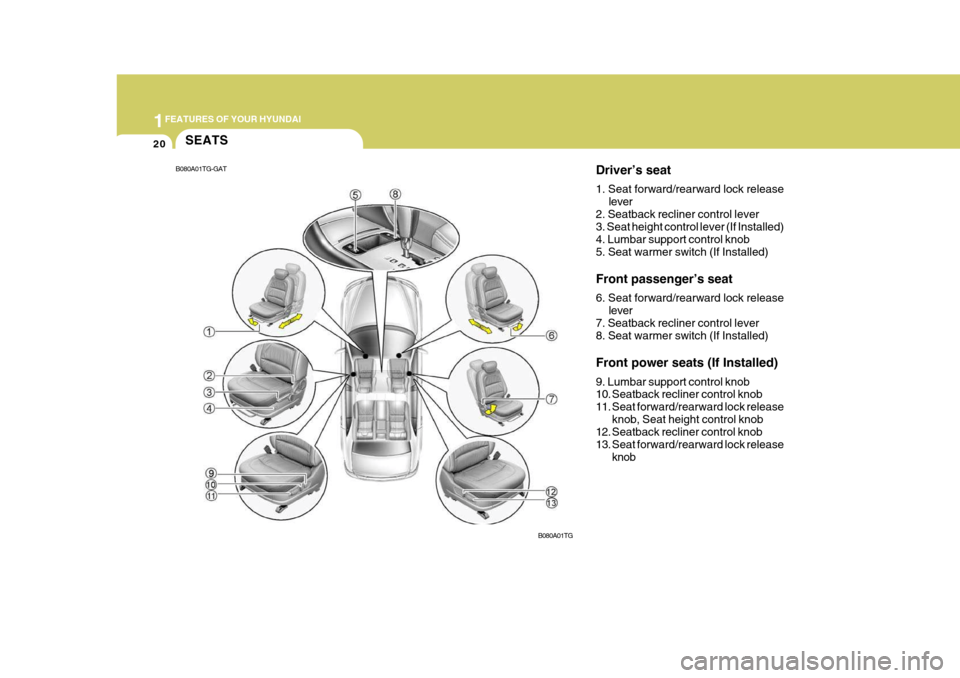

Driver’s seat 1. Seat forward/rearward lock releaselever
2. Seatback recliner control lever 3. Seat height control lever (If Installed) 4. Lumbar support control knob5. Seat warmer switch (If Installed) Front passenger’s seat 6. Seat forward/rearward lock release
lever
7. Seatback recliner control lever 8. Seat warmer switch (If Installed) Front power seats (If Installed) 9. Lumbar support control knob
10. Seatback recliner control knob
11. Seat forward/rearward lock release
knob, Seat height control knob
12. Seatback recliner control knob
13. Seat forward/rearward lock release
knob
B080A01TG-GAT
B080A01TG
Page 38 of 297
1
FEATURES OF YOUR HYUNDAI
21
!
!
SEATS
B080A01A-AAT
ADJUSTABLE FRONT SEATS
WARNING:

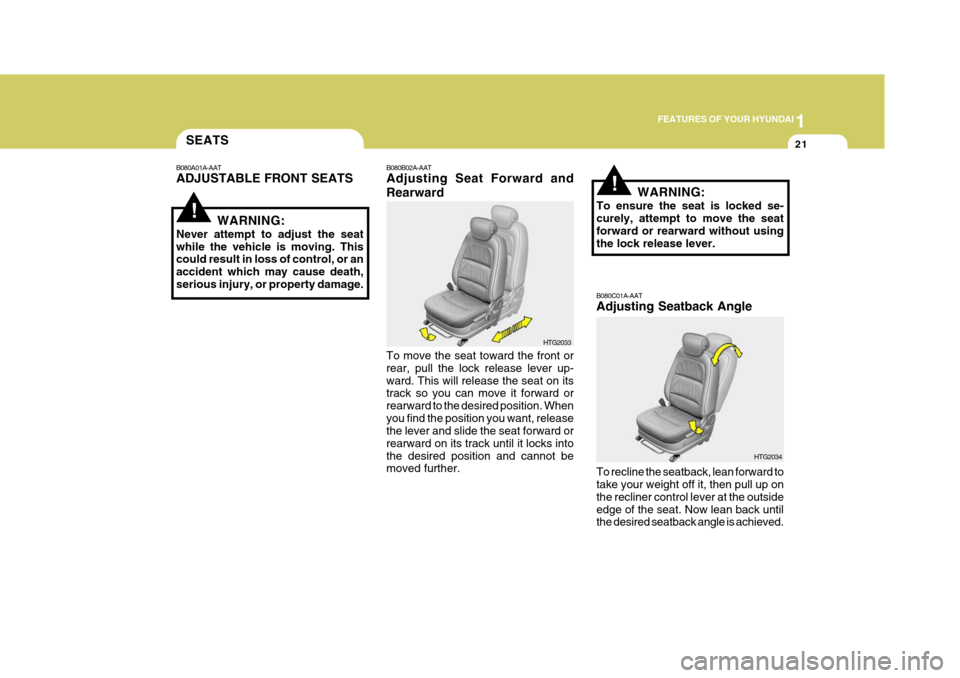

Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, or an accident which may cause death,serious injury, or property damage. B080B02A-AAT Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever up-ward. This will release the seat on its track so you can move it forward or rearward to the desired position. Whenyou find the position you want, release the lever and slide the seat forward or rearward on its track until it locks intothe desired position and cannot be moved further.HTG2033
B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outsideedge of the seat. Now lean back until the desired seatback angle is achieved.
HTG2034
WARNING:
To ensure the seat is locked se-curely, attempt to move the seat forward or rearward without usingthe lock release lever.
Page 39 of 297
1FEATURES OF YOUR HYUNDAI
22
!
!
WARNING:
WARNING:

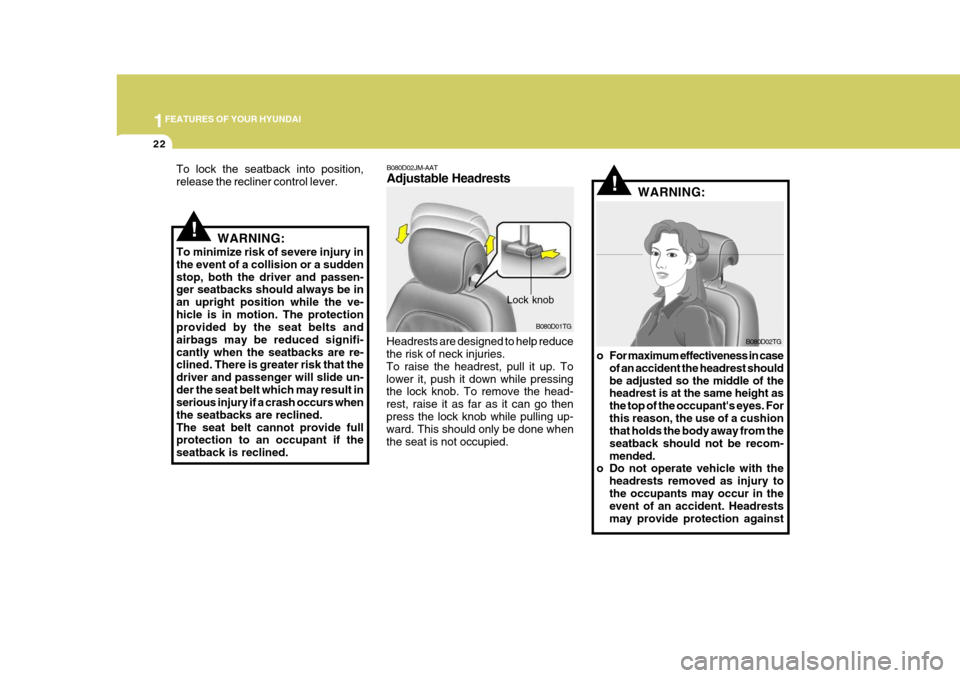

To minimize risk of severe injury in the event of a collision or a suddenstop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is greater risk that the driver and passenger will slide un-der the seat belt which may result in serious injury if a crash occurs when the seatbacks are reclined.The seat belt cannot provide full protection to an occupant if the seatback is reclined. B080D02JM-AAT Adjustable Headrests
Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob. To remove the head- rest, raise it as far as it can go thenpress the lock knob while pulling up-
ward. This should only be done when the seat is not occupied. B080D02TG
To lock the seatback into position,release the recliner control lever.
B080D01TGo For maximum effectiveness in caseof an accident the headrest shouldbe adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes. Forthis reason, the use of a cushion that holds the body away from the seatback should not be recom-mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in the event of an accident. Headrests may provide protection against
Lock knob
Page 40 of 297
1
FEATURES OF YOUR HYUNDAI
23
neck injuries when properly ad- justed.
o Do not adjust the headrest height
while the vehicle is in motion.

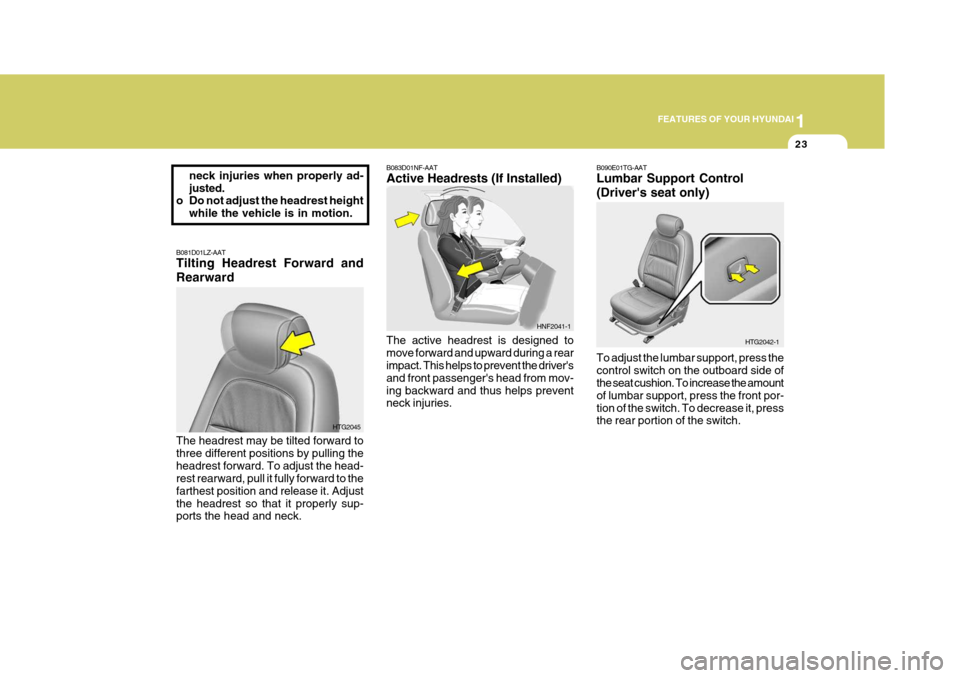

B081D01LZ-AAT Tilting Headrest Forward and Rearward The headrest may be tilted forward to three different positions by pulling theheadrest forward. To adjust the head- rest rearward, pull it fully forward to the farthest position and release it. Adjustthe headrest so that it properly sup- ports the head and neck. HTG2045B090E01TG-AAT Lumbar Support Control (Driver's seat only) To adjust the lumbar support, press the control switch on the outboard side of the seat cushion. To increase the amount of lumbar support, press the front por-tion of the switch. To decrease it, press the rear portion of the switch.
HTG2042-1B083D01NF-AAT Active Headrests (If Installed) The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver's and front passenger's head from mov-ing backward and thus helps prevent neck injuries.
HNF2041-1
