1FEATURES OF YOUR HYUNDAI
34
It will also lock if you try to lean forward too quickly. Check to make sure thatthe belt is properly locked and that the belt is not twisted. NOTE: If the seat belt is not fastened when the ignition key is turned from the "OFF" position to the "ON" position, the seat belt warning will activate toremind the driver and front passen- ger to fasten the seat belt as follows. B260E01TG-GAT Seat Belt Warning Light
(Except E.C)
The seat belt warning light blinks for about 6 seconds when the ignition keyis turned from the "OFF" position to the "ON". NOTE: You can find the front passenger's seat belt warning light on the center fascia panel.
*1) When the ignition key is turned from "OFF" position to "ON" within 1 minute.
*2) If the vehicle speed exceeds 9km/ h, the seat belt chime also soundsfor about 1~2 minutes.If the vehicle speed is below 9km/h, 1 minute later the seat belt chime also sounds for about 1~2 minutes.
The seat belt warning light and chimewill activate to the following table.
B265E01TG-GAT
Seat Belt Warning Light
and Chime (E.C only)
User (Driver+Front Passenger) Condition Sat Belt WarningLight
Seat Belt Ignition Switch
Unbuckled ON Stay on until buckled up
Buckled ON Come on for 6 seconds
Unbuckled ON * 1
Blink until buckled up
ON Blink until buckled up* 2
Buckled



Unbuckled NOTE:
o You can find the front passenger's
seat belt warning light on the cen- ter fascia panel.
o If the driver's seat belt is operated in this order "unbuckled

buck-
led

unbuckled" within 9 sec-
onds after the seat belt is buckled, the seat belt warning light and chime will not activate.
o Although the front passenger seat is not occupied, the seat belt warn-ing light will illuminate for 6 sec-onds.
o The seat belt warning light can be
operated when luggage is placedon the front passenger seat.

1
FEATURES OF YOUR HYUNDAI
35
B210A01A-AAT To Release the Seat Belt The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt shouldautomatically draw back into the re- tractor. If this does not happen, check the beltto be sure it is not twisted, then try again. B210A01NF

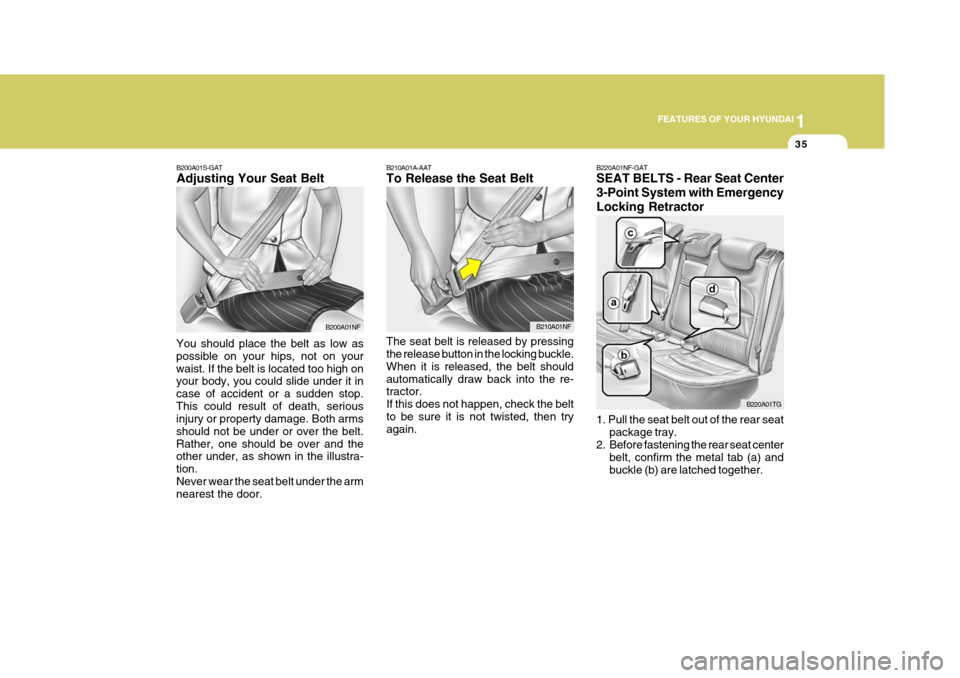

B200A01S-GAT Adjusting Your Seat Belt
You should place the belt as low as possible on your hips, not on yourwaist. If the belt is located too high on your body, you could slide under it in case of accident or a sudden stop.This could result of death, serious injury or property damage. Both arms should not be under or over the belt.Rather, one should be over and the other under, as shown in the illustra- tion.Never wear the seat belt under the arm nearest the door. B200A01NFB220A01NF-GAT SEAT BELTS - Rear Seat Center 3-Point System with EmergencyLocking Retractor 1. Pull the seat belt out of the rear seat
package tray.
2. Before fastening the rear seat center belt, confirm the metal tab (a) and buckle (b) are latched together. B220A01TG

1FEATURES OF YOUR HYUNDAI
36

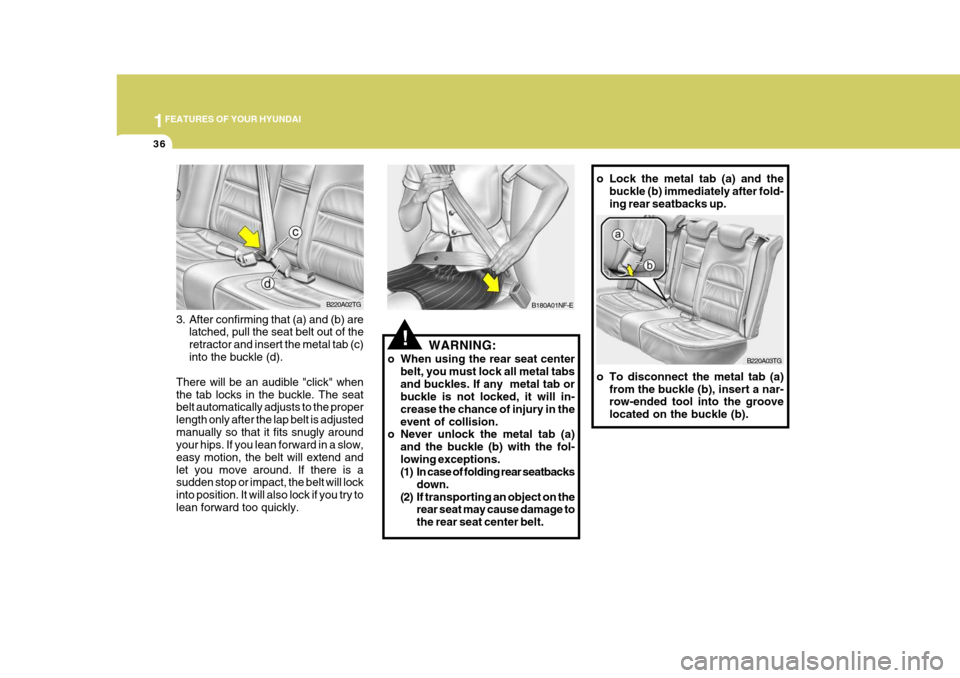

o Lock the metal tab (a) and the
buckle (b) immediately after fold- ing rear seatbacks up.
o To disconnect the metal tab (a) from the buckle (b), insert a nar- row-ended tool into the groove located on the buckle (b). B220A03TG
!WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in- crease the chance of injury in theevent of collision.
o Never unlock the metal tab (a)
and the buckle (b) with the fol-lowing exceptions.
(1) In case of folding rear seatbacks down.
(2) If transporting an object on the rear seat may cause damage to the rear seat center belt. B180A01NF-E
B220A02TG
3. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor and insert the metal tab (c)into the buckle (d).
There will be an audible "click" whenthe tab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjustedmanually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend andlet you move around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try tolean forward too quickly.

1
FEATURES OF YOUR HYUNDAI
37
!
!
B220C02A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:

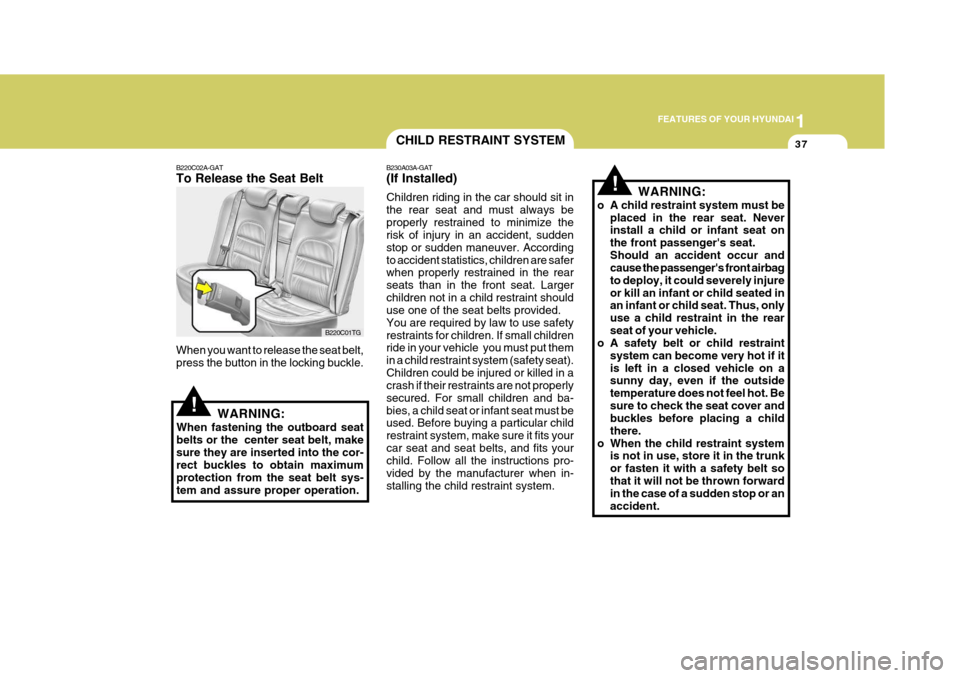

When fastening the outboard seatbelts or the center seat belt, makesure they are inserted into the cor- rect buckles to obtain maximum protection from the seat belt sys-tem and assure proper operation. B220C01TG
CHILD RESTRAINT SYSTEM
B230A03A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and ba-bies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits yourcar seat and seat belts, and fits your child. Follow all the instructions pro- vided by the manufacturer when in-stalling the child restraint system. WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger's front airbag to deploy, it could severely injureor kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rearseat of your vehicle.
o A safety belt or child restraint
system can become very hot if itis left in a closed vehicle on a sunny day, even if the outside temperature does not feel hot. Besure to check the seat cover and buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunkor fasten it with a safety belt sothat it will not be thrown forward in the case of a sudden stop or an accident.

1FEATURES OF YOUR HYUNDAI
38

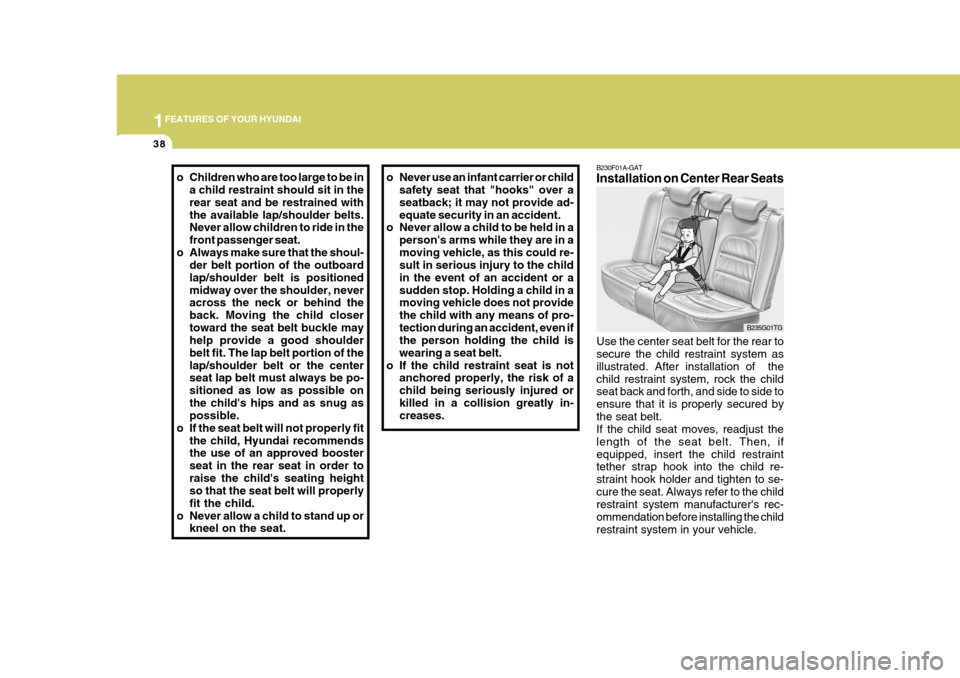

Use the center seat belt for the rear to secure the child restraint system as illustrated. After installation of thechild restraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured bythe seat belt. If the child seat moves, readjust the length of the seat belt. Then, ifequipped, insert the child restraint tether strap hook into the child re- straint hook holder and tighten to se-cure the seat. Always refer to the child restraint system manufacturer's rec- ommendation before installing the childrestraint system in your vehicle.
B235G01TG
B230F01A-GAT Installation on Center Rear Seats
o Never use an infant carrier or child
safety seat that "hooks" over a seatback; it may not provide ad-equate security in an accident.
o Never allow a child to be held in a
person's arms while they are in amoving vehicle, as this could re- sult in serious injury to the child in the event of an accident or asudden stop. Holding a child in a moving vehicle does not provide the child with any means of pro-tection during an accident, even if the person holding the child is wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of achild being seriously injured orkilled in a collision greatly in- creases.o Children who are too large to be ina child restraint should sit in the rear seat and be restrained withthe available lap/shoulder belts. Never allow children to ride in the front passenger seat.
o Always make sure that the shoul- der belt portion of the outboardlap/shoulder belt is positionedmidway over the shoulder, never across the neck or behind the back. Moving the child closertoward the seat belt buckle may help provide a good shoulder belt fit. The lap belt portion of thelap/shoulder belt or the center seat lap belt must always be po- sitioned as low as possible onthe child's hips and as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order toraise the child's seating height so that the seat belt will properly fit the child.
o Never allow a child to stand up or kneel on the seat.

1
FEATURES OF YOUR HYUNDAI
39
!
B230G01NF

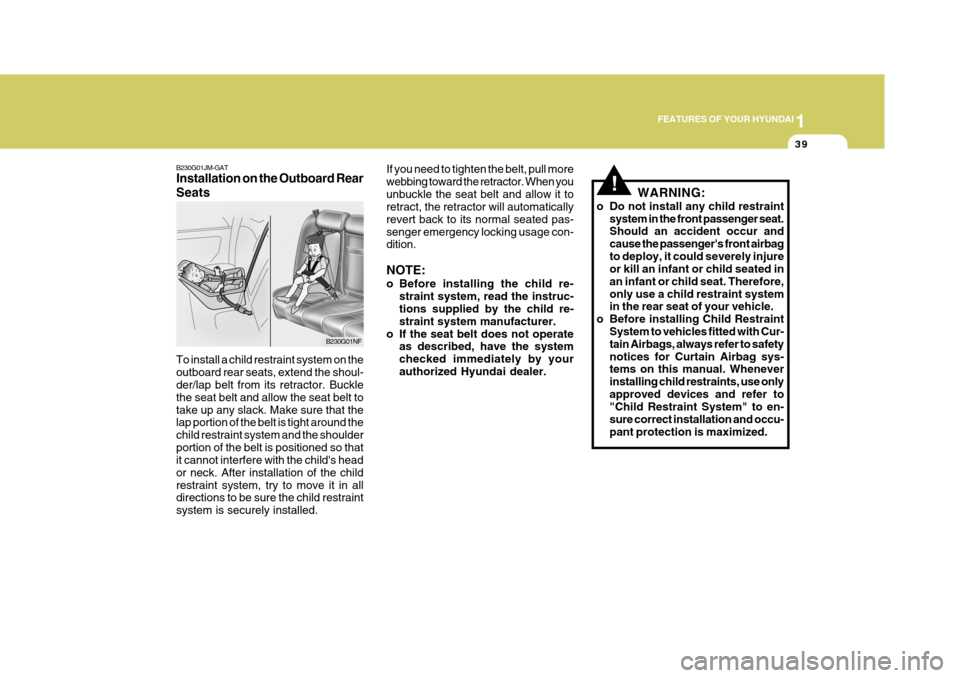

B230G01JM-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend the shoul- der/lap belt from its retractor. Buckle the seat belt and allow the seat belt totake up any slack. Make sure that the lap portion of the belt is tight around the child restraint system and the shoulderportion of the belt is positioned so that it cannot interfere with the child's head or neck. After installation of the childrestraint system, try to move it in all directions to be sure the child restraint system is securely installed.
If you need to tighten the belt, pull more webbing toward the retractor. When youunbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated pas-senger emergency locking usage con- dition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re- straint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourauthorized Hyundai dealer. WARNING:
o Do not install any child restraint system in the front passenger seat. Should an accident occur and cause the passenger's front airbagto deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore,only use a child restraint system in the rear seat of your vehicle.
o Before installing Child Restraint
System to vehicles fitted with Cur-tain Airbags, always refer to safety notices for Curtain Airbag sys- tems on this manual. Whenever installing child restraints, use onlyapproved devices and refer to "Child Restraint System" to en- sure correct installation and occu-pant protection is maximized.

1FEATURES OF YOUR HYUNDAI
40
B230C02TG
Rear seat package tray
Tether Strap Hook
Front of Vehicle
2. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest and between the head-rest posts, otherwise route the tether strap over the top of the seatback. Child Restraint Hook Holders

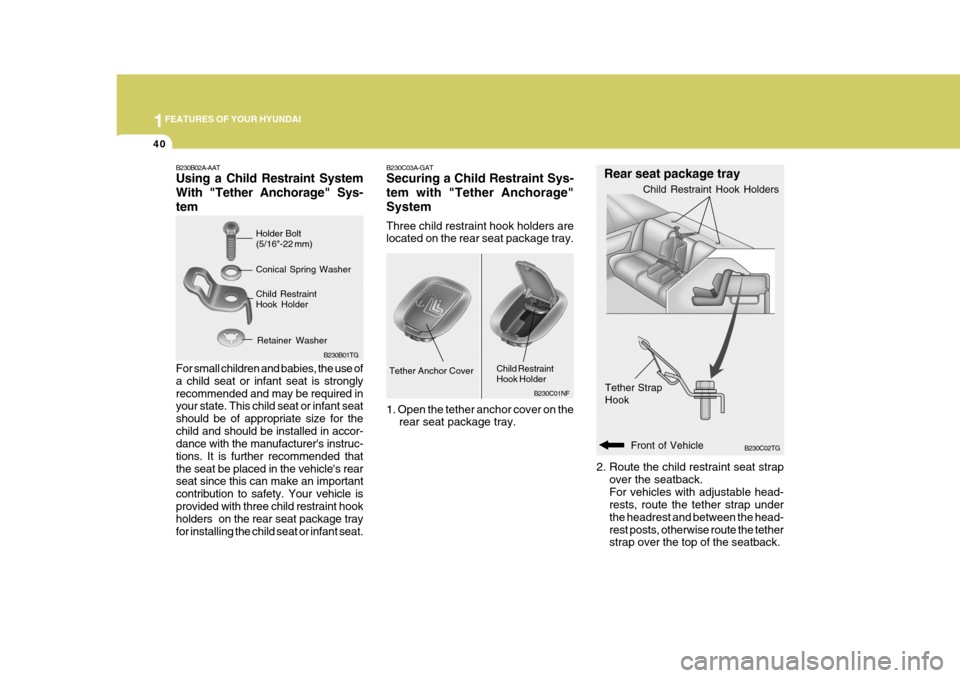

B230C03A-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the rear seat package tray.
B230C01NF
Tether Anchor Cover
1. Open the tether anchor cover on therear seat package tray. Child Restraint Hook Holder
B230B02A-AAT Using a Child Restraint System With "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is stronglyrecommended and may be required in your state. This child seat or infant seat should be of appropriate size for thechild and should be installed in accor- dance with the manufacturer's instruc- tions. It is further recommended thatthe seat be placed in the vehicle's rear seat since this can make an important contribution to safety. Your vehicle isprovided with three child restraint hook holders on the rear seat package tray for installing the child seat or infant seat.Holder Bolt (5/16"-22 mm)
B230B01TG
Conical Spring Washer Child Restraint Hook HolderRetainer Washer

1
FEATURES OF YOUR HYUNDAI
41
B230D01TG-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardized method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation. B230D01NF

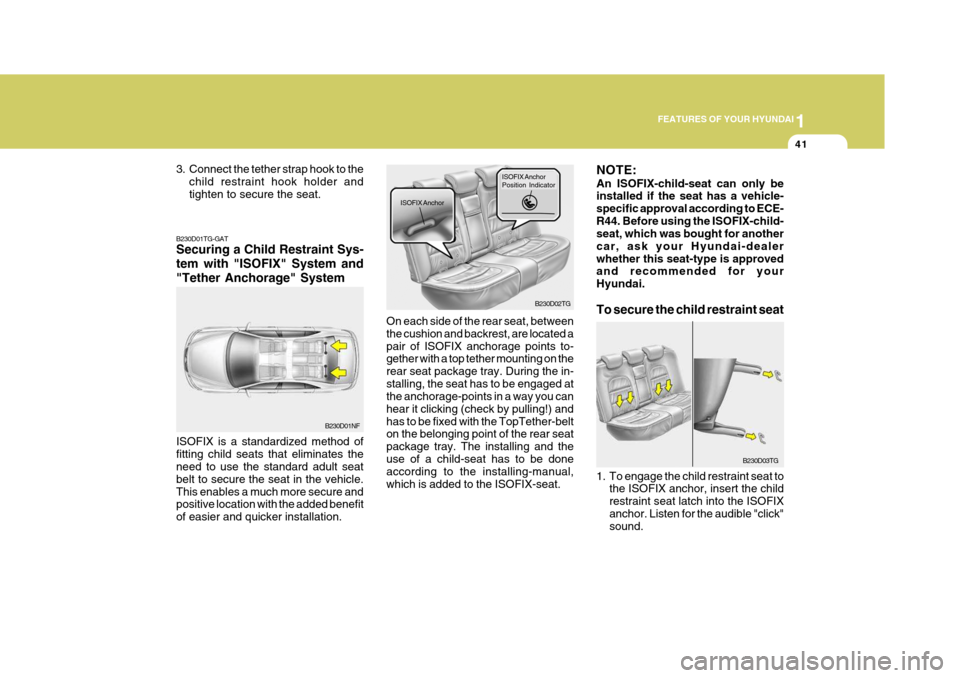

On each side of the rear seat, between the cushion and backrest, are located apair of ISOFIX anchorage points to- gether with a top tether mounting on the rear seat package tray. During the in-stalling, the seat has to be engaged at the anchorage-points in a way you can hear it clicking (check by pulling!) andhas to be fixed with the TopTether-belt on the belonging point of the rear seat package tray. The installing and theuse of a child-seat has to be done according to the installing-manual, which is added to the ISOFIX-seat.B230D02TG
ISOFIX Anchor
ISOFIX Anchor Position Indicator
3. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat.
B230D03TG
NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
1. To engage the child restraint seat tothe ISOFIX anchor, insert the child restraint seat latch into the ISOFIXanchor. Listen for the audible "click" sound.

1FEATURES OF YOUR HYUNDAI
42
B230H01JM-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriatefor your children. When using the child safety seats, refer to the following table.
Rear
Center
Age Group Seating Position
L1, L2,
L3, L4 X
XX XX XX Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4 years)II & III : 15kg to 36kg(4 ~ 12 years) X
L1, L2,
L3, L4
L3, L5,
L6, L7, L8
L6, L9
L1 : Suitable for Bebe confort ELIOS (E2 037014) approved for the use in this mass group
L2 : Suitable for PegPerego primo Viaggio (E13 030010) approvedfor the use in this mass group
vehicle rear seat belt metal latch plates or tabs must be latchedsecurely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraintto prevent the child from reaching and taking hold of unretracted seat
belts. Unlatched metal latch platesor tabs may allow the child to reach the unretracted seat belts which may result in strangulationand a serious injury or death to the child in the child restraint.
o Do not mount more than one child
restraint to a single tether or achild restraint lower anchorage point. The improper increased loadmay cause the anchorage points or tether anchor to break, causing serious injury or death.
o Attach the ISOFIX or ISOFIX-com- patible child seat only to the ap-propriate locations shown in theillustration.
o Always follow the installation and
use instructions provided by themanufacturer of the child re- straint.
!WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only providedfor the left and right outboard rear seating positions. Do not misuse the ISOFIX anchors by attemptingto attach a child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, thechild seat ISOFIX attachments may not be strong enough to secure the child restraint seat properly inthe center of the rear seat and may break, causing serious injury or death.
o When using the vehicle’s “ISOFIX” system to install a child restraintsystem in the rear seat, all unused
2. Connect the tether strap hook to the
child restraint hook holder and tightento secure the seat. Refer to "Secur- ing a Child Restraint System With Tether Anchorage System" on page1-40.

1
FEATURES OF YOUR HYUNDAI
43
L3 : Suitable for Bebe confort iSEOS (E2 039014) approved for the use in this mass group
NOTE: Use it after adjusting the headrest to the lowest level.
L4 : Suitable for GRACO Autobaby (E11 03. 44.160/E11 03.44.161) approved for the use in this mass group
L5 : Suitable for Romer Lord Plus (E1 03301136) approved for the use inthis mass group
L6 : Suitable for Euro Kids Star (E1 03301128/E1 03301129)approved for the use in this mass group
L7 : Suitable for BeSafe iZi COMFORT (E4 03443206) approved for thisuse in this mass group
NOTE: Use it after removing the headrest or adjusting the headrest to thelowest level. L8 : Suitable for MAXI-COSI Priori XP
(E1 03301153) approved for theuse in this mass group
L9 : Suitable for Bebe confort HiPSOS
(E2 031011) approved for this usein this mass group
NOTE: Use it after removing the headrest.
X : Seat position not suitable for chil- dren in this mass group

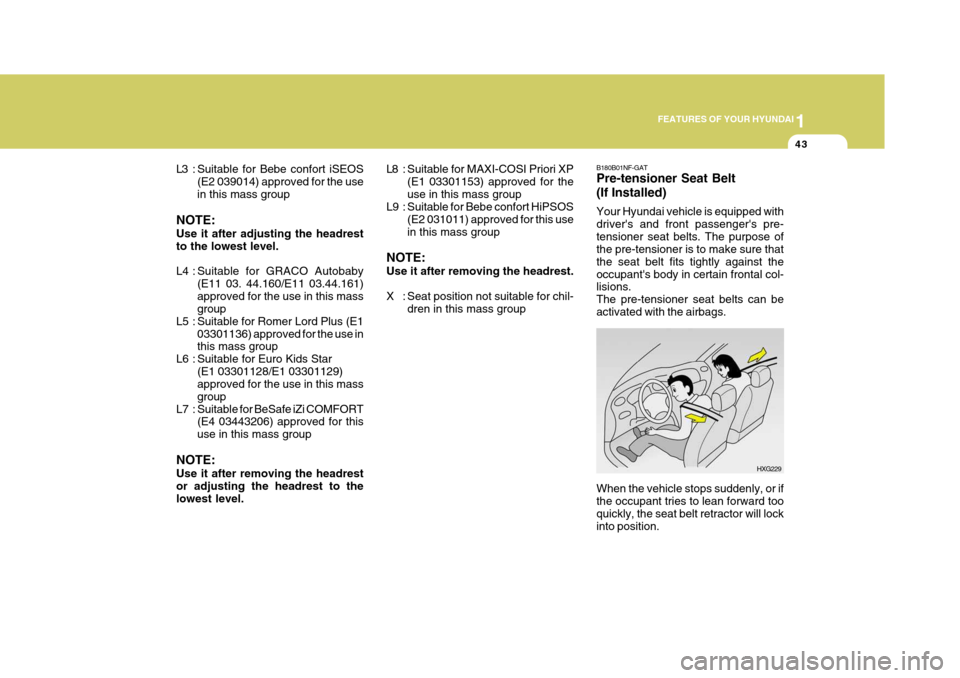

When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position.
HXG229
B180B01NF-GAT Pre-tensioner Seat Belt (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belt fits tightly against theoccupant's body in certain frontal col- lisions. The pre-tensioner seat belts can beactivated with the airbags.
