1FEATURES OF YOUR HYUNDAI
44
NOTE:
o Both the driver's and frontpassenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags.
o When the pre-tensioner seat belts are activated, a loud noise maybe heard and fine dust, whichmay appear to be smoke, may be visible in the passenger compart- ment. These are normal operat-ing conditions and are not haz- ardous.
o Although it is harmless, the fine dust may cause skin irritationand should not be breathed for prolonged periods. Wash all ex-posed skin areas thoroughly af- ter an accident in which the pre- tensioner seat belts were activated.
!

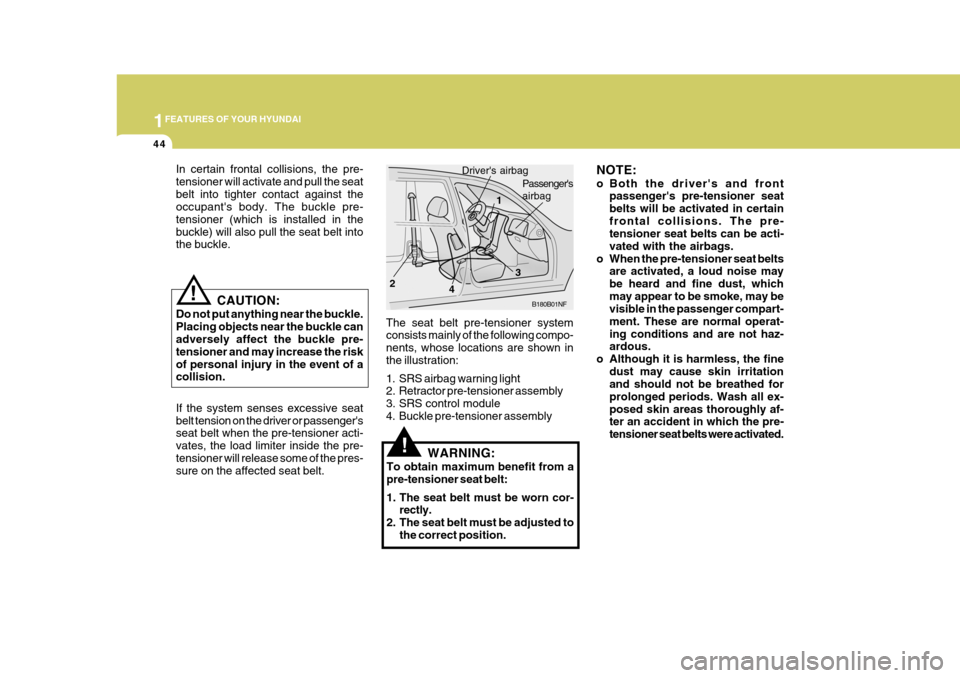

The seat belt pre-tensioner system consists mainly of the following compo- nents, whose locations are shown in the illustration:
1. SRS airbag warning light
2. Retractor pre-tensioner assembly
3. SRS control module
4. Buckle pre-tensioner assembly B180B01NF
1
2
3
Driver's airbag
Passenger's airbag
WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position. 4
!
In certain frontal collisions, the pre- tensioner will activate and pull the seatbelt into tighter contact against the occupant's body. The buckle pre- tensioner (which is installed in thebuckle) will also pull the seat belt into the buckle.
CAUTION:
Do not put anything near the buckle. Placing objects near the buckle can adversely affect the buckle pre- tensioner and may increase the riskof personal injury in the event of a collision. If the system senses excessive seat belt tension on the driver or passenger's seat belt when the pre-tensioner acti- vates, the load limiter inside the pre-tensioner will release some of the pres- sure on the affected seat belt.

1
FEATURES OF YOUR HYUNDAI
45
!!
AIR
BAG

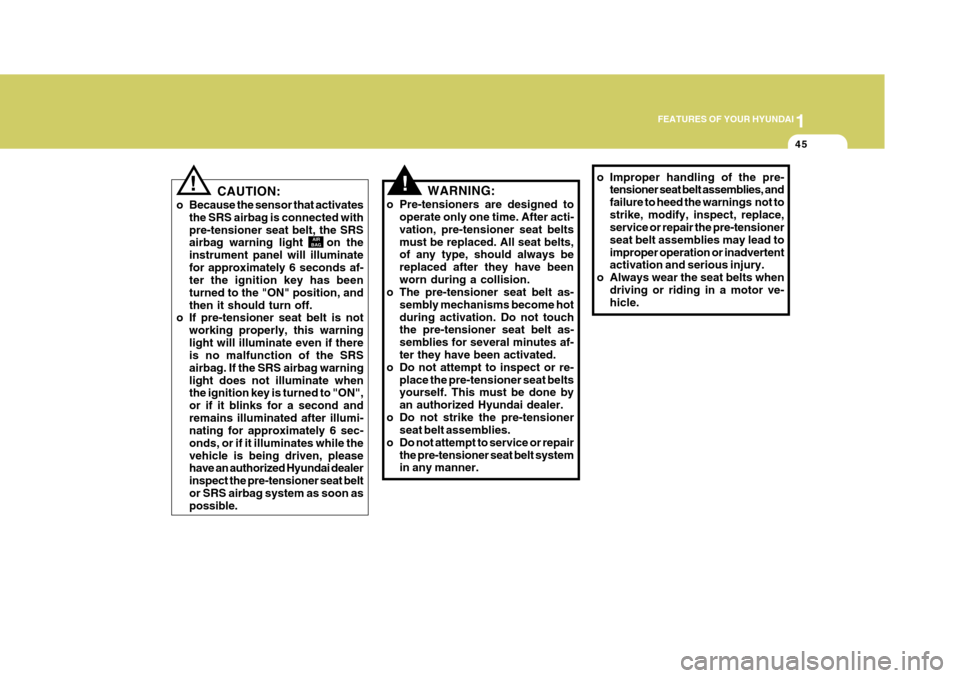

CAUTION:
o Because the sensor that activates the SRS airbag is connected with pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will illuminatefor approximately 6 seconds af- ter the ignition key has been turned to the "ON" position, andthen it should turn off.
o If pre-tensioner seat belt is not
working properly, this warninglight will illuminate even if there is no malfunction of the SRS airbag. If the SRS airbag warninglight does not illuminate when the ignition key is turned to "ON", or if it blinks for a second andremains illuminated after illumi- nating for approximately 6 sec- onds, or if it illuminates while thevehicle is being driven, please have an authorized Hyundai dealer inspect the pre-tensioner seat beltor SRS airbag system as soon as possible. WARNING:
o Pre-tensioners are designed to operate only one time. After acti- vation, pre-tensioner seat beltsmust be replaced. All seat belts, of any type, should always be replaced after they have beenworn during a collision.
o The pre-tensioner seat belt as-
sembly mechanisms become hotduring activation. Do not touch the pre-tensioner seat belt as- semblies for several minutes af- ter they have been activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat beltsyourself. This must be done by an authorized Hyundai dealer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or repair the pre-tensioner seat belt system in any manner.
o Improper handling of the pre-tensioner seat belt assemblies, and failure to heed the warnings not tostrike, modify, inspect, replace, service or repair the pre-tensioner seat belt assemblies may lead toimproper operation or inadvertent activation and serious injury.
o Always wear the seat belts when driving or riding in a motor ve-hicle.

1FEATURES OF YOUR HYUNDAI
46
B240D01TG-GAT (If Installed)
SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
1. Driver's front airbag
2. Passenger's front airbag
3. Front side impact airbag
4. Rear side impact airbag
5. Curtain airbag
B240D01TG

1
FEATURES OF YOUR HYUNDAI
47
!

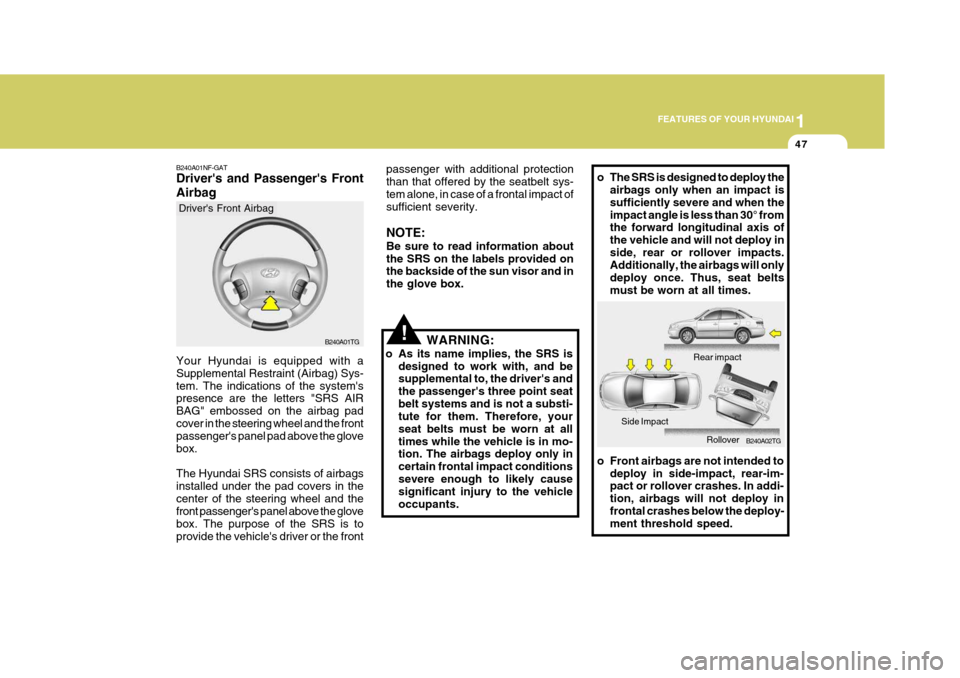

passenger with additional protection than that offered by the seatbelt sys-tem alone, in case of a frontal impact of sufficient severity. NOTE: Be sure to read information about the SRS on the labels provided on the backside of the sun visor and in the glove box.
WARNING:
o As its name implies, the SRS is designed to work with, and be supplemental to, the driver's and the passenger's three point seatbelt systems and is not a substi- tute for them. Therefore, your seat belts must be worn at alltimes while the vehicle is in mo- tion. The airbags deploy only in certain frontal impact conditionssevere enough to likely cause significant injury to the vehicle occupants.
B240A01NF-GAT Driver's and Passenger's Front Airbag Your Hyundai is equipped with a Supplemental Restraint (Airbag) Sys-tem. The indications of the system's presence are the letters "SRS AIR BAG" embossed on the airbag padcover in the steering wheel and the front passenger's panel pad above the glove box. The Hyundai SRS consists of airbags installed under the pad covers in thecenter of the steering wheel and the front passenger's panel above the glove box. The purpose of the SRS is toprovide the vehicle's driver or the front
B240A01TG
B240A02TG
Rear impact
o The SRS is designed to deploy the
airbags only when an impact issufficiently severe and when theimpact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy inside, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat beltsmust be worn at all times.
o Front airbags are not intended to deploy in side-impact, rear-im- pact or rollover crashes. In addi- tion, airbags will not deploy infrontal crashes below the deploy- ment threshold speed.Side Impact
Rollover
Driver's Front Airbag

1FEATURES OF YOUR HYUNDAI
48

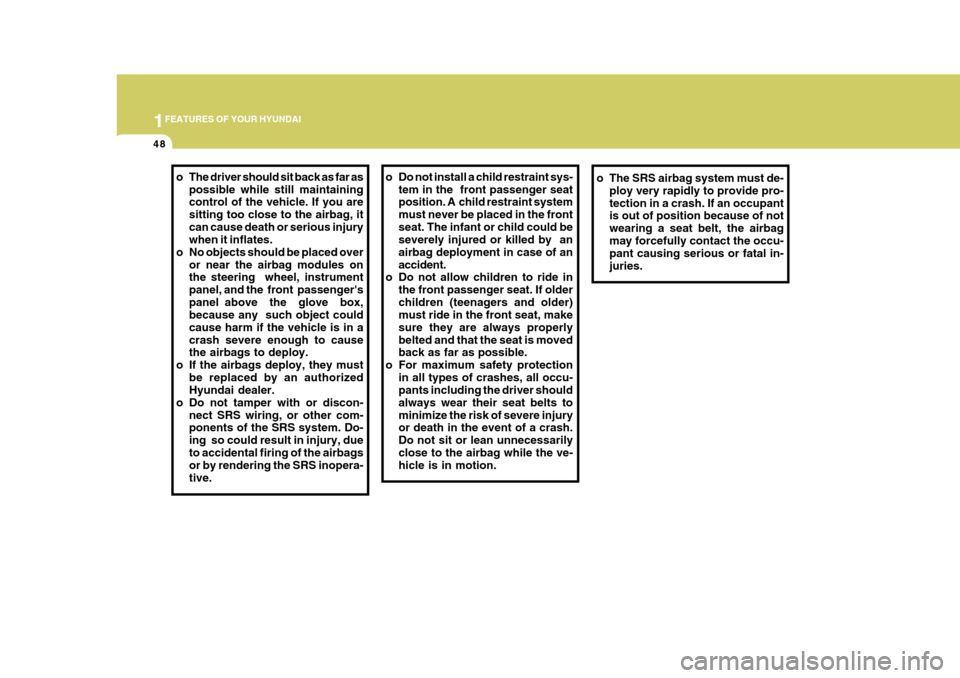

o The driver should sit back as far as
possible while still maintaining control of the vehicle. If you are sitting too close to the airbag, itcan cause death or serious injury when it inflates.
o No objects should be placed over or near the airbag modules onthe steering wheel, instrument panel, and the front passenger'spanel above the glove box, because any such object could cause harm if the vehicle is in acrash severe enough to cause the airbags to deploy.
o If the airbags deploy, they must be replaced by an authorizedHyundai dealer.
o Do not tamper with or discon- nect SRS wiring, or other com-ponents of the SRS system. Do- ing so could result in injury, dueto accidental firing of the airbags or by rendering the SRS inopera- tive. o Do not install a child restraint sys-
tem in the front passenger seat position. A child restraint system must never be placed in the frontseat. The infant or child could be severely injured or killed by an airbag deployment in case of anaccident.
o Do not allow children to ride in
the front passenger seat. If olderchildren (teenagers and older) must ride in the front seat, make sure they are always properlybelted and that the seat is moved back as far as possible.
o For maximum safety protection in all types of crashes, all occu-pants including the driver should always wear their seat belts tominimize the risk of severe injury or death in the event of a crash. Do not sit or lean unnecessarilyclose to the airbag while the ve- hicle is in motion. o The SRS airbag system must de-
ploy very rapidly to provide pro- tection in a crash. If an occupant is out of position because of not wearing a seat belt, the airbagmay forcefully contact the occu- pant causing serious or fatal in- juries.

1
FEATURES OF YOUR HYUNDAI
49
B240B03L

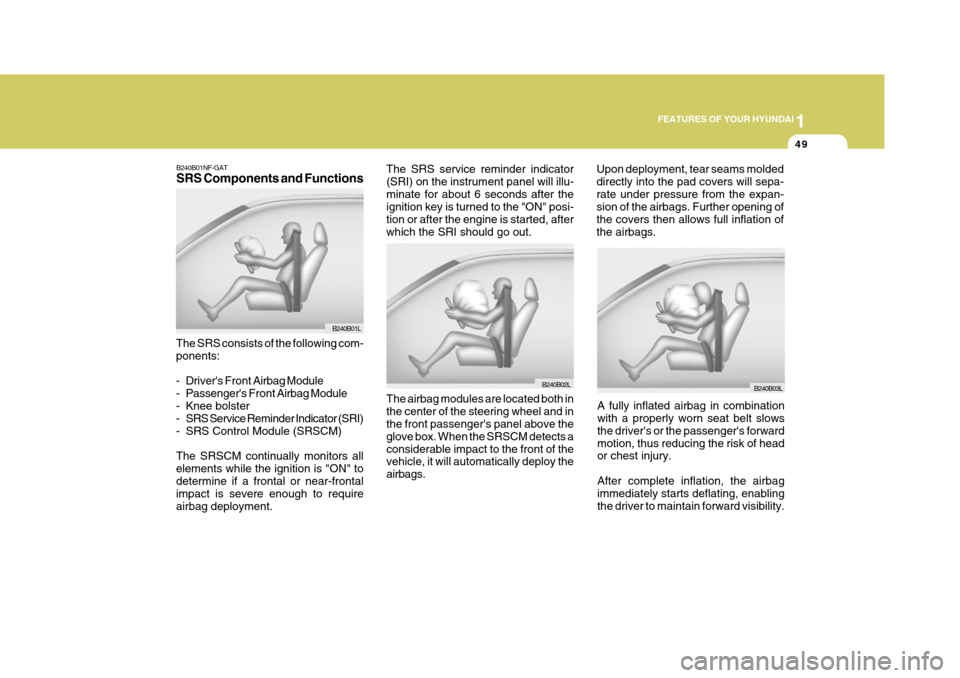

Upon deployment, tear seams molded directly into the pad covers will sepa-rate under pressure from the expan- sion of the airbags. Further opening of the covers then allows full inflation ofthe airbags.
B240B02L
The SRS service reminder indicator(SRI) on the instrument panel will illu-minate for about 6 seconds after the ignition key is turned to the "ON" posi- tion or after the engine is started, afterwhich the SRI should go out. The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags.
A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forwardmotion, thus reducing the risk of head or chest injury. After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility.
B240B01NF-GAT SRS Components and Functions
The SRS consists of the following com- ponents:
- Driver's Front Airbag Module
- Passenger's Front Airbag Module
- Knee bolster
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" todetermine if a frontal or near-frontal impact is severe enough to require airbag deployment. B240B01L

1FEATURES OF YOUR HYUNDAI
50
!

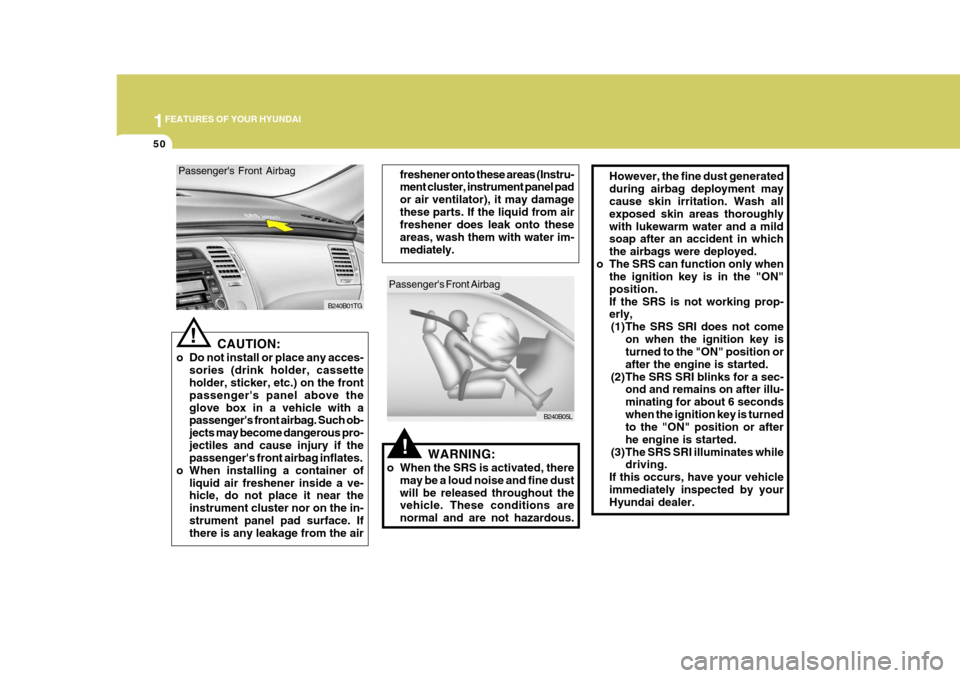

However, the fine dust generated during airbag deployment may cause skin irritation. Wash all exposed skin areas thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed.
o The SRS can function only when the ignition key is in the "ON"position.If the SRS is not working prop- erly,
(1)The SRS SRI does not come on when the ignition key isturned to the "ON" position or after the engine is started.
(2)The SRS SRI blinks for a sec- ond and remains on after illu-minating for about 6 secondswhen the ignition key is turned to the "ON" position or after he engine is started.
(3)The SRS SRI illuminates while driving.
If this occurs, have your vehicleimmediately inspected by your Hyundai dealer.
Passenger's Front Airbag
B240B05L
freshener onto these areas (Instru-ment cluster, instrument panel pad or air ventilator), it may damagethese parts. If the liquid from air freshener does leak onto these areas, wash them with water im-mediately.
WARNING:
o When the SRS is activated, there may be a loud noise and fine dustwill be released throughout the vehicle. These conditions are normal and are not hazardous.
CAUTION:
o Do not install or place any acces- sories (drink holder, cassette holder, sticker, etc.) on the front passenger's panel above theglove box in a vehicle with a passenger's front airbag. Such ob- jects may become dangerous pro-jectiles and cause injury if the passenger's front airbag inflates.
o When installing a container of
liquid air freshener inside a ve-hicle, do not place it near the instrument cluster nor on the in-strument panel pad surface. If there is any leakage from the air B240B01TG
Passenger's Front Airbag!

1
FEATURES OF YOUR HYUNDAI
51

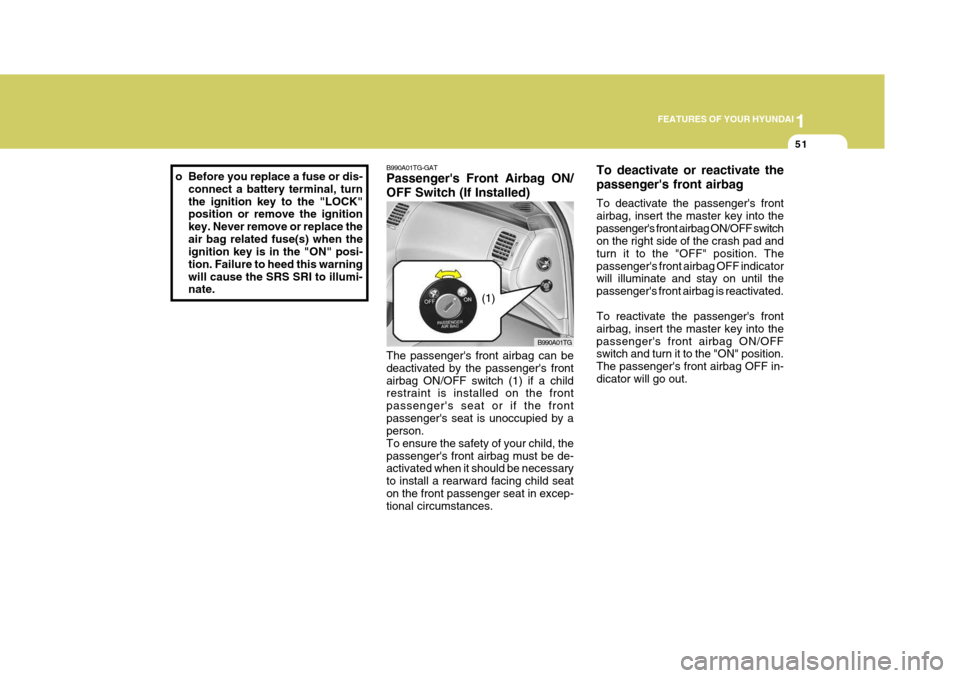

B990A01TG-GAT Passenger's Front Airbag ON/ OFF Switch (If Installed)
B990A01TG
The passenger's front airbag can be deactivated by the passenger's frontairbag ON/OFF switch (1) if a child restraint is installed on the front passenger's seat or if the frontpassenger's seat is unoccupied by a person. To ensure the safety of your child, thepassenger's front airbag must be de- activated when it should be necessary to install a rearward facing child seaton the front passenger seat in excep- tional circumstances. To deactivate or reactivate the passenger's front airbag To deactivate the passenger's front airbag, insert the master key into thepassenger's front airbag ON/OFF switch on the right side of the crash pad and
turn it to the "OFF" position. Thepassenger's front airbag OFF indicator will illuminate and stay on until the passenger's front airbag is reactivated. To reactivate the passenger's front airbag, insert the master key into thepassenger's front airbag ON/OFF switch and turn it to the "ON" position. The passenger's front airbag OFF in-dicator will go out.
(1)o Before you replace a fuse or dis-
connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.

1FEATURES OF YOUR HYUNDAI
52

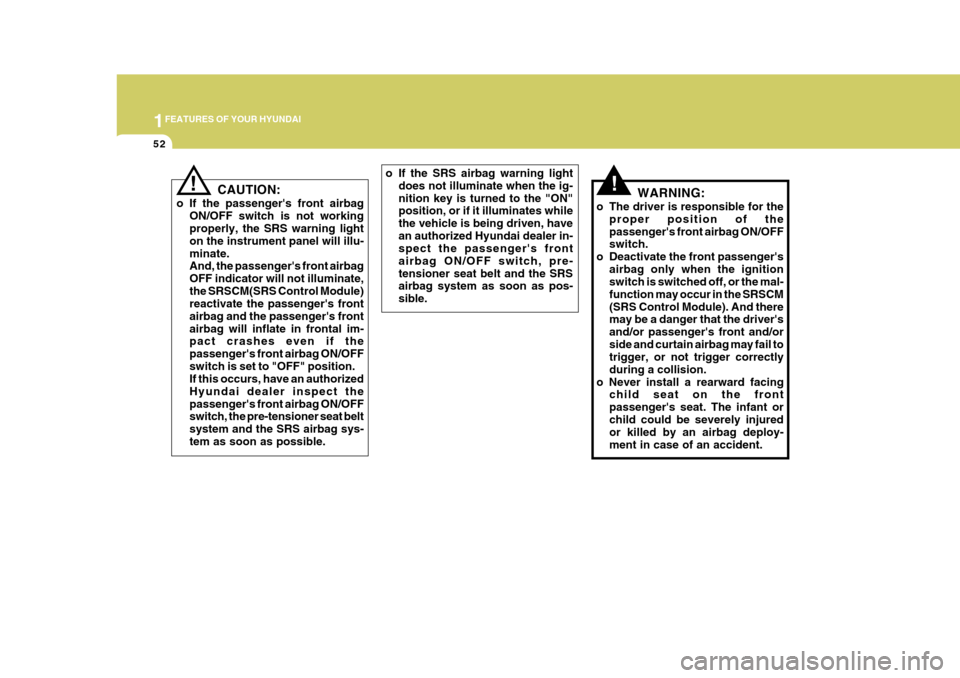

!WARNING:
o The driver is responsible for the proper position of the passenger's front airbag ON/OFF switch.
o Deactivate the front passenger's airbag only when the ignitionswitch is switched off, or the mal- function may occur in the SRSCM(SRS Control Module). And there may be a danger that the driver's and/or passenger's front and/orside and curtain airbag may fail to trigger, or not trigger correctly during a collision.
o Never install a rearward facing child seat on the frontpassenger's seat. The infant orchild could be severely injured or killed by an airbag deploy- ment in case of an accident.
o If the SRS airbag warning light
does not illuminate when the ig-nition key is turned to the "ON" position, or if it illuminates while the vehicle is being driven, havean authorized Hyundai dealer in- spect the passenger's front airbag ON/OFF switch, pre-tensioner seat belt and the SRS airbag system as soon as pos- sible.! CAUTION:
o If the passenger's front airbag ON/OFF switch is not working properly, the SRS warning light on the instrument panel will illu-minate. And, the passenger's front airbag OFF indicator will not illuminate,the SRSCM(SRS Control Module) reactivate the passenger's front airbag and the passenger's frontairbag will inflate in frontal im- pact crashes even if the passenger's front airbag ON/OFFswitch is set to "OFF" position. If this occurs, have an authorized Hyundai dealer inspect thepassenger's front airbag ON/OFF switch, the pre-tensioner seat belt system and the SRS airbag sys-tem as soon as possible.

1
FEATURES OF YOUR HYUNDAI
53
!WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's seat belt systems and is not a substitute for them. Therefore your seat belts mustbe worn at all times while the vehicle is in motion. B990B01TG
Side airbag sensor
B990B01TG-GAT Side Impact Airbag (If Installed) Your Hyundai is equipped with a side impact airbag in each seat. The pur-pose of the airbag is to provide the vehicle's driver and passengers with additional protection than that offeredby the seat belt alone. The side impact airbags are designed to deploy only during certain side impact collisions,depending on the crash severity, angle, speed and point of impact. The side impact airbags are not designed todeploy in all side impact situations, collisions from the front or rear of the vehicle or in most rollover situations.
B990B02LZo Even though your vehicle is
equipped with the passenger's airbag ON/OFF switch, do not in-stall a child restraint system in the front passenger's seat. A child re- straint system must never beplaced in the front seat. Children who are too large for child re- straint systems should alwaysoccupy the rear seat and use the available lap/shoulder belts. Chil- dren are afforded the most safetyin the event of an accident when they are restrained by a proper restraint system in the rear seat.
o As soon as deactivation is no longer needed, reactivate thefront passenger's airbag. Important Safety Notes on the Side Impact Airbag system Following is a number of safety points concerning this system which should always be observed to ensure risk ofinjury is reduced in an accident.
