FEATURES OF YOUR HYUNDAI
77HEATING AND AIRCONDITIONING CONTROL
B710A02GK-GAT
1. Side defrost nozzle
2. Side Ventilator
3. Windshield Defrost ventilator
4. Center Ventilator
HGK0003-1 B710B02O-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. To change thedirection of the air flow, move the knob in the center of the vent up-and-down and side-to-side. The vents are openedwhen the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ". Keep thesevents clear of any obstructions. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of the dash board. To changethe direction of the air flow, move the knob in the center of the vent up-and- down and side-to-side. The vents areopened when the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ".Keep these vents clear of any obstruc- tions.

1FEATURES OF YOUR HYUNDAI
78HEATING AND VENTILA- TION
B670A01GK-GAT Rotary Type
1. Air Conditioning switch
2. Air intake control switch
3. Rear window defroster switch
4. Air flow control switch
5. Fan speed control switch
6. Temperature control switch B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and therefore the volume of air delivered from thesystem, may be controlled manually by setting the blower control between the "1" and "4" positions. B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired.
Cool
HGK2091
HGK2093 HGK2092
Warm

1
FEATURES OF YOUR HYUNDAI
79
B670C02FC-GAT Air Intake Control This is used to select fresh outside air or recirculating inside air. To change the air intake control mode,(Fresh mode, Recirculation mode) push the control button. FRESH MODE ( ) : The indicator light on the button goes off when the air intake control is fresh mode. RECIRCULATION MODE ( ): The indicator light on the button is illumi-nated when the air intake control is recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compart- ment will be drawn through the heatingsystem and heated or cooled according to the function selected. NOTE: It should be noted that prolonged operation of the heating in "Recircu- lation" mode will give rise to fogging of the windshield and side windowsand the air within the passenger com- partment will become stale. In addi- tion, prolonged use of the air condi-tioning with the "Recirculation" mode selected may result in the air within the passenger compartmentbecoming excessively dry.
B670D01GK-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air po- sition.
HGK2100
HGK2094

1FEATURES OF YOUR HYUNDAI
80
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents. Bi-Level
Air is discharged through the face ventsand the floor vents. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. Floor-Level
Air is discharged through the floor vents,windshield defroster nozzle, side de- froster nozzle, side ventilator.
HGK2095 HGK2096 HGK2097

1
FEATURES OF YOUR HYUNDAI
81HEATING CONTROLS
Floor-Defrost Level
Air is discharged through the wind- shield defroster nozzle, the floor vents, side defroster nozzle, side ventilator. If the "Floor-Defrost" mode is selected,the A/C will turn on automatically and "Fresh" mode will be activated. Defrost-Level
Air is discharged through the wind- shield defroster nozzle, side defroster nozzle, side ventilator. If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated. B690A02S-AAT For normal heating operation, set the air intake control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" posi- tion. If the windows fog up, move the air flow control to the "Def" (defroster) position.(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tempera- ture control to "Warm".
HGK2098
HGK2099
B690A01GK

1FEATURES OF YOUR HYUNDAI
82DEFROSTING/DEFOGGINGVENTILATION
B710A01S-AAT To operate the ventilation system:
o Set the air intake control to "Fresh" mode ( ).
o To direct all intake air to the dash- board vents, set the airflow control to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".BI-LEVEL HEATING
B700A02E-AAT Your Hyundai is equipped with bi-level heating controls. To use this feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level
( ) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
B720A02FC-GAT Use the heating/ventilation system to defrost or defog the windshield: To remove interior fog on the windshield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between
"1" and "4" position.
B700A01GK B710A01GKB720A01GK

1
FEATURES OF YOUR HYUNDAI
83
To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position
"3" or "4". NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may cause fogto form on the exterior windshield. If this occurs, set the air flow control to the face level position ( ) and fanspeed control to the low position.
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control to "Recircula- tion". Be sure to return the control to"Fresh" when the irritation has passed to keep fresh air in the ve- hicle. This will help keep the driveralert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windshield. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the wind-
shield, set the air intake control tothe fresh air ( ) position, turn on the air conditioning system, and ad- just temperature control to desiredtemperature fan speed to the desired position.
B720A02GK

1FEATURES OF YOUR HYUNDAI
84AIR CONDITIONING SYSTEM
B740A01S-AAT (If installed) Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel. B740B01S-AAT Air Conditioning Operation Cooling To use the air conditioning to cool the interior:
o Set the side vent control to " ", to
shut off outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode ( ). o Set the temperature control to "Cool".
("Cool" provides maximum cooling.The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn thefan control to one of the higher speedsor temporarily select the "Recircula- tion" position on the air intake con- trol.
HGK2089-1 B740B01GK

1
FEATURES OF YOUR HYUNDAI
85
B740C01S-AAT De-humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.
The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to "Fresh" mode ( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to
provide the desired amount ofwarmth. B740D01A-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.
B740C01GK

1FEATURES OF YOUR HYUNDAI
86AUTOMATIC HEATING AND COOLING CONTROL SYSTEM

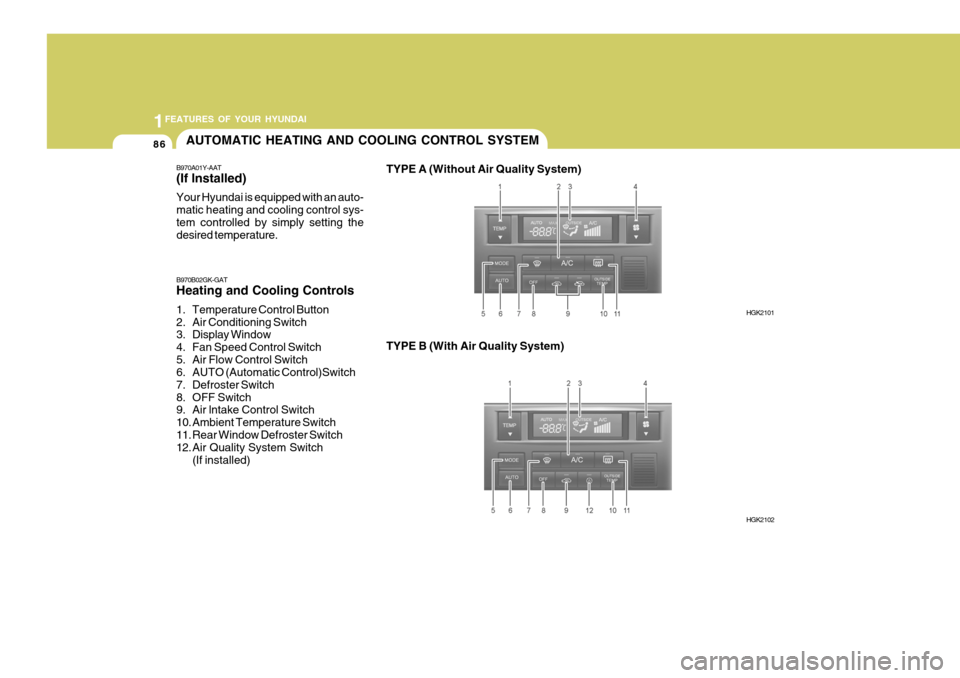

B970A01Y-AAT (If lnstalled) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. TYPE A (Without Air Quality System)
B970B02GK-GAT Heating and Cooling Controls
1. Temperature Control Button
2. Air Conditioning Switch
3. Display Window
4. Fan Speed Control Switch
5. Air Flow Control Switch
6. AUTO (Automatic Control)Switch
7. Defroster Switch
8. OFF Switch
9. Air lntake Control Switch
10. Ambient Temperature Switch
11. Rear Window Defroster Switch
12. Air Quality System Switch (If installed) TYPE B (With Air Quality System)
HGK2101
HGK2102
