Hyundai Creta 2016 Owner's Manual

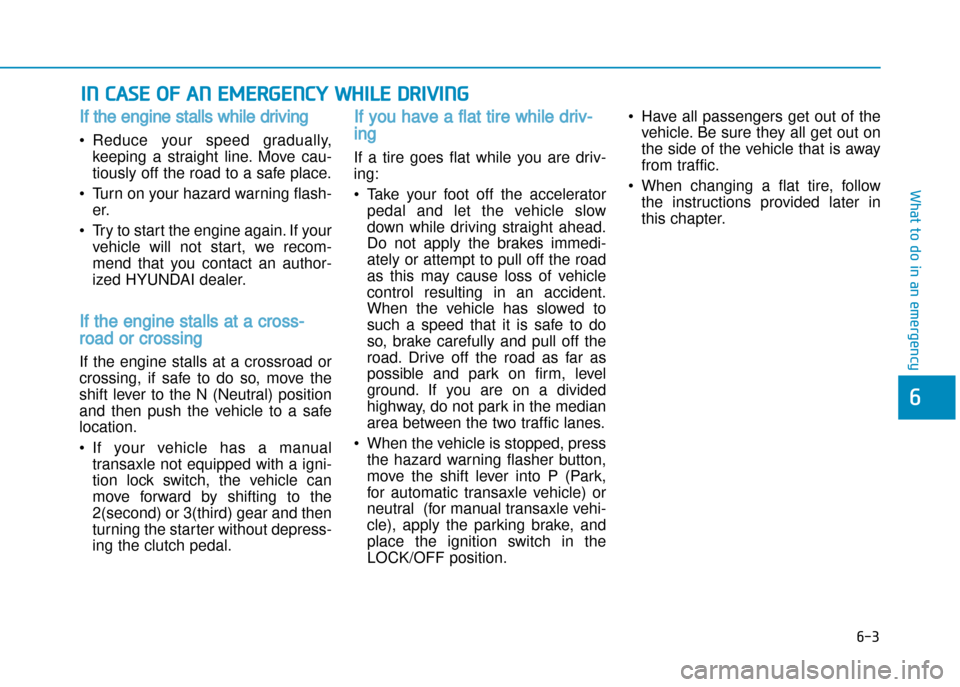

If the engine stalls while driving
• Reduce your speed gradually,keeping a straight line. Move cau
tiously off the road to a safe place.
• Turn on your hazard warning flash er.
• Try to start the engine again. If your vehicle will not start, we recom
mend that you contact an author
ized HYUNDAI dealer.
If the engine stalls at a cross
road or crossing
If the engine stalls at a crossroad or
crossing, if safe to do so, move the
shift lever to the N (Neutral) position
and then push the vehicle to a safelocation.
• If your vehicle has a manualtransaxle not equipped with a igni
tion lock switch, the vehicle can
move forward by shifting to the
2(second) or 3(third) gear and then
turning the starter without depress
ing the clutch pedal.
If you have a flat tire while driv
ing
If a tire goes flat while you are driv ing:
• Take your foot off the accelerator pedal and let the vehicle slow
down while driving straight ahead.
Do not apply the brakes immedi
ately or attempt to pull off the road
as this may cause loss of vehicle
control resulting in an accident.
When the vehicle has slowed to
such a speed that it is safe to do
so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on firm, level
ground. If you are on a divided
highway, do not park in the median
area between the two traffic lanes.
• When the vehicle is stopped, press the hazard warning flasher button,
move the shift lever into P (Park,
for automatic transaxle vehicle) or
neutral (for manual transaxle vehi
cle), apply the parking brake, and
place the ignition switch in theLOCK/OFF position. • Have all passengers get out of the
vehicle. Be sure they all get out on
the side of the vehicle that is away
from traffic.
• When changing a flat tire, follow the instructions provided later in
this chapter.
IN CASE OF AN EMERGENCY WHILE DRIVING
6-3
What to do in an emergency
6

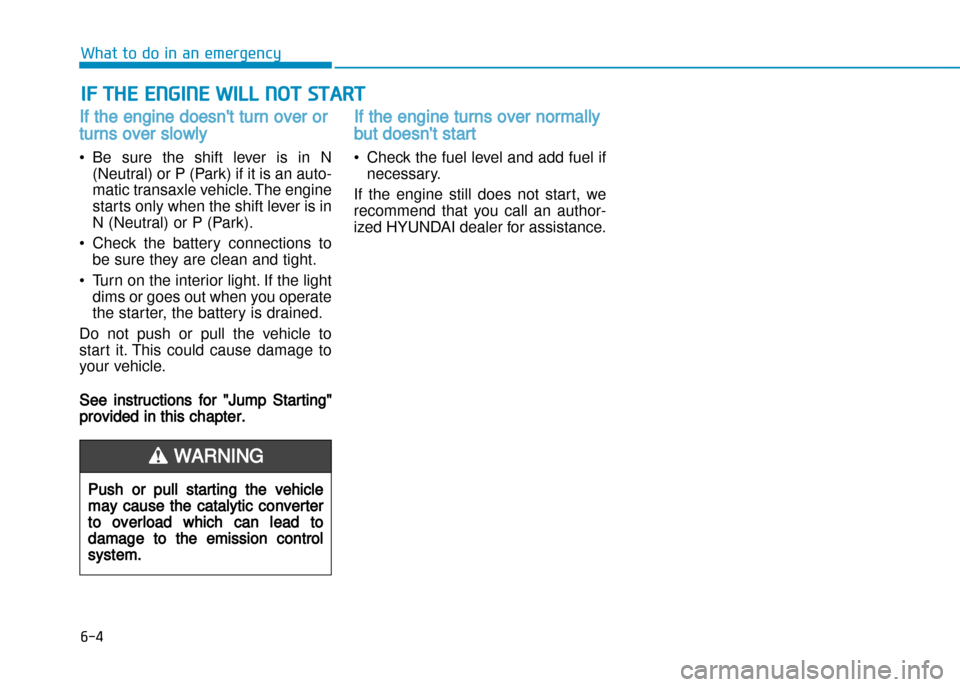

IF THE ENGINE WILL NOT START
If the engine doesn't turn over or
turns over slowly
• Be sure the shift lever is in N(Neutral) or P (Park) if it is an auto
matic transaxle vehicle. The engine
starts only when the shift lever is in
N (Neutral) or P (Park).
• Check the battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to
start it. This could cause damage to
your vehicle.
See instructions for "Jump Starting"
provided in this chapter.
If the engine turns over normally
but doesn't start
• Check the fuel level and add fuel if necessary.
If the engine still does not start, we
recommend that you call an author
ized HYUNDAI dealer for assistance.
6-4
What to do in an emergency
Push or pull starting the vehicle
may cause the catalytic converter
to overload which can lead to
damage to the emission control
system.

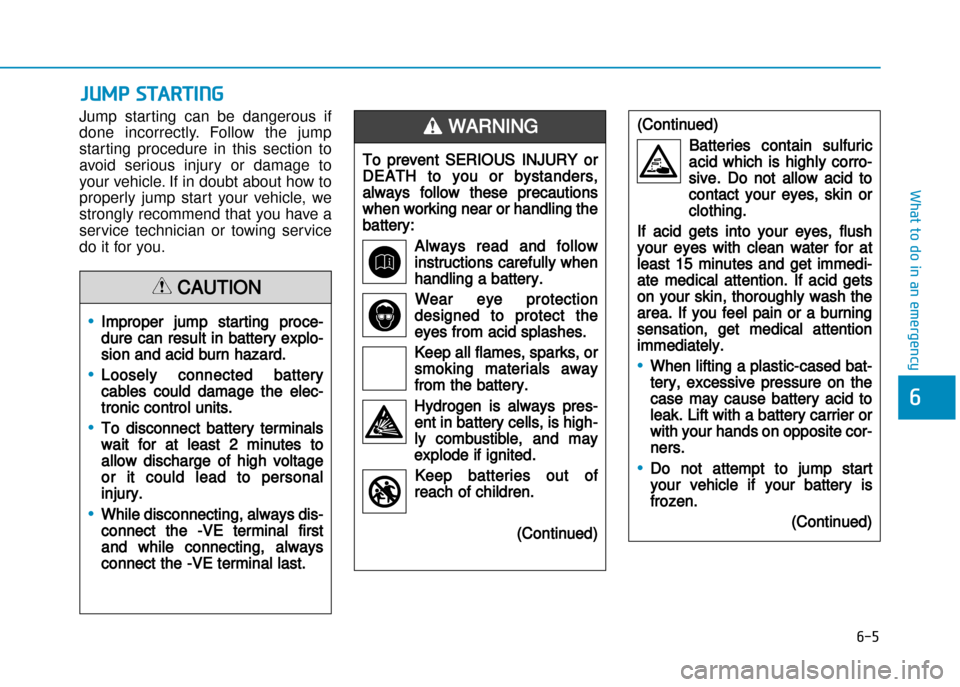

WARNING

Jump starting can be dangerous if
done incorrectly. Follow the jump
starting procedure in this section to
avoid serious injury or damage to
your vehicle. If in doubt about how to
properly jump start your vehicle, we
strongly recommend that you have a
service technician or towing service
do it for you.
JUMP STARTING
6-5
What to do in an emergency
6
To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working near or handling the
battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks, or
smoking materials away
from the battery.
Hydrogen is always pres
ent in battery cells, is high
ly combustible, and may
explode if ignited.
Keep batteries out of
reach of children.
(Continued)
(Continued)
Batteries contain sulfuric
acid which is highly corro
sive. Do not allow acid to
contact your eyes, skin or
clothing.
If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get immedi
ate medical attention. If acid gets
on your skin, thoroughly wash the
area. If you feel pain or a burning
sensation, get medical attention
immediately.
•When lifting a plasticcased bat
tery, excessive pressure on the
case may cause battery acid to
leak. Lift with a battery carrier or
with your hands on opposite cor
ners.
•Do not attempt to jump start
your vehicle if your battery is
frozen.
(Continued)
WARNING
•Improper jump starting proce
dure can result in battery explo
sion and acid burn hazard.
•Loosely connected battery
cables could damage the elec
tronic control units.
•To disconnect battery terminals
wait for at least 2 minutes to
allow discharge of high voltage
or it could lead to personal
injury.
•While disconnecting, always dis
connect the VE terminal first
and while connecting, always
connect the VE terminal last.

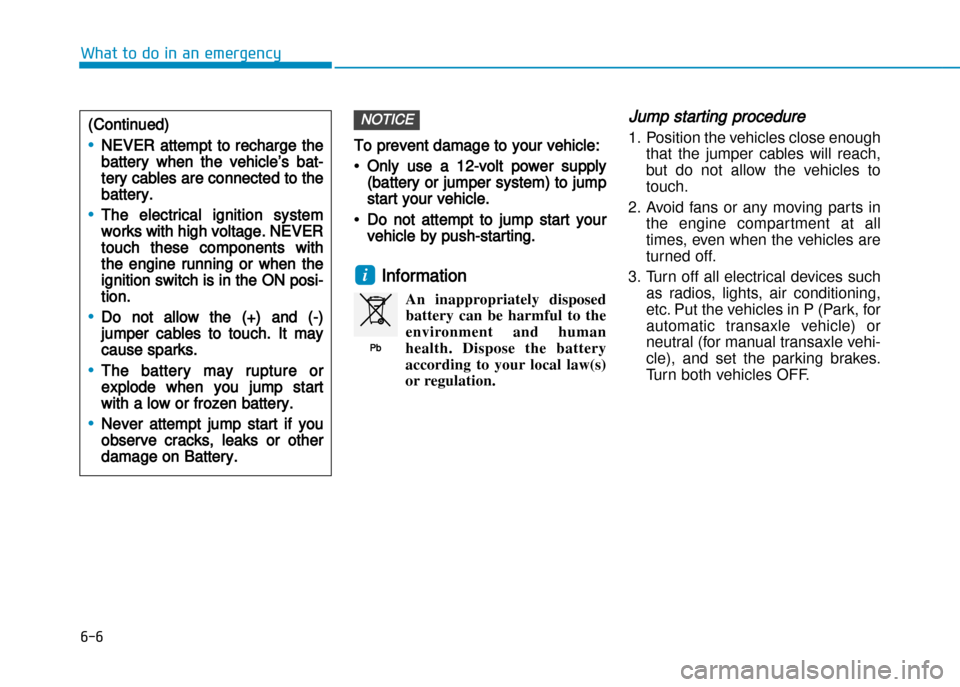

CAUTION

To prevent damage to your vehicle:
•Only use a 12volt power supply
(battery or jumper system) to jump
start your vehicle.
•Do not attempt to jump start your
vehicle by pushstarting.
Information
An inappropriately disposed battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
or regulation.
Jump starting procedure
1. Position the vehicles close enough that the jumper cables will reach,
but do not allow the vehicles totouch.
2. Avoid fans or any moving parts in the engine compartment at all
times, even when the vehicles are
turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning,
etc. Put the vehicles in P (Park, for
automatic transaxle vehicle) or
neutral (for manual transaxle vehi
cle), and set the parking brakes.
Turn both vehicles OFF.
i
NOTICE
6-6
What to do in an emergency
Pb
(Continued)
•NEVER attempt to recharge the
battery when the vehicle’s bat
tery cables are connected to the
battery.
•The electrical ignition system
works with high voltage. NEVER
touch these components with
the engine running or when the
ignition switch is in the ON posi
tion.
•Do not allow the (+) and ()
jumper cables to touch. It may
cause sparks.
•The battery may rupture or
explode when you jump start
with a low or frozen battery.
•Never attempt jump start if you
observe cracks, leaks or other
damage on Battery.

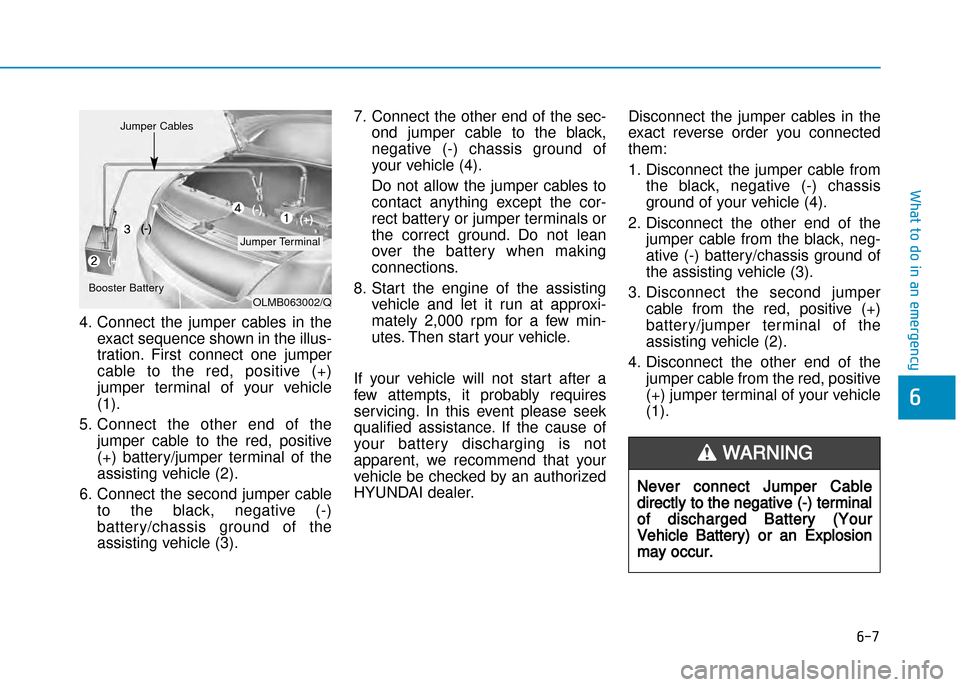

4. Connect the jumper cables in theexact sequence shown in the illus
tration. First connect one jumper
cable to the red, positive (+)
jumper terminal of your vehicle(1).
5. Connect the other end of the jumper cable to the red, positive
(+) battery/jumper terminal of the
assisting vehicle (2).
6. Connect the second jumper cable to the black, negative ()
batter y/chassis ground of the
assisting vehicle (3). 7. Connect the other end of the sec
ond jumper cable to the black,
negative () chassis ground of
your vehicle (4).
Do not allow the jumper cables to
contact anything except the cor
rect battery or jumper terminals or
the correct ground. Do not lean
over the battery when making
connections.
8. Start the engine of the assisting vehicle and let it run at approxi
mately 2,000 rpm for a few min
utes. Then start your vehicle.
If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event please seek
qualified assistance. If the cause of
your batter y discharging is not
apparent, we recommend that your
vehicle be checked by an authorized
HYUNDAI dealer. Disconnect the jumper cables in the
exact reverse order you connectedthem:
1. Disconnect the jumper cable from
the black, negative () chassis
ground of your vehicle (4).
2. Disconnect the other end of the jumper cable from the black, neg
ative () battery/chassis ground of
the assisting vehicle (3).
3. Disconnect the second jumper cable from the red, positive (+)
batter y/jumper terminal of the
assisting vehicle (2).
4. Disconnect the other end of the jumper cable from the red, positive
(+) jumper terminal of your vehicle(1).
6-7
What to do in an emergency
6
OLMB063002/Q
Jumper Terminal
Jumper Cables
Booster Battery()
(+)
(+)()
Never connect Jumper Cable
directly to the negative () terminal
of discharged Battery (Your
Vehicle Battery) or an Explosion
may occur.
WARNING

If your temperature gauge indicates
overheating, you experience a loss
of power, or hear loud pinging or
knocking, the engine may be over
heating. If this happens, you should:
1. Pull off the road and stop as soonas it is safe to do so.
2. Place the shift lever in P (Park, for automatic transaxle vehicle) or
neutral (for manual transaxle vehi
cle) and set the parking brake. If
the air conditioning is ON, turn it
OFF.
3. If engine coolant is running out under the vehicle or steam is com
ing out from the hood, stop the
engine. Do not open the hood until
the coolant has stopped running
or the steaming has stopped. If
there is no visible loss of engine
coolant and no steam, leave the
engine running and check to be
sure the engine cooling fan is
operating. If the fan is not running,
turn the engine off. 4. Check for coolant leaking from the
radiator, hoses or under the vehi
cle. (If the air conditioning had
been in use, it is normal for cold
water to be draining from it when
you stop.)
5. If engine coolant is leaking out, stop the engine immediately and
we recommend that you call an
authorized HYUNDAI dealer for
assistance.
IF THE ENGINE OVERHEATS
6-8
What to do in an emergency
While the engine is run
ning, keep hands,
clothing and tools away
from the moving parts
such as the cooling fan
and drive belt to pre
vent serious injury.
WARNING
NEVER remove the
radiator cap or the
drain plug while the
engine and radiator are
hot. Hot coolant and
steam may blow out under pres
sure, causing serious injury.
Turn the engine off and wait until
the engine cools down. Use
extreme care when removing the
radiator cap. Wrap a thick towel
around it, and turn it counterclock
wise slowly to the first stop. Step
back while the pressure is
released from the cooling system.
When you are sure all the pres
sure has been released, press
down on the cap, using a thick
towel, and continue turning coun
terclockwise to remove it.
WARNING

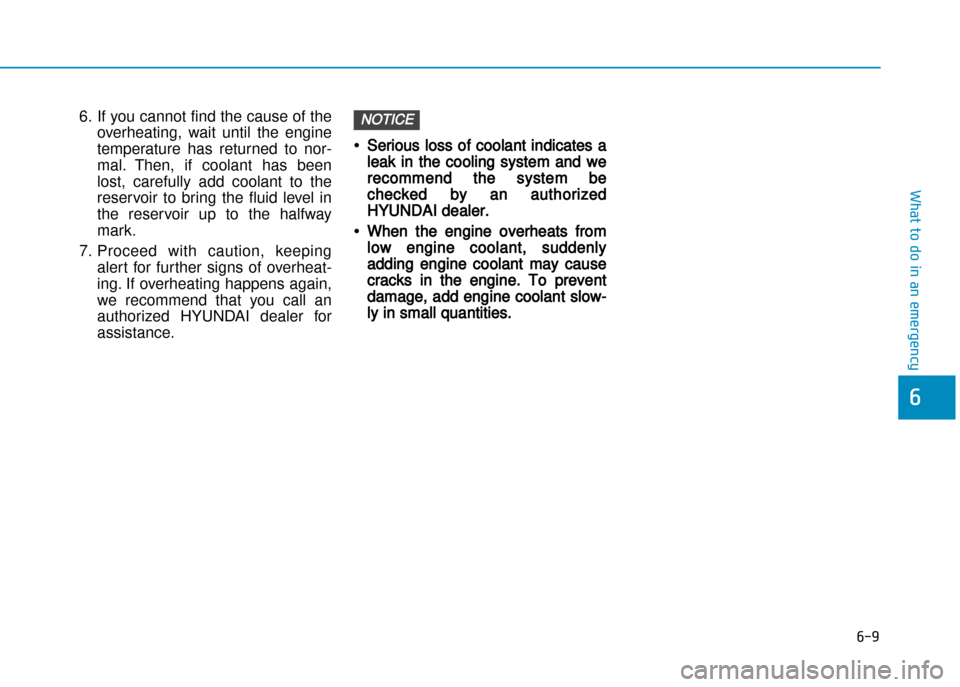

6. If you cannot find the cause of theoverheating, wait until the engine
temperature has returned to nor
mal. Then, if coolant has been
lost, carefully add coolant to the
reservoir to bring the fluid level in
the reservoir up to the halfway
mark.
7. Proceed with caution, keeping alert for further signs of overheat
ing. If overheating happens again,
we recommend that you call an
authorized HYUNDAI dealer for
assistance.
•Serious loss of coolant indicates a
leak in the cooling system and we
recommend the system be
checked by an authorized
HYUNDAI dealer.
•When the engine overheats from
low engine coolant, suddenly
adding engine coolant may cause
cracks in the engine. To prevent
damage, add engine coolant slow
ly in small quantities.
NOTICE
6-9
What to do in an emergency
6

6-10

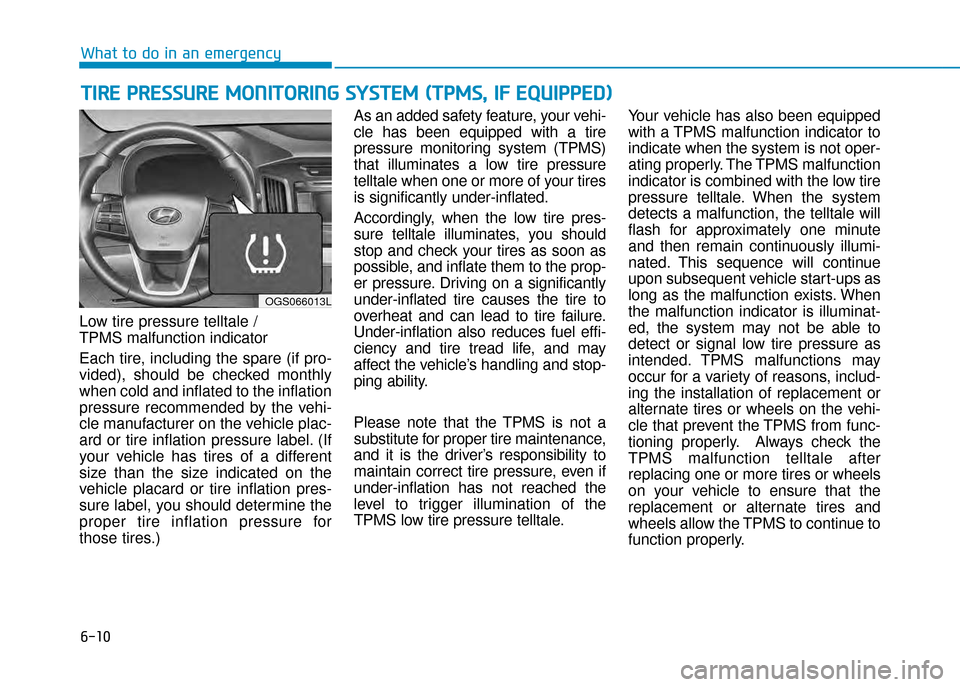

What to do in an emergency
Low tire pressure telltale /
TPMS malfunction indicator
Each tire, including the spare (if pro
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehi
cle manufacturer on the vehicle plac
ard or tire inflation pressure label. (If
your vehicle has tires of a different
size than the size indicated on the
vehicle placard or tire inflation pres
sure label, you should determine the
proper tire inflation pressure for
those tires.) As an added safety feature, your vehi
cle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your tires
is significantly underinflated.
Accordingly, when the low tire pres
sure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the prop
er pressure. Driving on a significantly
underinflated tire causes the tire to
overheat and can lead to tire failure.
Underinflation also reduces fuel effi
ciency and tire tread life, and may
affect the vehicle’s handling and stop
ping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not oper
ating properly. The TPMS malfunction
indicator is combined with the low tire
pressure telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute
and then remain continuously illumi
nated. This sequence will continue
upon subsequent vehicle startups as
long as the malfunction exists. When
the malfunction indicator is illuminat
ed, the system may not be able to
detect or signal low tire pressure as
intended. TPMS malfunctions may
occur for a variety of reasons, includ
ing the installation of replacement or
alternate tires or wheels on the vehi
cle that prevent the TPMS from func
tioning properly. Always check the
TPMS malfunction telltale after
replacing one or more tires or wheels
on your vehicle to ensure that the
replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
TIRE PRESSURE MONITORING SYSTEM (TPMS, IF EQUIPPED)
OGS066013L

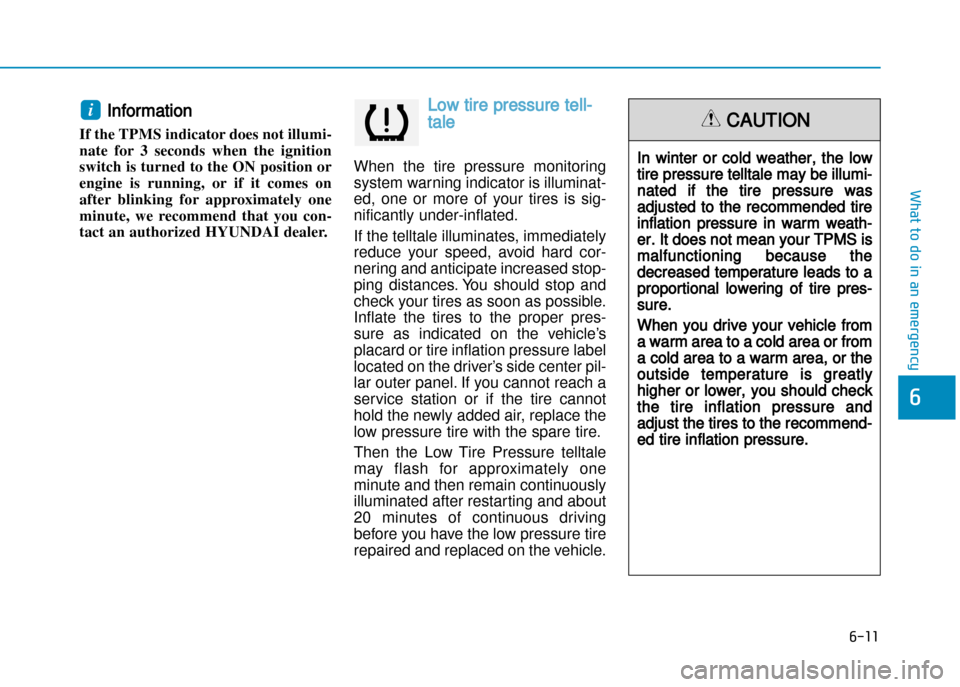

6-11
What to do in an emergency
6
Information
If the TPMS indicator does not illumi
nate for 3 seconds when the ignition
switch is turned to the ON position or
engine is running, or if it comes on
after blinking for approximately one
minute, we recommend that you con
tact an authorized HYUNDAI dealer.Low tire pressure tell
tale
When the tire pressure monitoring
system warning indicator is illuminat
ed, one or more of your tires is sig
nificantly underinflated.
If the telltale illuminates, immediately
reduce your speed, avoid hard cor
nering and anticipate increased stop
ping distances. You should stop and
check your tires as soon as possible.
Inflate the tires to the proper pres
sure as indicated on the vehicle’s
placard or tire inflation pressure label
located on the driver’s side center pil
lar outer panel. If you cannot reach a
service station or if the tire cannot
hold the newly added air, replace the
low pressure tire with the spare tire.
Then the Low Tire Pressure telltale
may flash for approximately one minute and then remain continuously
illuminated after restarting and about
20 minutes of continuous drivingbefore you have the low pressure tire
repaired and replaced on the vehicle.
i
In winter or cold weather, the low
tire pressure telltale may be illumi
nated if the tire pressure was
adjusted to the recommended tire
inflation pressure in warm weath
er. It does not mean your TPMS is
malfunctioning because the
decreased temperature leads to a
proportional lowering of tire pres
sure.
When you drive your vehicle from
a warm area to a cold area or from
a cold area to a warm area, or the
outside temperature is greatly
higher or lower, you should check
the tire inflation pressure and
adjust the tires to the recommend
ed tire inflation pressure.
CAUTION

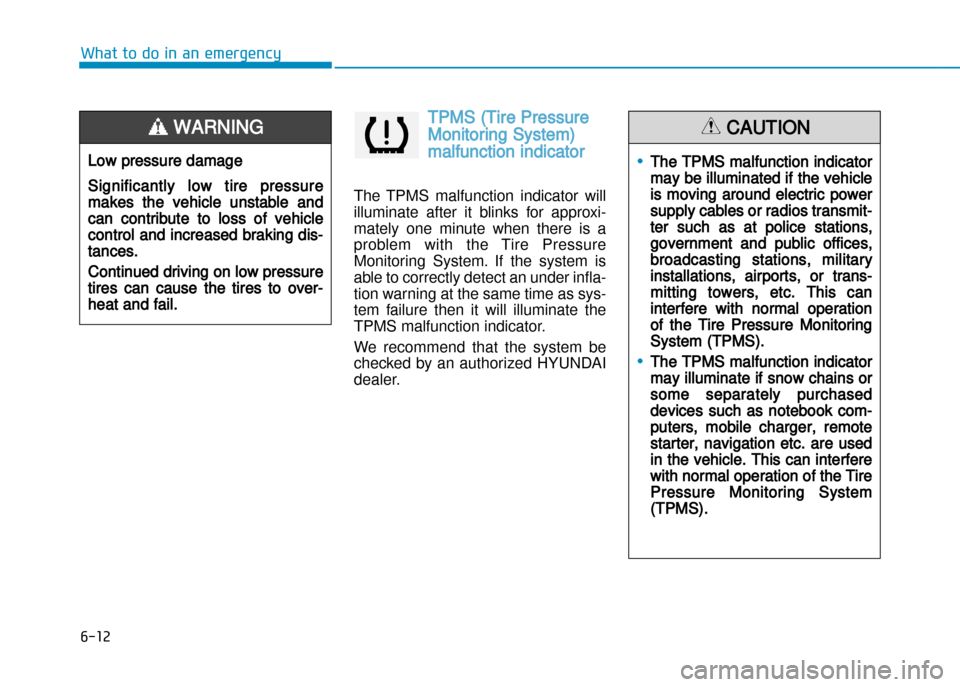

6-12
What to do in an emergency
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS malfunction indicator will
illuminate after it blinks for approxi
mately one minute when there is a
problem with the Tire Pressure
Monitoring System. If the system is
able to correctly detect an under infla
tion warning at the same time as sys
tem failure then it will illuminate theTPMS malfunction indicator.
We recommend that the system be
checked by an authorized HYUNDAI
dealer.
Low pressure damage
Significantly low tire pressure
makes the vehicle unstable and
can contribute to loss of vehicle
control and increased braking dis
tances.
Continued driving on low pressure
tires can cause the tires to over
heat and fail.
WARNING
•The TPMS malfunction indicator
may be illuminated if the vehicle
is moving around electric power
supply cables or radios transmit
ter such as at police stations,
government and public offices,
broadcasting stations, military
installations, airports, or trans
mitting towers, etc. This can
interfere with normal operation
of the Tire Pressure Monitoring
System (TPMS).
•The TPMS malfunction indicator
may illuminate if snow chains or
some separately purchased
devices such as notebook com
puters, mobile charger, remote
starter, navigation etc. are used
in the vehicle. This can interfere
with normal operation of the Tire
Pressure Monitoring System
(TPMS).
CAUTION
