What to do in an emergency
6

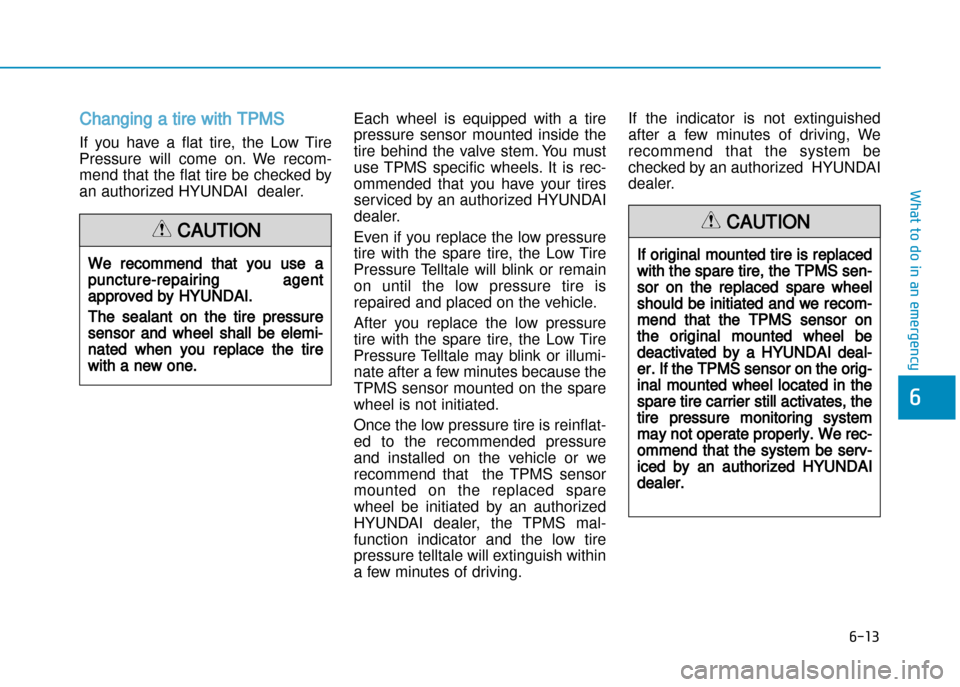

Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure will come on. We recom
mend that the flat tire be checked by
an authorized HYUNDAI dealer.Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec
ommended that you have your tires
serviced by an authorized HYUNDAI
dealer.
Even if you replace the low pressure
tire with the spare tire, the Low Tire
Pressure Telltale will blink or remain
on until the low pressure tire is
repaired and placed on the vehicle.
After you replace the low pressure
tire with the spare tire, the Low Tire
Pressure Telltale may blink or illumi
nate after a few minutes because the
TPMS sensor mounted on the spare
wheel is not initiated.
Once the low pressure tire is reinflat
ed to the recommended pressure
and installed on the vehicle or we
recommend that the TPMS sensor
mounted on the replaced spare
wheel be initiated by an authorized
HYUNDAI dealer, the TPMS mal
function indicator and the low tire
pressure telltale will extinguish within
a few minutes of driving. If the indicator is not extinguished
after a few minutes of driving, We
recommend that the system be
checked by an authorized HYUNDAI
dealer.
We recommend that you use a
puncturerepairing agent
approved by HYUNDAI.
The sealant on the tire pressure
sensor and wheel shall be elemi
nated when you replace the tire
with a new one.
CAUTION
If original mounted tire is replaced
with the spare tire, the TPMS sen
sor on the replaced spare wheel
should be initiated and we recom
mend that the TPMS sensor on
the original mounted wheel be
deactivated by a HYUNDAI deal
er. If the TPMS sensor on the orig
inal mounted wheel located in the
spare tire carrier still activates, the
tire pressure monitoring system
may not operate properly. We rec
ommend that the system be serv
iced by an authorized HYUNDAI
dealer.
CAUTION

6-14
What to do in an emergency

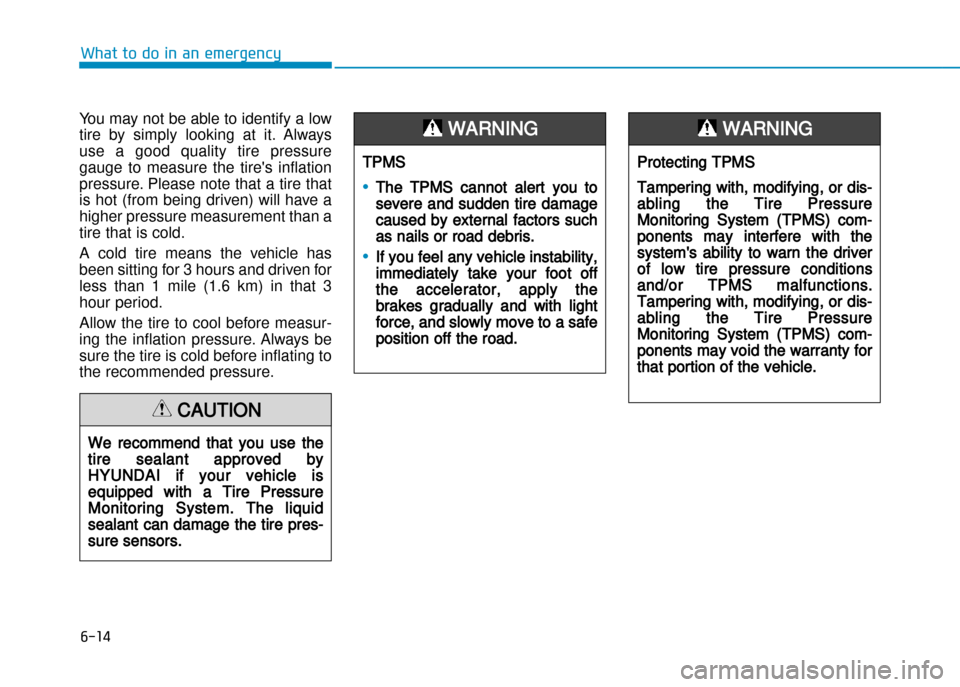

You may not be able to identify a low
tire by simply looking at it. Always
use a good quality tire pressure
gauge to measure the tire's inflation
pressure. Please note that a tire that
is hot (from being driven) will have a
higher pressure measurement than a
tire that is cold.
A cold tire means the vehicle has
been sitting for 3 hours and driven for
less than 1 mile (1.6 km) in that 3
hour period.
Allow the tire to cool before measur
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.
TPMS
•The TPMS cannot alert you to
severe and sudden tire damage
caused by external factors such
as nails or road debris.
•If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the
brakes gradually and with light
force, and slowly move to a safe
position off the road.
WARNING
Protecting TPMS
Tampering with, modifying, or dis
abling the Tire Pressure
Monitoring System (TPMS) com
ponents may interfere with the
system's ability to warn the driver
of low tire pressure conditions
and/or TPMS malfunctions.
Tampering with, modifying, or dis
abling the Tire Pressure
Monitoring System (TPMS) com
ponents may void the warranty for
that portion of the vehicle.
WARNING
We recommend that you use the
tire sealant approved by
HYUNDAI if your vehicle is
equipped with a Tire Pressure
Monitoring System. The liquid
sealant can damage the tire pres
sure sensors.
CAUTION

6-15
What to do in an emergency
6

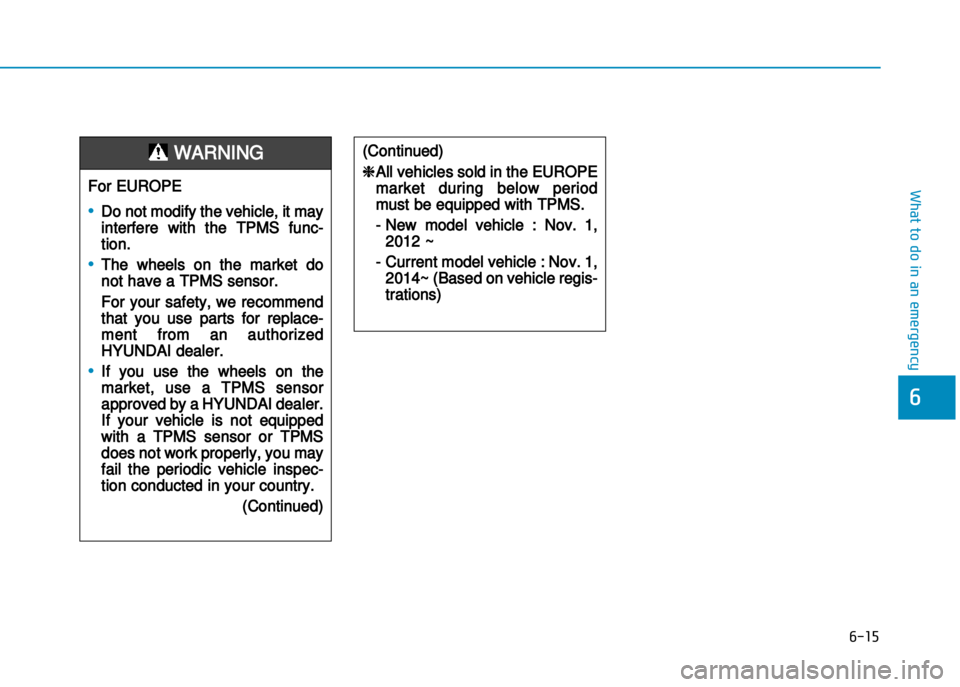

For EUROPE
•Do not modify the vehicle, it may
interfere with the TPMS func
tion.
•The wheels on the market do
not have a TPMS sensor.
For your safety, we recommend
that you use parts for replace
ment from an authorized
HYUNDAI dealer.
•If you use the wheels on the
market, use a TPMS sensor
approved by a HYUNDAI dealer.
If your vehicle is not equipped
with a TPMS sensor or TPMS
does not work properly, you may
fail the periodic vehicle inspec
tion conducted in your country.
(Continued)
WARNING (Continued)
hAll vehicles sold in the EUROPE
market during below period
must be equipped with TPMS.
New model vehicle : Nov. 1,
2012 ~
Current model vehicle : Nov. 1,
2014~ (Based on vehicle regis
trations)

6-16
What to do in an emergency

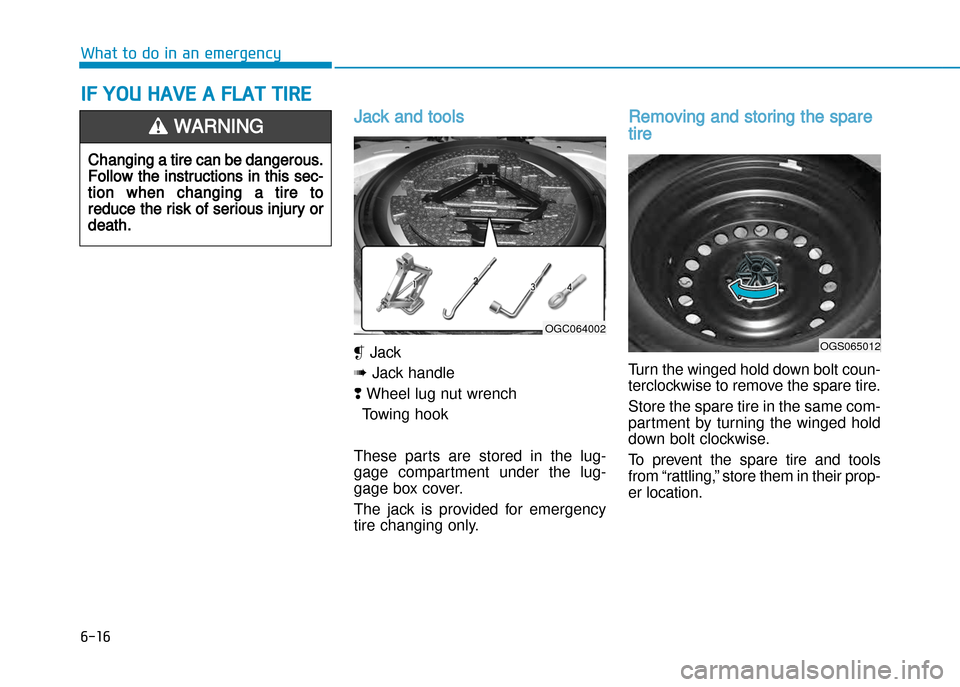

Jack and tools
ÀJack
Á Jack handle
 Wheel lug nut wrench
¯ Towing hook
These parts are stored in the lug
gage compartment under the lug
gage box cover.
The jack is provided for emergency
tire changing only.
Removing and storing the spare
tire
Turn the winged hold down bolt coun
terclockwise to remove the spare tire.
Store the spare tire in the same com
partment by turning the winged hold
down bolt clockwise.
To prevent the spare tire and tools
from “rattling,” store them in their prop
er location.
IF YOU HAVE A FLAT TIRE
Changing a tire can be dangerous.
Follow the instructions in this sec
tion when changing a tire to
reduce the risk of serious injury or
death.
WARNING
OGS065012
OGC064002

6-17
What to do in an emergency
6

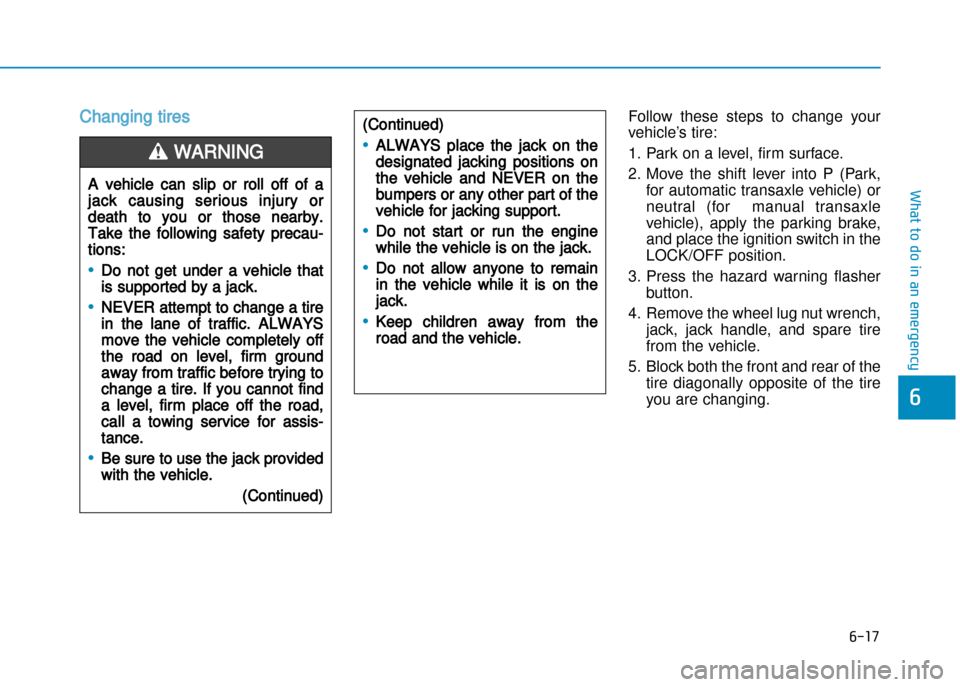

Changing tires Follow these steps to change your
vehicle’s tire:
1. Park on a level, firm surface.
2. Move the shift lever into P (Park,for automatic transaxle vehicle) or
neutral (for manual transaxle
vehicle), apply the parking brake,
and place the ignition switch in the
LOCK/OFF position.
3. Press the hazard warning flasher button.
4. Remove the wheel lug nut wrench, jack, jack handle, and spare tire
from the vehicle.
5. Block both the front and rear of the tire diagonally opposite of the tire
you are changing.
A vehicle can slip or roll off of a
jack causing serious injury or
death to you or those nearby.
Take the following safety precau
tions:
•Do not get under a vehicle that
is supported by a jack.
•NEVER attempt to change a tire
in the lane of traffic. ALWAYS
move the vehicle completely off
the road on level, firm ground
away from traffic before trying to
change a tire. If you cannot find
a level, firm place off the road,
call a towing service for assis
tance.
•Be sure to use the jack provided
with the vehicle.
(Continued)
(Continued)
•ALWAYS place the jack on the
designated jacking positions on
the vehicle and NEVER on the
bumpers or any other part of the
vehicle for jacking support.
•Do not start or run the engine
while the vehicle is on the jack.
•Do not allow anyone to remain
in the vehicle while it is on the
jack.
•Keep children away from the
road and the vehicle.
WARNING

6-18
What to do in an emergency

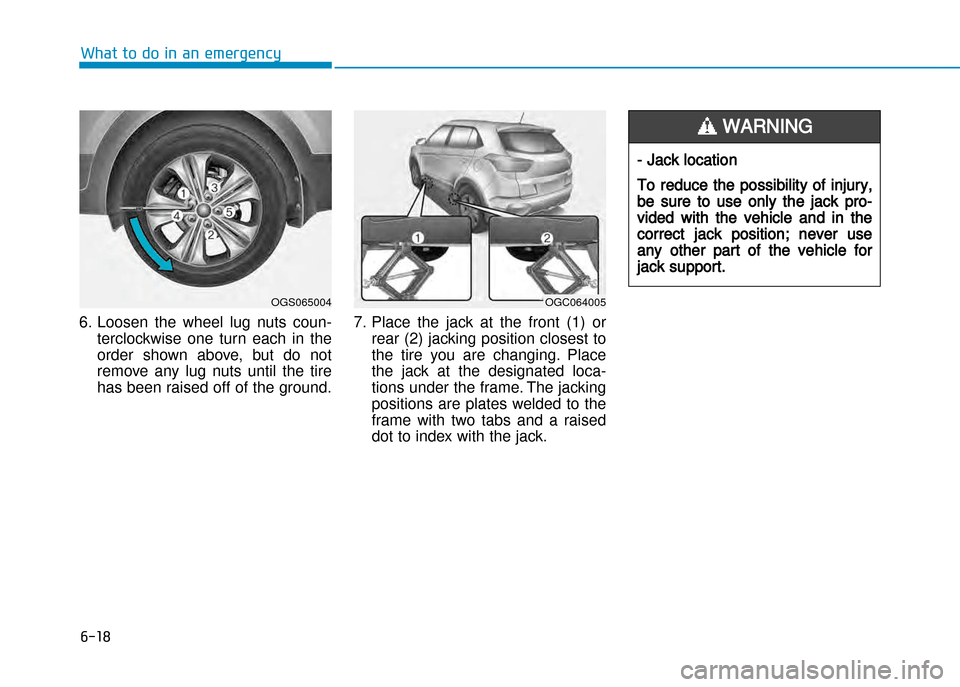

6. Loosen the wheel lug nuts counterclockwise one turn each in the
order shown above, but do not
remove any lug nuts until the tire
has been raised off of the ground. 7. Place the jack at the front (1) or
rear (2) jacking position closest to
the tire you are changing. Place
the jack at the designated loca
tions under the frame. The jacking
positions are plates welded to the
frame with two tabs and a raised
dot to index with the jack.
OGC064005OGS065004
Jack location
To reduce the possibility of injury,
be sure to use only the jack pro
vided with the vehicle and in the
correct jack position; never use
any other part of the vehicle for
jack support.
WARNING

6-19
What to do in an emergency
6

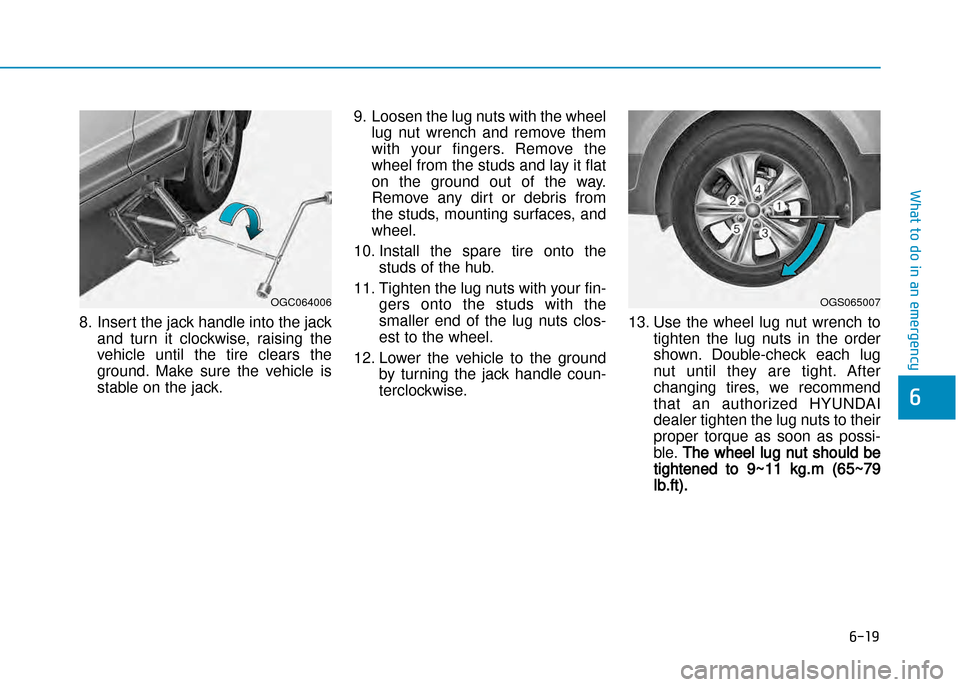

8. Insert the jack handle into the jackand turn it clockwise, raising the
vehicle until the tire clears the
ground. Make sure the vehicle is
stable on the jack. 9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from
the studs, mounting surfaces, and
wheel.
10. Install the spare tire onto the studs of the hub.
11. Tighten the lug nuts with your fin gers onto the studs with the
smaller end of the lug nuts clos
est to the wheel.
12. Lower the vehicle to the ground by turning the jack handle coun
terclockwise. 13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Doublecheck each lug
nut until they are tight. After
changing tires, we recommend
that an authorized HYUNDAI
dealer tighten the lug nuts to their
proper torque as soon as possi
ble.
The wheel lug nut should be
tightened to 9~11 kg.m (65~79
lb.ft).
OGS065007OGC064006

6-20
What to do in an emergency

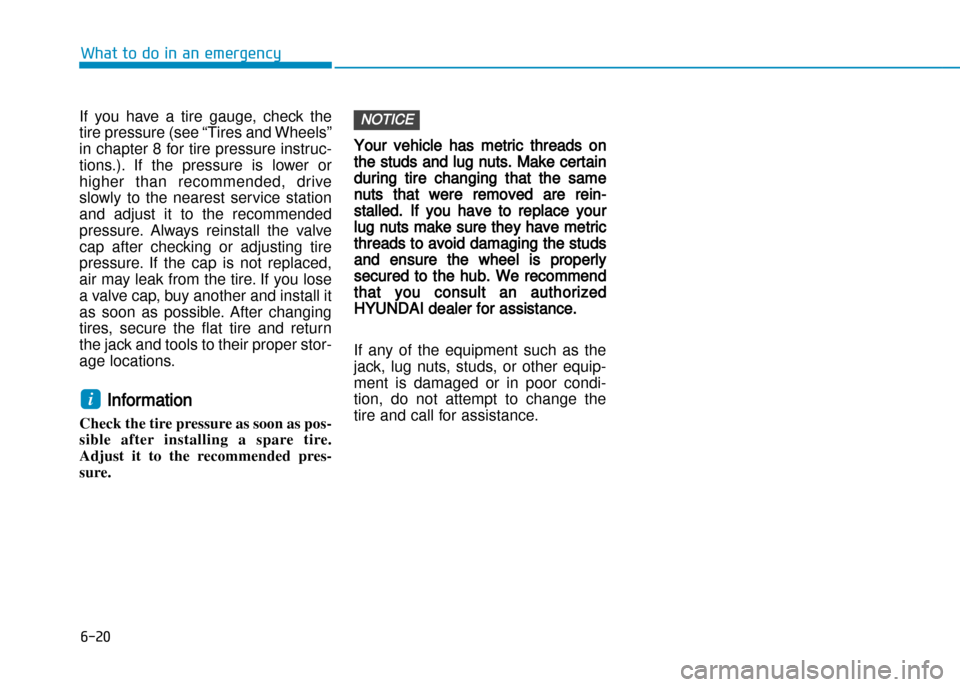

If you have a tire gauge, check the
tire pressure (see “Tires and Wheels”
in chapter 8 for tire pressure instruc
tions.). If the pressure is lower or
higher than recommended, drive
slowly to the nearest service station
and adjust it to the recommended
pressure. Always reinstall the valve
cap after checking or adjusting tire
pressure. If the cap is not replaced,
air may leak from the tire. If you lose
a valve cap, buy another and install it
as soon as possible. After changing
tires, secure the flat tire and return
the jack and tools to their proper stor
age locations.
Information
Check the tire pressure as soon as pos
sible after installing a spare tire.
Adjust it to the recommended pres
sure.
Your vehicle has metric threads on
the studs and lug nuts. Make certain
during tire changing that the same
nuts that were removed are rein
stalled. If you have to replace your
lug nuts make sure they have metric
threads to avoid damaging the studs
and ensure the wheel is properly
secured to the hub. We recommend
that you consult an authorized
HYUNDAI dealer for assistance.
If any of the equipment such as the
jack, lug nuts, studs, or other equip
ment is damaged or in poor condi
tion, do not attempt to change the
tire and call for assistance.
i
NOTICE

6-21
What to do in an emergency
6

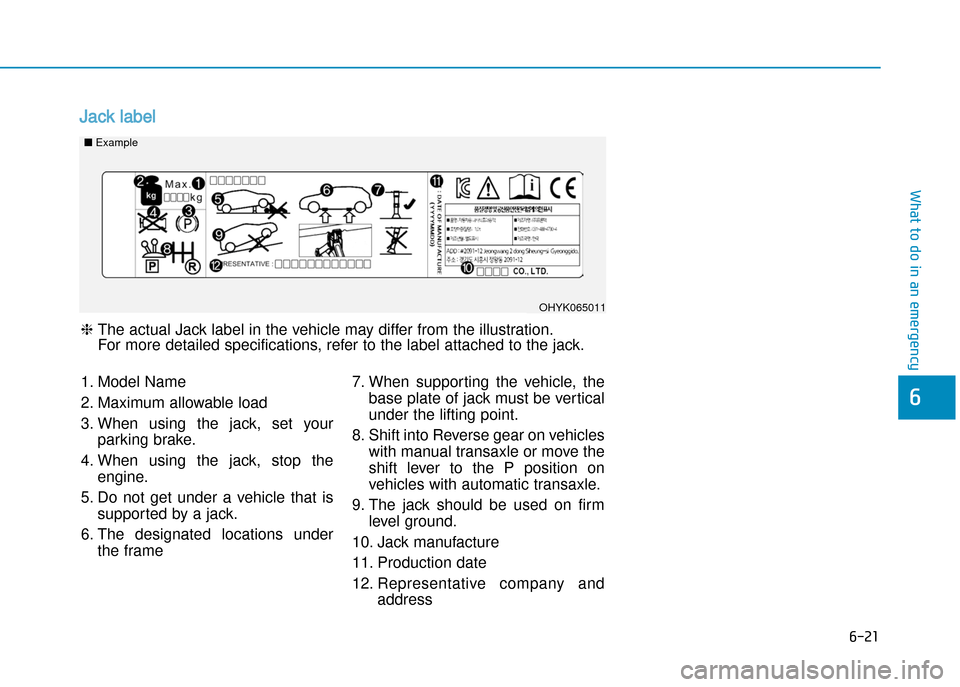

Jack label
OHYK065011
nExample
h The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your
parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame 7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
8. Shift into Reverse gear on vehicles with manual transaxle or move the
shift lever to the P position on
vehicles with automatic transaxle.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address

6-22
What to do in an emergency
Towing service

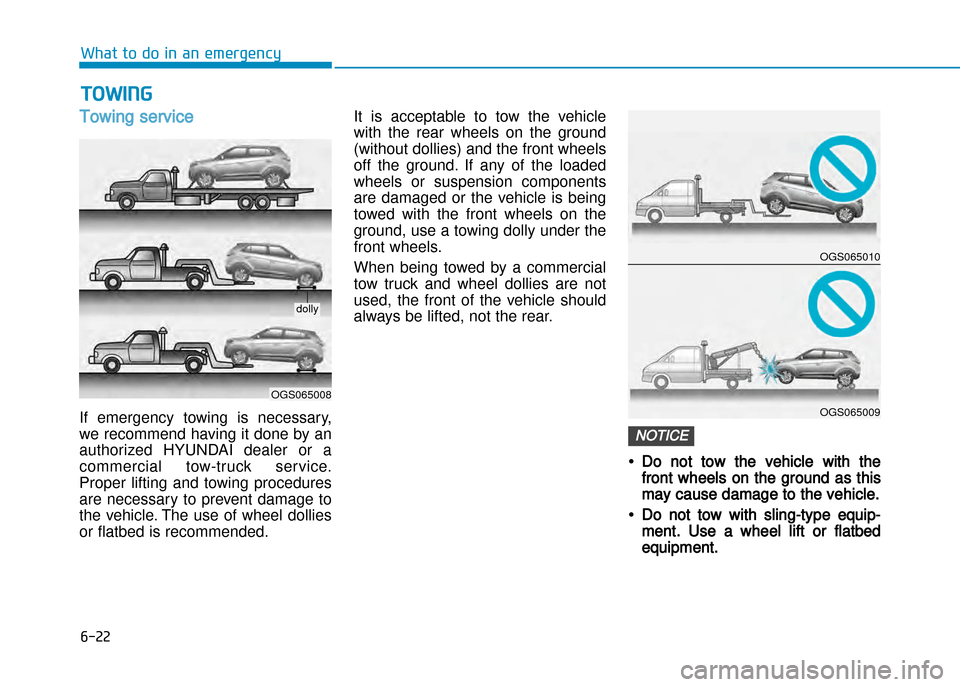

If emergency towing is necessary,
we recommend having it done by an
authorized HYUNDAI dealer or a
commercial towtruck ser vice.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies
or flatbed is recommended. It is acceptable to tow the vehicle
with the rear wheels on the ground
(without dollies) and the front wheels
off the ground. If any of the loaded
wheels or suspension components
are damaged or the vehicle is being
towed with the front wheels on the
ground, use a towing dolly under the
front wheels.
When being towed by a commercial
tow truck and wheel dollies are not
used, the front of the vehicle should
always be lifted, not the rear.
•Do not tow the vehicle with the
front wheels on the ground as this
may cause damage to the vehicle.
•Do not tow with slingtype equip
ment. Use a wheel lift or flatbed
equipment.
NOTICE
TOWING
OGS065008
OGS065010
OGS065009
dolly
