6 DO-IT-YOURSELF MAINTENANCE
2
6
7
8 9 10 11 12 13
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir
5. Clutch fluid reservoir (If installed) 6. Windshield washer fluid reservoir
cap
7. Engine coolant reservoir
8. Engine oil level dipstick
9. Radiator cap 10.Automatic transaxle fluid level
dipstick (If installed)
11.Air cleaner filter
12.Battery
13.Relay box G010B01E
G010B01E-GAT (1.6 DOHC)
CAUTION:
When inspecting or servic-
ing the engine, you should handle tools and other heavy objects carefully so that the plastic cover of theengine is not damaged.
!
ENGINE COMPARTMENT
1 2345

6
DO-IT-YOURSELF MAINTENANCE
3
G010C01E-GAT
(1.8 DOHC)
G010D01E
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir
5. Clutch fluid reservoir (If installed) 6. Windshield washer fluid reservoir
cap
7. Engine coolant reservoir
8. Engine oil level dipstick
9. Radiator cap 10.Automatic transaxle fluid level
dipstick (If installed)
11.Air cleaner filter
12.Battery
13.Relay box CAUTION:
When inspecting or servic-ing the engine, you shouldhandle tools and other heavy objects carefully so that the plastic cover of theengine is not damaged.
!
12 3
45
6 7 8 9 10 11 12 13

6 DO-IT-YOURSELF MAINTENANCE
4
1
2 34
5
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir
5. Clutch fluid reservoir (If installed) 6. Windshield washer fluid reservoir
cap
7. Engine coolant reservoir
8. Engine oil level dipstick
9. Radiator cap 10.Automatic transaxle fluid level dip-
stick (If installed)
11.Air cleaner filter
12.Battery
13.Relay box G010C02E
G010A01E-GAT (2.0 DOHC)
CAUTION:
When inspecting or servic-
ing the engine, you should handle tools and otherheavy objects carefully so that the plastic cover of the engine is not damaged.
!
6 7 8 9 10 11 12 13

6
DO-IT-YOURSELF MAINTENANCE
5
6 7 8 9 10 11 12 13 1
2 3
4 5
G010A02E
G010F01E-GAT
(2.0 DOHC CVVT)
CAUTION:
When inspecting or servic- ing the engine, you shouldhandle tools and other heavy objects carefully so that the plastic cover of theengine is not damaged.
!
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir
5. Clutch fluid reservoir (If installed) 6. Windshield washer fluid reservoir
cap
7. Engine coolant reservoir
8. Engine oil level dipstick
9. Radiator cap 10.Automatic transaxle fluid level dip-
stick (If installed)
11.Air cleaner filter
12.Battery
13.Relay box

6 DO-IT-YOURSELF MAINTENANCE
6
7 9 10 11
81
2
1. Radiator cap
2. Engine oil filler cap
3. Brake booster
4. Brake fluid reservoir 5. Fuel filter
6. Clutch fluid reservoir
7. Windshield washer fluid reservoir
8. Power steering fluid reservoir
9. Engine oil level dipstick
10.Air cleaner filter
11.Battery 12.Relay boxG010E01E
G010E01E-GAT
(DIESEL)
1 23
456
CAUTION:
When inspecting or servic-
ing the engine, you should handle tools and otherheavy objects carefully so that the plastic cover of the engine is not damaged.
!

6
DO-IT-YOURSELF MAINTENANCE
7GENERAL CHECKS
G020A02A-AAT
Engine Compartment
The following should be checked regu- larly:
o Engine oil level and condition
o Transaxle fluid level and condition
o Brake fluid level
o Clutch fluid level
o Engine coolant level
o Windshield washer fluid level
o Accessory drive belt condition
o Engine coolant hose condition
o Fluid leaks (on or below components)
o Power steering fluid level
o Battery condition
o Air filter condition o Defroster, heating system opera-
tion (and air conditioning, if in- stalled)
o Steering operation and condition
o Mirror condition and operation
o Turn signal operation
o Accelerator pedal operation
o Brake operation, including parking brake
o Manual transaxle operation, includ-
ing clutch operation
o Automatic transaxle operation, in- cluding "PARK" mechanism opera-tion
o Seat control condition and opera-
tion
o Seat belt condition and operation
o Sunvisor operation If you notice anything that does not operate correctly or appears to be functioning incorrectly, inspect it care- fully and seek assistance from yourHyundai dealer if service is needed.
G020B01A-AAT
Vehicle Exterior
The following should be checked
monthly:
o Overall appearance and condition
o Wheel condition and wheel nut
torque
o Exhaust system condition
o Light condition and operation
o Windshield glass condition
o Wiper blade condition
o Paint condition and body corrosion
o Fluid leaks
o Door and hood lock condition
o Tire pressure and condition (including spare tire)
G020C01A-AAT
Vehicle Interior
The following should be checked each
time when the vehicle is driven:
o Lights operation
o Windshield wiper operation
o Horn operation

6 DO-IT-YOURSELF MAINTENANCE
8CHECKING THE ENGINE OIL
G030B02FC-GAT
Recommended Oil Diesel Engine
G030B01A
Engine oil is essential to the perfor-
mance and service of the engine. It is suggested that you check the oil level every 500km or before starting a longtrip and more often if you are driving in severe conditions.
The engine oil quality should meet
the following classification:
API class: CF-4 or ABOVE ACEA class: B4 or ABOVE
G030A02O-GAT
Recommended Oil Gasoline Engine Engine oil is essential to the perfor- mance and service of the engine. It is suggested that you check the oil level at least once a week in normal use andmore often if you are on a trip or driving in severe conditions. The engine oil quality should meet the following classification. API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE G030B01JMNOTE:
o For good fuel economy, SAE 5W- 20 (5W-30), ILSAC GF-3 engine oilis preferred regardless of regional option and engine variation.
o If SAE 5W-20, ILSAC GF-3 engine oil is not available, secondaryrecommended engine oil for cor- responding temperature rangecan be used.

6
DO-IT-YOURSELF MAINTENANCE
9
G030C02JM-GAT

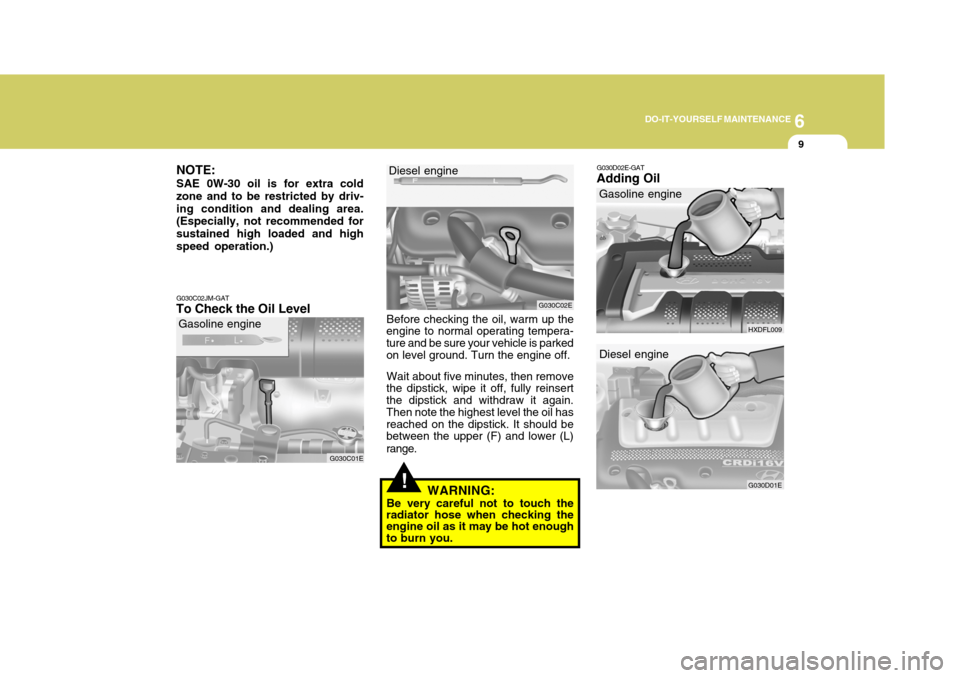

To Check the Oil Level
G030C01E
NOTE: SAE 0W-30 oil is for extra cold zone and to be restricted by driv-ing condition and dealing area. (Especially, not recommended for sustained high loaded and highspeed operation.)
Gasoline engine G030C02E
Diesel engine
G030D02E-GAT
Adding Oil
HXDFL009 G030D01E
Gasoline engine
Diesel engine
!
Before checking the oil, warm up the
engine to normal operating tempera- ture and be sure your vehicle is parked on level ground. Turn the engine off.
Wait about five minutes, then remove
the dipstick, wipe it off, fully reinsert the dipstick and withdraw it again. Then note the highest level the oil has reached on the dipstick. It should be between the upper (F) and lower (L) range.
WARNING:
Be very careful not to touch the
radiator hose when checking the engine oil as it may be hot enough to burn you.

6 DO-IT-YOURSELF MAINTENANCE
10
G350A01A-GAT
ENGINE OIL CONSUMPTION Function of Engine Oil
Engine oil has the primary function of
lubricating and cooling the inside of the engine. Engine oil consumption
It is normal that an engine should
consume some engine oil while nor- mal driving. The cause of oil con- sumption in a normal engine are asfollows;
o Engine oil is used to lubricate pis- tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated dur-ing engine operation sucks some of the oil into the combustion cham- ber.This oil with some oil of the cylin-der wall is burned by the high tem-perature combustion gases during the combustion process. o The engine oil consumption is
strongly effected by the viscosity and quality of oil, engine rpm and driving condition etc. The engine oil is more consumed under severedriving conditions such as high speeds and frequent acceleration and deceleration than normal driv-ing condition.
If the oil level is close to or below the"L" mark, add oil until it reaches the"F" mark. To add oil:
1. Remove the oil filler cap by turning
it counter-clockwise.
2. Add oil, then check the level again. Do not overfill.
3. Replace the cap by turning it clock- wise.
The distance between the "F" and "L" marks is equal to about 1 liter(Gasoline Engine)/1.6 liter(Diesel Engine) of oil.
!
! CAUTION:
Slowly pour the recommended oil into a funnel. Do not overfill not todamage engine.
WARNING:
Be very careful not to touch theradiator hose when adding the en-gine oil as it may be hot enough to burn you.

6
DO-IT-YOURSELF MAINTENANCE
11CHANGING THE OIL AND FILTER
!
G040A04FC-GAT
Gasoline Engine
G040A03EThe engine oil and filter should be
changed at those intervals specified in the maintenance schedule in Sec- tion 5. If the vehicle is being driven in severe conditions, more frequent oiland filter changes are required.
The procedure for changing the oil
and filter is as follows:
1. Park the vehicle on level ground
and set the parking brake. Start the engine and let it warm up until the needle on the coolant temperature gauge moves above the lowestmark. Turn the engine off and place the gear selector lever in "P" (auto- matic) or reverse gear (manualtransaxle).
2. Open the hood and remove the engine oil filler cap.
3. Slide underneath the car and loosen
the drain plug by turning it counter-clockwise with a wrench of the proper size. Be sure that a drain pan is in position to catch the oil asit drains out, then remove the drain plug. WARNING:
Be very careful when draining the engine oil as it may be hot enough to burn you!
4. When the oil has stopped draining, replace the drain plug using a new gasket and retighten by turning it clockwise.
Drain plug tightening torque:
Oil filler cap
Drain plug
Oil filter
1.6 DOHC 1.8/2.0 DOHC 4.0 ~ 4.5 3.5 ~ 4.5
E.CExcept E.C
4.0 ~ 4.5
5. Remove the oil filter. You should be able to unscrew the filter with your hands. (If your hands are slip- pery, try to use a cloth between your hands and the filter to giveyourself a better grip.) A certain amount of oil will come out when you remove the filter, so be sure tohave your drain pan in place un- derneath it. kgf.m
F040A02TB
Oil filler cap
Drain plug
Oil filter
1.8/2.0 DOHC 1.6 DOHC
